Description

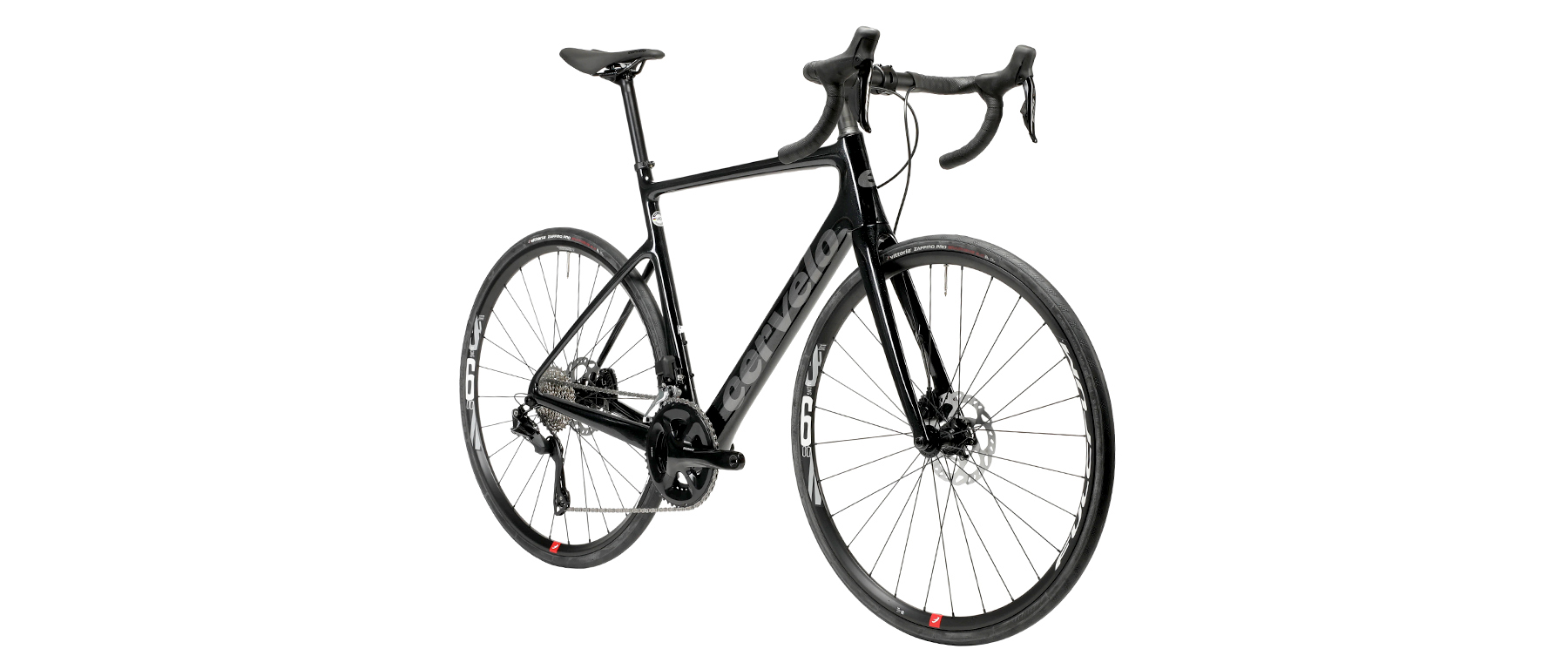

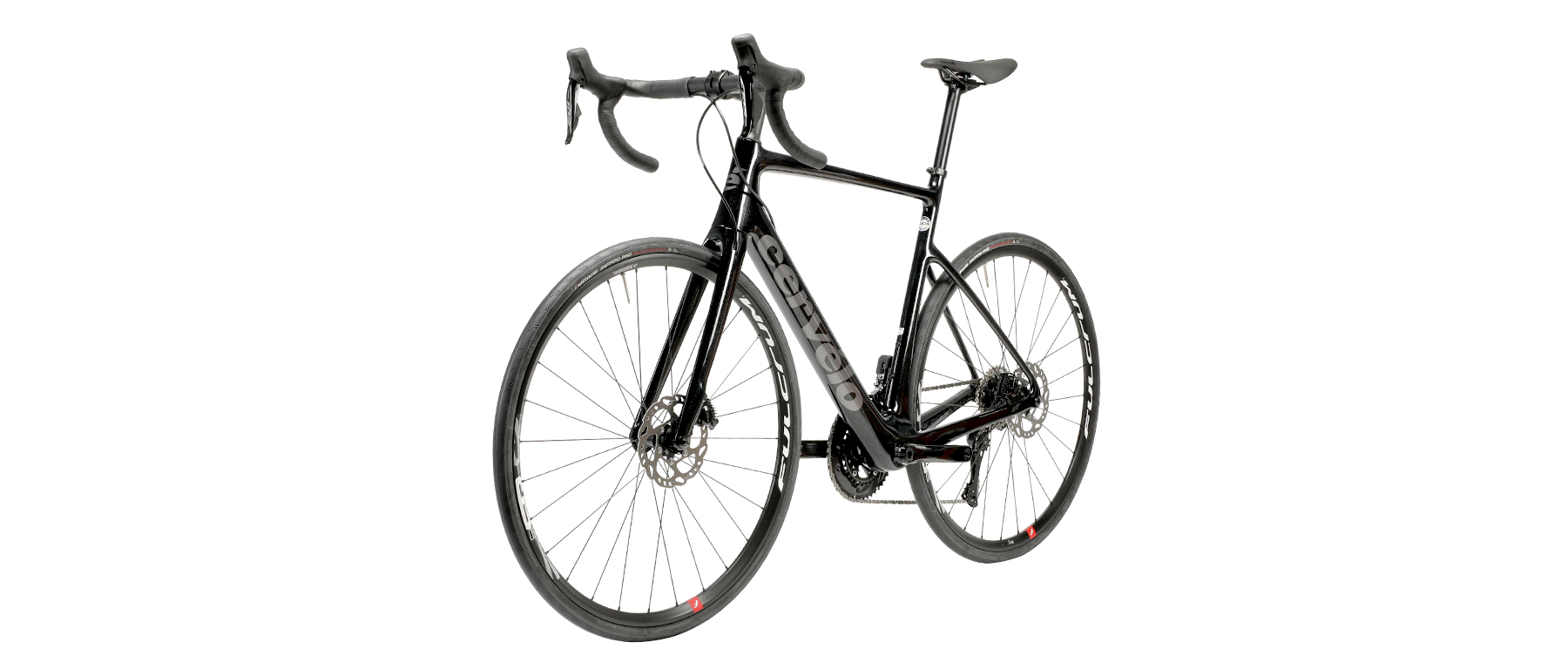

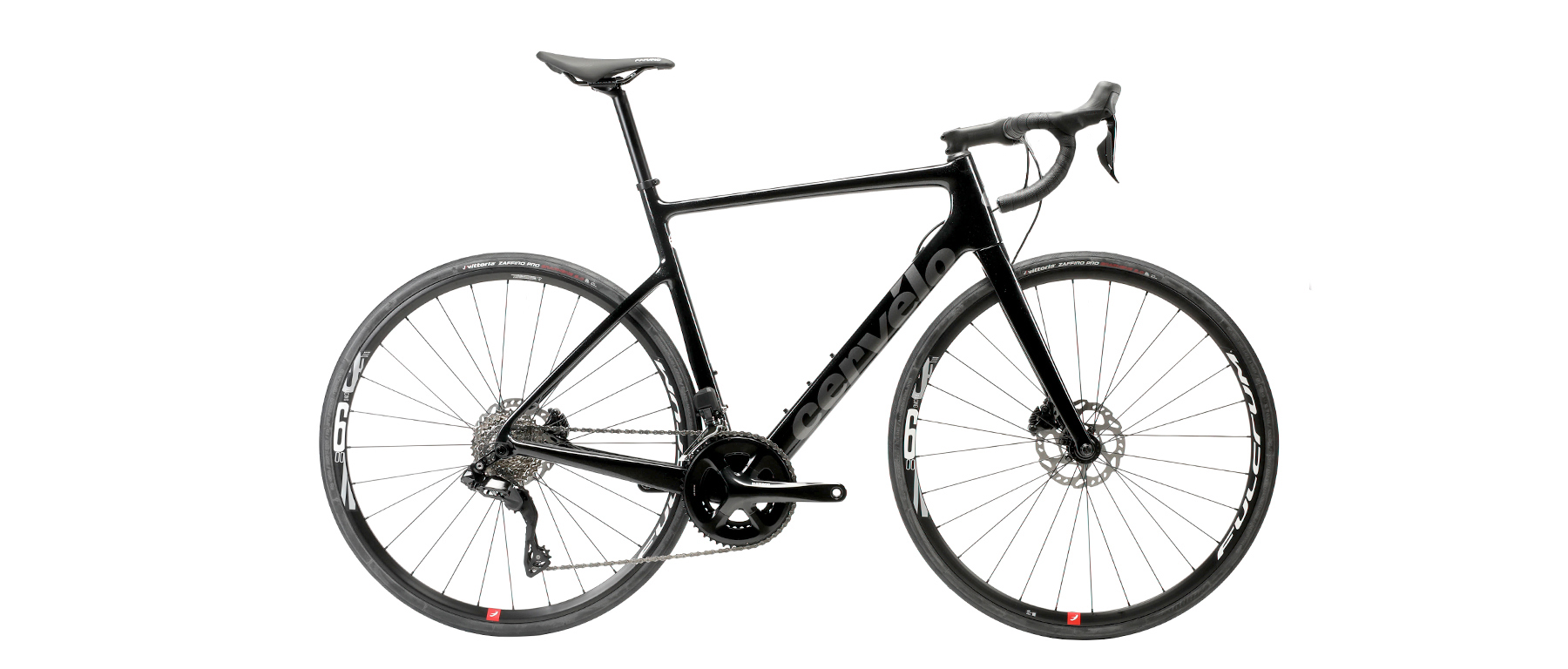

Modern road riding rarely stays on pristine pavement. The Caledonia emerged from Cervélo's internal group rides where routes wandered onto questionable surfaces, and the best path forward often meant taking whichever road looked most interesting. This endurance platform combines race-derived geometry with the tire clearance and compliance needed when the road deteriorates. The carbon frame accepts tires up to 34mm without fenders, or 31mm with fenders installed, extending the definition of where a road bike can comfortably travel while maintaining the responsive character expected from a performance-oriented machine.
Frame geometry strikes a balance between the low, aggressive positioning of a pure race bike and the taller stack heights typical of dedicated endurance machines. The result handles with precision during fast group rides while reducing strain over multi-hour efforts. Stack measurements range from 505mm on the smallest frame to 630mm on the largest, with reach figures that keep the cockpit compact enough for responsive handling. A tapered carbon fork maintains steering accuracy and stiffness at the front end, with size-specific rake values that optimize trail across the size range for consistent handling characteristics regardless of frame size.
Integrated accessory mounts throughout the frame allow clean attachment of lights, computers, and fenders without compromising aerodynamics or requiring clamp-on solutions that can slip or scratch the finish. The removable front derailleur mount demonstrates Cervélo's practical approach to component standards. Two countersunk screws secure the aluminum alloy mount, allowing replacement if damaged or complete removal for riders converting to a 1x drivetrain configuration. This modularity extends the frame's useful life as component standards evolve and personal preferences change.... Read More
Features
- Carbon frame with tapered head tube and internal cable routing
- All-carbon tapered Caledonia fork with flat-mount disc tabs
- FSA IS2 integrated headset, 1-1/8 to 1-1/2 inch tapered

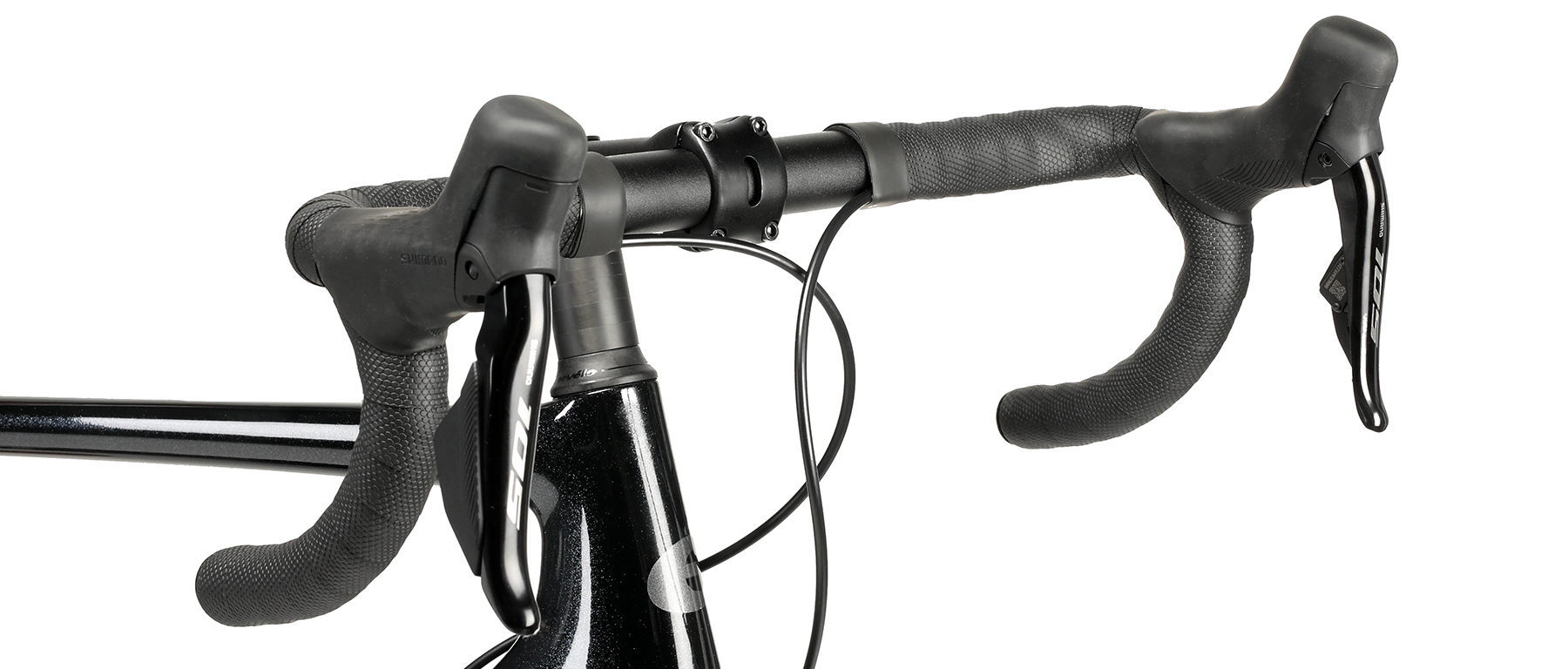

- Shimano 105 Di2 R7170 12-speed semi-wireless electronic groupset

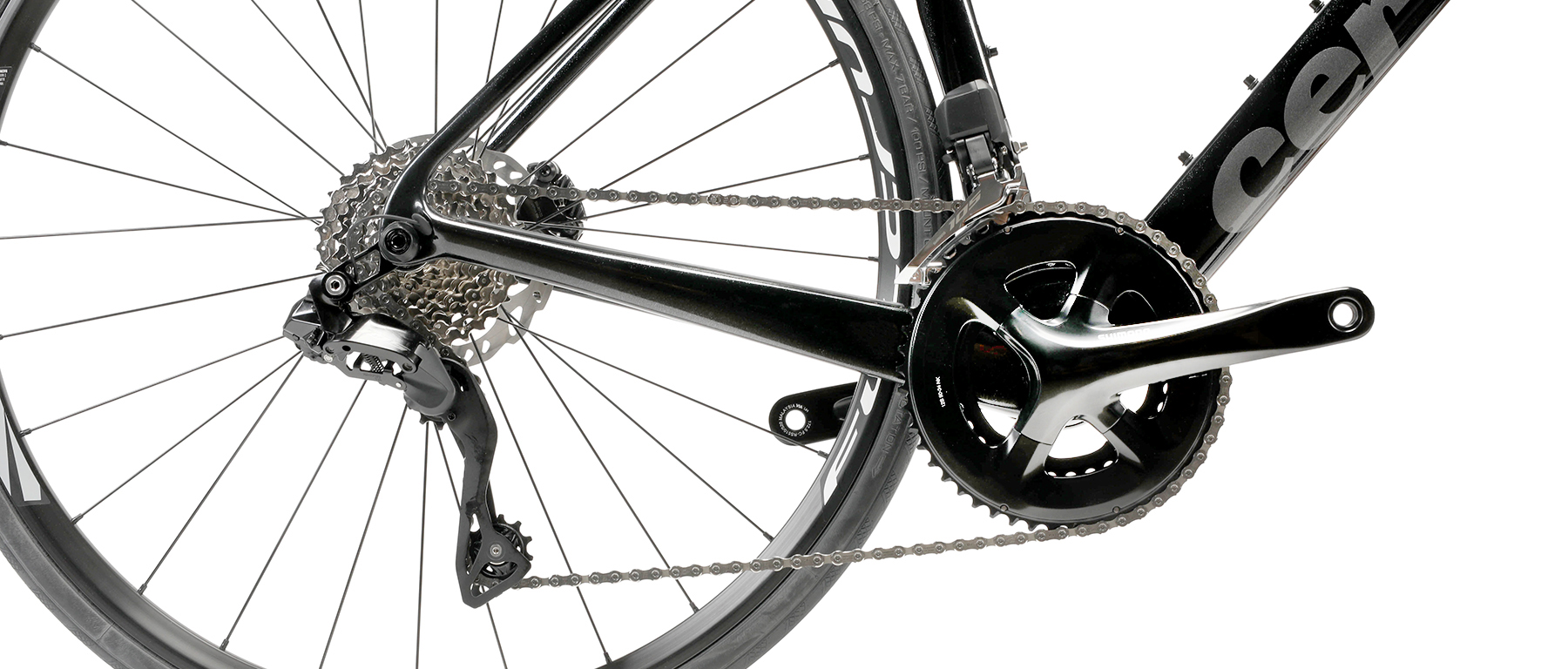

- FC-RS520 crankset with 50/34t chainrings, 11-34t cassette

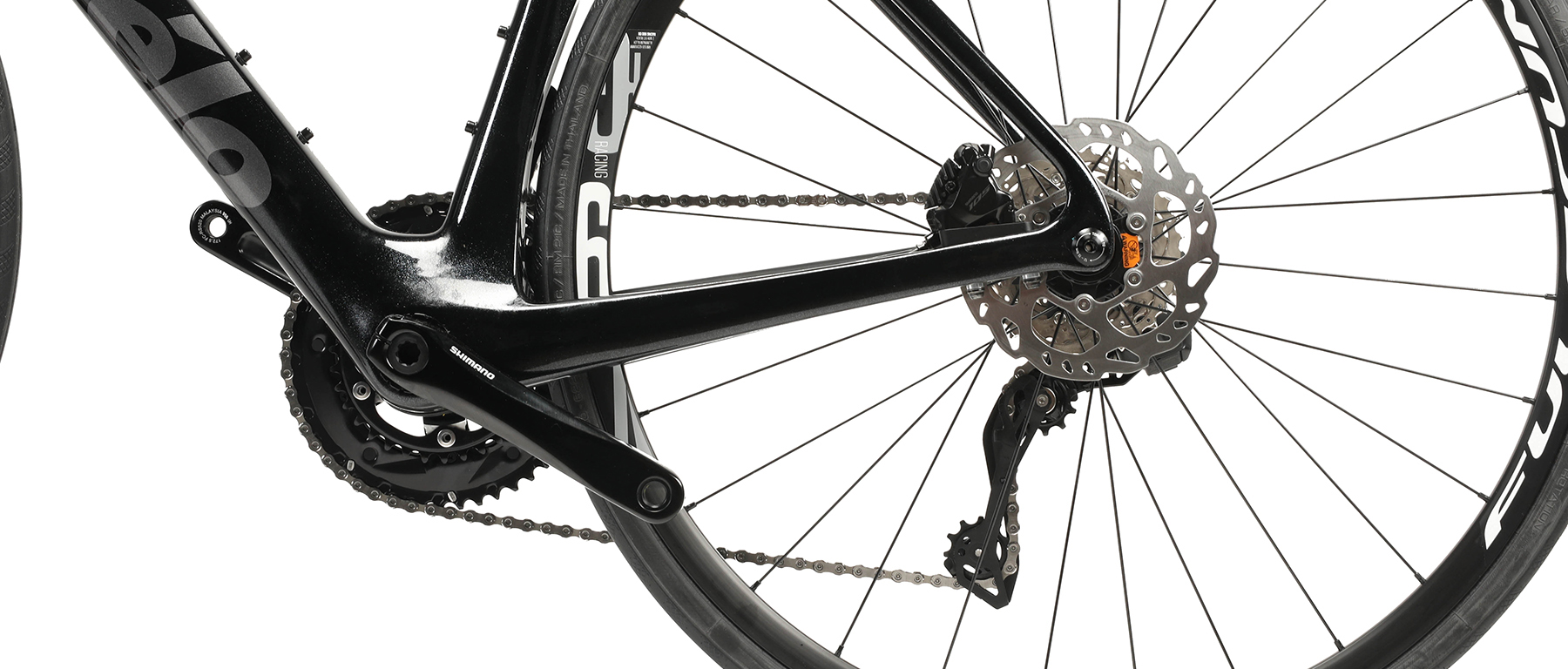

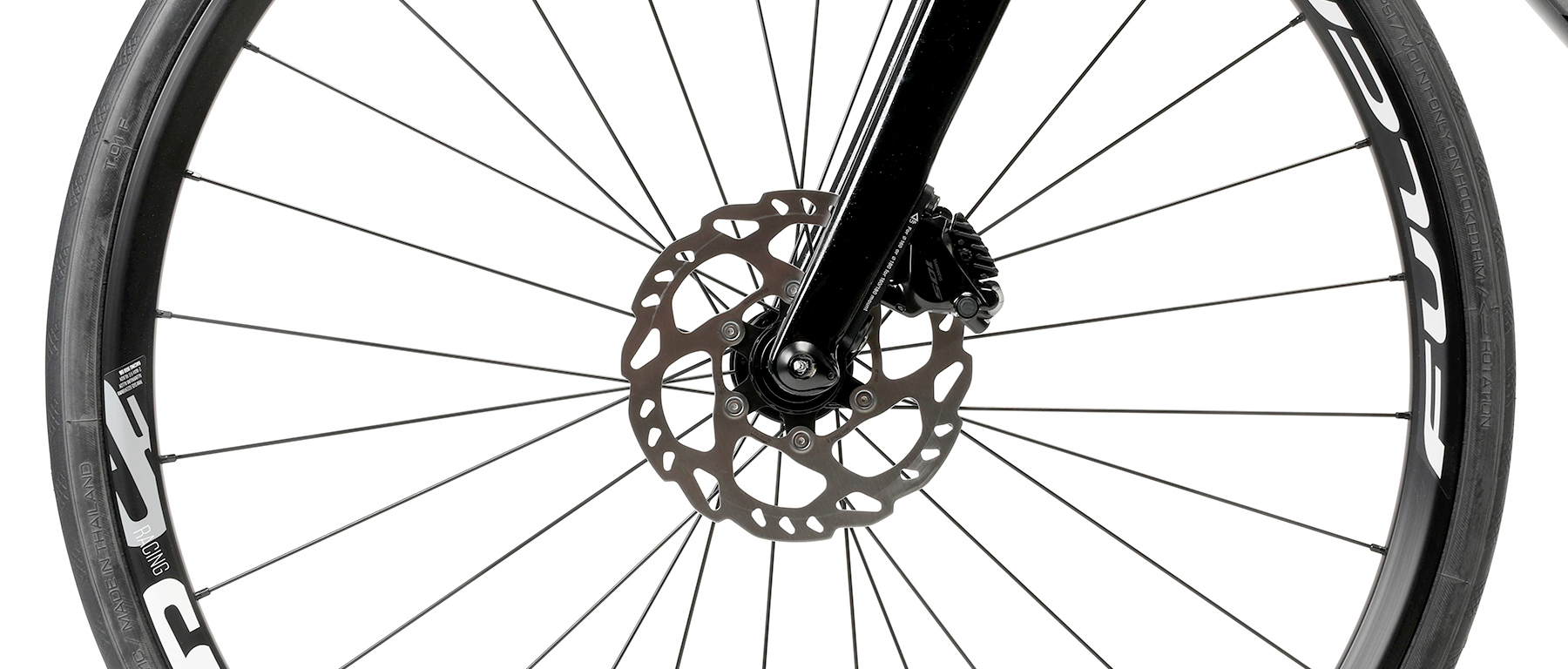

- Shimano 105 hydraulic disc brakes with RT70 center-lock rotors
- Fulcrum Racing 900 DB alloy wheelset, 19mm internal width, tubeless-compatible
- Vittoria Zaffiro Pro 700x30c tires
- 34mm maximum tire clearance, 31mm with fenders
- Removable aluminum front derailleur mount for 1x conversion
- Integrated mounts for fenders, lights, and computer

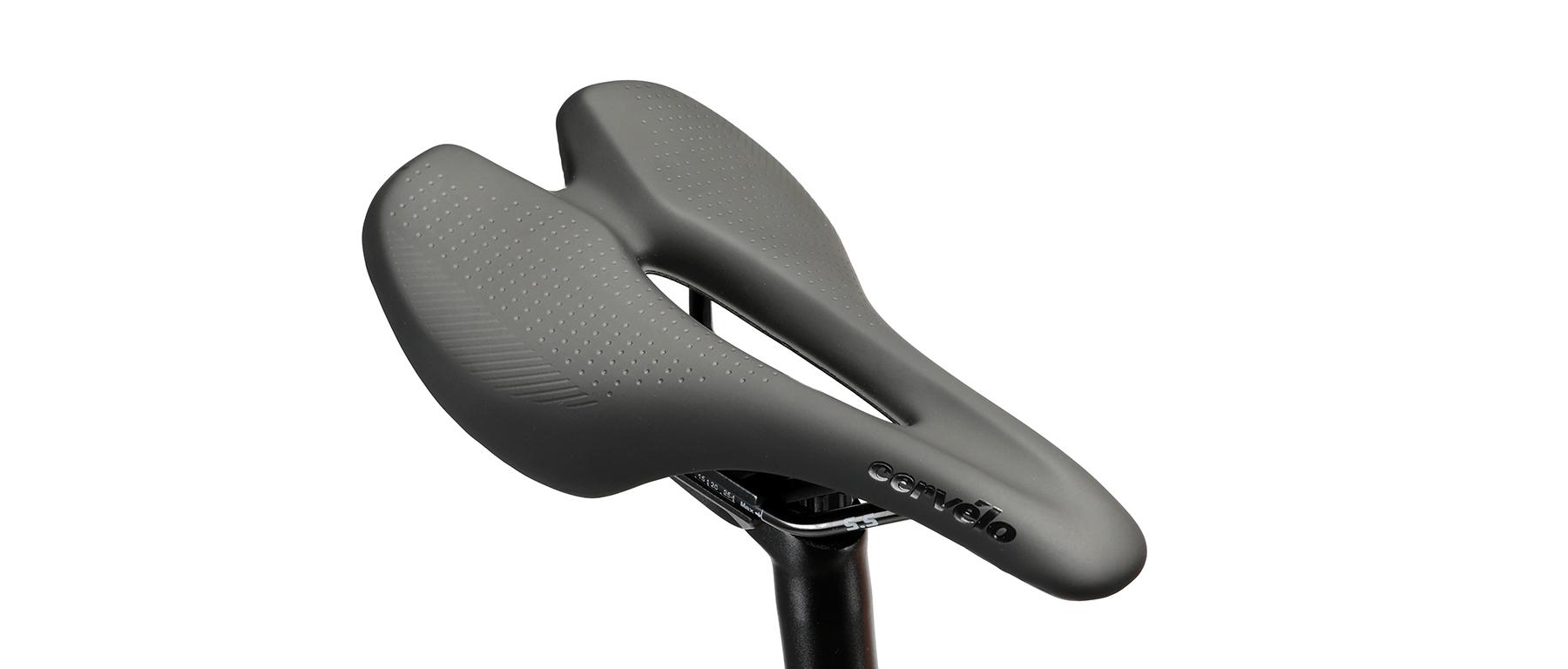

- Cervélo alloy seatpost with Cervélo road saddle
- 12x100mm front, 12x142mm rear thru-axles
- 19.18 lbs (size 54)
Geometry
| Size | Stack | Reach | Top Tube | Head Tube | Head Angle | Seat Angle | Chainstay | Wheelbase |
|---|---|---|---|---|---|---|---|---|
| 48 | 505mm | 360mm | 502mm | 89.5mm | 70.5° | 74.5° | 415mm | 982mm |
| 51 | 530mm | 369mm | 522mm | 109.9mm | 71.5° | 74° | 415mm | 985mm |
| 54 | 555mm | 378mm | 543mm | 136mm | 72° | 73.5° | 415mm | 995mm |
| 56 | 580mm | 387mm | 565mm | 162.3mm | 72° | 73° | 415mm | 1012mm |
| 58 | 605mm | 396mm | 581mm | 191.2mm | 72° | 73° | 415mm | 1031mm |
| 61 | 630mm | 405mm | 598mm | 217.5mm | 72° | 73° | 415mm | 1048mm |
