Pinarello Dogma F Disk Red AXS Bicycle

When you have created a frame design that delivers not only incredible efficiency in lab and wind tunnel tests, but also regularly carries top riders to podiums throughout the road race calendar, any improvements are refinements developed through even more advanced analysis and real world testing. The Pinarello Dogma F12 frameset set new benchmarks, but the engineers never stopped trying to improve it. If there has been consistent criticism of the Dogma frames, it is that they are a little heavier than the competition. Pinarello has ling stated that weight is less an issue than the balance of aero efficiency, maximized power transfer, superior handling, and a more forgiving ride- but when faced with the excellence of the Dogma F12, it became clear that by assessing the whole assembly of the integrated cockpit and frameset, the overall set-up could be made lighter as well. By focusing on the seatpost, handlebars, and fork, as well as the frame itself, they were able to make the entire frame system 9% lighter than the F12 Disk, so enter the Dogma F Disk, no number required. As built here with a wireless SRAM Red AXS HRD groupset, lightweight Fulcrum wheelset, and the integrated frame kit dictated cockpit system, the Dogma F is equipped to dominate.

As a system, the Pinarello Dogma F Disk saves upwards of 265 grams compared to the DOGMA F12 Disc, while also being 12% stiffer around the bottom bracket. Reducing weight equals watts saved, but what is so incredible is that the frame system weighs so little without compromising the exceptional aerodynamics, handling, or ride quality. In fact, the Dogma F Disk has a lower drag than the Dogma F rim brake frame- a first for Pinarello. A lot of the disc brake aero advantage comes with the development of the new Onda fork for the Dogma F. The forks profile and cross sections improve how the fork legs and front wheel work together, aerodynamically speaking, in order to smooth the air over the leading edge of the bike. Add in the Flatback aero shape design with it's truncated aerofoil for aerodynamic advantage, that is compliant to the 3:1 UCI rule, and you have excellent aero performance and low lateral wind resistance.

The highest quality materials available have always been applied to the Dogma-series framesets, and like the F10 and F12, the F Disk features the superlative properties of Torayca's T1100 1K Dream Carbon with Nanoalloy Technology. By refining the frame shapes and designs in the computer and wind tunnel, some weight directly came off the frame itself, while making several marginal aero gains that deliver a 4.8% improvement in aero efficiency over the F12 Disk, delivering a potential 2.6 watts saved at 50 km/hour. Again, a modest but real gain that advances the demonstrated excellence of the F12 Disk. When you factor in the dropout to dropout Asymmetric engineering and design, which has long been proven effective for optimal power transfer, impeccable tracking, incredible handling at speed or while descending, and you have true cycling transcendence.

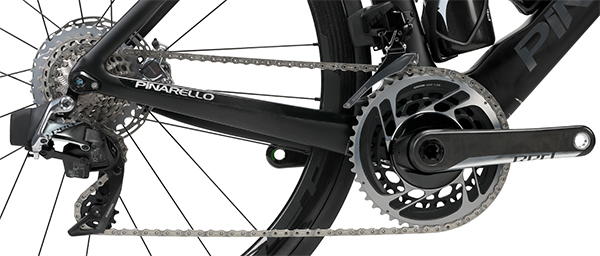

As a complete bike with SRAM's wireless Red AXS 2x12 drivetrain and Red HRD hydraulic disc road brakes, this Dogma F may well be the cleanest, sleekest build available. It is equipped with Fulcrum's Speed Lite 40 Disc, 2-Way Fit wheelset, and the MOst/Pinarello integrated-aero cockpit system, and ready to race, or attack your favorite epic Sunday ride while earning jealous looks from your frenemies as you rocket past on a climb, descent, or flat straightaway.

Features

  • Lighter, faster, smoother, more efficient evolution of the world beating Dogma F-series frameset
  • Supreme level of overall performance while rolling, climbing, descending, sprinting, and attacking
  • Frame: Torayca T1100 1K Dream Carbon with Nanoalloy Technology, TiCR internal routing(electronic only), Italian threaded BB, 12/142mm TA, Flat Mount disc brake standard, TwinForce, Seatclamp system with Ti bolts
  • Fork: Redesigned Pinarello Onda Dogma F with ForkFlap, 12/100mm TA, Flat Mount disc standard
  • Headset: Pinarello drop-in 1 1/2" - 1 1/2" with ultra-light bearings
  • Max tire width: 28mm (as measured on rims)
  • Groupset: SRAM Red AXS HRD 2x12 wireless shifting/hydraulic disc braking
    • Shifter/Brake Levers: Red eTap AXS HRD
    • Brake calipers: Red (2nd gen), 160mm Center Lock XR rotors front/rear
    • Crankset/BB: Red AXS, 46-33T / DUB 70mm Italian threaded BB
    • Front Derailleur: Red eTap AXS braze-on
    • Cassette: Red XG-1290 12s, XDR 10-33T
    • Rear Derailleur: SRAM Red eTap AXS
    • Chain: SRAM Red Flattop 12s
  • Wheelset: Fulcrum Speed Lite 40 Disc, 2-Way Fit (TLR/clincher), 19mm IRW, 26.5 ERW, CL/AFS disc rotor mount
  • Thru-Axles: MOst Ultra Light Custom Axle 12/100 Front, 12/142 Rear, featuring tool free removal
  • Tires: Pirelli PZero Race (127 tpi, Aramid breaker) 700x26mm
  • Cockpit by MOst/Pinarello
    • Handlebar/Stem: MOst Talon Ultra Fast TiCR, integrated bar-stem design with full internal routing
    • Bar tape: MOst UltraGRIP evo; 3mm, BLACK
    • Seatpost: Pinarello Aero Seatpost with 3D-printed titanium seat clamp
    • Saddle: MOstLynx Ultrafast Superflow (Large-145mm width x 245mm length)
  • Includes 2 bottle cages with bottles
  • Sizes: 50, 51.5, 53, 54, 55, 56, 57.5, 59.5 cm
  • Colors: Black on Black, Plutonium Flash, Eruption Red
  • Weight: 15.56 lbs (56cm complete, actual w/cages)
Pinarello Dogma F, F12
Size 46.5cm 50cm 51.5cm 53cm 54cm 55cm 56cm 57.5cm 59.5cm 62cm
Wheel Size 700 700 700 700 700 700 700 700 700 700c
Stack 517.6mm 525.4mm 532.3mm 542.6mm 551.2mm 561.6mm 570.2mm 584.8mm 613.3mm 651.7mm
Reach 364.8mm 372.1mm 378mm 383.3mm 385mm 388.8mm 390.7mm 396.7mm 393.3mm 410.1mm
Head Angle 70.5° 71.4° 72° 72.5° 72.8° 72.8° 73.2° 73.7° 73.4° 73.4°
Seat Angle 74.4° 74° 73.7° 73.7° 73.4° 73.4° 73° 73° 72.4° 72°
Top Tube Length 515mm 525mm 535mm 545mm 550mm 557mm 565mm 575mm 587mm 620mm
Head Tube Length 104mm 109mm 114mm 123mm 131mm 142mm 149.5mm 163mm 199mm 239mm
Fork Offset 43mm 43mm 43mm 43mm 73mm 43mm 43mm 43mm 43mm 43mm
Bottom Bracket Drop 72mm 72mm 72mm 72mm 72mm 72mm 72mm 72mm 67mm 67mm
Chainstay Length 406mm 406mm 406mm 406mm 406mm 408mm 408mm 408mm 408mm 411mm
