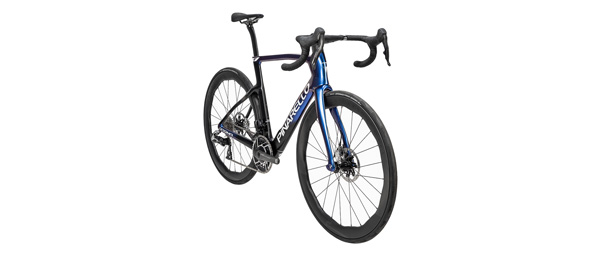

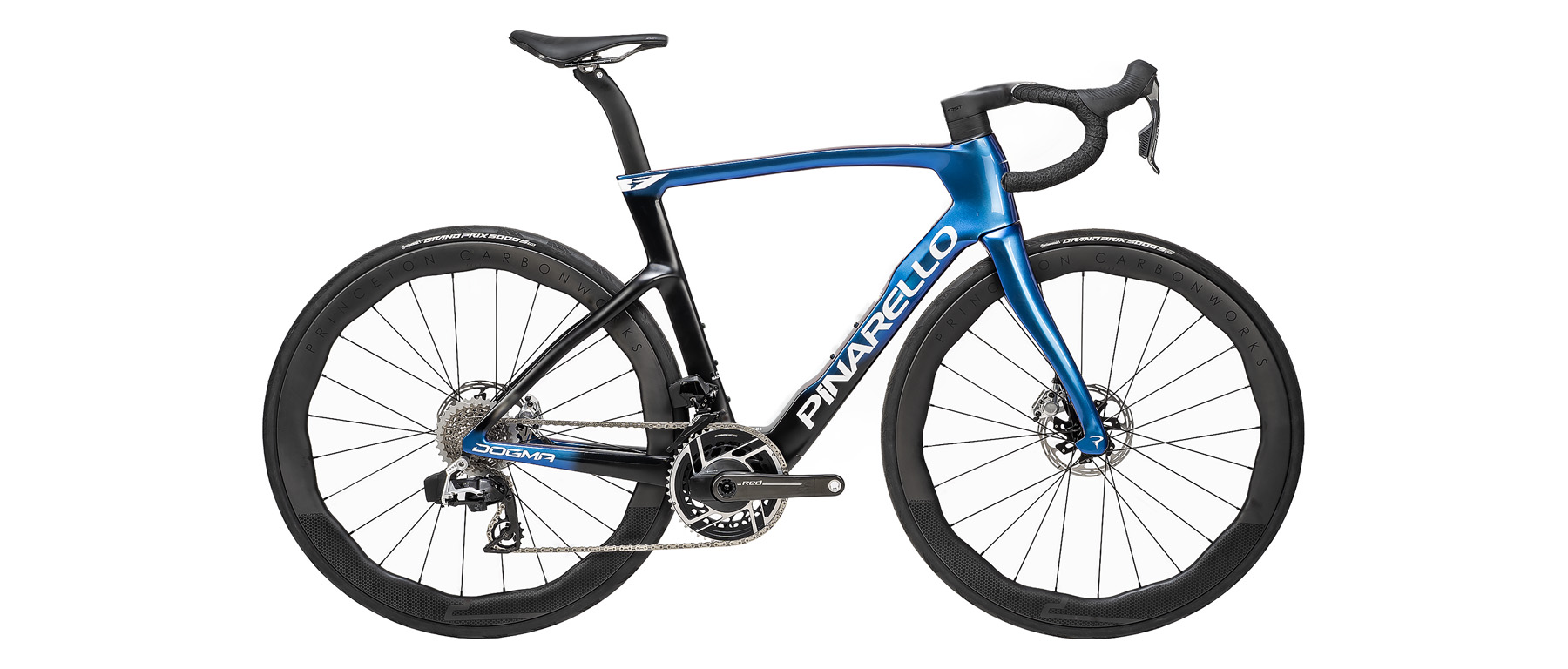

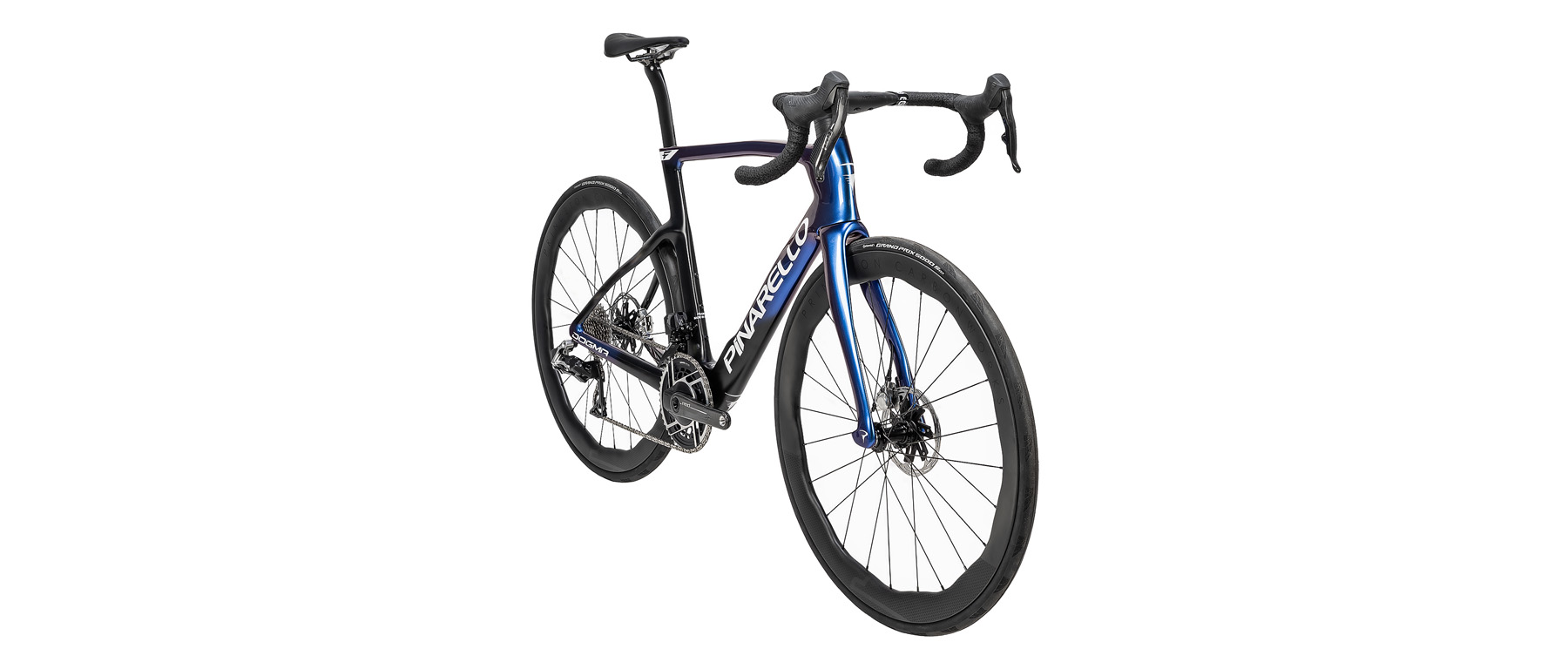

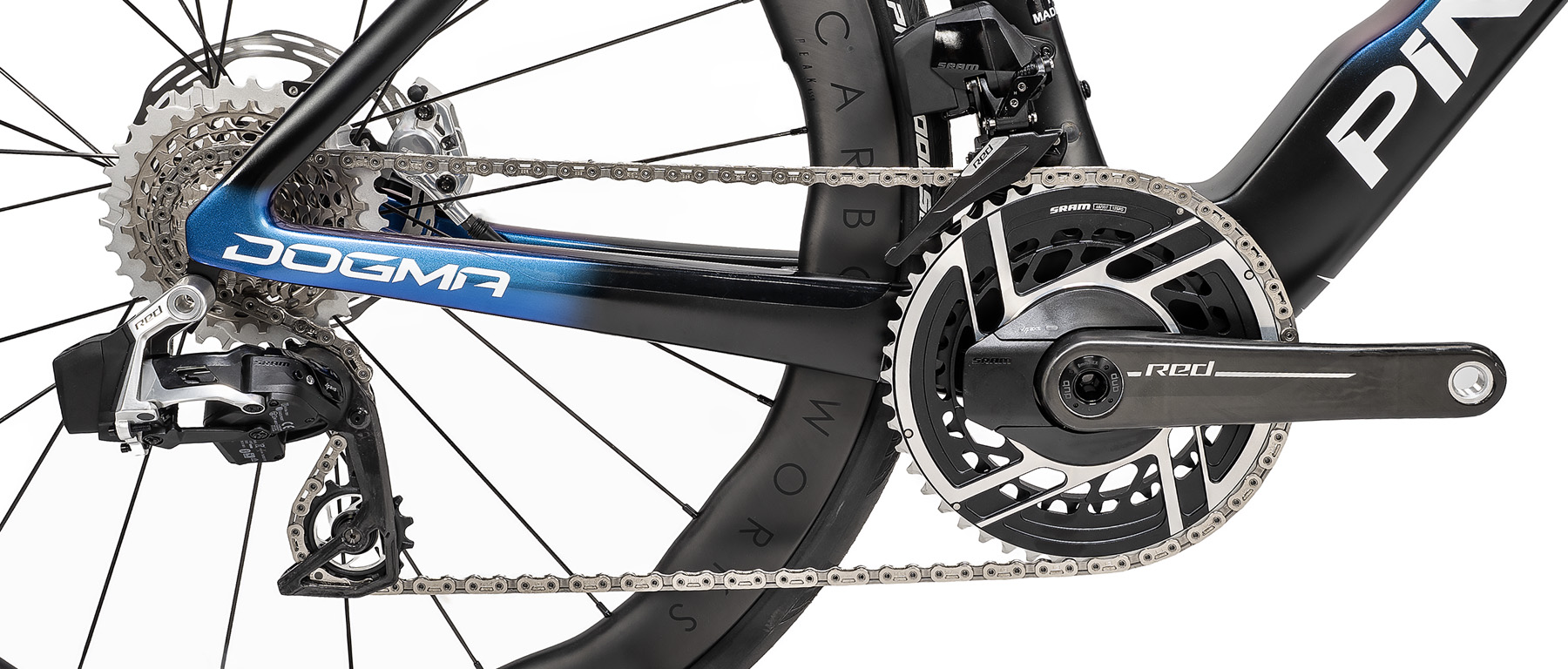

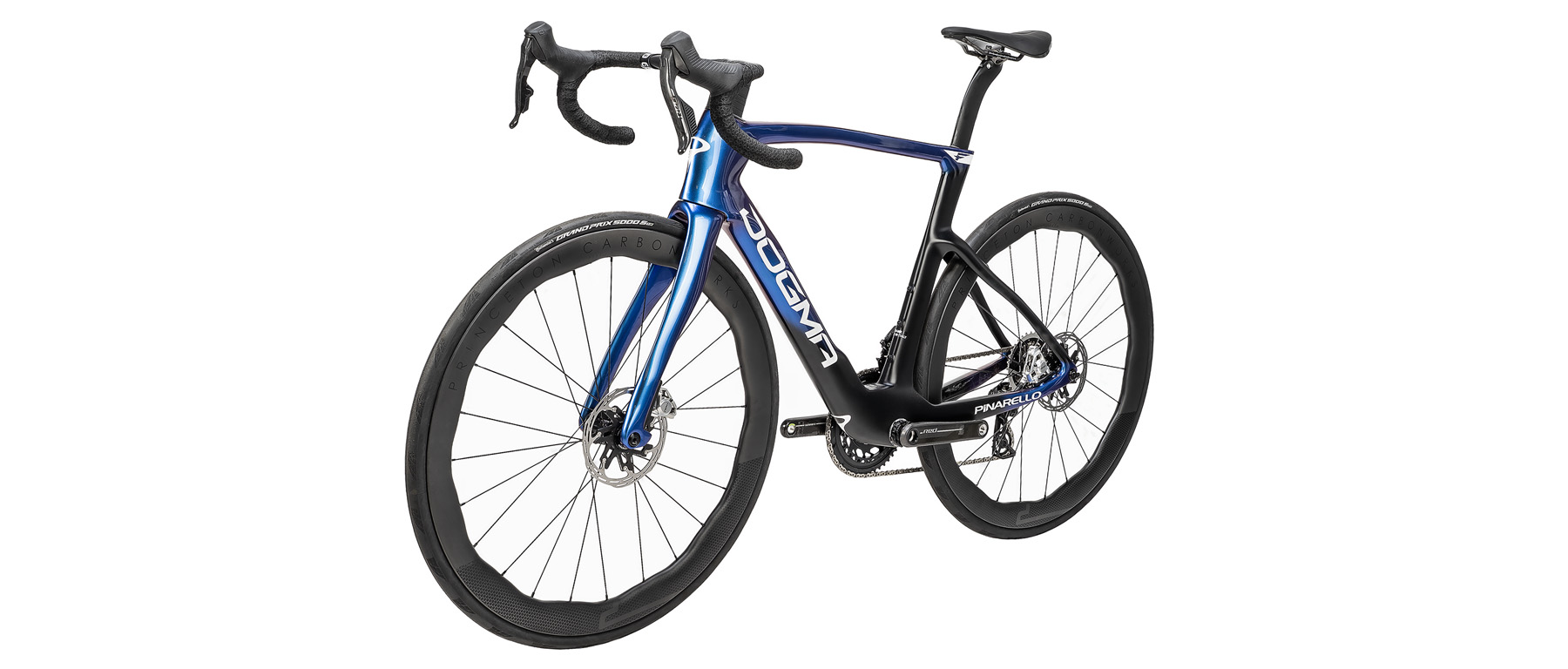

Pinarello designed the 2025 Dogma F around a single premise: one frame for every stage, from flat time gaps to Alpine finales. Rather than splitting its lineup into separate climbing and aero platforms, Pinarello committed to a unified race bike — developed alongside Ineos Grenadiers through CFD simulation and wind tunnel testing — that sheds 108 grams from the frameset system while claiming a 0.2% reduction in CdA across multiple yaw angles. The frame, fork, seatpost, and integrated handlebar all contribute to that weight reduction, and the new Toray M40X carbon layup concentrates a 53 GPa tensile-strength advantage at the bottom bracket junction where lateral stiffness has the most direct effect on power transfer.

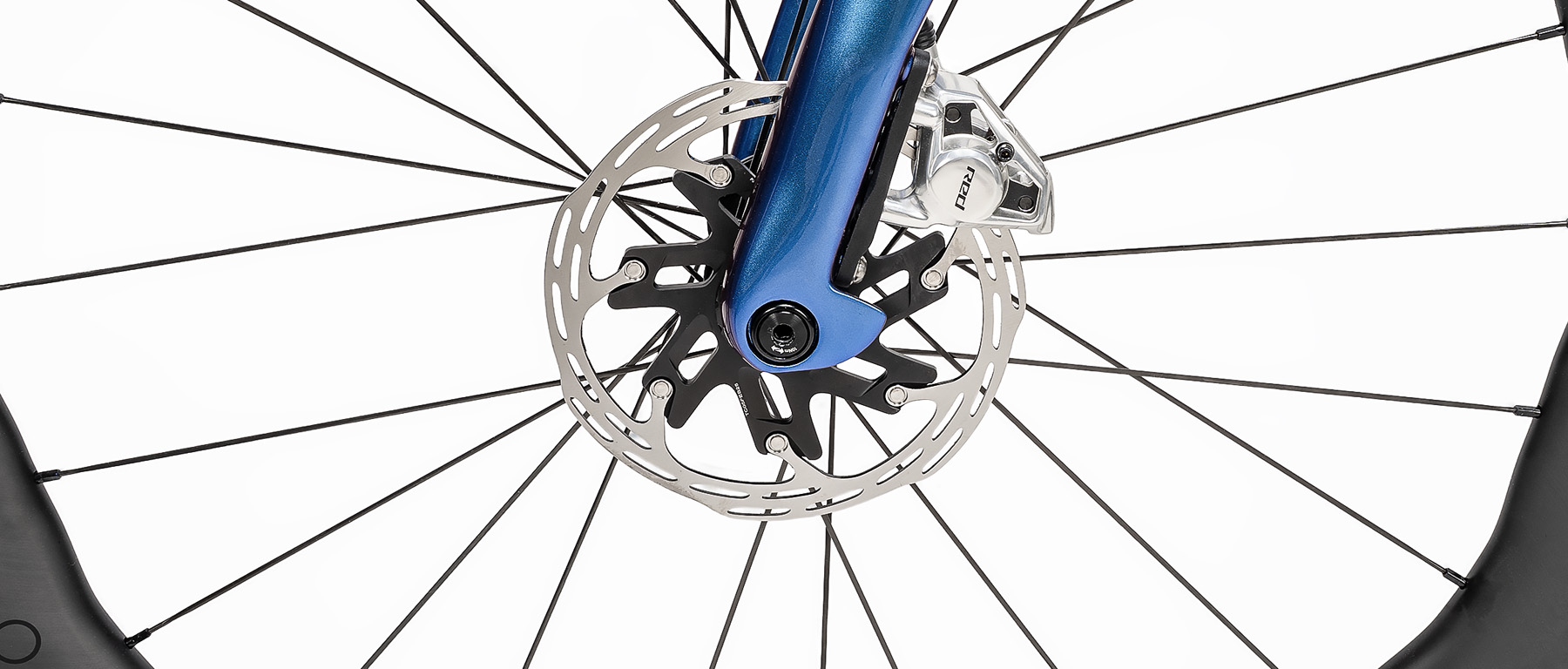

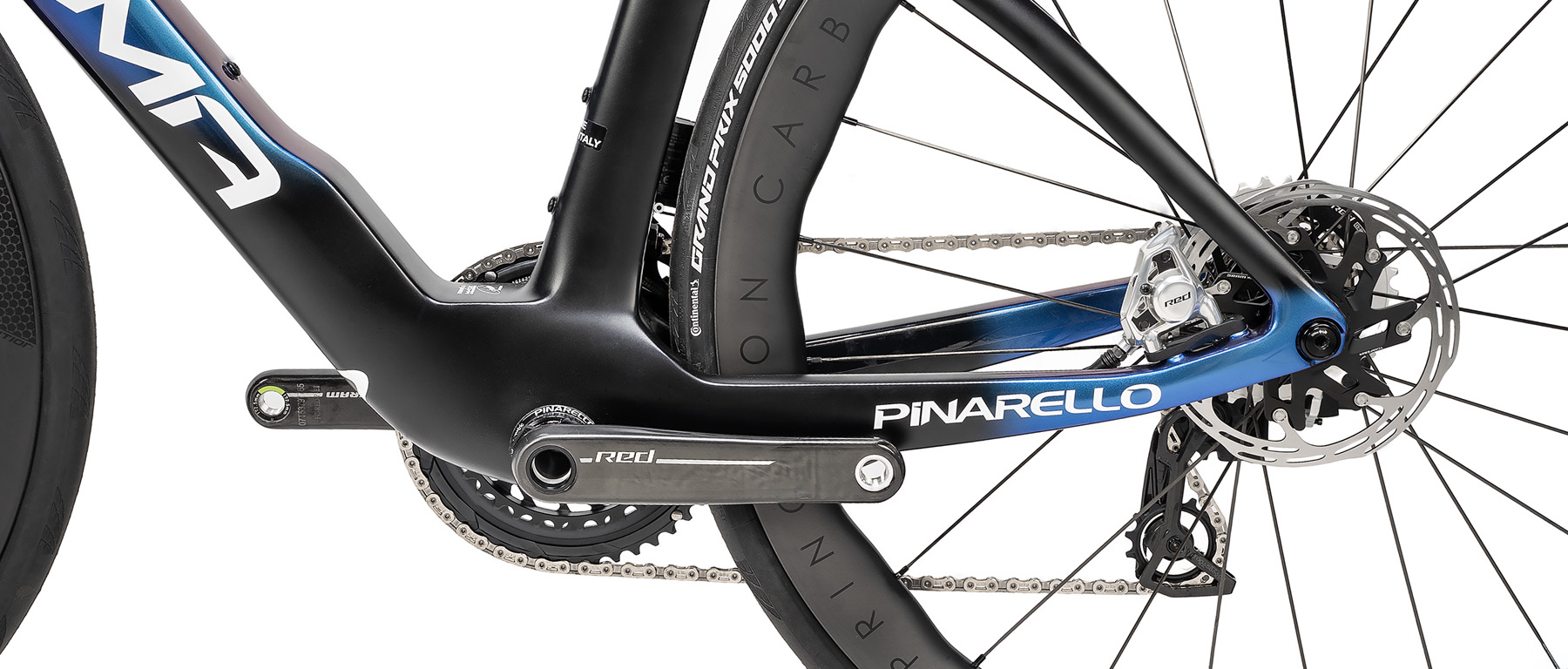

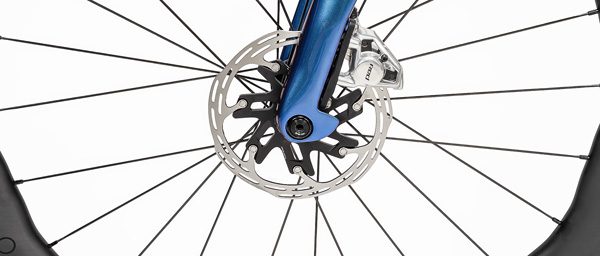

Pinarello reshaped the down tube to reduce frontal thickness and rotated it 3.5 degrees at the bottom bracket, creating the Aero-Keel junction that improves airflow through that area by a claimed 1.2%. The head tube nose is 8mm narrower than before, which required an elliptical steerer tube and a new headset with differentiated bearing diameters — wider at the bottom, narrower at the top. Shorter thru-axles now sit in molded inserts hidden within the dropouts, cleaning up the frame's visual lines while trimming both weight and drag. Tire clearance grows to 30mm measured width, up from 28mm on the outgoing model.

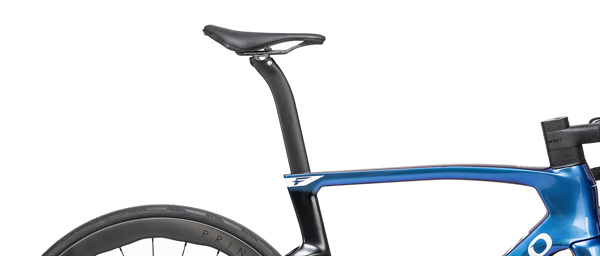

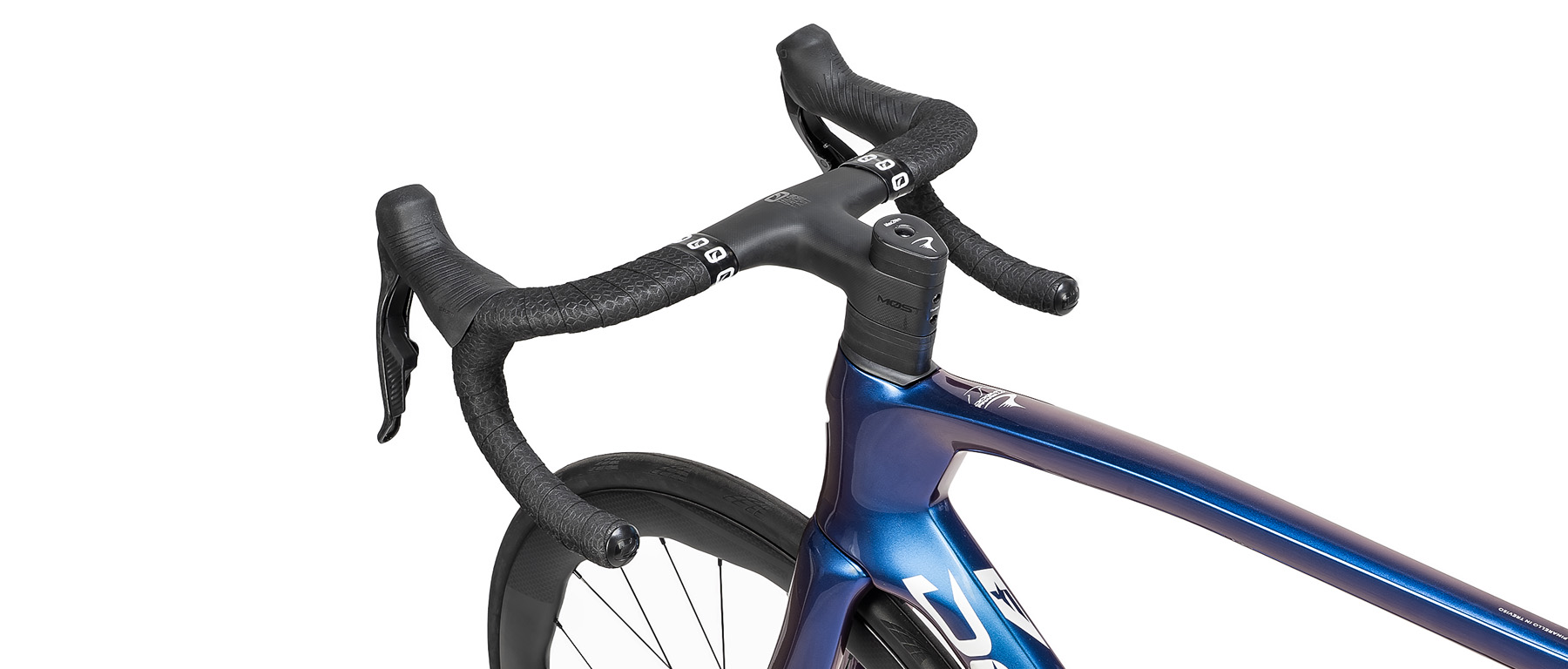

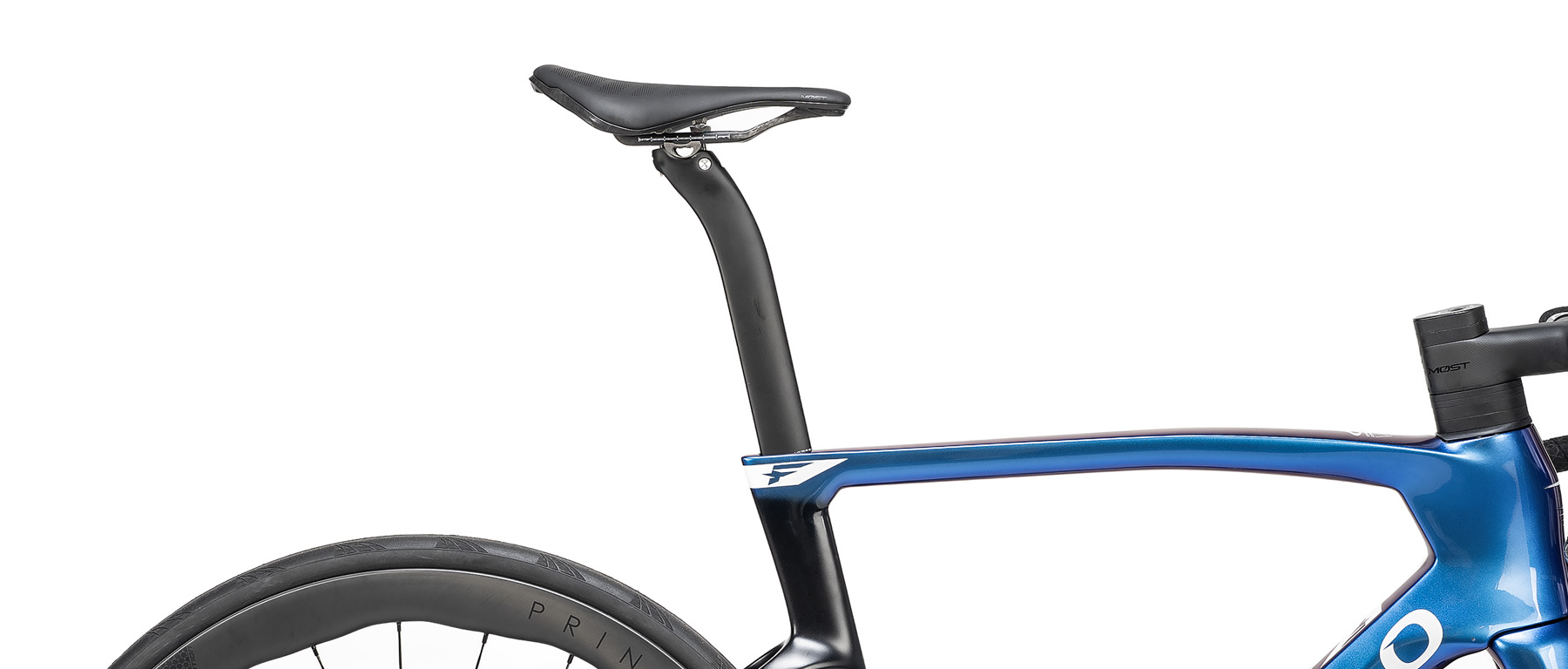

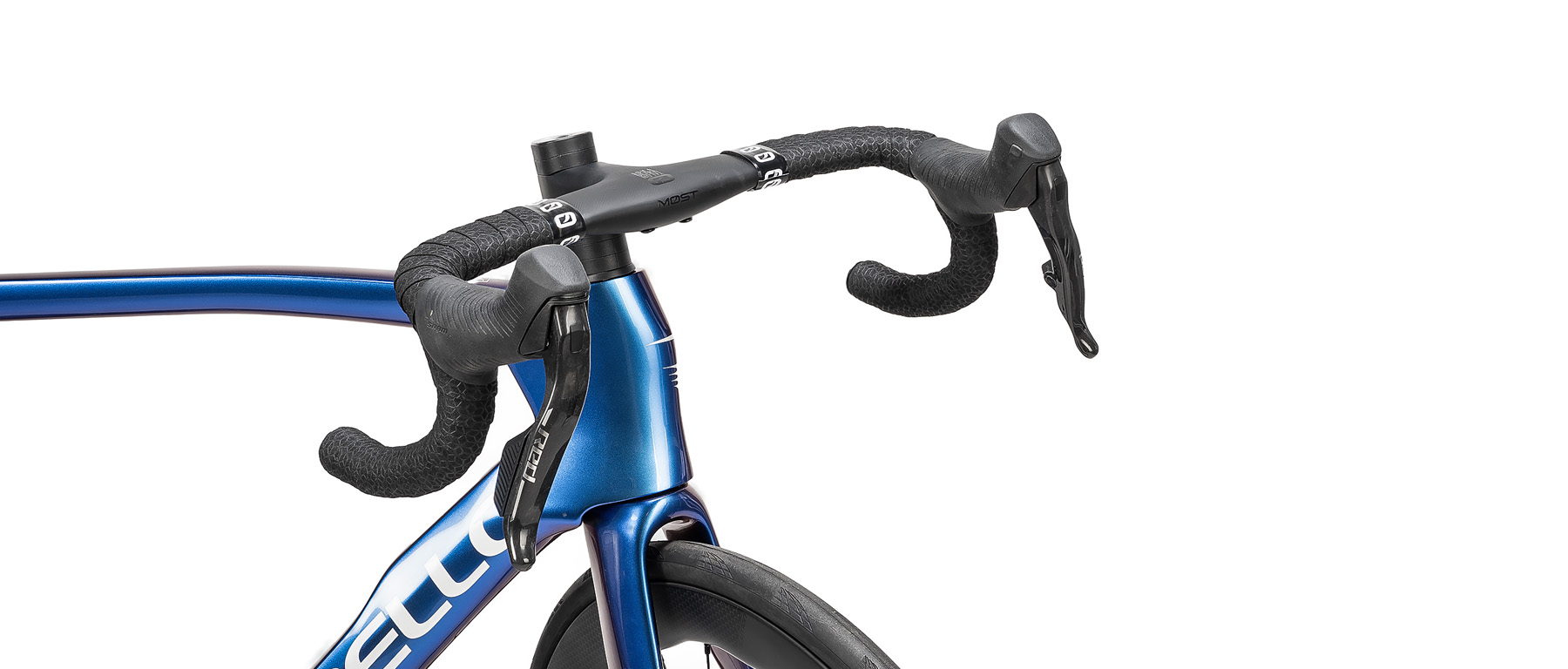

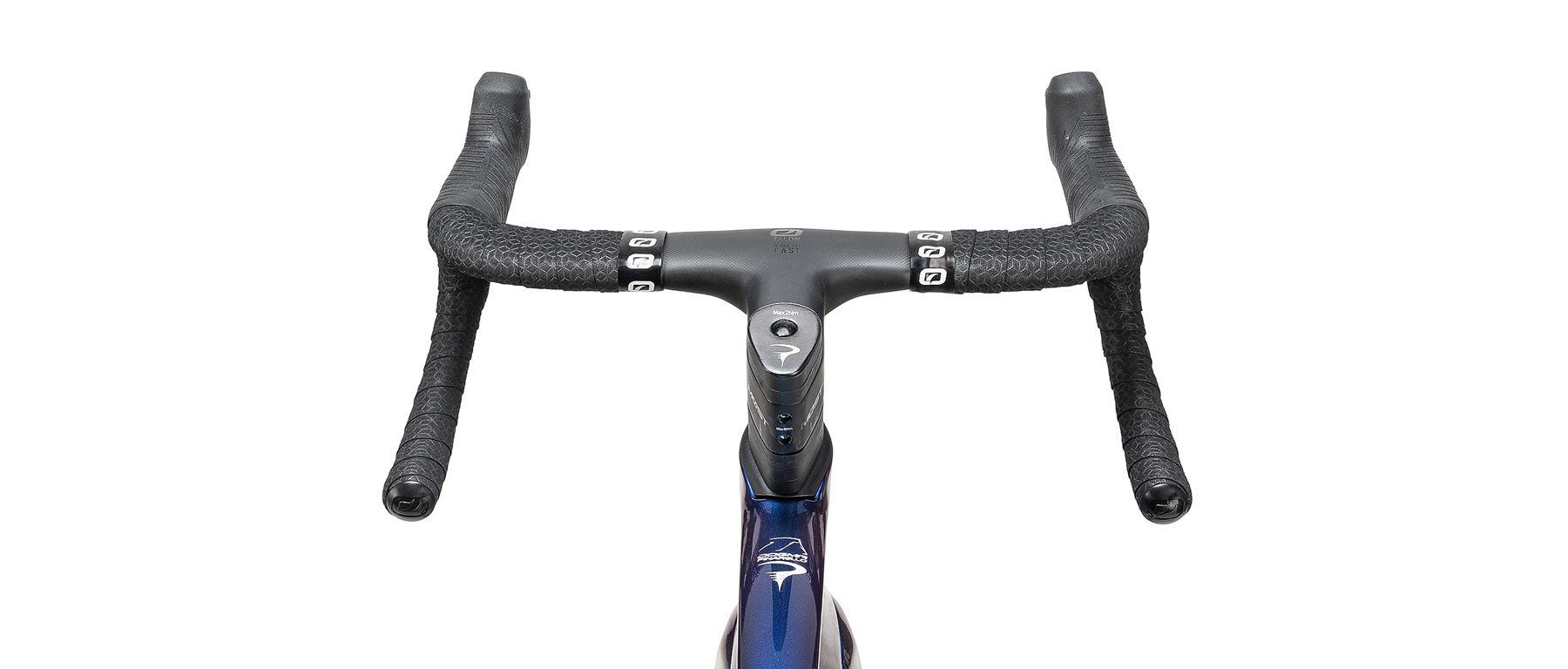

The revised Onda fork retains Pinarello's signature wave-shaped legs but arrives slimmer and with fork rake increased to 47mm — a change developed with direct rider feedback from the Ineos Grenadiers squad to improve high-speed stability on descents. The seatpost clamp is now integrated inside the seat tube, reducing exposed hardware and sealing the mechanism against sweat and road grit. Combined with the MOST Talon Ultra Fast integrated cockpit, which introduces a 7-degree flare in the drops, the entire front end is both lighter and more aerodynamic than the previous generation.... Read More
