Bicycles > Road > Complete

Description

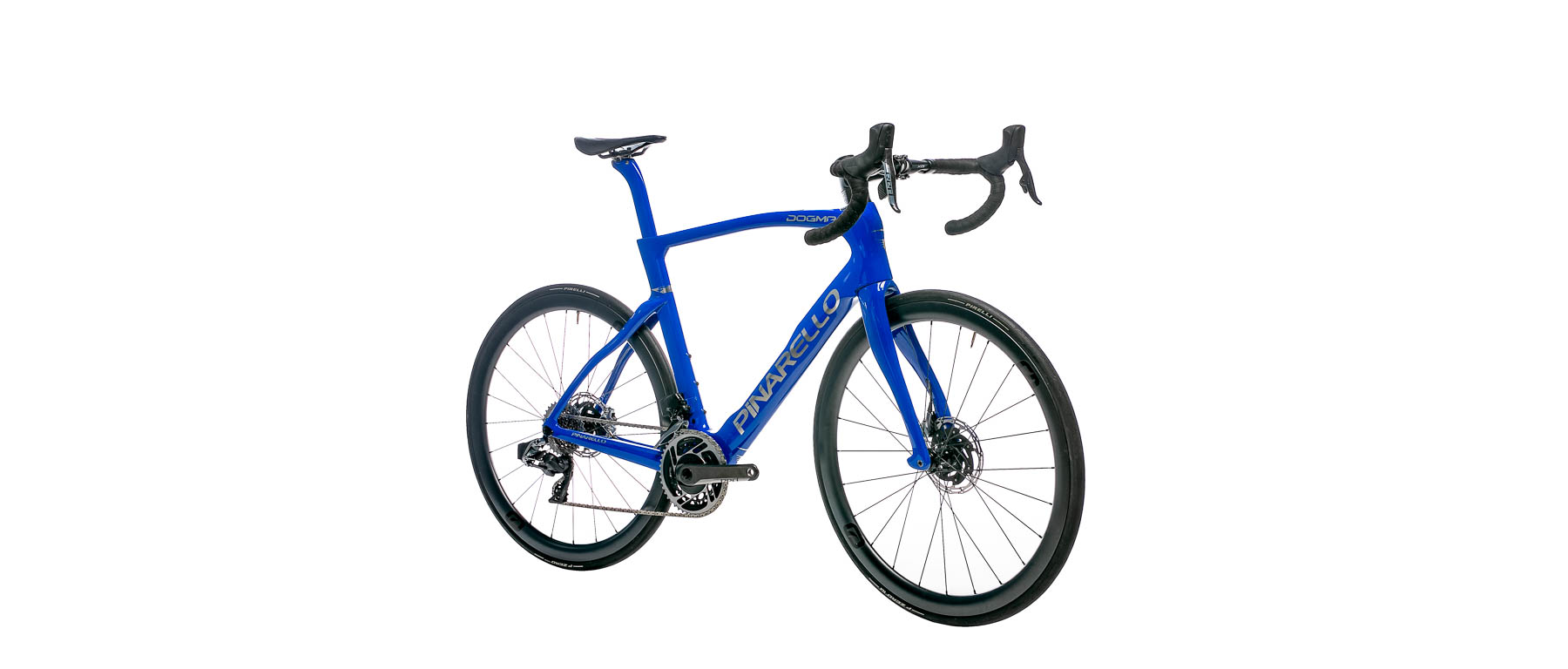

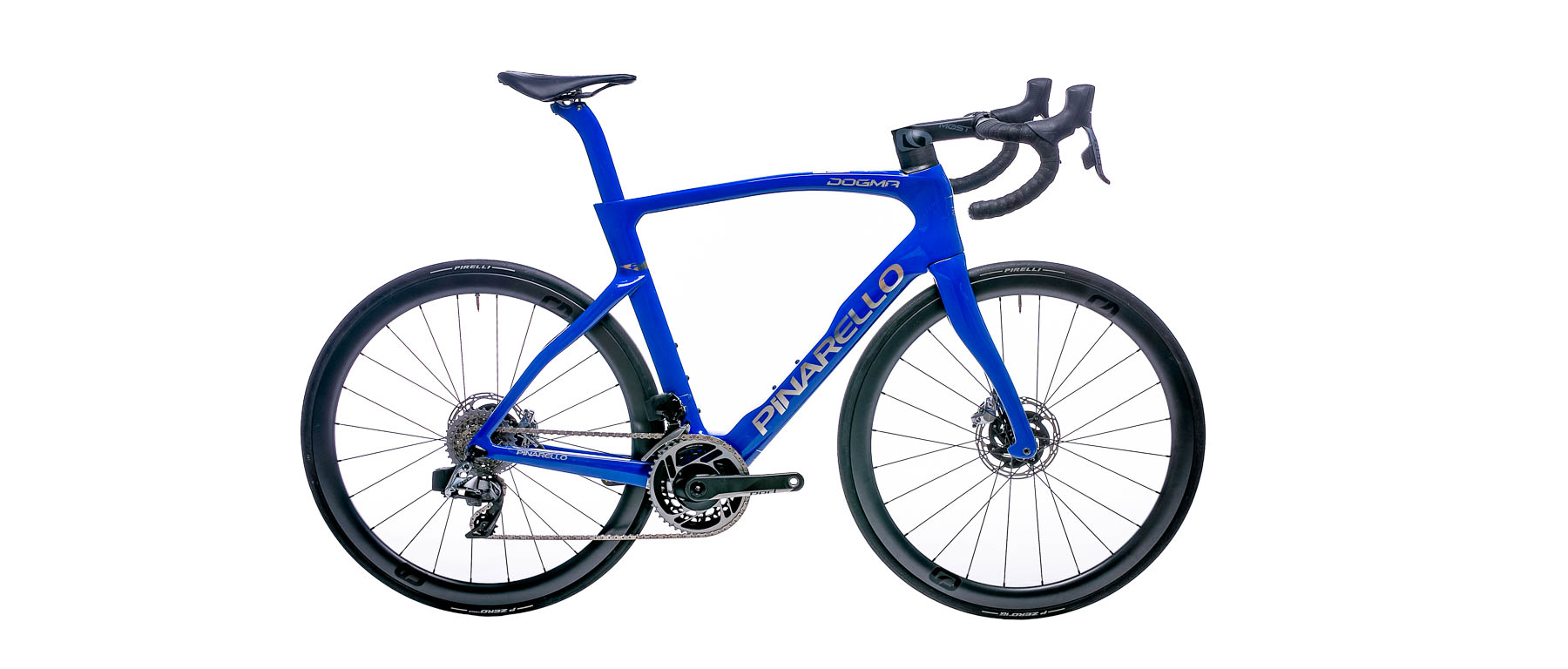

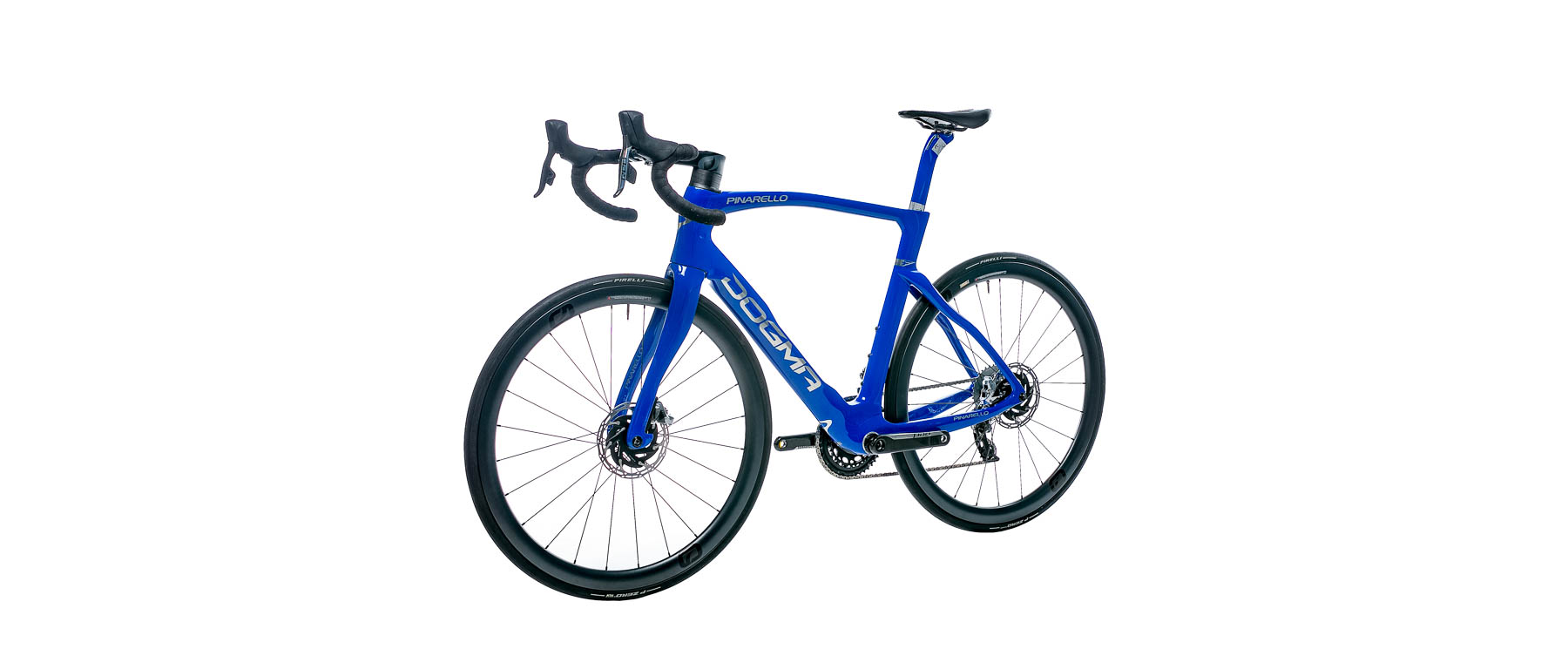

We purchased this 50cm Dogma F equipped with SRAM Red AXS from Pinarello as a Demo Bike. It was built for display and lightly ridden. Some small signs of wear, but is an extremely low mileage bike and comes with a full manufacturer's warranty. Only one in stock

The highest quality materials available have always been applied to the Dogma-series framesets, and like the F10 and F12, the F Disk features the superlative properties of Torayca's T1100 1K Dream Carbon with Nanoalloy Technology. By refining the frame shapes and designs in the computer and wind tunnel, some weight directly came off the frame itself, while making several marginal aero gains that deliver a 4.8% improvement in aero efficiency over the F12 Disk, delivering a potential 2.6 watts saved at 50 km/hour. Again, a modest but real gain that advances the demonstrated excellence of the F12 Disk. When you factor in the dropout to dropout Asymmetric engineering and design, which has long been proven effective for optimal power transfer, impeccable tracking, incredible handling at speed or while descending, and you have true cycling transcendence. As a complete bike with SRAM's wireless Red AXS 2x12 drivetrain and Red HRD hydraulic disc road brakes, this Dogma F may well be the cleanest, sleekest build available. It is equipped with the MOst/Pinarello integrated-aero cockpit system, and ready to race, or attack your favorite epic Sunday ride while earning jealous looks from your frenemies as you rocket past on a climb, descent, or flat straightaway.

Return to Top
Features

  • Lighter, faster, smoother, more efficient evolution of the world beating Dogma F-series frameset
  • Supreme level of overall performance while rolling, climbing, descending, sprinting, and attacking
  • Frame: Torayca T1100 1K Dream Carbon with Nanoalloy Technology, TiCR internal routing(electronic only), Italian threaded BB, 12/142mm TA, Flat Mount disc brake standard, TwinForce, Seatclamp system with Ti bolts
  • Fork: Redesigned Pinarello Onda Dogma F with ForkFlap, 12/100mm TA, Flat Mount disc standard
  • Headset: Pinarello drop-in 1 1/2" - 1 1/2" with ultra-light bearings
  • Groupset: SRAM Red AXS HRD 2x12 wireless shifting/hydraulic disc braking
    • Shifter/Brake Levers: Red eTap AXS HRD

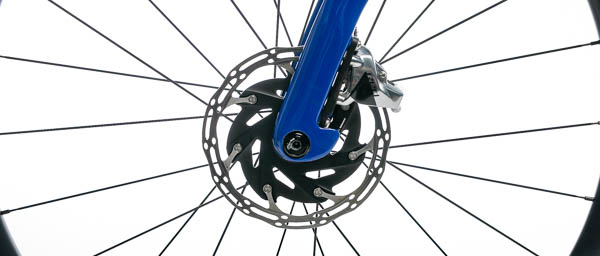

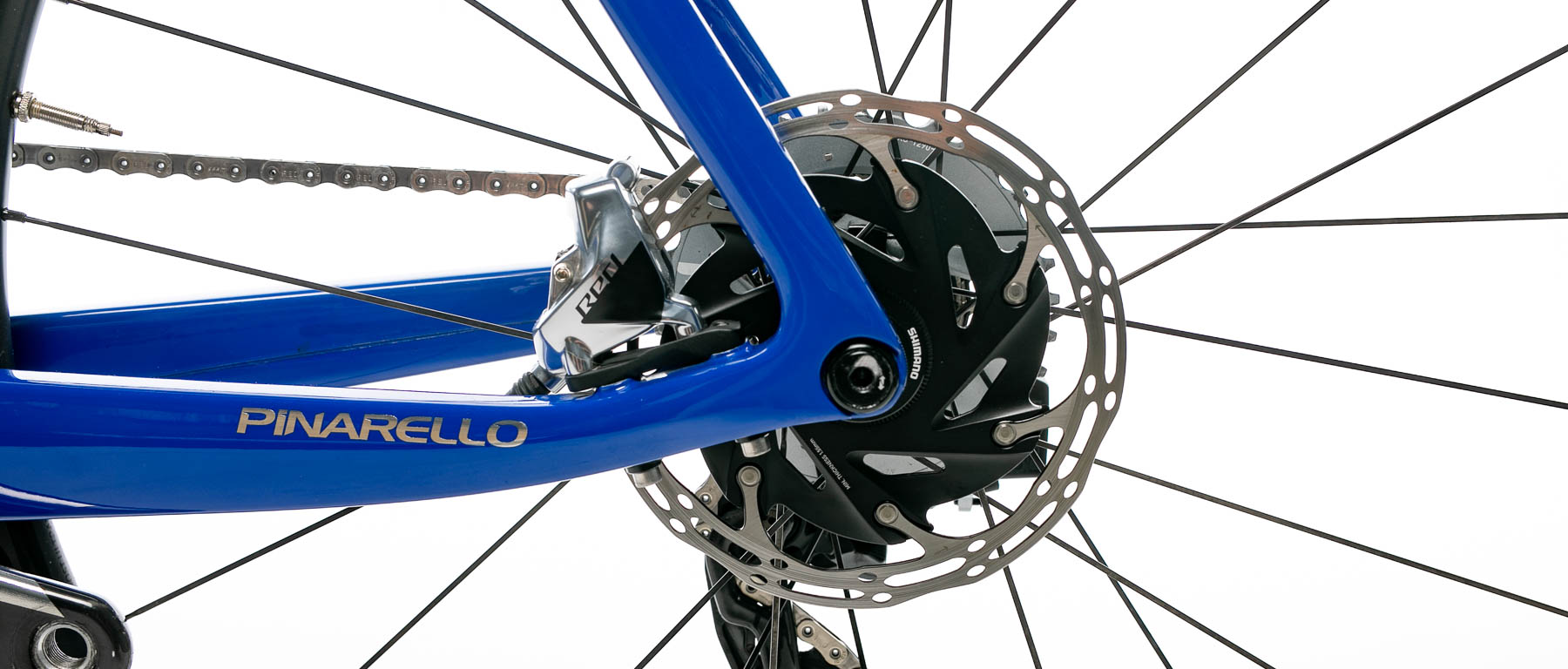

    • Brake calipers: Red (2nd gen), 160mm Center Lock XR rotors front/rear

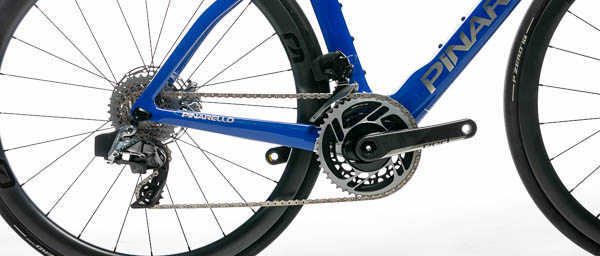

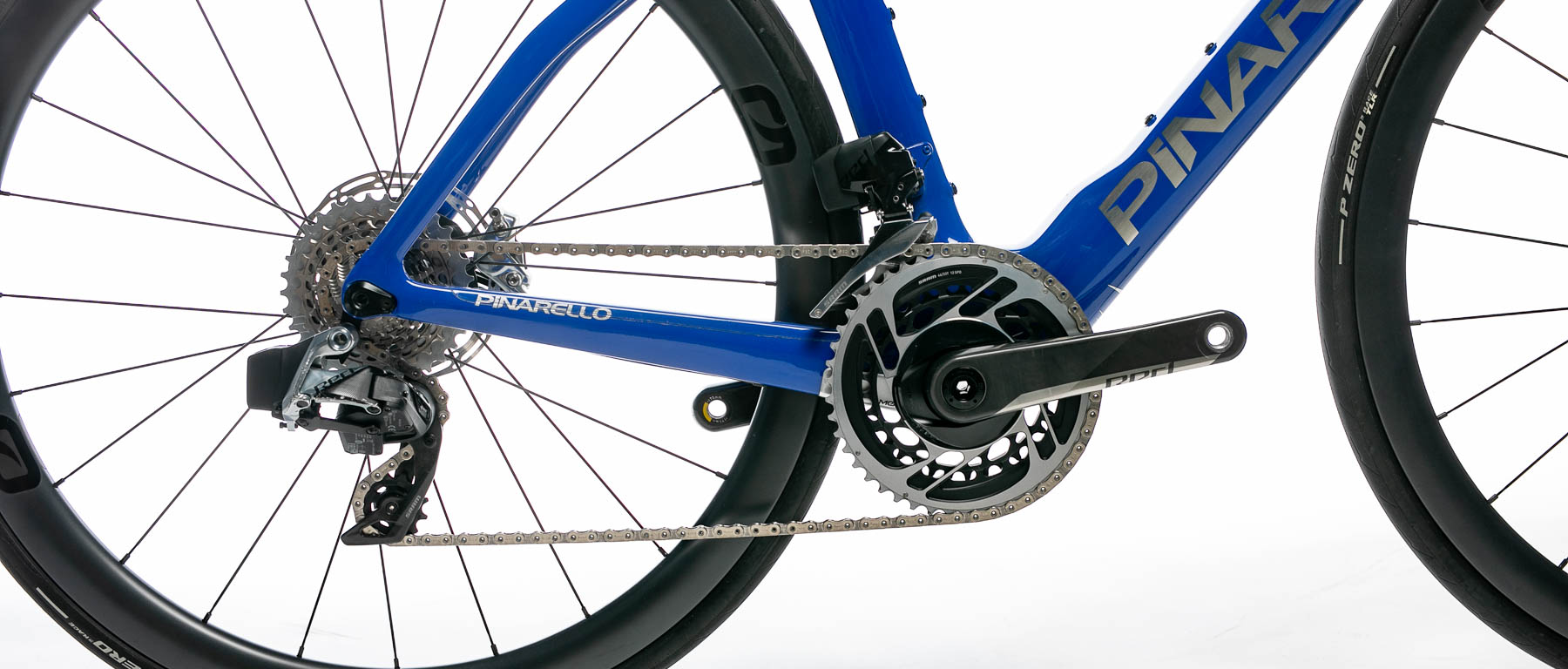

    • Crankset/BB: Red AXS, 46-33T / DUB 70mm Italian threaded BB
    • Front Derailleur: Red eTap AXS braze-on
    • Cassette: Red XG-1290 12s, XDR 10-33T
    • Rear Derailleur: SRAM Red eTap AXS
    • Chain: SRAM Red Flattop 12s
  • Wheelset: DT Swiss PRC 1400 Spline 35 Carbon
  • Thru-Axles: MOst Ultra Light Custom Axle 12/100 Front, 12/142 Rear, featuring tool free removal
  • Tires: Pirelli PZero Race (127 tpi, Aramid breaker) 700x26mm
  • Cockpit by MOst/Pinarello

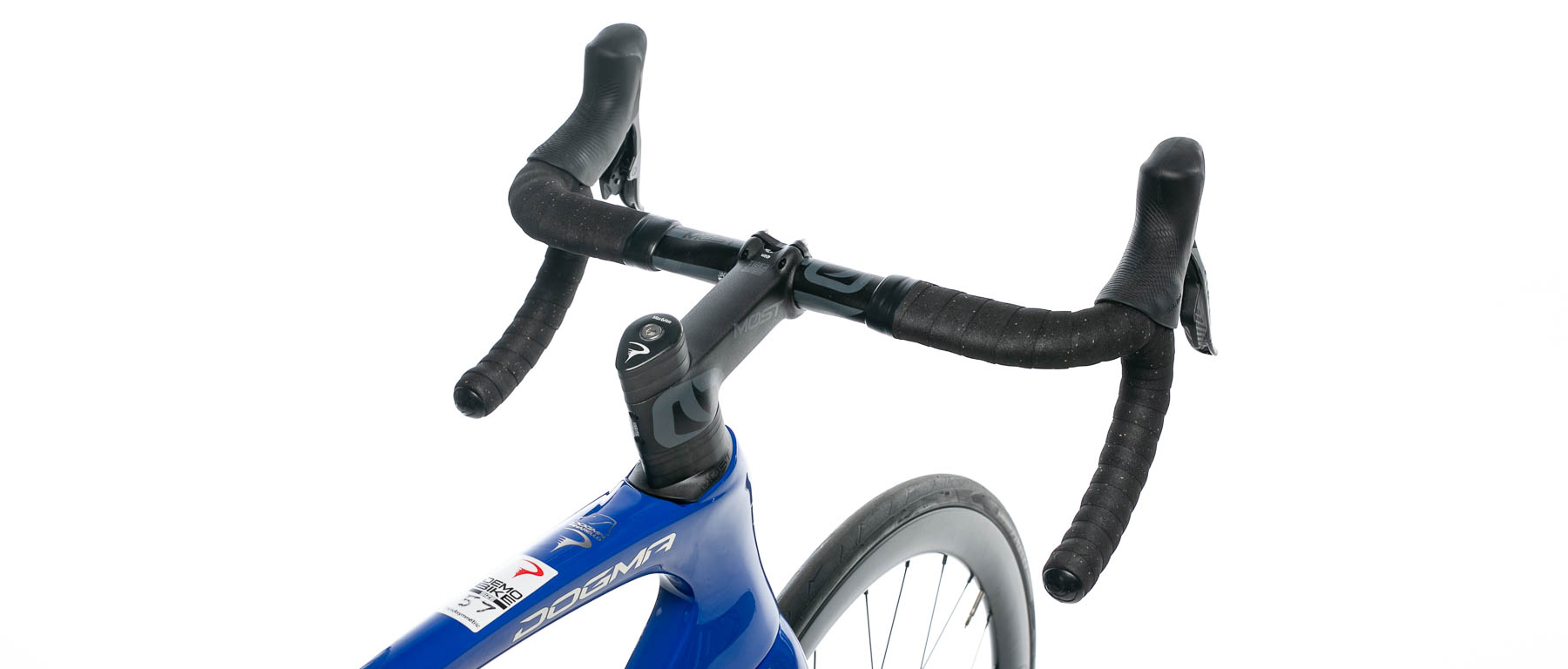

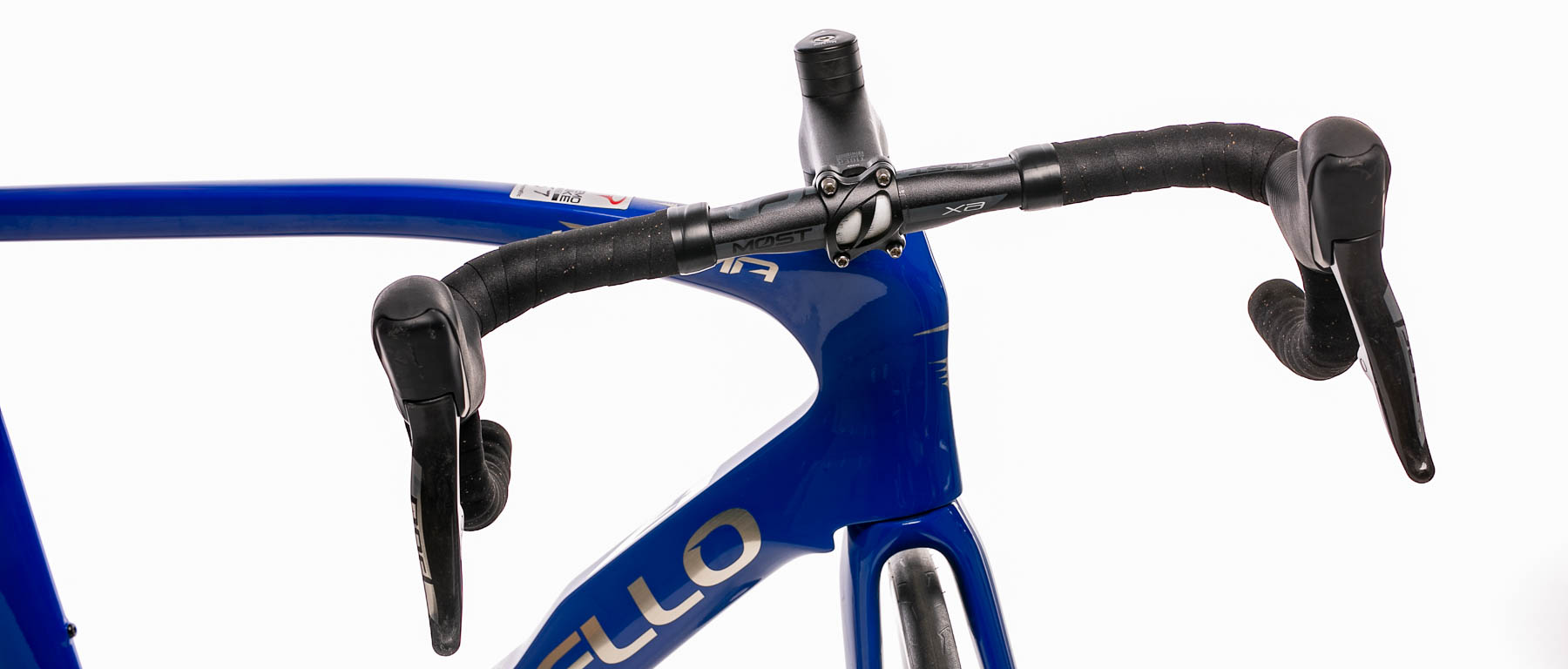

    • Handlebar/Stem: MOst Talon Ultra Fast TiCR, integrated bar-stem design with full internal routing
    • Bar tape: MOst UltraGRIP evo; 3mm, BLACK
    • Seatpost: Pinarello Aero Seatpost with 3D-printed titanium seat clamp

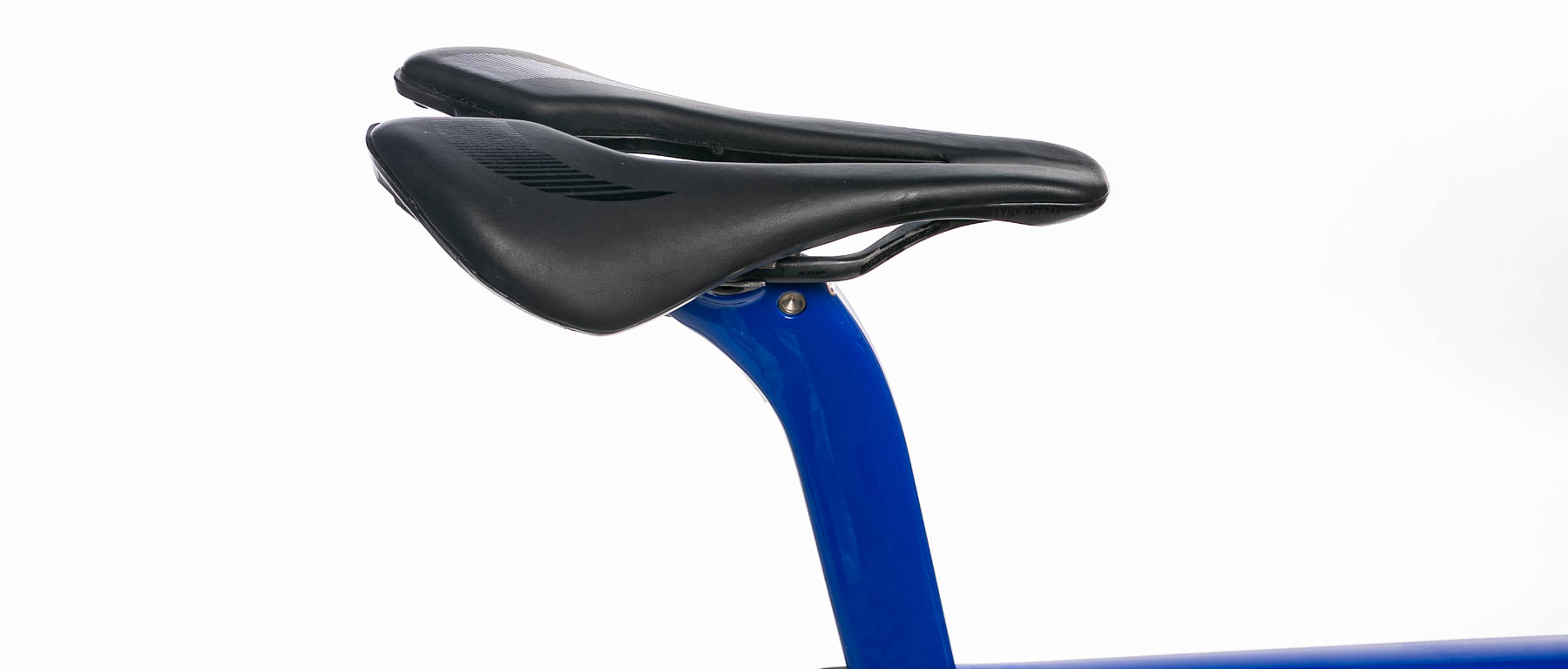

    • Saddle: MOst Lynx Ultrafast Superflow (Large-145mm width x 245mm length)
  • Weight: 15.18 lbs
Return to Top
Geometry
Size 43cm 46.5cm 50cm 51.5cm 53cm 54cm 55cm 56cm 57.5cm 59.5cm 62cm
Wheel Size 700c 700c 700c 700c 700c 700c 700c 700c 700c 700c 700c
Stack 502.4mm 517.6mm 525.4mm 532.3mm 542.6mm 551.2mm 561.6mm 570.2mm 584.8mm 613.3mm 651.7mm
Reach 351.4mm 364.8mm 372.1mm 378mm 383.3mm 385mm 388.8mm 390.7mm 396.7mm 393.3mm 410.1mm
Head Angle 74.4° 74.4° 74° 73.7° 73.7° 73.4° 73.4° 73° 73° 72.4° 72°
Seat Angle 69.5° 70.5° 71.4° 72° 72.5° 72.8° 72.8° 73.2° 73.7° 73.4° 73.4°
Top Tube Length 500mm 515mm 525mm 535mm 545mm 550mm 557mm 565mm 575mm 587mm 620mm
Head Tube Length 97mm 104mm 109mm 114mm 123mm 131mm 142mm 149.5mm 163mm 199mm 239mm
Fork Offset 43mm 43mm 43mm 43mm 43mm 43mm 43mm 43mm 43mm 43mm 43mm
Bottom Bracket Drop 67mm 72mm 72mm 72mm 72mm 72mm 72mm 72mm 72mm 67mm 67mm
Chainstay Length 406mm 406mm 406mm 406mm 406mm 408mm 408mm 408mm 408mm 408mm 411mm
Minimal differences from Dogma F
