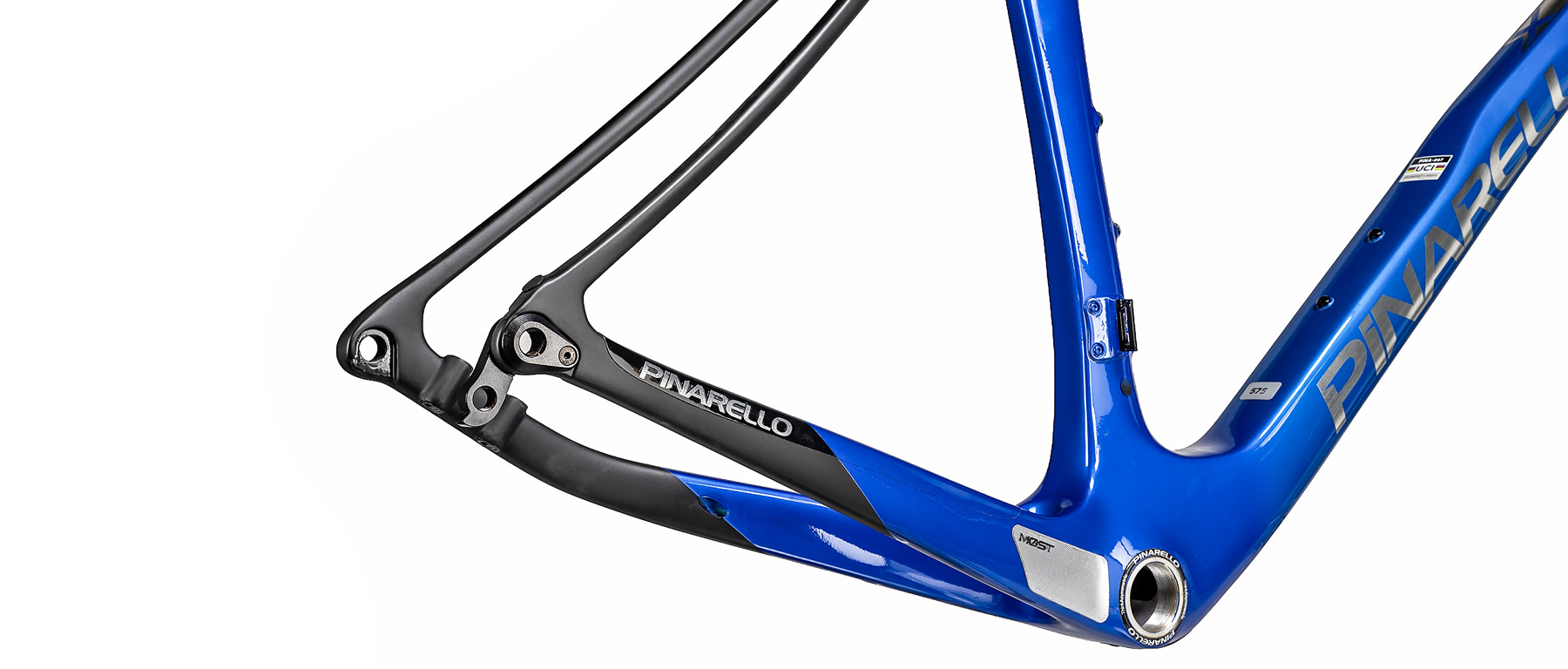

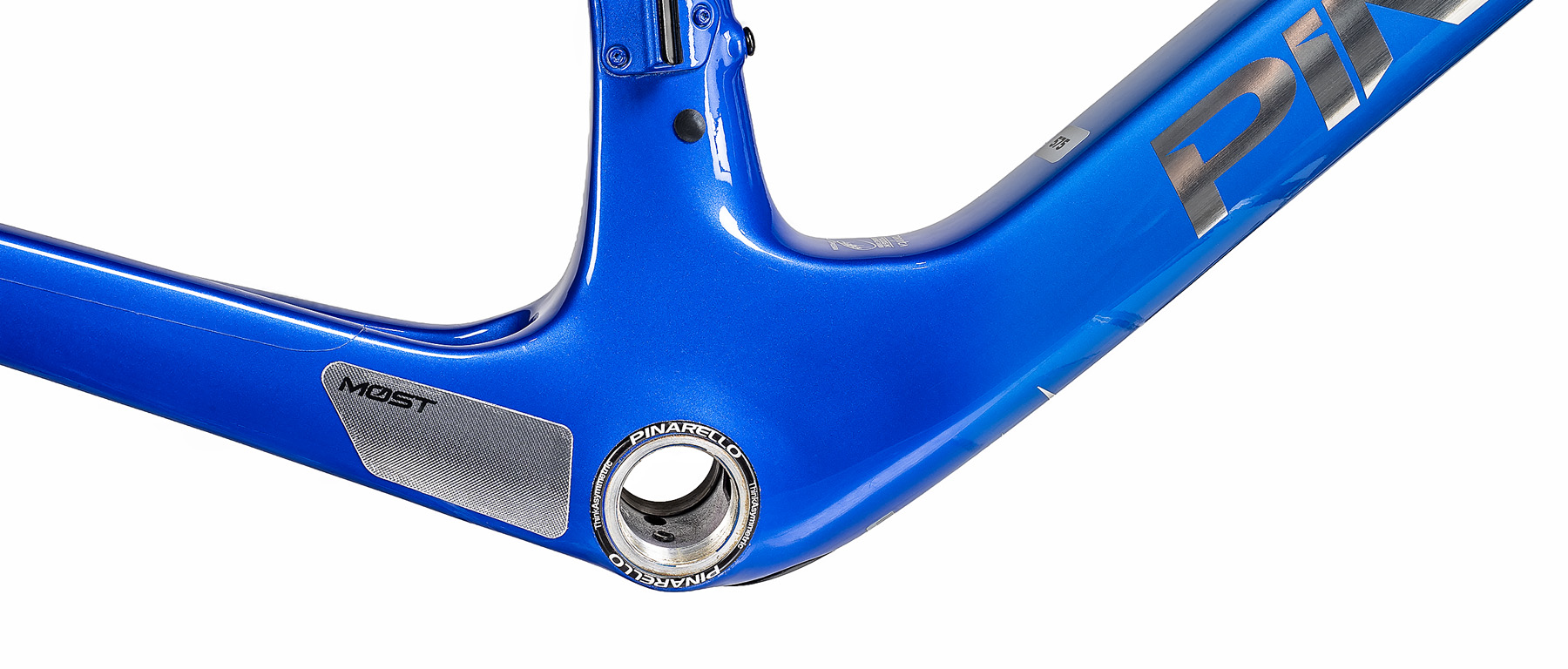

Internal cable routing through Pinarello's TiCR system accepts electronic drivetrains only — Shimano Di2, SRAM AXS, and Campagnolo EPS all route cleanly, but the Dogma X is engineered for electronic shifting only; mechanical groupsets are not compatible. That is a distinction worth confirming before planning a build. As with all Pinarellos, it runs on an Italian threaded bottom bracket, and Flat Mount disc brakes pair with 12x100 and 12x142 Ultra Light Custom axles with tool-free removal.

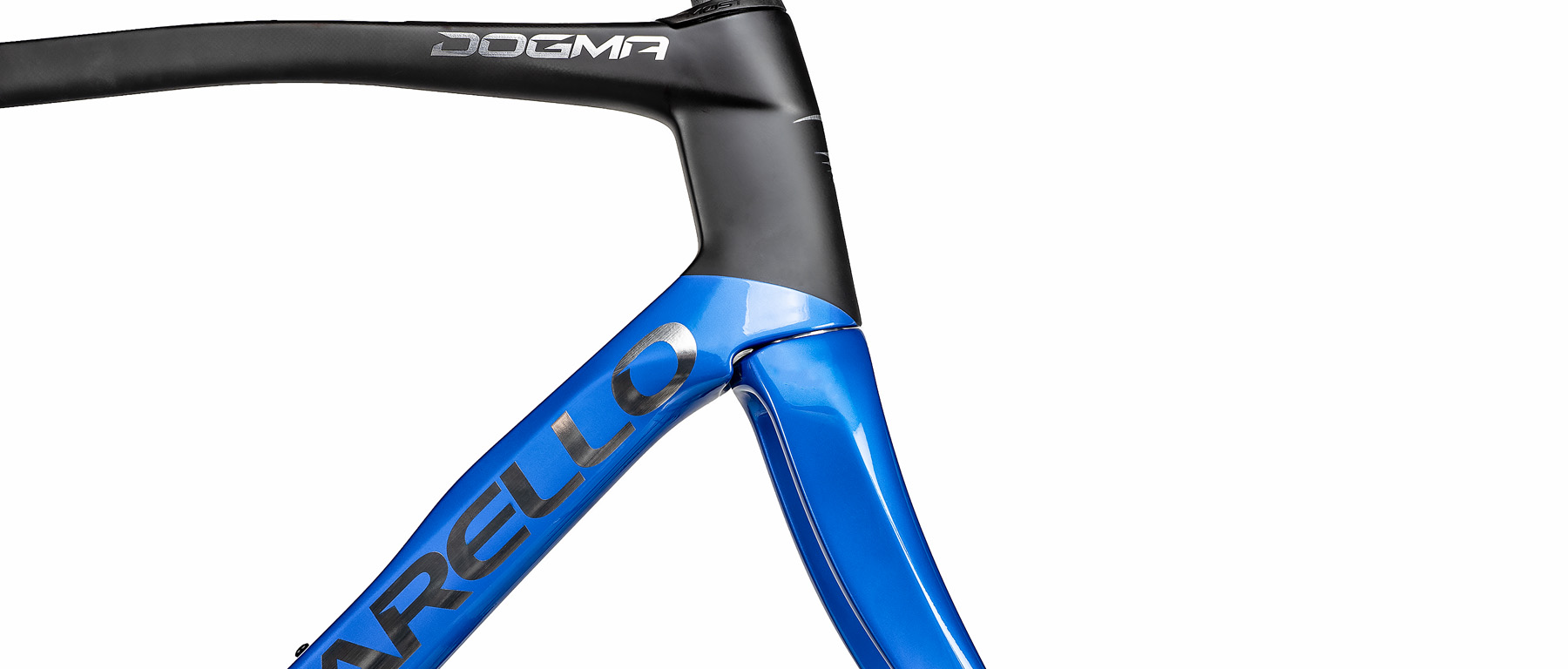

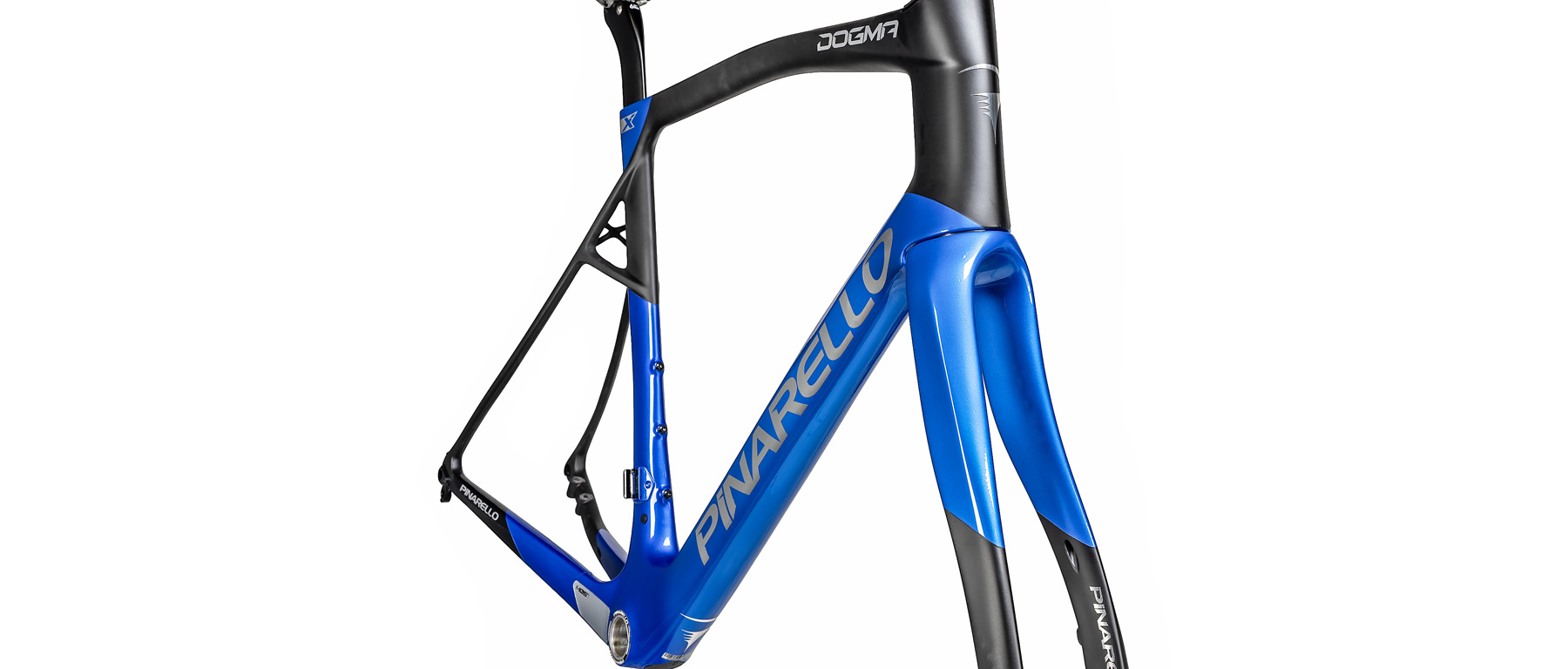

Pinarello positions the Dogma X between full race fit and a typical endurance geometry. The fit is more relaxed than the Dogma F's with a taller stack and shorter reach, though the numbers remain race-oriented. On a size 57.5, stack sits at 602mm with reach at 391mm — a riding position that keeps more riders aerodynamically effective over five or six hours without the physical demands of a full race fit. The Onda carbon disc fork uses a 47mm rake across the entire size run, and the frame's truncated tube profiles carry forward the aero shaping the Dogma platform is known for. Eleven sizes run from 43cm to 62cm, one of the widest ranges in its class, each produced from individual molds to preserve ride character across the size spectrum.

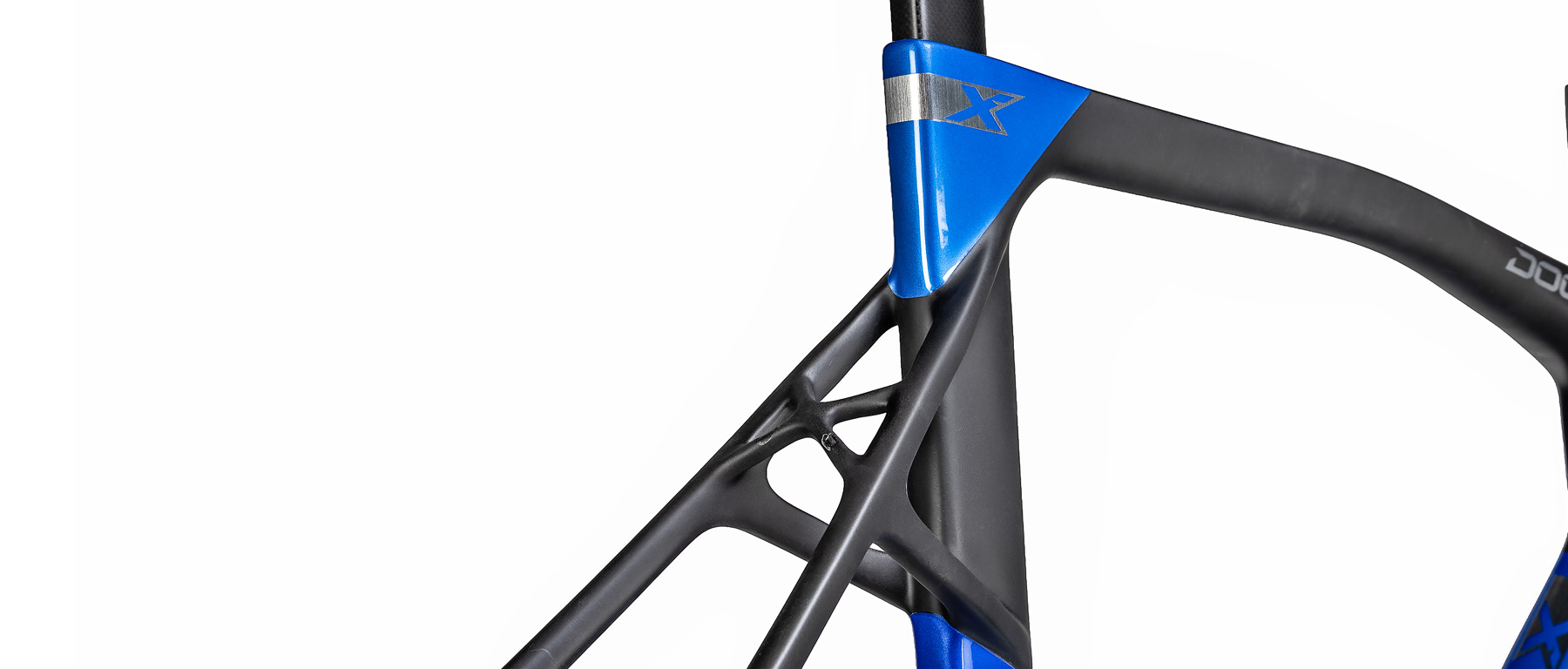

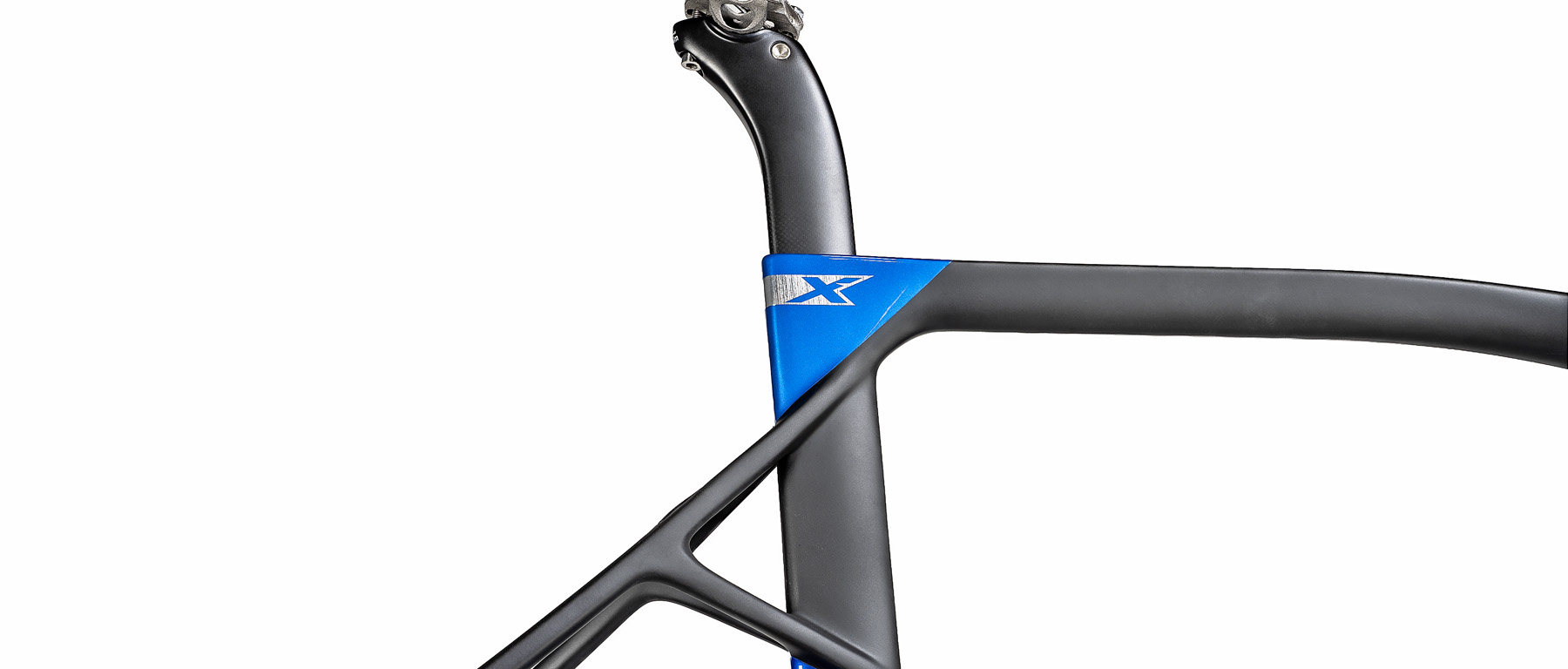

The frameset ships with Pinarello's aero seatpost featuring 3D-printed titanium seatclamp hardware and titanium bolts, along with the headset and thru-axles. The Dogma X inherits the MOST Talon Ultra one-piece bar-stem cockpit used on the previous Dogma F, and the proprietary seatpost carries over from the previous Dogma F as well. The cockpit is sold separately. All seatpost and cockpit hardware uses a T20 Torx bolt, including the integrated clamp design with the bolt set into the top face of the top tube. The Xolar Sea G140 finish belongs to a paint family that rewards in-person inspection — the depth and shift of the color does not translate well to product photography.
