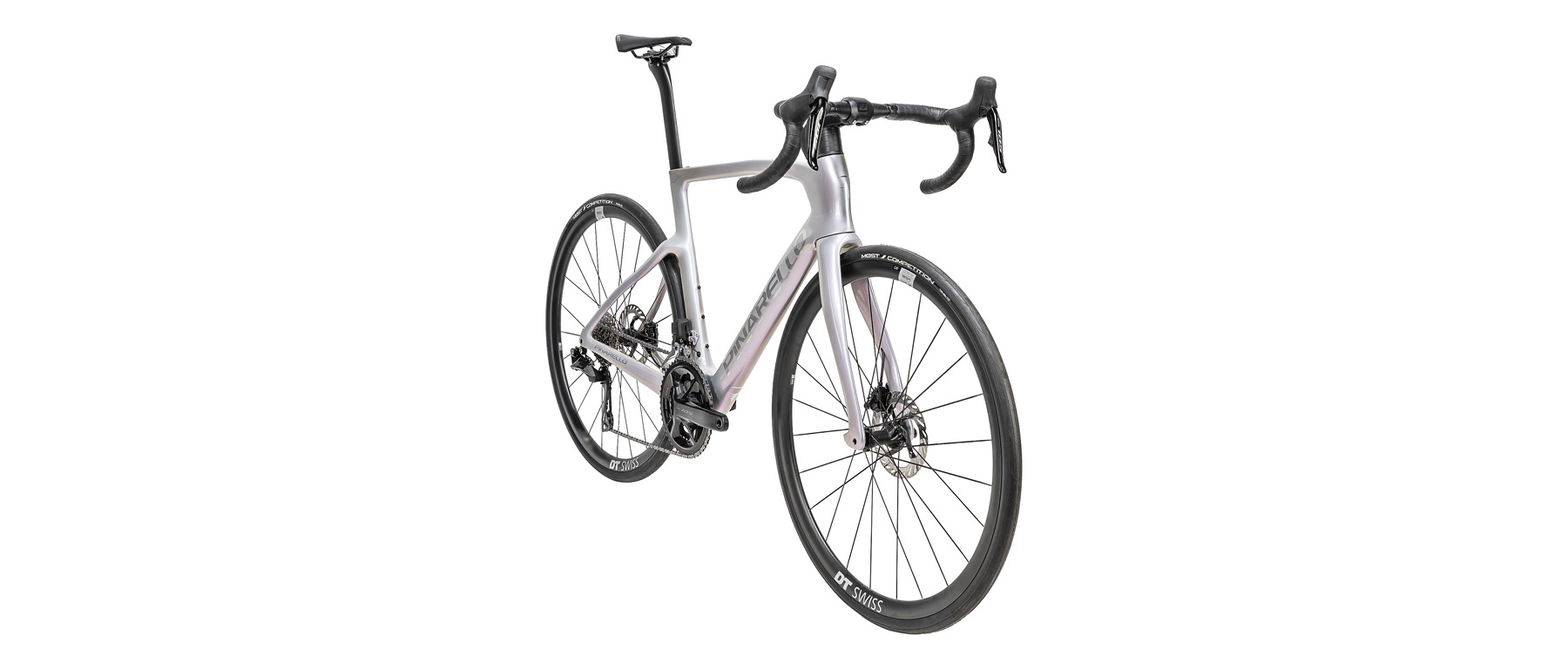

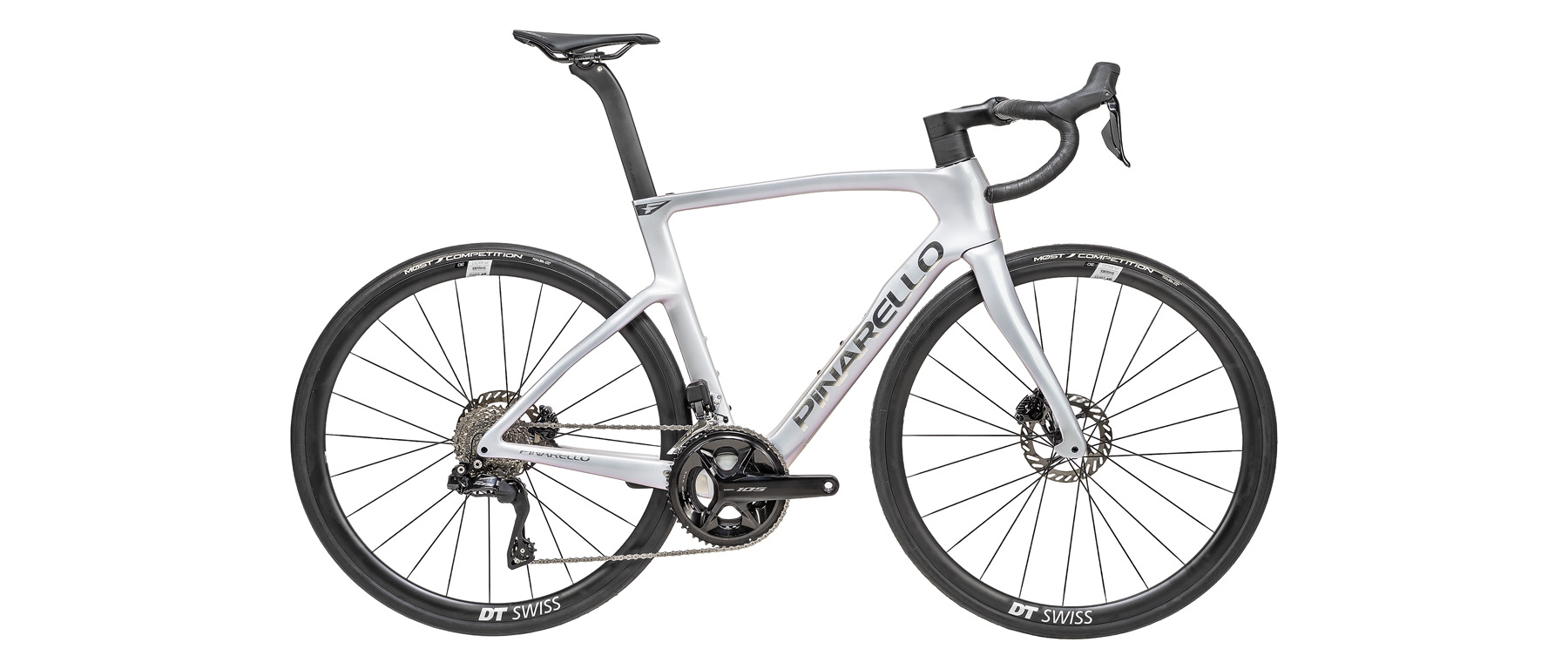

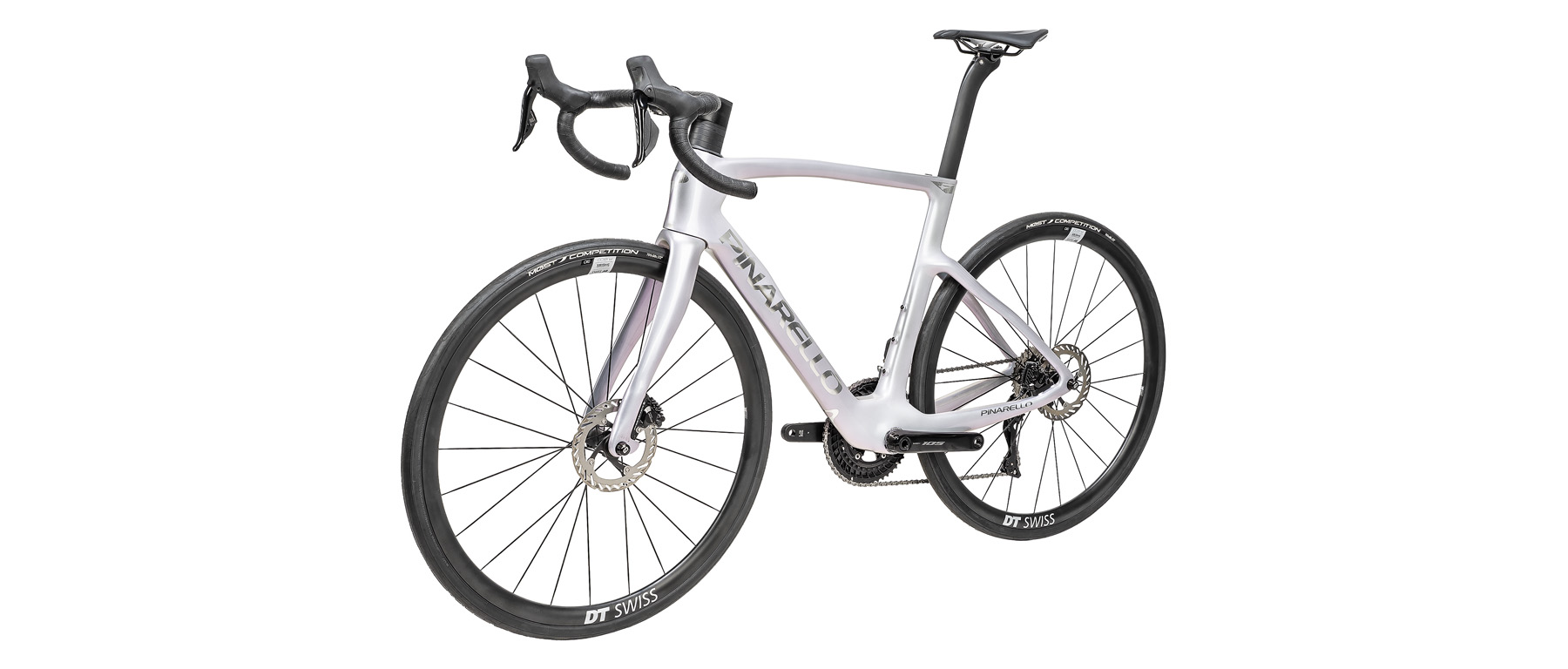

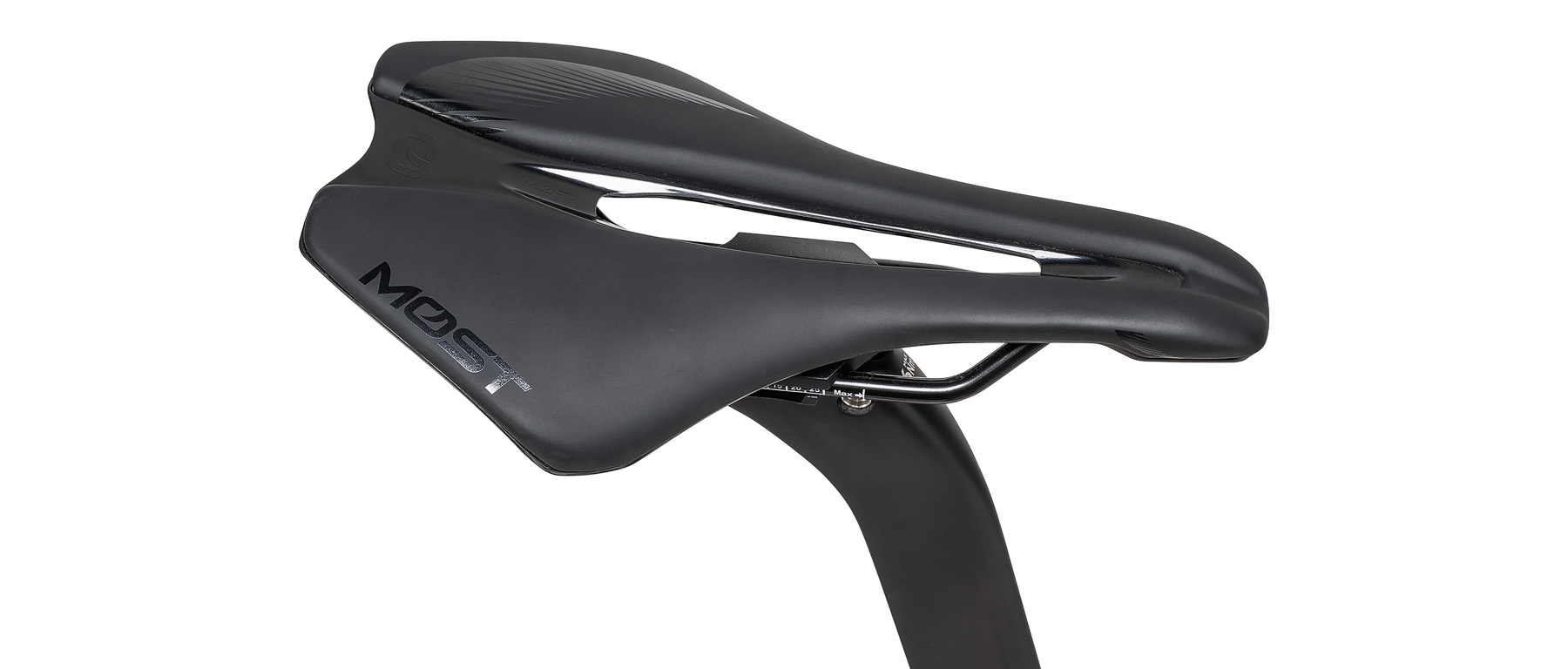

F3 105 R7170 Di2 Bicycle SAMPLE 2
Color: Interstellar Grey H230
Size: 54.5cm
Description
Set aside below regular retail as a show and demonstration bike — built up for display and never ridden — this Pinarello F3 carries a full factory warranty on both the frame and the Shimano 105 R7170 Di2 components. That is where the value sits: you get the current-generation F-series platform with electronic shifting, backed by the same coverage as a new bike, at a price off the standard ticket. The F3 anchors the accessible end of Pinarello's F-series road range, carrying the frame architecture and design intent of its higher-tier stablemates into a build aimed at riders who want the race chassis without stepping up to the Dura-Ace price.
The frame is Pinarello's Toray T700 carbon, molded around the asymmetric design language that has defined the brand's race bikes for years. The asymmetry addresses the reality that drivetrain forces load the left and right sides of the frame differently, so the chainstays, seatstays, and fork are shaped to balance those loads rather than mirror them. The result is a chassis that stays planted under power and tracks predictably through corners, with the ONDA fork profile managing front-end compliance without softening the steering response.
Geometry follows Pinarello's competition fit: a moderate-to-aggressive position that keeps you low over the front end without forcing an extreme drop. Head tube angles sit in the 72.5° to 74.4° range depending on size, with the shorter sizes steepening for quicker handling and the larger sizes relaxing slightly for stability. Chainstays hold at 413mm across most of the range, and a consistent 47mm fork rake keeps the handling character even from size to size. This is a bike that rewards an active rider, responding to input rather than isolating you from the road.... Read More
Features
- Toray T700 carbon frame with asymmetric design

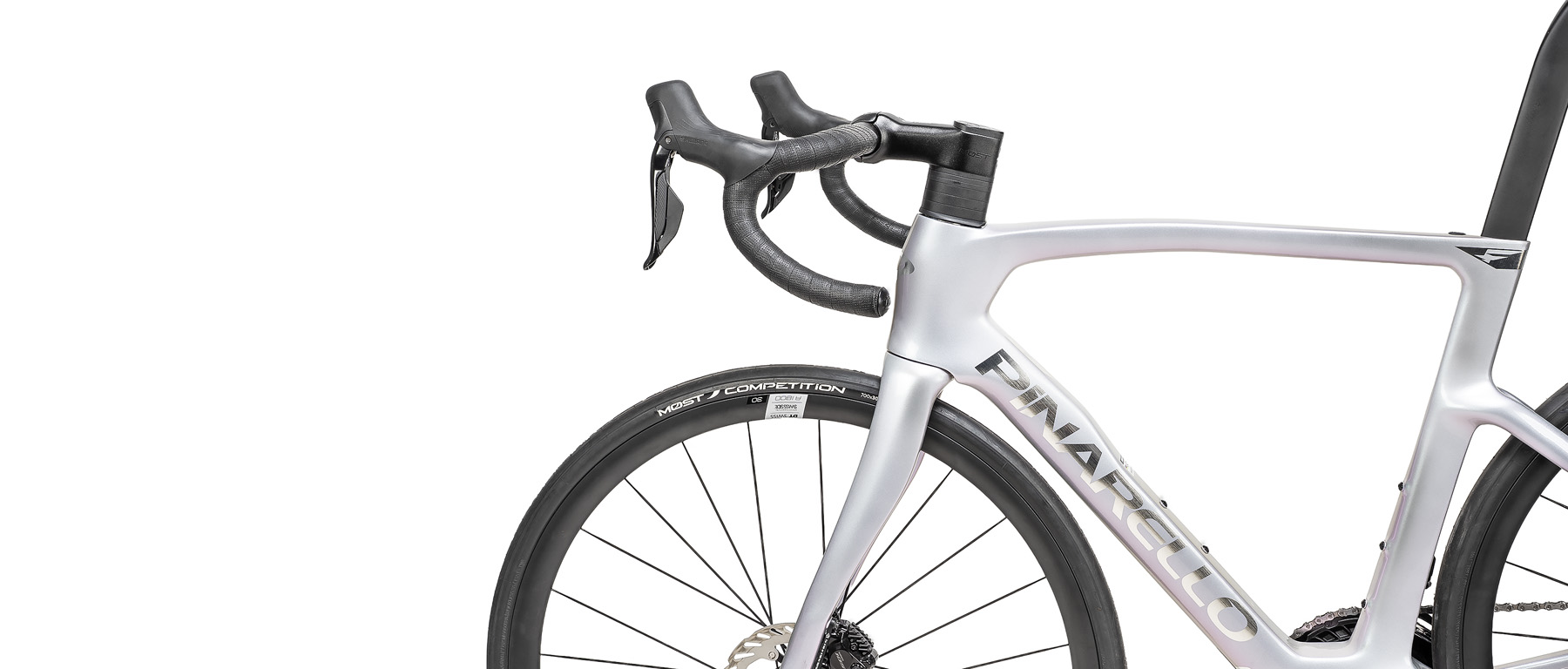

- ONDA carbon fork with 47mm rake

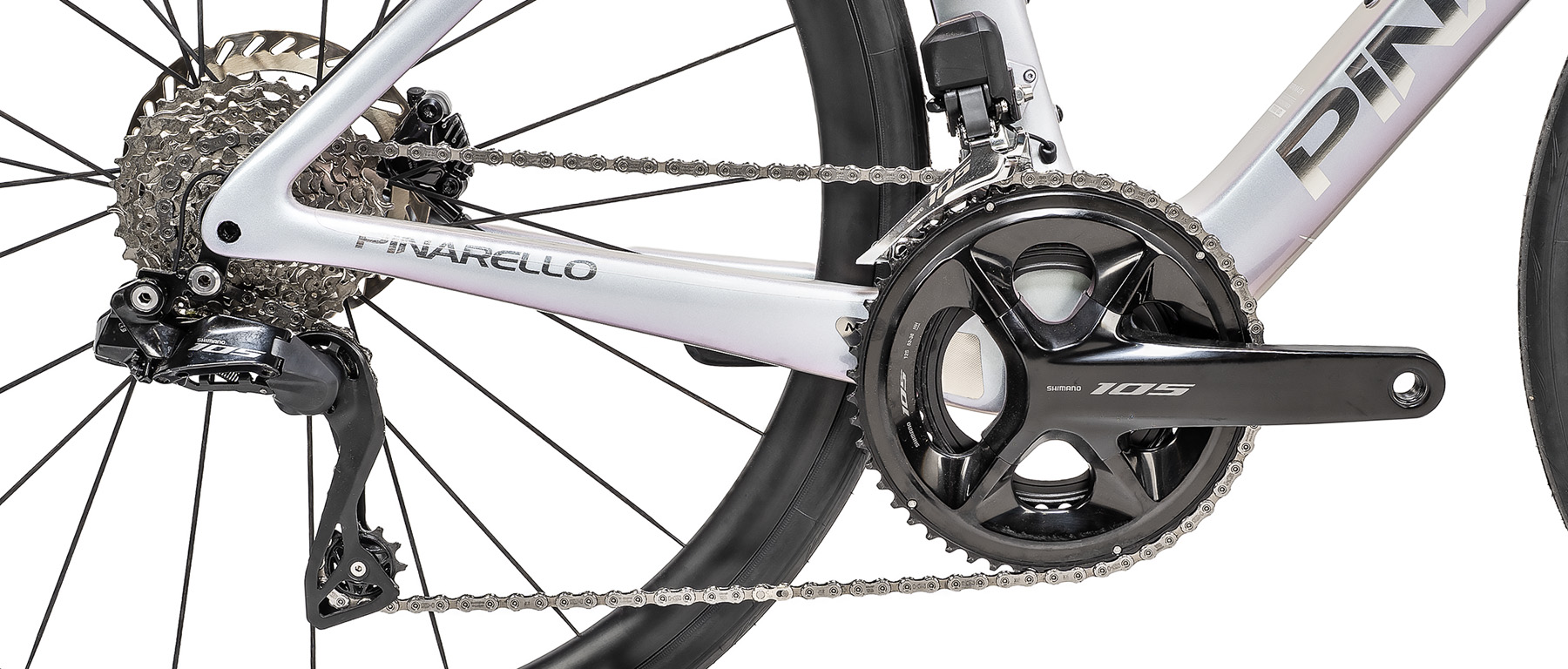

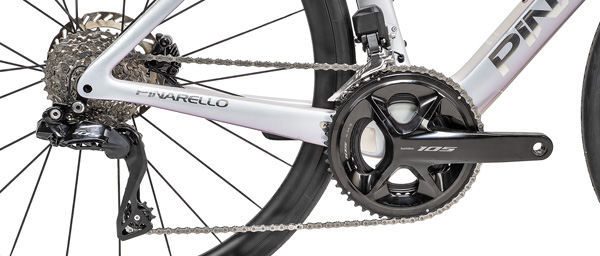

- Shimano 105 R7170 Di2 12-speed electronic groupset
- Semi-wireless Di2 with central battery and E-Tube app customization

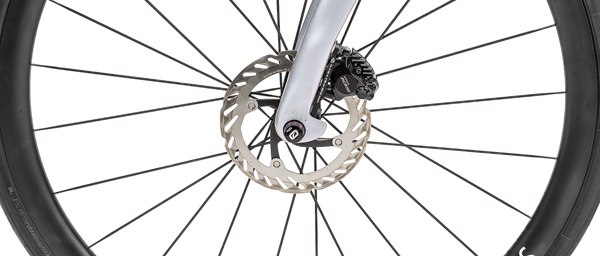

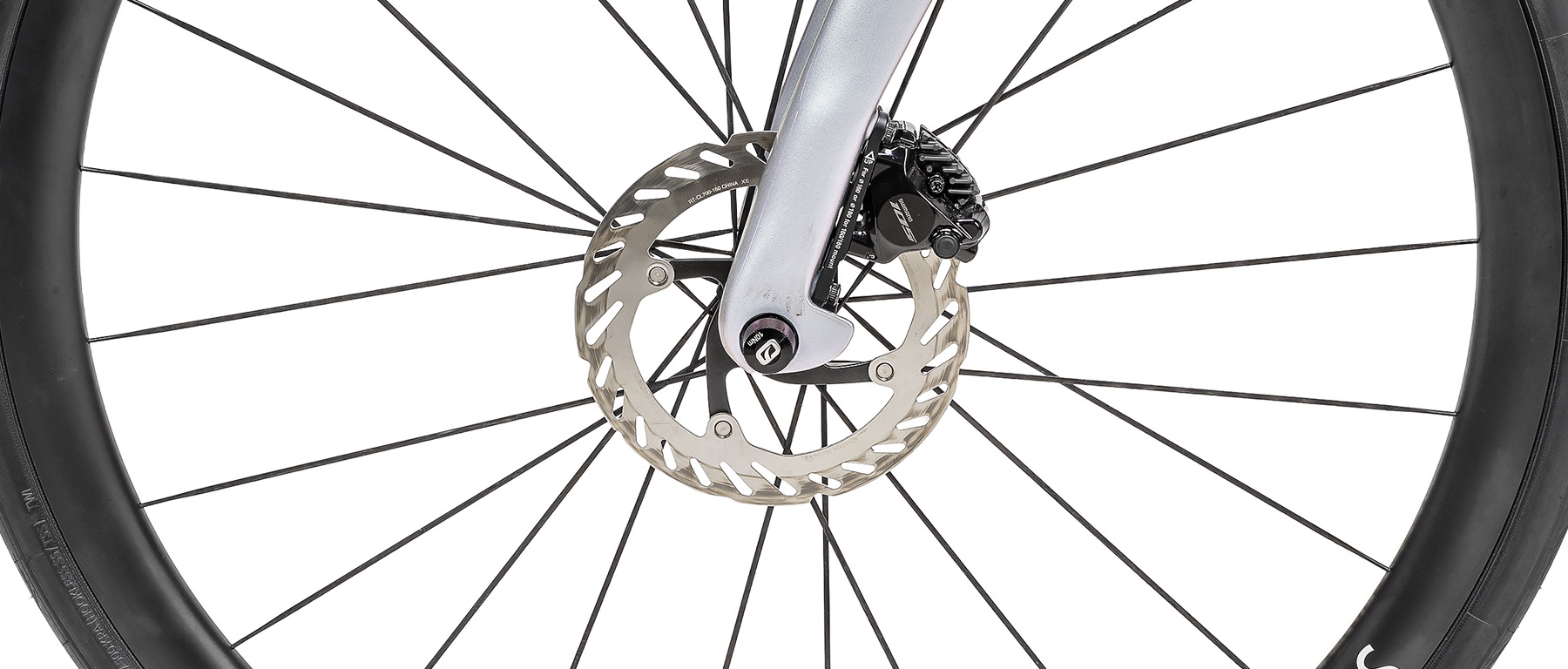

- Shimano hydraulic disc brakes with flat-mount calipers
- Center Lock rotor mounting

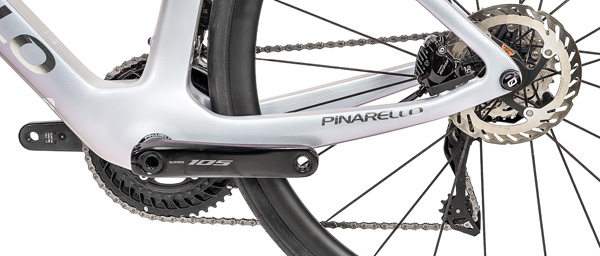

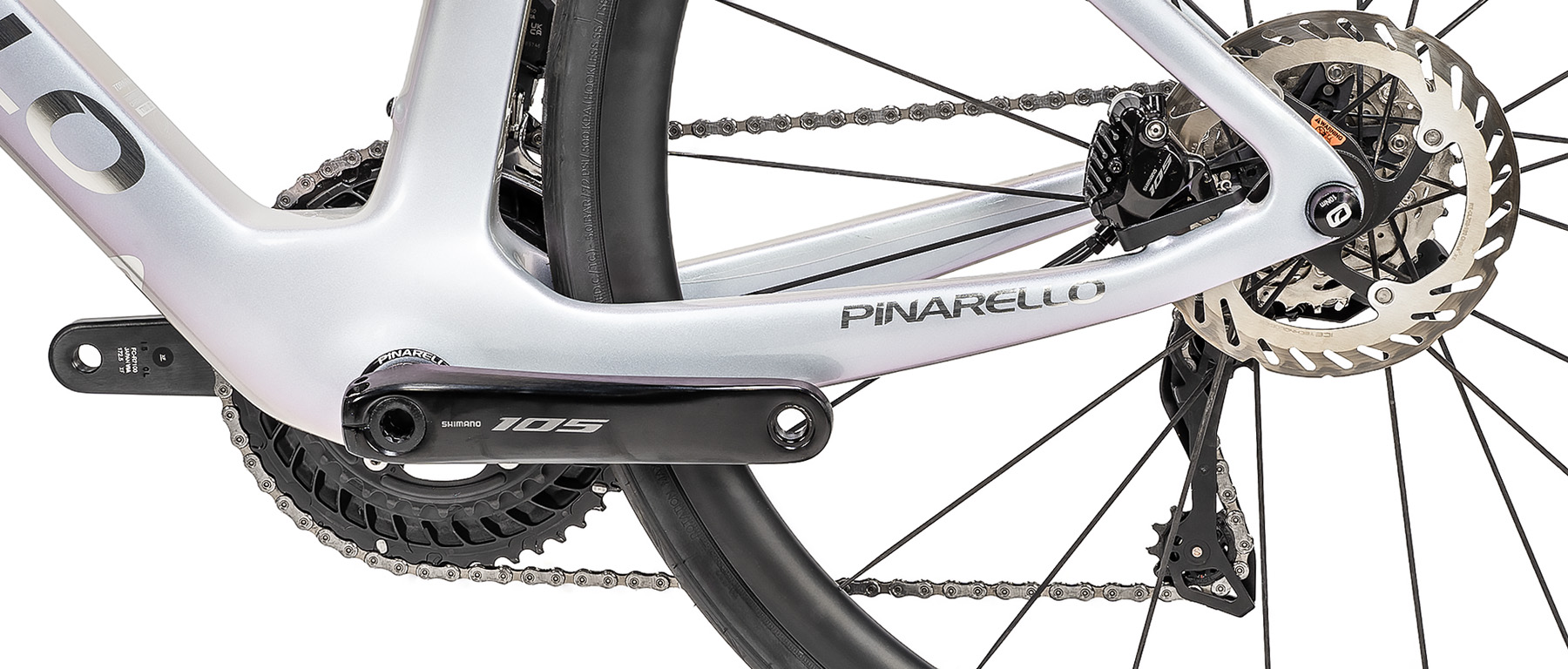

- Compact crankset with 12-speed cassette
- Competition geometry with 47mm fork rake across all sizes
- 413mm chainstays on most sizes
- Interstellar Grey H230 colorway
- Show and demonstration bike, never ridden
- Full factory warranty on frame and components
Geometry
| Size (CC) | Top Tube (L) | Seat Angle (A) | Head Angle (B) | Chainstay (P) | Head Tube (T) | BB Drop (D) | Fork Rake (R) | Reach | Stack |
|---|---|---|---|---|---|---|---|---|---|
| 430 | 500mm | 74.4° | 69.5° | 410mm | 102mm | 67mm | 47mm | 351.3mm | 502mm |
| 465 | 515mm | 74.4° | 70.5° | 410mm | 109mm | 72mm | 47mm | 365.4mm | 517.3mm |
| 500 | 525mm | 74° | 71.4° | 411mm | 114mm | 72mm | 47mm | 372.2mm | 525.2mm |
| 515 | 535mm | 73.7° | 72° | 411mm | 119mm | 72mm | 47mm | 378.2mm | 532.1mm |
| 530 | 545mm | 73.7° | 72.5° | 411mm | 128mm | 72mm | 47mm | 385.6mm | 542.4mm |
| 545 | 555mm | 73.4° | 72.8° | 413mm | 143mm | 72mm | 47mm | 388.3mm | 557.7mm |
| 560 | 565mm | 73° | 73.2° | 413mm | 154.5mm | 72mm | 47mm | 390.8mm | 570.1mm |
| 575 | 578mm | 73° | 73.7° | 413mm | 183mm | 72mm | 47mm | 395.5mm | 599.2mm |
| 595 | 600mm | 72.4° | 73.4° | 413mm | 225mm | 67mm | 47mm | 400.4mm | 633.4mm |
