Bicycles > Road > Complete

Description

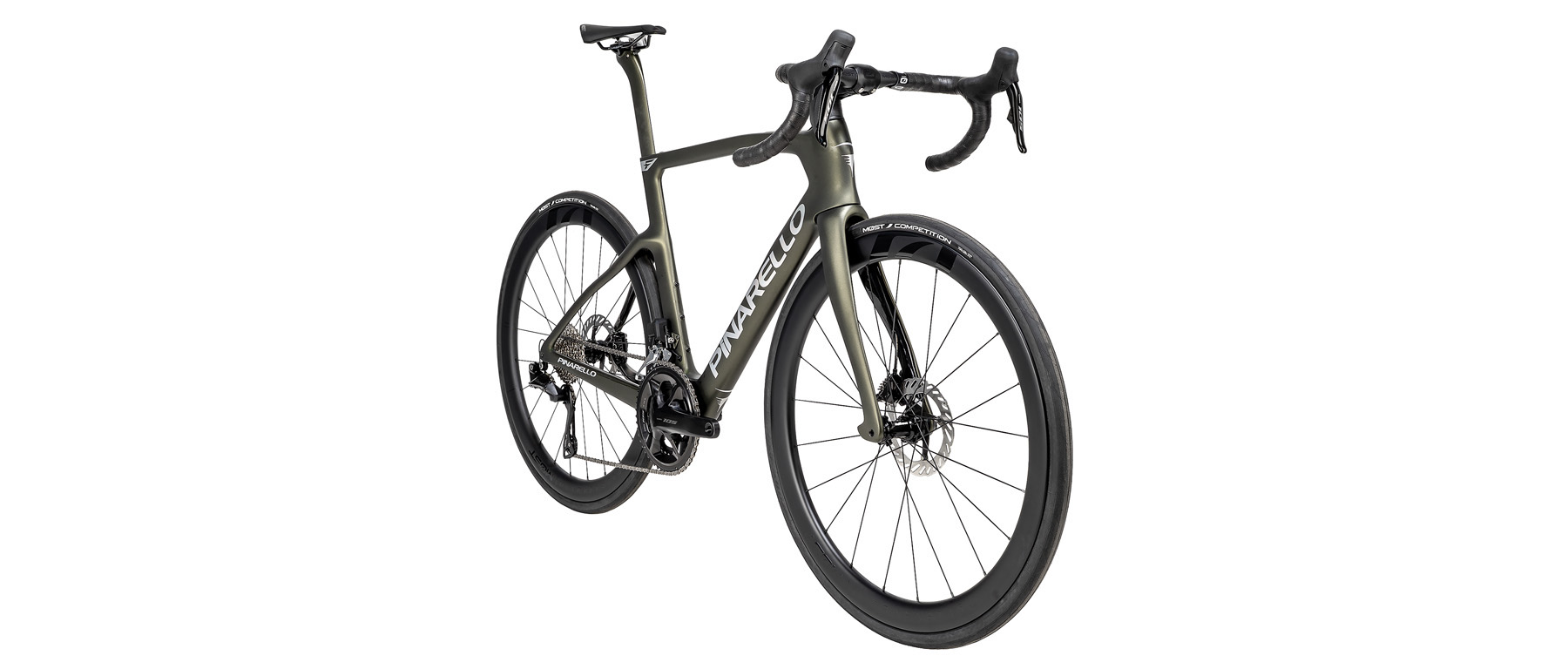

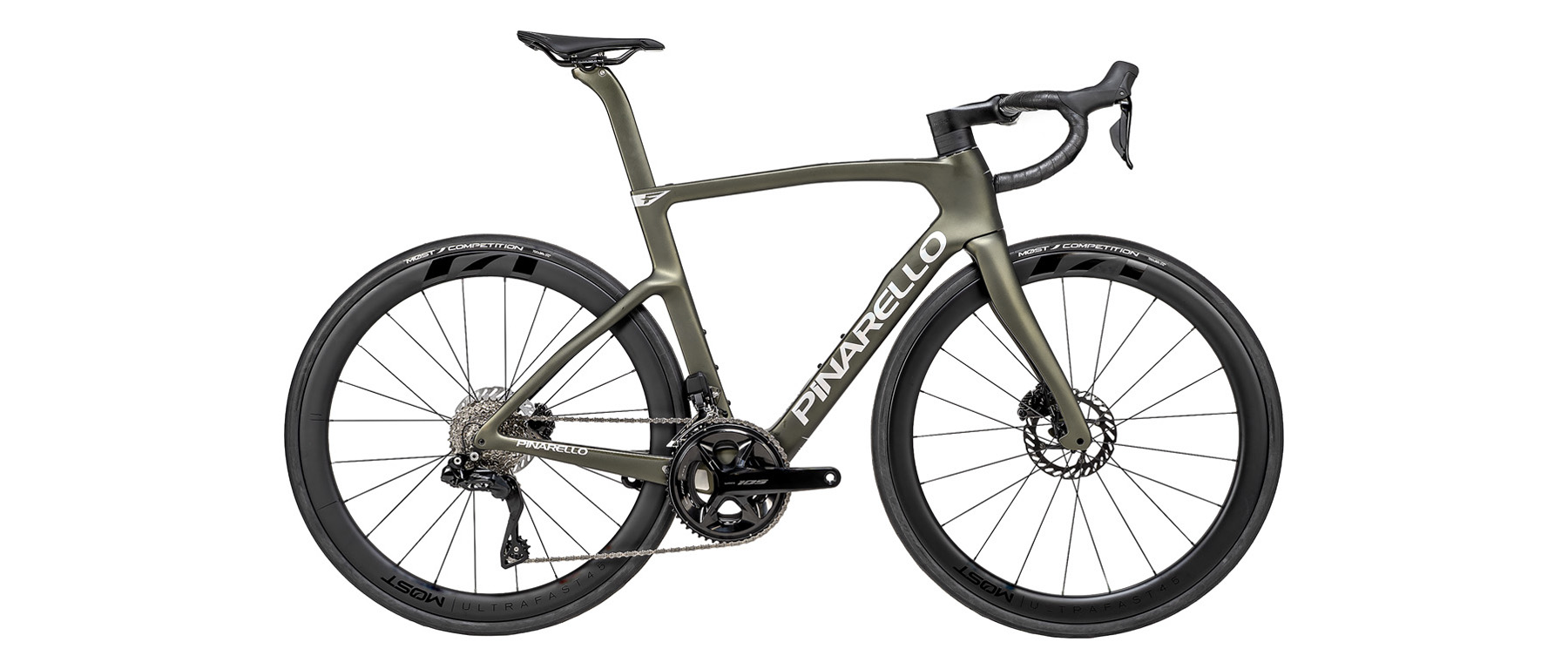

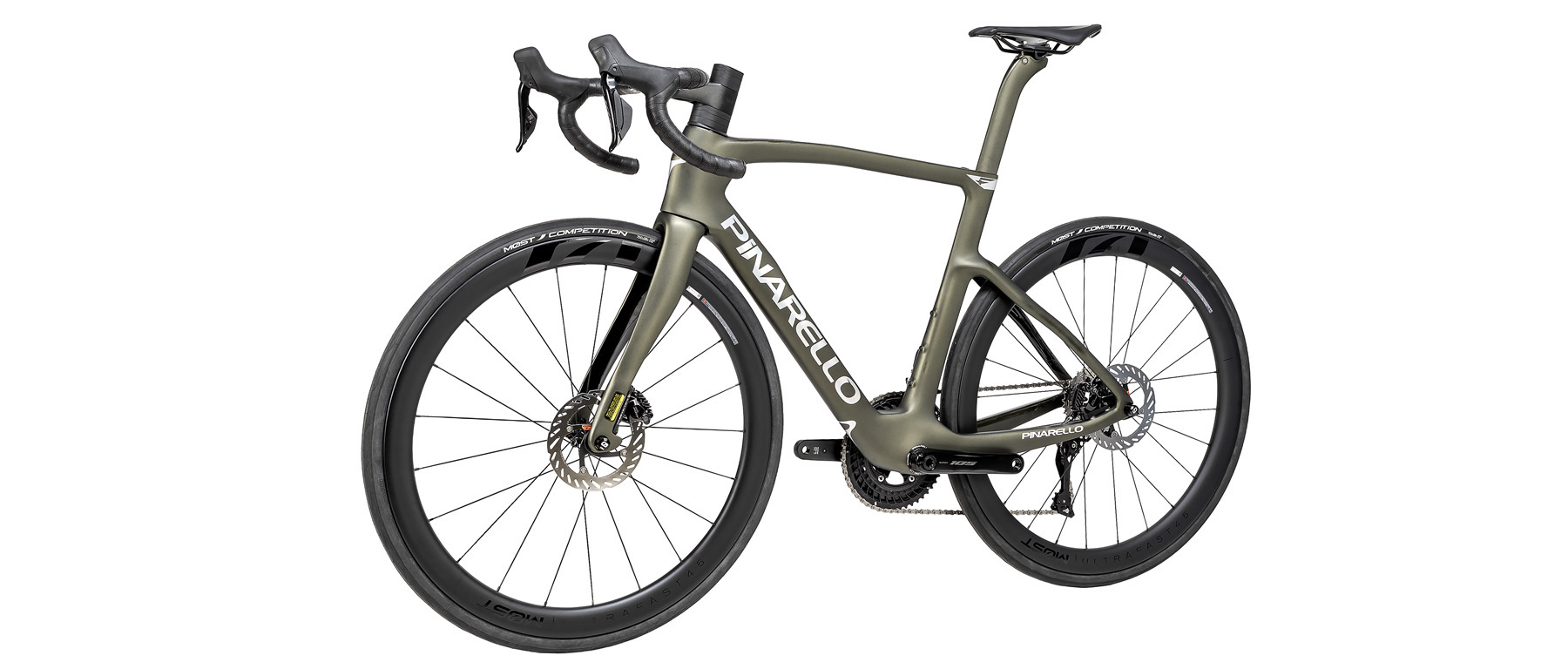

The F5 featured here is a demo bike, with few to no miles. There may be a few small cosmetic blemishes, but it is in perfect working order. There is a scuff along the right seatstay an one rub mark on the right side of the seatpost where the paint has become polished from the original matte finish. These blems are cosmetic only and do not affect structural integrity. This factory authorized sale on the F5 comes with a full manufacturer's warranty.

Pinarello's F-series has always existed to translate Dogma race DNA into something more attainable, and the new F5 collapses that distance further than any prior generation. Inspired by the Dogma F, it delivers proven race geometry and aerodynamic efficiency at a more accessible level, built from T700 carbon for responsiveness while absorbing road vibrations on long rides, with an updated frame featuring a lighter E-TICR headset, a new aerodynamic head tube, and a redesigned ONDA fork. The asymmetric chassis remains — the offset chainstays Pinarello has built around since the original 595 — but the surrounding architecture has been quietly modernized.

The geometry mirrors the Dogma F closely enough that the handling signature carries over. The 'Made4you' concept has been applied to this Pinarello F meaning that every rider, regardless of height, will get the same feel and performance, with handlebar width, stem length, and crank length all frame size specific. The result is a fit and stance that doesn't compromise as you move up or down the size run, paired with a 47mm fork rake refined through pro feedback for stability under speed. The compact Aero KEEL bottom bracket improves stiffness and allows for tire clearance up to 32mm, while the integrated seat clamp offers a clean appearance and improved protection from sweat and dust.... Read More

Features

  • T700 carbon frame and ONDA fork with asymmetric chainstays
  • Made4you sizing concept with size-specific cockpit and crank length
  • E-TICR headset with full internal cable and hose routing
  • Aero KEEL bottom bracket area, Italian threaded
  • Tire clearance up to 32mm
  • Integrated hidden seat clamp
  • Shimano 105 R7170 Di2 12-speed wireless shifters with internal seatpost battery

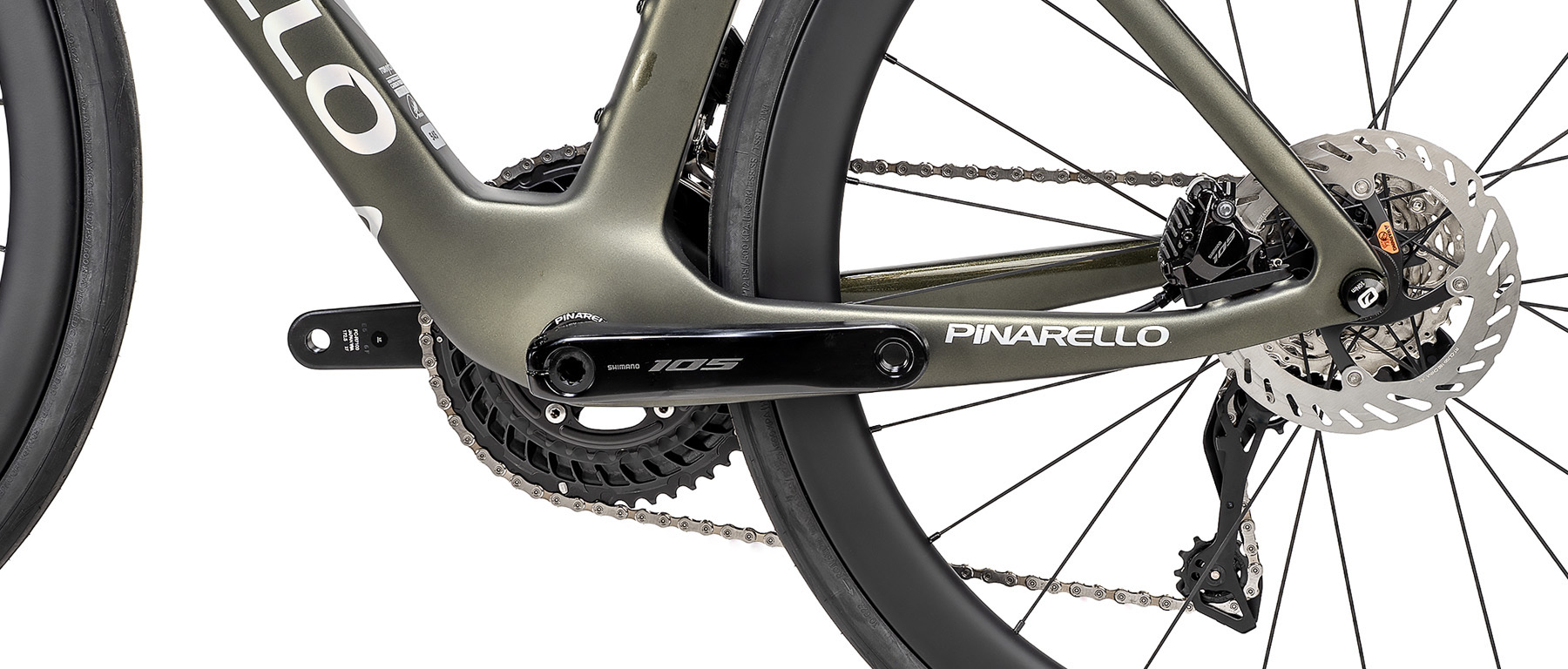

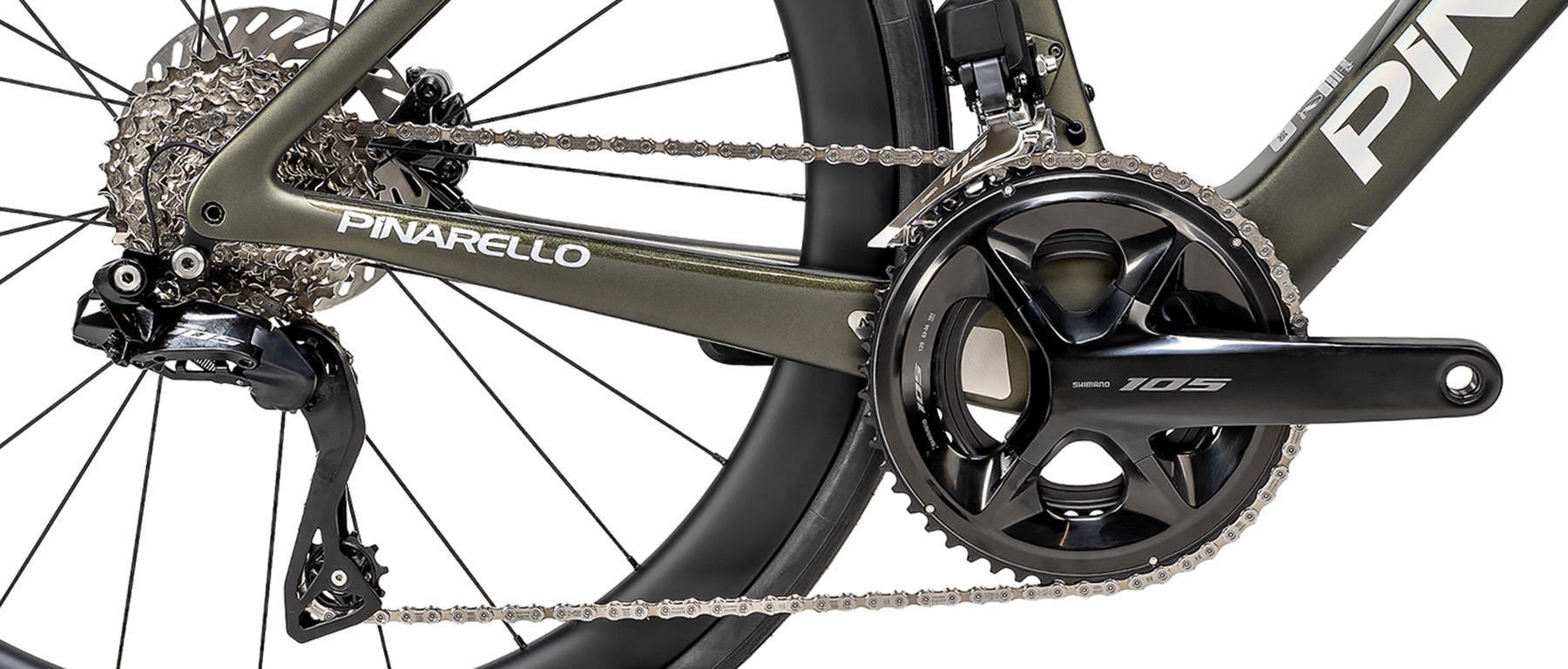

  • Shimano 105 R7100 52-36T compact crankset
  • 11-34T cassette, rear derailleur capacity to 11-36T

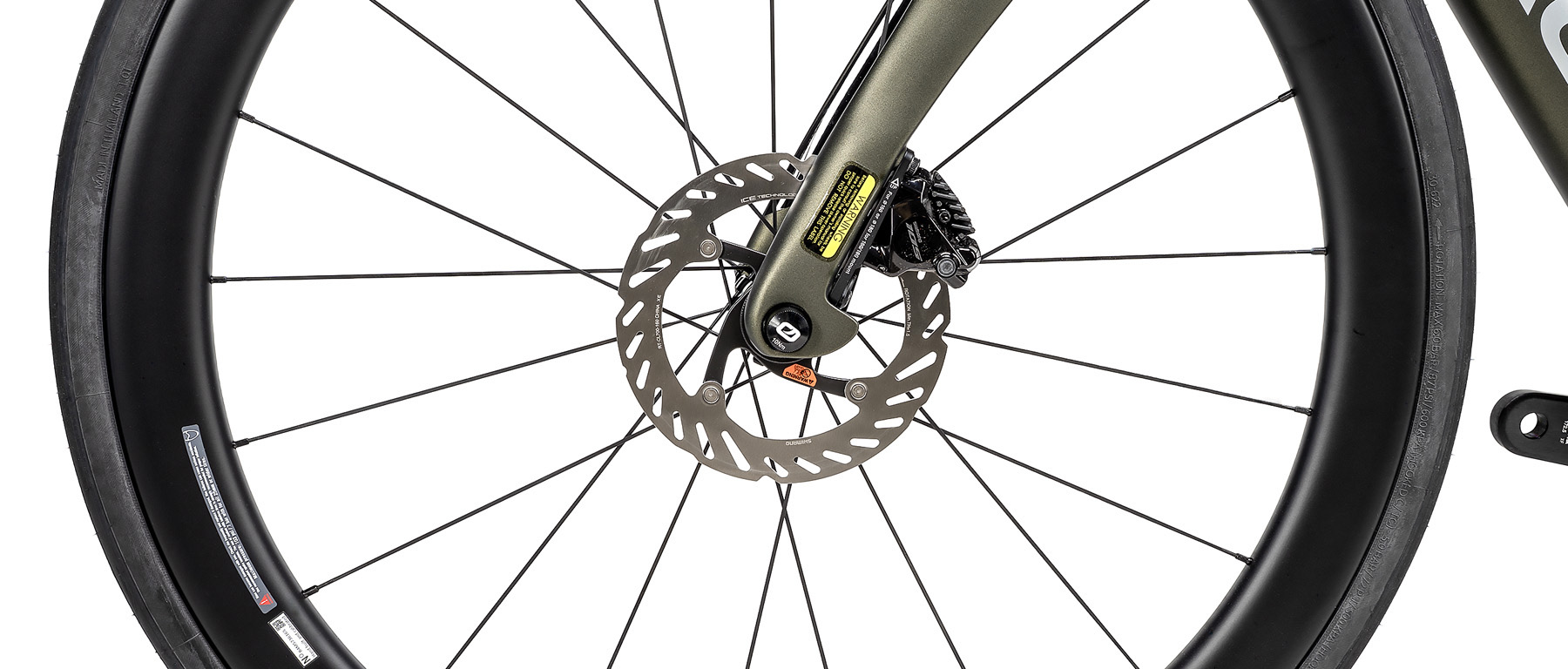

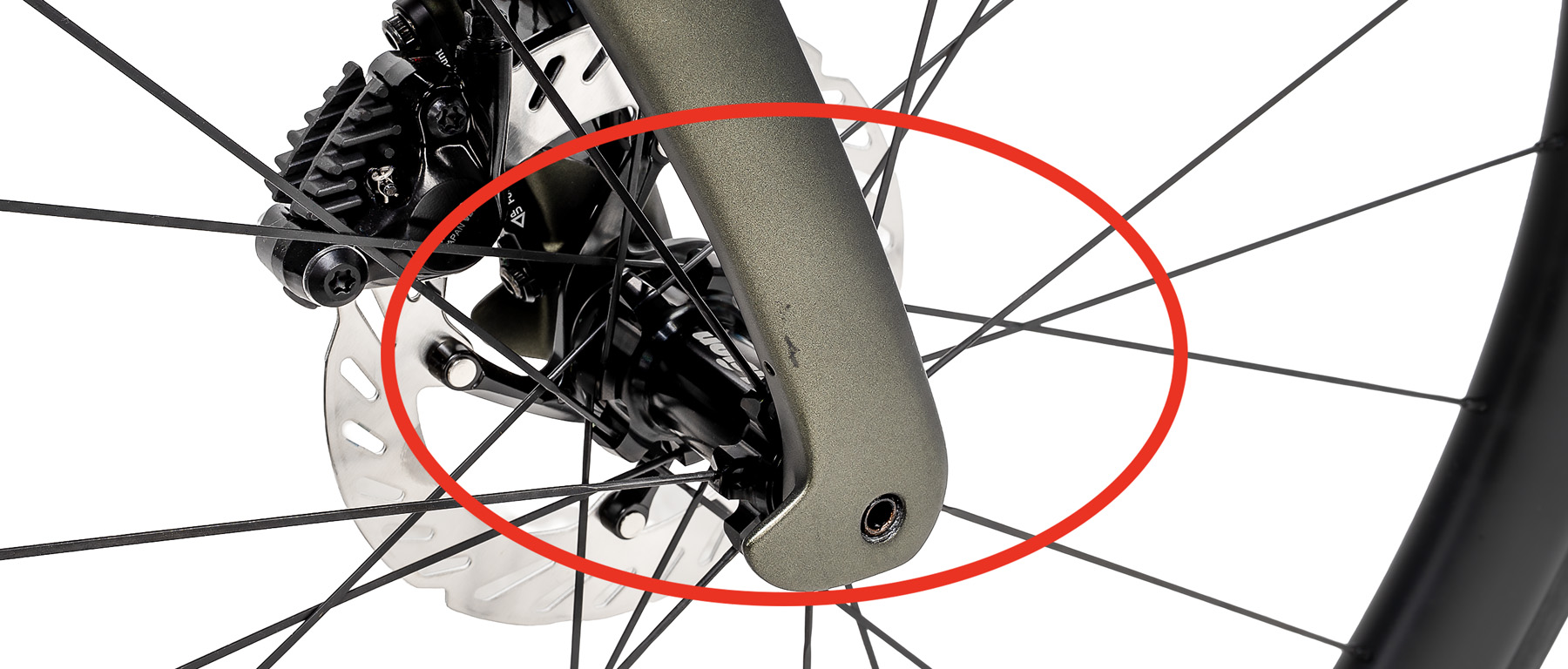

  • Shimano 105 hydraulic disc brakes, 160mm Center Lock rotors
  • MOST Ultrafast 45 alloy wheelset, 12mm thru-axle

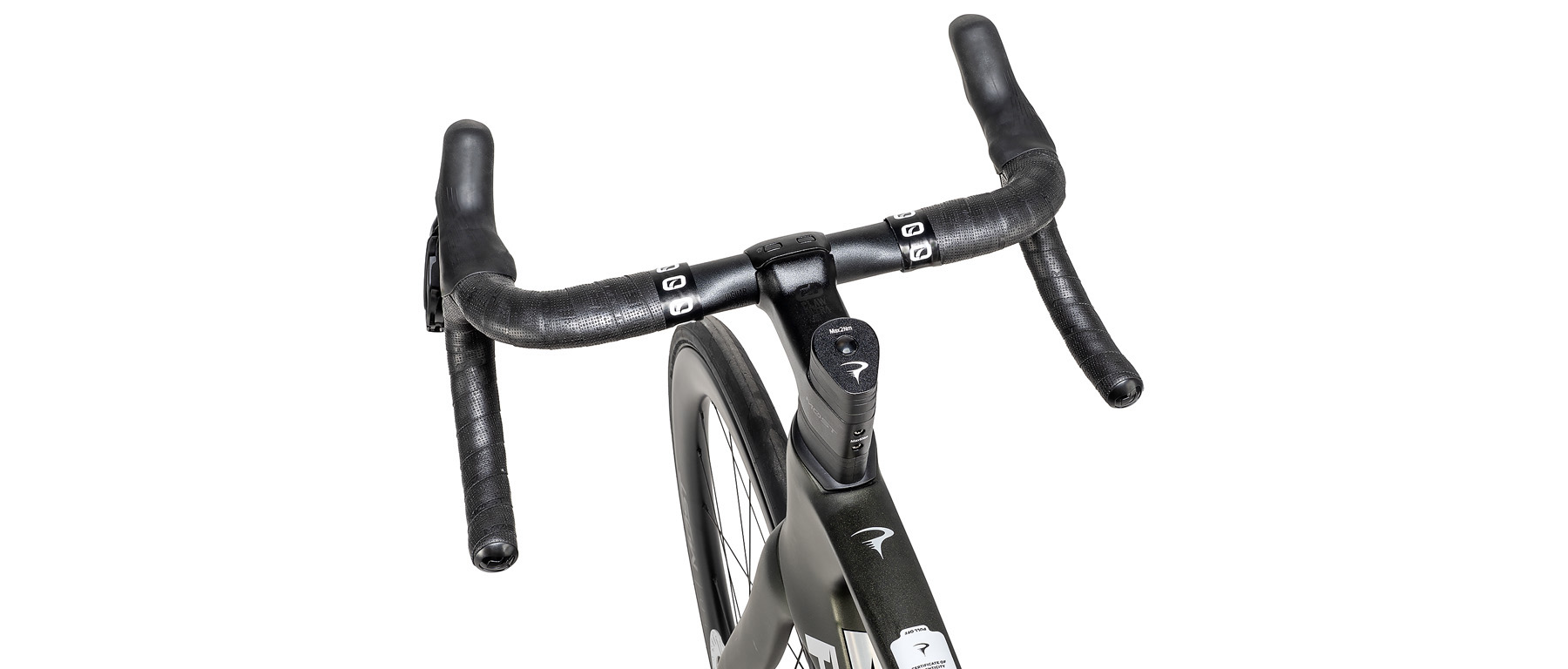

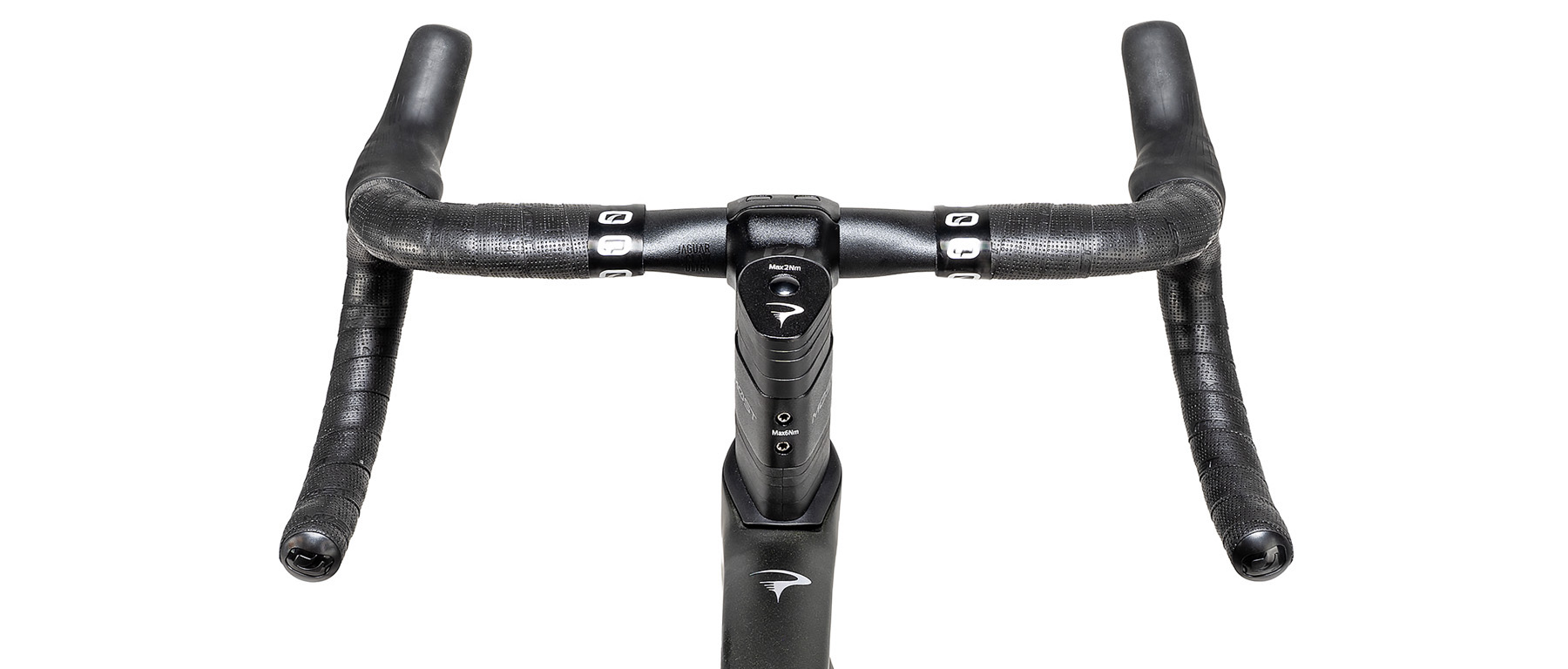

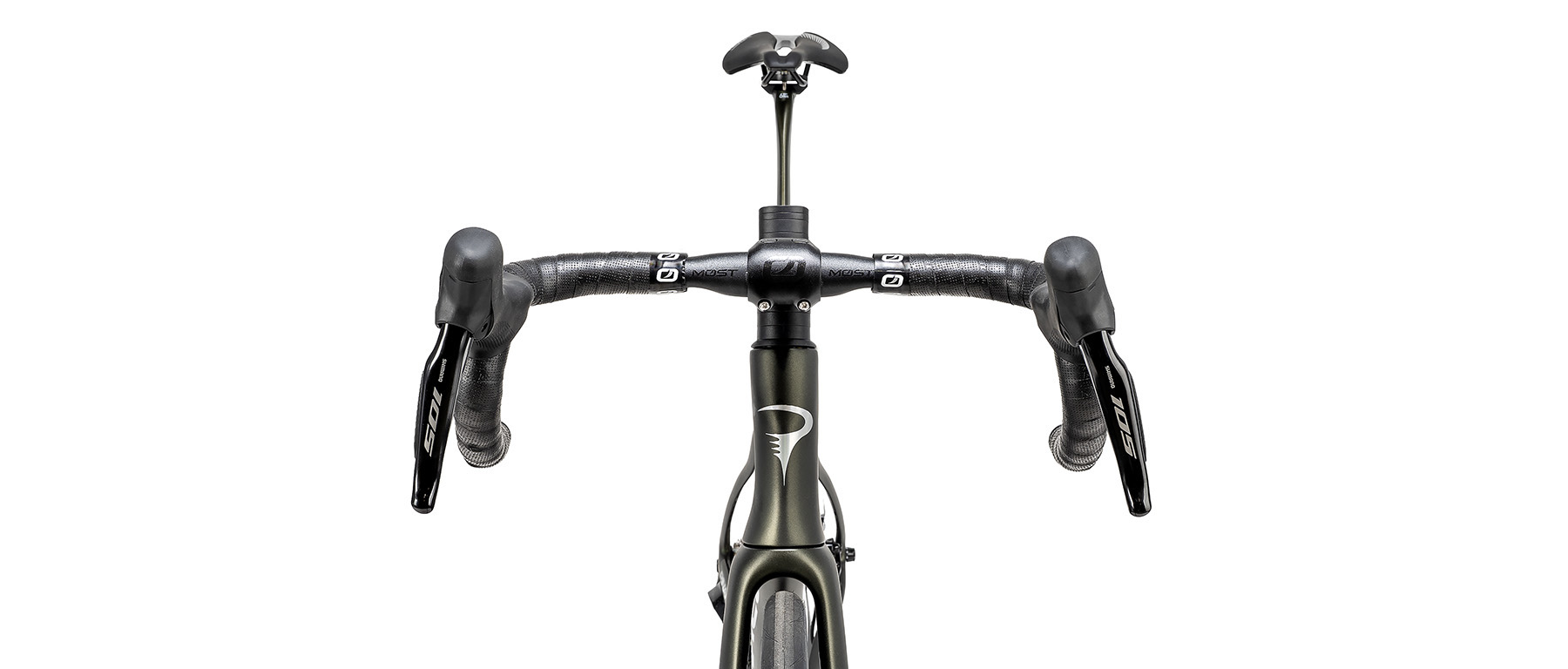

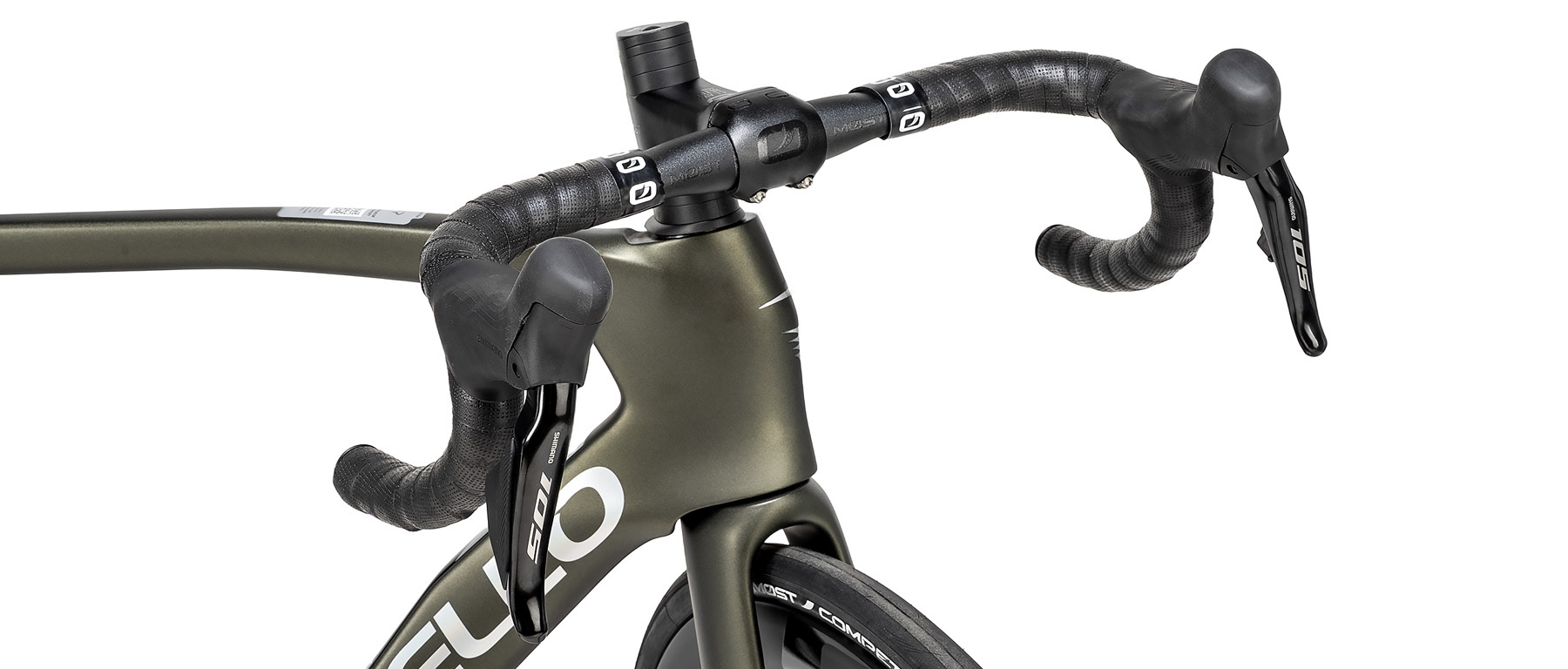

  • Jaguar Claw Ultra alloy handlebar with Claw Ultra Aero alloy stem

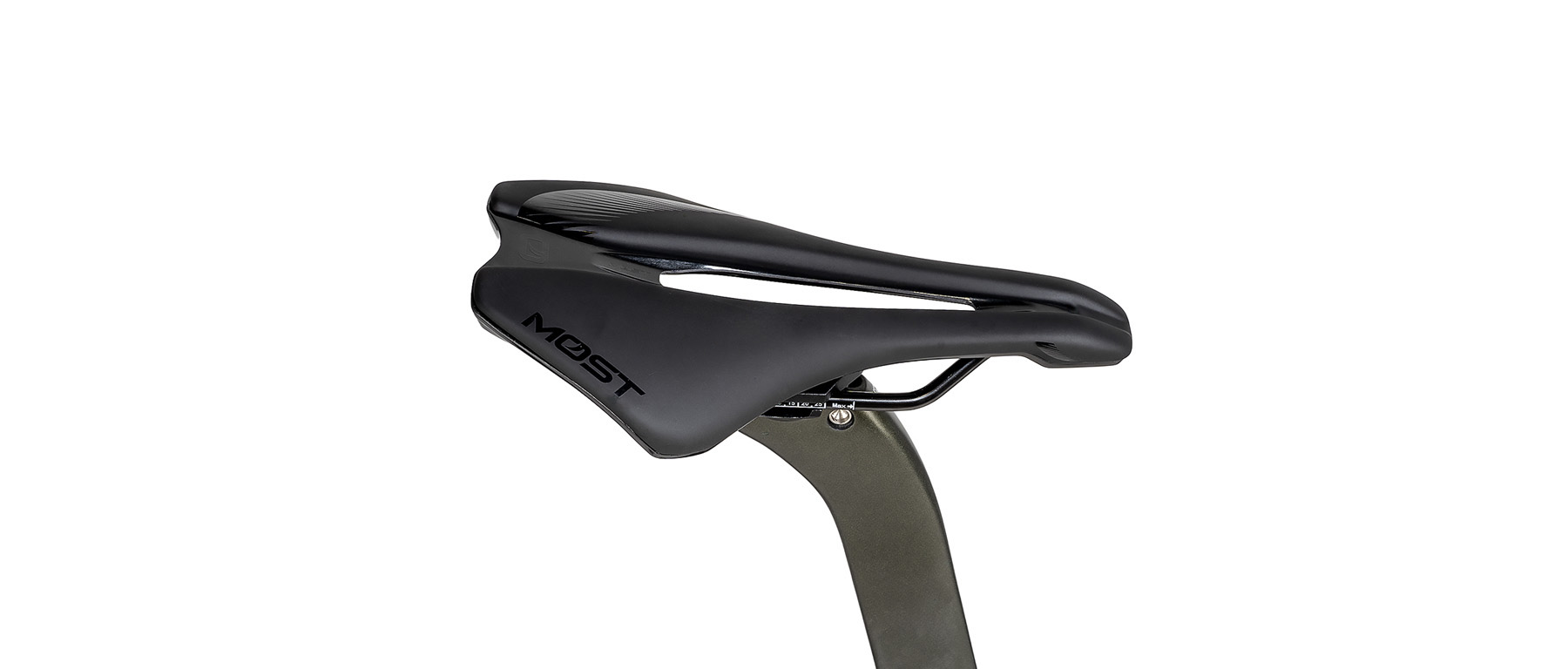

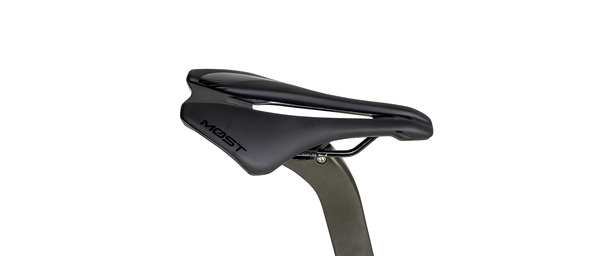

  • Pinarello Aero seatpost with MOST Lynx saddle
  • Pirelli road tires
  • 18.19 lbs (size 54.5)
Geometry
SizeTop TubeSeat AngleHead AngleChainstayHead TubeBB DropFork RakeReachStack
54.5555mm73.4°72.8°413mm143mm72mm47mm388.3mm557.7mm
