Bicycles > Road > Complete

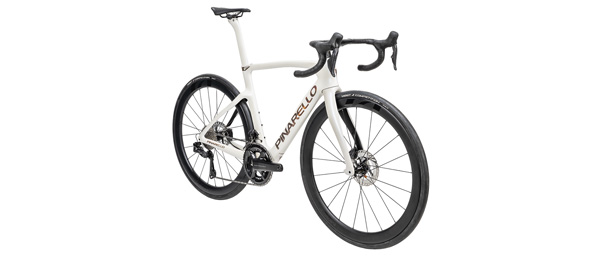

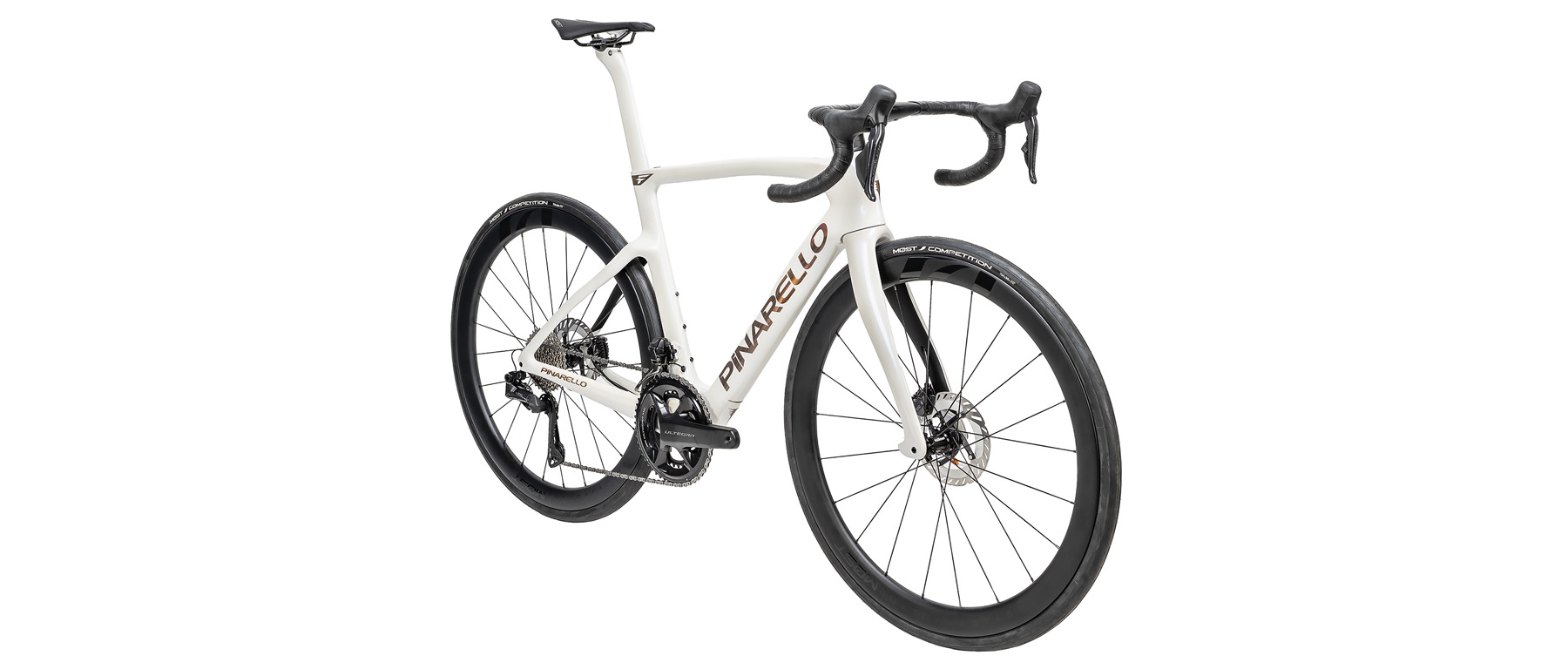

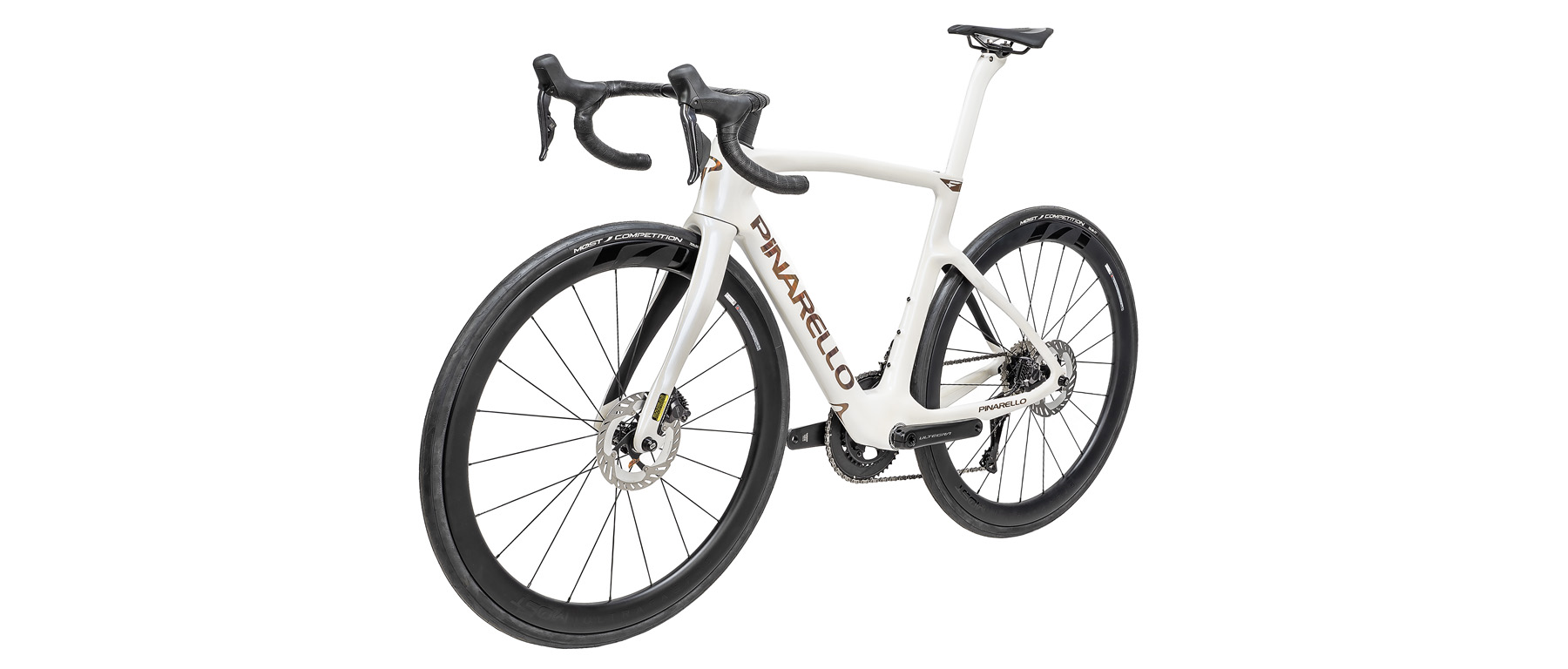

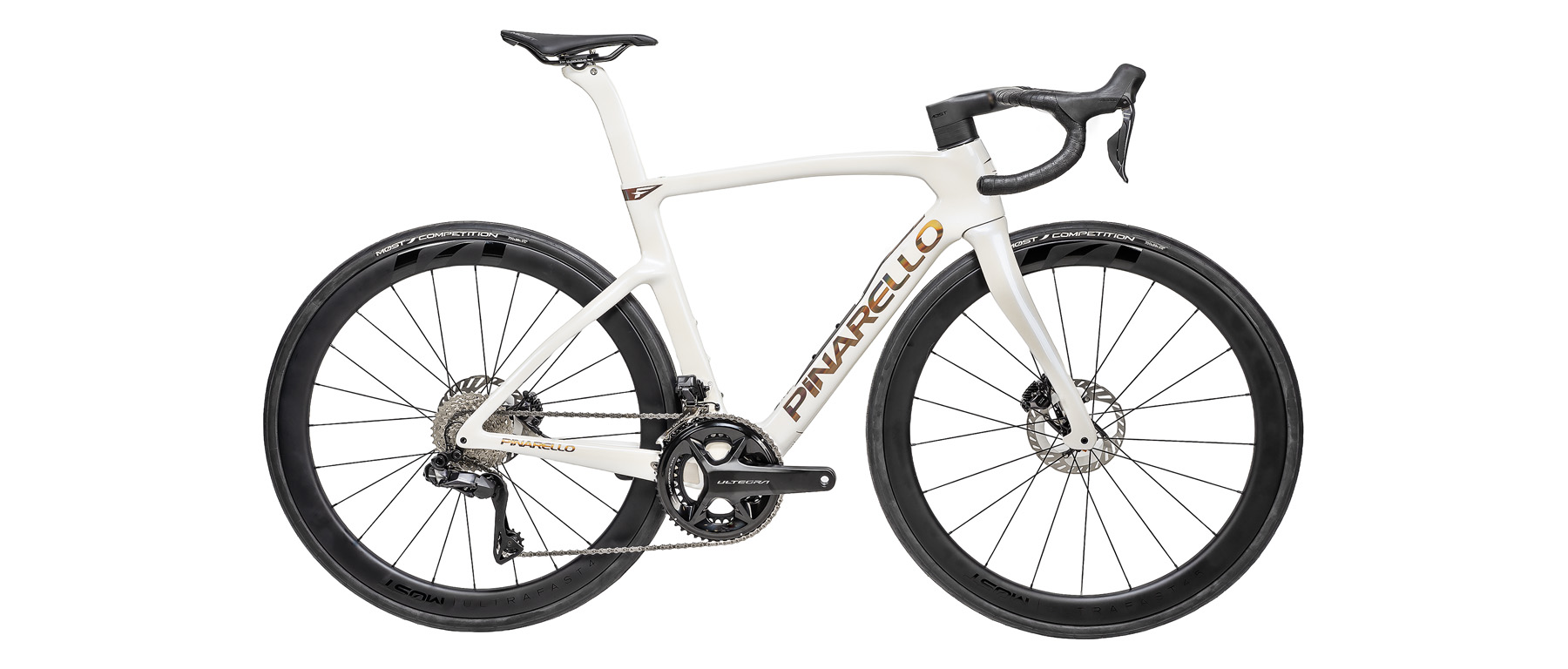

F7 Ultegra R8170 Di2 Bicycle DEMO 4
Color: Alabaster White Shiny H210
Size: 53cm
Description
Priced below regular retail as a show and demonstration bike — assembled for display and never ridden — this Pinarello F7 comes with a full factory warranty on both the frame and the Shimano Ultegra R8170 Di2 components. That is where the value sits: the current-generation F-series platform, backed by the same coverage as a new bike, at a discount off the standard ticket. The F7 sits in Pinarello's F-series road range, pairing a race-bred carbon frame with Ultegra electronic shifting for a rider who wants the performance chassis without stepping up to the Dura-Ace build cost.
The frame carries the asymmetric design language Pinarello has built its road bikes around for years, shaped differently on the drive and non-drive sides to balance the uneven forces of pedaling and braking. The fork legs and rear stays use the wavelike ONDA profile, and the frame runs a dropped, aerodynamically shaped seatstay junction. Cables and hydraulic lines route fully internally through the headset, keeping the front end clean and reducing frontal drag. It is a frame designed to hold speed and respond immediately to rider input.
Geometry on this size 530 puts the rider in a race position: a 385.6mm reach and 542.4mm stack paired with a 72.5° head tube angle and 73.7° seat tube angle. Chainstays sit at 411mm and the fork uses a 47mm rake across the size range, producing responsive, planted handling. This is a bike built around holding speed and reacting quickly rather than relaxed all-day positioning — it rewards a rider who wants to ride at the front. If you have been watching F-series pricing, a demonstration bike with full warranty is a route into the platform below the standard build number.... Read More
Features
- Asymmetric carbon frame construction

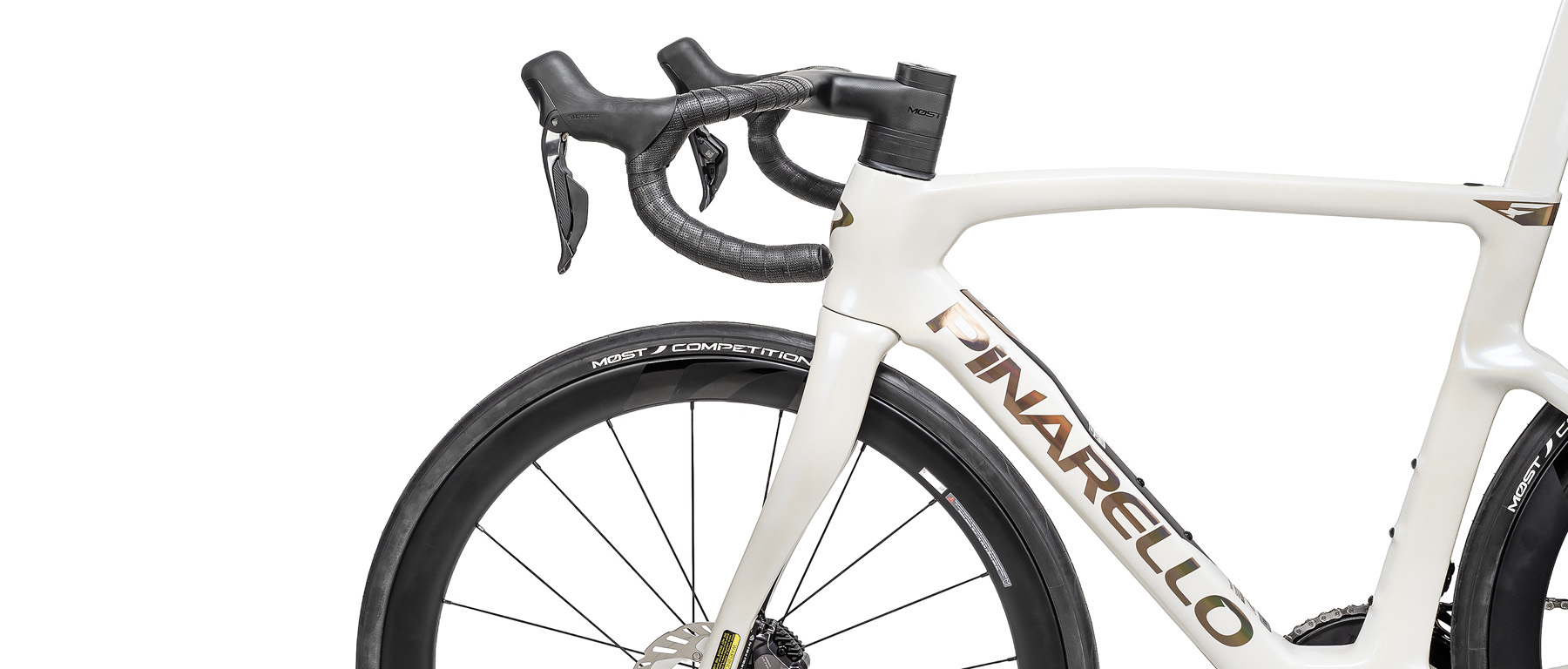

- ONDA fork and seatstay profile

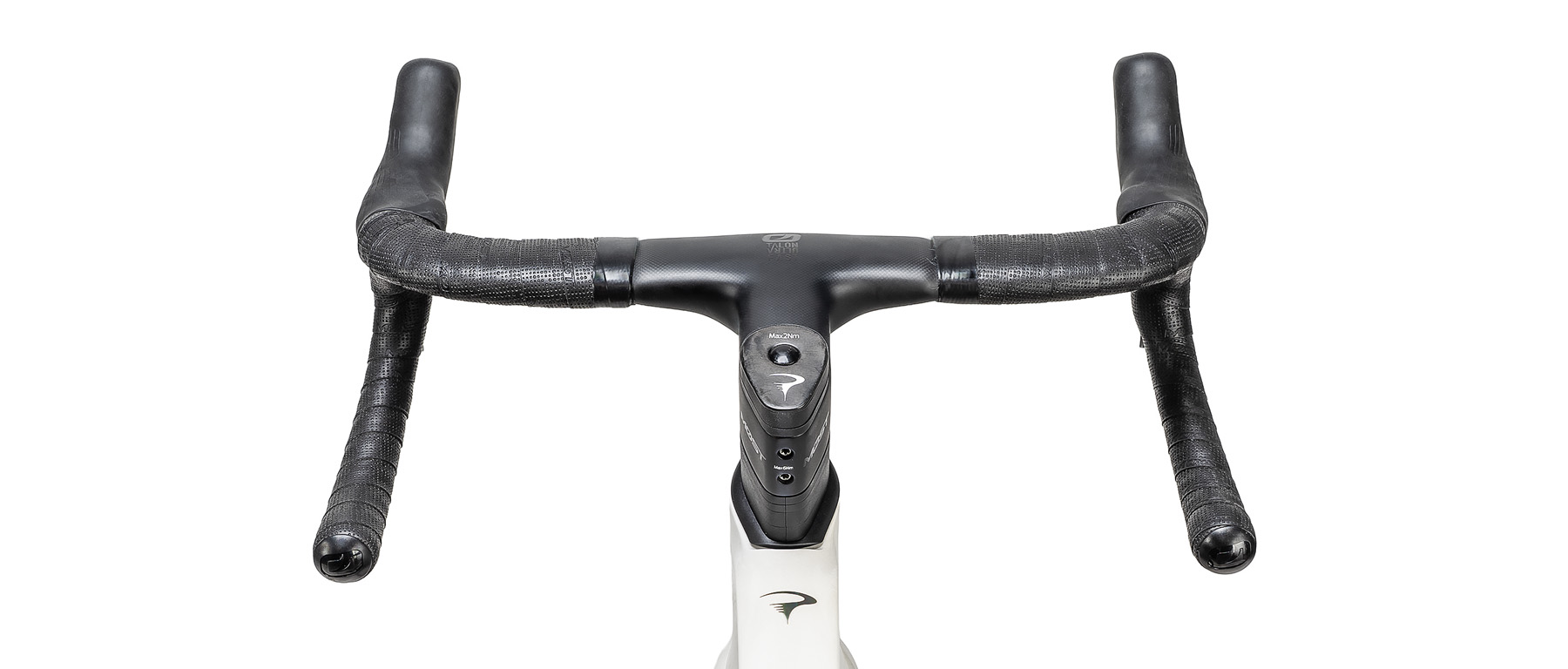

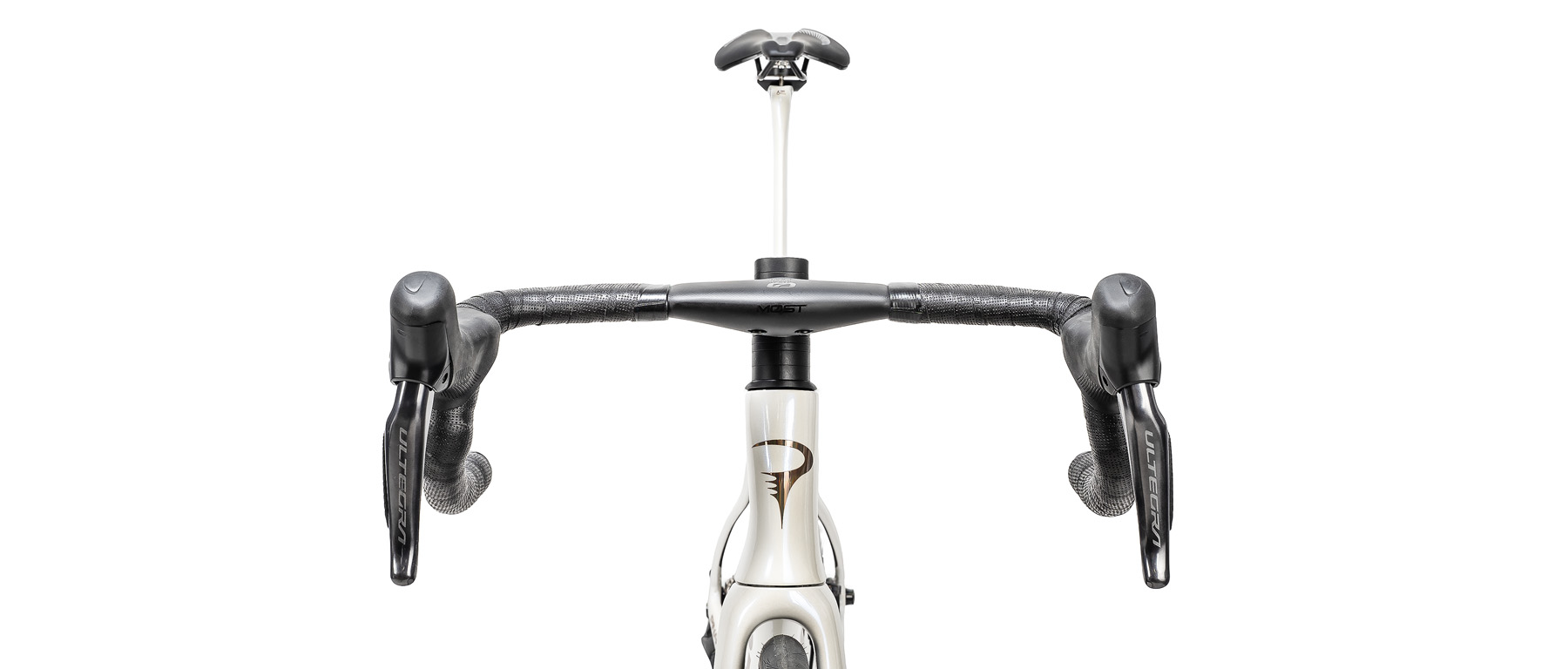

- Fully internal cable and hydraulic routing through the headset

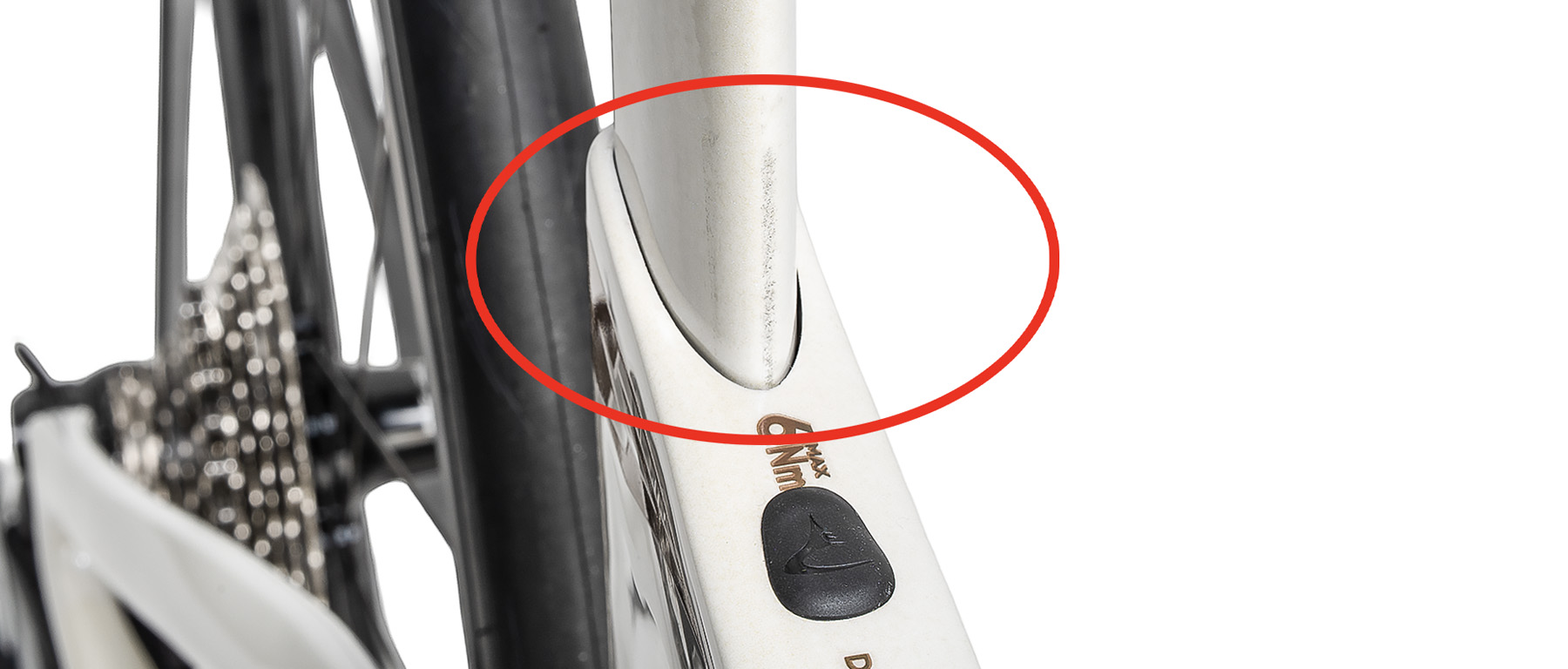

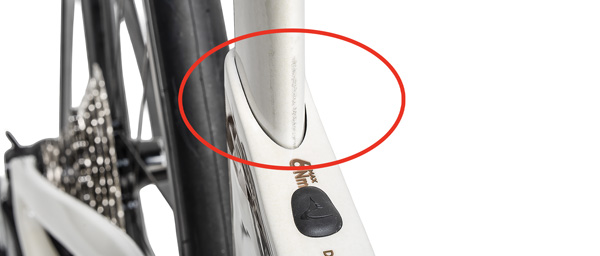

- Dropped aerodynamic seatstay junction

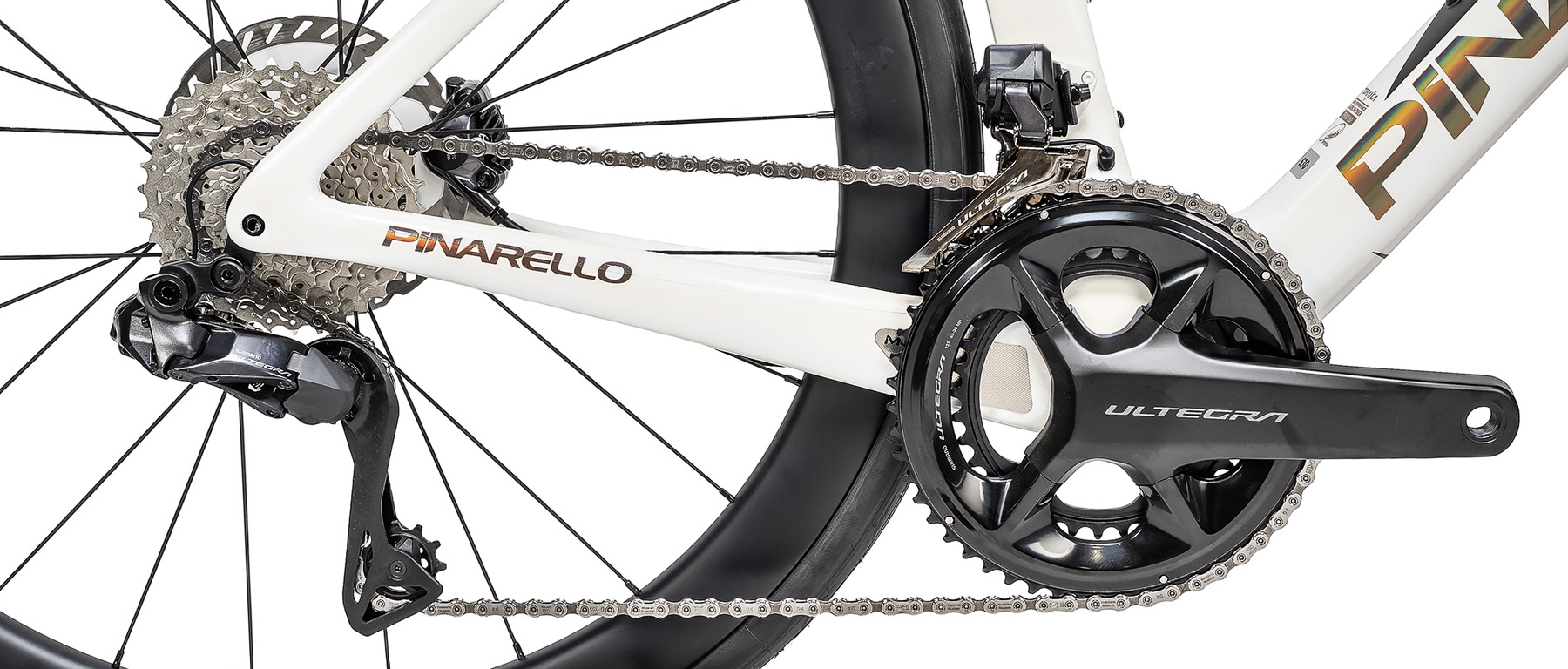

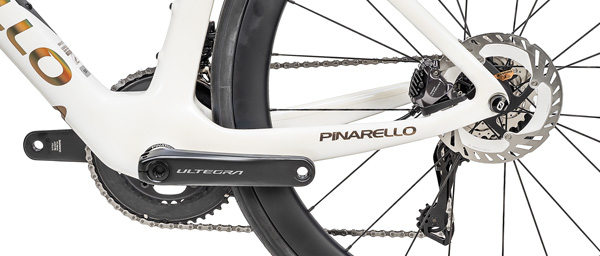

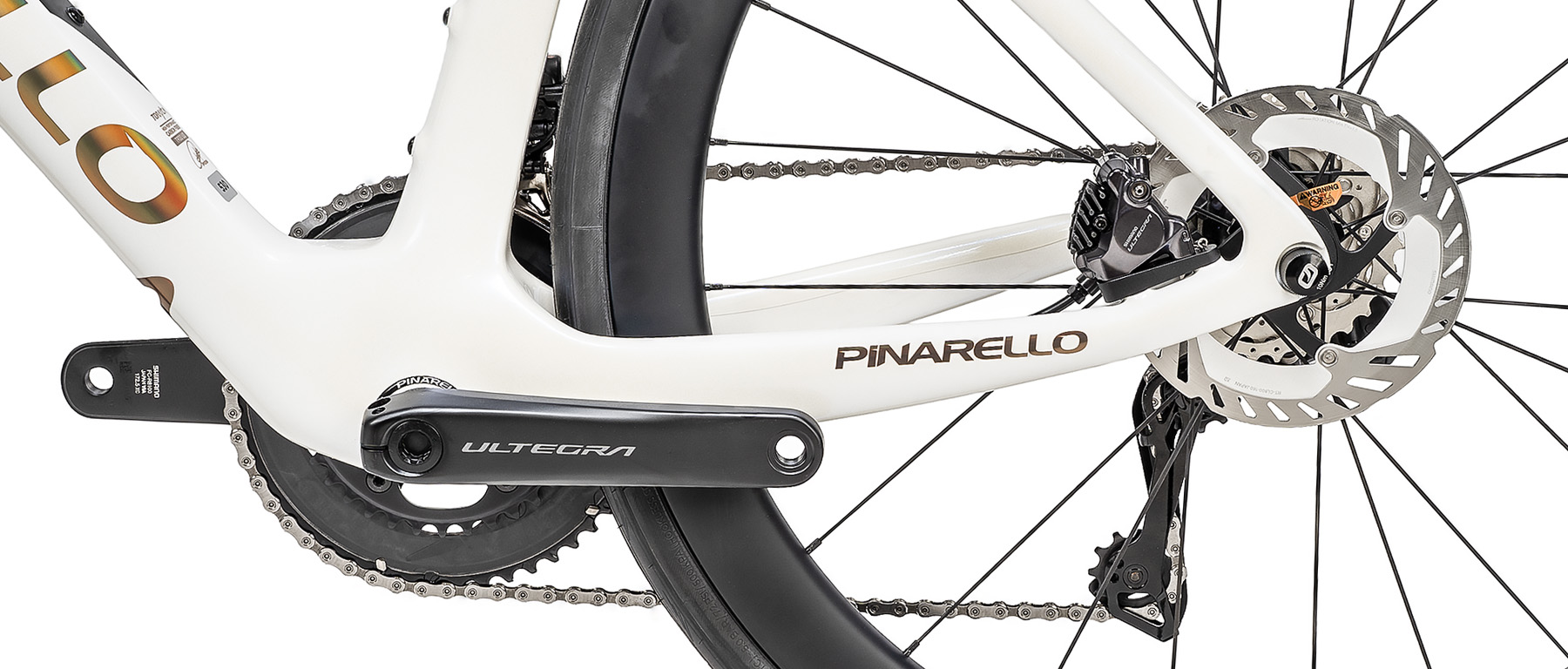

- Shimano Ultegra R8170 Di2 12-speed semi-wireless electronic shifting

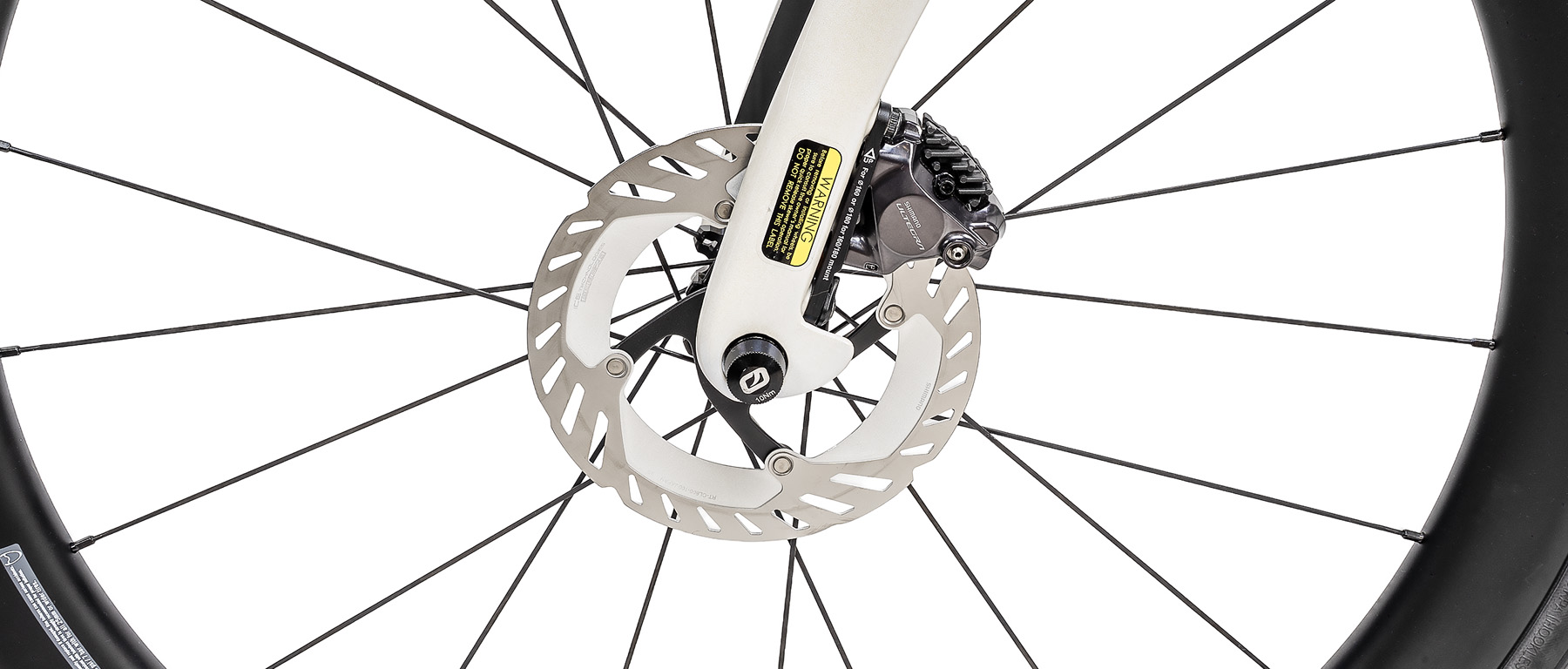

- Shimano Ultegra R8170 hydraulic disc brakes, flat-mount
- Race-oriented geometry with 72.5° head tube angle (size 530)
- 385.6mm reach, 542.4mm stack (size 530)
- 411mm chainstays, 47mm fork rake
- Alabaster White Shiny H210 finish
- Show and demonstration bike, never ridden
- Full factory warranty on frame and components
Geometry
| Size (CC) | Top Tube (L) | Seat Angle (A) | Head Angle (B) | Chainstay (P) | Head Tube (T) | BB Drop (D) | Fork Rake (R) | Reach | Stack |
|---|---|---|---|---|---|---|---|---|---|
| 430 | 500mm | 74.4° | 69.5° | 410mm | 102mm | 67mm | 47mm | 351.3mm | 502mm |
| 465 | 515mm | 74.4° | 70.5° | 410mm | 109mm | 72mm | 47mm | 365.4mm | 517.3mm |
| 500 | 525mm | 74° | 71.4° | 411mm | 114mm | 72mm | 47mm | 372.2mm | 525.2mm |
| 515 | 535mm | 73.7° | 72° | 411mm | 119mm | 72mm | 47mm | 378.2mm | 532.1mm |
| 530 | 545mm | 73.7° | 72.5° | 411mm | 128mm | 72mm | 47mm | 385.6mm | 542.4mm |
| 545 | 555mm | 73.4° | 72.8° | 413mm | 143mm | 72mm | 47mm | 388.3mm | 557.7mm |
| 560 | 565mm | 73° | 73.2° | 413mm | 154.5mm | 72mm | 47mm | 390.8mm | 570.1mm |
| 575 | 578mm | 73° | 73.7° | 413mm | 183mm | 72mm | 47mm | 395.5mm | 599.2mm |
| 595 | 600mm | 72.4° | 73.4° | 413mm | 225mm | 67mm | 47mm | 400.4mm | 633.4mm |
