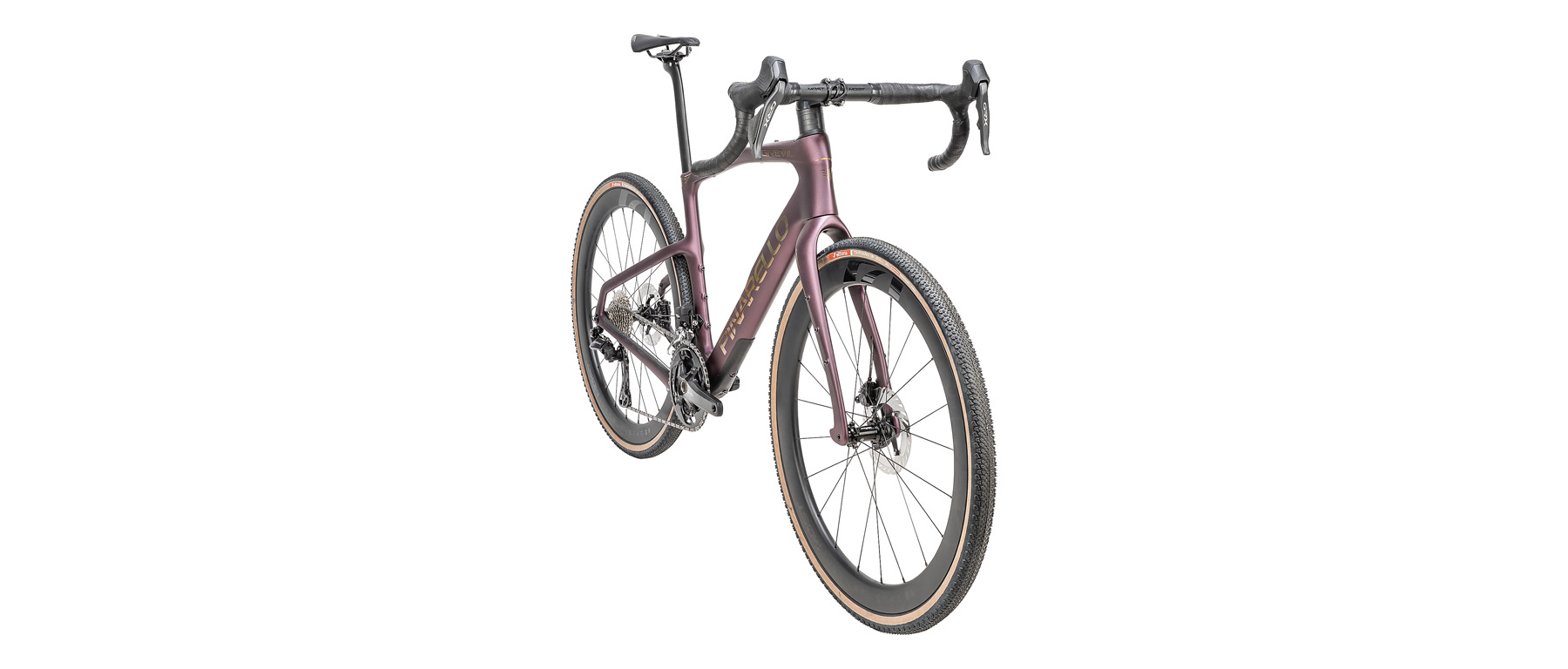

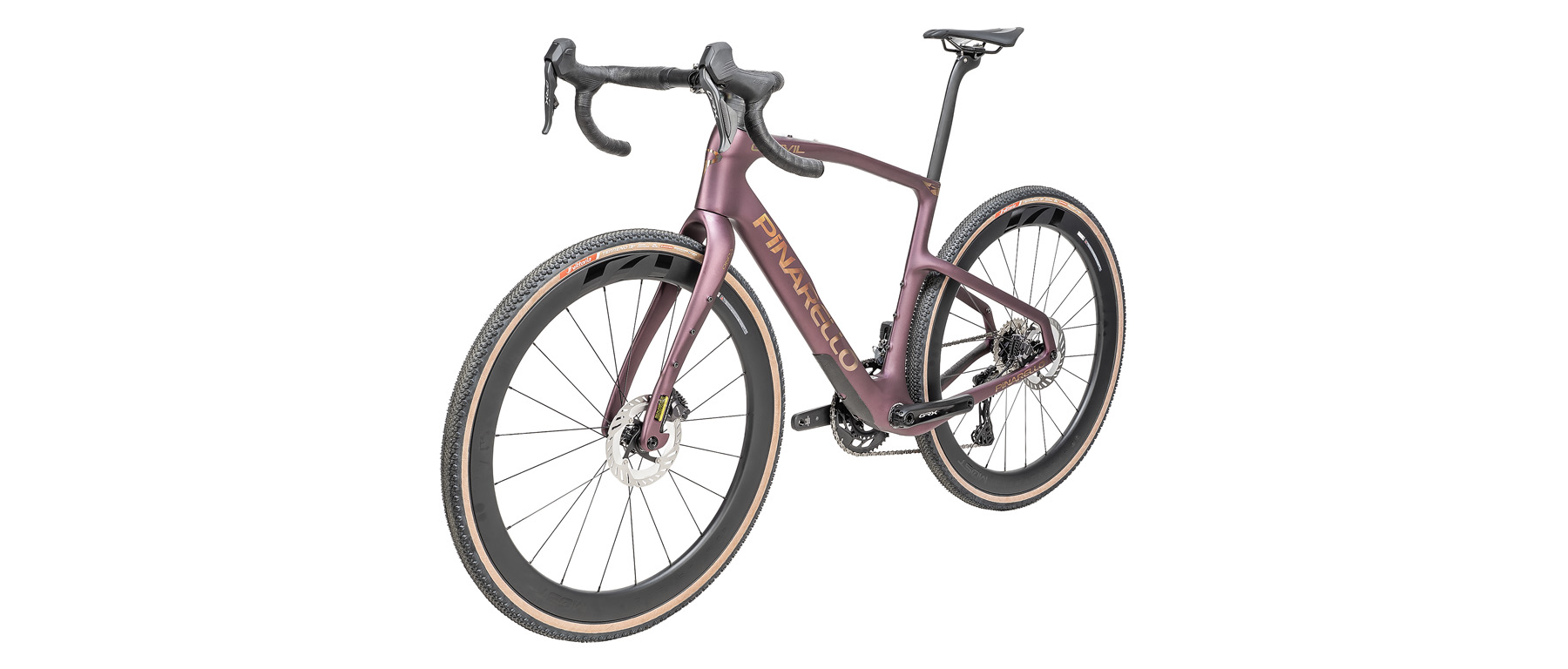

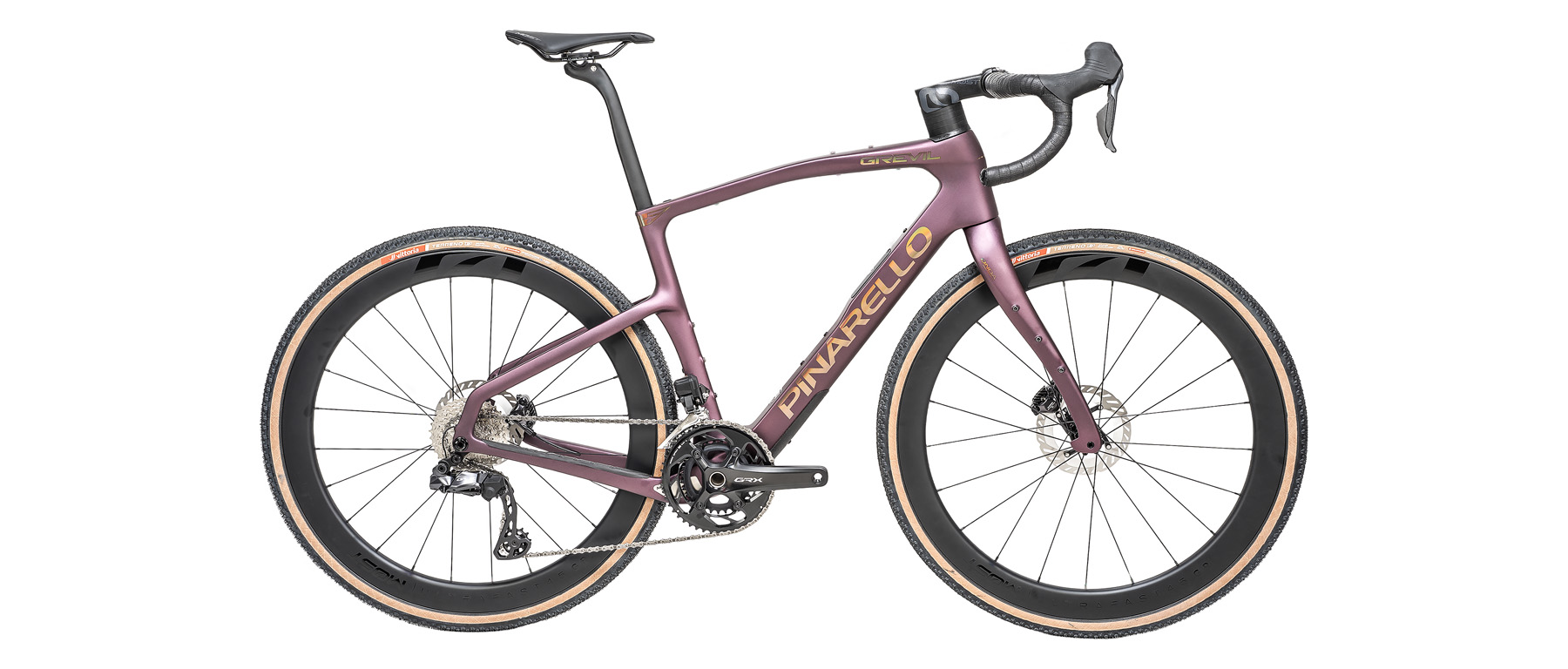

Grevil F7 GRX825 Di2 Bicycle SAMPLE
Color: Polaris Purple H311
Size: 53cm
Description
Offered below regular retail as a show and demonstration bike — built up for display and never ridden — this Grevil F7 arrives with a full factory warranty on both frame and components, which is where the value sits for a buyer who wants a current-generation Pinarello gravel platform without the full ticket. With the Dogma GR now positioned as Pinarello's pure gravel race flagship, the latest Grevil F has been reconceived as the more versatile, endurance-focused platform in the range — the bike for events measured in hours rather than minutes.
The F7 sits near the top of the Grevil F lineup and shares its Toray T900 UD carbon layup with the flagship F9. Pinarello selects T900 for the F7 and F9 to balance stiffness-to-weight against compliance, reserving the T700 layup for the mid-tier F5 and F3 and the more compliance-oriented T600 for the entry-level F1. The frame carries Pinarello's asymmetric construction philosophy through the down tube, bottom bracket, and rear triangle, addressing the uneven forces a chain-driven frame sees on its drive and non-drive sides.
Geometry is what Pinarello calls race geometry+, which keeps the head and seat tube angles on the sharper side while adding stack for longer days in the saddle. The current platform runs a top tube 10mm longer than its predecessor, paired with a shorter stem — an approach Pinarello borrowed from mountain biking to sharpen off-road handling and add composure over extended efforts. Fork rake is size-specific, with 55mm on the three smaller sizes and 50mm on the three larger sizes to hold trail and handling consistent across the range. The Adaptive Seatpost and dropped seatstays are claimed to deliver up to 10mm of vertical flex to take the edge off rough terrain.... Read More
Features

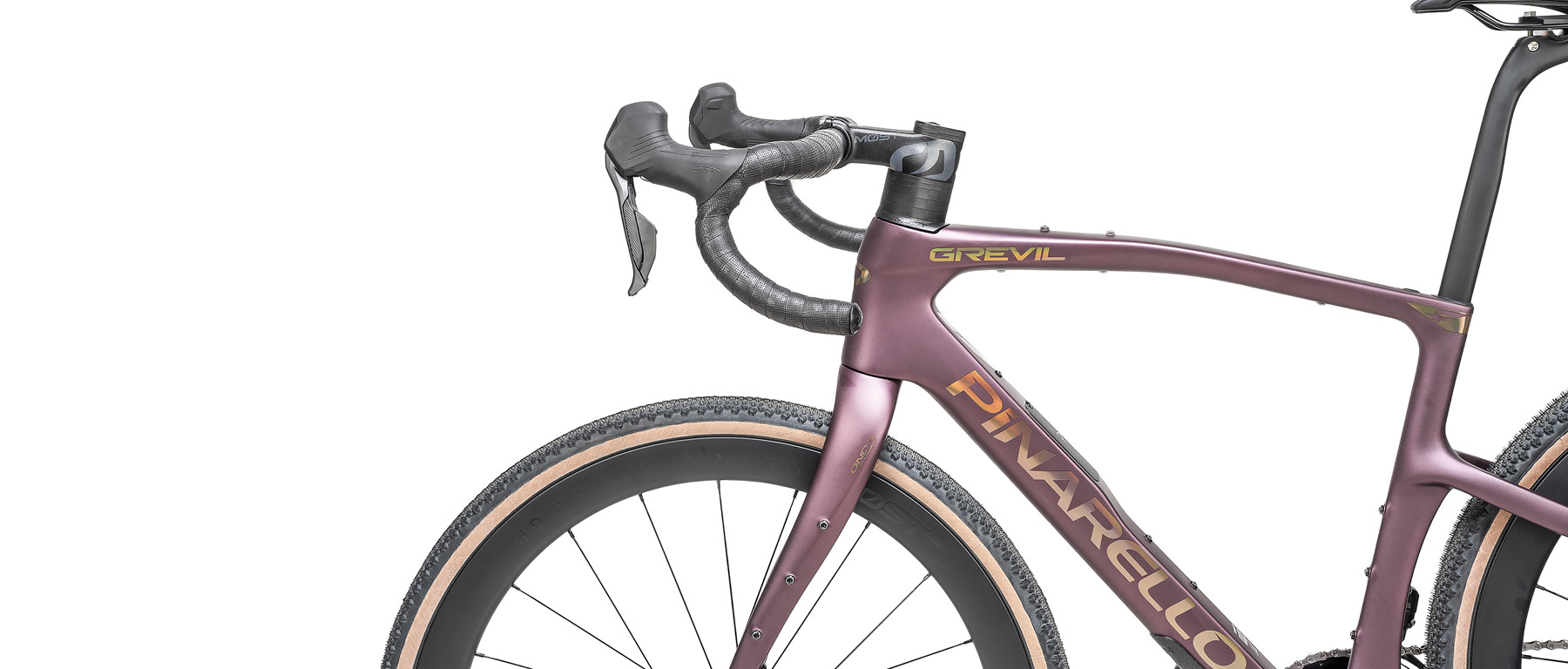

- Toray T900 UD carbon frame with asymmetric construction
- Onda F fork with ForkFlap and tapered steerer
- Race geometry+ with size-specific fork rake (55mm smaller sizes, 50mm larger sizes)
- Adaptive Seatpost and dropped seatstays claimed at up to 10mm vertical flex

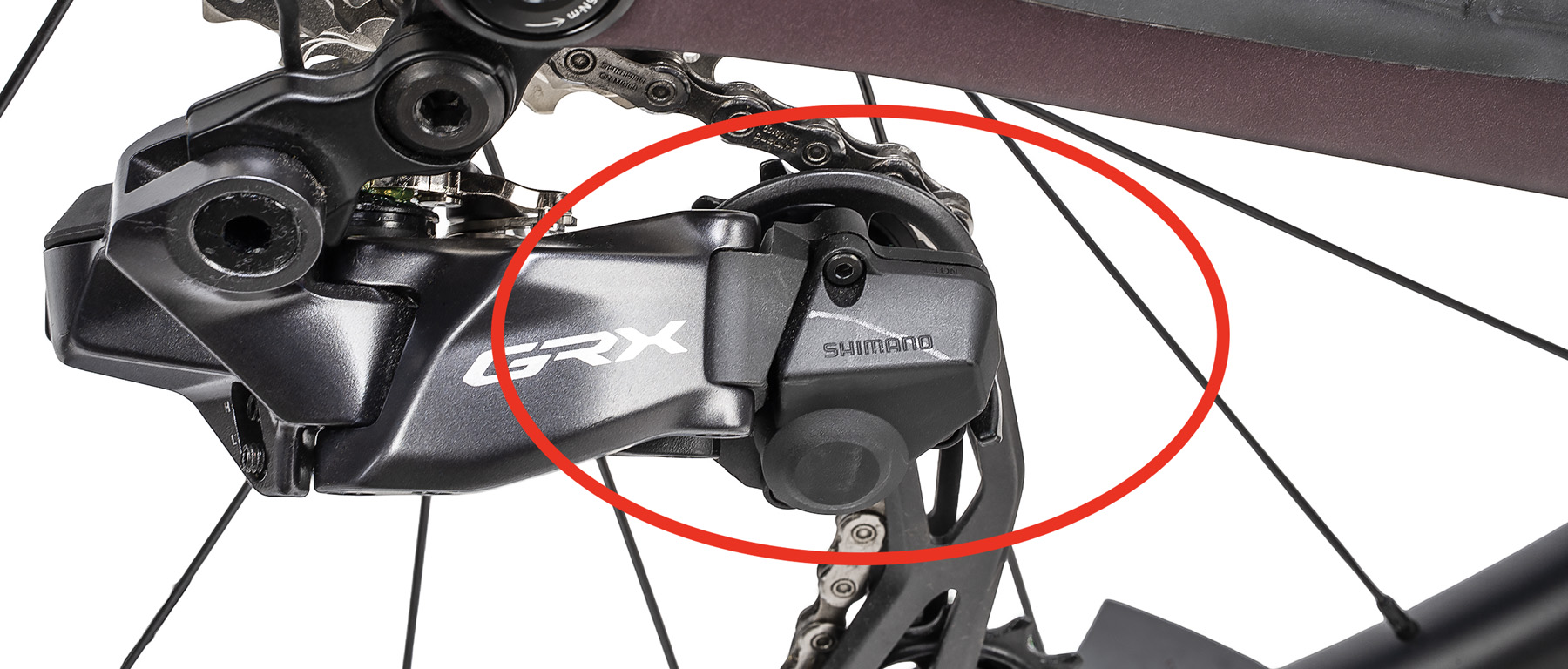

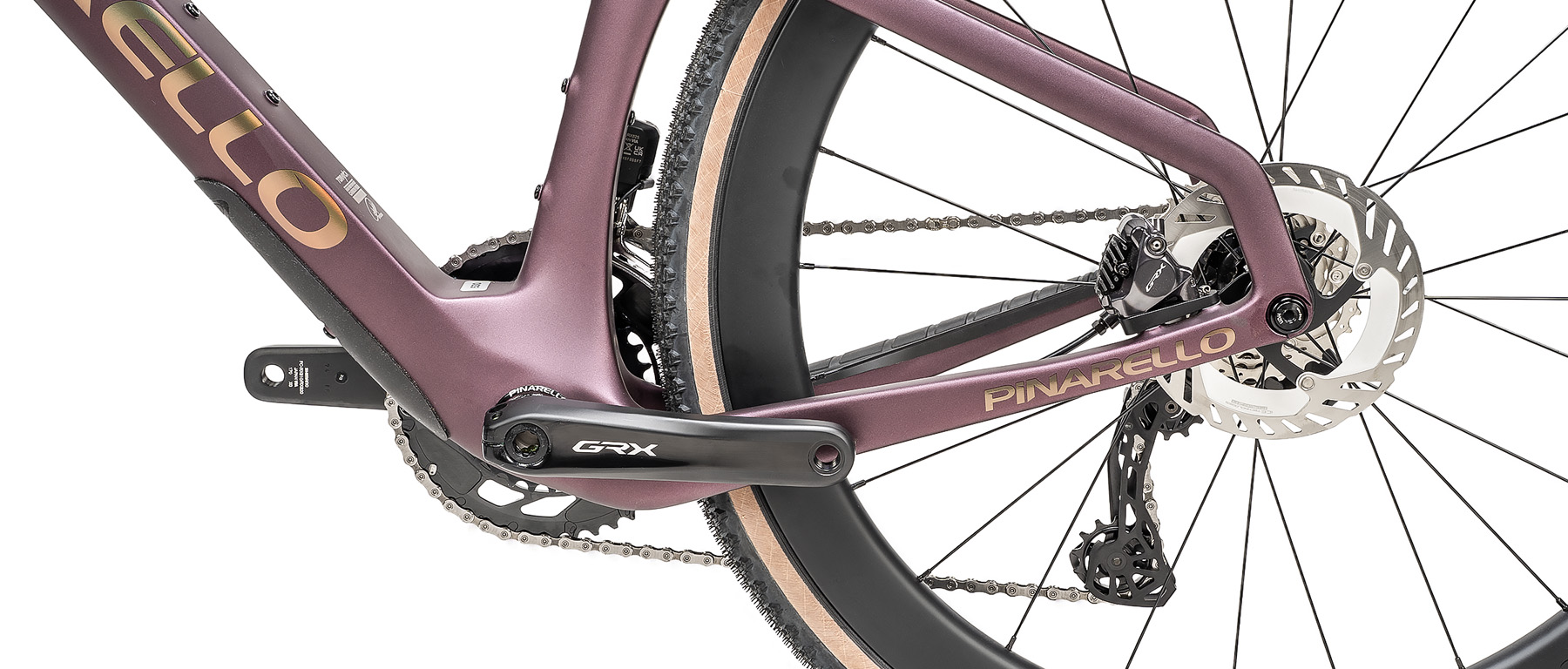

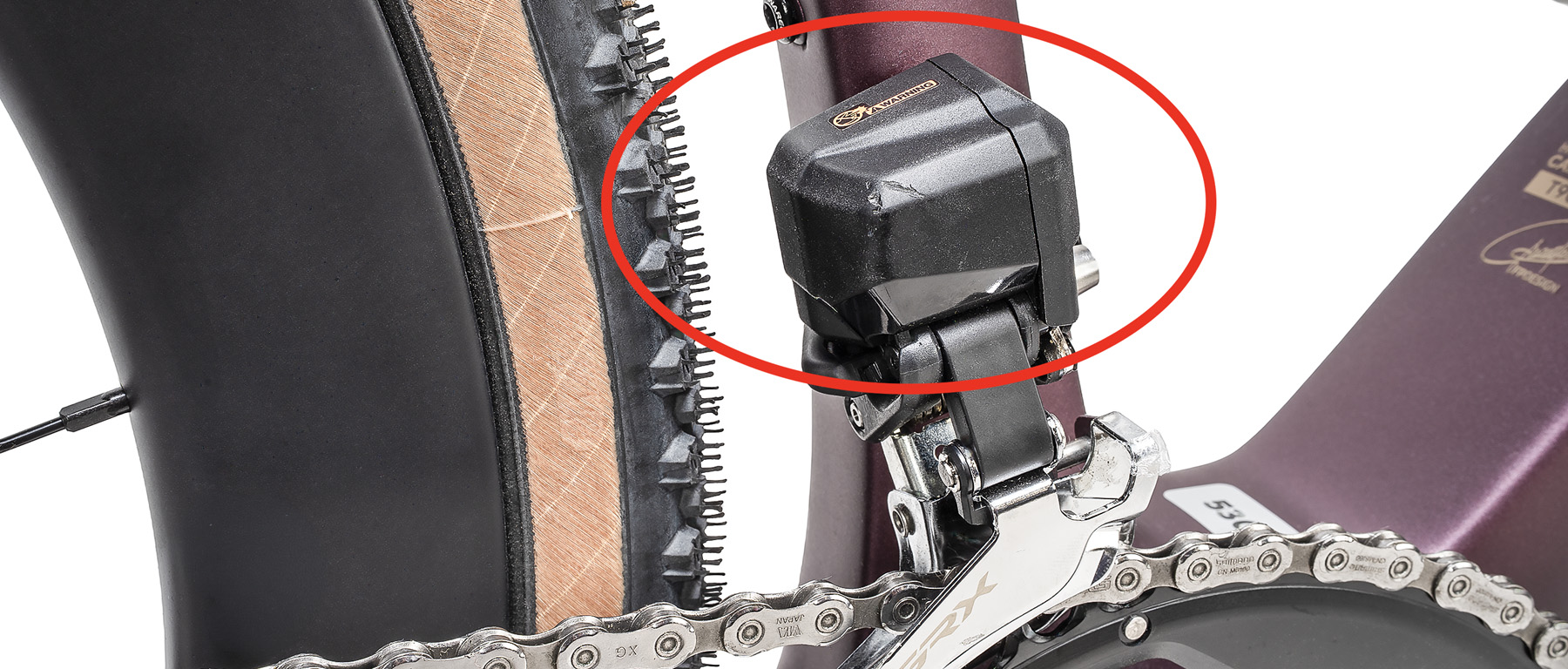

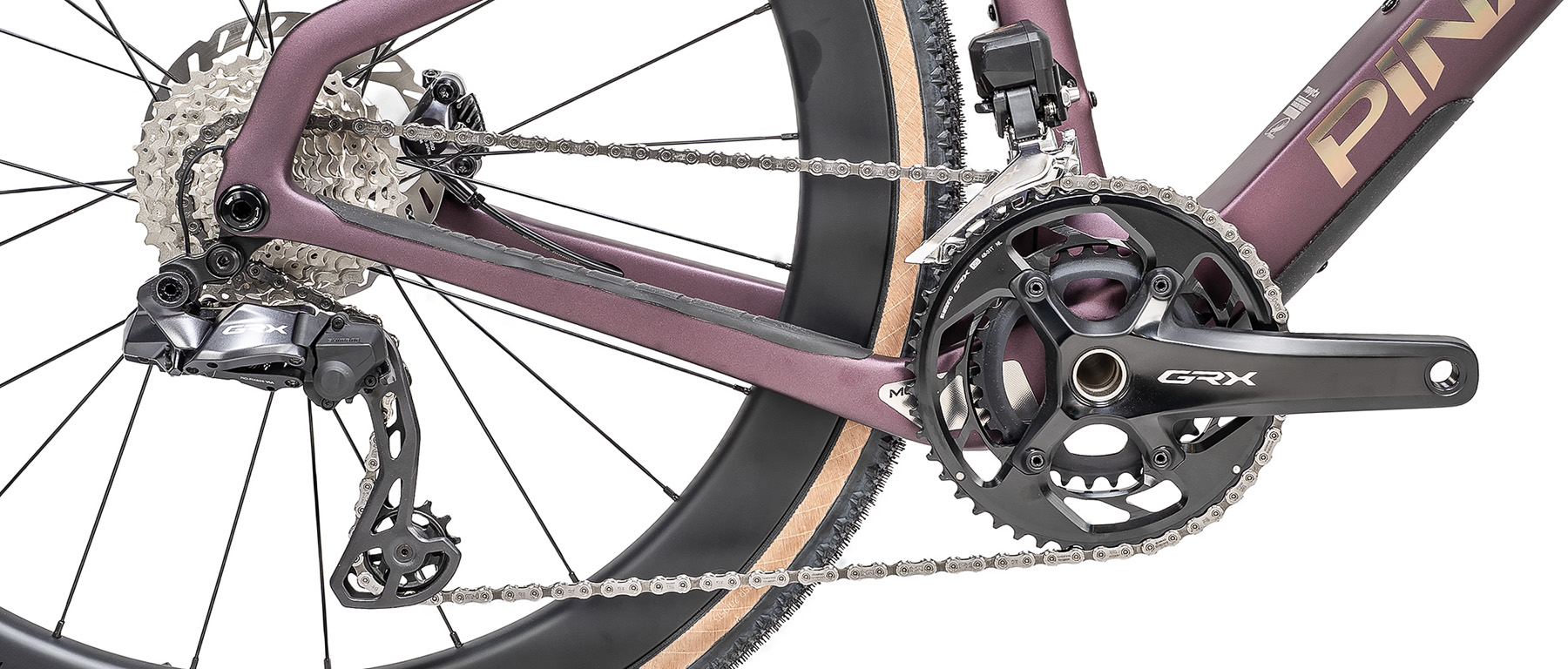

- Shimano GRX 825 Di2 2x12 electronic drivetrain, 48-31 crankset, 11-34T cassette

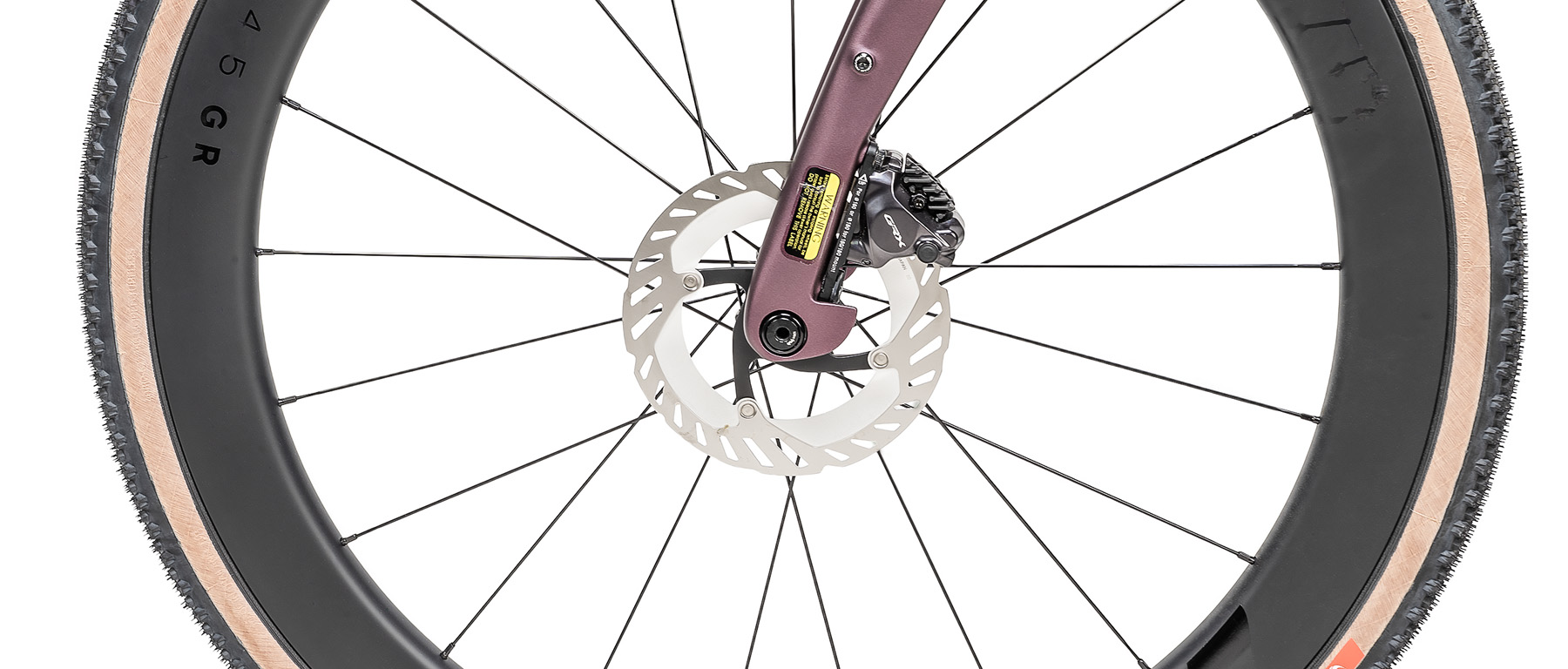

- Shimano GRX hydraulic disc brakes, 160mm rotors front and rear

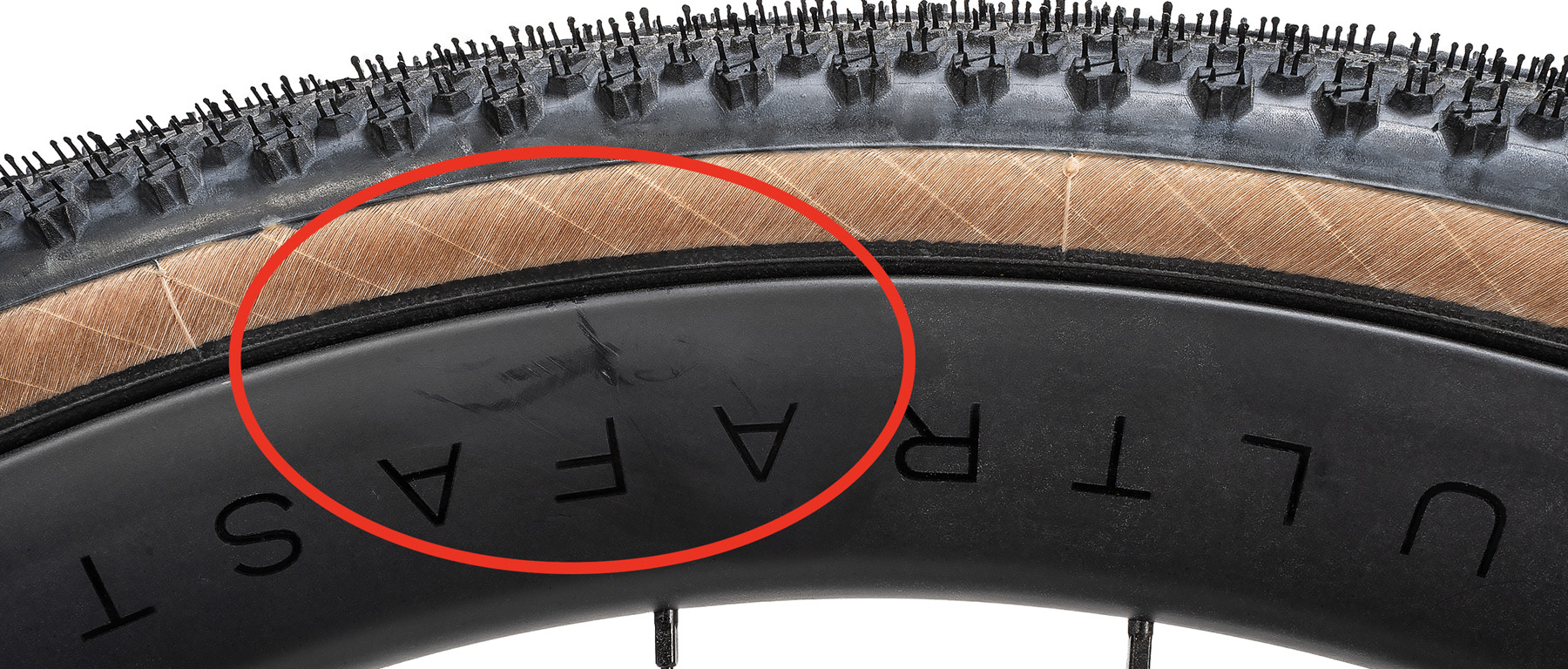

- MOST Gravel Carbon 45 wheelset
- Vittoria Terreno T50 45mm tires

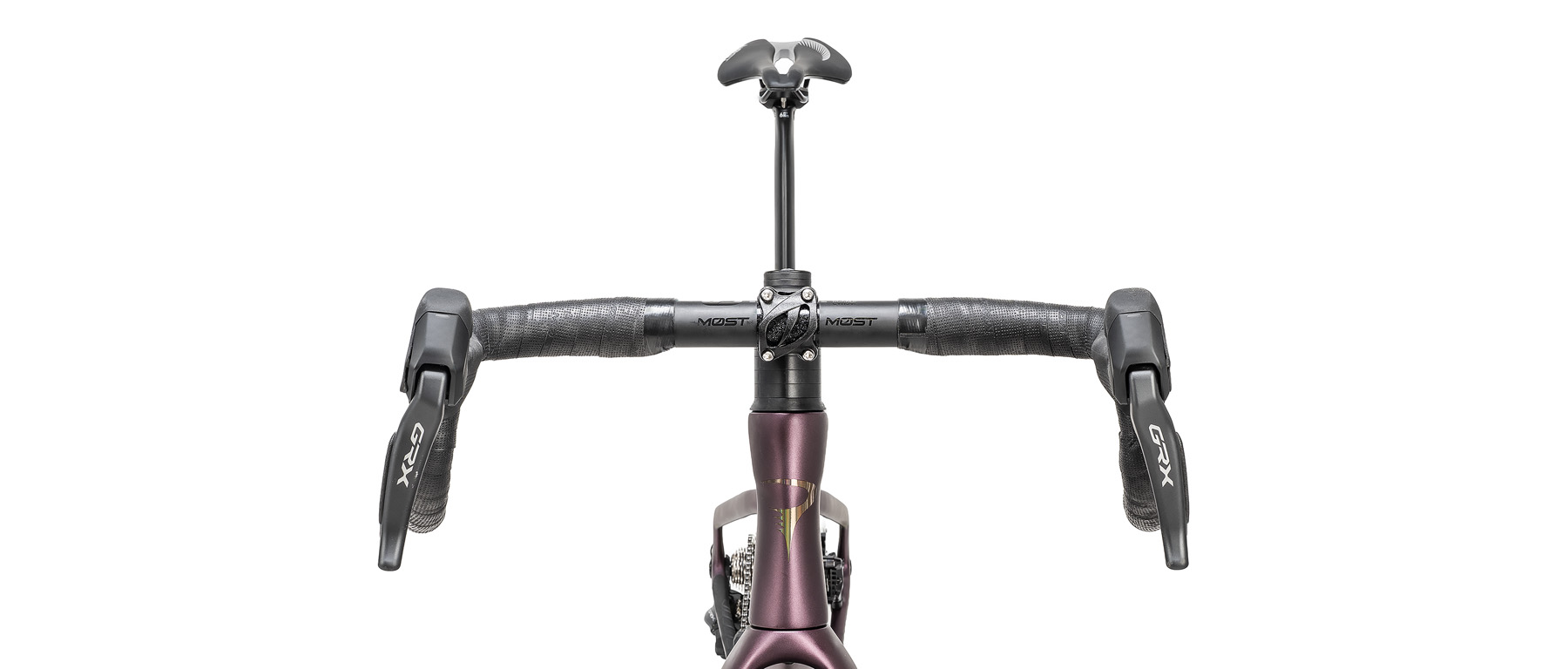

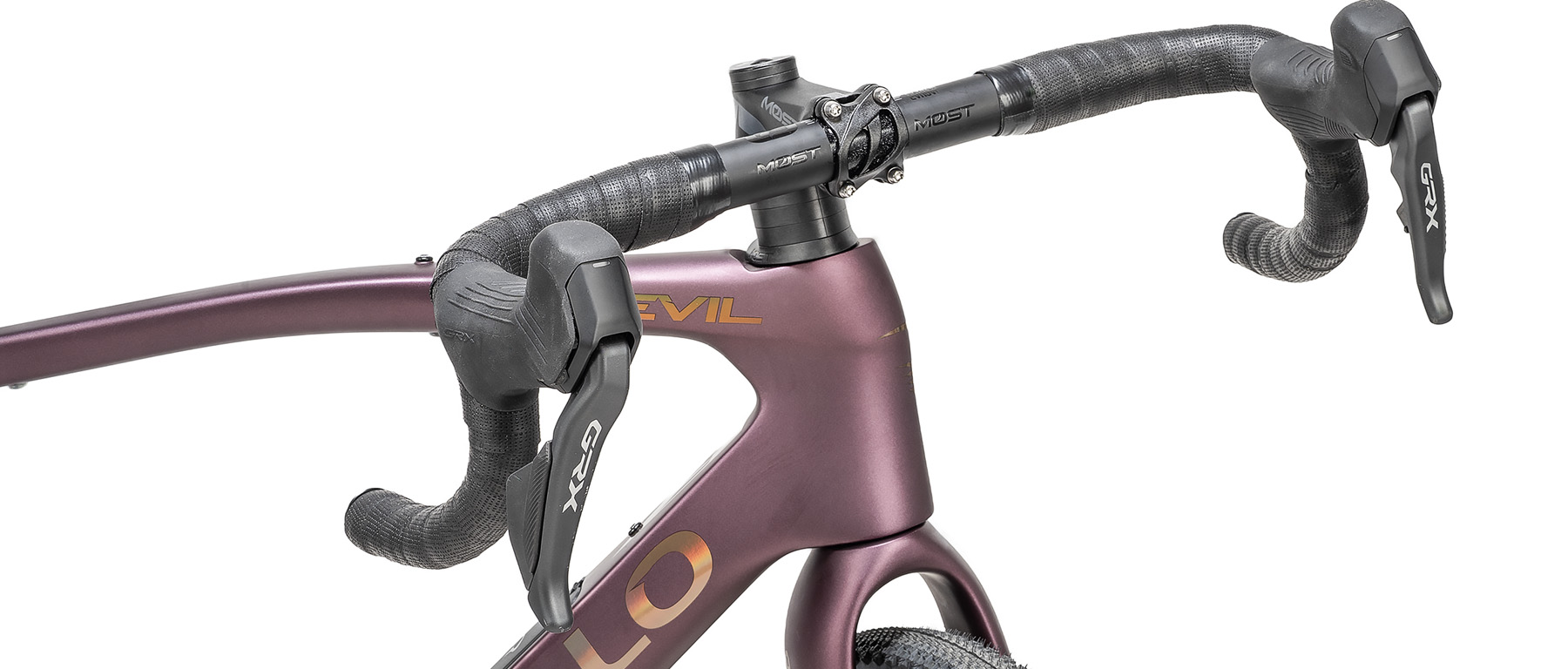

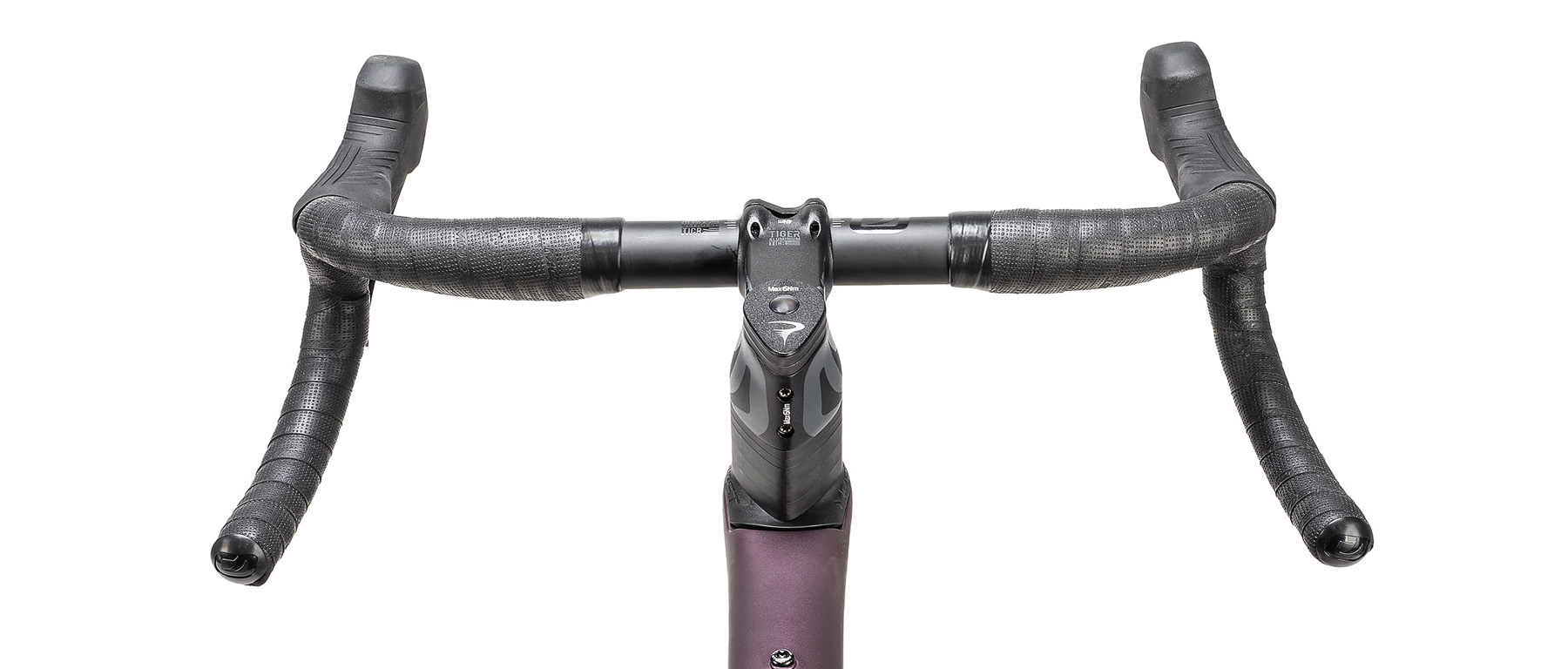

- MOST Jaguar Ultra GR TICR handlebar, Tiger alloy aero stem, Ultragrip bar tape

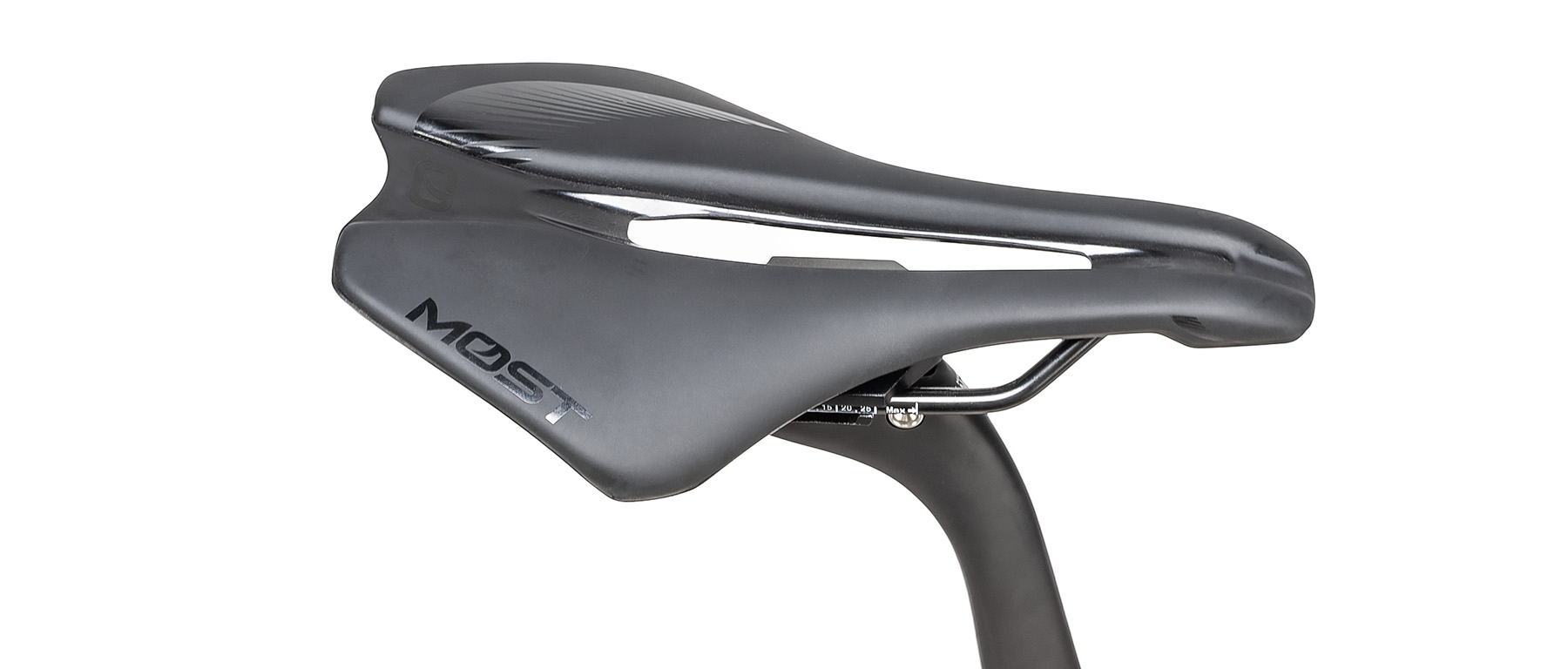

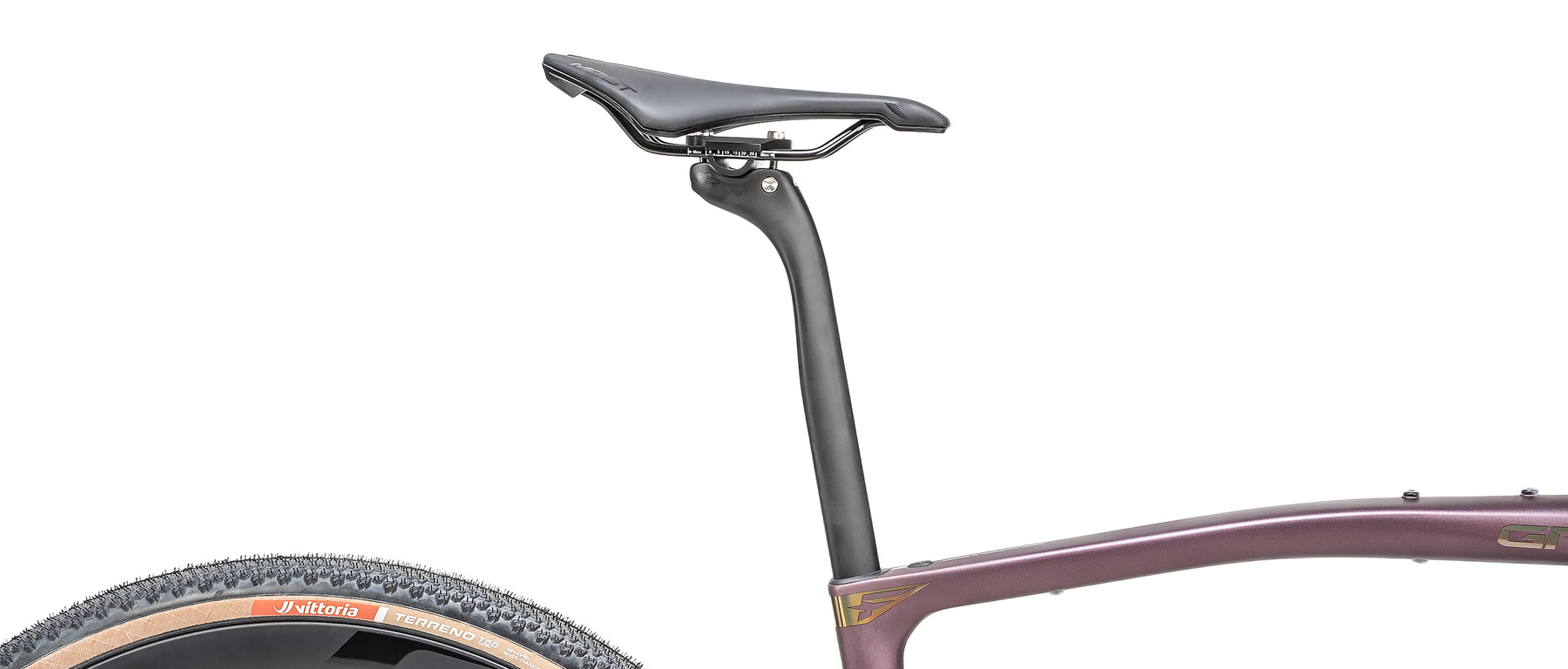

- MOST Lynx saddle on D-shape seatpost
- Tire clearance up to 50mm (1x) or 47mm (2x), 700c and 650b compatible
- Integrated down tube storage with luggage mounts, Italian threaded bottom bracket
- Total Internal Cable Routing, TT gravel extension compatible
- Tool-free thru-axles, 12x100mm and 12x142mm
- Show and demonstration bike, never ridden, full factory warranty on frame and components
Geometry
| Size | Reach | Top Tube | Chainstay | Fork Rake |
|---|---|---|---|---|
| 530 | 383.7mm | 558mm | 422-425mm | 55mm |
