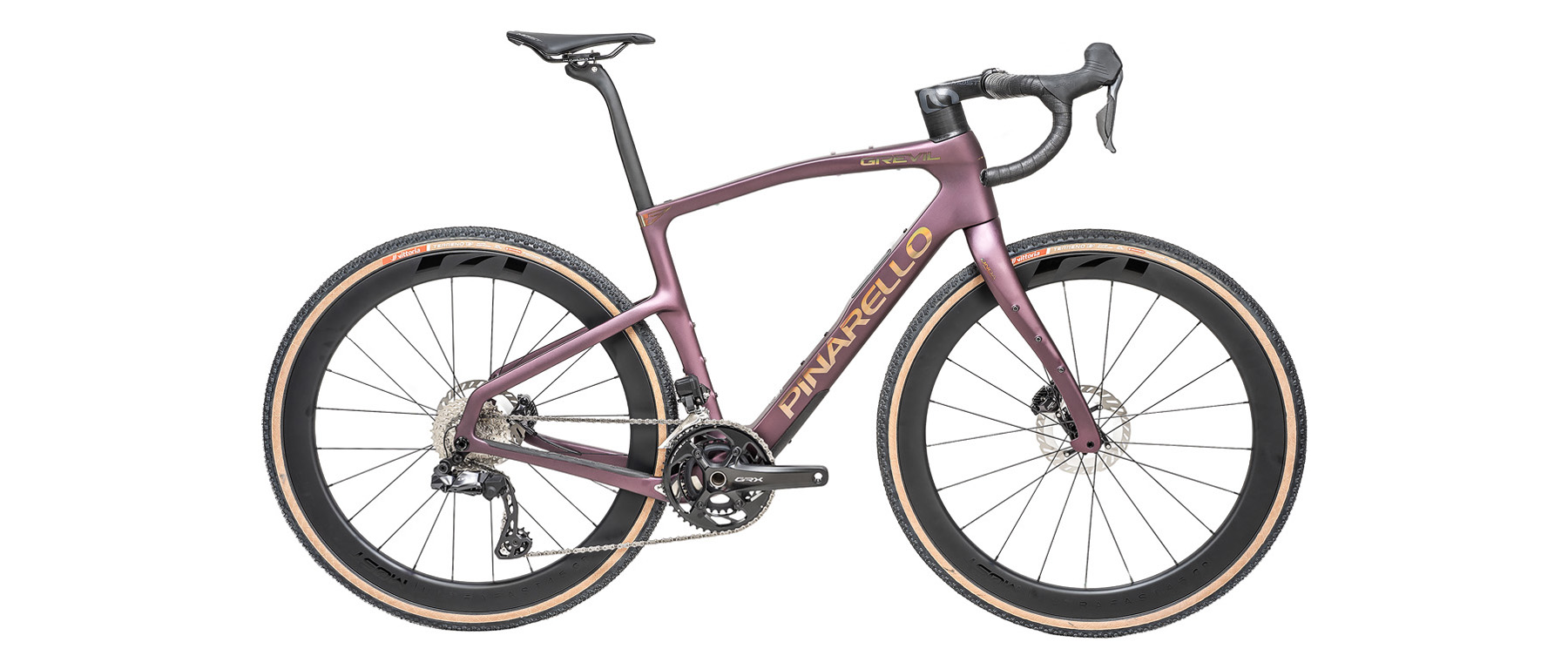

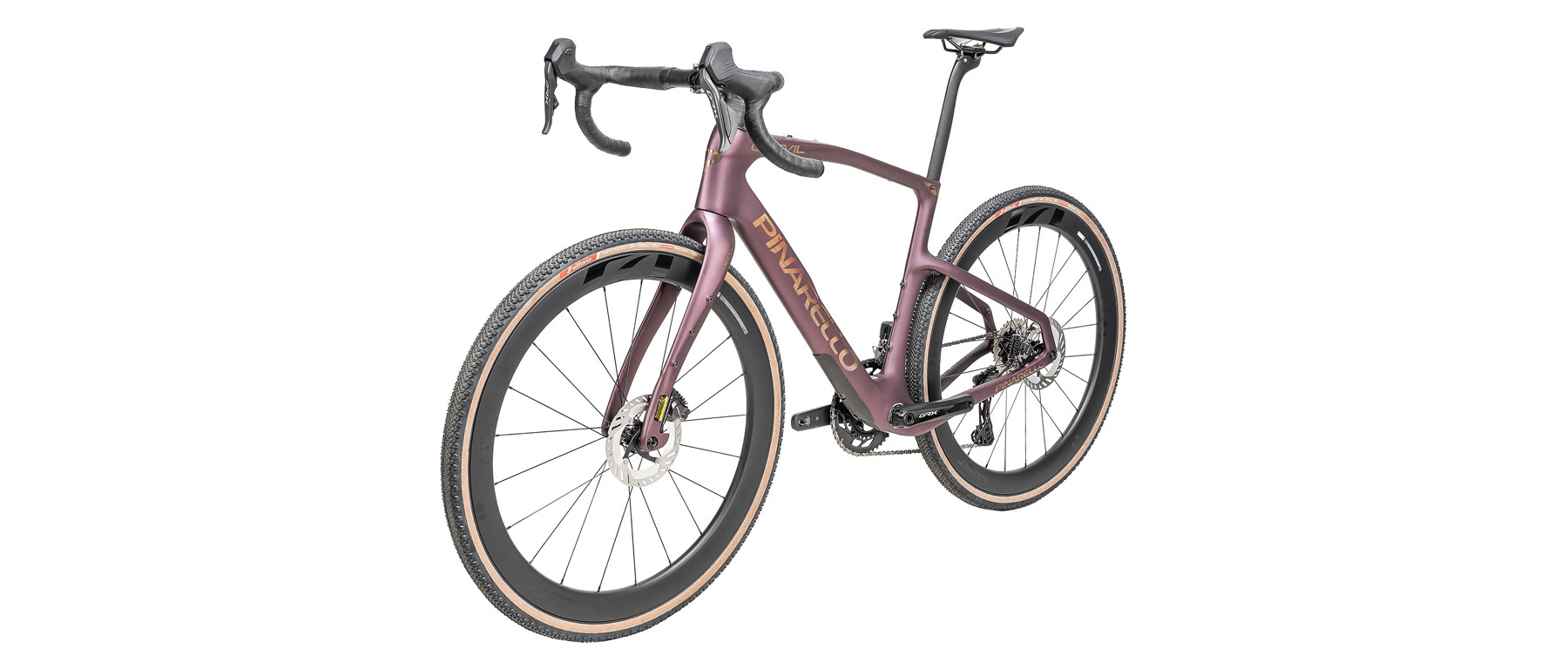

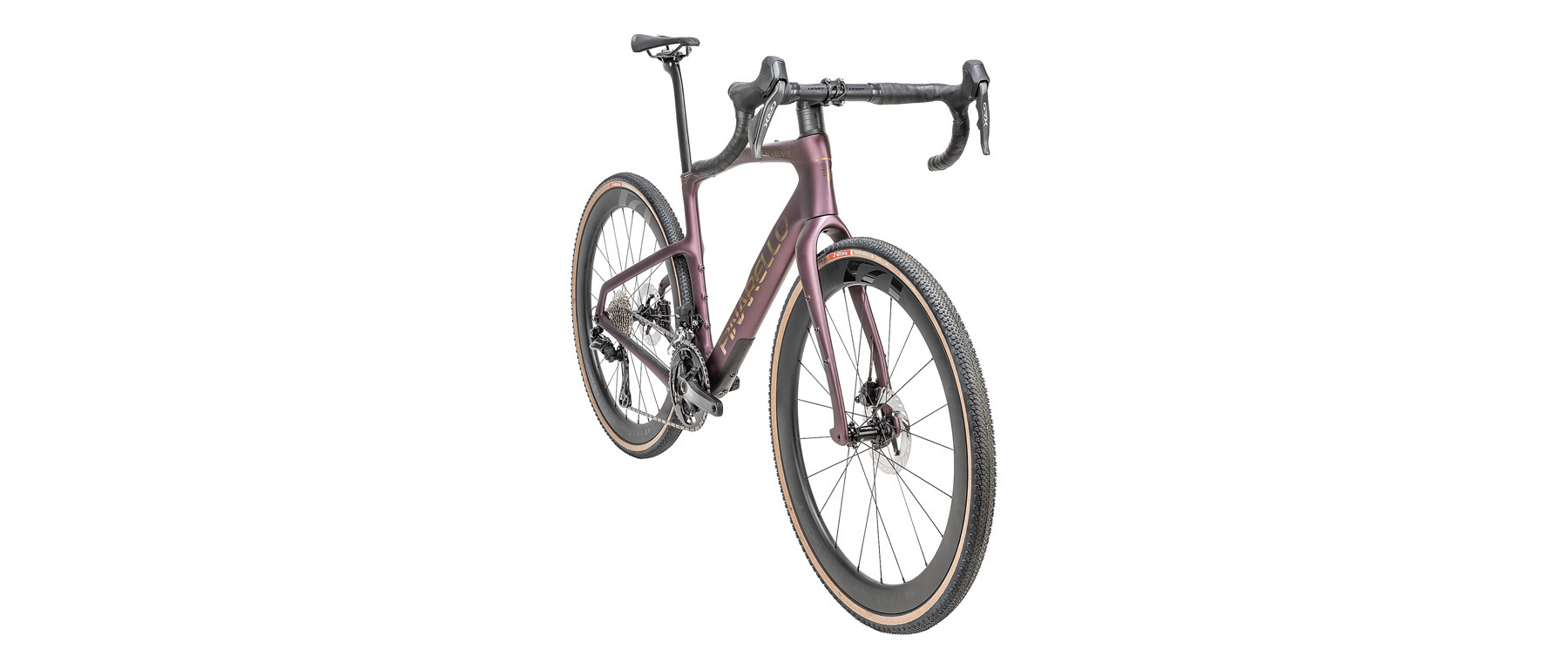

Grevil F7 GRX825 Di2 Bicycle SAMPLE 2
Color: Polaris Purple H311
Size: 53cm
Description
Offered below regular retail as a show and demonstration bike — built up for display and never ridden — this Grevil F7 arrives with a full factory warranty on both frame and components, which is where the value sits for a rider who wants the current-generation Pinarello gravel platform without paying the full ticket. Pinarello reworked the Grevil F alongside the launch of the Dogma GR, and with the Dogma GR now positioned as the pure-competition flagship, the Grevil F has been reconceived as the more versatile, endurance-focused platform in the range — a bike built for events measured in hours rather than minutes.

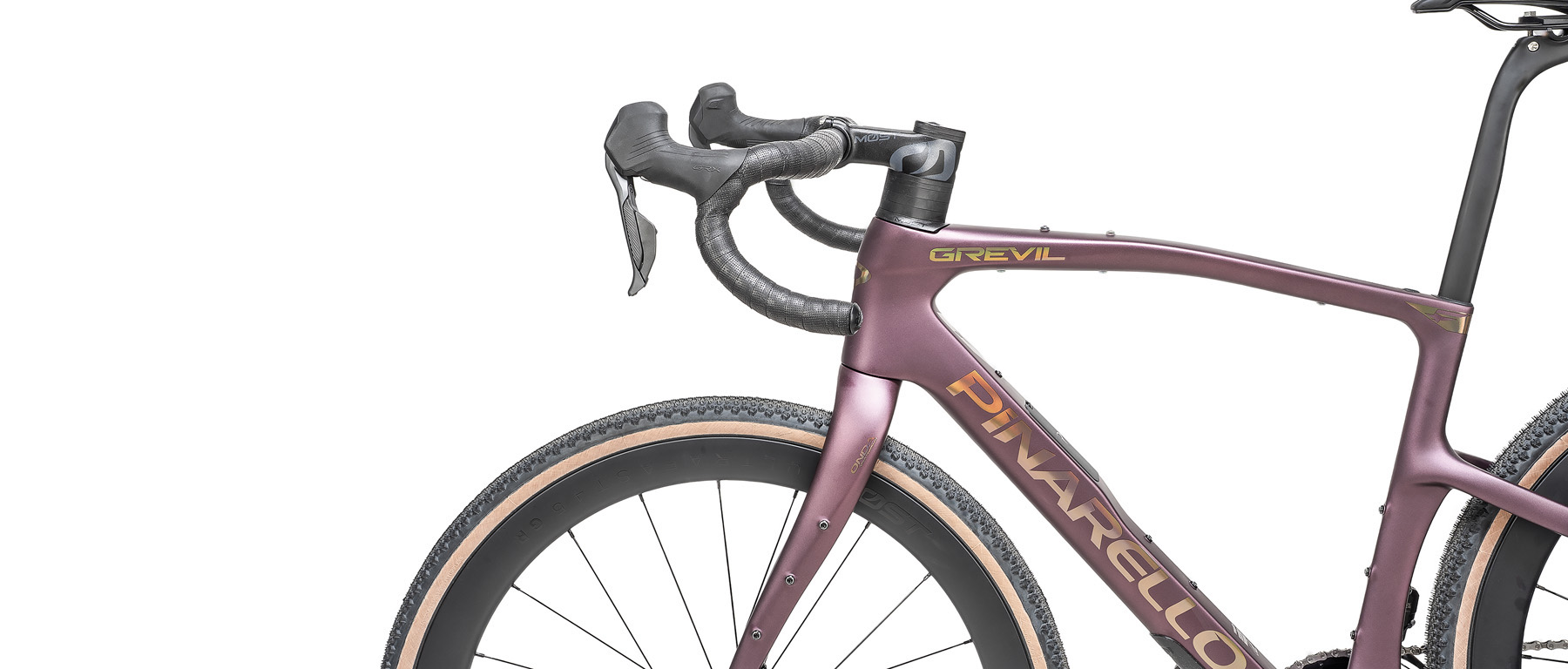

The frame is built from Toray T900 UD carbon, the same high-grade layup Pinarello reserves for the F9, chosen to balance stiffness, vibration damping, and weight for long-distance racing. Signature asymmetric shaping carries through the frame, paired with the Twin Arms rear triangle, where the driveside chainstay and seatstay are rotated downward so both sides respond uniformly to pedaling input. Different seatstay connection points let the seat tube absorb rear-wheel impacts more evenly, and combined with the adaptive D-Shape seatpost — claimed to flex up to 10mm longitudinally — the rear end takes a meaningful edge off broken pavement and forest roads.
Geometry sits a step more relaxed than the Dogma GR and the previous Grevil F, what Pinarello calls its race geometry+. Reach measures 383.7mm in this size 530, with a moderate stance built around a longer top tube paired with a shorter stem, an approach Pinarello borrowed from mountain biking to steady off-road handling over extended efforts. Differentiated fork rake across the size run keeps trail and handling consistent — the 530 and smaller sizes use a 55mm rake, while larger sizes drop to 50mm. Tire clearance runs to 50mm with a 1x setup and 47mm with a front derailleur, and the frame accepts both 700c and 650b wheels.... Read More
Features
- Toray T900 UD carbon frame with asymmetric shaping
- F Onda fork with ForkFlap, tapered steerer

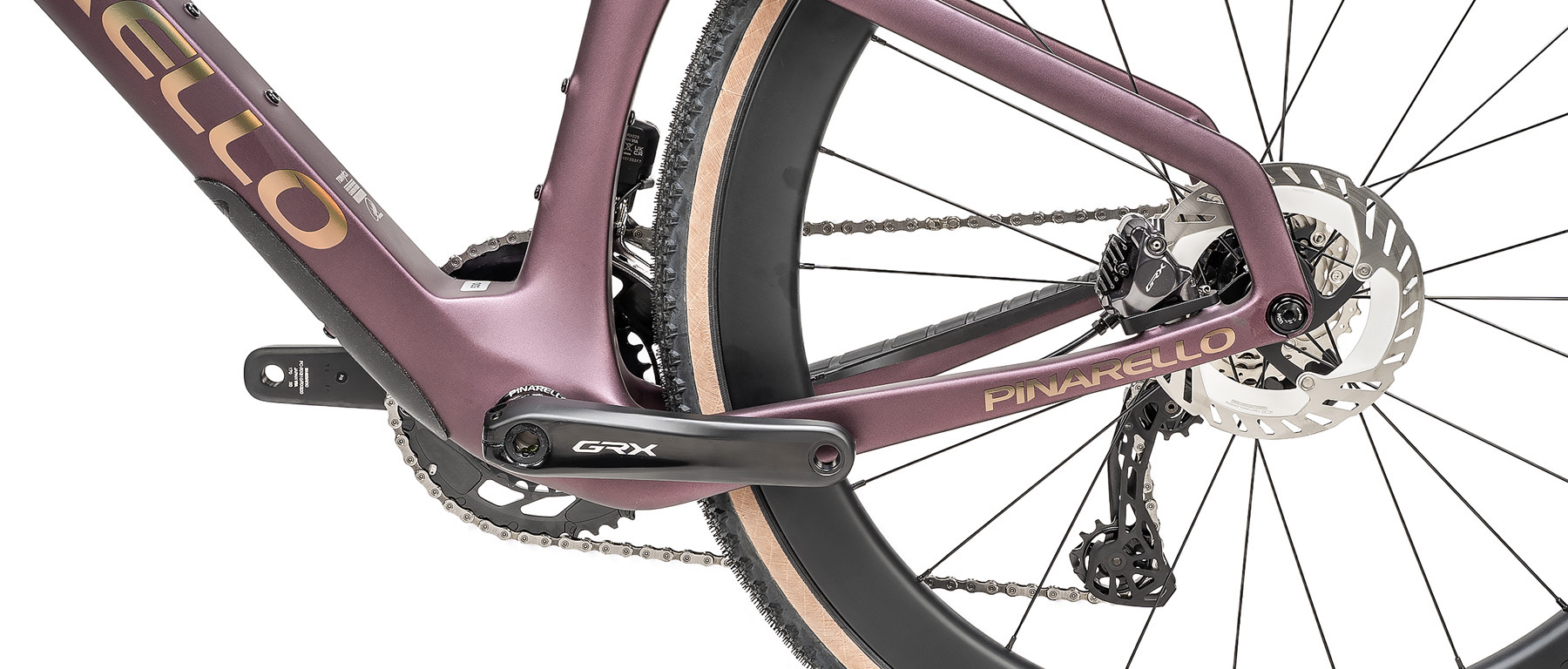

- Twin Arms rear triangle for uniform vibration absorption

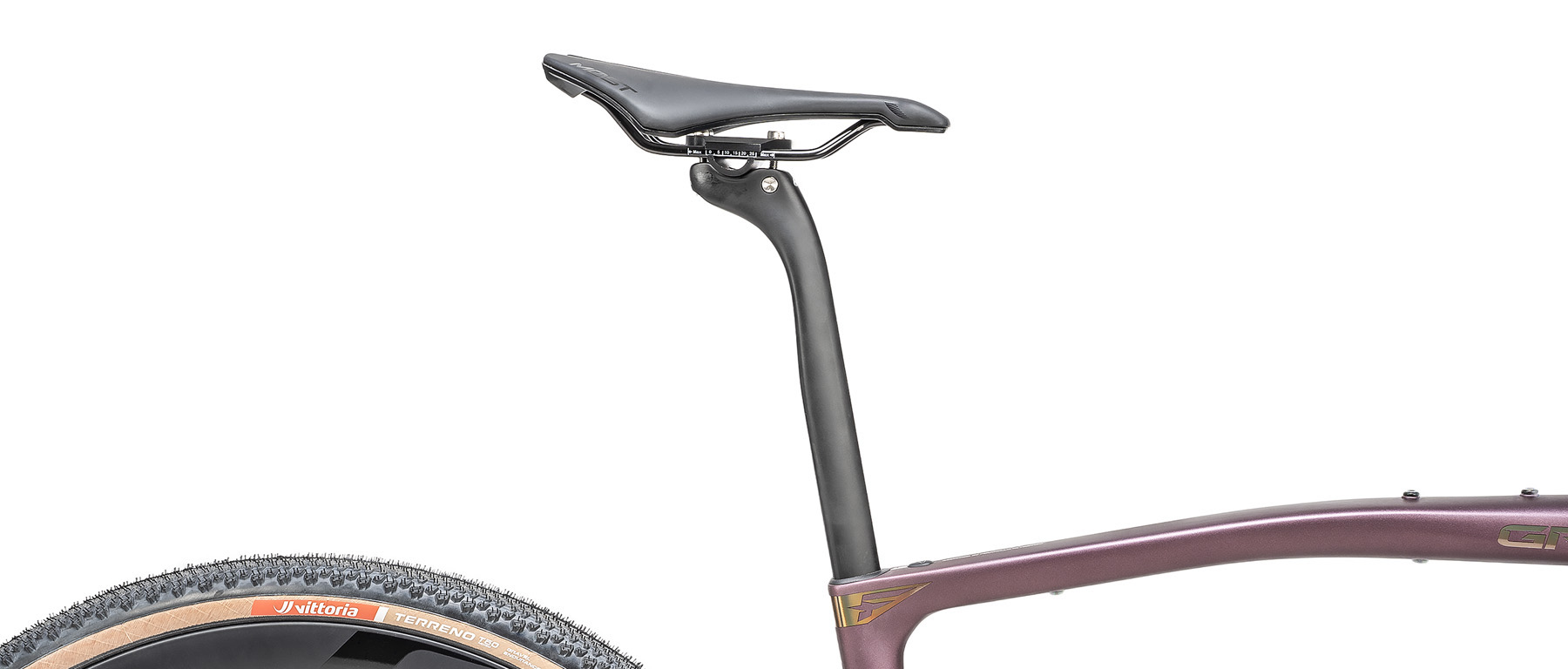

- Adaptive D-Shape seatpost with up to 10mm longitudinal flex

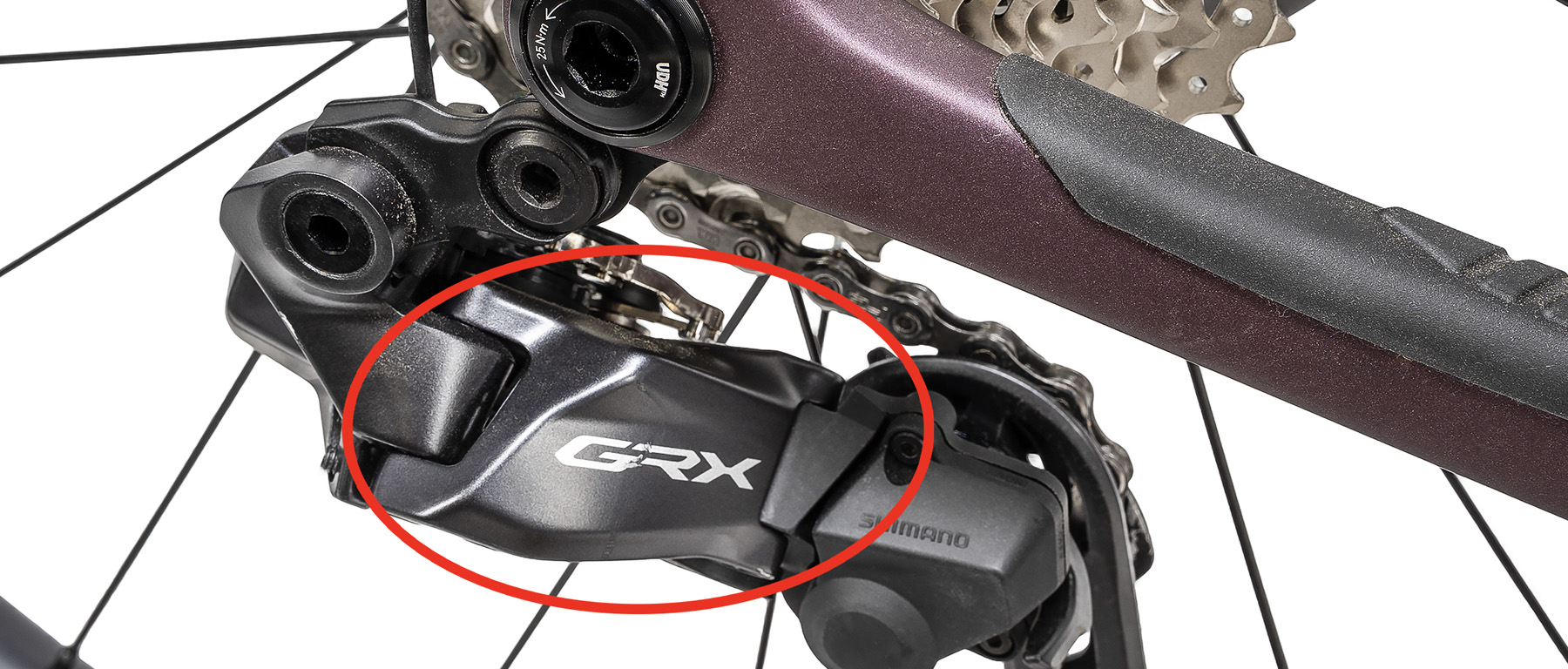

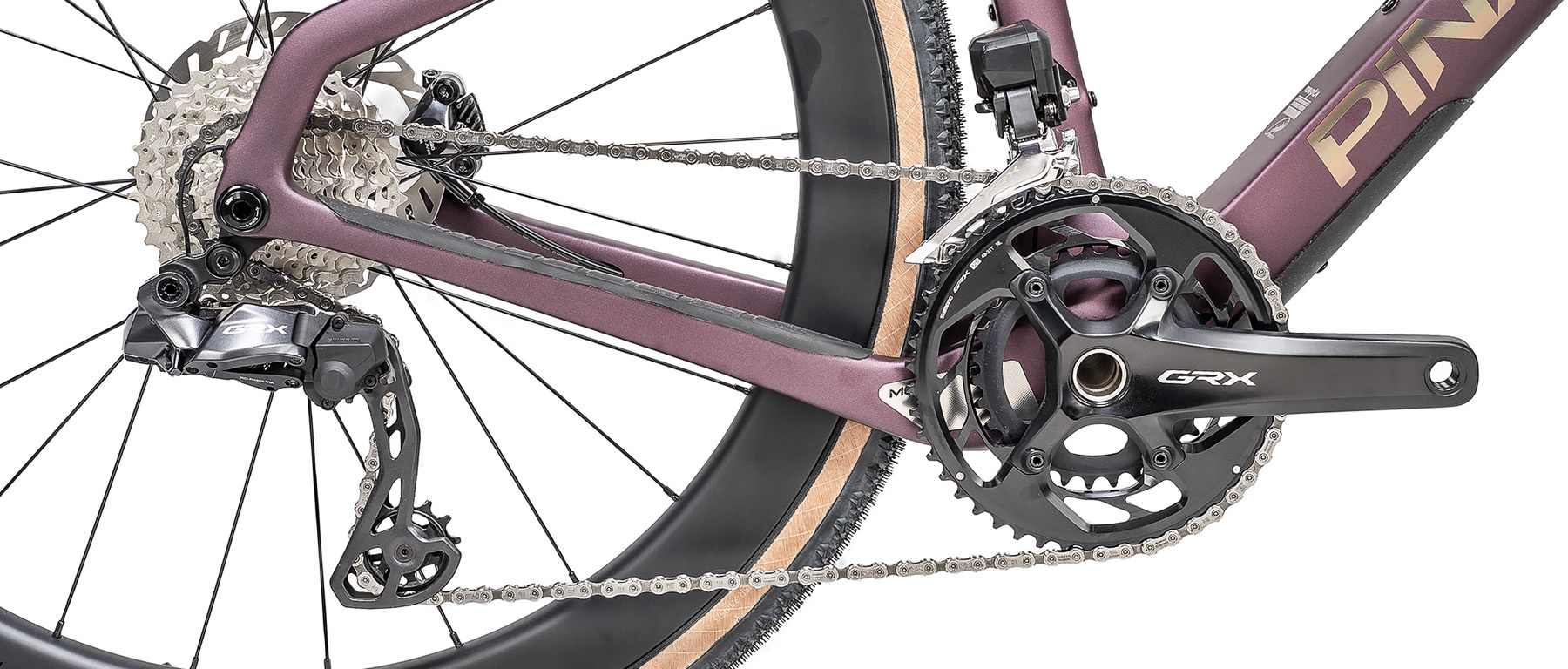

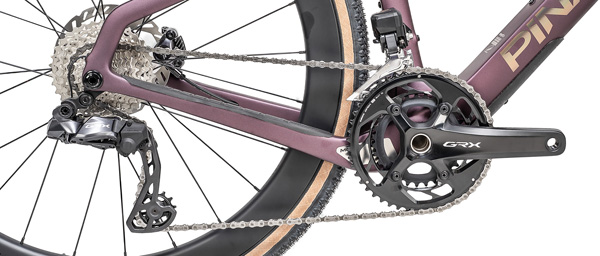

- Shimano GRX 825 Di2 2x12 electronic drivetrain
- Shimano Dura-Ace BB-R9100 70mm threaded bottom bracket

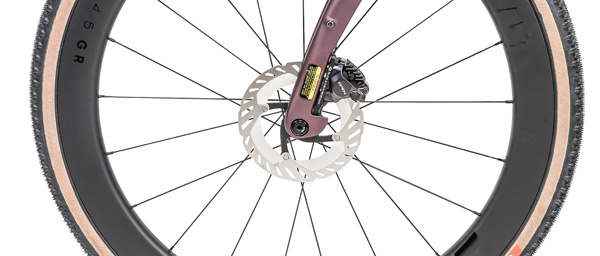

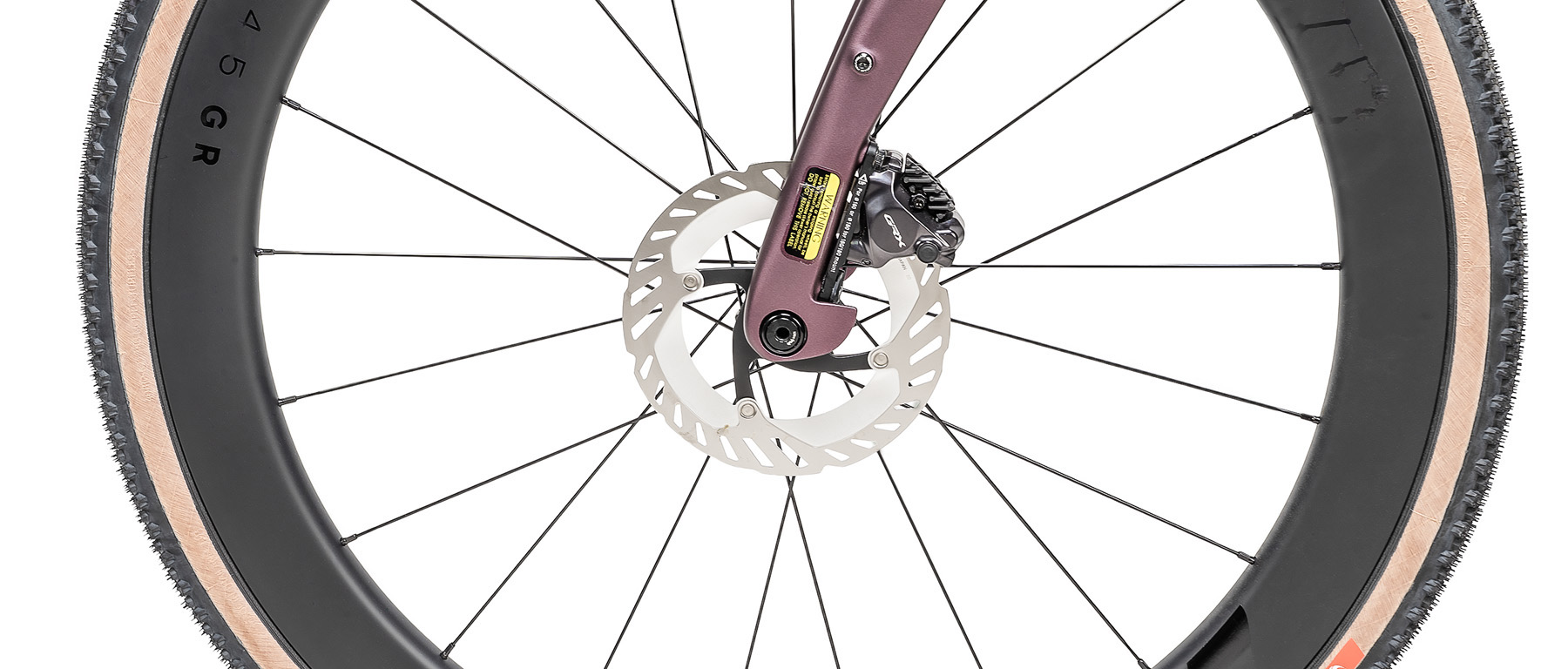

- Shimano GRX 2-piston calipers, 160mm rotors front and rear
- MOST Gravel Carbon 45 wheelset, 25mm internal width
- Vittoria Terreno T50 700x45mm tires

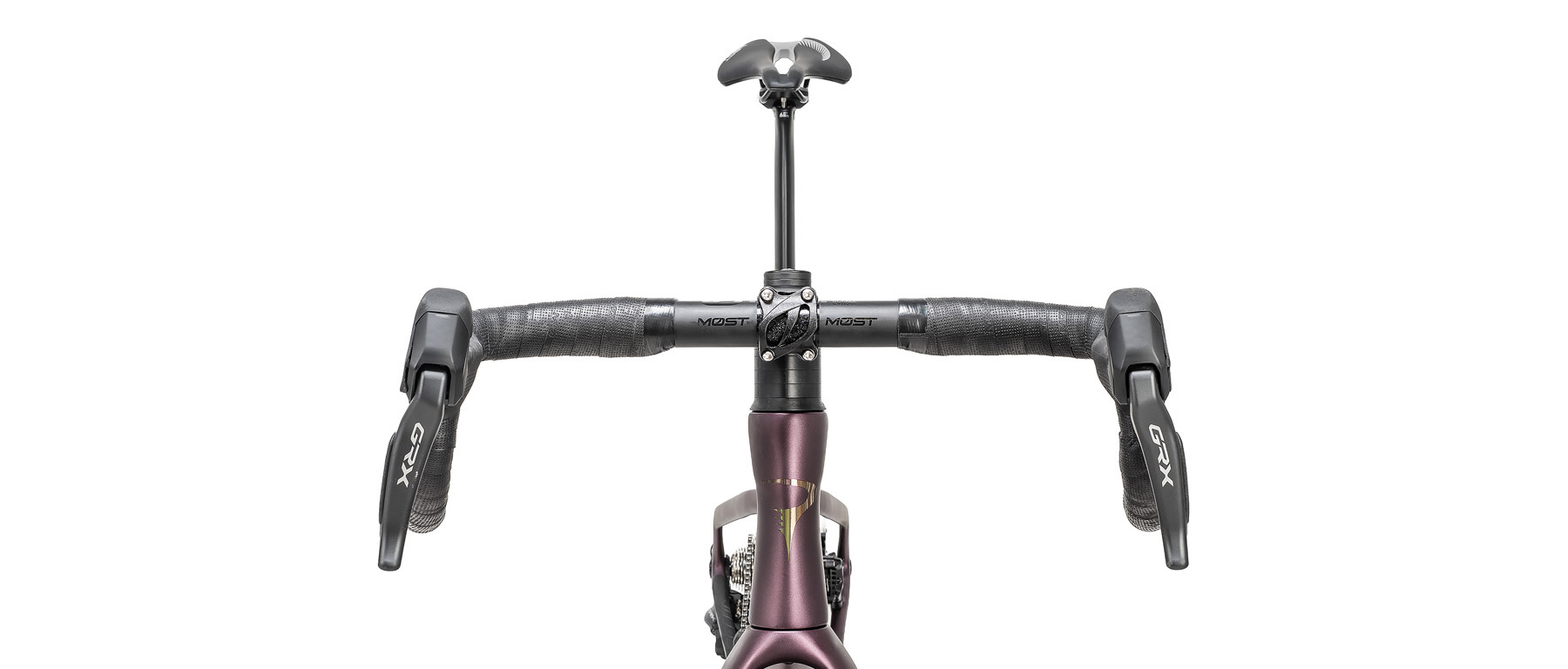

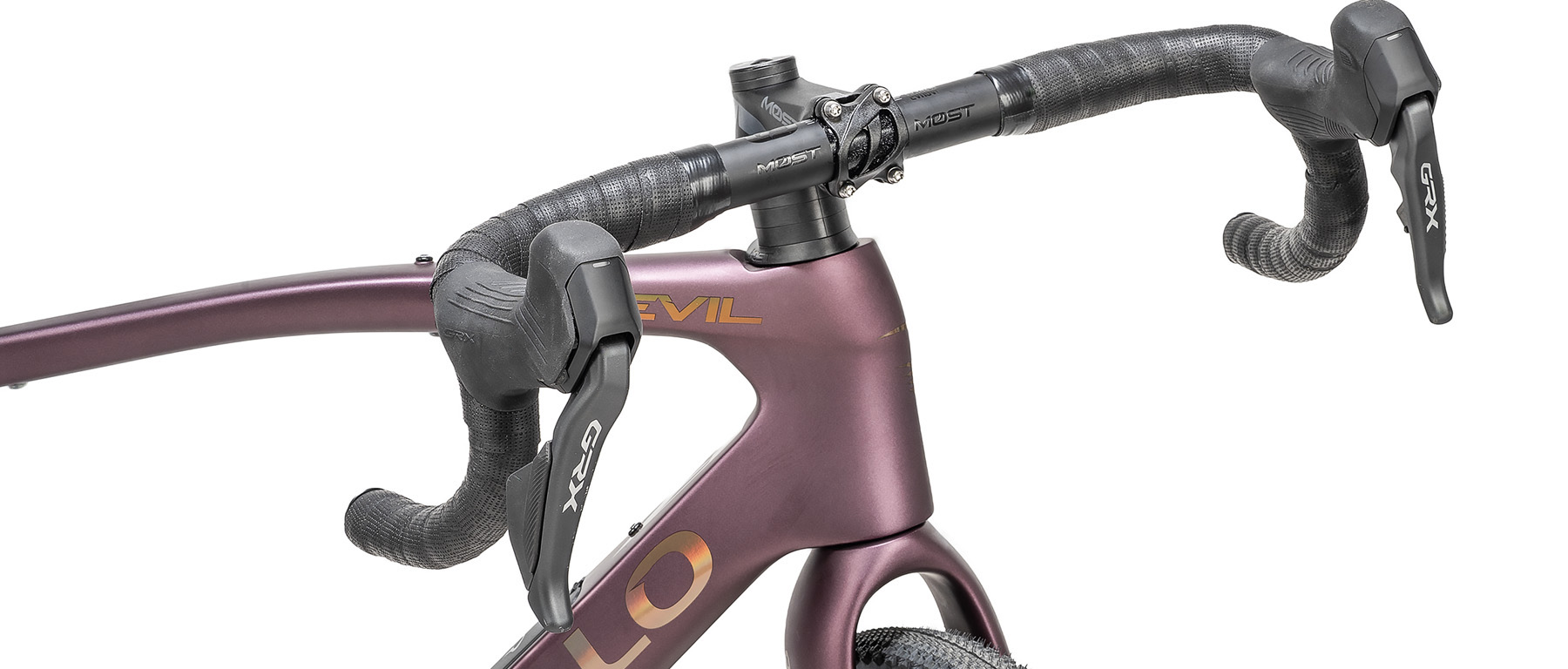

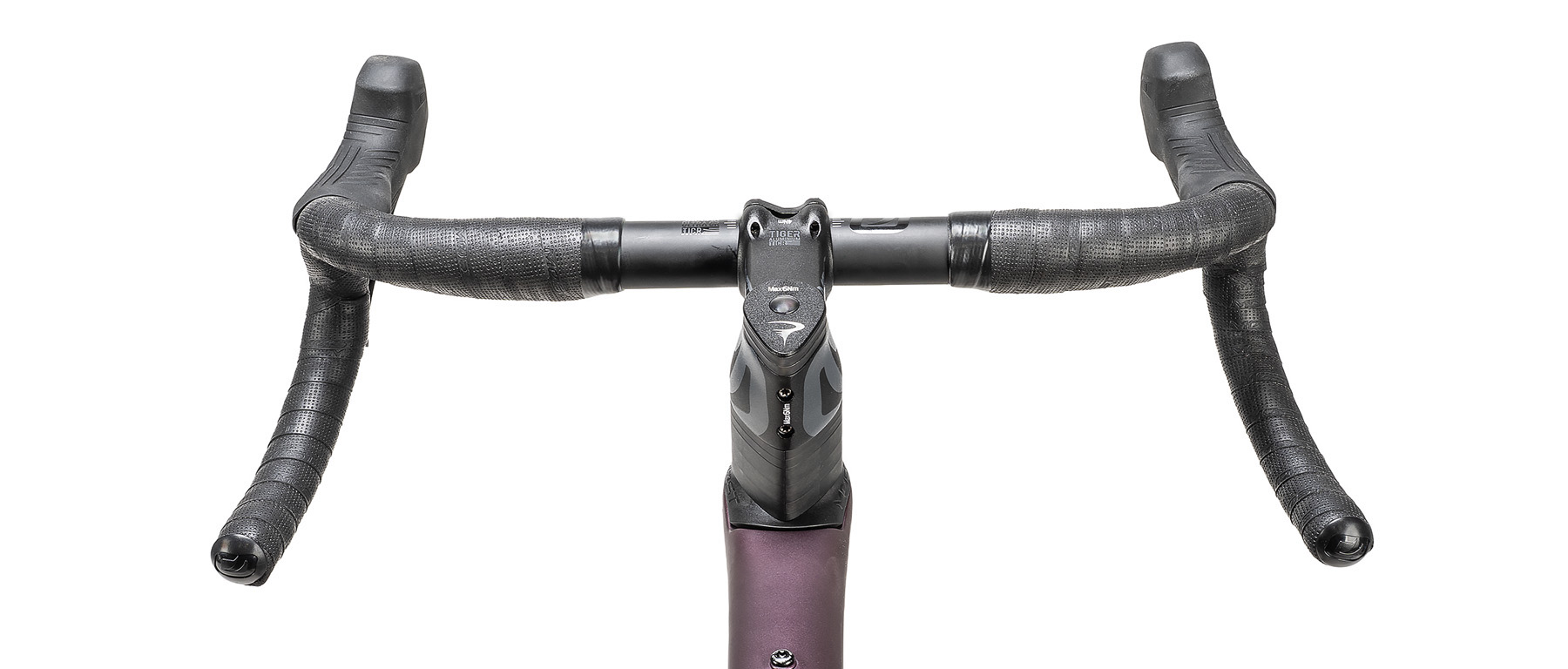

- MOST Jaguar Ultra GR TICR handlebar with Tiger Alu Aero TICR stem

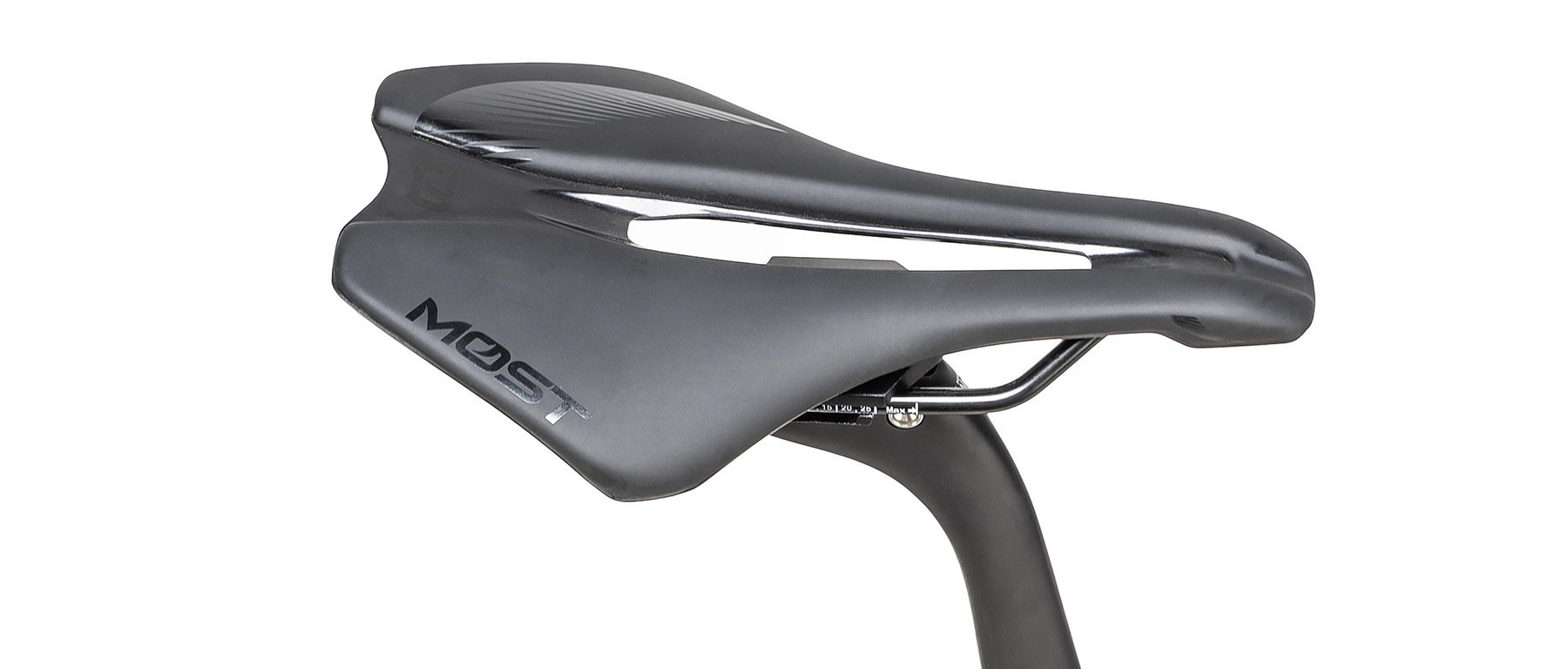

- MOST Lynx saddle, Ultragrip Evo 3mm bar tape
- Integrated downtube storage, 750ml bottle compatible
- 50mm tire clearance (1x), 47mm (2x); 700c and 650b compatible
- MOST Ultra Light Custom thru-axles, 12x100 and 12x142, tool-free removal
- Reach 383.7mm, chainstays 430mm (size 530)
Geometry
| Size | Top Tube | Reach | Head Angle | Seat Angle | Chainstay | Fork Rake |
|---|---|---|---|---|---|---|
| 530 | 558mm | 383.7mm | 71.75° | 74.5° | 430mm | 55mm |
