Description

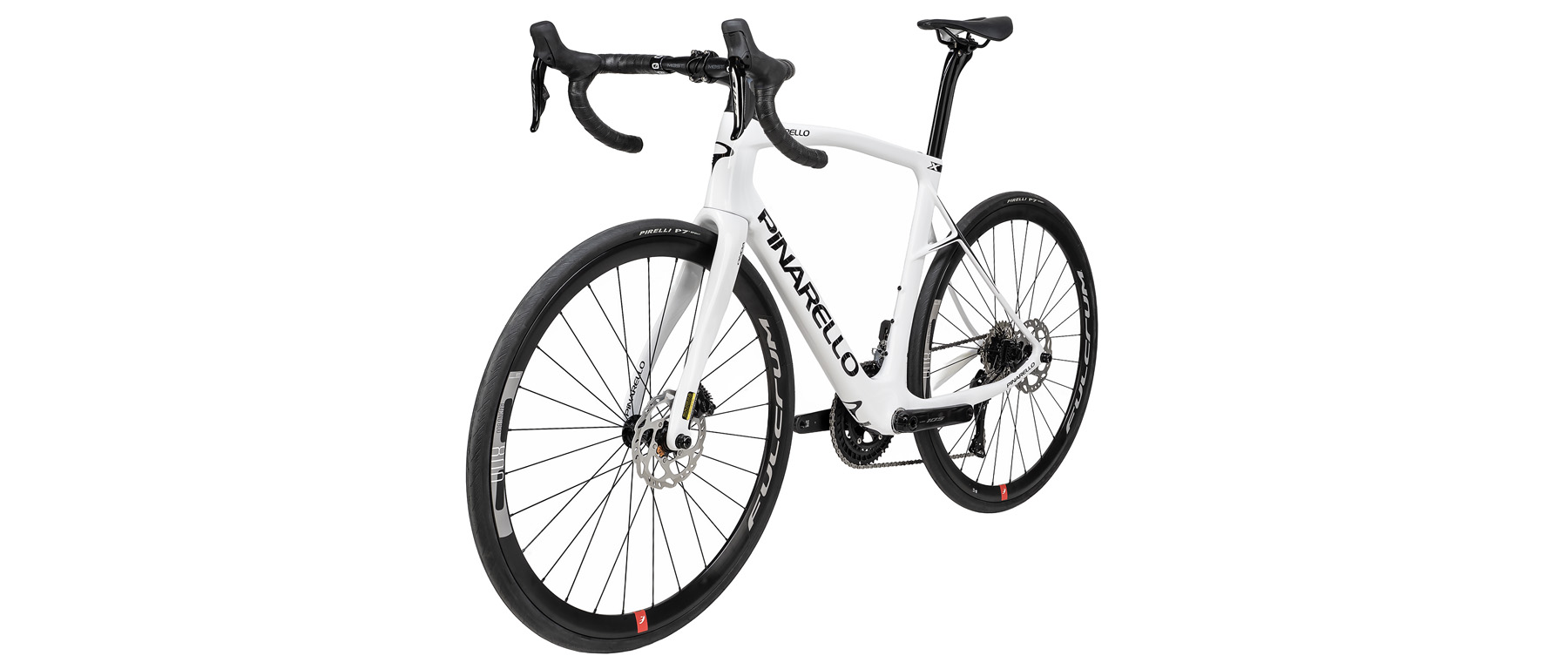

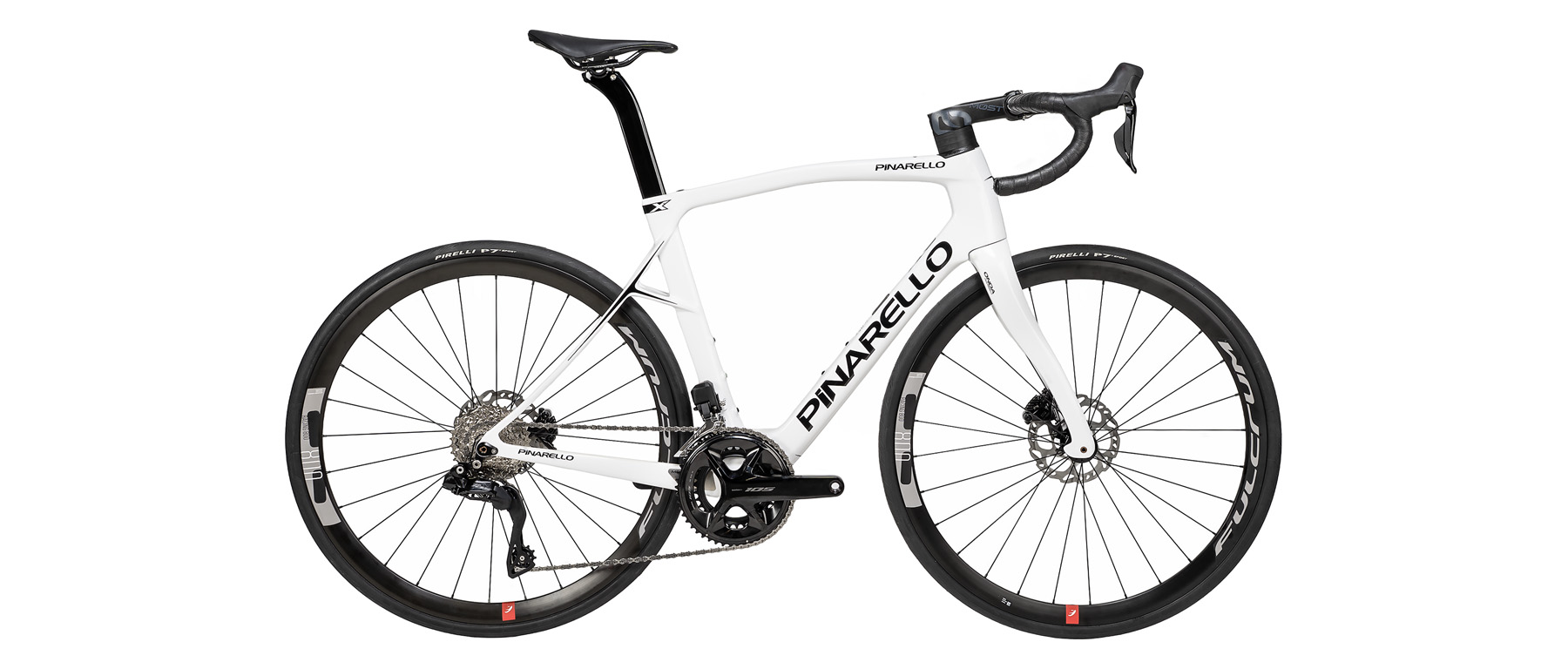

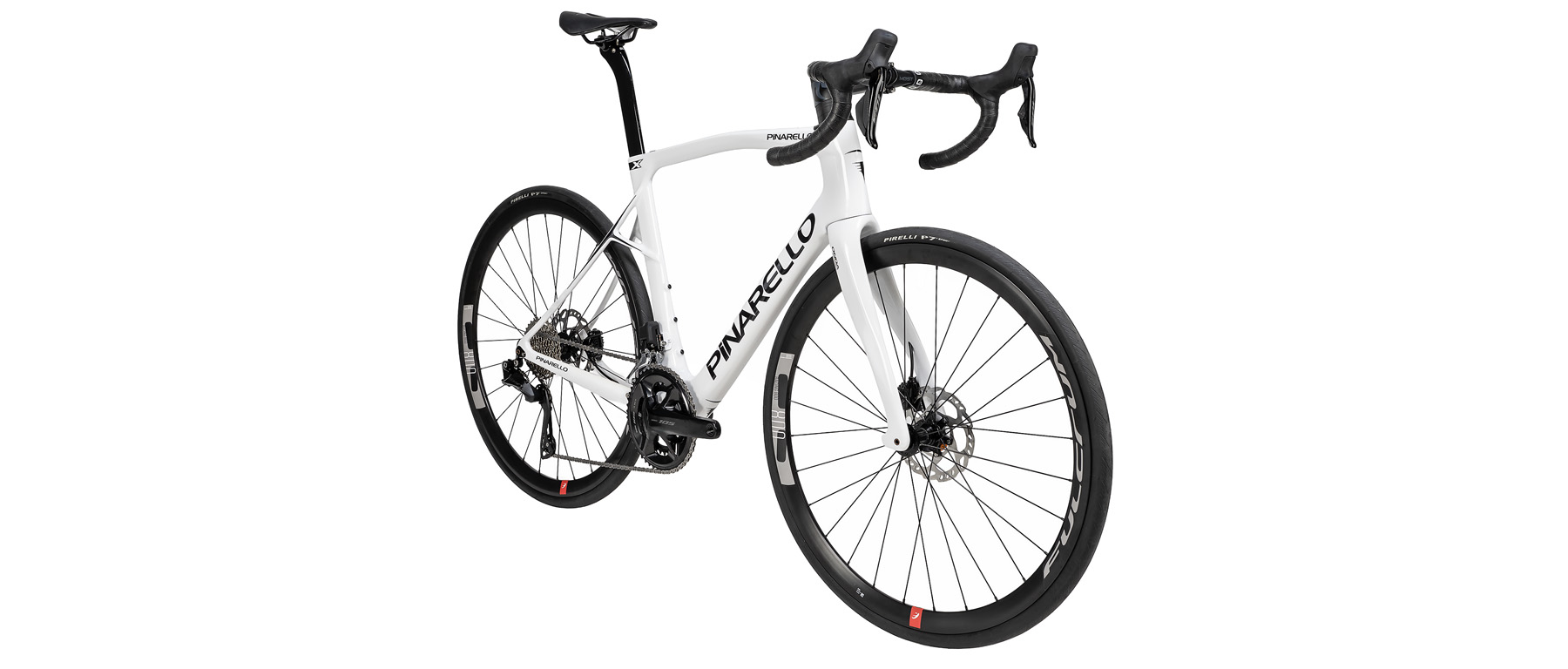

Pinarello's Dogma DNA shapes more bikes in the lineup than just the flagship, and the X-series is where that race pedigree meets a more accommodating geometry. The X5 sits in the middle of the X range, built around a Torayca T700 carbon frame that borrows the asymmetric chainstays and onda fork curves from the Dogma X but at a price that makes the platform reachable. The frame design accounts for the drivetrain forces pulling unevenly on the right side of the bike, with a beefier driveside chainstay to resist flex under hard efforts. The result is a bike that climbs and accelerates with intent but settles into a longer, more relaxed position than a pure race frame.
Geometry is where the X5 distinguishes itself from the F-series race bikes. The stack runs taller, the reach pulls in slightly, and the head tube angle relaxes — the cockpit comes up to meet the rider rather than demanding a deep, aggressive hunch. Tire clearance opens to 32mm, which gives room for wider rubber on rough pavement or light gravel detours. The wheelbase is longer than the F-series for stability over long days, and the bottom bracket drop is tuned for predictable handling when the road tilts down and the speed climbs.

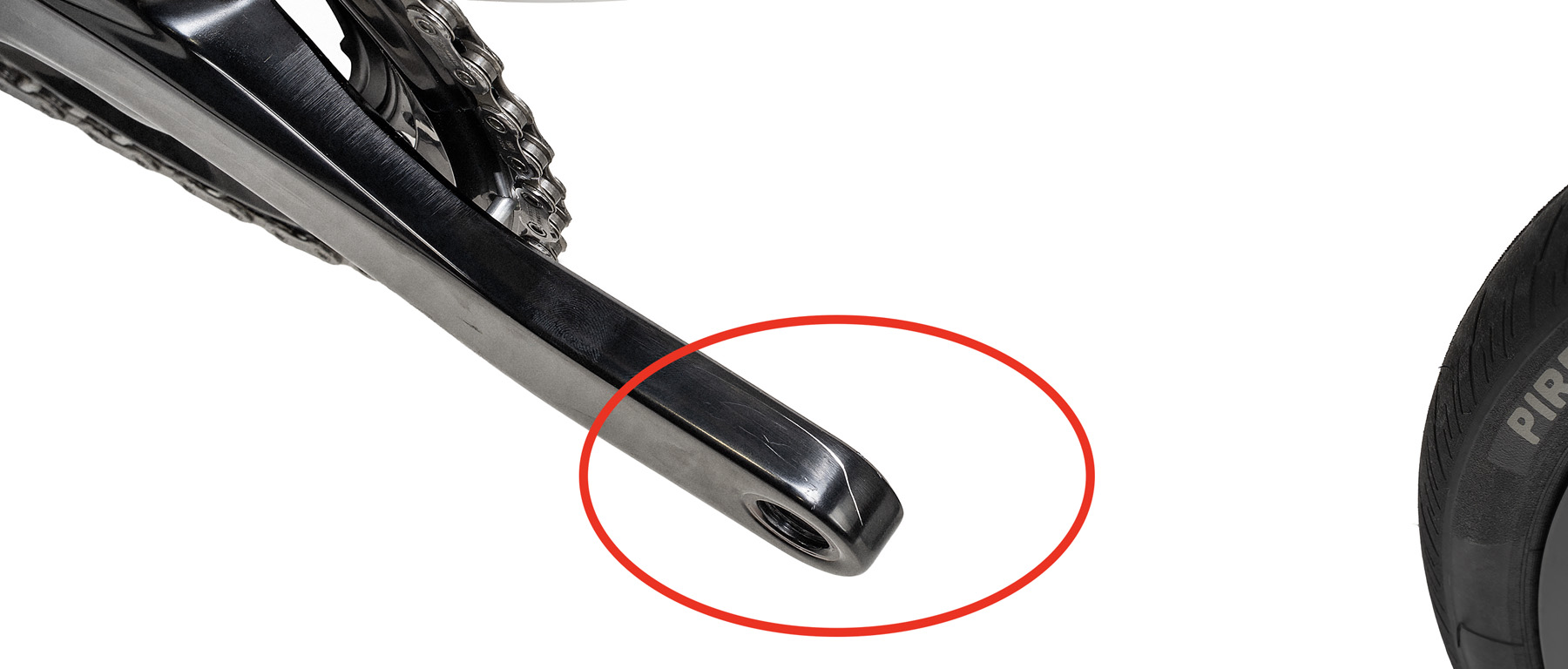

This particular bike is a former show bike from the Excel Service Course floor, in near-mint condition. There's one cosmetic scratch at the end of the left crankarm — purely cosmetic, no functional impact. Otherwise the bike presents as new. It's been built and prepped by the Excel shop and is ready to roll.... Read More
Features
- Torayca T700 carbon frame with asymmetric chainstays
- Onda fork in matching T700 carbon
- Shimano 105 R7170 Di2 12-speed electronic groupset

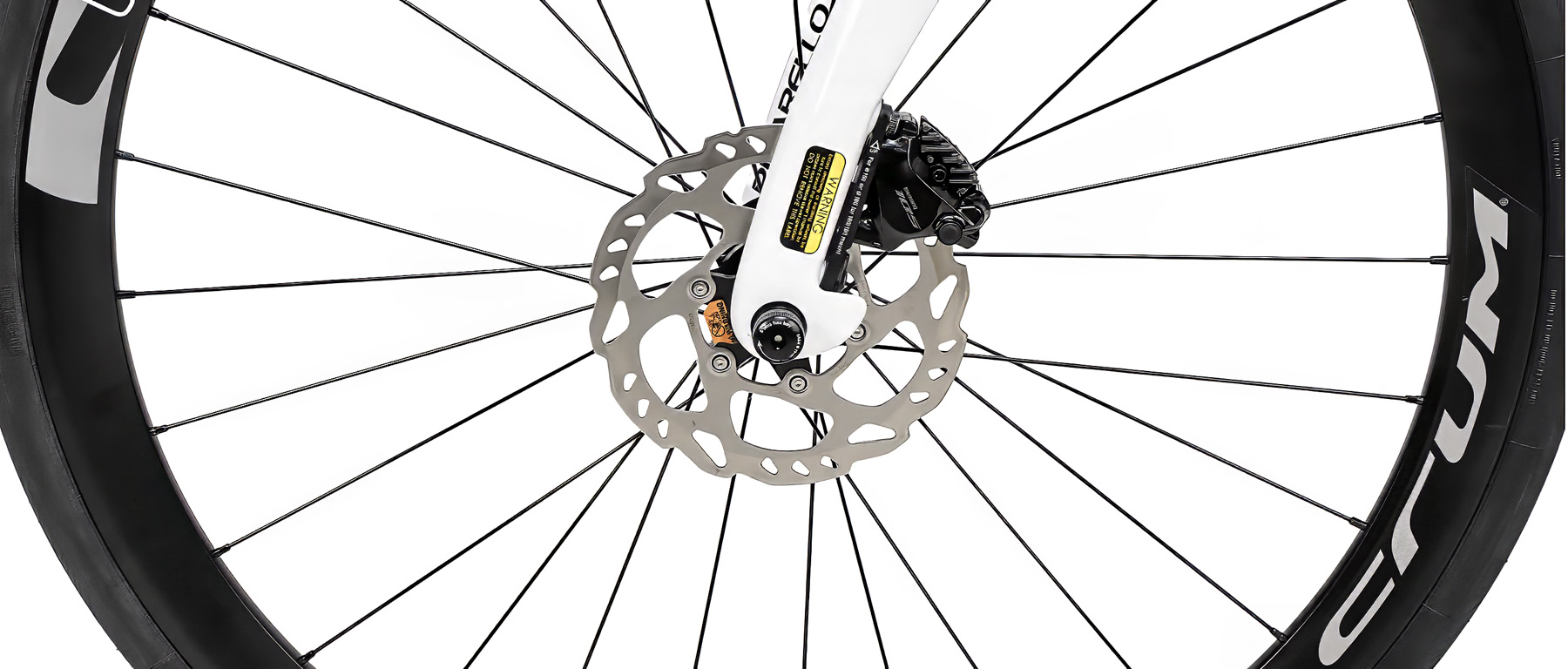

- Shimano 105 hydraulic disc brakes with 160mm rotors front and rear

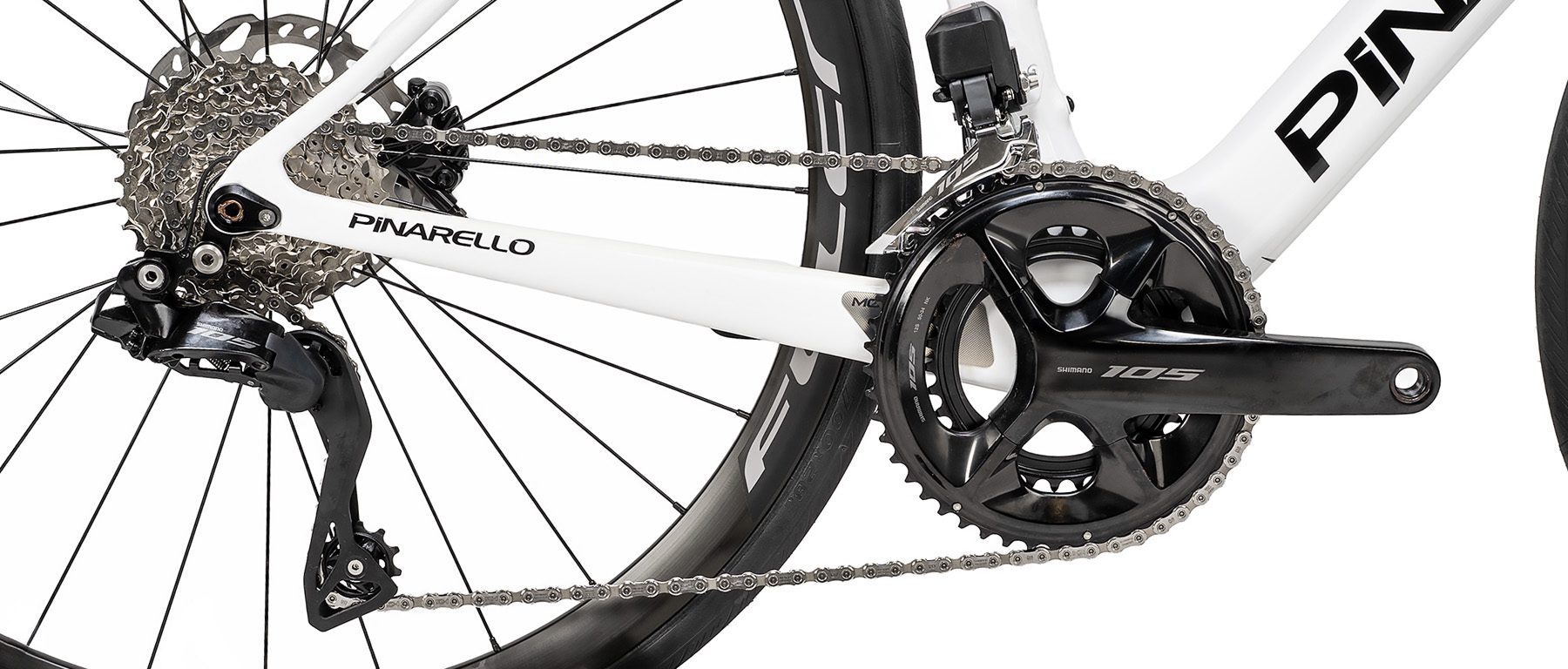

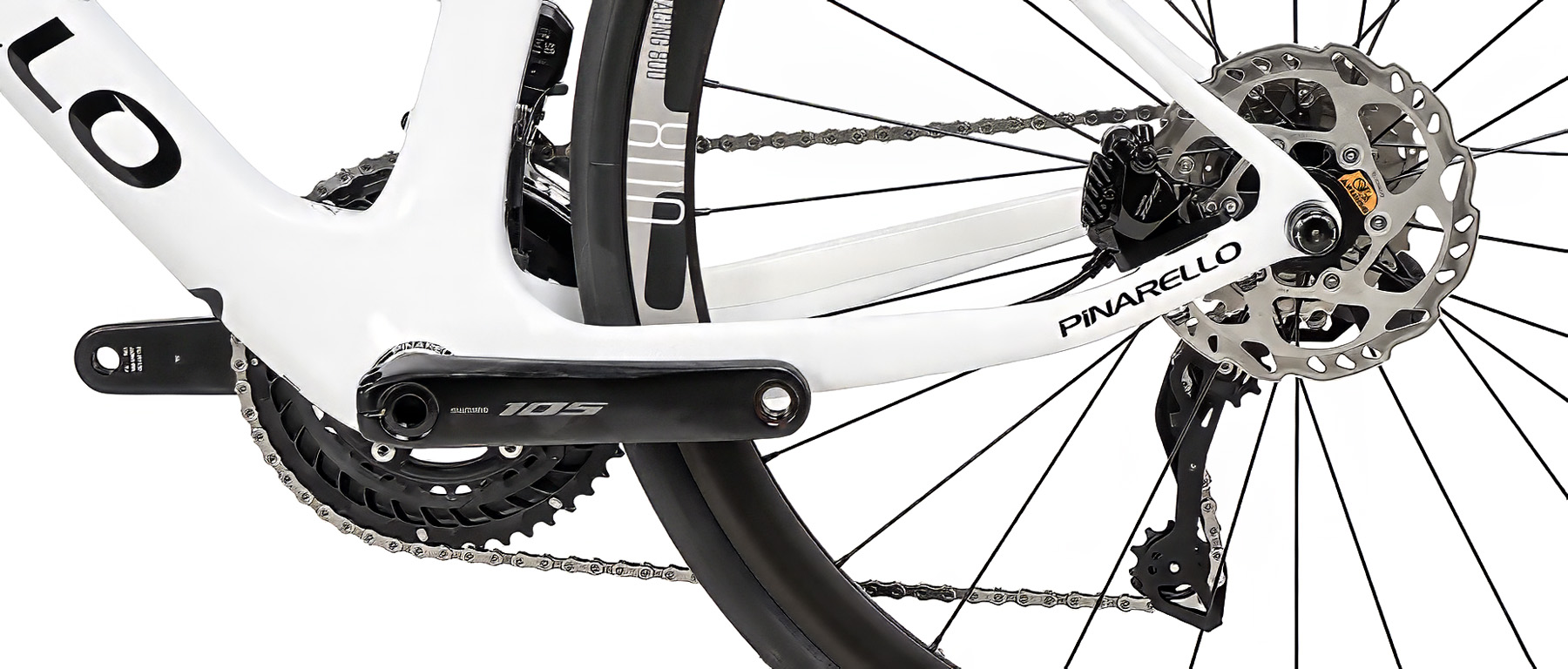

- Shimano 105 R7100 crankset, 50/34T compact chainrings
- Shimano 105 R7100 cassette, 11-34T
- Most Ursus 25 alloy wheelset, tubeless ready
- Pirelli P Zero Race 700x28mm tires

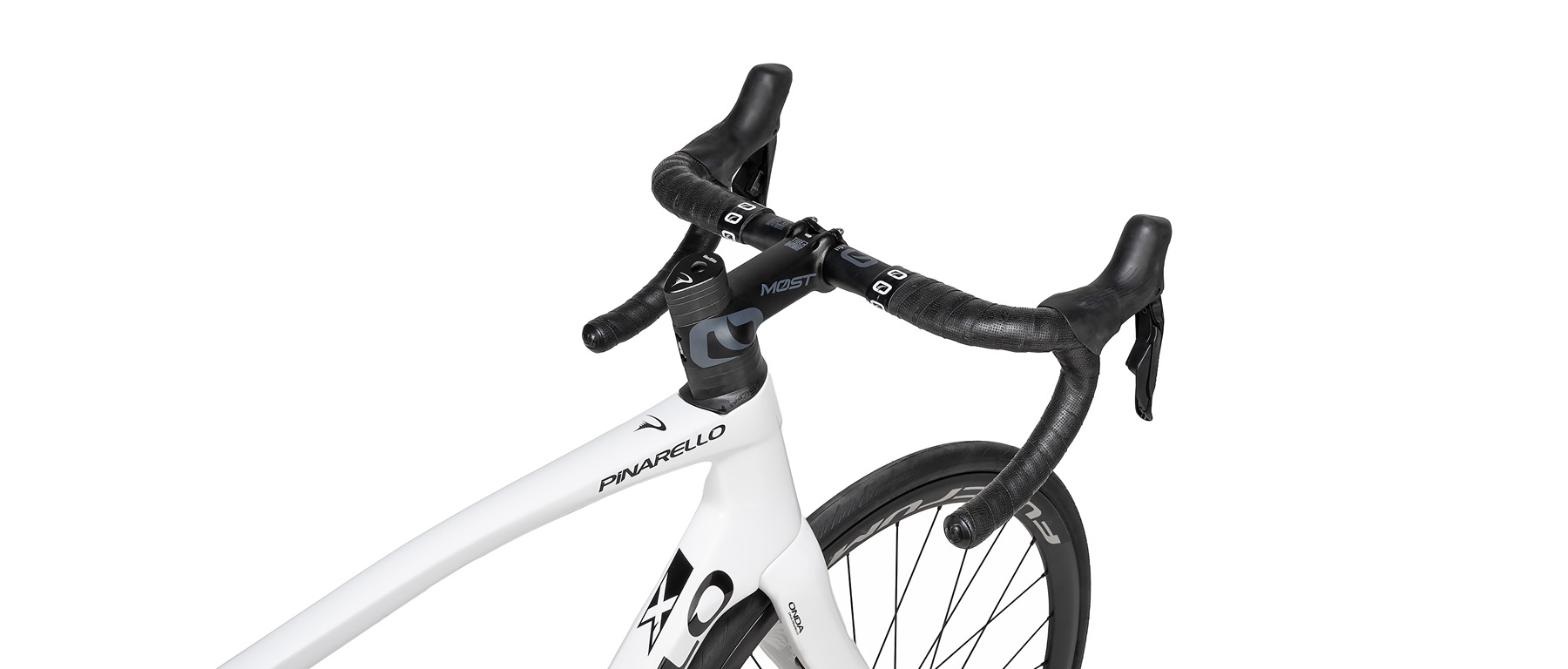

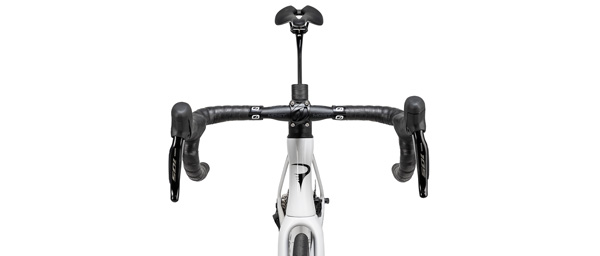

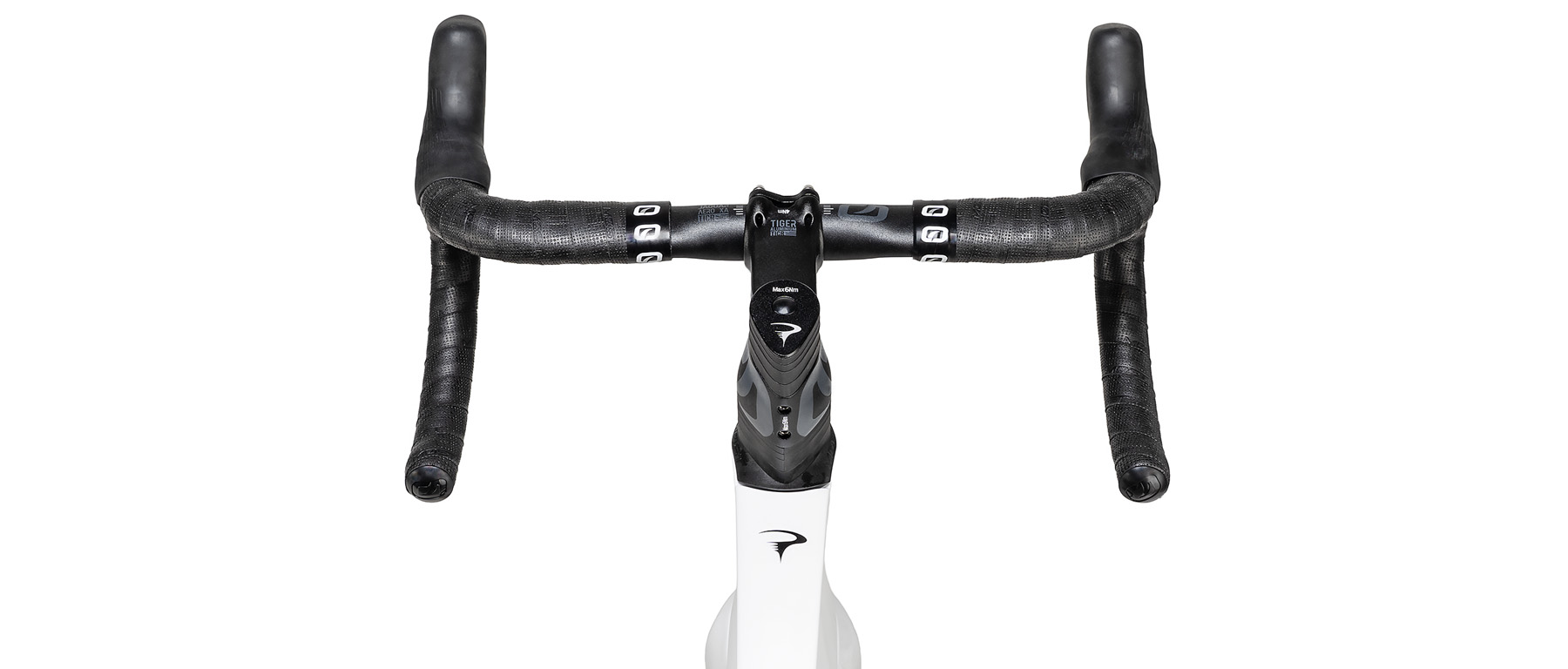

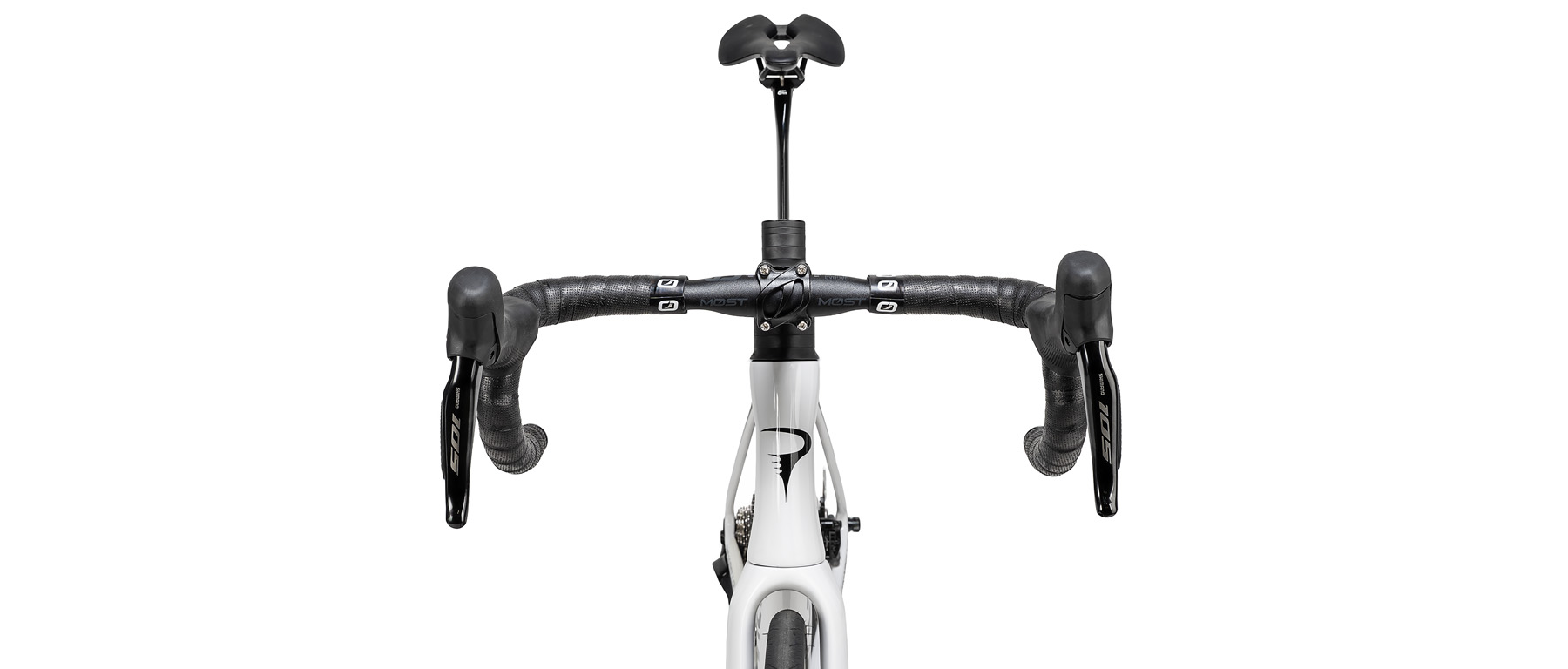

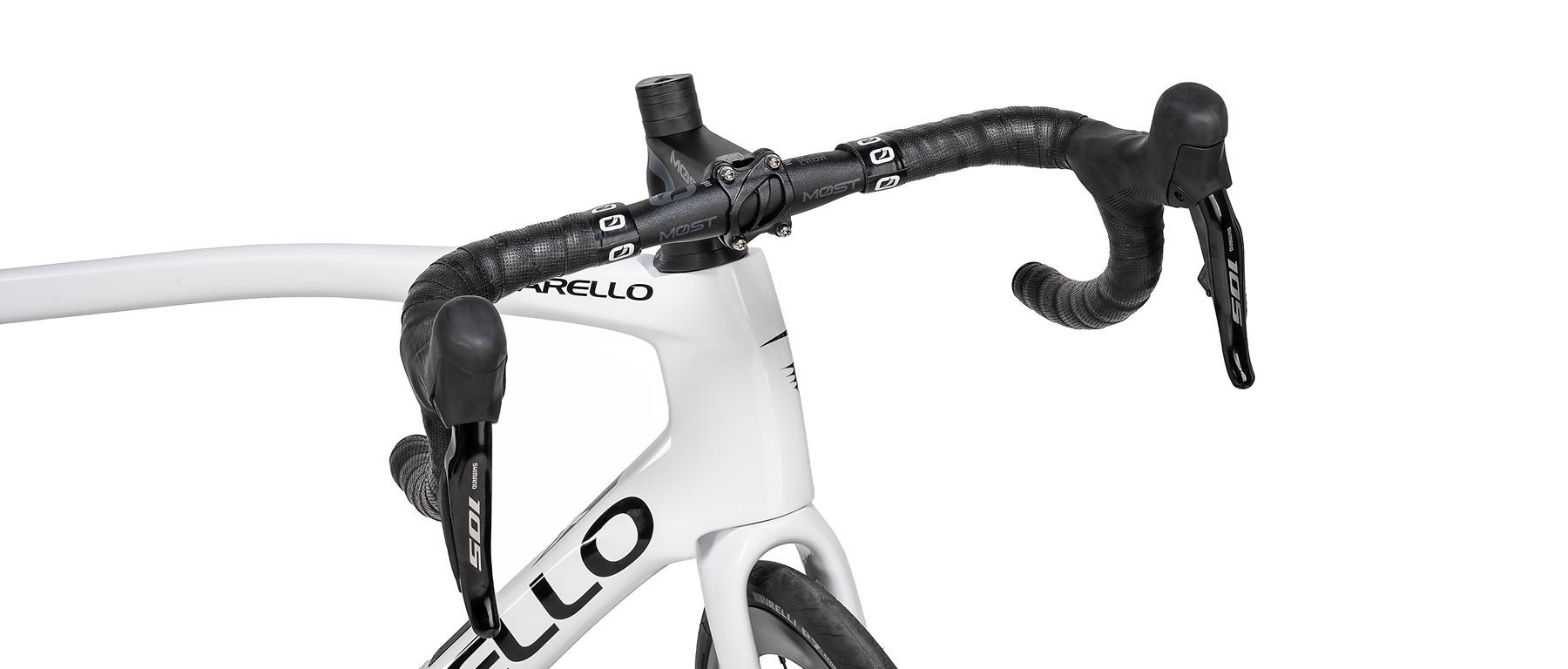

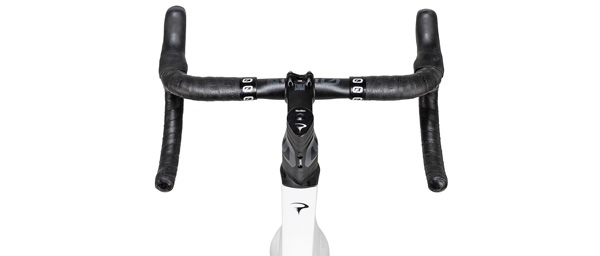

- Most Tiger Ultra integrated alloy handlebar and stem

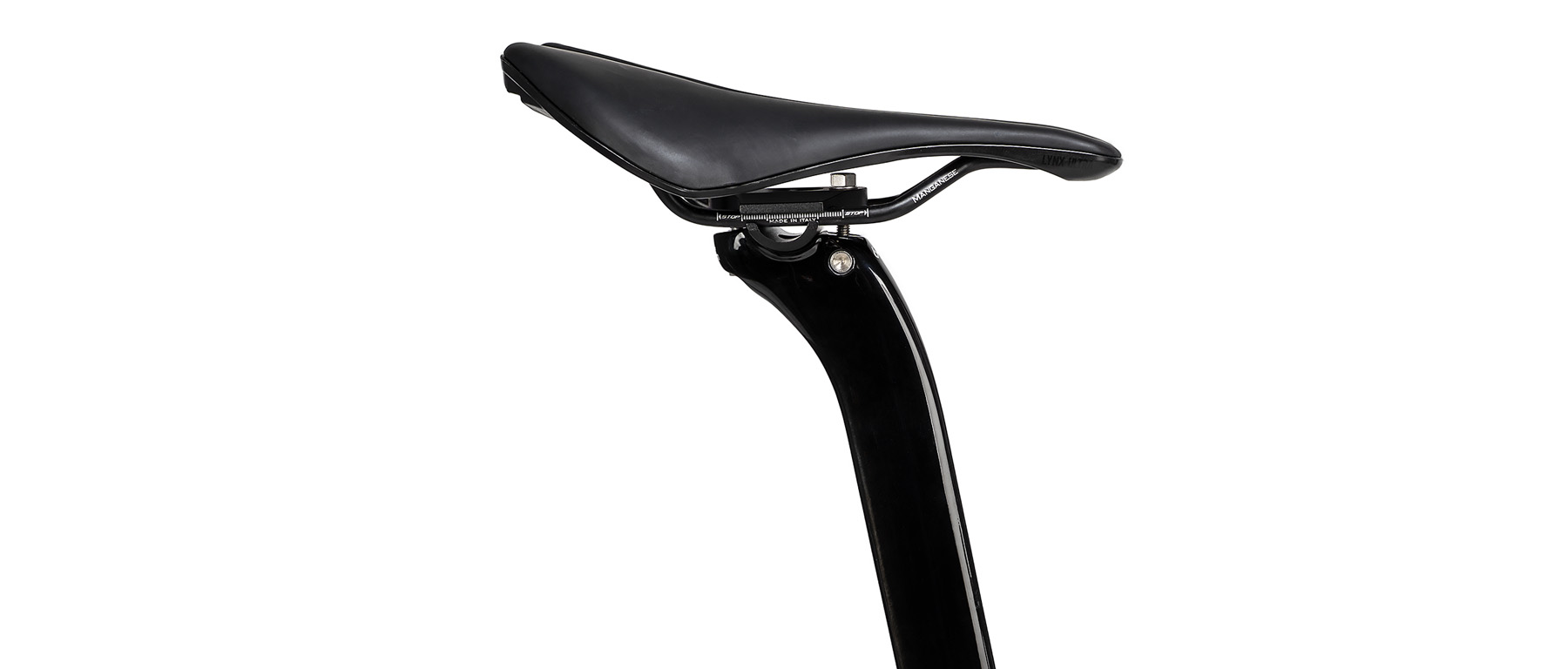

- Most Lynx saddle

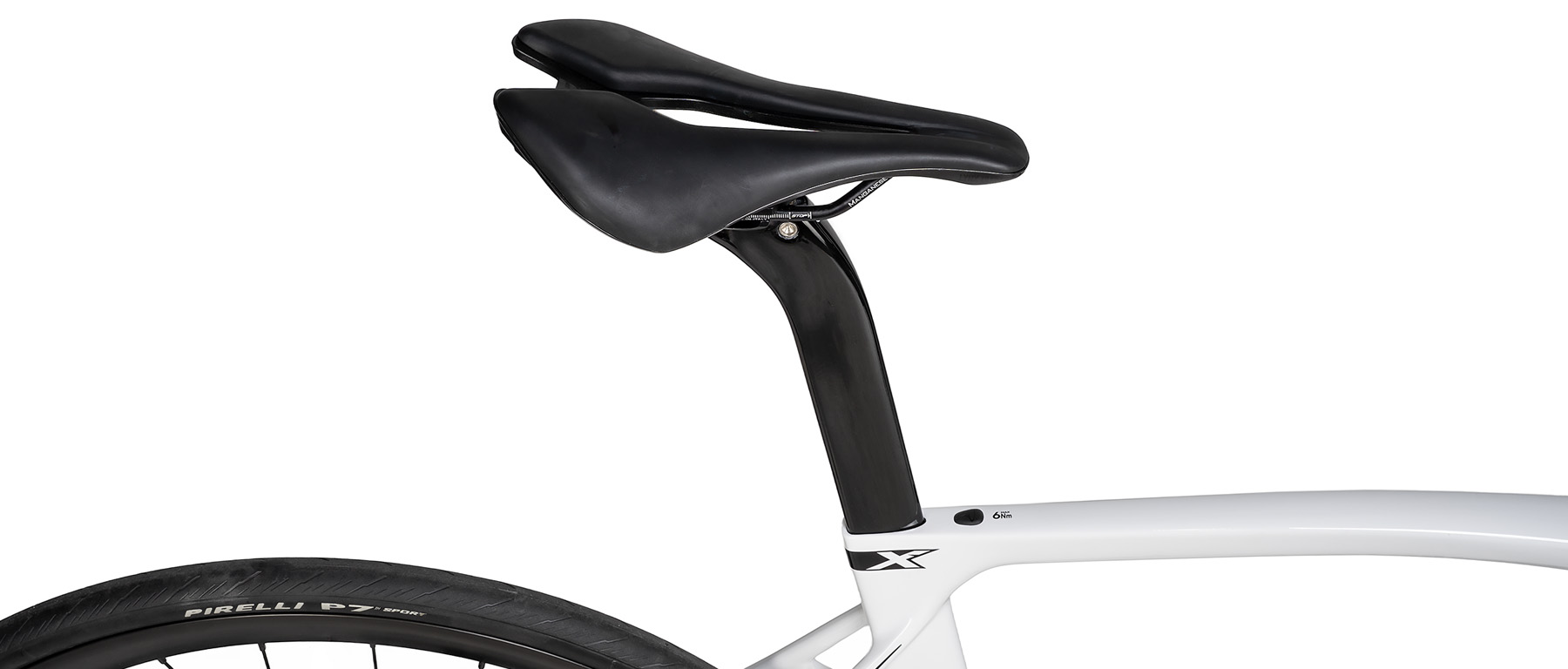

- Most carbon seatpost
- Internal cable routing through the cockpit
- Tire clearance up to 32mm
- Color: Xolo White E350
- Former show bike, near-mint with cosmetic scratch on left crankarm
- 17.86 lbs (size 53)
Geometry
| Size | Stack | Reach | Top Tube | Seat Tube | Head Tube | Head Angle | Seat Angle | Chainstay | Wheelbase | BB Drop |
|---|---|---|---|---|---|---|---|---|---|---|
| 46.5 | 510mm | 370mm | 505mm | 430mm | 105mm | 71.2° | 74.5° | 410mm | 978mm | 72mm |
| 50 | 536mm | 378mm | 525mm | 460mm | 125mm | 72° | 74° | 410mm | 982mm | 72mm |
| 51.5 | 548mm | 382mm | 535mm | 475mm | 135mm | 72.5° | 73.8° | 410mm | 986mm | 72mm |
| 53 | 560mm | 386mm | 545mm | 490mm | 145mm | 73° | 73.5° | 410mm | 989mm | 72mm |
| 54 | 570mm | 390mm | 552mm | 500mm | 155mm | 73° | 73.3° | 410mm | 993mm | 72mm |
| 55 | 580mm | 394mm | 560mm | 510mm | 165mm | 73.2° | 73.2° | 410mm | 997mm | 72mm |
| 56 | 590mm | 398mm | 568mm | 520mm | 175mm | 73.3° | 73° | 410mm | 1001mm | 72mm |
| 57.5 | 602mm | 402mm | 578mm | 535mm | 185mm | 73.4° | 72.8° | 415mm | 1008mm | 72mm |
| 59.5 | 620mm | 408mm | 590mm | 555mm | 205mm | 73.5° | 72.5° | 415mm | 1015mm | 70mm |
| 62 | 638mm | 414mm | 602mm | 580mm | 225mm | 73.5° | 72.3° | 415mm | 1022mm | 70mm |
