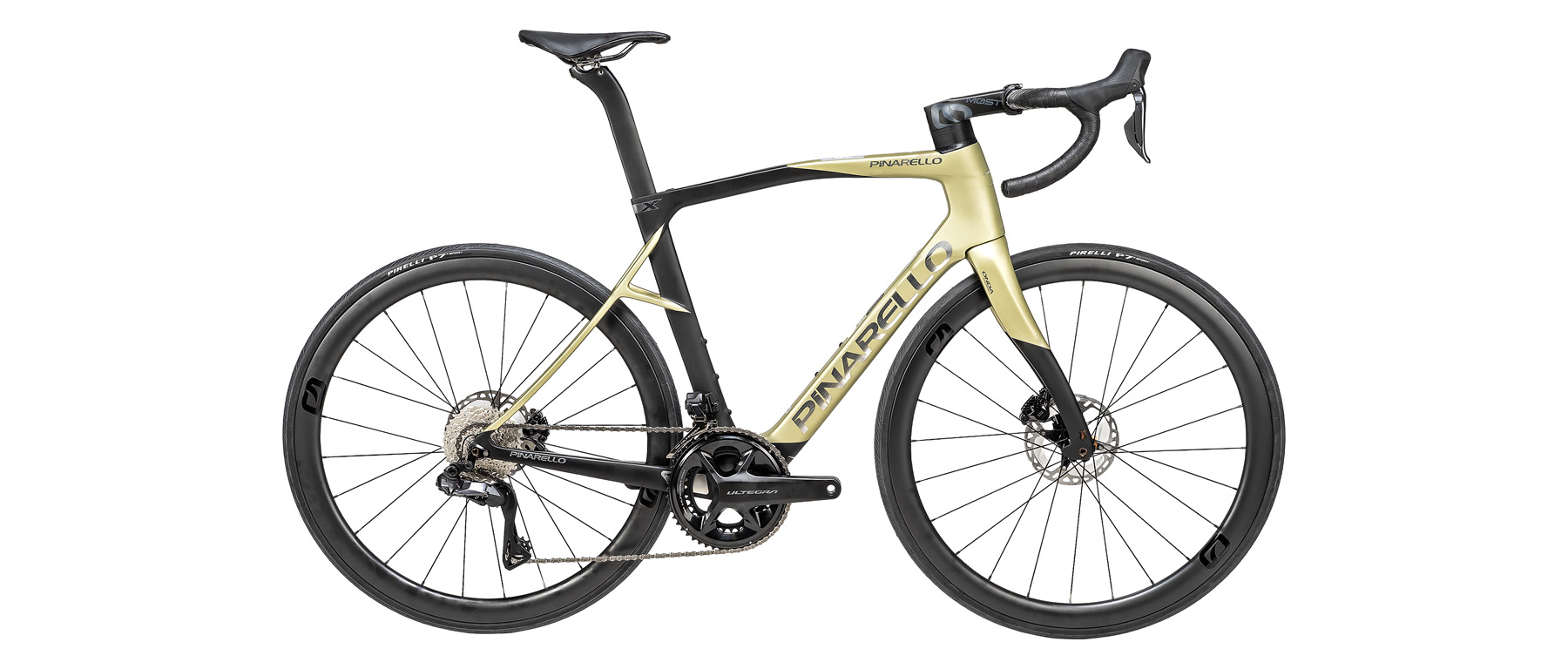

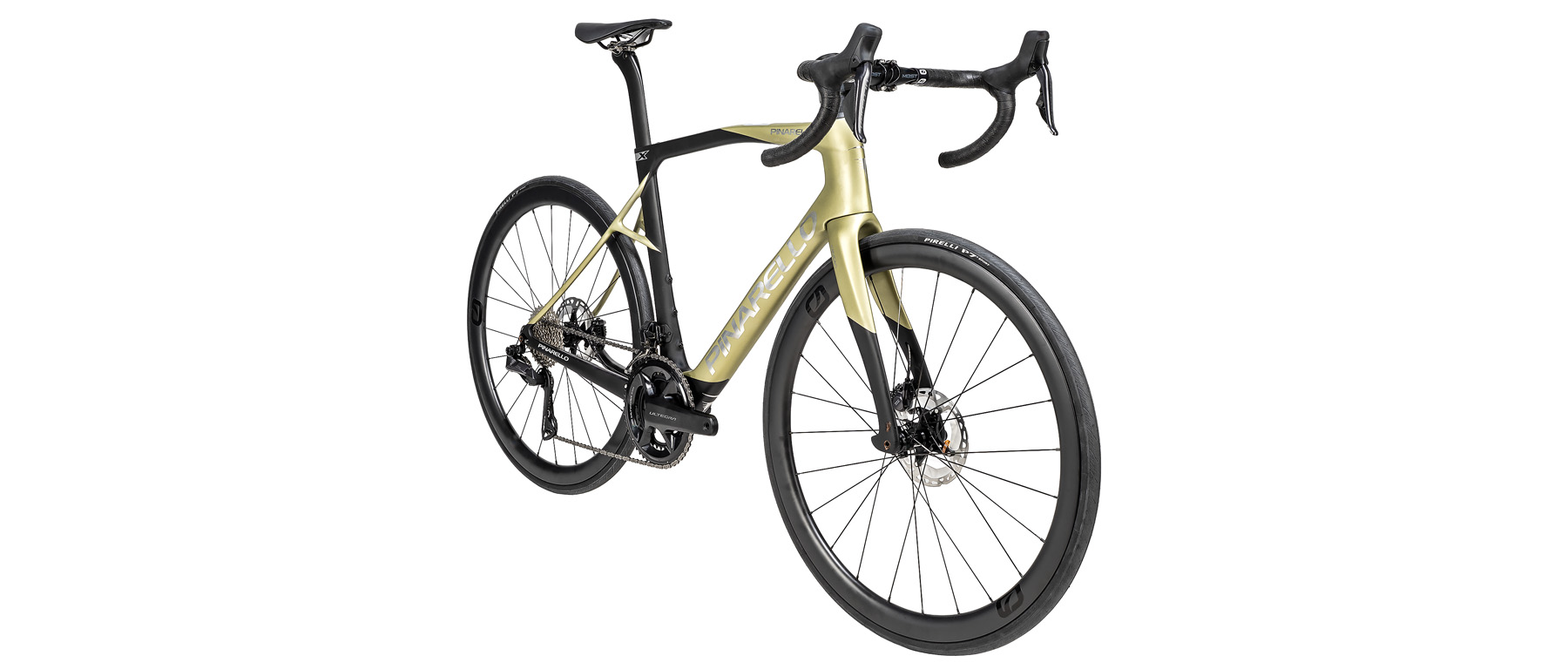

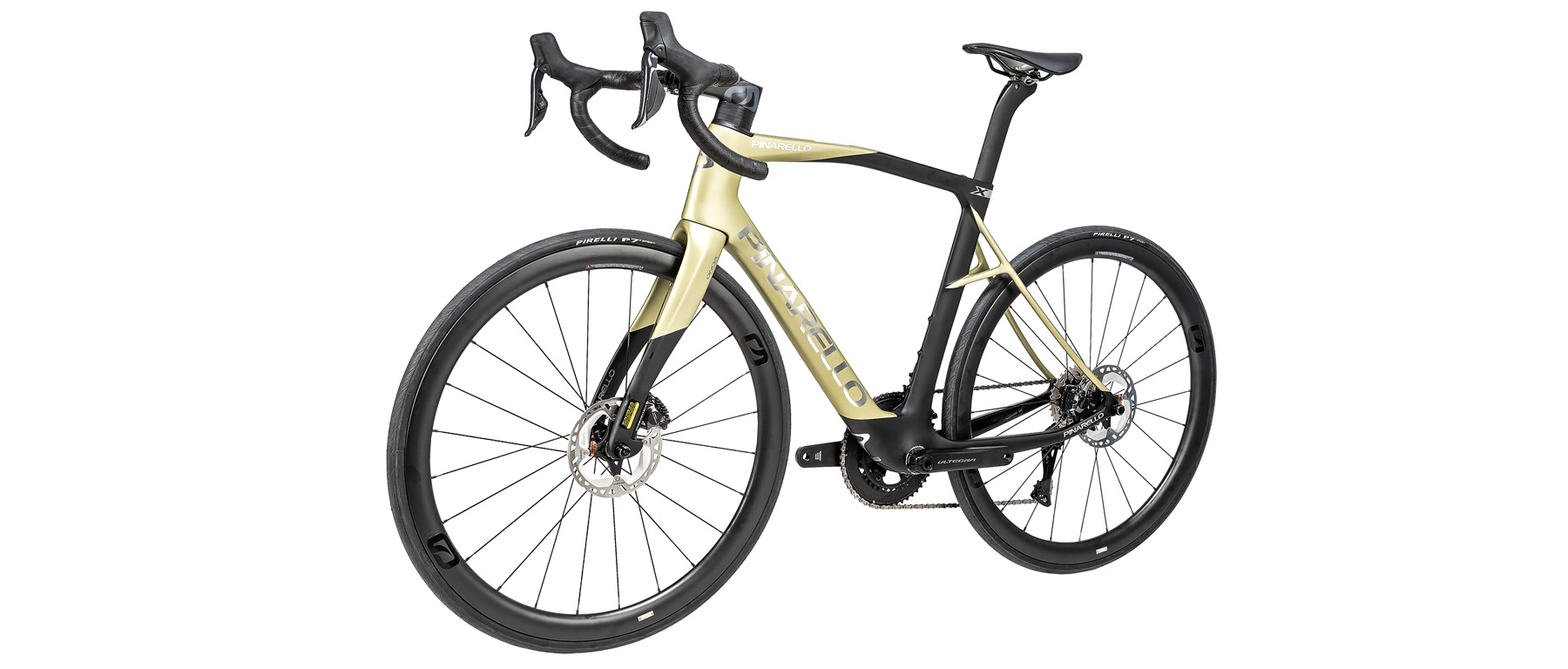

X7 Ultegra R8170 Di2 Bicycle DEMO 2
Color: Xpeed Gold E330
Size: 53cm
Description
Pinarello's X-series translates Dogma race geometry into a frame that real riders can spend all day on, and the X7 sits at the upper end of that lineup. The frame uses Torayca T700 carbon laid up around the same architectural cues that define the flagship Dogma X — asymmetric chainstays that account for drivetrain forces pulling unevenly on the right side of the bike, the signature onda fork curves that smooth road chatter without dulling steering response, and an integrated cockpit routing system that hides every cable from the bar tape to the rear derailleur. What separates the X-series from the Dogma is a stack height that sits roughly 30mm taller across most sizes, opening the bike up to riders who want race handling without the punishing position.
Geometry tells the story. The 70.5° head tube angle on a size 53 keeps steering quick enough for spirited descending, while the longer wheelbase and slightly slacker seat tube angle settle the bike into a stable, predictable line over rough pavement. Tire clearance runs to 32mm, which gives riders flexibility to run wider rubber for endurance days or drop down to 28mm for race day. The asymmetric frame design — beefier on the driveside to resist flex under hard pedaling — pays dividends on climbs and out of corners, where the bike accelerates with the kind of immediacy you expect from the Dogma platform.
This particular X7 was used as a display bike at Excel and shows little to no signs of wear. It carries the full Pinarello manufacturer's warranty as a factory-authorized sale through the Excel Service Course. The Xpeed Gold E330 paint is a deep metallic finish that shifts in changing light, and the build represents one of the strongest value propositions in the X-series lineup.... Read More
Features
- Torayca T700 carbon frame with asymmetric chainstays
- Pinarello onda fork in matched T700 carbon

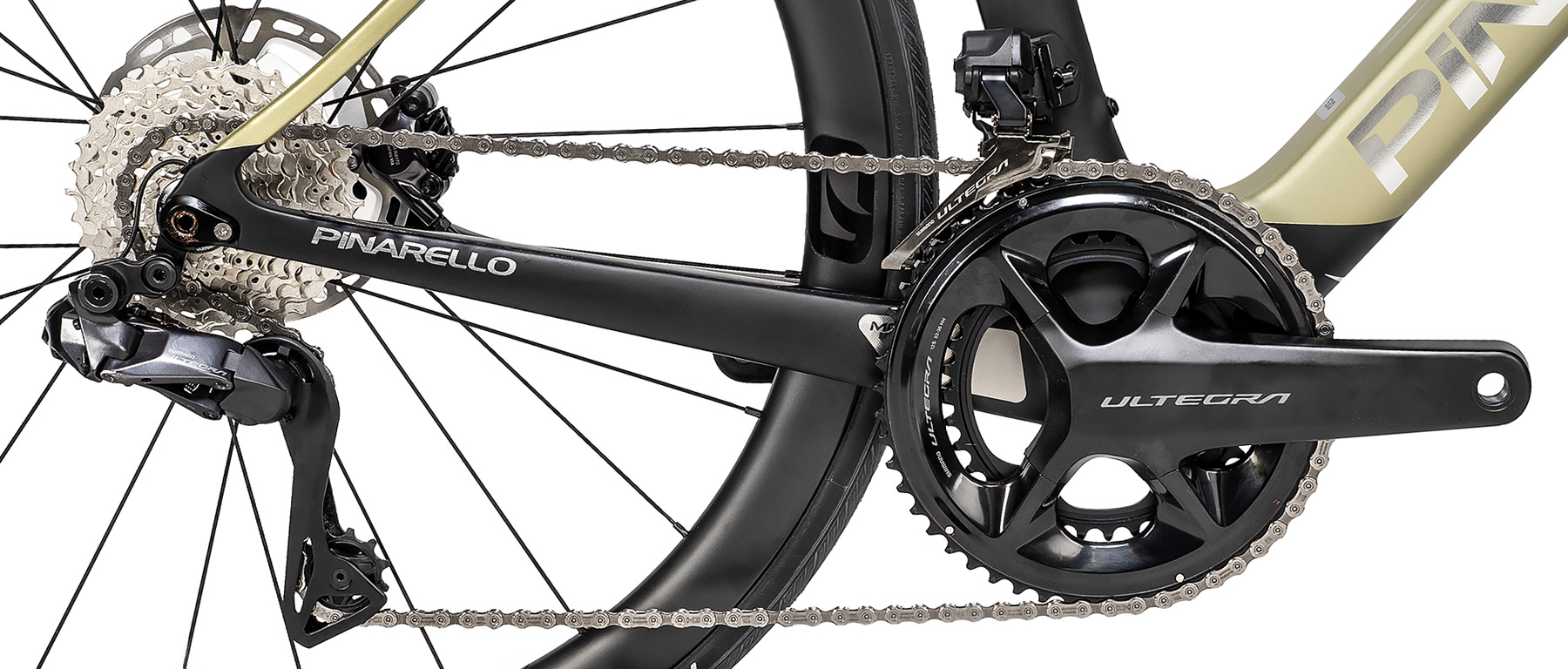

- Shimano Ultegra R8170 Di2 12-speed wireless electronic groupset

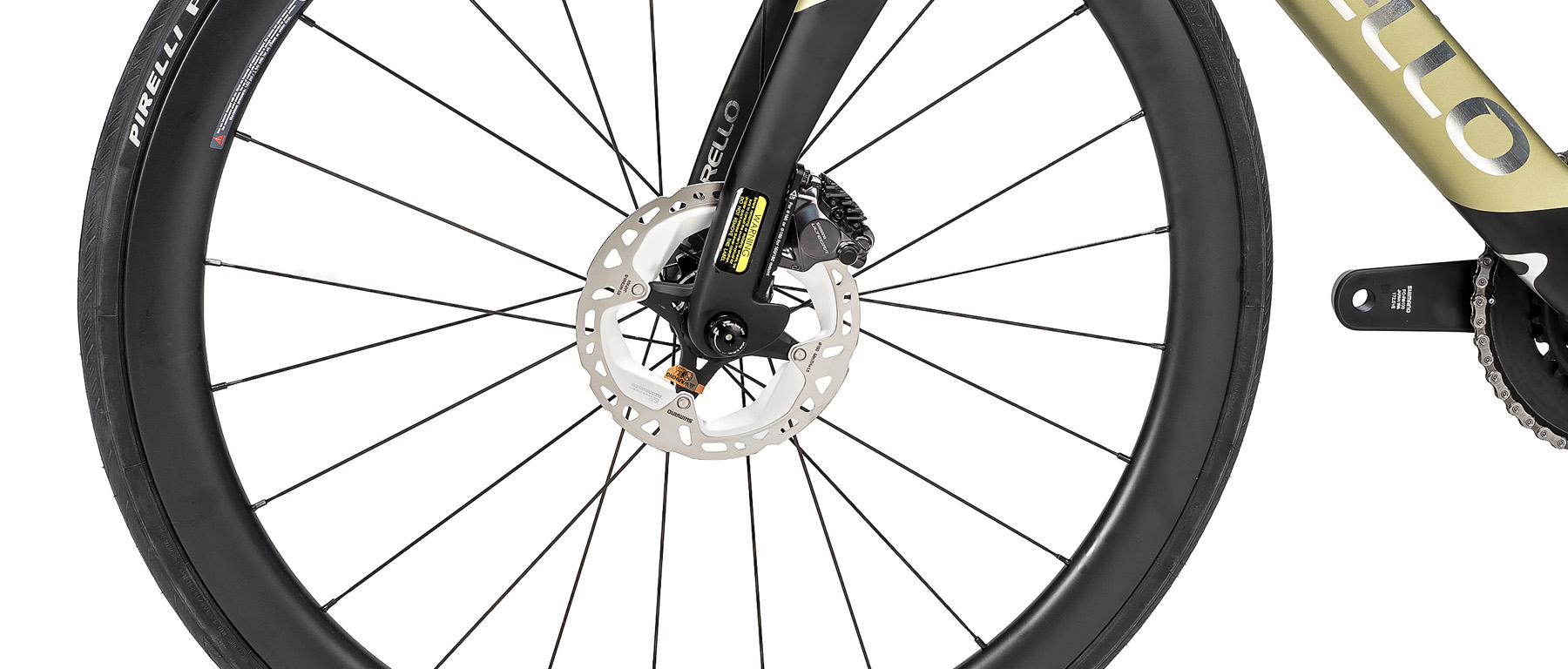

- Ultegra R8170 hydraulic disc brakes with 160mm rotors

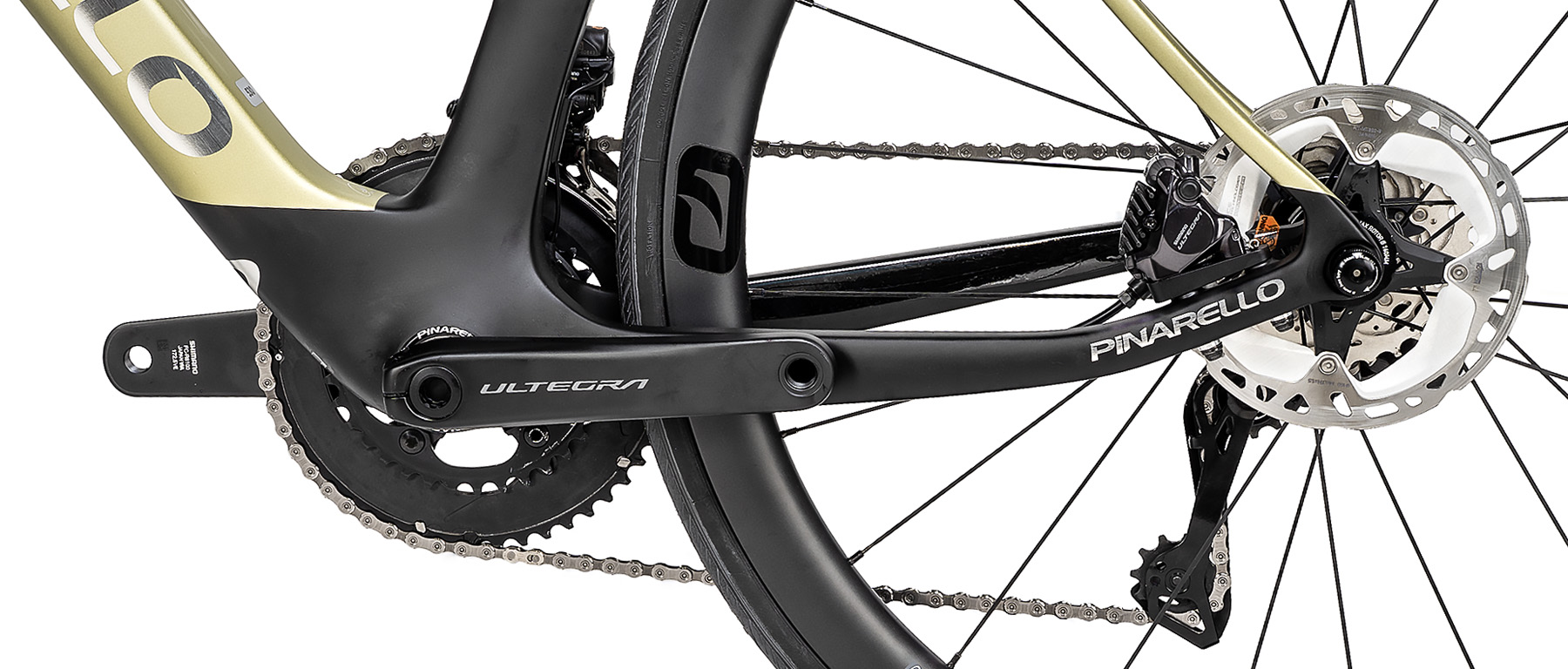

- Ultegra R8100 crankset with 50/34T compact chainrings
- Shimano 11-34T 12-speed cassette
- Most Ultrafast DB wheelset with tubeless-ready rims
- Pirelli P Zero Race 700x28mm tires

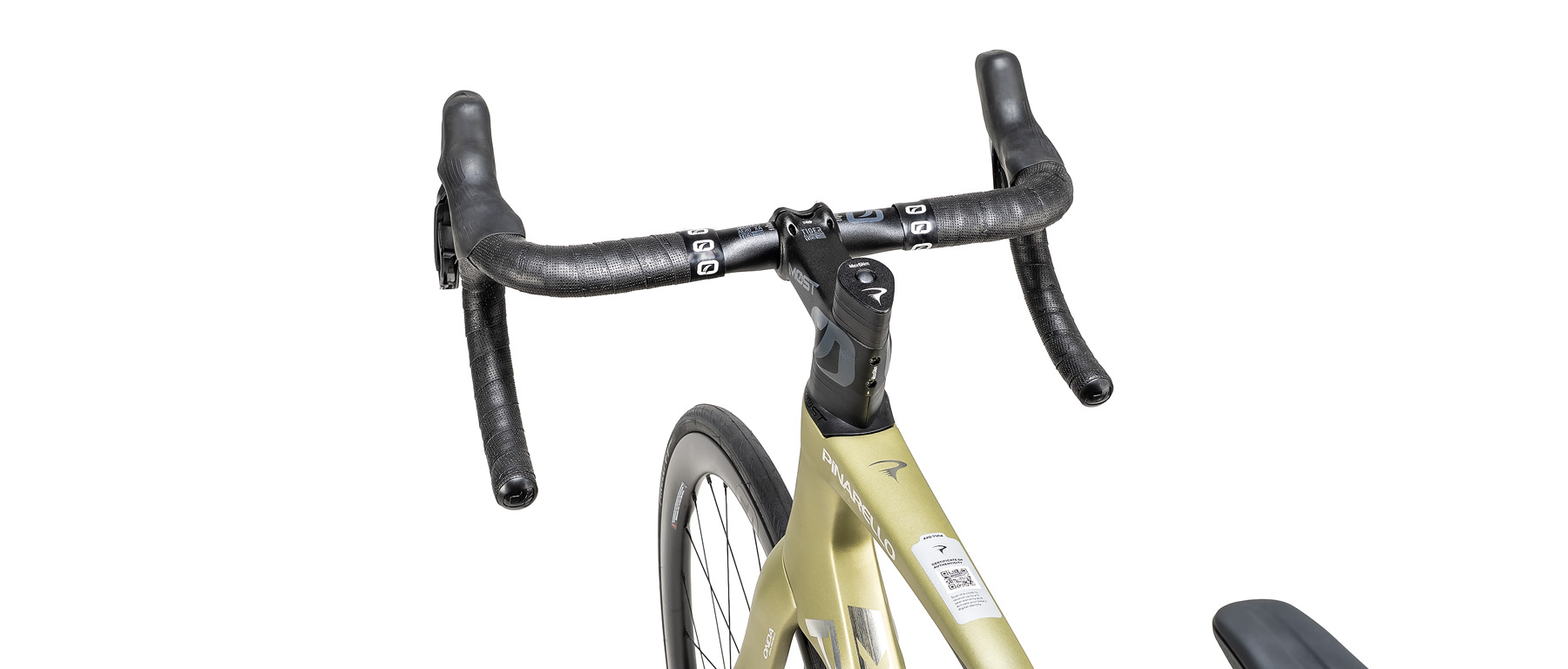

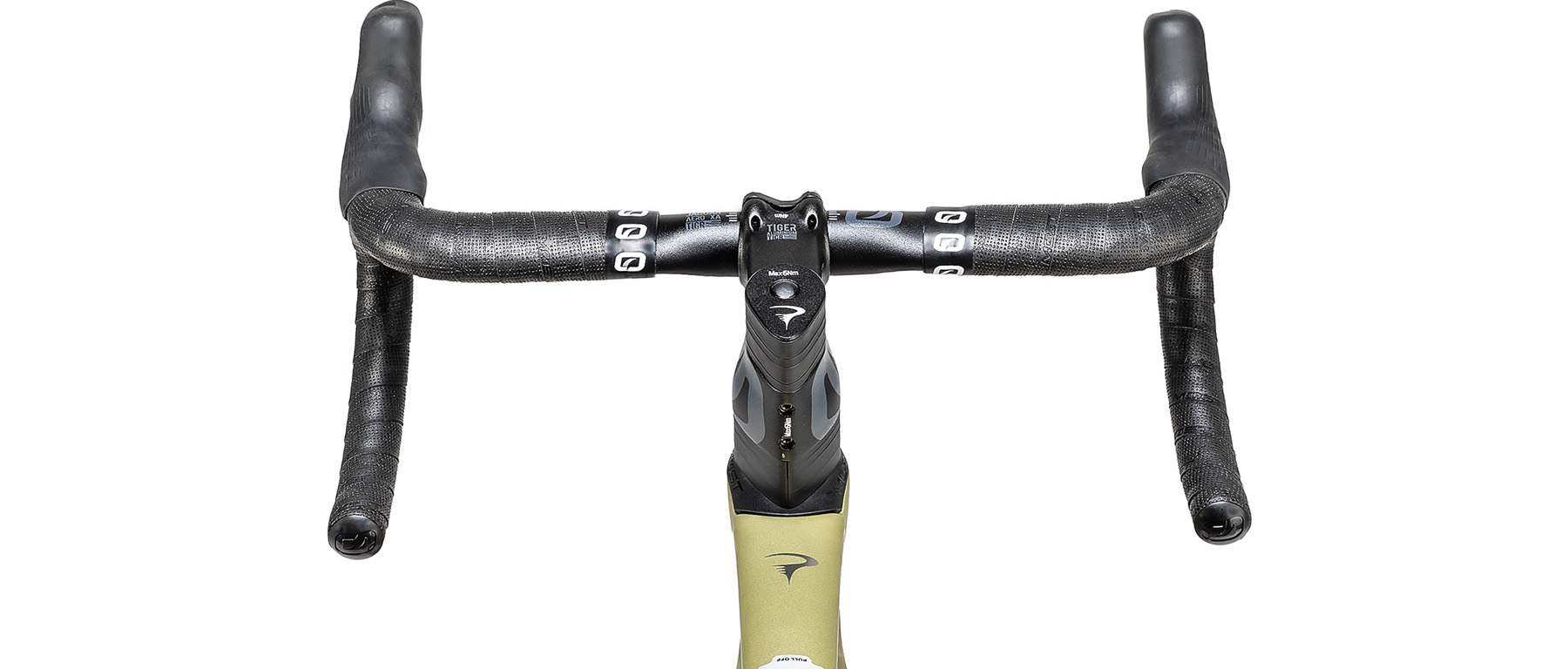

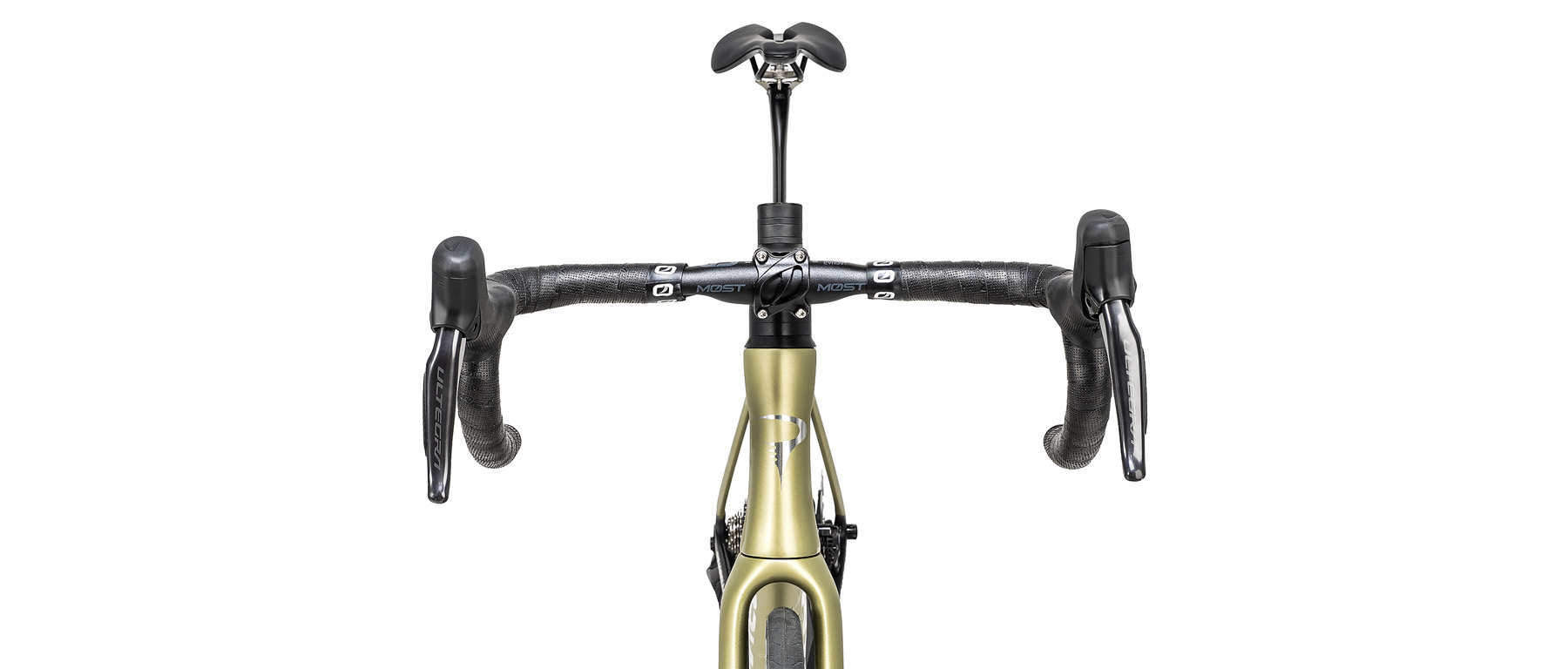

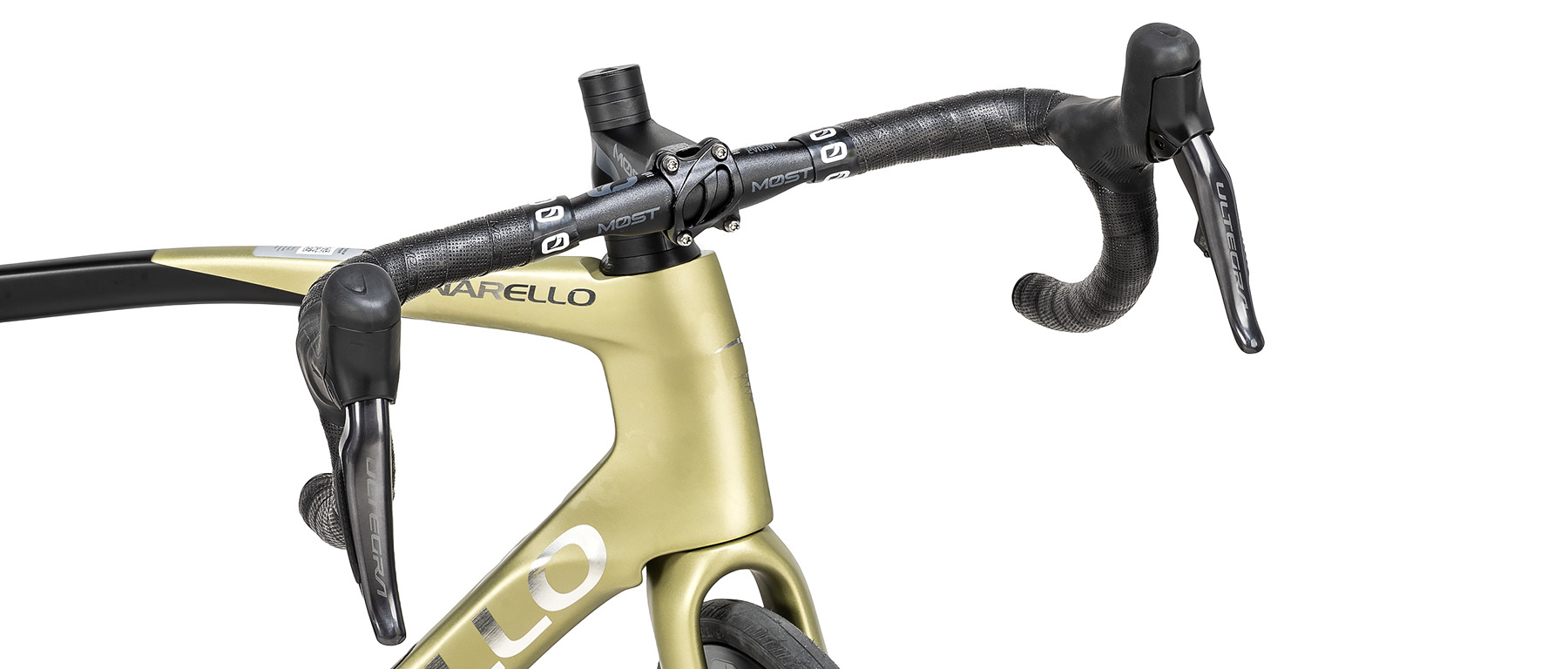

- MOST Talon Ultra integrated carbon cockpit

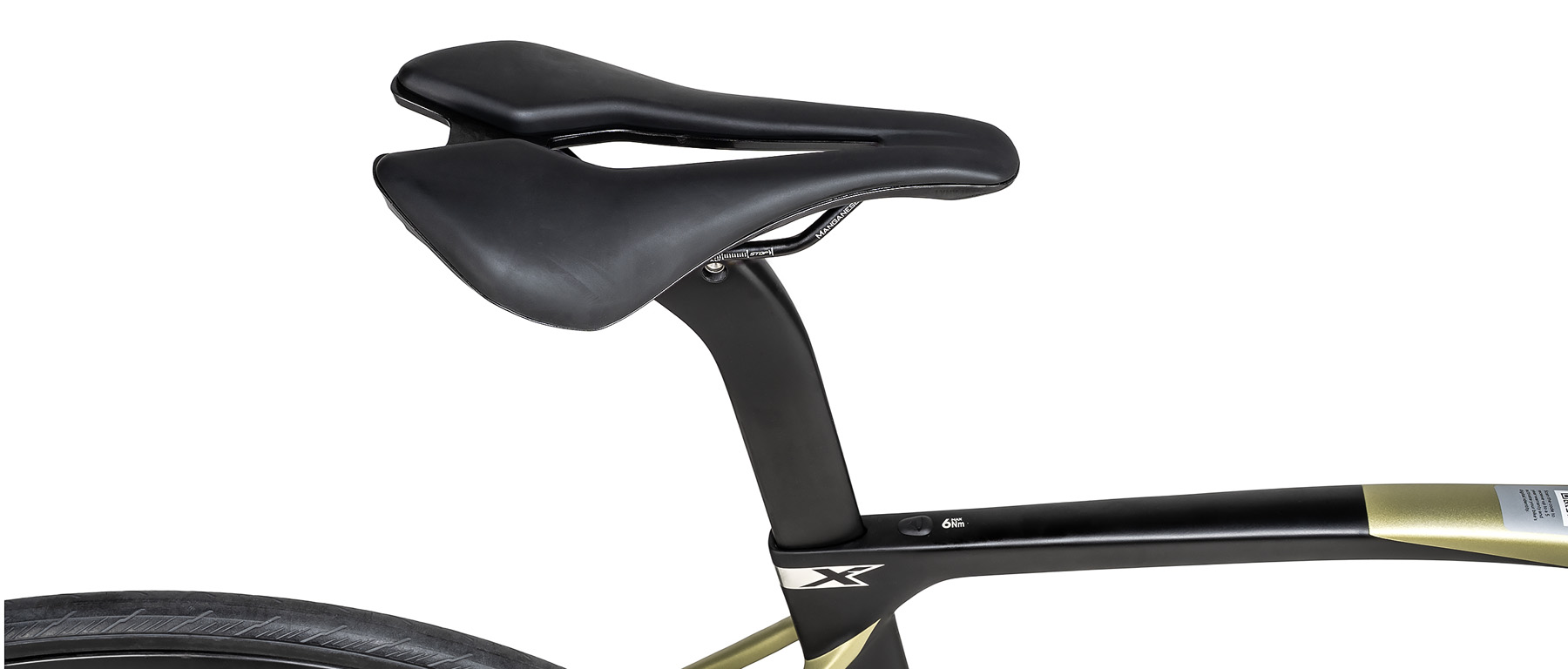

- MOST Lynx saddle

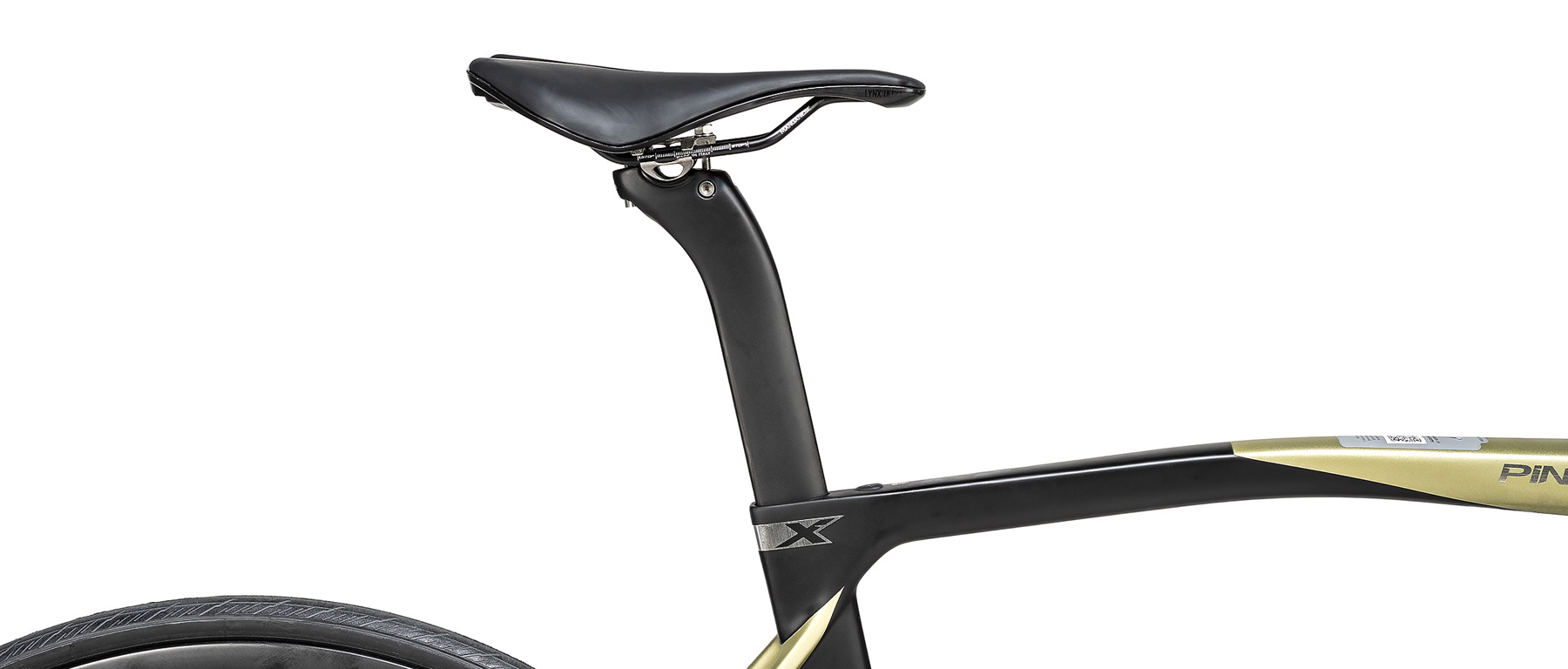

- Pinarello aero carbon seatpost
- Internal cable routing through headset
- Flat-mount disc brake interface
- 12x100mm front, 12x142mm rear thru-axle spacing
- 32mm maximum tire clearance
- Display bike condition with full manufacturer warranty
- Built and prepped by the Excel mechanicos
- 17.86 lbs (size 53)
Geometry
| Size | Stack | Reach | Top Tube | Seat Tube | Head Tube | Head Angle | Seat Angle | Chainstay | Wheelbase |
|---|---|---|---|---|---|---|---|---|---|
| 46 | 506mm | 368mm | 505mm | 430mm | 100mm | 70.7° | 74.5° | 410mm | 974mm |
| 50 | 538mm | 377mm | 525mm | 470mm | 130mm | 71.2° | 74° | 410mm | 981mm |
| 53 | 557mm | 384mm | 540mm | 495mm | 150mm | 71.8° | 73.5° | 410mm | 988mm |
| 54 | 568mm | 388mm | 550mm | 510mm | 160mm | 72° | 73.3° | 410mm | 991mm |
| 56 | 588mm | 395mm | 565mm | 530mm | 180mm | 72.5° | 73° | 410mm | 998mm |
| 59 | 614mm | 402mm | 583mm | 555mm | 205mm | 73° | 72.7° | 415mm | 1010mm |
| 62 | 640mm | 410mm | 600mm | 580mm | 230mm | 73.2° | 72.5° | 415mm | 1020mm |
