Gravel Framesets

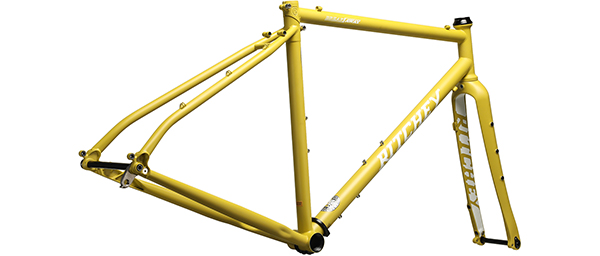

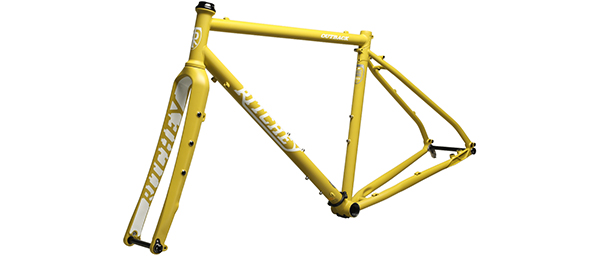

Ritchey Break-Away Outback Frameset

Many fans of the steel Outback frameset have been asking for a Break-Away version, and as Ritchey updated the Outback for 2020, they also worked up the Break-Away Outback. Virtually identical to the 2nd generation Outback, the Break-Away version is sure to be hot with cyclists looking to take their adventures to a whole other terrain, perhaps on another continent.

The Outback Steel Break-Away easily and quickly disassembles to fit into its own included sturdy travel case, which helps you avoid airline extra baggage fees. Once you arrive at your destination, the bike assembles with ease - allowing you to quickly get out and go. It features a patented system that is lighter, requires no special tools and is faster to use than other travel bike systems. The Break-Away packs into its own included wheeled travel case. Ritchey does not guarantee what the airlines will charge, but many accept the case as standard luggage, and most builds will easily end up packed at well under 50lbs. The major advantage of having your own bike to travel with, and not renting, is that you can enjoy your ideal bike fit and familiar equipment without dealing with the inconsistencies and challenges of renting.

The popularity of gravel and all-road cycling speaks for itself. Cyclists don't need to choose on or off road, or be concerned about gravel roads or rough country lanes. Those who know Tom Ritchey's story will be aware that he has long pushed the boundaries of surfaces and terrain. The advances in road disc brake systems makes it easier to build the best bike possible for the conditions of the open and rough road. Using the proven and desirable Ritchey Logic heat-treated, double-butted directional steel tubing, the pioneer has designed the capable, updated Outback Frameset into a Break-Away version. It has the same design. clearance, geometry and features as the standard version with it's thru-axle frame and carbon disc thru-axle WCS Adventure Fork resulting in the forgiving, superior ride quality all Ritchey's steel frames are known for.

Along with the well-proven and time tested Break-Away coupler system, Outback Break-Away sports several practical and adaptable features that offer riders the ability to chase epic ride experiences beyond the end of the road and the end of the day. Rack and fender mounts help to keep things dry and expand the load-carrying capacity for longer bikepacking adventures, while clearance for 700c x 48mm or 650b x 2.0" tires opens up a whole new world of possibilities. The frame accepts flat-mount disc calipers, and the new all-carbon fiber Ritchey Adventure Fork with multi-purpose mounts on the legs gives you more places to stow the supplies you gather at the last cafe or outpost.

The geometry will feel like a stable endurance road bike to most riders, such as in the Medium frameset, with a 50mm fork rake that speeds up the handling when necessary. A 453mm chainstay length and 1061mm wheelbase favors stability without sacrificing responsiveness. This is not a cyclocross bike, but an all road design that handle quickly when necessary, but tracks well over rougher terrain on straighter roads or paths. The vertical compliance of the tubeset is aided in the rear by the arched seatstays, which lead to the seat cluster with an integrated collar, for a 27.2mm diameter seatpost.

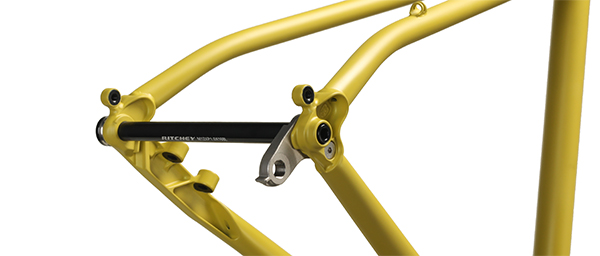

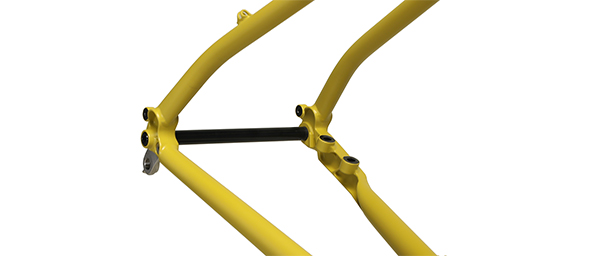

By using opposing tube oval shapes, shaped chainstays, and keeping a bridge across the seatstays, lateral stiffness is much better than you'd expect from a steel frame. Of course power transfer and control in the rear of the bike is assisted by the 12/142mm thru-axle dropout. The flat mount disc brake tab is cleanly inside the rear triangle, with some space for mud to clear, not collect. The frame is designed for longer cable housing runs for brake and rear derailleur, which keeps the shift cable itself cleaner and operating smoothly. The drop-in integrated headset is included, and you will need a 28.6 clamp size for a front derailleur. The bottom bracket shell is a 68mm BSC threaded system. The carbon Ritchey Adventure Fork carries a flat mount disc caliper interface, the thru-axle fork is for 12/100mm hub use, and is painted to match the frame.

The steel Outback Break-Away Frameset balances the multi-purpose requirements in ways that are surprising. Riders seeking a bike able to effortlessly switch between fire roads, trails, tarmac, long distance mixed-terrain adventures, bikepacking and everything in-between will find the Outback a prime option for enjoying such differing and distinct disciplines of riding. That is where the needs and requirements of cyclists are taking the industry. You can have one "road" bike that meets all your needs. Most cyclists don't race, and don't really want to. They want to ride, be able to explore the horizon, commute, and challenge themselves in new ways. Remember the 48mm tire size is a max standard. You can certainly ride 28-32mm models when on pavement. Also keep in mind that rim width, as well as variation in tire manufacturing will determine your actual max tire size. You have options. And isn't that the point of the Outback frameset? So if travel friendly, forgiving ride, predictable but responsive handling, and contemporary features are listed on your new bike checklist, the Ritchey Outback Break-Away Frameset offers new options, destinations and opportunities as you seek to build your new bike.

Features

  • Break-Away version of 2nd generation steel all-road/gravel/adventure frameset with Ritchey special geometry, disc brakes, thru-axles and carbon adventure-ready fork

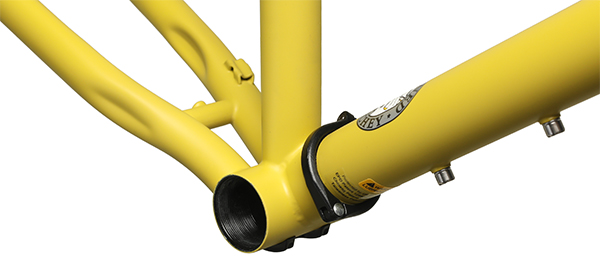

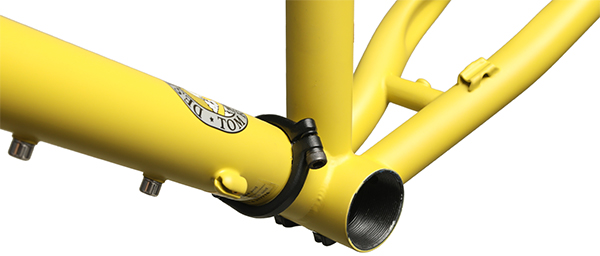

  • Patented locking compression coupling system is simple, proven, secure and easy to use
  • Ritchey Logic heat-treated, double-butted directional tubing frame, 12/142mm thru-axle with replaceable mount/derailleur hanger, flat mount disc brake interface, Rack and fender mounts
  • Versatile bike also enjoys generous tire clearance, stability, responsive handling

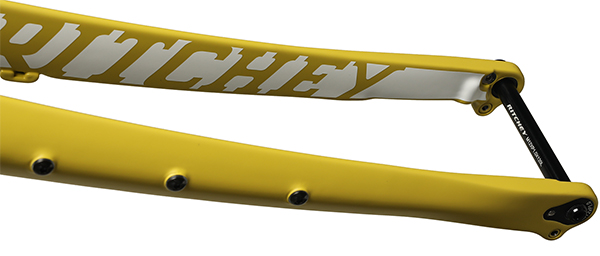

  • 1⅛ Adventure 12/100mm thru-axle fork w/ thru-axle, flat mount disc, with multi-purpose mounts

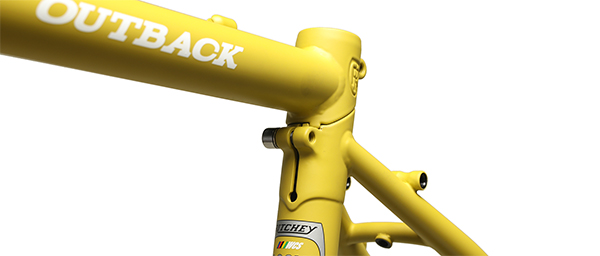

  • Frame facts: Integrated headset design, 27.2mm seatpost diameter, 28.6mm front derailleur clamp required, 68mm BSC threaded bottom bracket shell, cable and housing routing is hybrid with longer full housing run for rear derailleur from TT down
  • Crankset min/max ring size - single: 36 to 46t / double: 46/30t to 50/34t
  • 2 bottle cage mounts (interior triangle- downtube, seattube)
  • Frame/fork fit up to 700c x 48mm or 650b x 2.0" tires based on actual rim/tire spec
  • Includes: frame, fork, headset, thru-axles
  • Includes Break-Away wheeled travel case and padding included (8.5” W x 26.5”H x 31”L), as well as reusable padded nylon packing protection kit
  • Sizes: XS, S, M, L, XL
  • Color: Queso y Crema
  • Weight: 5.62 lbs (frame, axles, hanger)
Ritchey Break-Away Outback Frameset
Size Large Medium Small XL XS
Wheel Size 700 700 700 700 700
Stack 587.4mm 556.5mm 547.7mm 606.3mm 531.7mm
Reach 390mm 378mm 378mm 395mm 373mm
Head Angle 71° 70.5° 70° 190° 69.5°
Seat Angle 73° 73° 73.5° 73° 74°
Top Tube Length 569.8mm 556.5mm 540.6mm 580.6mm 525.9mm
Head Tube Length 170mm 150mm 130mm 190mm 115mm
Standover 817.8mm 795.5mm 772.8mm 839.1mm 753.5mm
Fork Trail 170mm mm mm mm mm
Fork Offset 50mm 50mm 50mm 50mm 50mm
Bottom Bracket Drop 68mm 68mm 70mm 68mm 70mm
Wheelbase 1069.6mm 1060.4mm 1052.6mm 1081mm 1046.5mm
Chainstay Length 453mm 453mm 453mm 453mm 453mm
