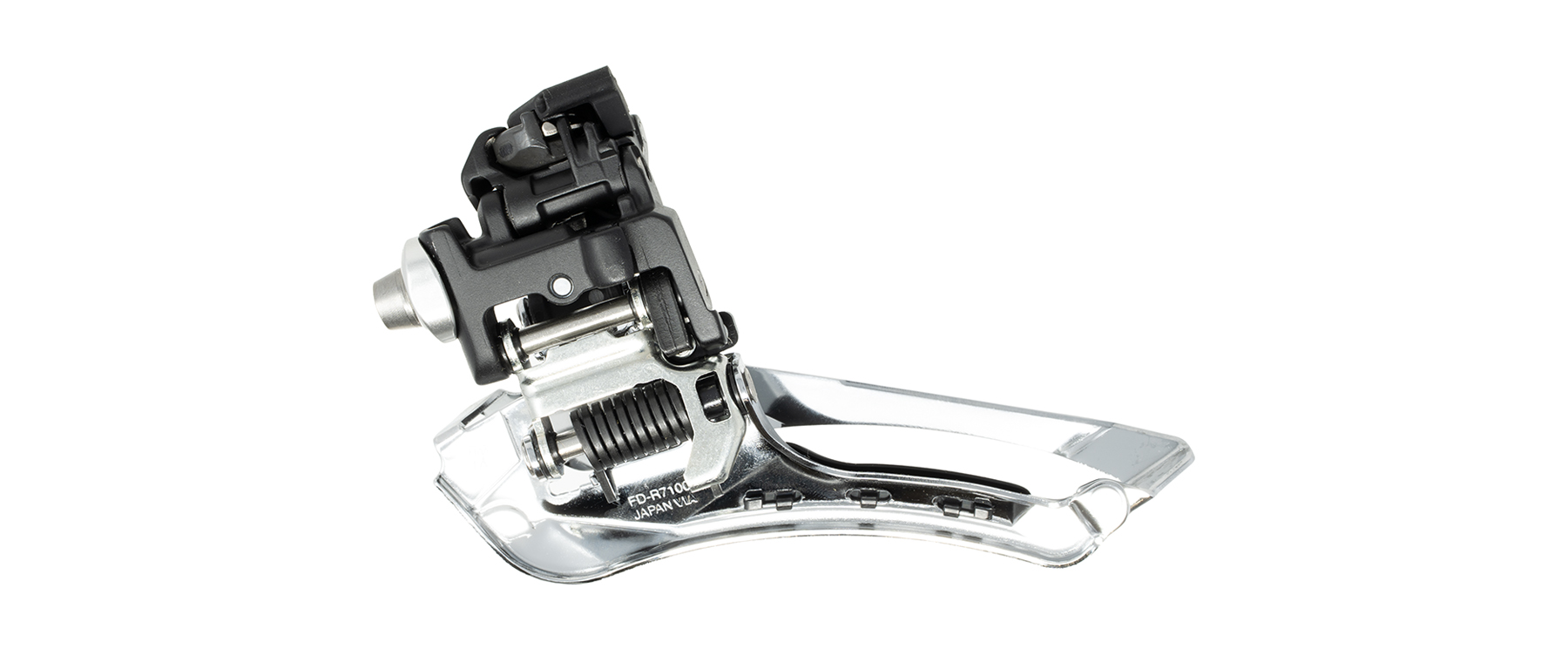

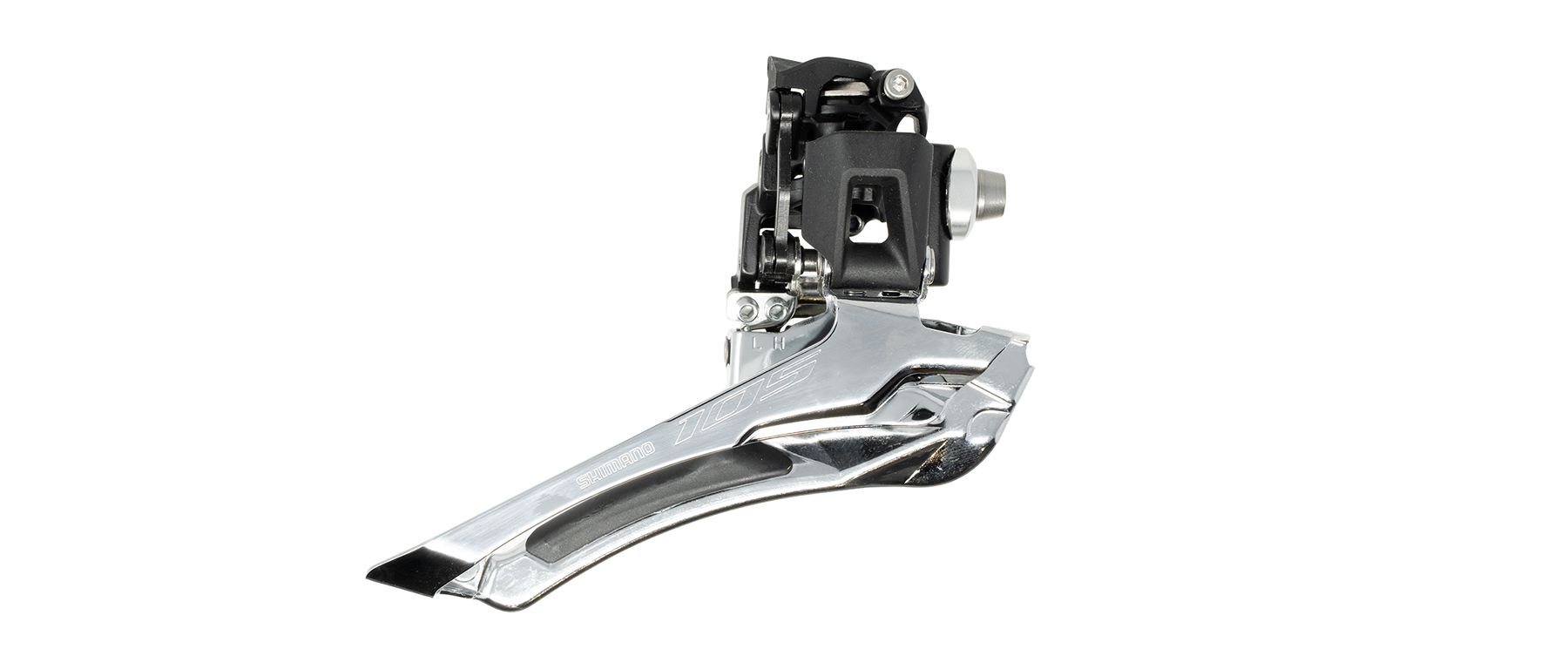

Toggle link construction fundamentally changed how front derailleurs feel at the lever. The older pivot-style designs required maximum effort right at the end of the shift stroke, precisely when your hand has the least mechanical advantage. Shimano's toggle link mechanism in the FD-R7100 reverses that relationship, matching the force curve to how your hand actually works and reducing effort when you're pushing the chain up to the big ring. The result is noticeably lighter shifting that doesn't fade as the stroke completes.

The integrated cable tension adjustment built into the derailleur body eliminates the need for an inline barrel adjuster on your downtube or cable housing. You can dial in tension directly at the derailleur using a hex key, which simplifies setup and makes on-the-fly adjustments more accessible. Cable routing options give you flexibility too. You can run bare cable to a frame stop or terminate full housing directly at the derailleur's integrated housing stop, depending on your frame's routing provisions.

Cage geometry on the FD-R7100 accommodates the wider chainstays and tire clearances common on disc brake road frames. Shimano designed it for chainstays as short as 410mm with 135mm or 142mm rear hub spacing, which covers most modern road and gravel frames running disc brakes. The 44.5mm chainline matches current Shimano road cranksets, so you're working with components engineered to track together.... Read More
