Description

If you are looking for an out-of-the-box XC-race or trail ready rear wheel you have certain requirements on your checklist. One, it needs to be tubeless. Two, it needs to be light, even in a 29er version. Three, it needs to be responsive, with excellent trail manners with tires up to 2.25" width. Four, it needs to have current hub standard axles and the ability to change them out if necessary. Five, you don't want to break the bank. The NoTubes ZTR Crest MK3 checks all the boxes and brings you fantastic performance at a great price. There are two top-notch components to this third generation ZTR Crest wheelset- the rims and the hubs.

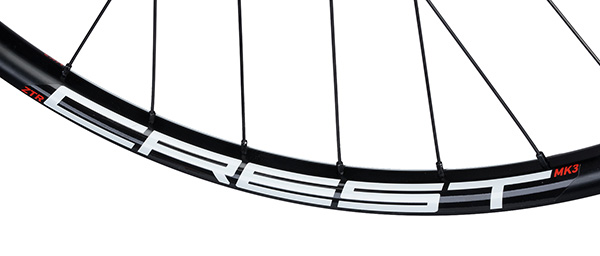

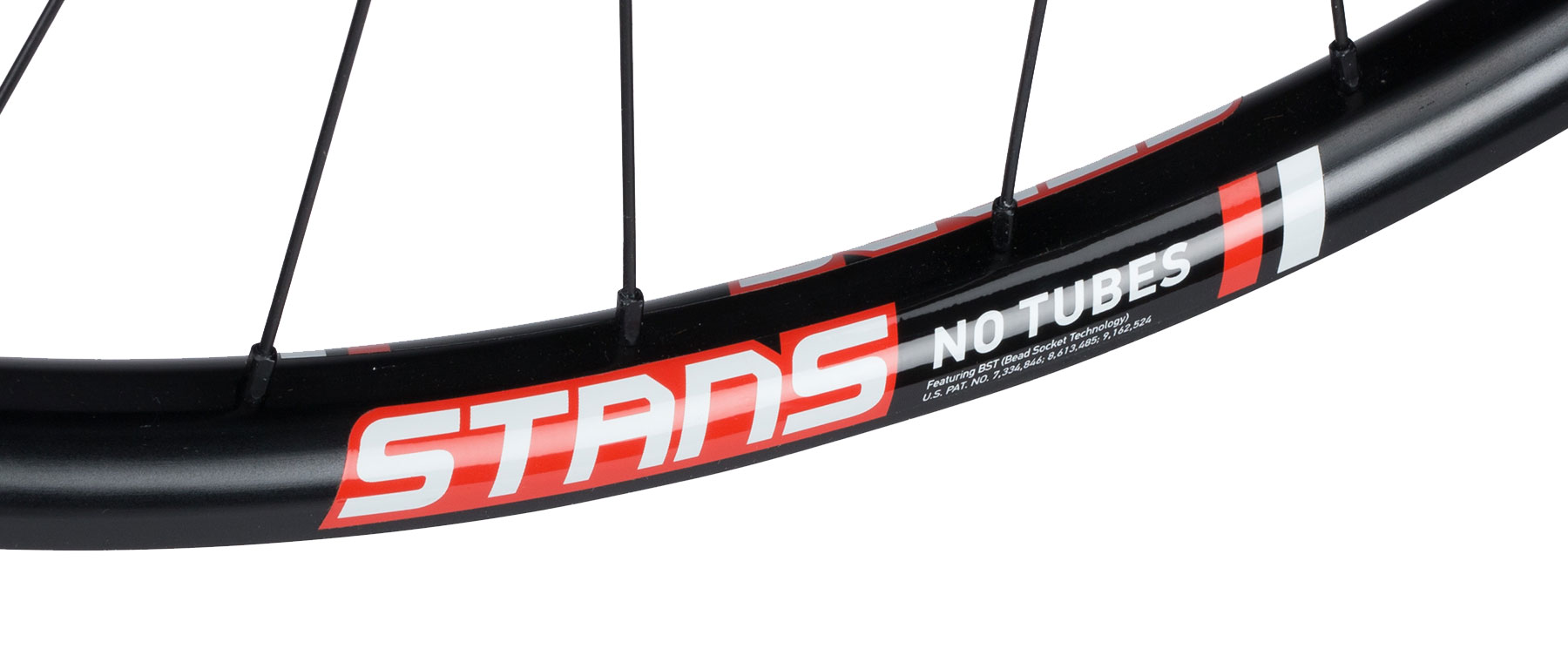

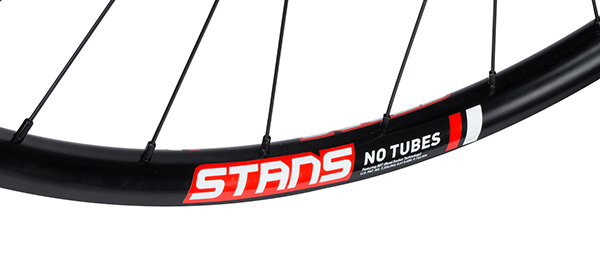

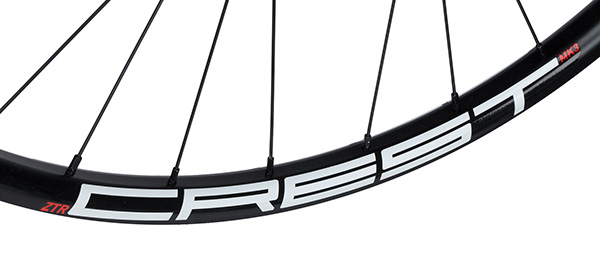

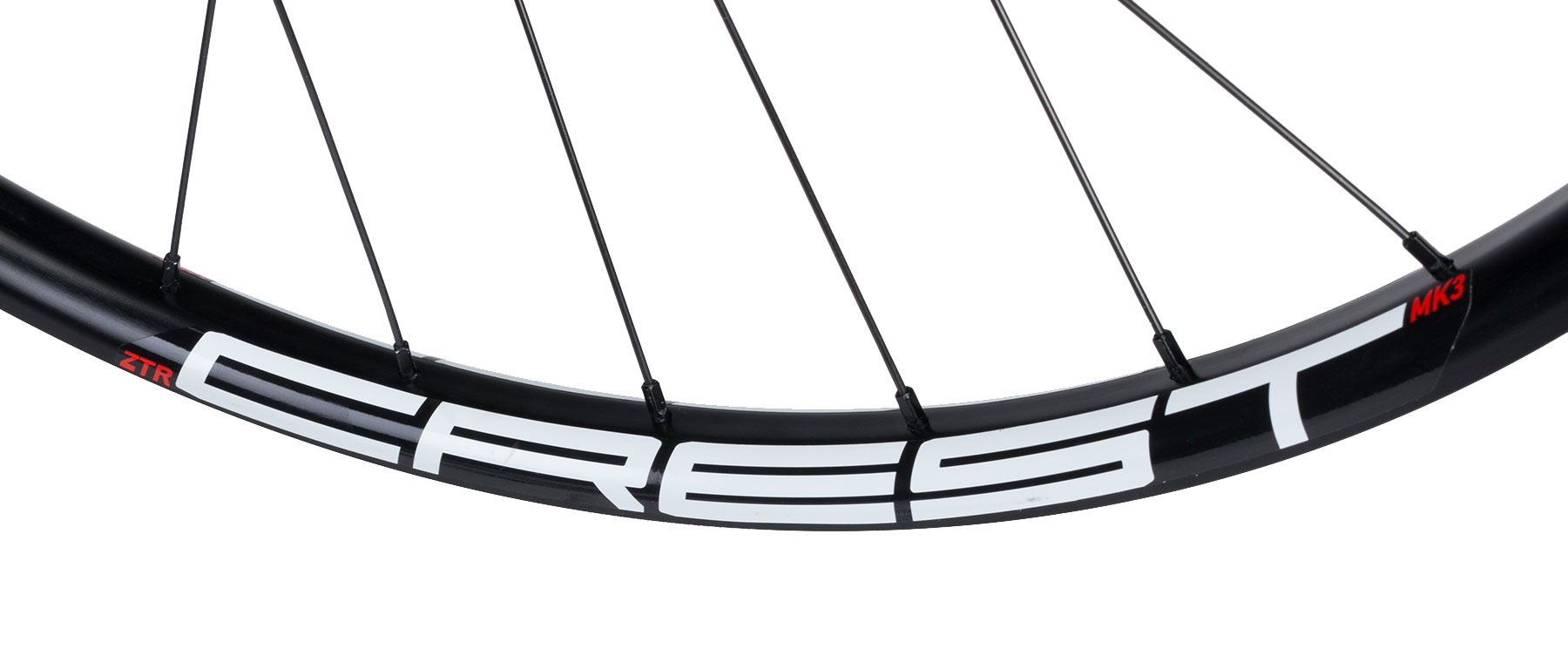

The new 6069 aluminum alloy rim is wider, lighter, and stronger than its predecessor. At just 364 grams (29") the 23mm internal width design was been optimized via NoTubes industry-leading BST tubeless design and to apply the WideRight concept Stan's developed. The Crest MK3 is designed for tires from 2.0-2.25" and pressures up to 40psi max (2.0"). The 15.8mm shallow profile has been shape dto maximize the 26.3mm external width, creating a wider footprint for better traction and wheel stability in all conditions. At the same time, the design is stiffer and more durable than it's predecessor. And, we said lighter as well.

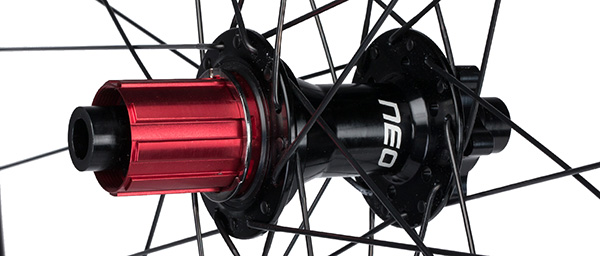

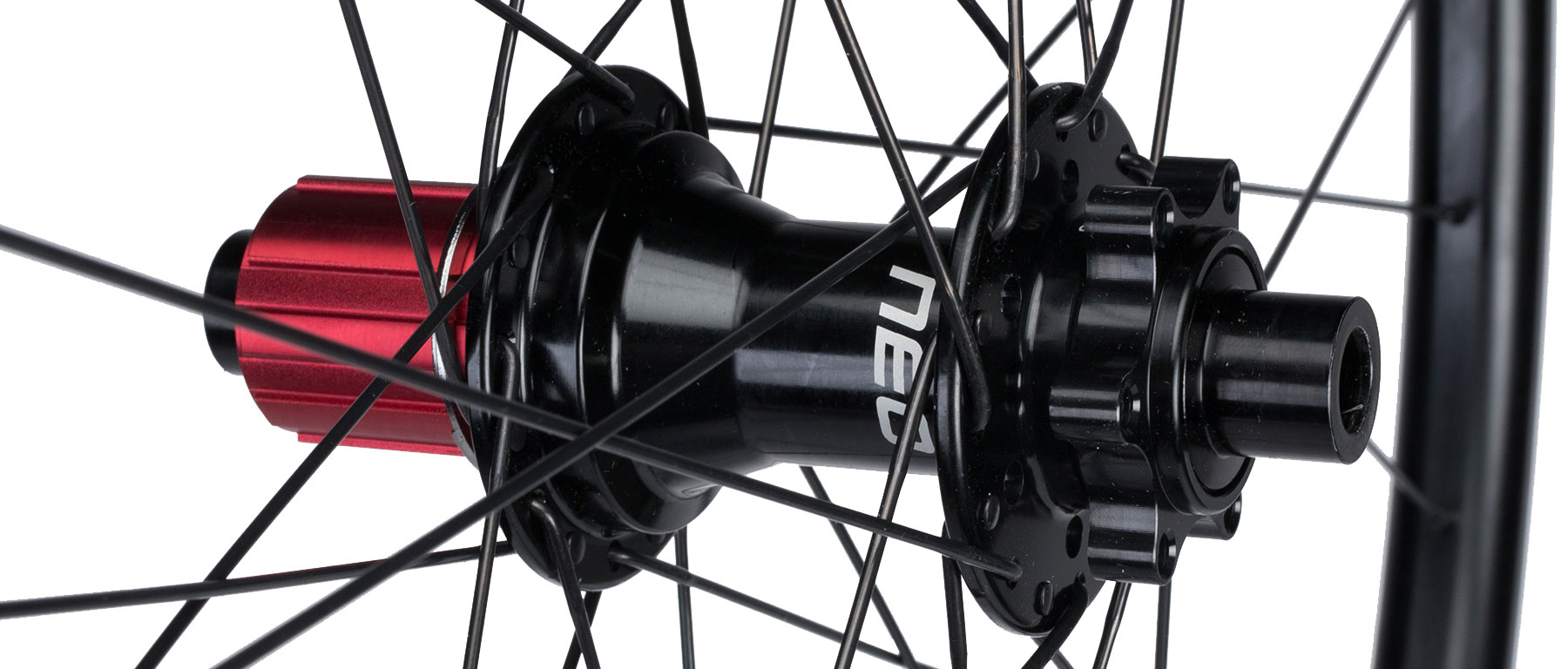

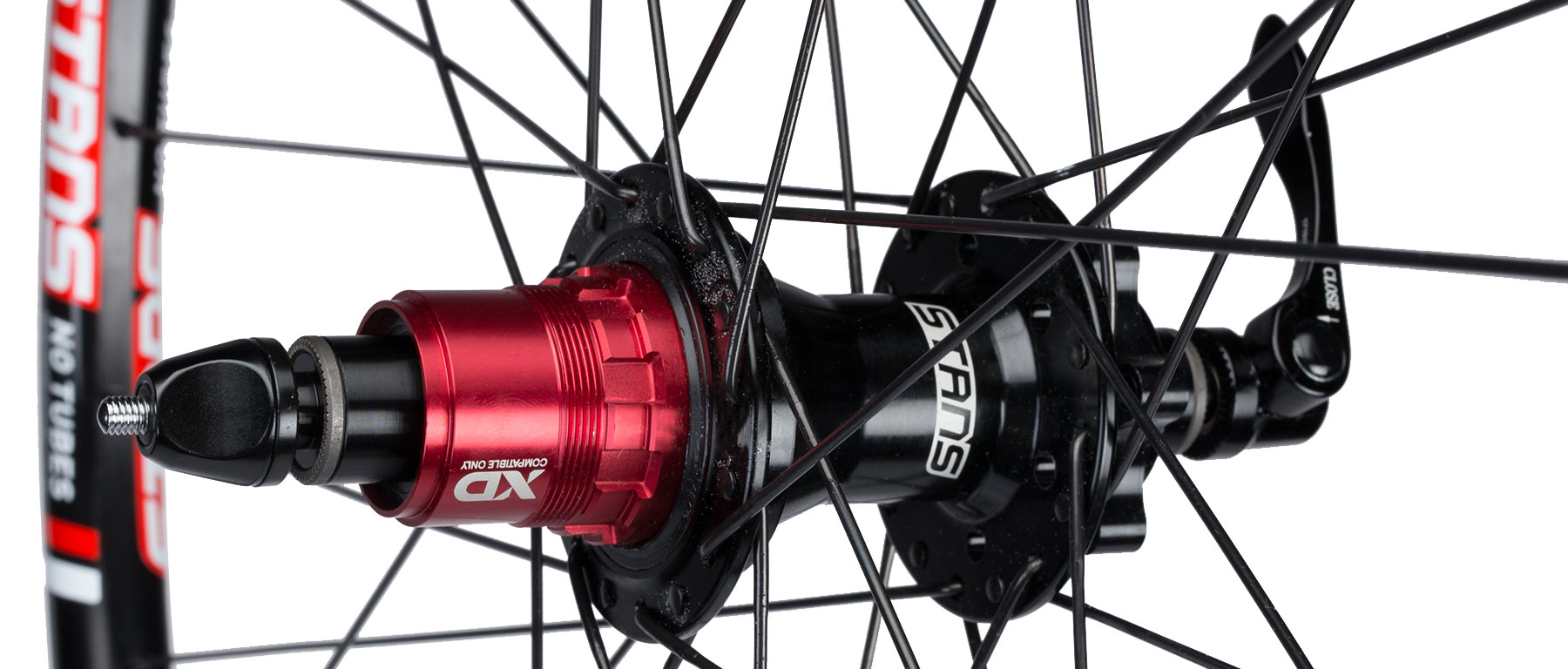

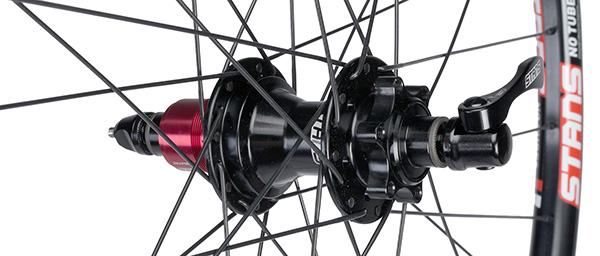

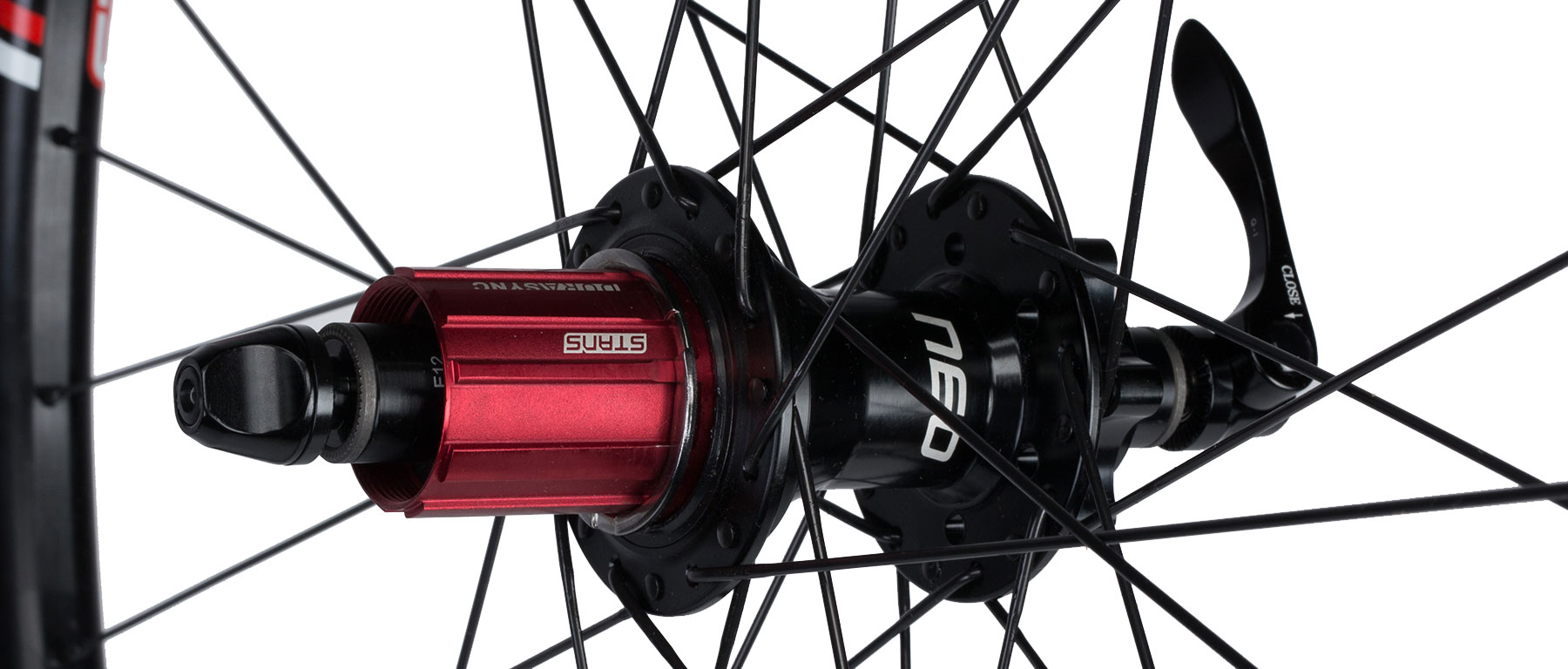

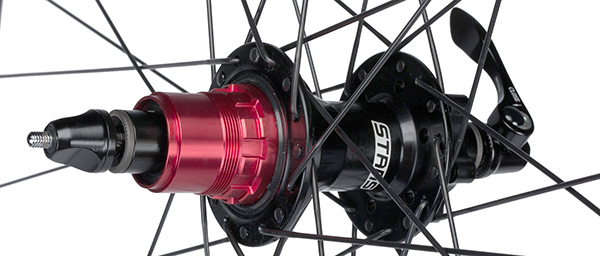

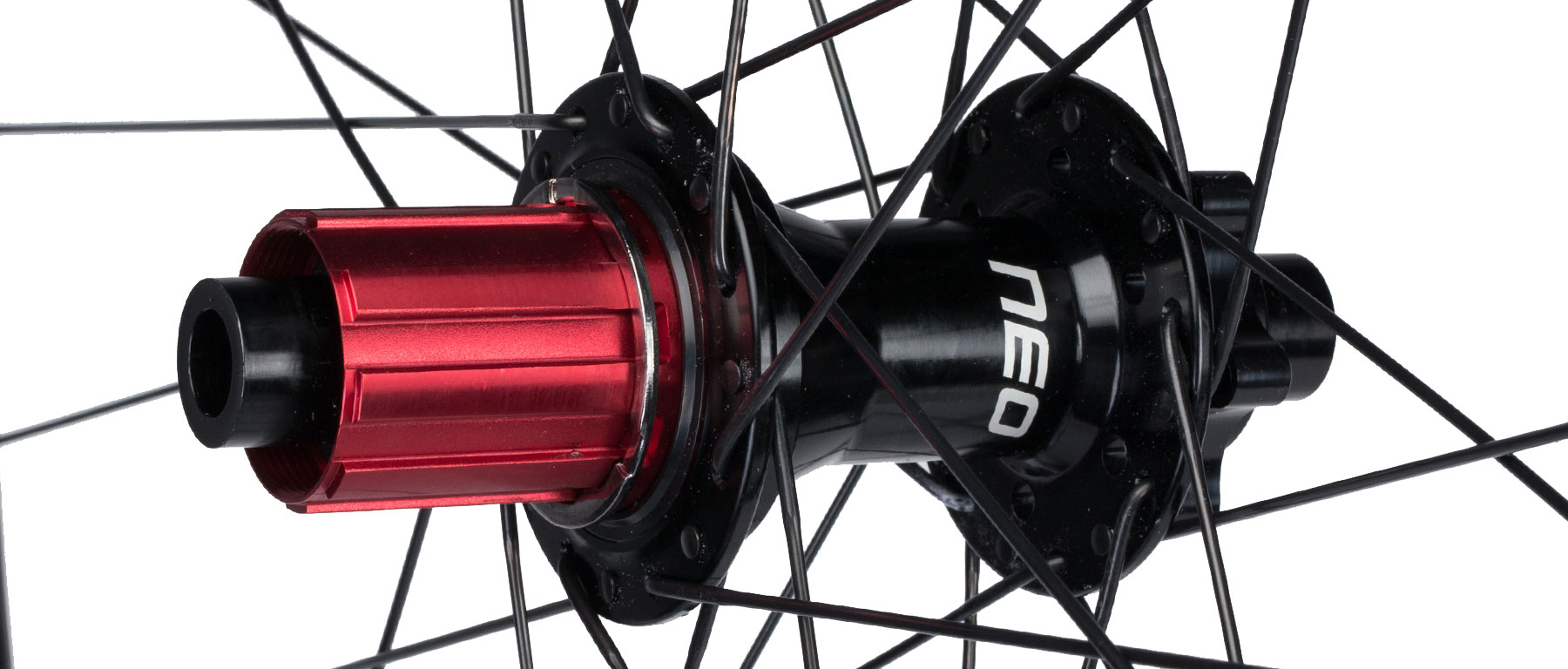

NoTubes has upgraded the highly reliable NEO hub system after just a couple of years . The NEO hub offers complete flexibility with end cap options for thru-axles and is somewhat future proof as well, but the big news is the new freehub/engagement system. The Durasync freehub system is interchangeable for Shimano, SRAM XD Driver. Fast Durasync 10-degree engagement uses a simultaneous 6 pawl engagement for maximum durability and security at any speed. Triple freehub bearings provide axle stability to handle higher vertical and torsional loads. The chrome steel sealed cartridge bearings are set as widely as possible on the oversized alloy axle. The NEO is offered here in the 6-bolt disc brake rotor mount option. You can choose from 12/142 spacing or Boost 12/148, as well as the wheel size and freehub option.

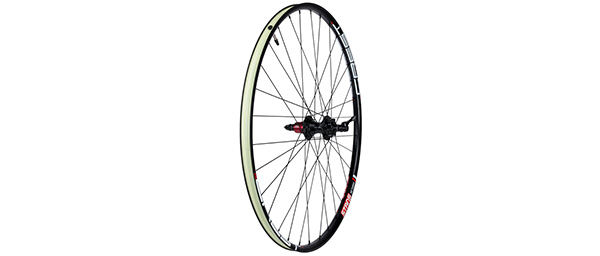

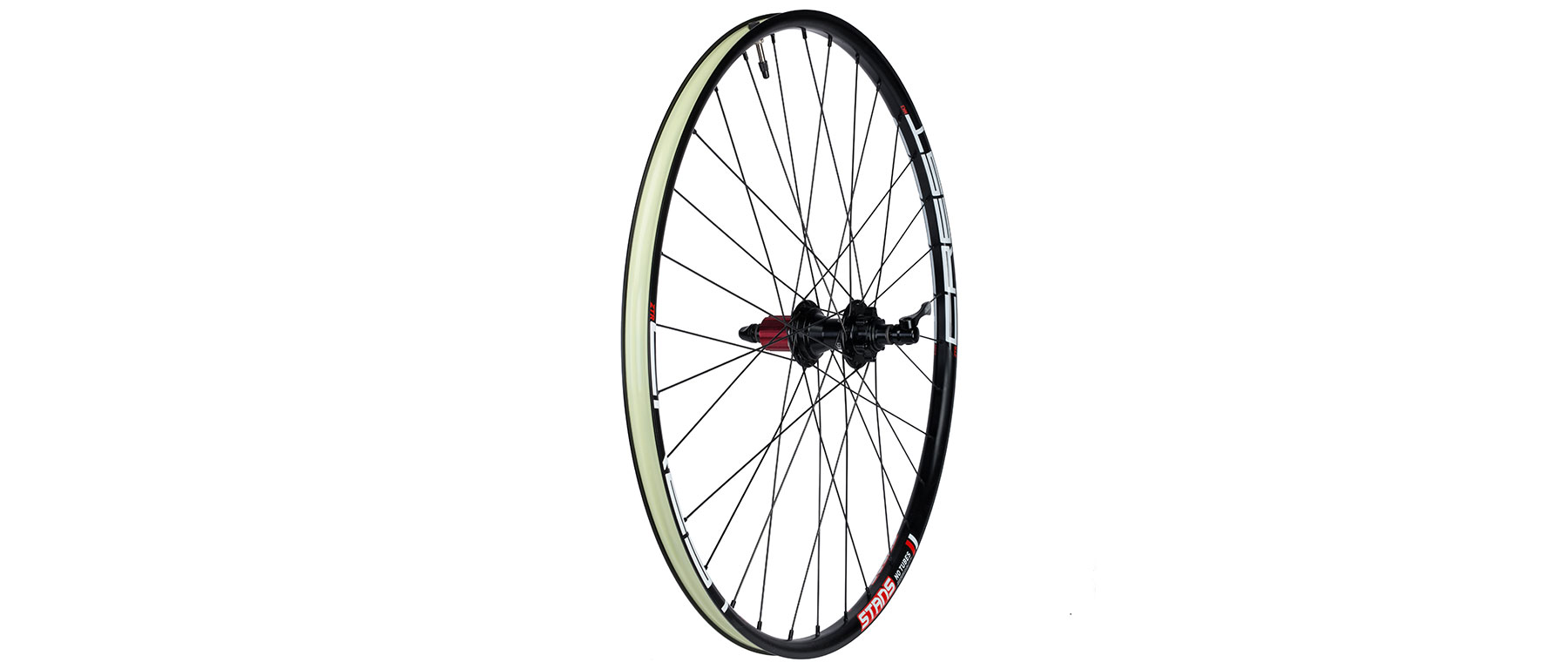

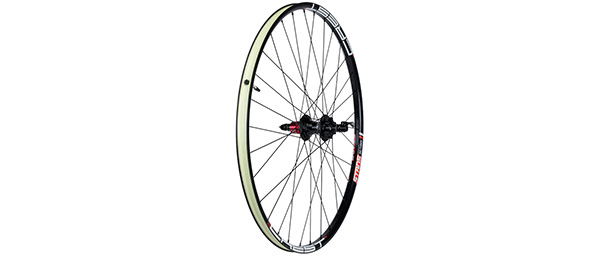

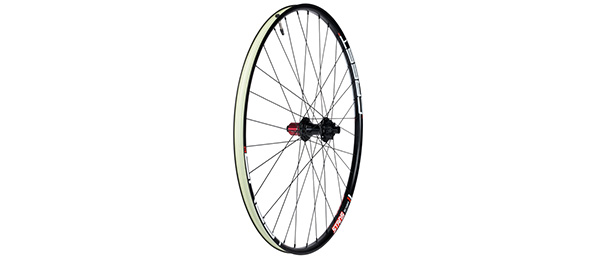

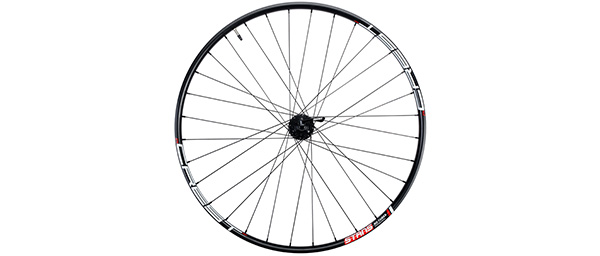

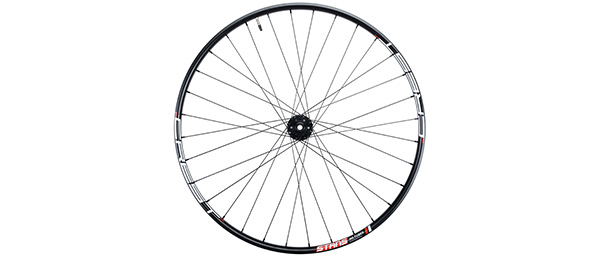

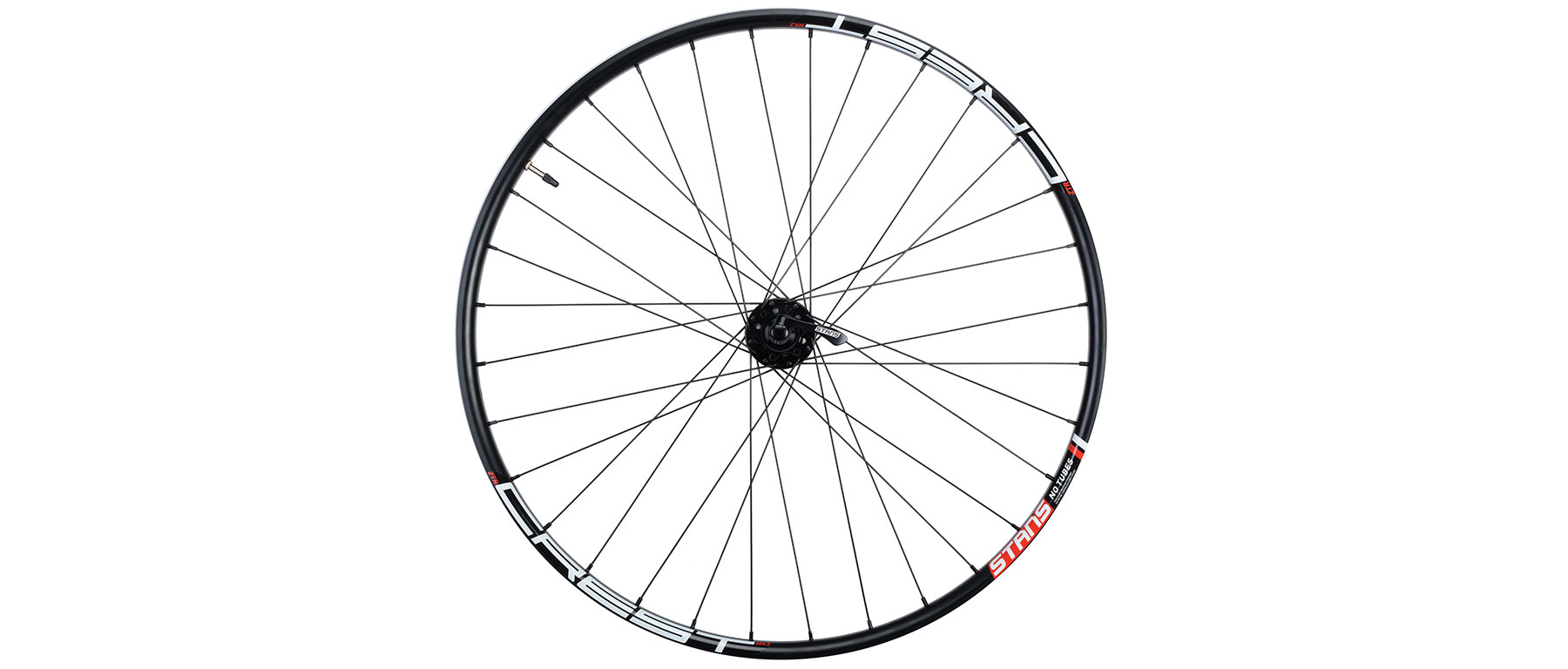

With the ZTR Crest MK3 Rear Wheel, NoTubes chose to lace 32 hole 3x with Sapim Force triple butted steel spokes, with Sapim's SecureLock alloy nipples. The end result is a whell that is fast to accelerate, stable on all surfaces, stiff enough to perform, but resilient enough to give just enough at impact to preserve integrity. The design is completely serviceable from the hub out, and parts are always available. NoTubes supplies you with a fully taped wheelset with 35mm valves to be tubeless ready out of the box. The specified axle design includes the proper end caps, and the 12/142mm option includes QR end caps and skewer as well.

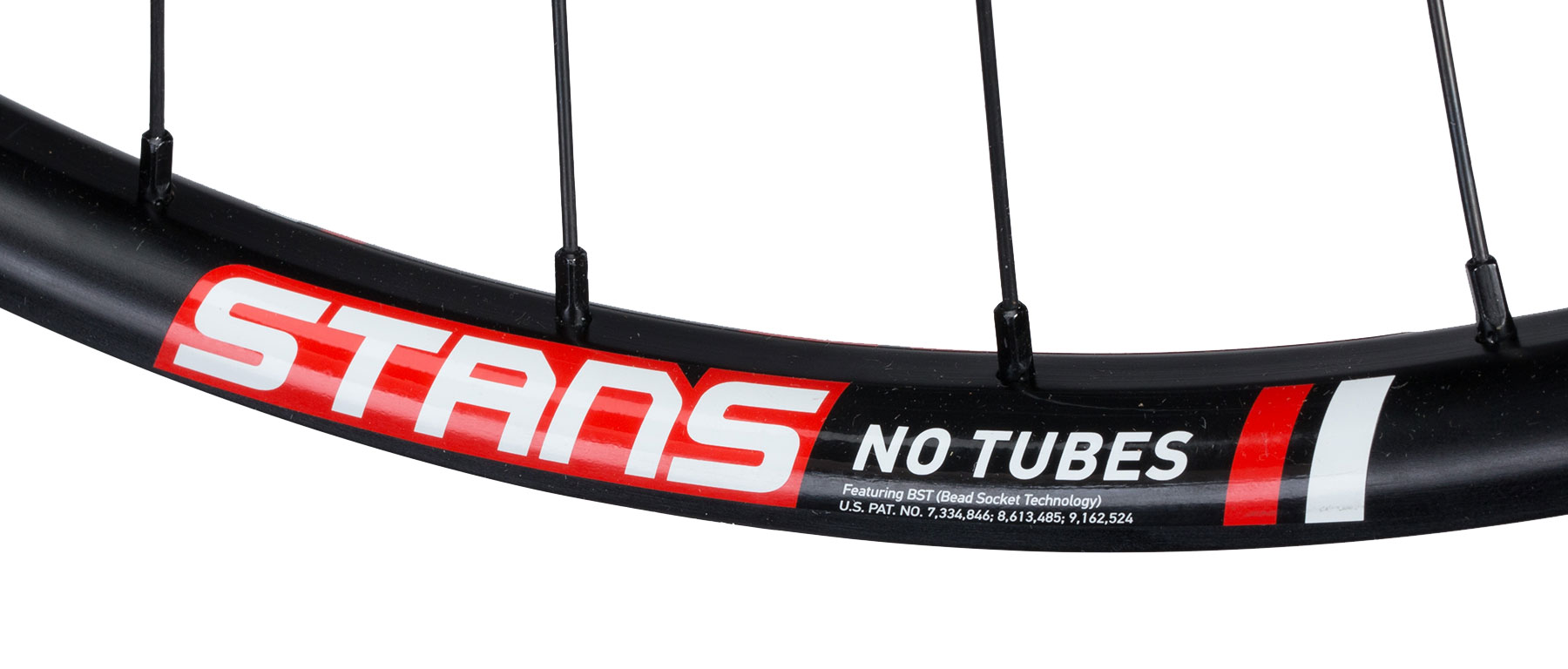

Stan's NoTubes forced the mountain bike world to recognize the value and effectiveness of tubeless rims and tire set-ups. Gone are the pinch flats and punctures that stalled or ended rides. With the advanced BST rim bed design integrated into this new Crest MK3 rim design, XC tubeless performance has never been better. Now you can take full advantage with the ZTR Crest MK3 Rear Wheel, and apply it to maximal effect for riding to the lead on XC trail or the race course.
Return to TopFeatures
- Lightweight XC tubeless rear wheel with modular hub design, overall high performance, and XC race or trail durability
- ZTR Crest MK3 364g rim (29") from 6069 alloy, with BST tubeless, WideRight concept
- 3rd generation rim designed with WideRight philosophy for 2.0-2.25" tires
- Rim data: Internal width 23mm, External Width 26.3mm, Depth 15.8mm
- Disc-specific rim, symmetrical drilling, in 32 hole
- Machined alloy NEO hubset, oversized alloy axle, wide spaced chrome steel bearings

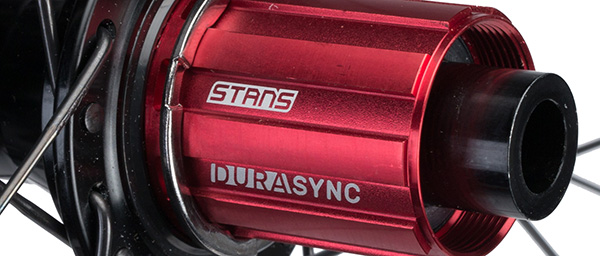

- Durasync 6-pawl freehub body features 36 points of contact and 10° engagement
- Modular design for tool-less end cap and freehub interchangeability
- Sapim Force spokes, black 2.0/1.7/1.8mm, laced 3x, black Secure Lock Alloy nipples
- Max Spoke Tension: 95kgf (930N)
- Max Pressure: with 2.0" Tire 40psi, with 2.25" Tire 38psi
- Rider weight limit of 190lbs

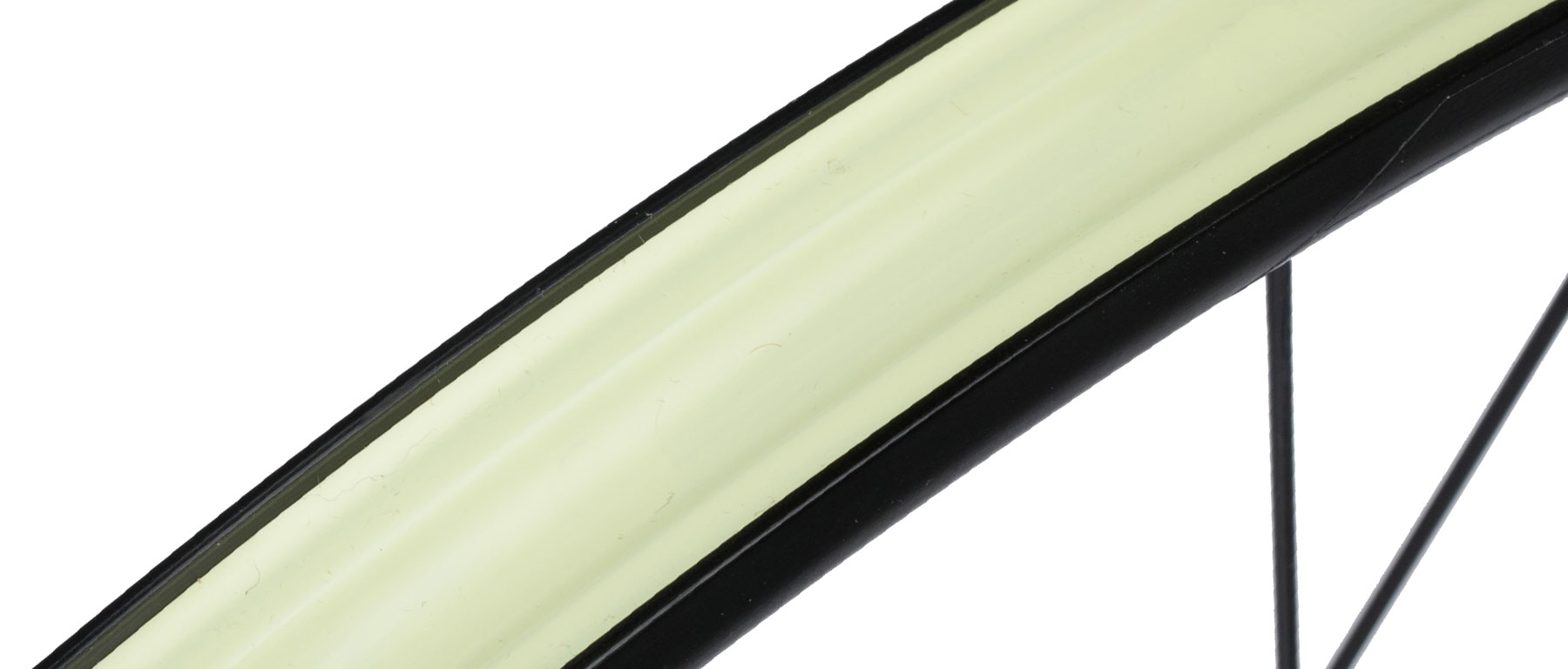

- Prepped with 25mm Stan's tape with 35mm Presta valve
- 12/142mm option (Shimano or XD) includes QR end caps and skewer
- Disc rotor interface: 6-Bolt
- Available as: 27.5", 29", 12/142mm TA, 12/148mm TA Boost, Shimano, SRAM XD
- Choose the wheel size, freehub type, and dropout spacing from selection box
- Color: Black
- Weight: varies with size, options
