Description

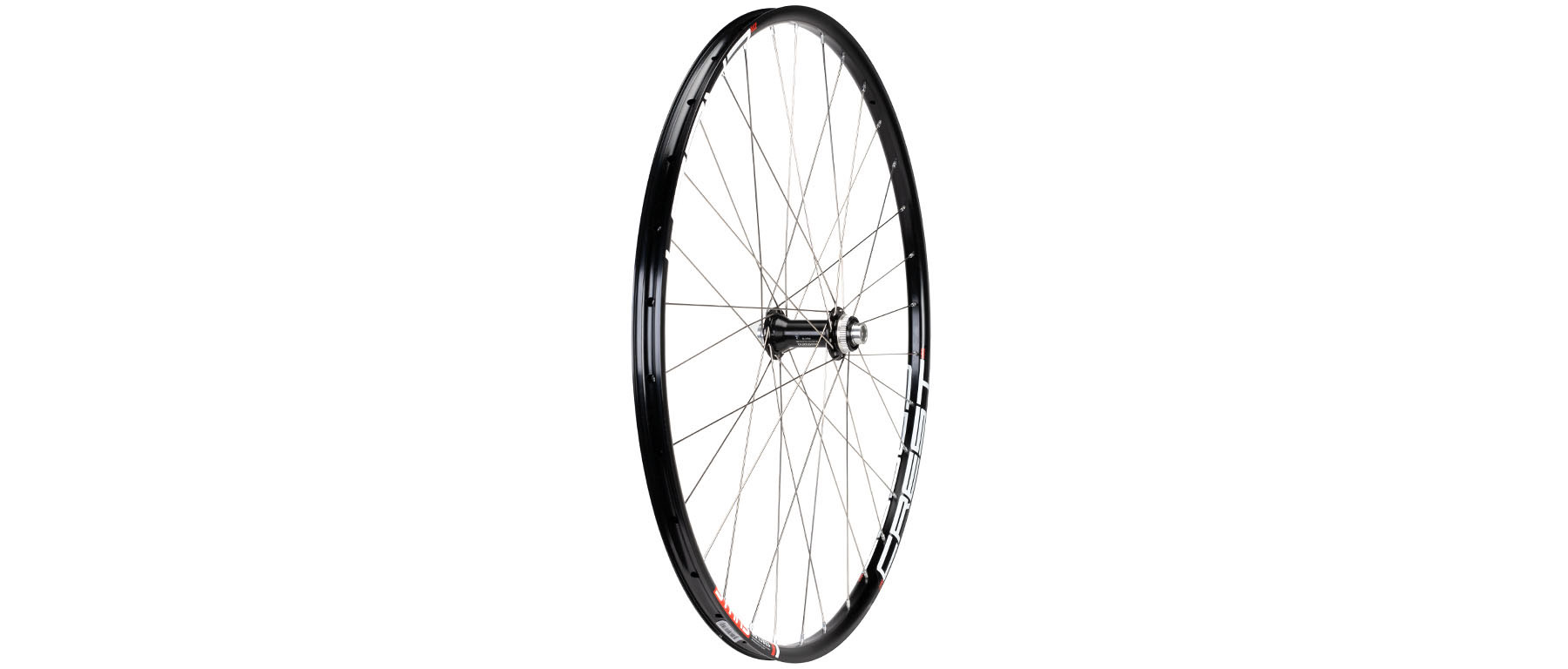

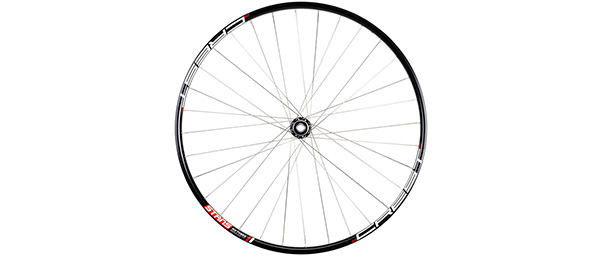

This one-off, Boost spacing front wheel was custom built for a customer who then cancelled the order. It was built by An Excel Sports expert wheel technician and we stand behind the build. The parts carry original factory warranties.

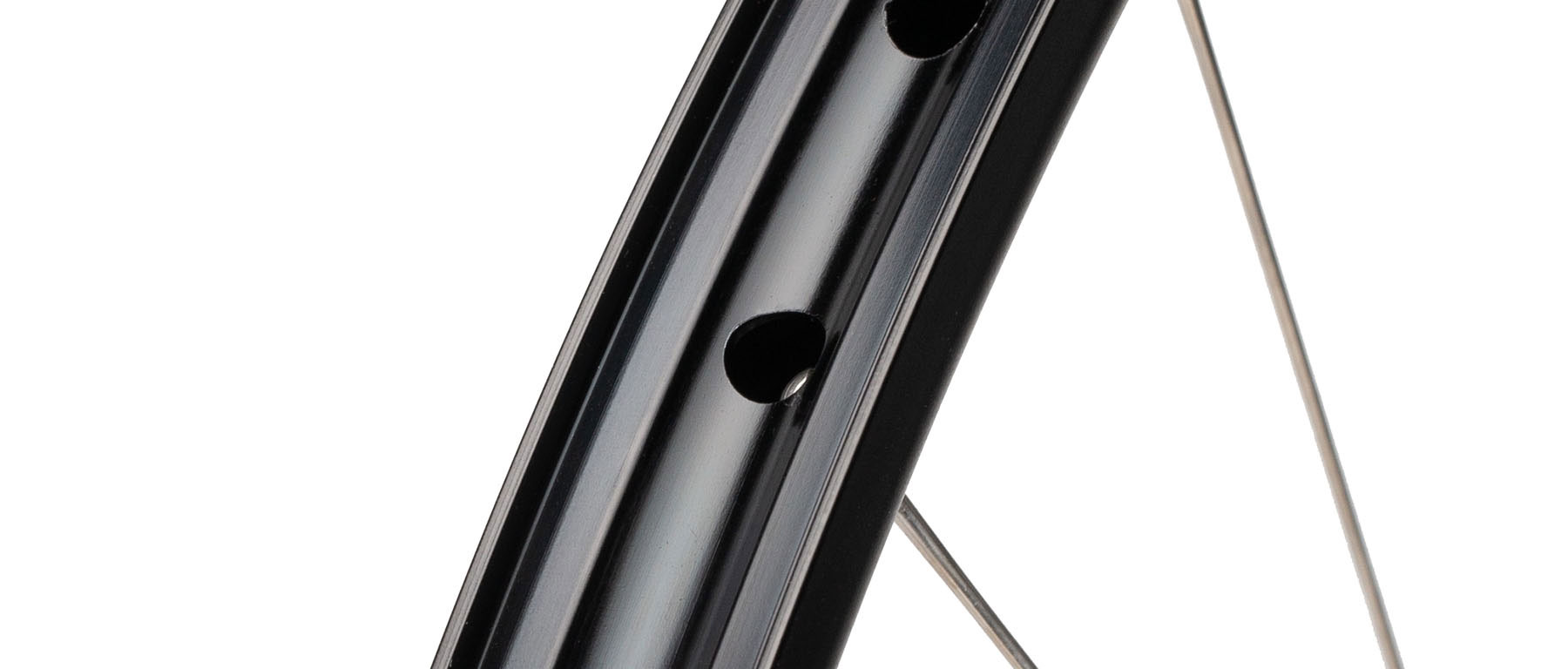

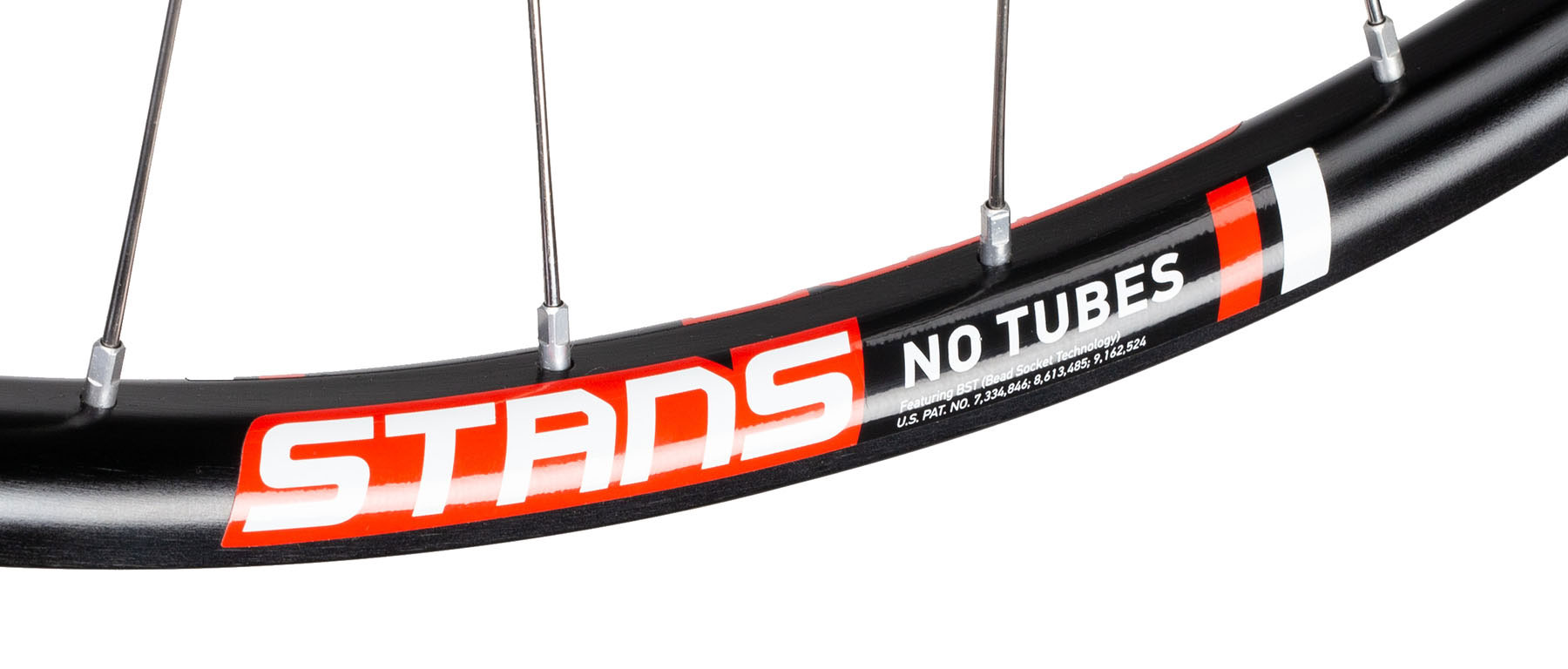

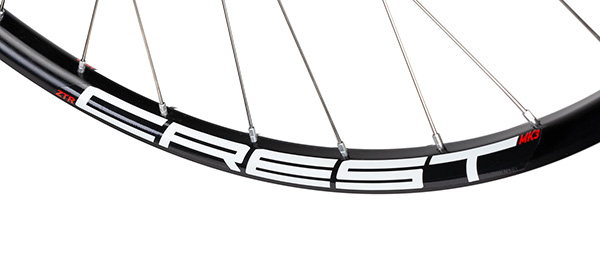

The 29" Crest MK3 aluminum rim has been one of Stan's NoTubes best selling options and we have had great success with BST tubeless Crest MK3 rims and wheels as well. The 364 gram XC/XC Trail rim was designed with Stan's newer short bed BST tubeless system. From a width perspective the internal measurement is 23mm, and the outer is 26.3mm. The profile is a mere 15.8mm, which combined with the extruded shape and width increases strength and compliance, even under a high tension spoke load. The Crest MK3 is rated for 190lb max rider weight and optimized with Stan's WideRight philosophy for 2.0-2.25" tires.

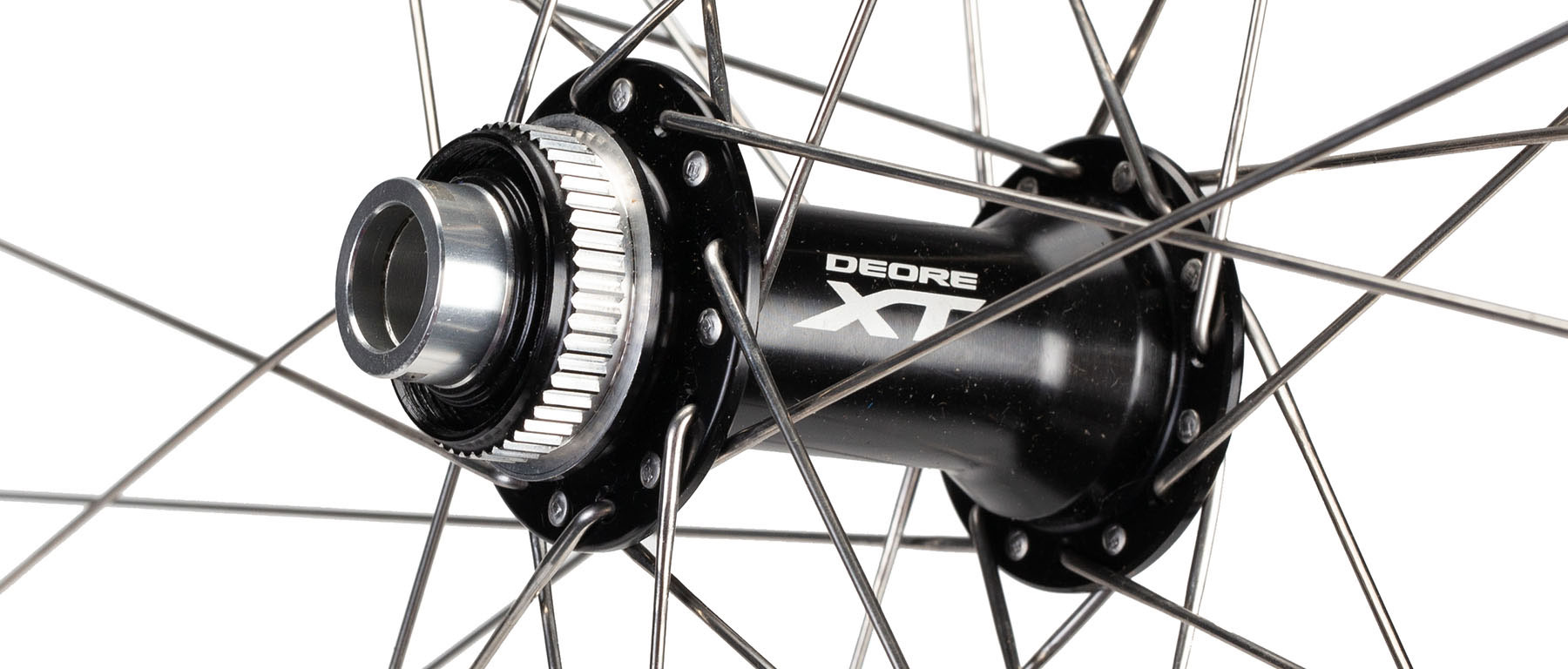

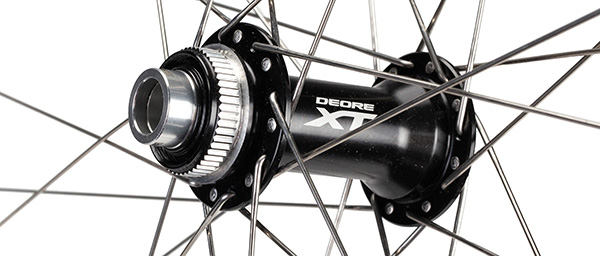

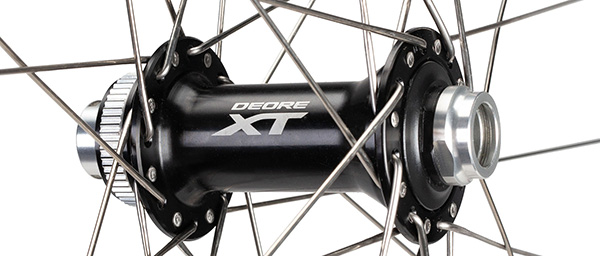

This Crest MK3 is laced here to a 32 hole Shimano XT M8010-B (Boost) Front Hub, you know you are getting excellent quality overall. The hub features the 15mm/110mm Boost Thru-Axle spacing and Center Lock disc brake interface. The spokes are silver DT Swiss double-butted 2.0/1.5/2.0 Revolution's laced 3x, with DT silver alloy nipples.

If you have any questions on this on-off wheel build, please give us a call at 800.627.6664, or email us: sales@excelsports.com.

Return to Top
Features

  • 29er disc front wheel built with MK3 Crest rim, XT M8010-B hub
  • BST Tubeless ready XC rim that is wider, lighter, stronger and faster than ever
  • 3rd generation rim designed with WideRight philosophy for 2.0-2.25" tires
  • Rim data: Internal width 23mm, External Width 26.3mm, Depth 15.8mm
  • Disc specific rim, extruded 6069 aluminum alloy for strength, inherent lateral stiffness, weight- 364 grams
  • Symmetrical rim drilling for 32 hole / Max Spoke Tension: 95kgf (930N)
  • Max Pressure: with 2.0" Tire 40psi, with 2.25" Tire 38psi
  • Rider weight limit of 190lbs on rim
  • Use 25mm Stan's tape with 35mm Presta valve
  • Shimano XT M8010-B front hub,15x110mm Boost TA, Center Lock disc
  • High quality Boost thru axle design front hub for long-life, serviceability
  • Upgraded Labyrinth and Contact seals protect angular contact bearings
  • Forged alloy hub shell, machined oversized alloy axle
  • Axle features cone wrench flats for adjustment, servicing
  • Spokes: DT Revolution DB 2.0/1.5/2.0, j bend, silver/ DT nipples, silver alloy
  • Lacing/Build: 32h 3x/3x / Built by Excel Sports
  • Color: Black, with silver spokes
  • Weight: 680 grams
