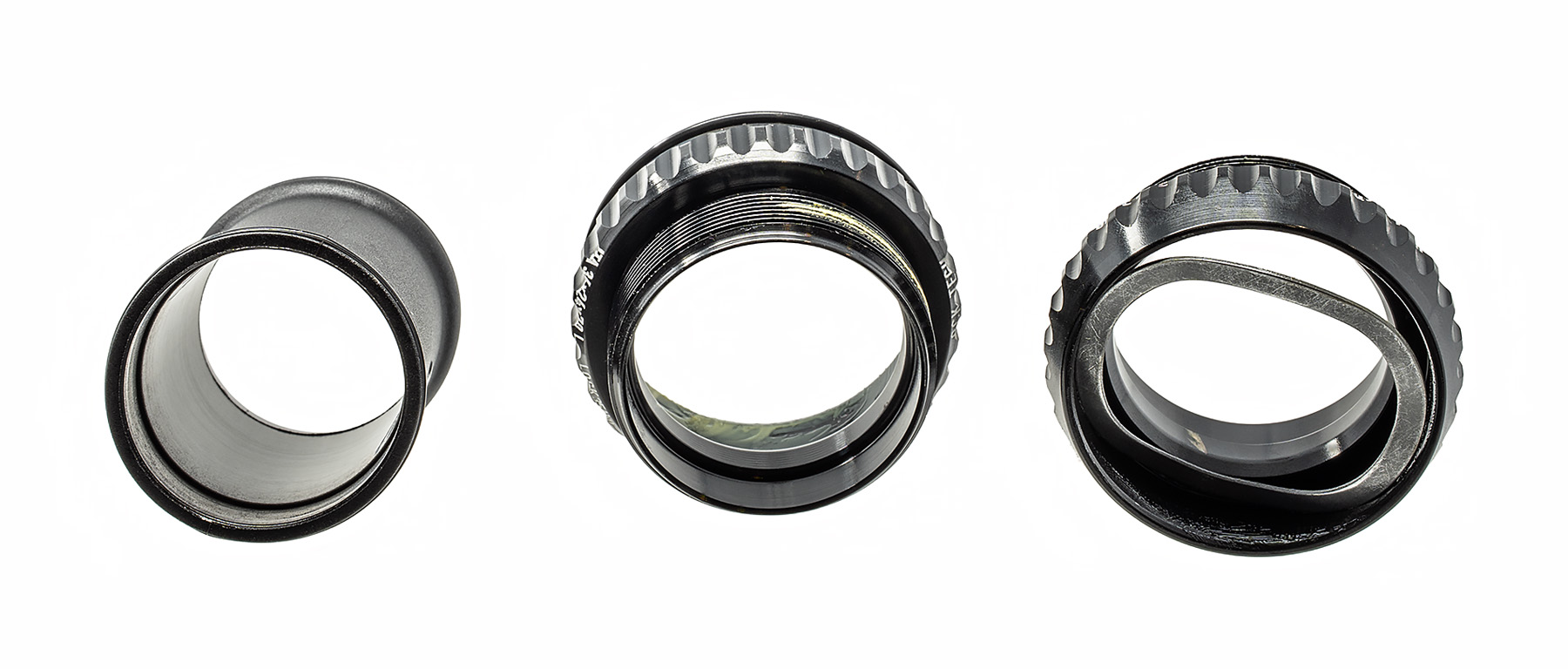

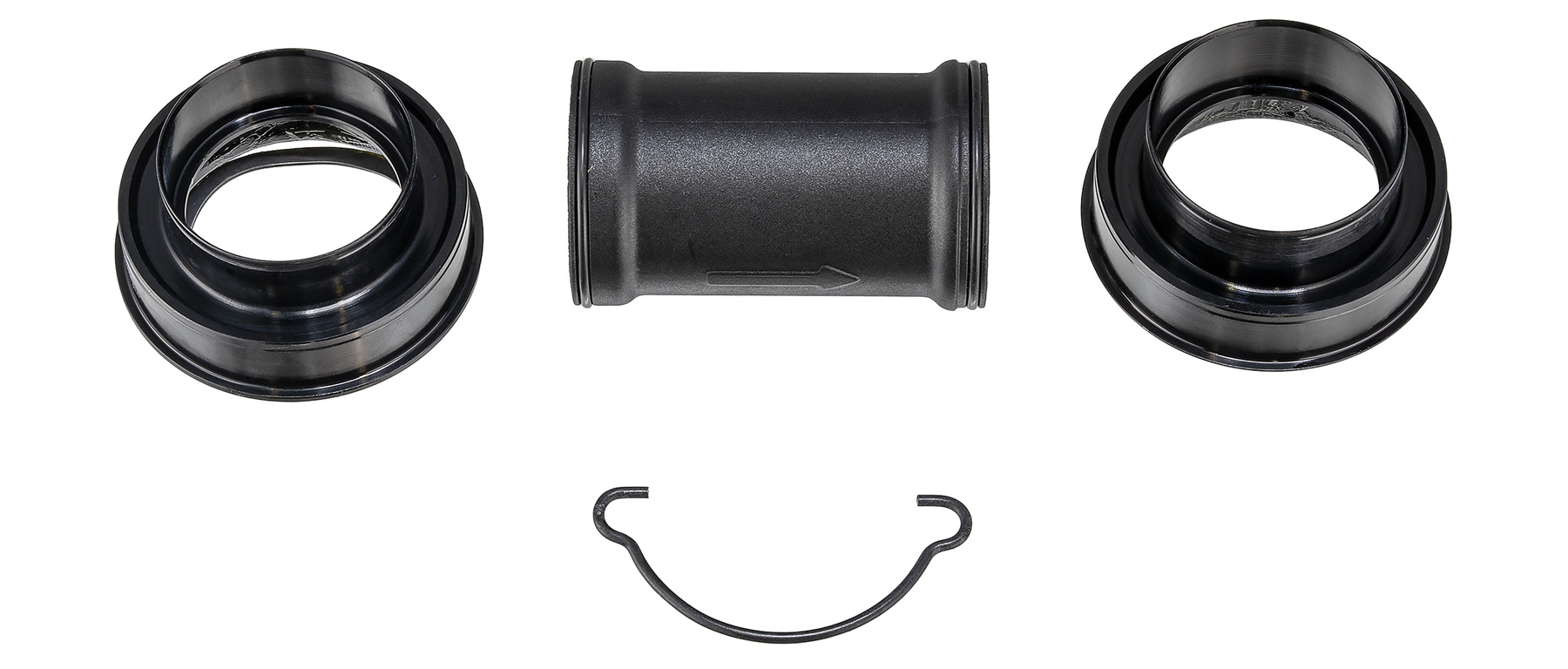

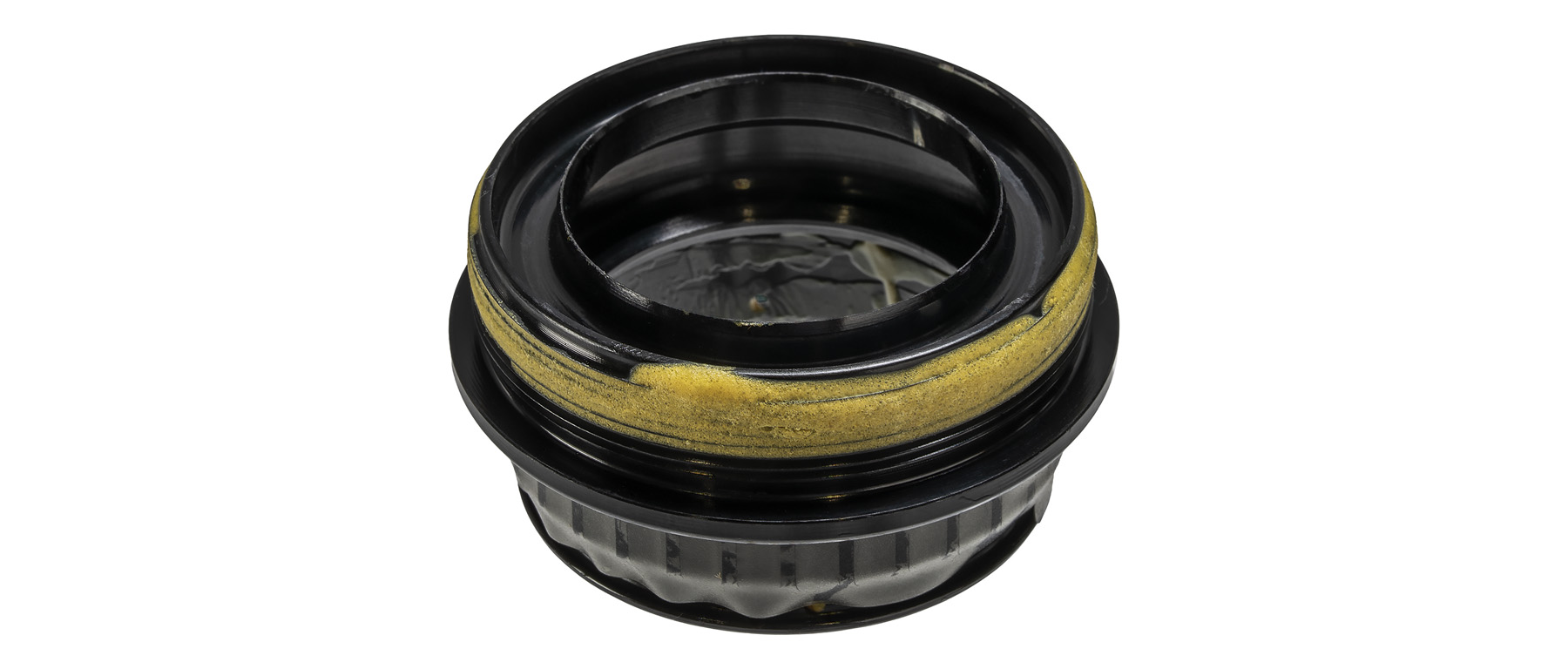

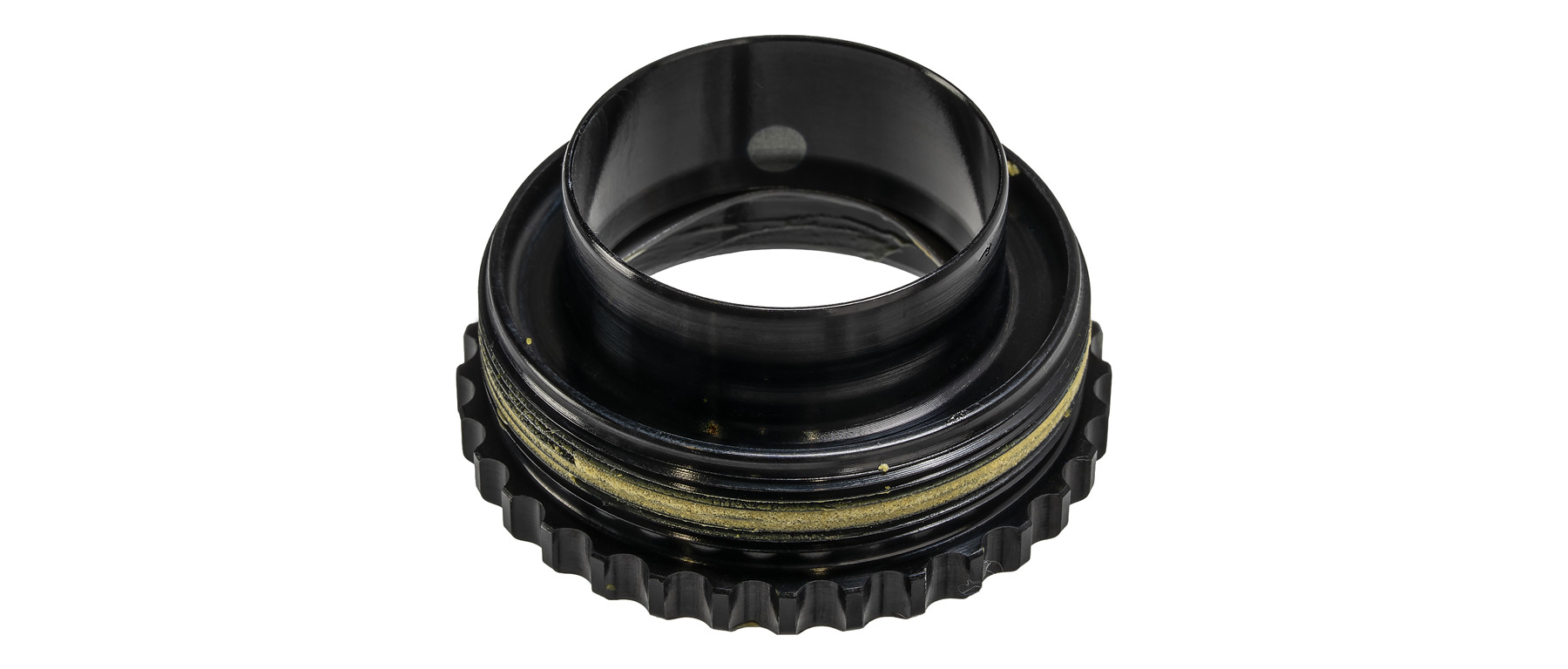

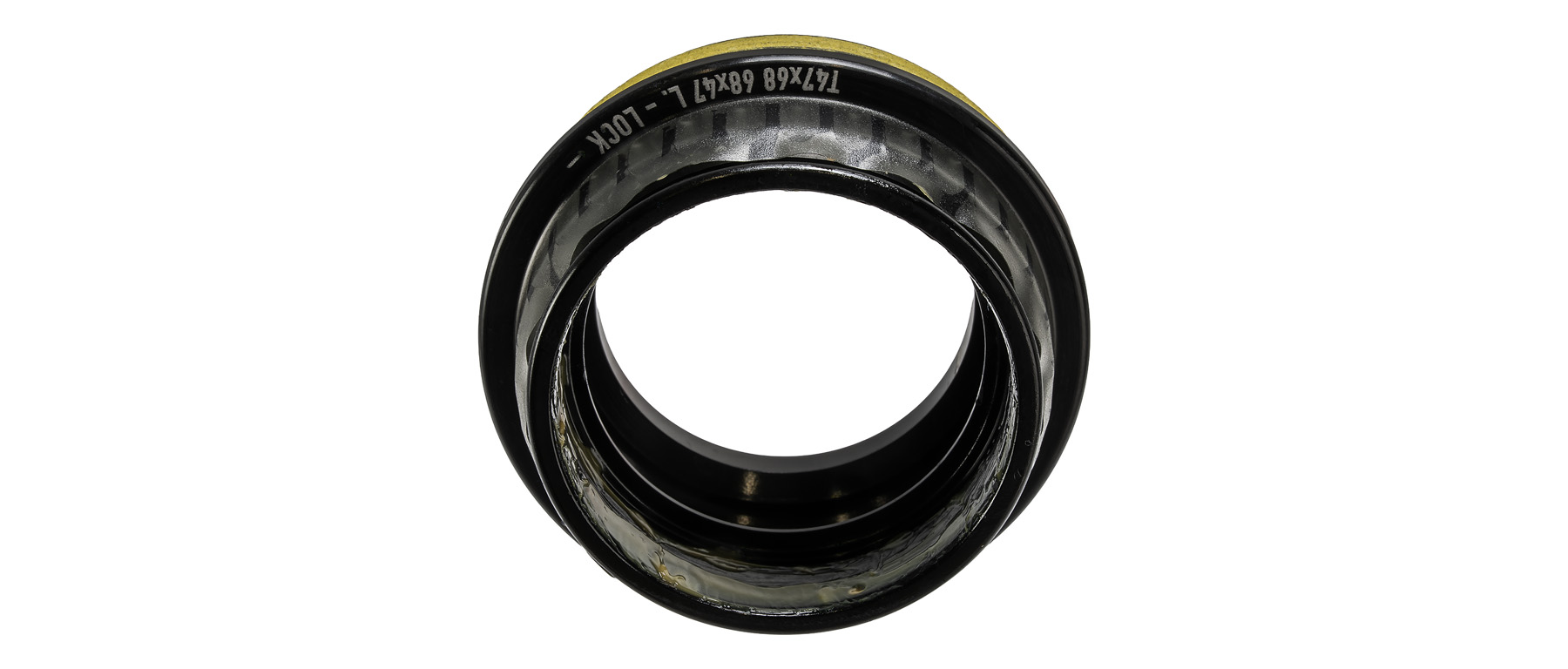

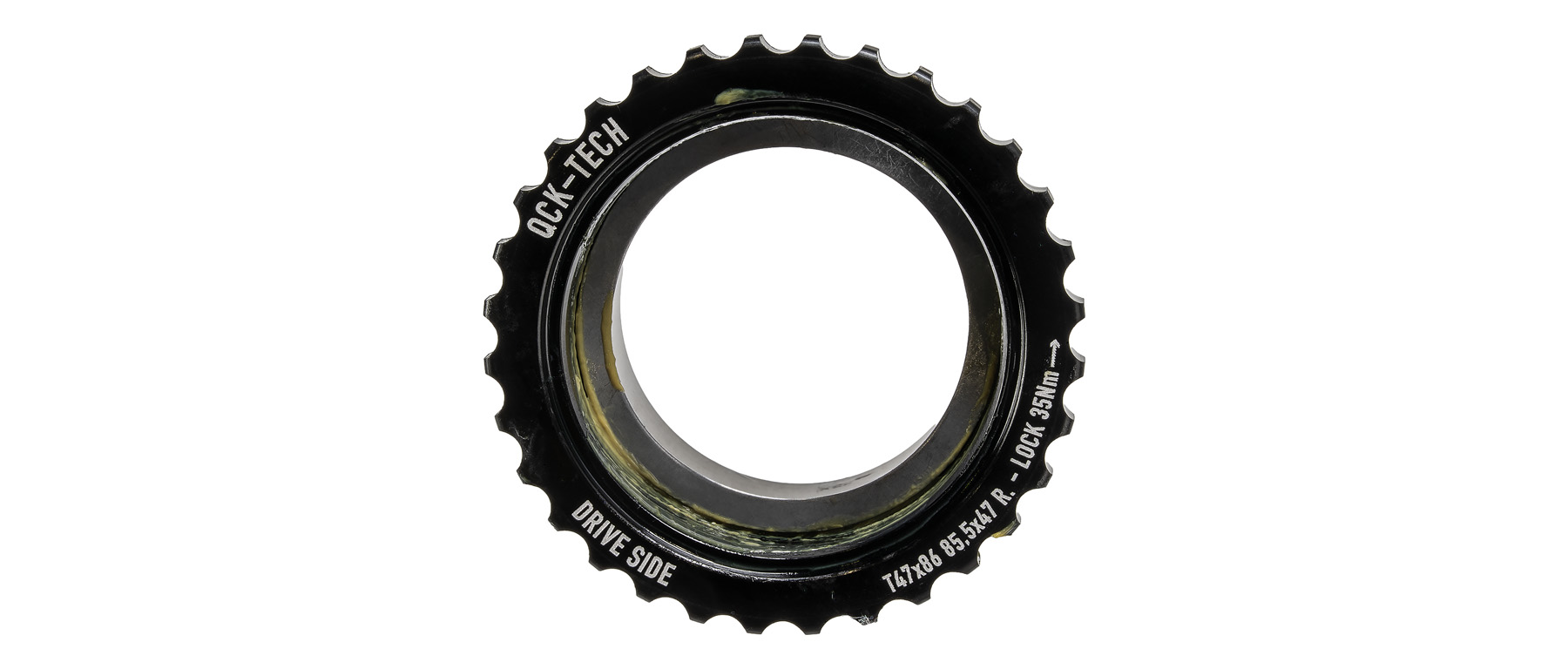

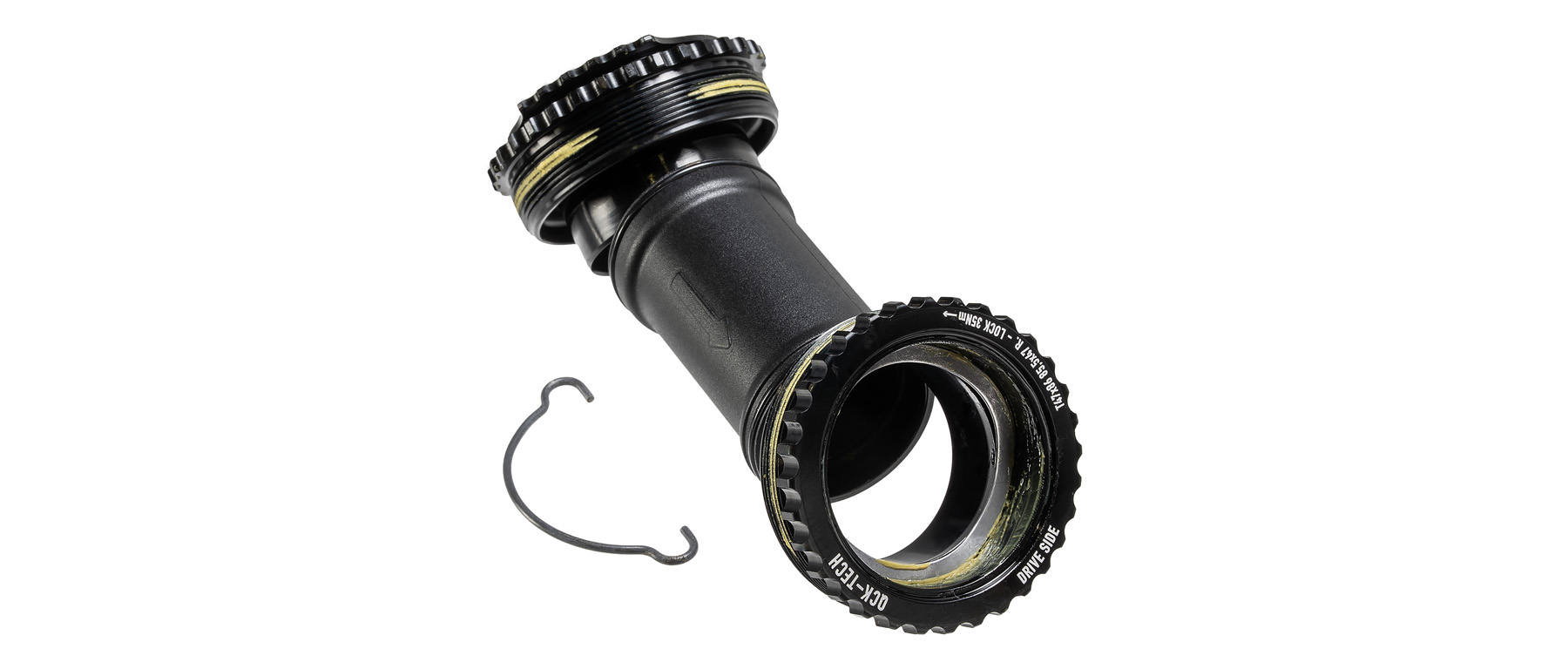

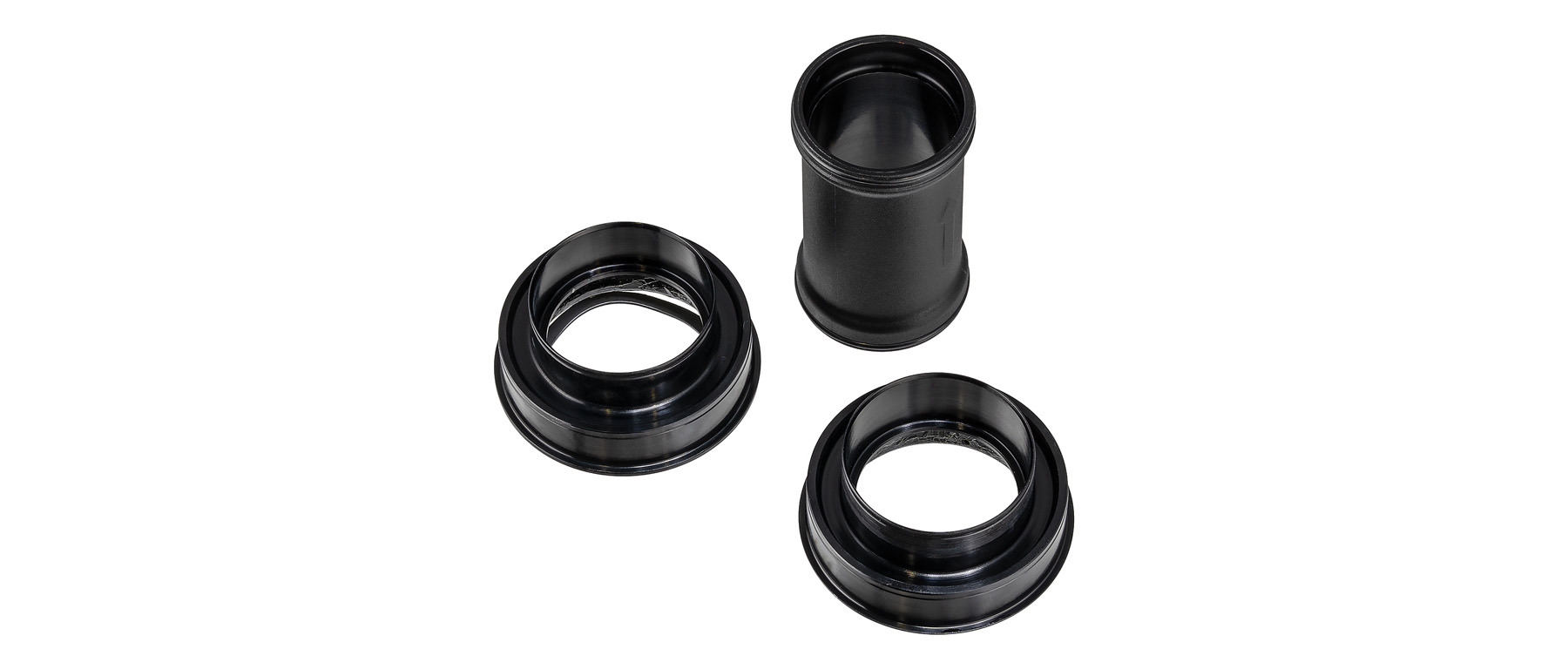

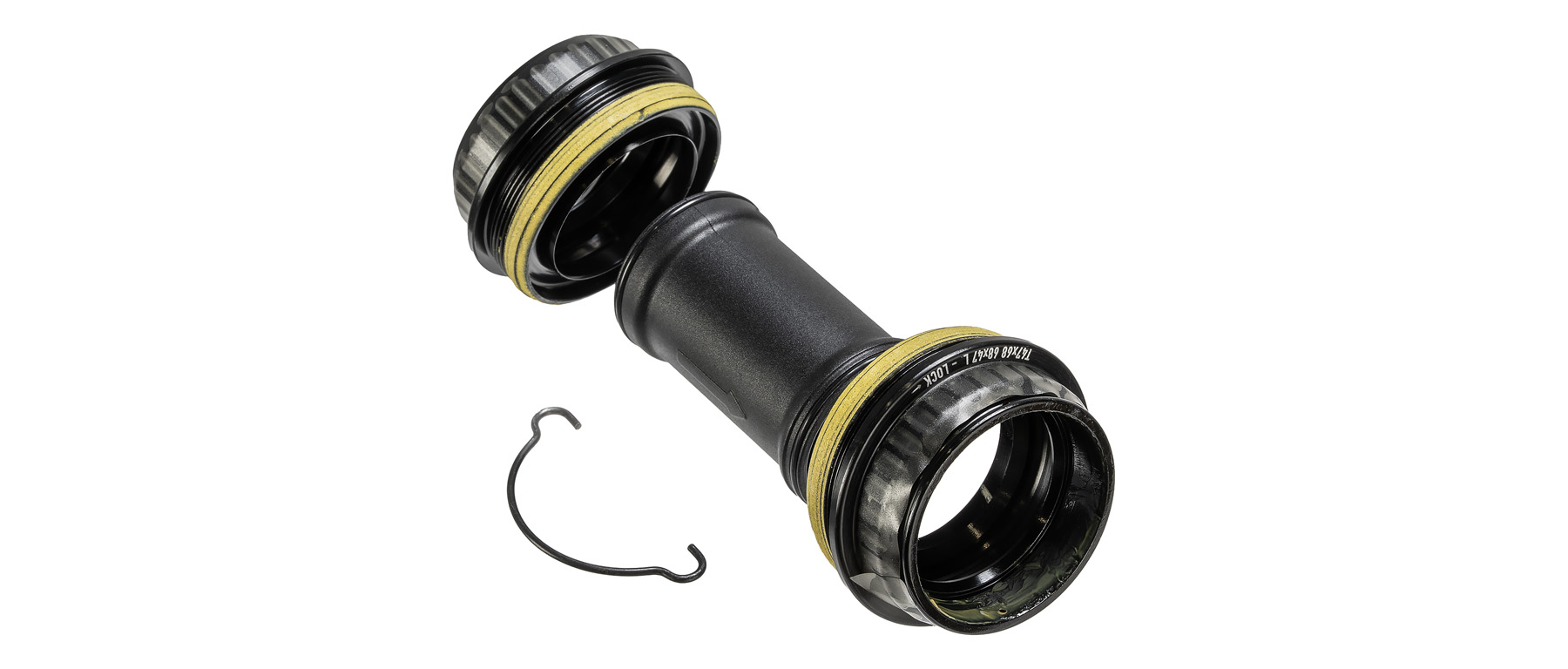

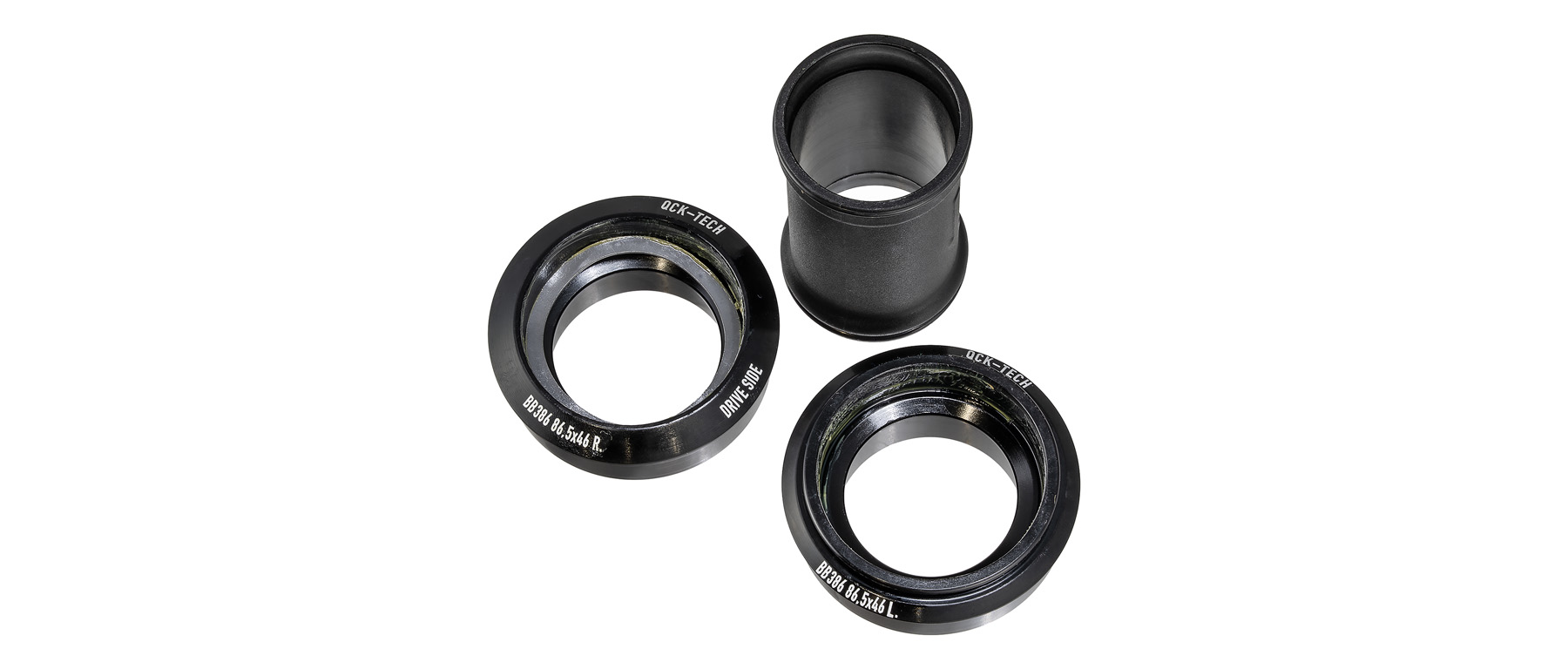

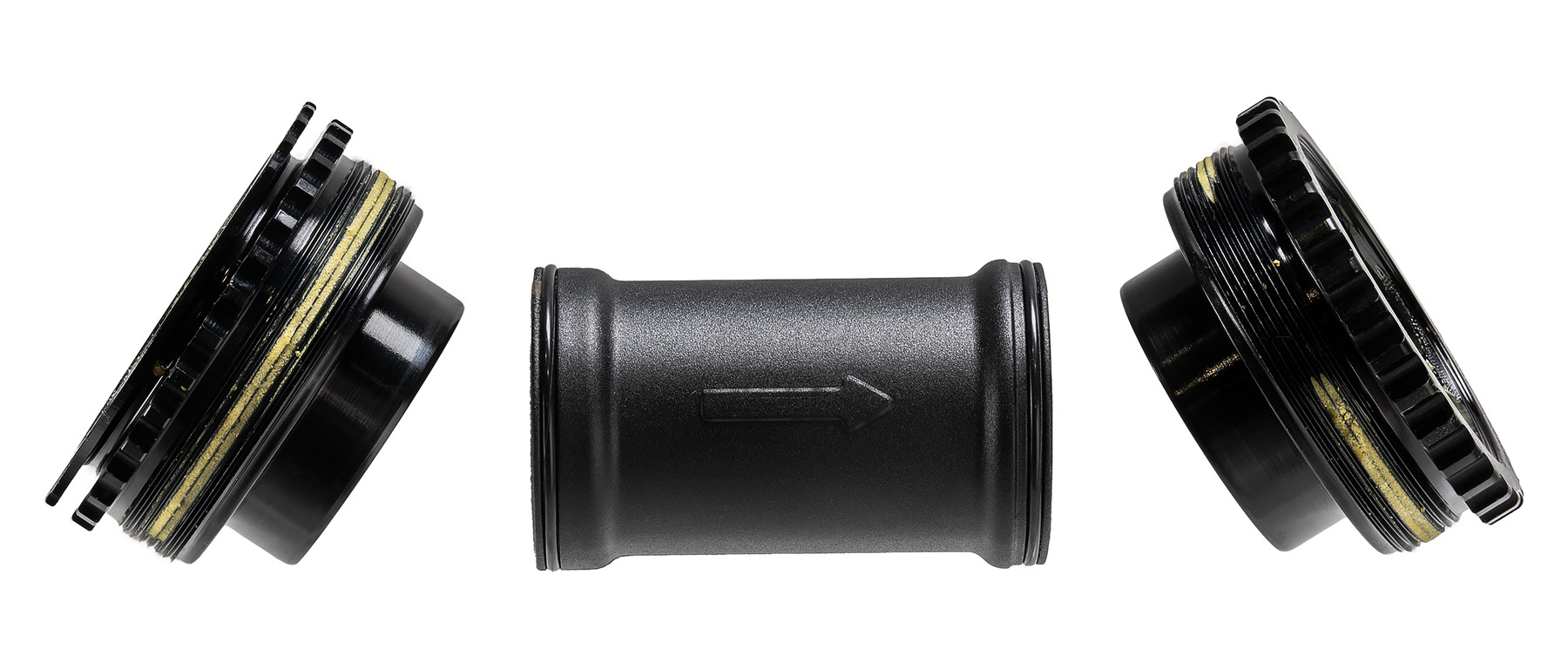

Bottom bracket standards have proliferated to the point where listing compatibility options reads like alphabet soup, but Campagnolo addressed that fragmentation by offering the QCK-Tech cups in eight different configurations. The Super Record 13 Quick Tech Bottom Bracket Cups cover BSA and Italian threaded shells, three variations of T47, plus press-fit options for BB30, PF30, BB86, and BB386 EVO frames. Whatever your frame manufacturer decided to use, there's a QCK-Tech version that matches, which means you can run the Super Record 13 crankset on essentially any modern road or gravel frame without hunting for adapters or third-party solutions.

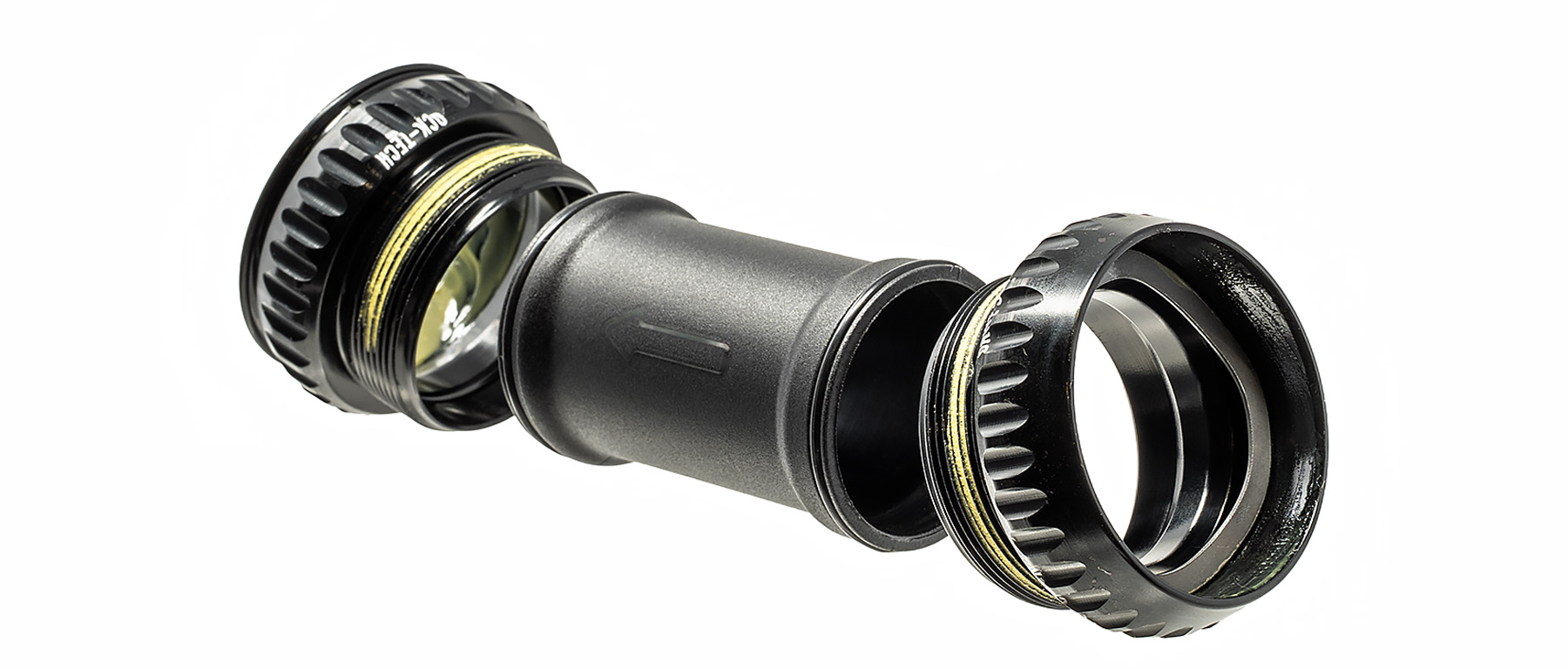

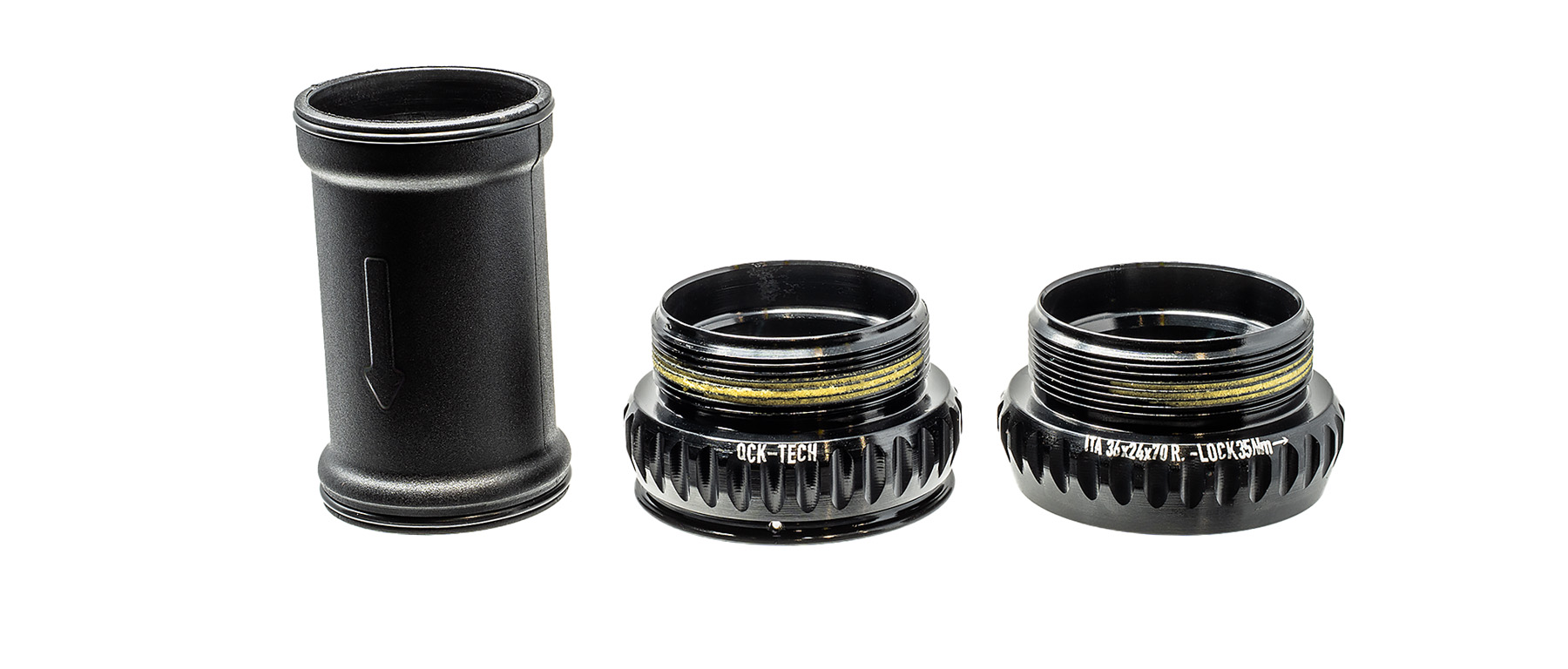

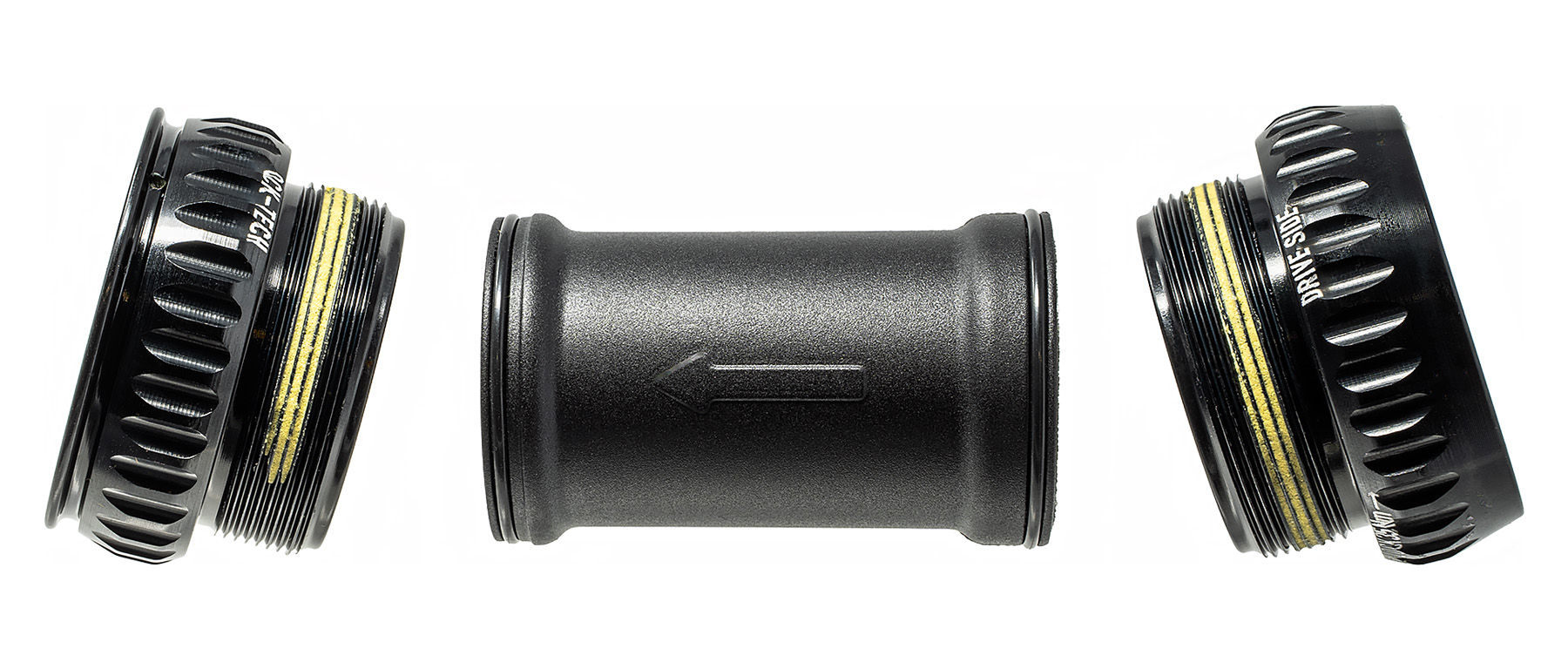

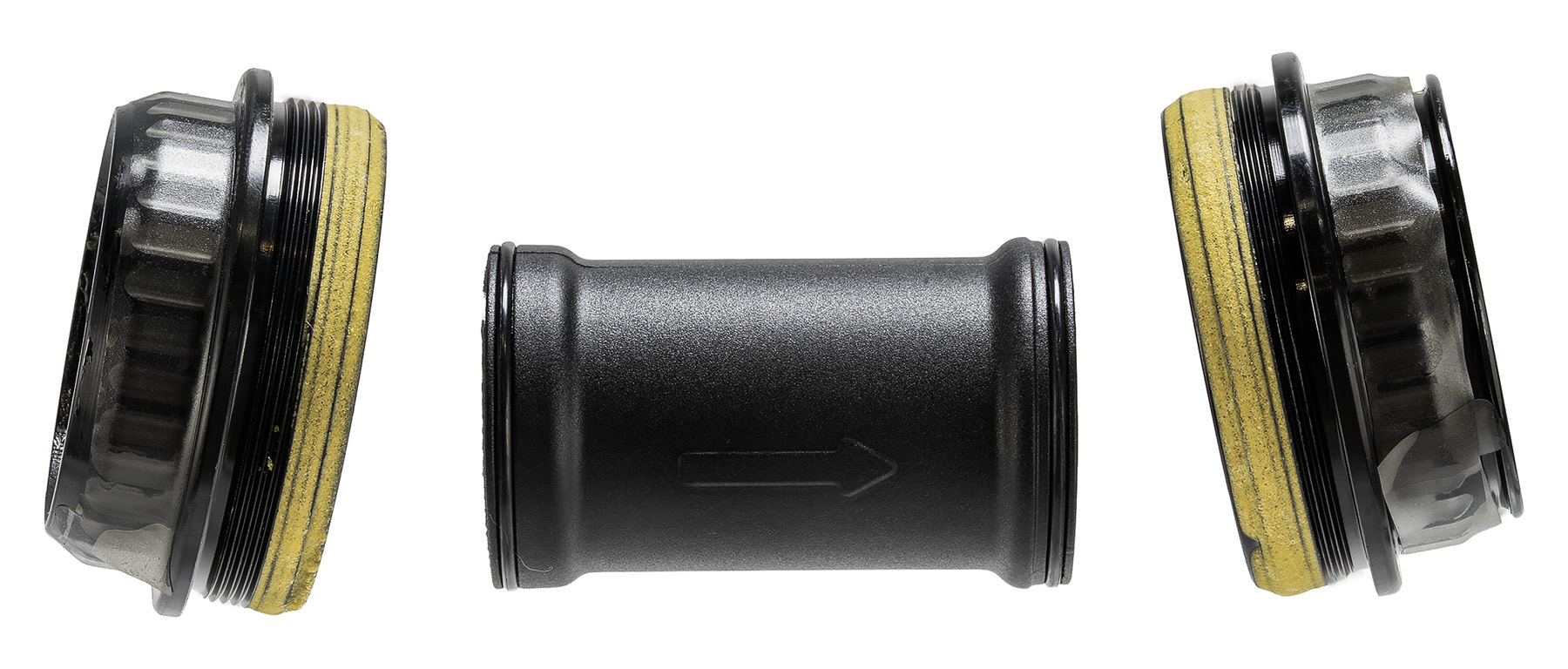

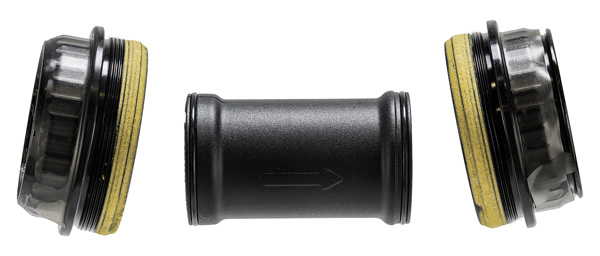

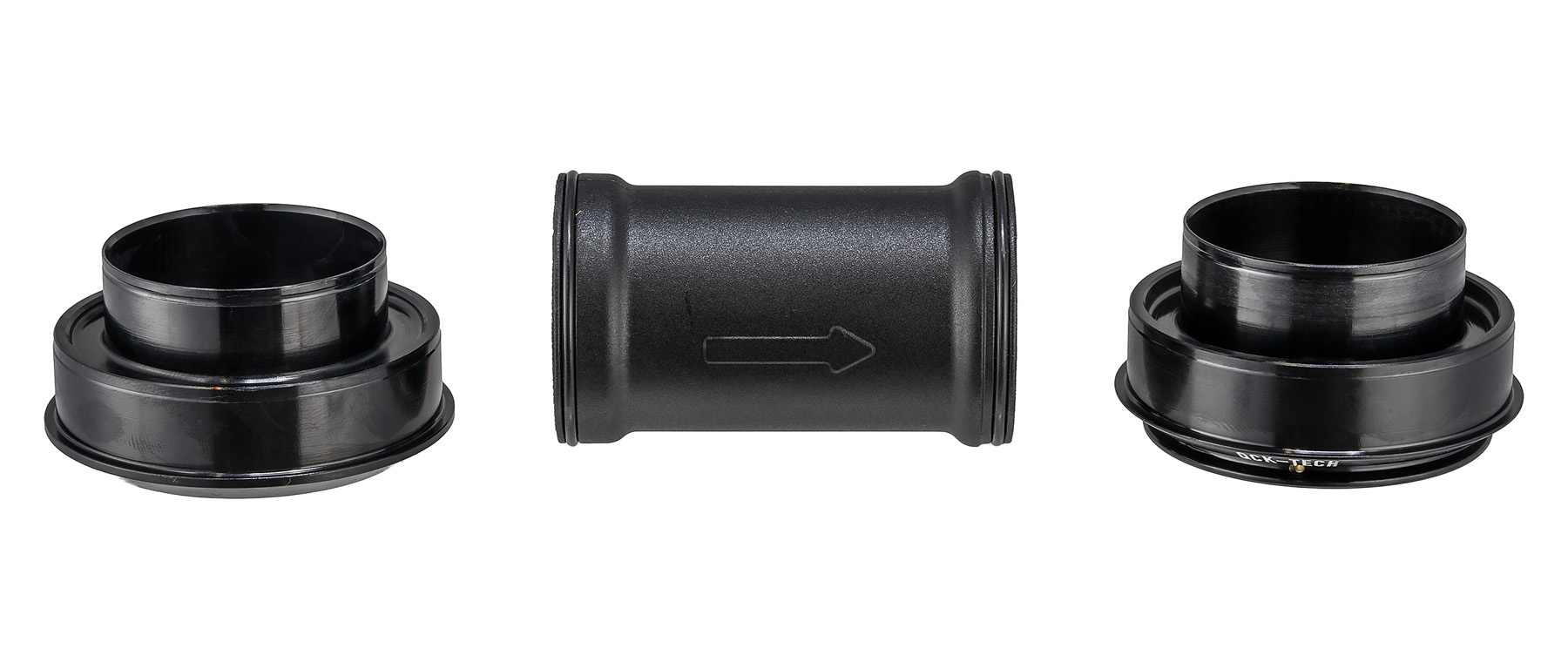

The QCK-Tech name refers to Campagnolo's redesigned installation system that speeds up assembly compared to their previous bottom brackets. The cups feature a patented external seal that protects the bearings from contamination before, during, and after installation. Water, mud, and road grit are the enemies of smooth-spinning bearings, and the external seal creates a barrier at the cup-to-frame interface where most contamination enters. A central tube made from fiberglass-reinforced polyamide connects the two cups internally, adding another layer of protection by sealing the bottom bracket shell from the inside.

The bearings themselves are oversized stainless steel units that mount directly to the Ultra-Torque semi-axles integrated into the Super Record 13 crank arms. Campagnolo's Ultra-Torque system splits the spindle at the center, with each crank arm carrying half of the axle. The two halves meet in the middle and connect via a wave washer and center bolt, creating a rigid spindle without the preload complications that plague some competing designs. The oversized bearings support this spindle configuration with smooth rotation and lateral stiffness that translates directly to power transfer.... Read More
