Description

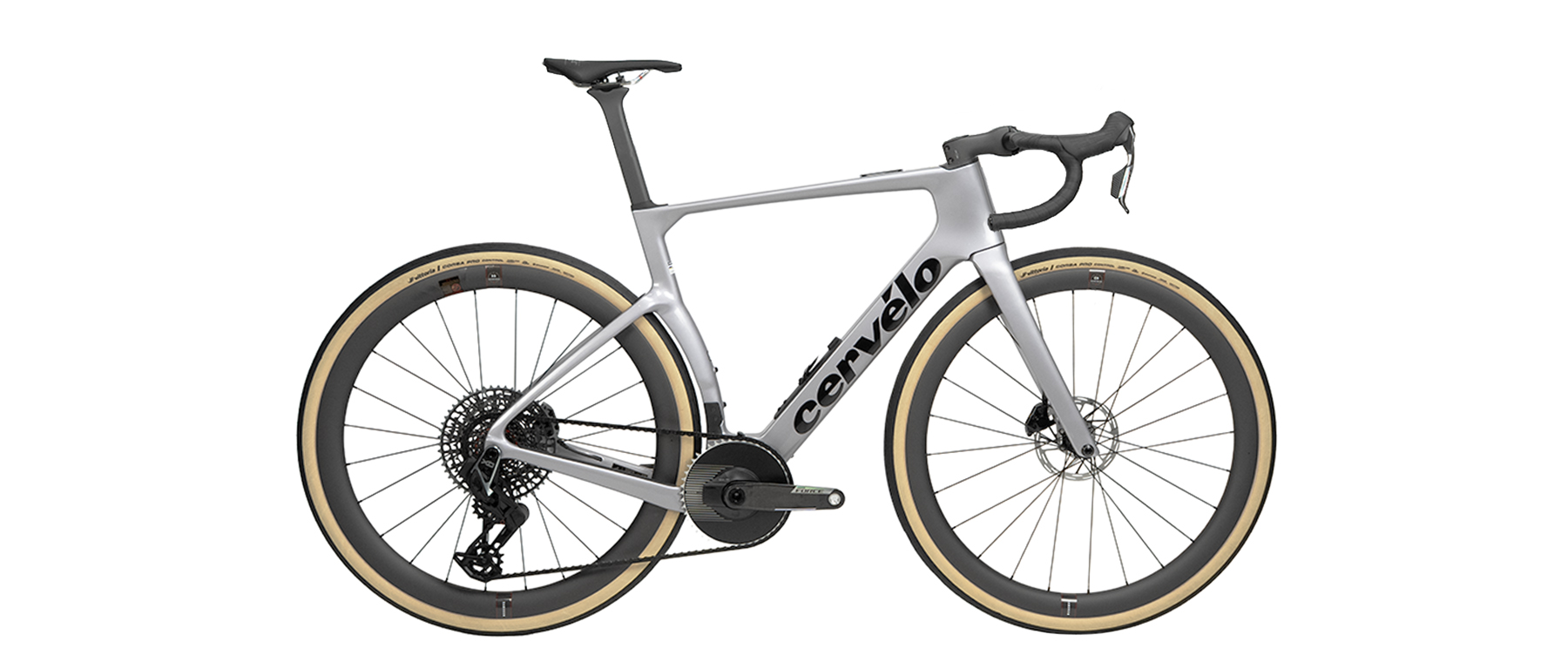

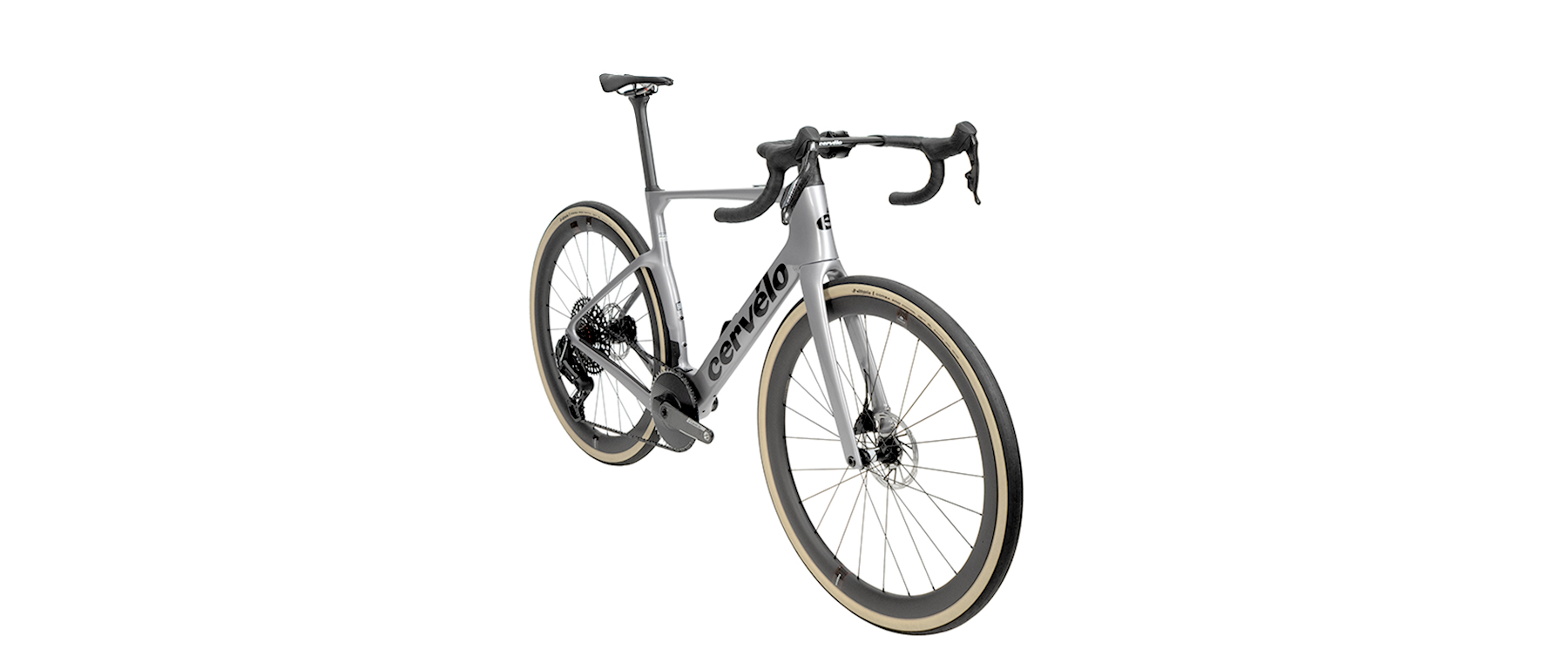

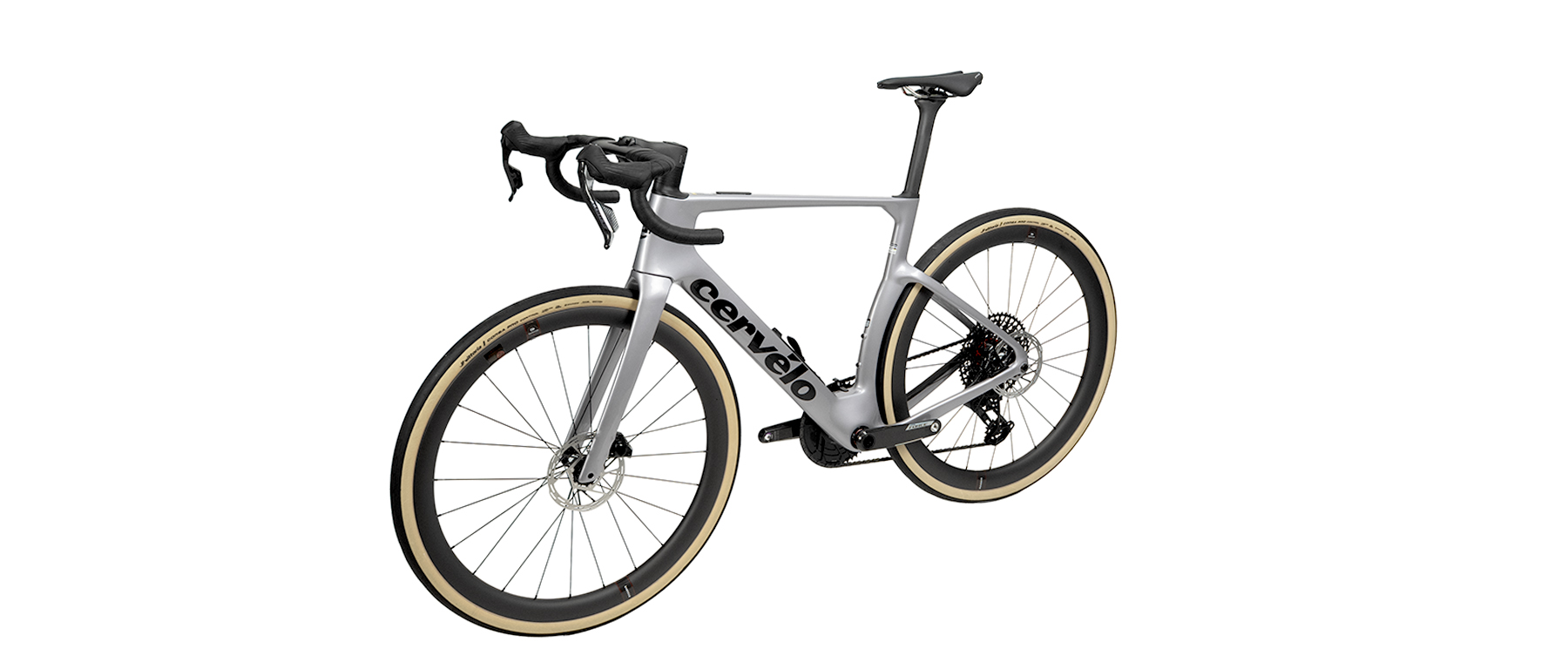

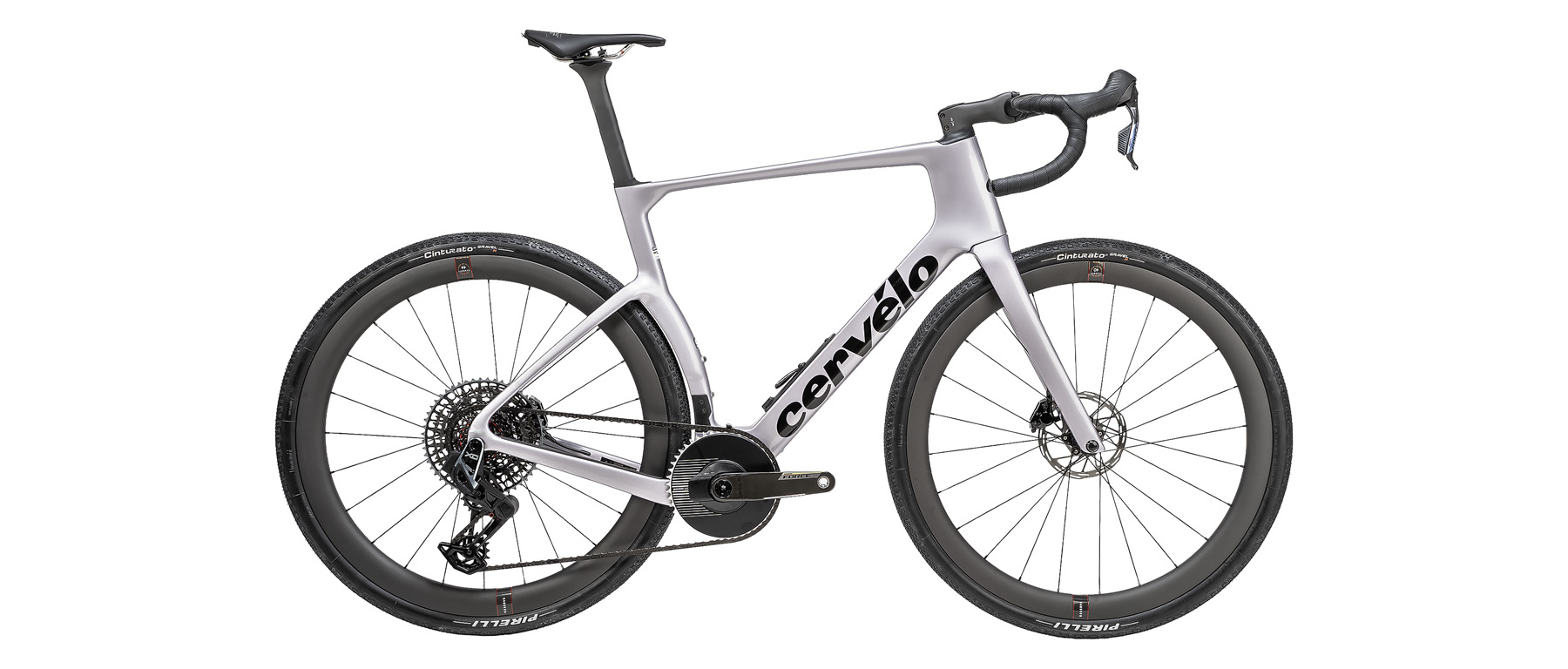

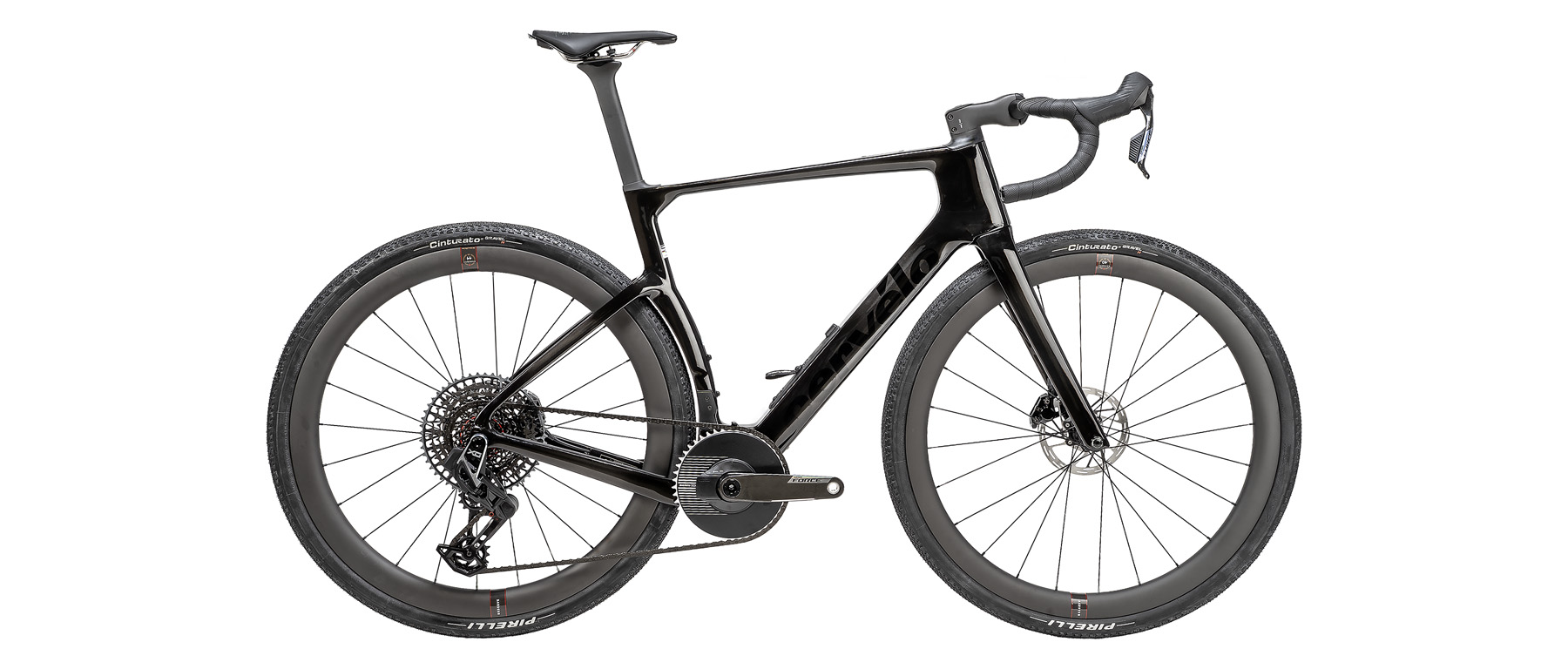

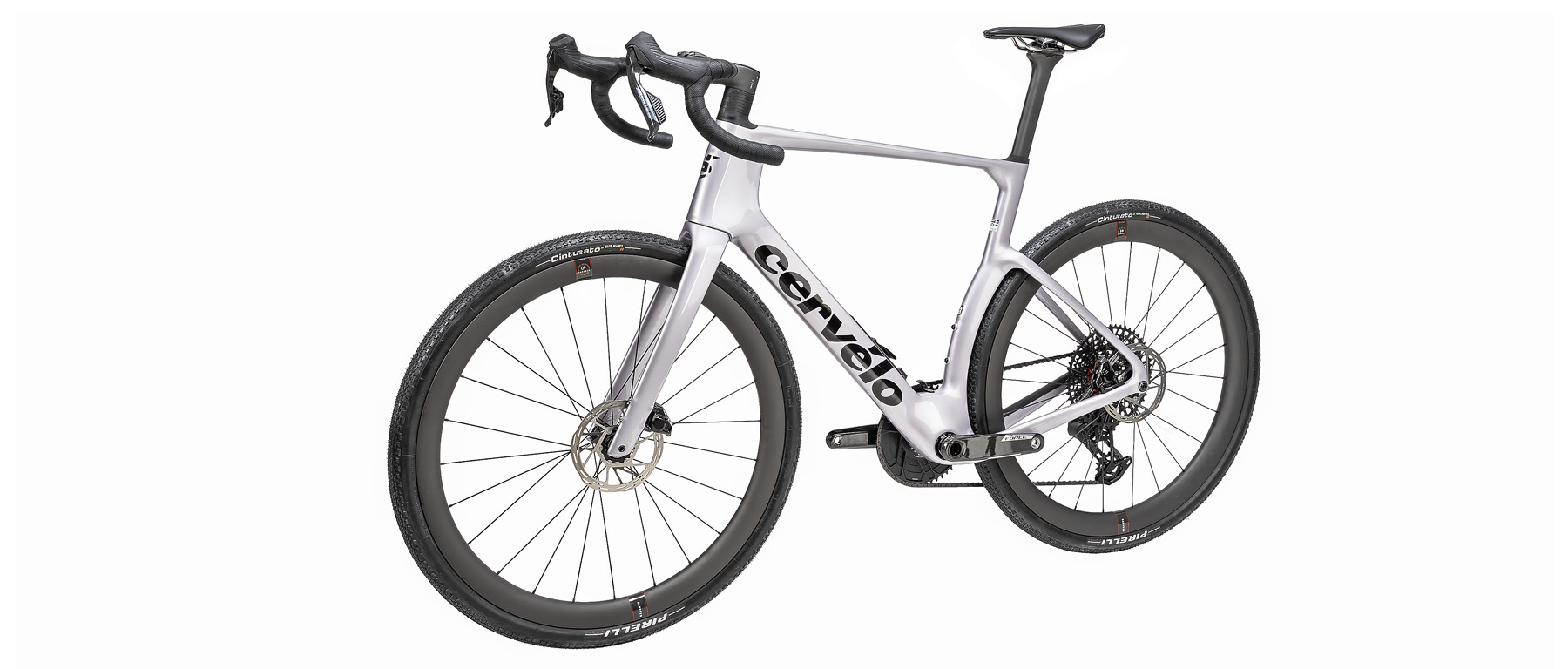

The new Áspero-5 represents the next evolution in Cervélo’s dedicated off-road race platform—an uncompromising machine refined for even more speed, efficiency, and versatility. Staying true to the original Áspero’s aggressive geometry and race-ready attitude, this latest version pushes the boundaries of what a gravel bike can be with enhanced aerodynamics, improved integration, and unmatched adaptability. Every detail in the Áspero-5’s design has been reevaluated with a clear goal: to create a gravel race bike that’s lighter, faster, more customizable, and more capable than ever before.
Aerodynamically, the Áspero-5 is significantly faster than its predecessor—37 watts faster, to be precise—thanks to revised tube shapes, increased surface area, and a fully integrated cockpit. The addition of an in-frame storage compartment inside the downtube (SB005) adds utility without compromising airflow or aesthetics. This evolution in frame design draws visual and functional inspiration from Cervélo’s aerodynamic flagship, the S5, resulting in a silhouette that clearly connects the two platforms. With a newly designed handlebar system, riders can choose between fully internal cable routing (using the ST31) or a semi-internal configuration (via ST36), all while keeping serviceability in mind.
True to its racing roots, the Áspero-5 has also undergone serious weight reduction. The frame now weighs under 1000 grams, and the newly redesigned fork comes in at just 400 grams. Importantly, the fork sheds weight without any aero compromise. It features 160mm native flat mount brake compatibility, uses a co-molded threaded insert instead of a traditional external axle insert, and is built for seamless installation and adjustment, identical to the rear flat mount setup.... Read More
Features
- 37 watts faster than the previous Áspero-5
- Frame weighs under 1000 grams

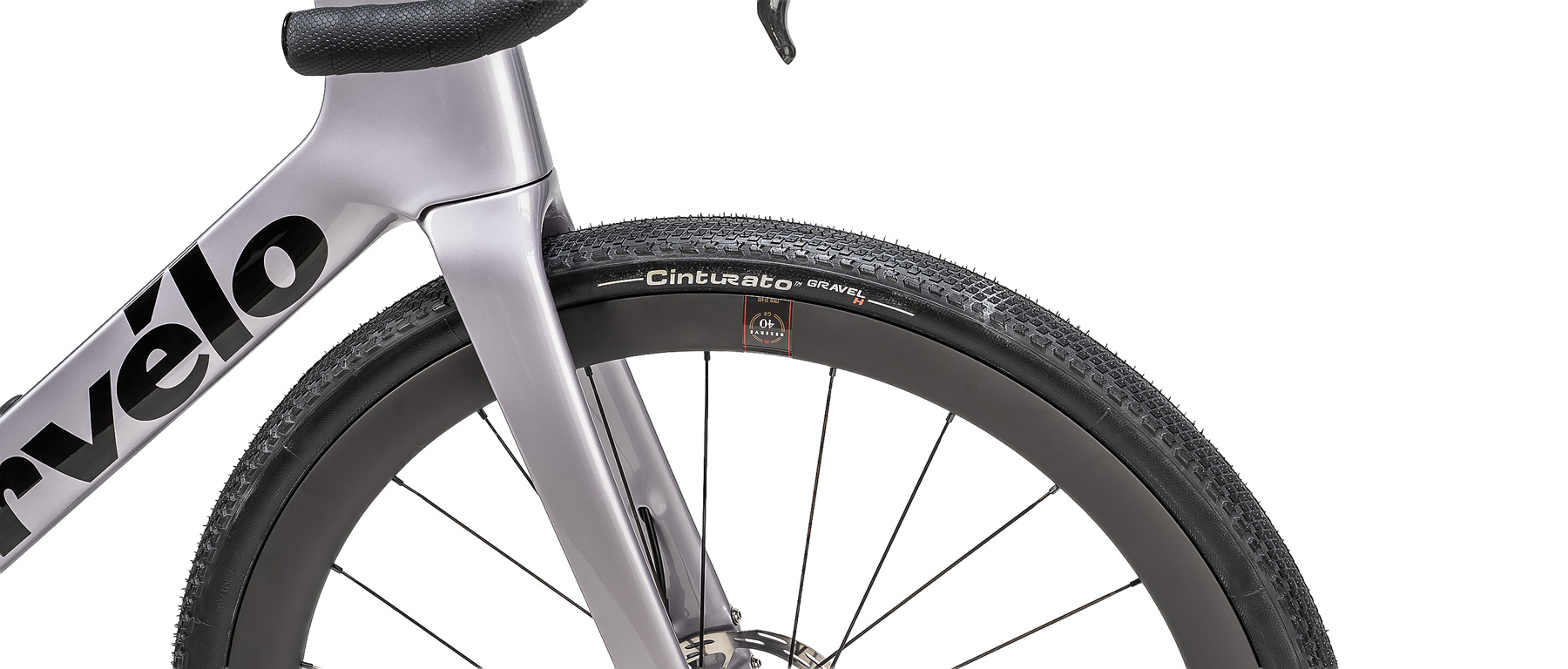

- Fork weighs 400 grams with no aero penalty
- Fully internal or semi-internal cable routing options
- Compatible only with electronic and wireless drivetrains

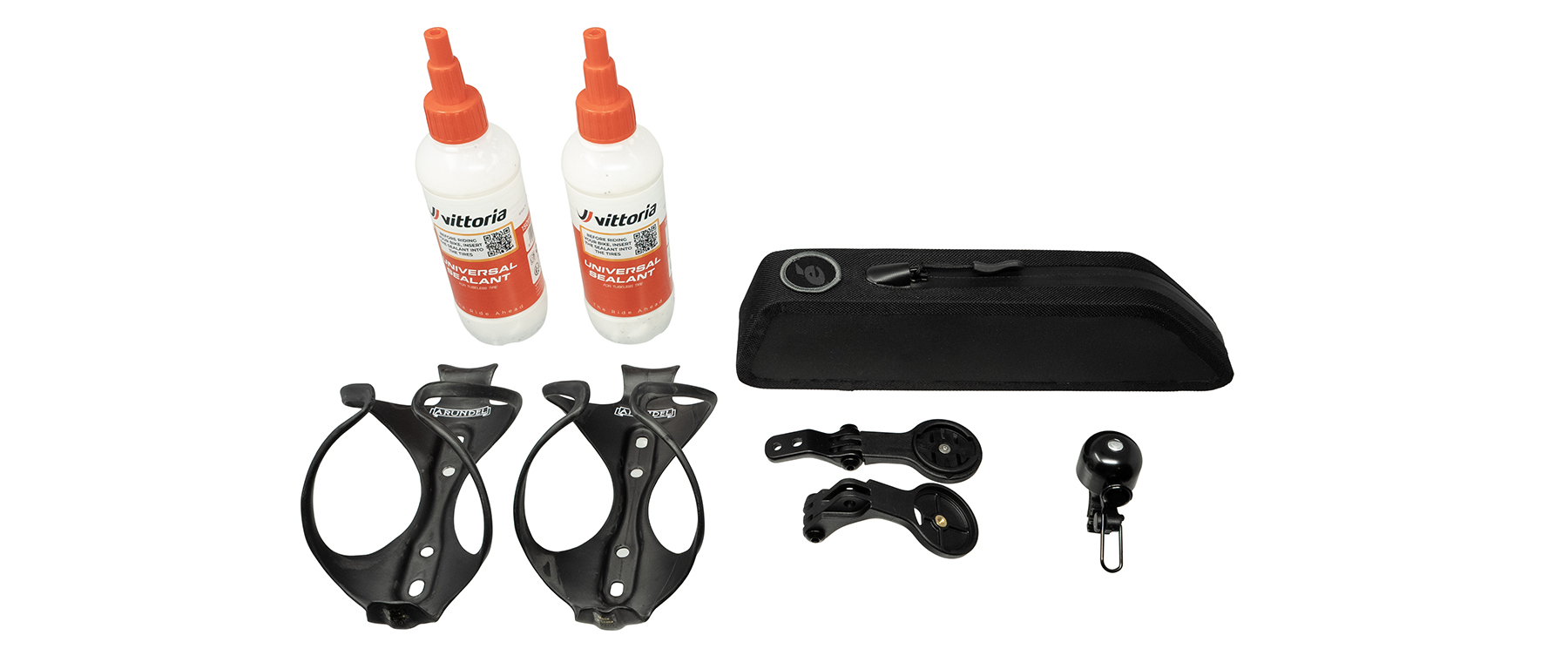

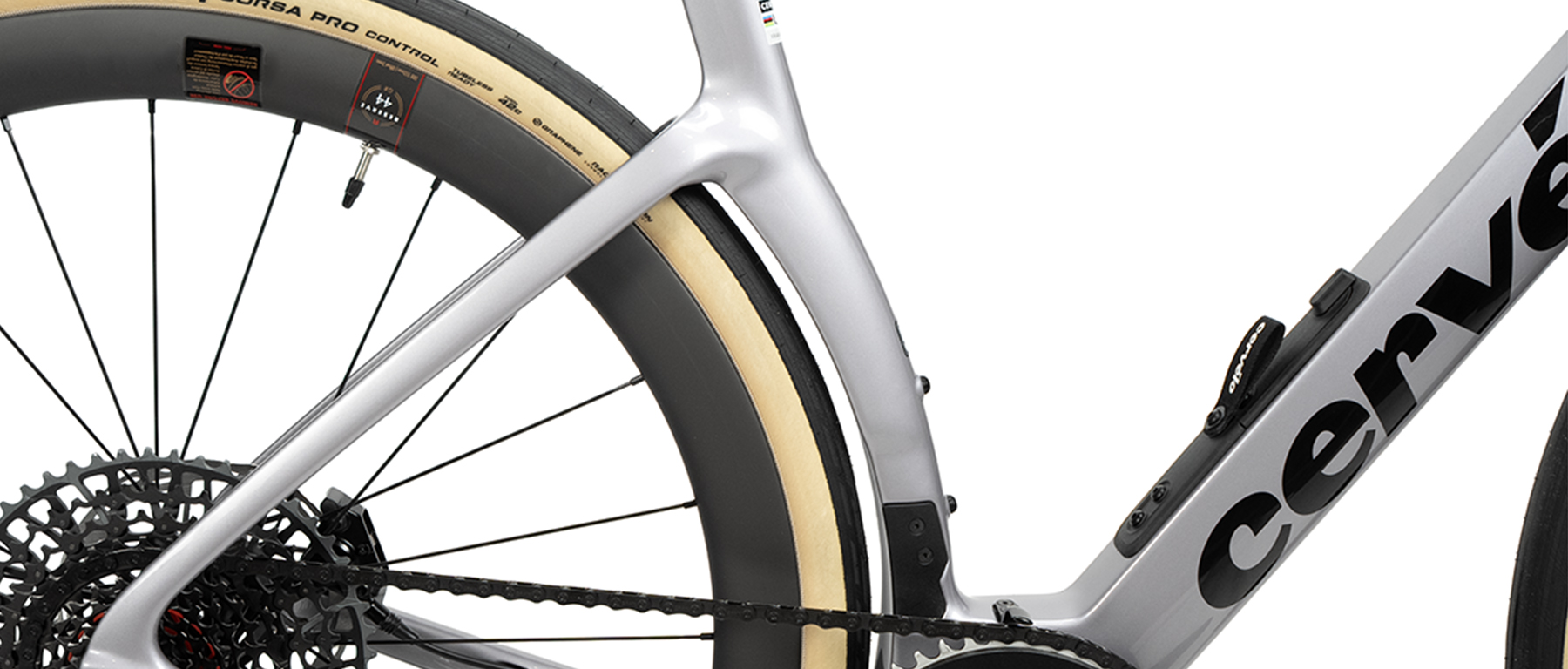

- In-frame SB005 downtube storage adds utility and aerodynamics
- Visual design inspired by Cervélo’s S5 aero road bike

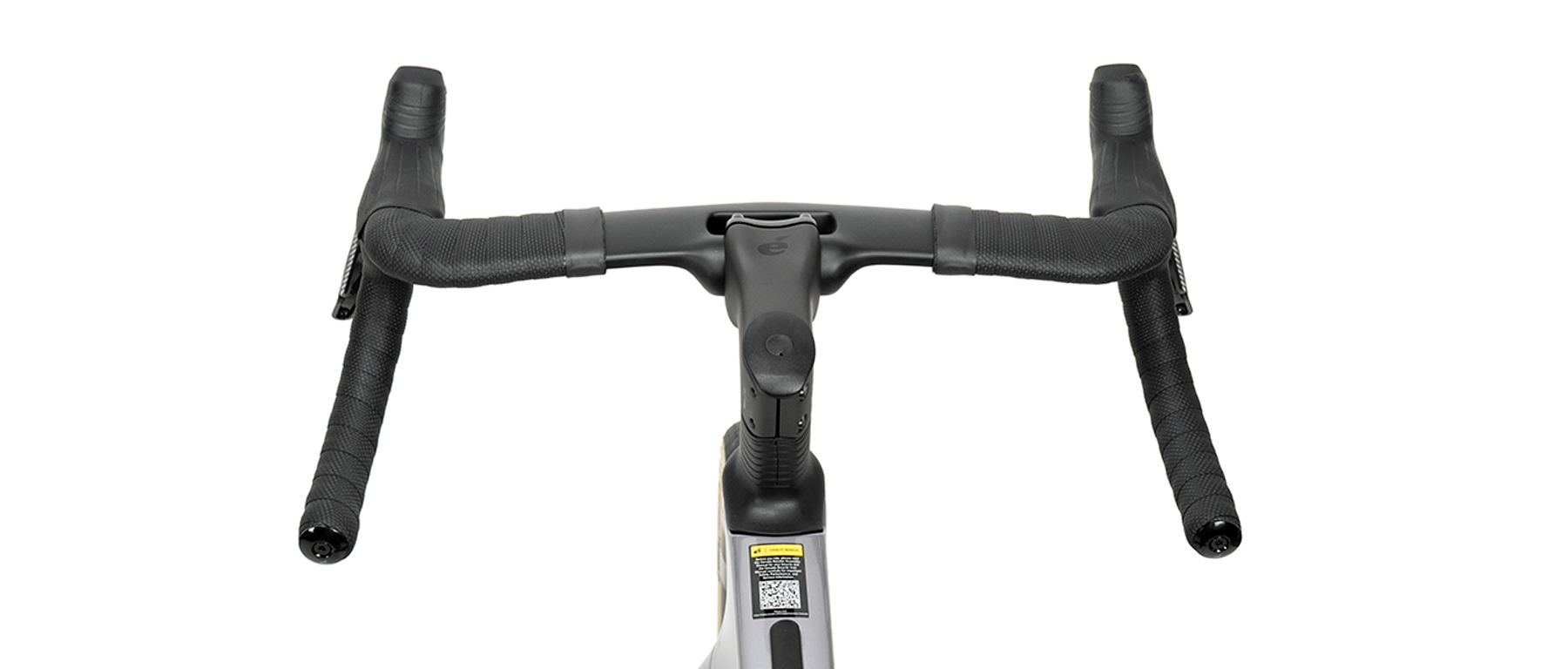

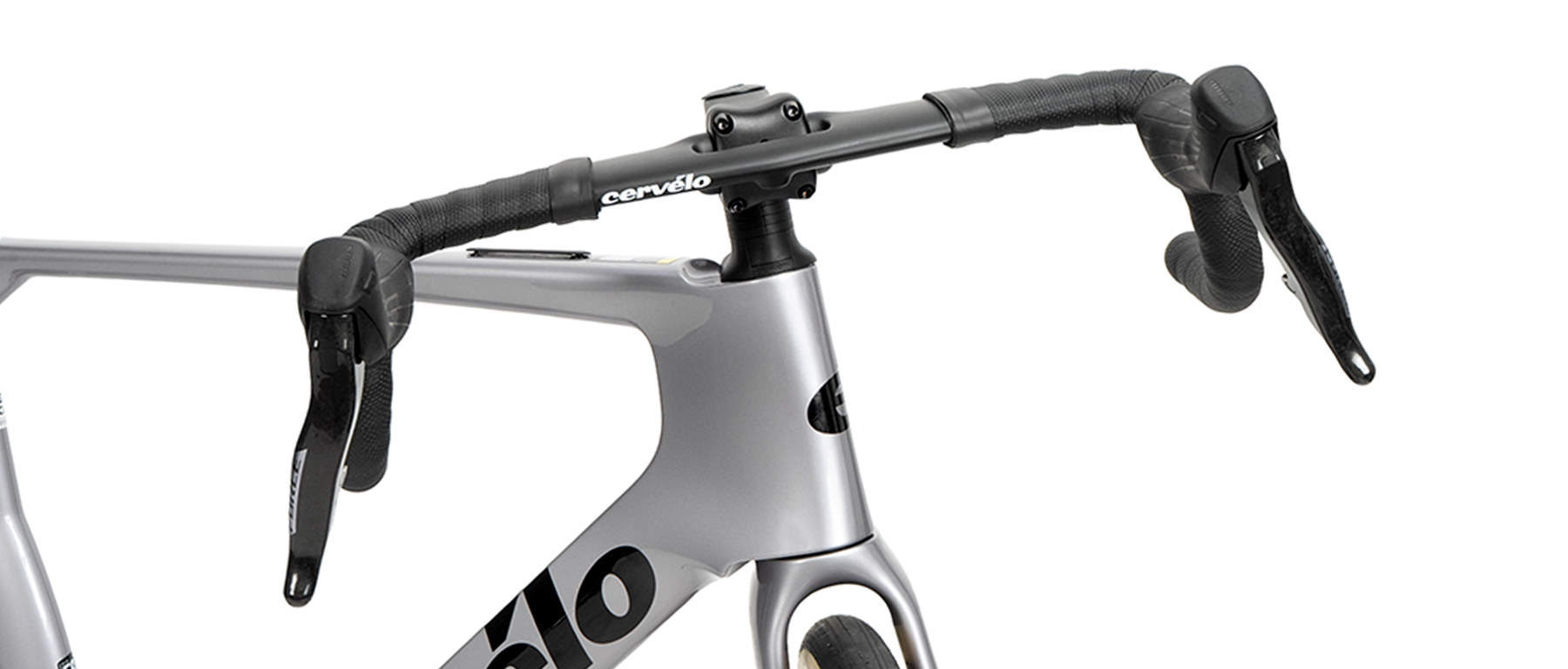

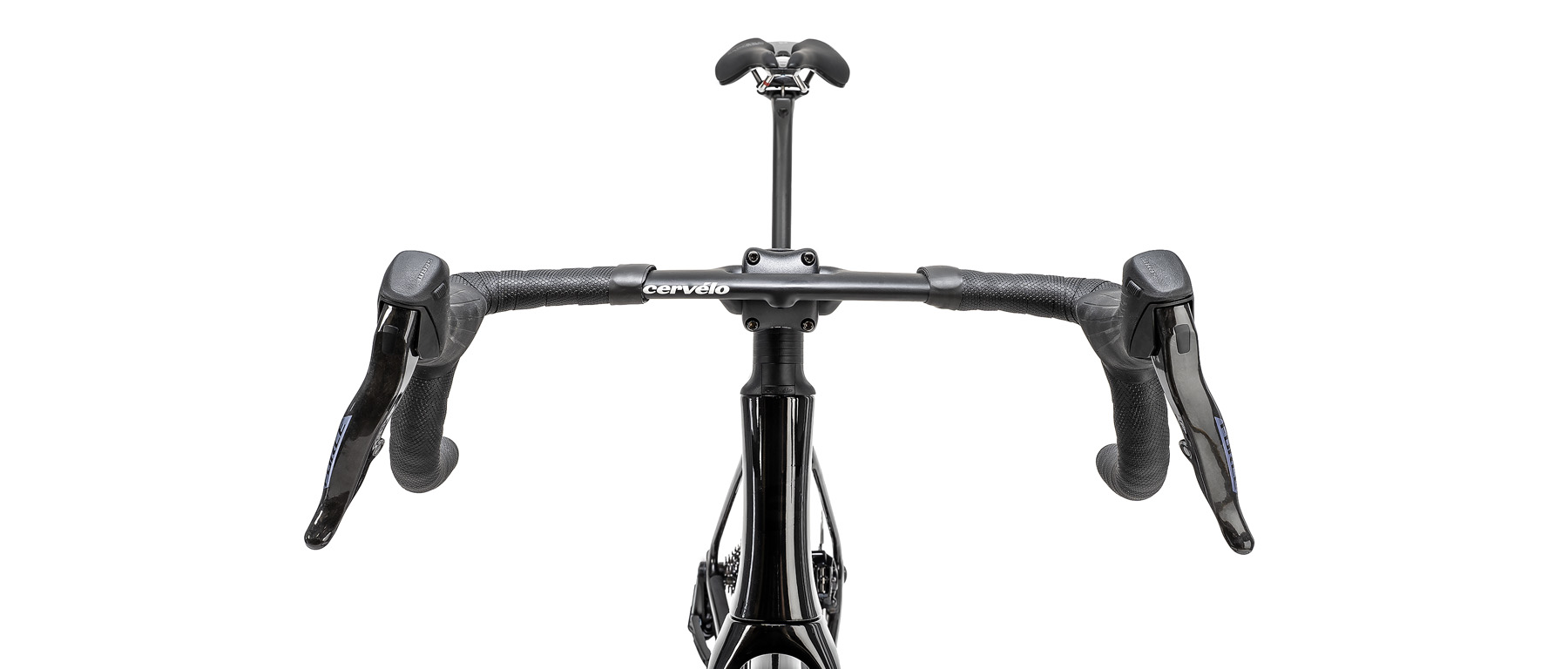

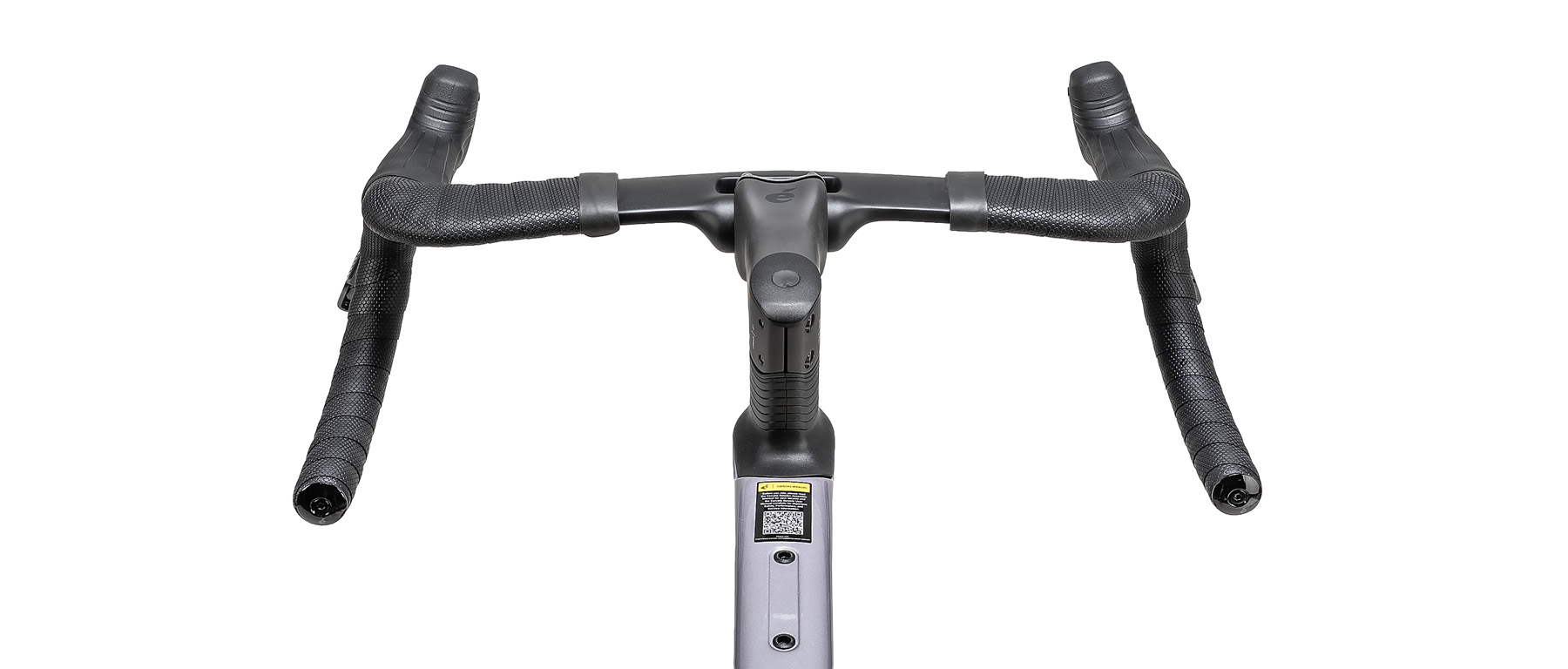

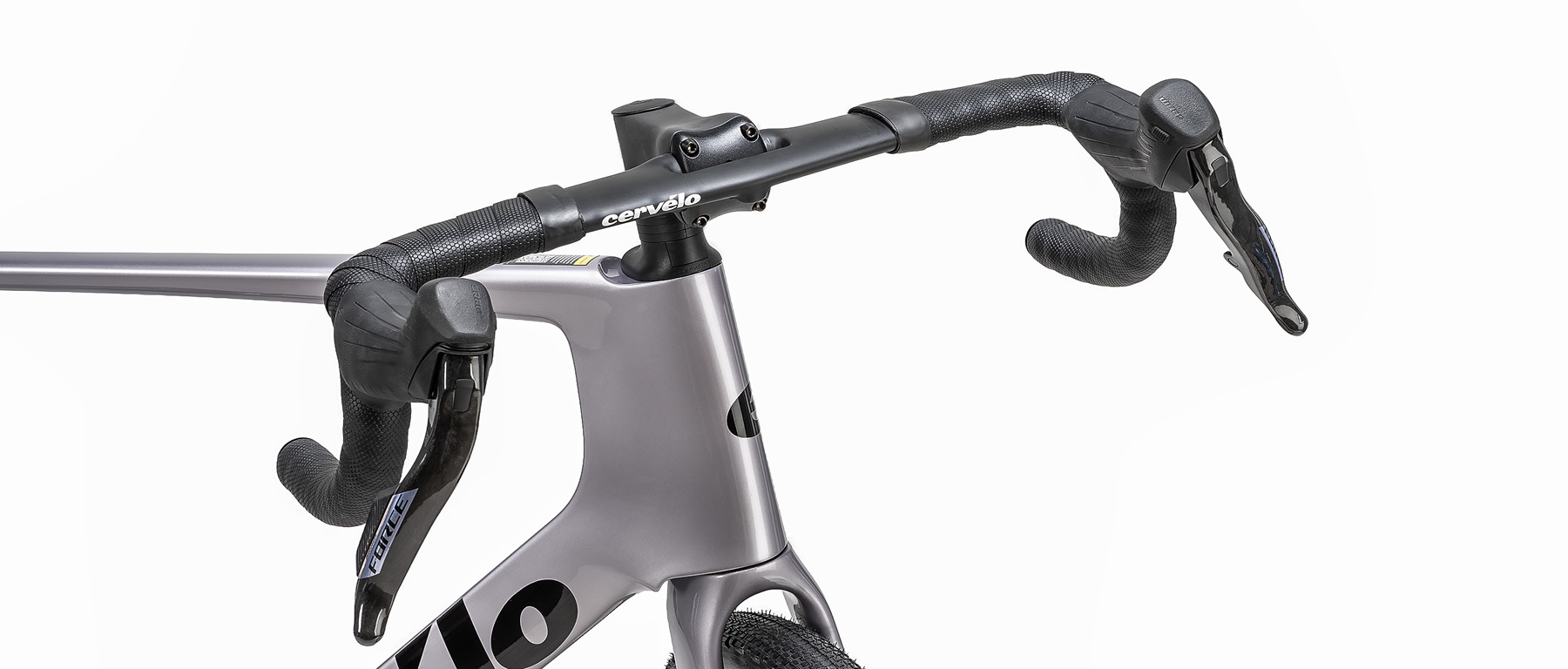

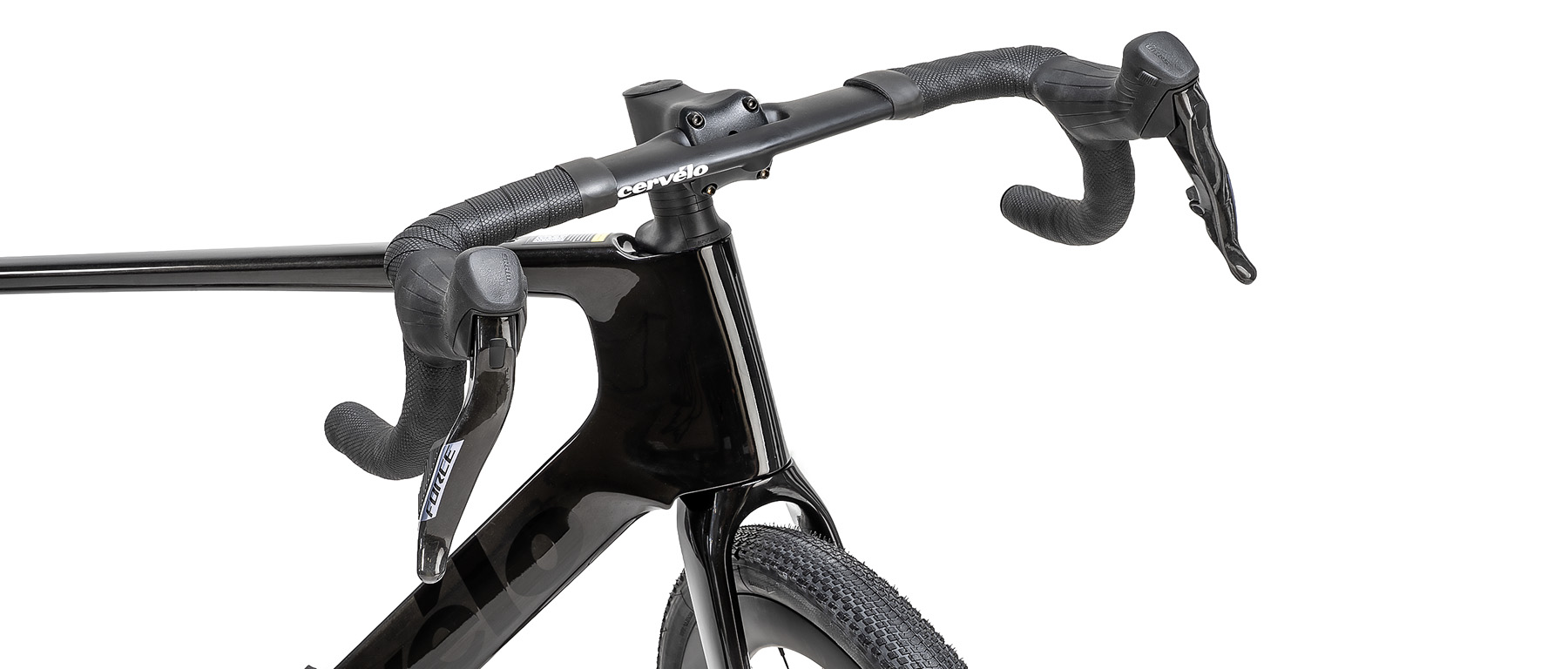

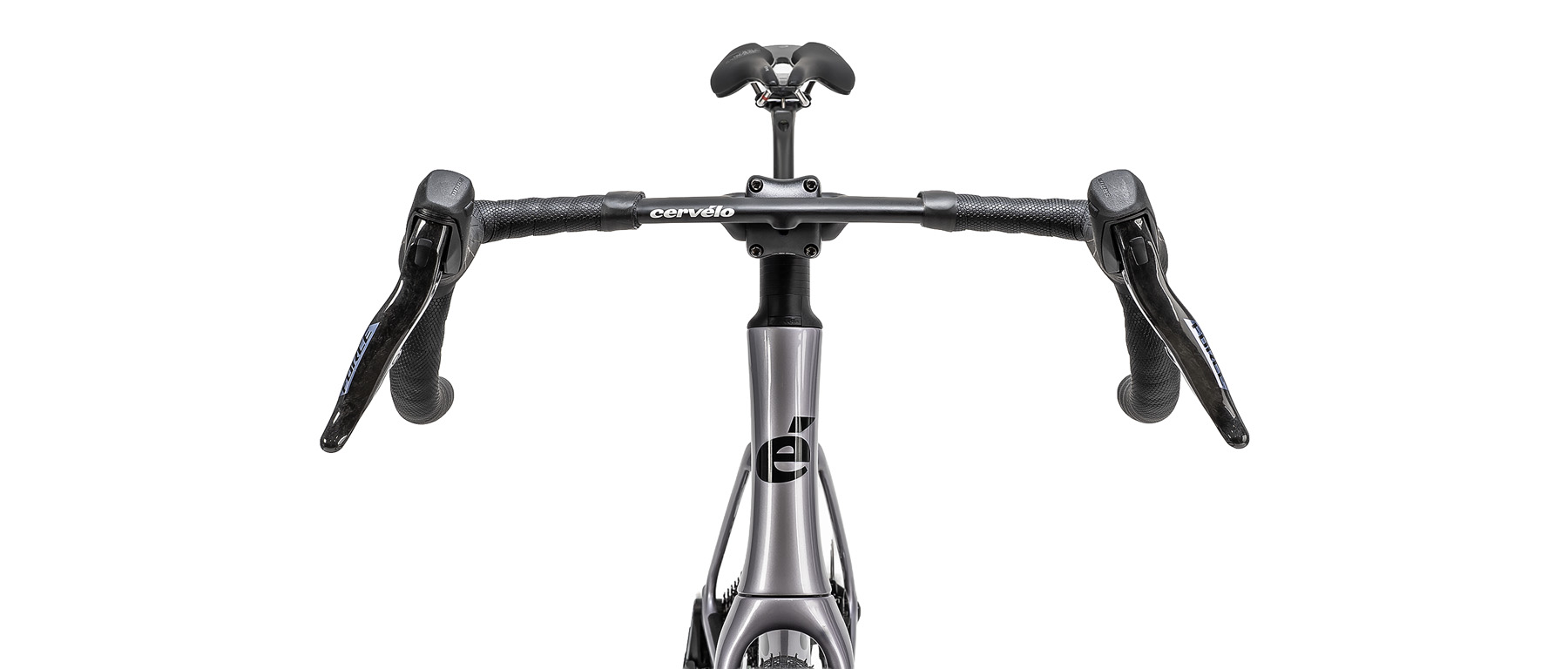

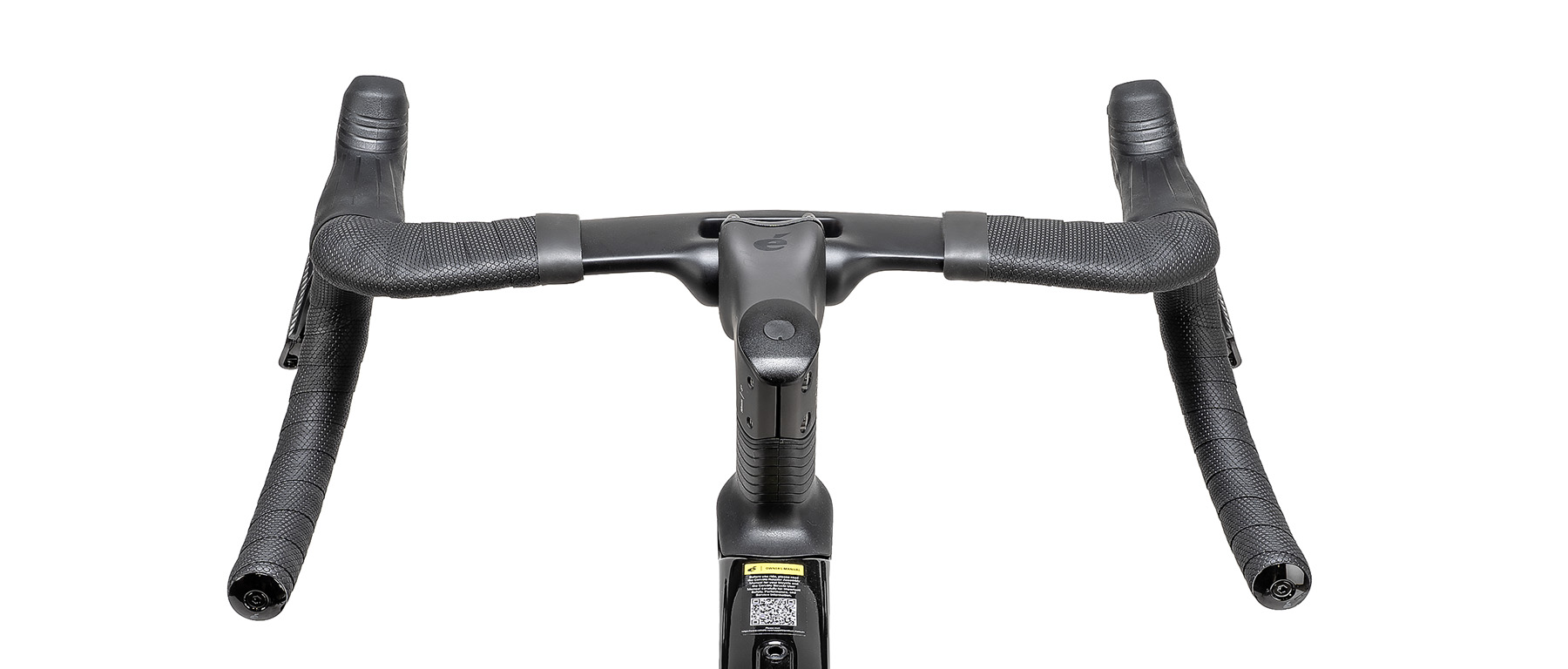

- New ST31 and ST36 bars allow for routing flexibility
- No re-cabling needed when adjusting stem height
- High and low bearing caps included for custom stack heights

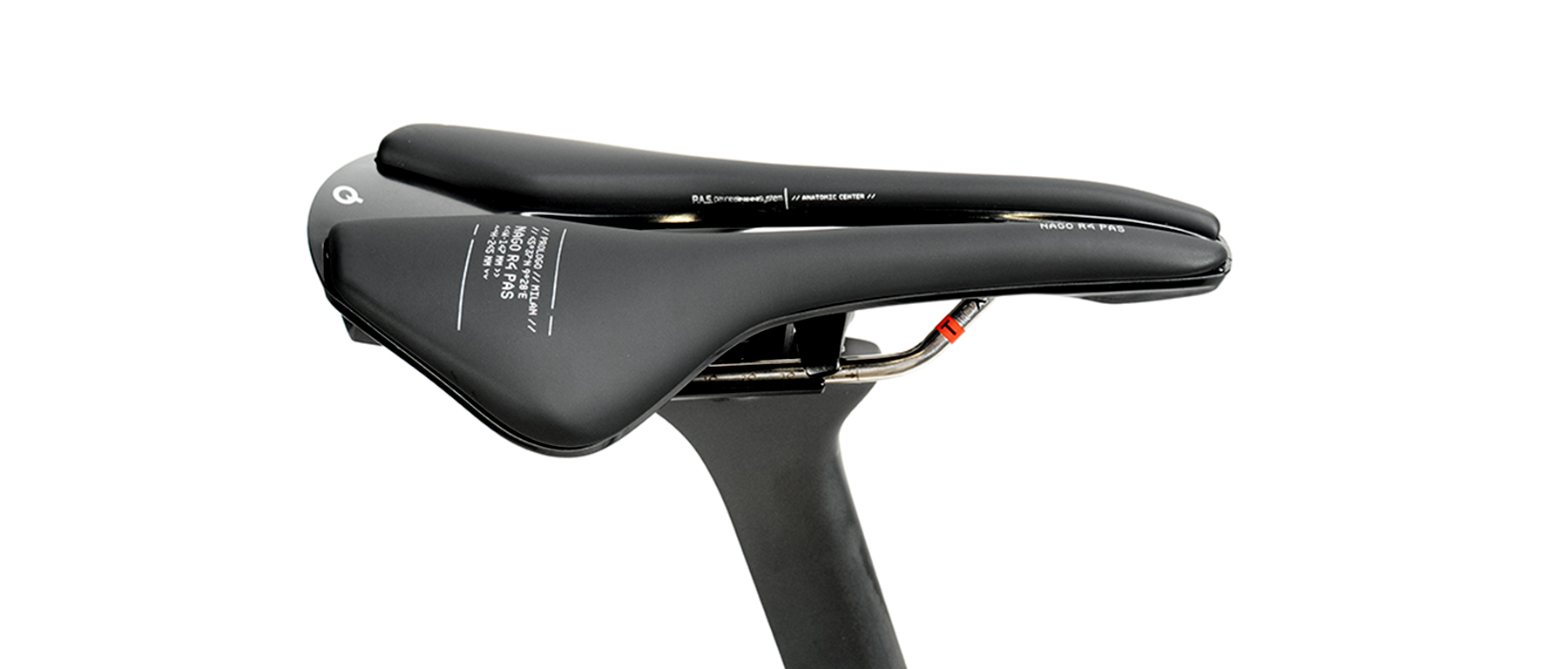

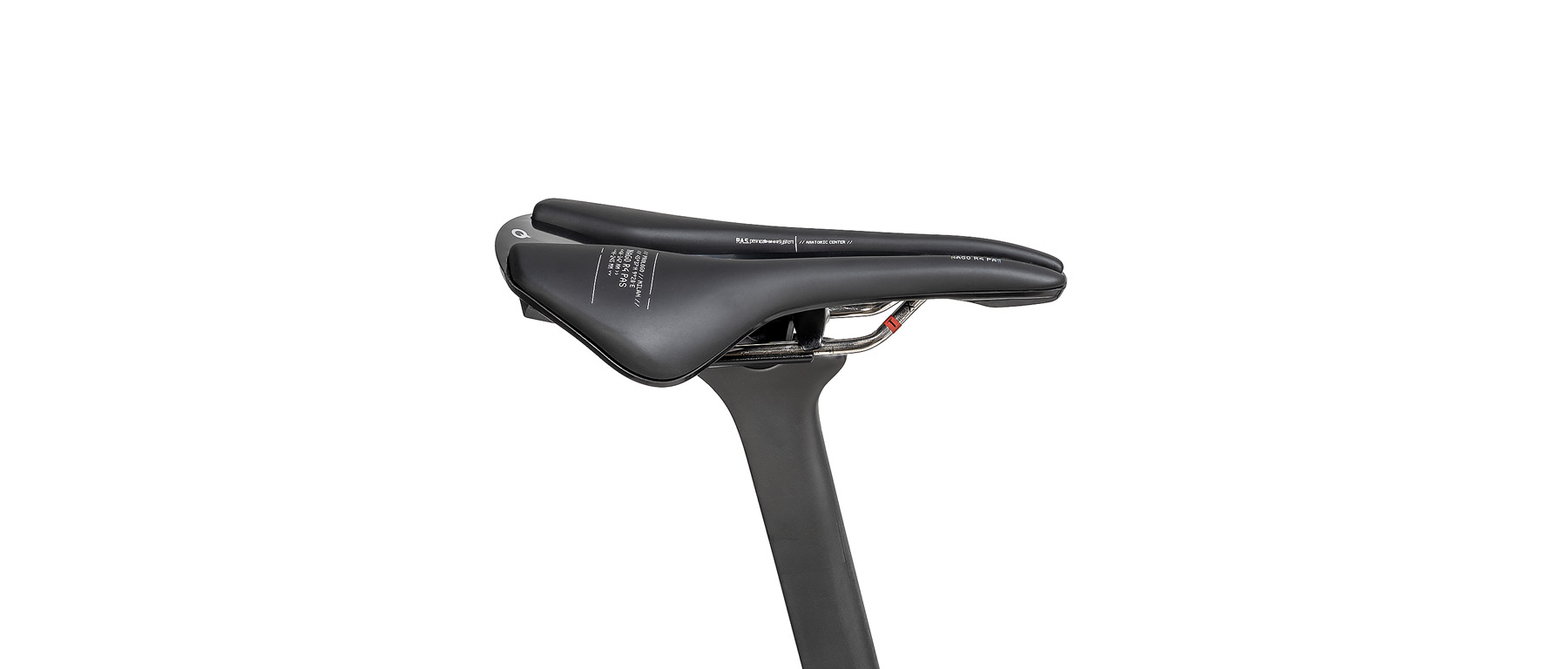

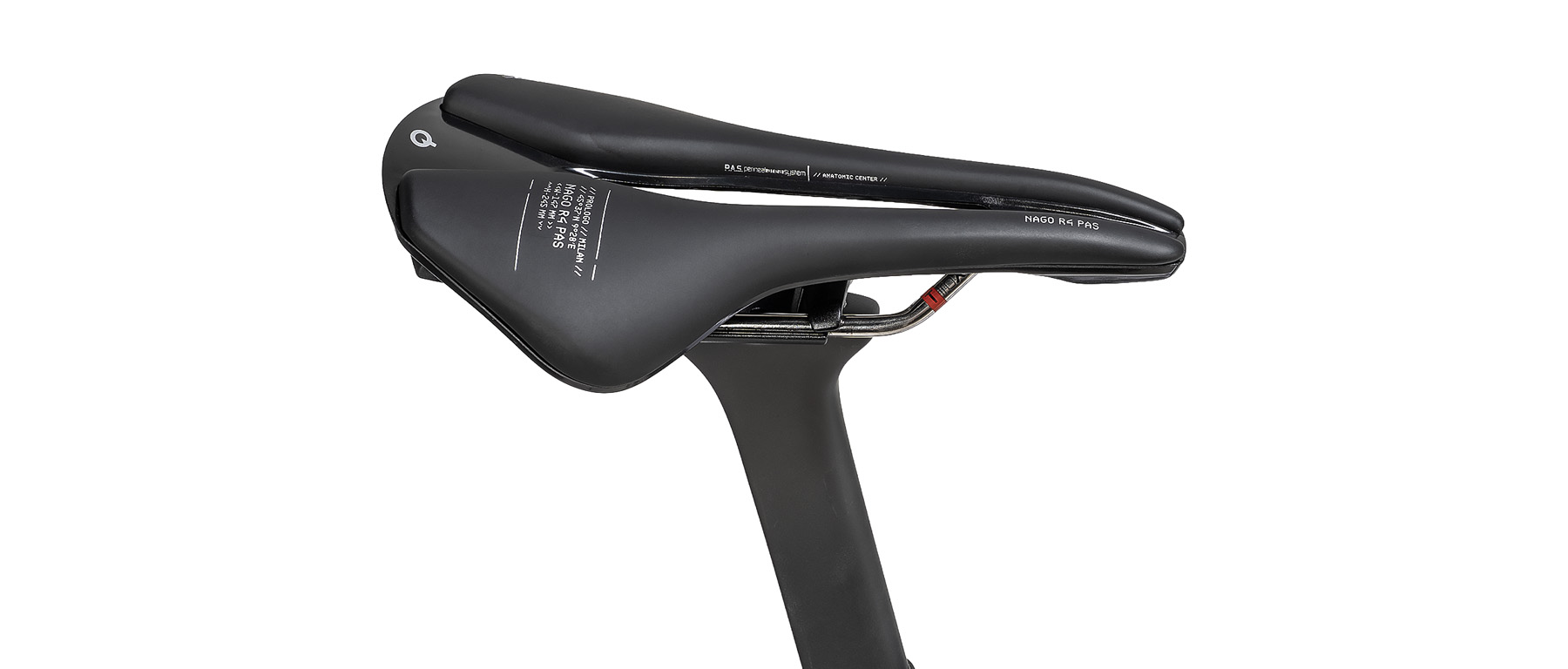

- New zero-offset SP27 seatpost improves fit options
- Seatpost compatible with existing SP27 hardware

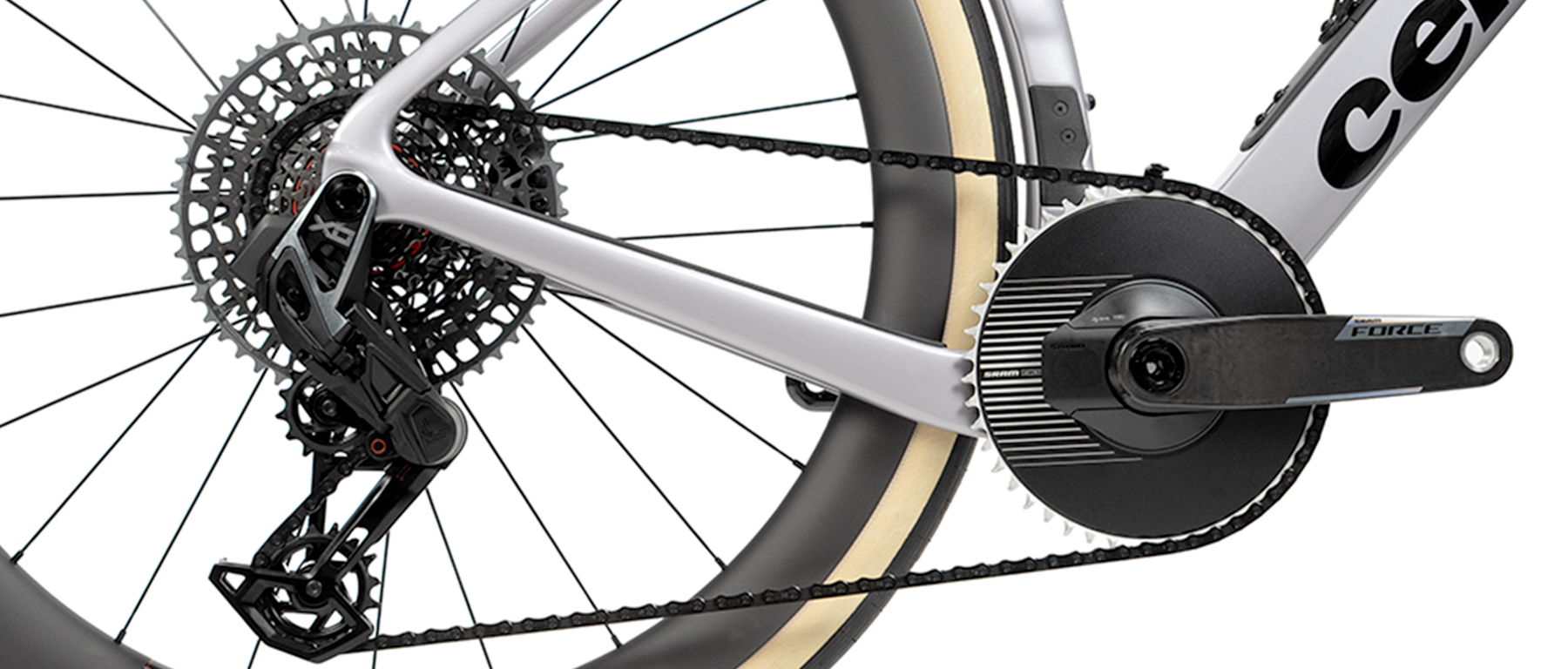

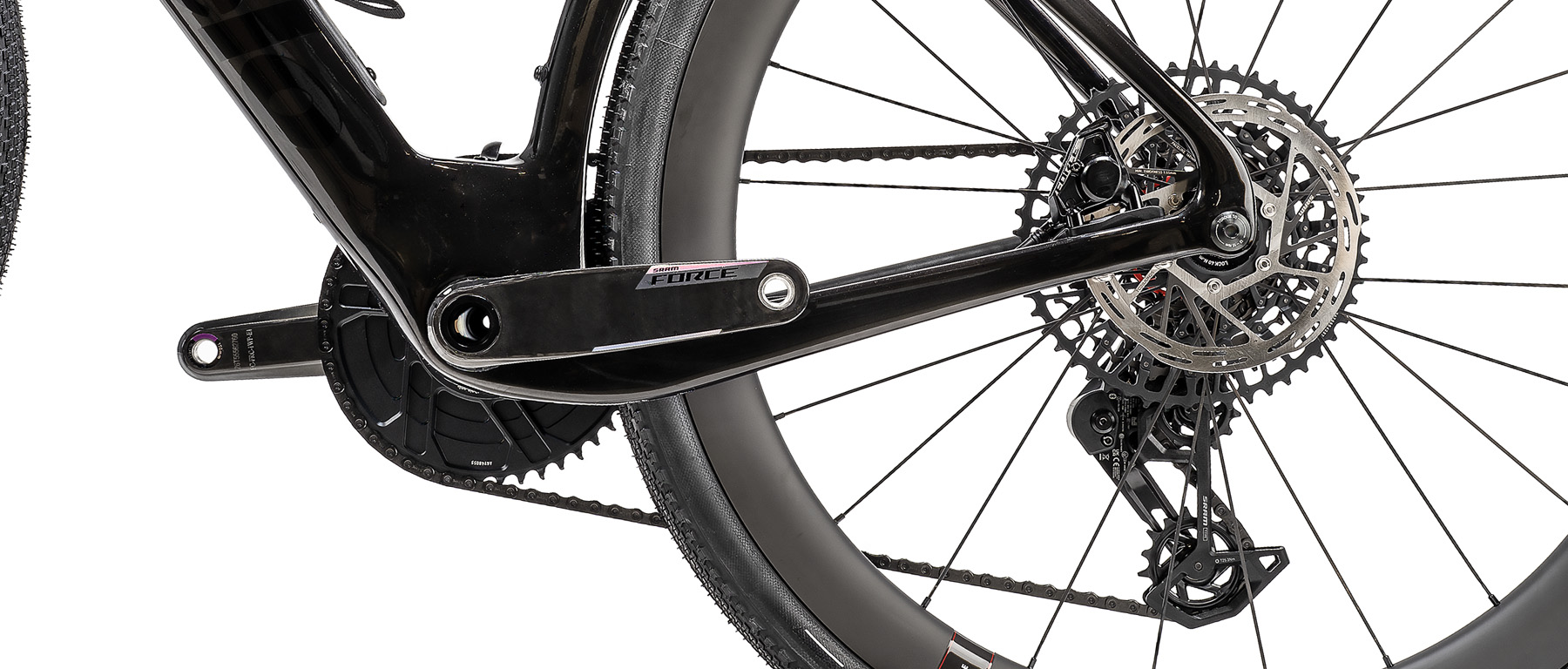

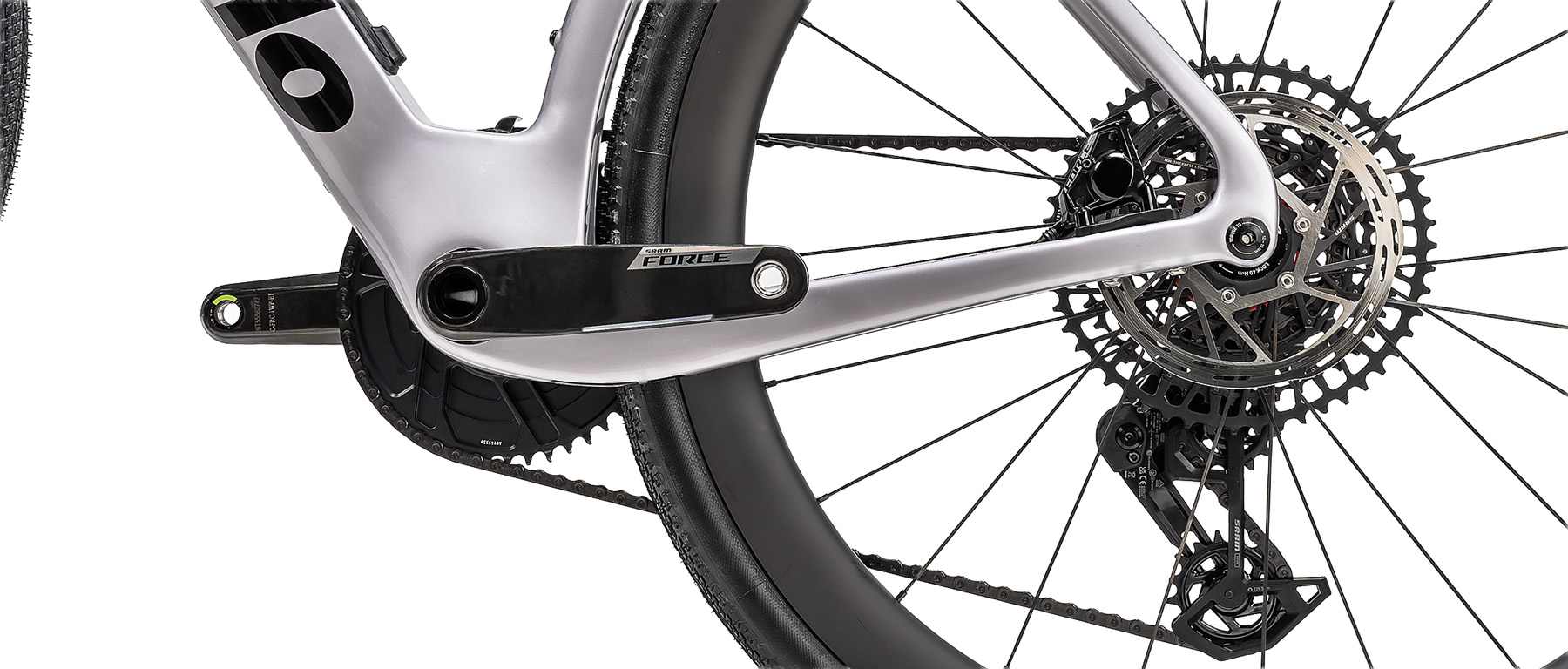

- Threaded T47A bottom bracket for reliability and serviceability
- Universal Derailleur Hanger (UDH) for drivetrain compatibility and protection

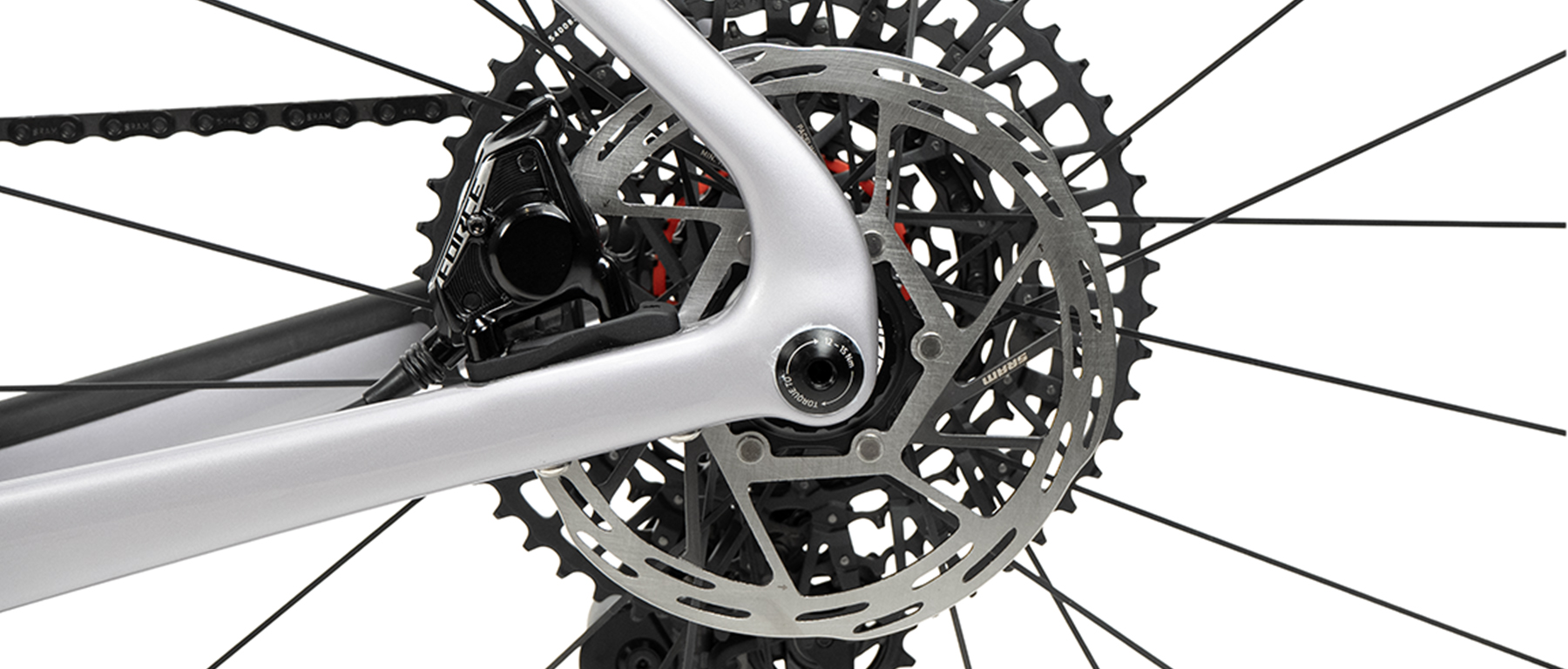

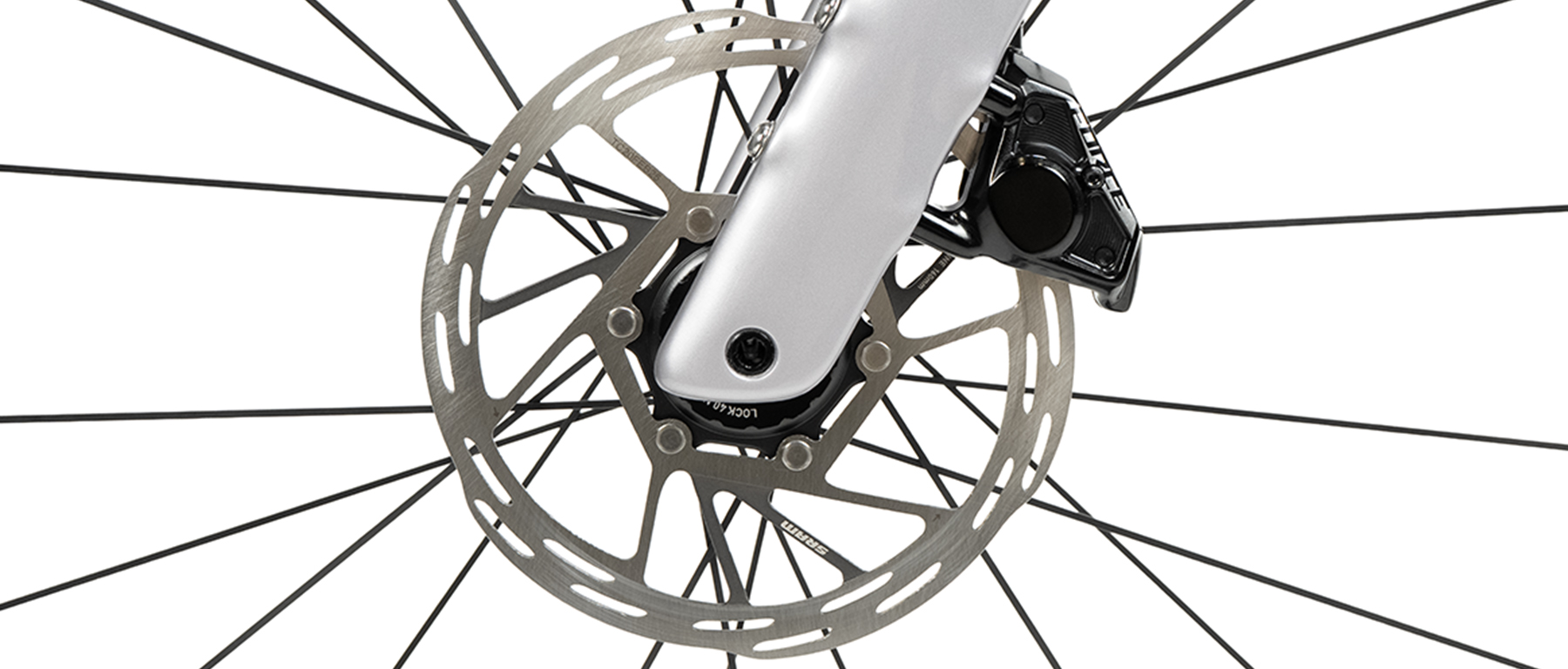

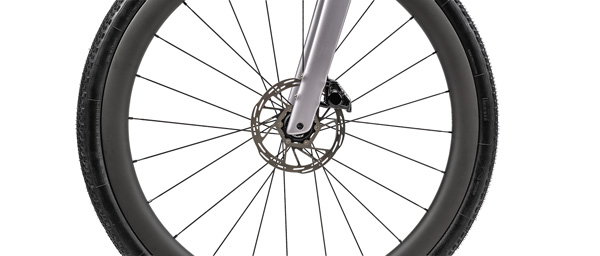

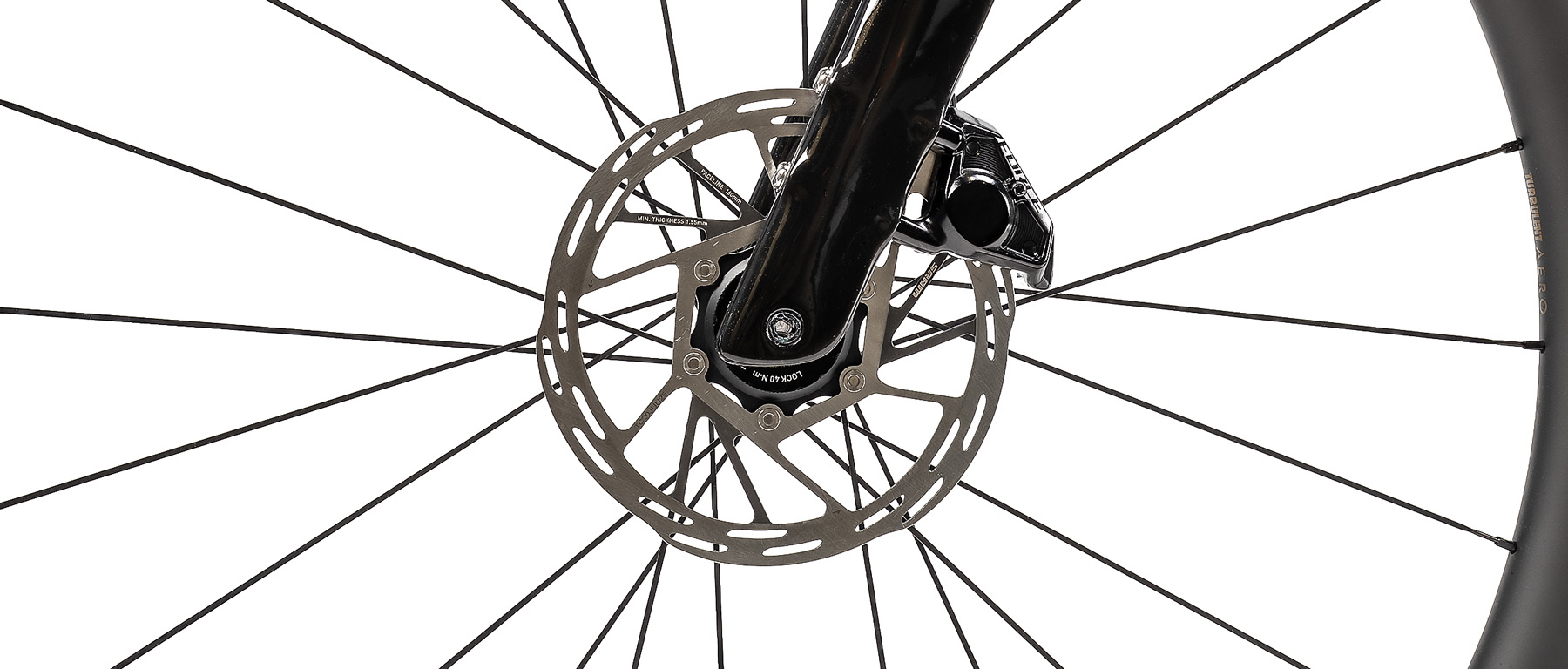

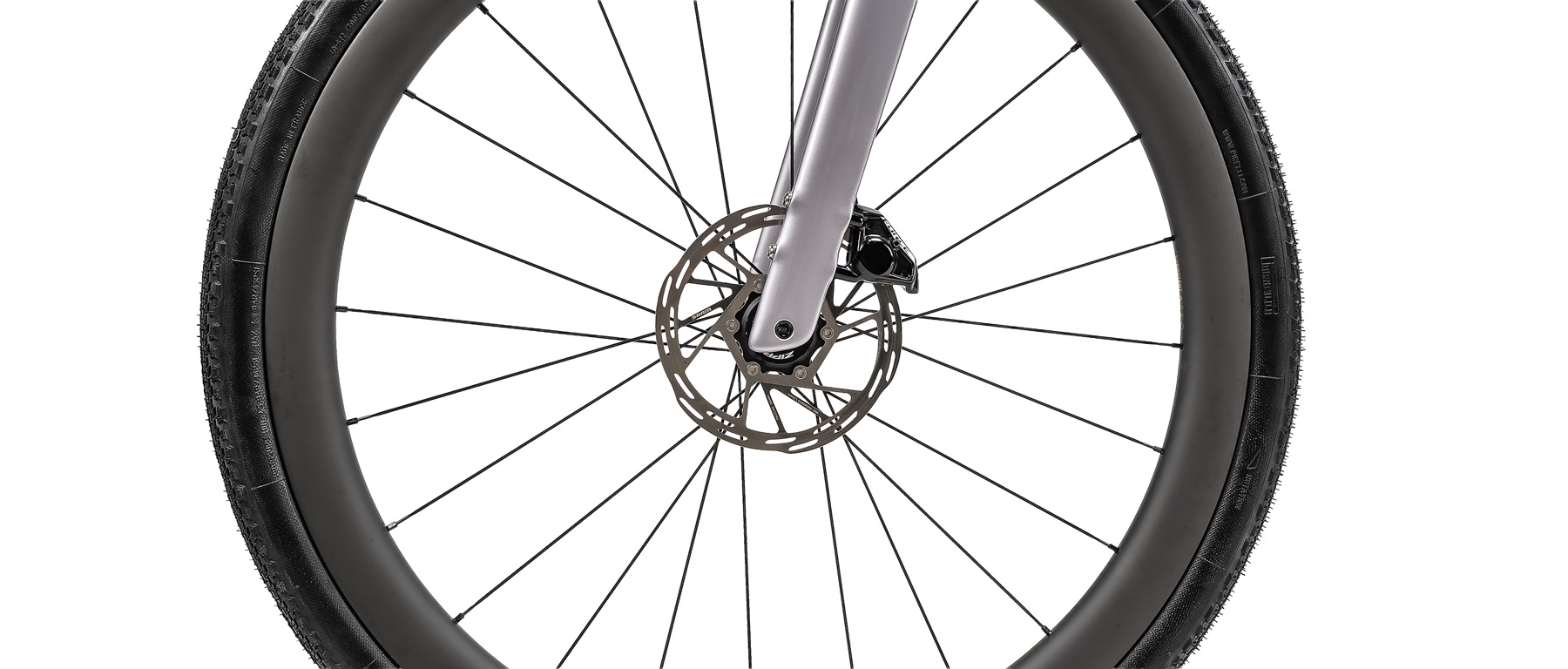

- 160mm native flat mount brake setup front and rear
- Co-molded threaded insert replaces external axle insert on fork
- New ITU base mount located at cable exit for accessory integration
- Shorter, lower-profile computer mount for a cleaner cockpit
Geometry
| Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Wheel Size | 700 | 700 | 700 | 700 | 700 | 700 |
| Stack | 505mm | 530mm | 555mm | 580mm | 605mm | 630mm |
| Reach | 370mm | 379mm | 388mm | 397mm | 406mm | 415mm |
| Head Angle | 71° | 71.5° | 72° | 72° | 72° | 72° |
| Seat Angle | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| Top Tube Length | 512mm | 532mm | 553mm | 575mm | 591mm | 608mm |
| Head Tube Length | 83mm | 107mm | 133mm | 159mm | 188mm | 314mm |
| Standover | 690mm | 732mm | 764mm | 788mm | 814mm | 838mm |
| Fork Trail | 58.6mm | 58.6mm | 58.6mm | 58.6mm | 58.6mm | 58.6mm |
| Fork Offset | 52mm | 49mm | 46mm | 46mm | 46mm | 46mm |
| Bottom Bracket Drop | 78.5mm | 78.5mm | 76mm | 76mm | 73.5mm | 73.5mm |
| Front Center | 583mm | 592mm | 602mm | 619mm | 637mm | 654mm |
| Wheelbase | 990mm | 1000mm | 1010mm | 1027mm | 1046mm | 1063mm |
| Chainstay Length | 420mm | 420mm | 420mm | 420mm | 420mm | 420mm |
