Description

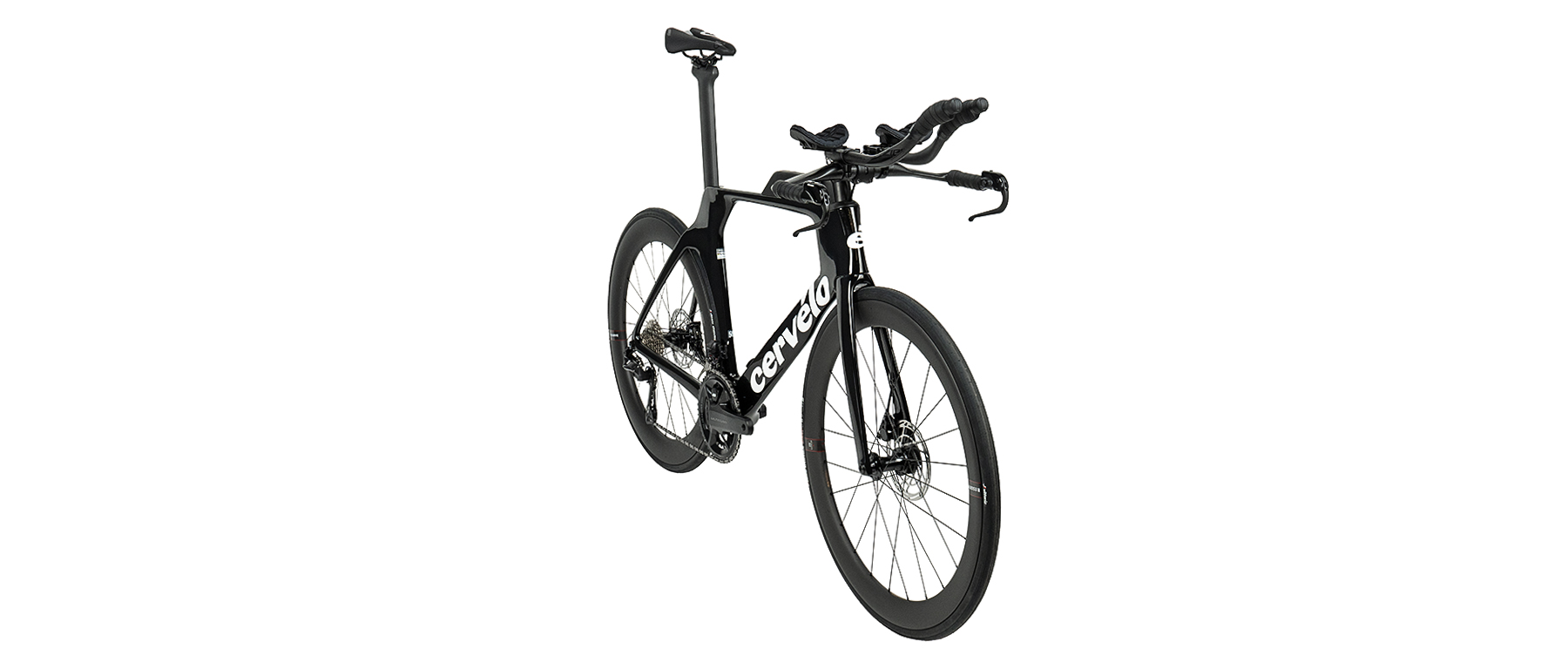

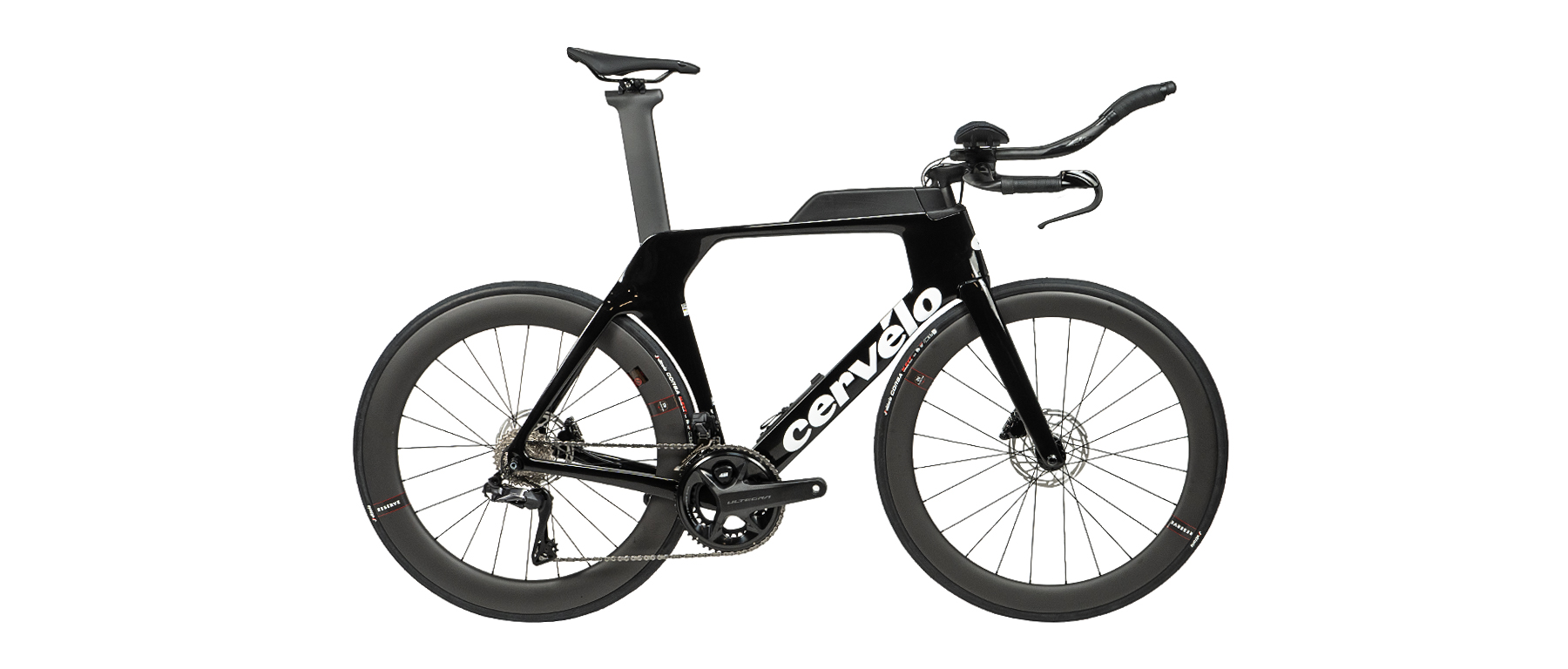

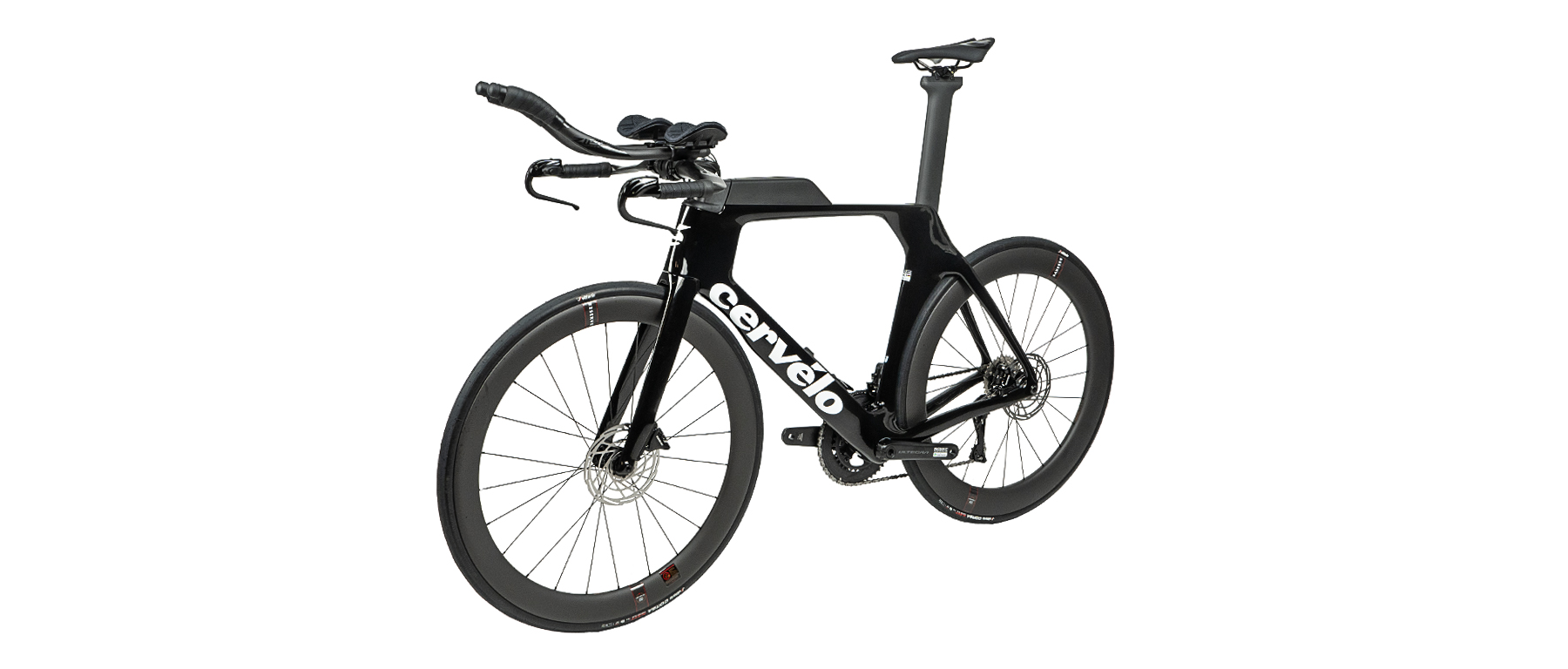

Cervelo has evolved their P-series bikes with updated frame designs and complete build packages that enhance aerodynamics, improve drivetrain efficiency and overall torsional resistance from the headtube back through the frame. Long gone is the P3 designation, with that frame level simply becoming the P-Series. Built here as a mid-range complete event bike, this Cervelo P Ultegra Di2 Bicycle triathlon/aero package demonstrates significant improvements with an Ultegra Di2 12-Speed drivetrain build featuring a Riderever hydraulic braking system and Reserve Carbon 50 wheelset. The build includes aero storage and hydration accessories that help to reduce drag while offering simplicity and convenience as part of this impressive complete package.
Cervelo created the all new P-Series for a single mission: to go from Point A to Point B as quick possible. The engineers went back to the drawing board of the P3, improving every facet. The P-Series features better air economy, improved stiffness and comfort. It has been designed with discipline, focus, style and swagger with every pedal stroke propelling human and machine through the air with ease, turning watts into wins. How? Start with torsional frame stiffness. The P-Series frameset is 18% stiffer at BB than P3. Headtube and general tube refinement from dropout to dropout combine with that BBright Asymmetric bottom bracket zone and the result is a borderline ridiculous 30% improvement in overall torsional stiffness. The P3 had been one of the most decorated framesets in the triathlon world, so to see such massive improvements is wholly impressive, and we haven't even mentioned that the P-Series frame is 9% lighter, or examined aerodynamics yet.
A quick look at the P3 and P-Series designs allows the viewer to see the similarities, but a closer look demonstrates the aerodynamic refinements that deliver impressive results. Clearly Cervelo has also been able to develop a new carbon lay-up to deliver the impressive stiffness and lighter weight, but those are generally internal. Aerodynamic changes can be very subtle but seen in three areas; frontal shapes, transitions from tube to tube and juncture to juncture, with the third being the integration of components and aero accessories- all taken together with proven wind tunnel and CFD testing, but also with respect to how the rider position and physical interaction impact the true overall aerodynamic picture. Cervelo has tested the P-Series at 26g faster than P3 bare, and 18g faster loaded. Every improvement, every detail, every struggle all serve to create a faster design, with many incremental changes adding up to more speed, delivered more efficiently, saving you watts of effort as you go faster.... Read More
Features
- Sleek, faster P-Series complete bike w/ Ultegra 12-speed Di2 shifting, Riderever hydraulic disc braking
- Evolved P-Series frameset, with significant aerodynamic and stiffness advantages
- 18% stiffer at BB than P3, 30% stiffer overall, while weighing 9% lighter
- Tested the P-Series at 26g faster than P3 bare, and 18g faster loaded
- Dropped Downtube, Extended Seat Cutout, BBright, internal routing system
- Full carbon frame/fork, with tapered 1⅜; - 1⅛" steerer, IS-2 headset
- Improved geometry offers more stack/reach fit flexibility
- Specifications

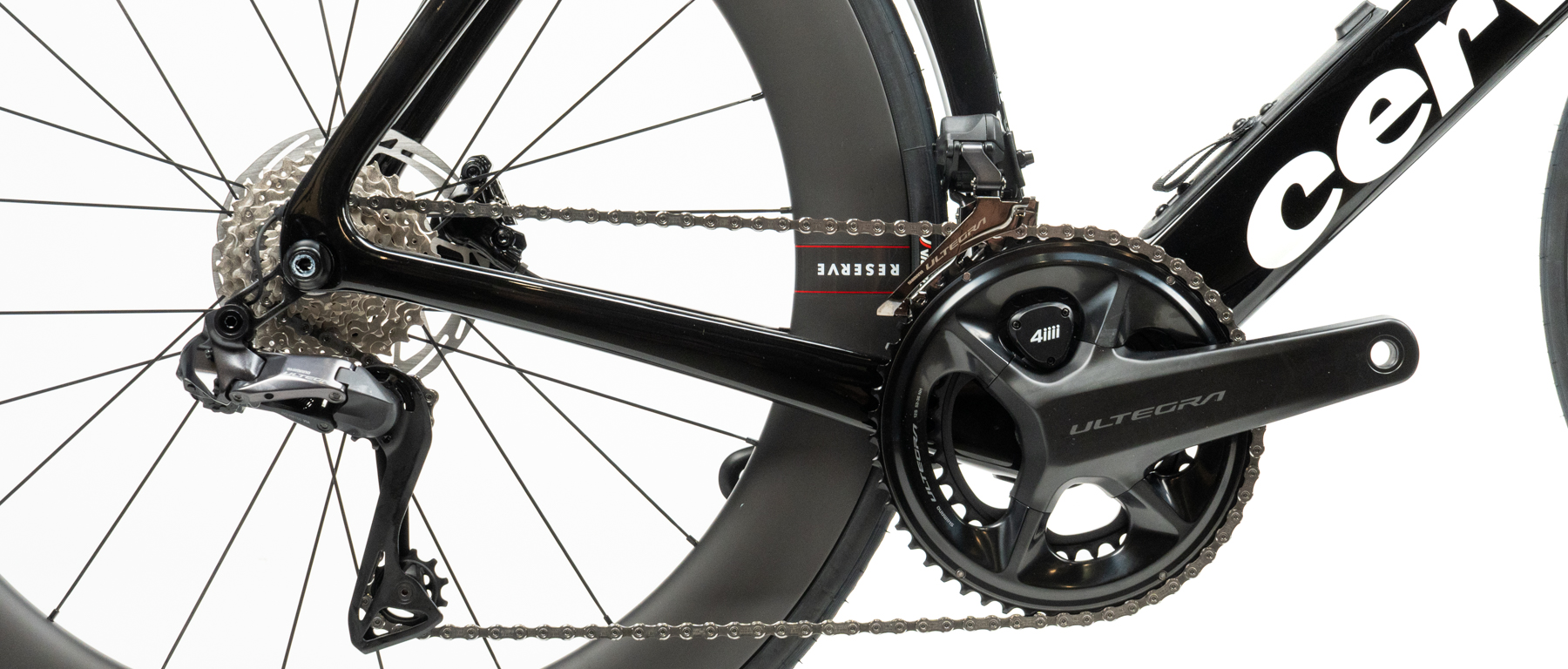

- Shimano Ultegra R8150/R8100/R9150 12-Speed equipped drivetrain
- Dura-Ace SW-R9150 Di2 shift buttons (on Riderever brake lever bodies), SW-R9160 aerobar shift buttons (both Dura-Ace shift buttons updated w/12s firmware)
- R8150 Di2 Front Derailleur; braze-on
- R8150 Di2 Rear Derailleur (features junction, charging interface, LED indicators, D-Fly, adjustment button)
- R8100 Crankset 52-36T, w/ Cervelo BBright Connect 24x90 bottom bracket
- R8100 12-Speed cassette, 11-30T (works with Shimano HG11r and HG12r compatible freehub bodies)
- Chain: Shimano M8100 12-Speed w/QL

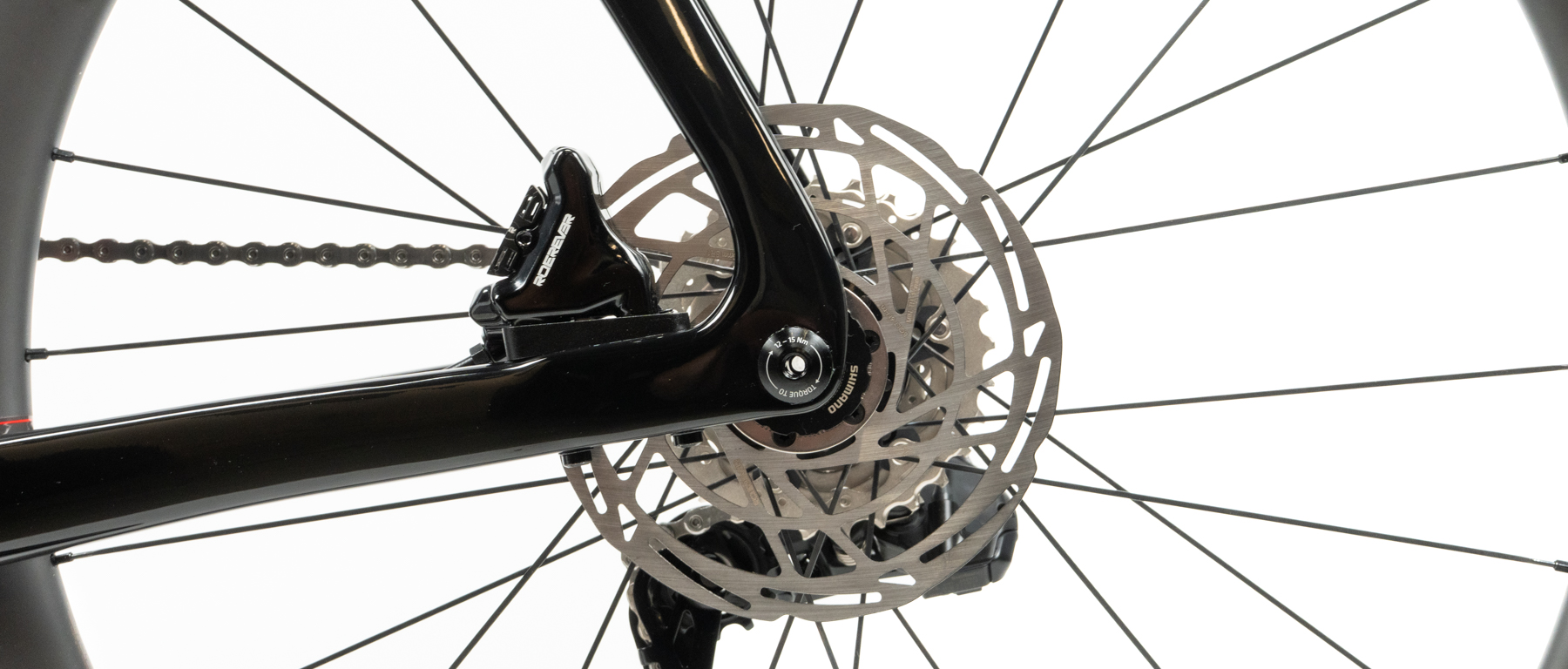

- Riderever Hydraulic Aero Disc Braking system

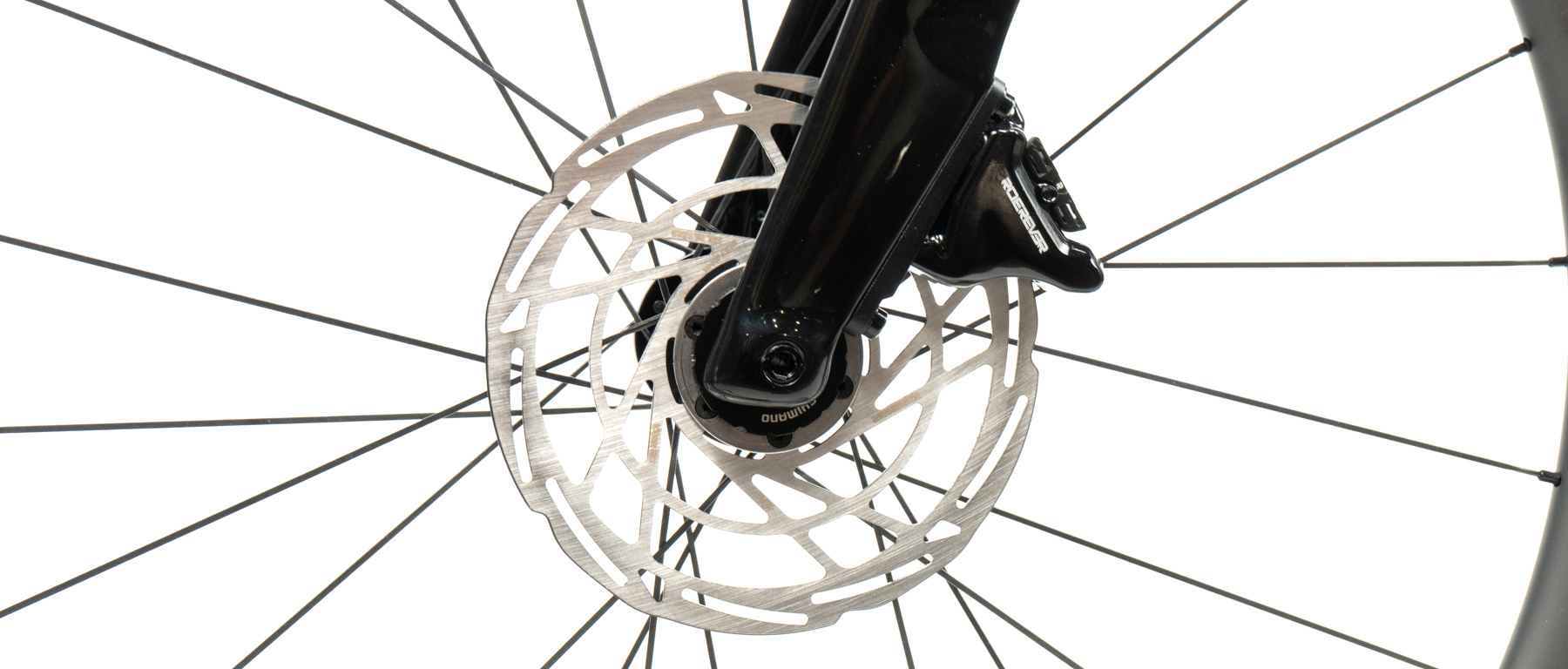

- Trivia Carbon Levers with reach adjust, Trivia Calipers (2-piston), RS02 160mm CL Disc Rotors

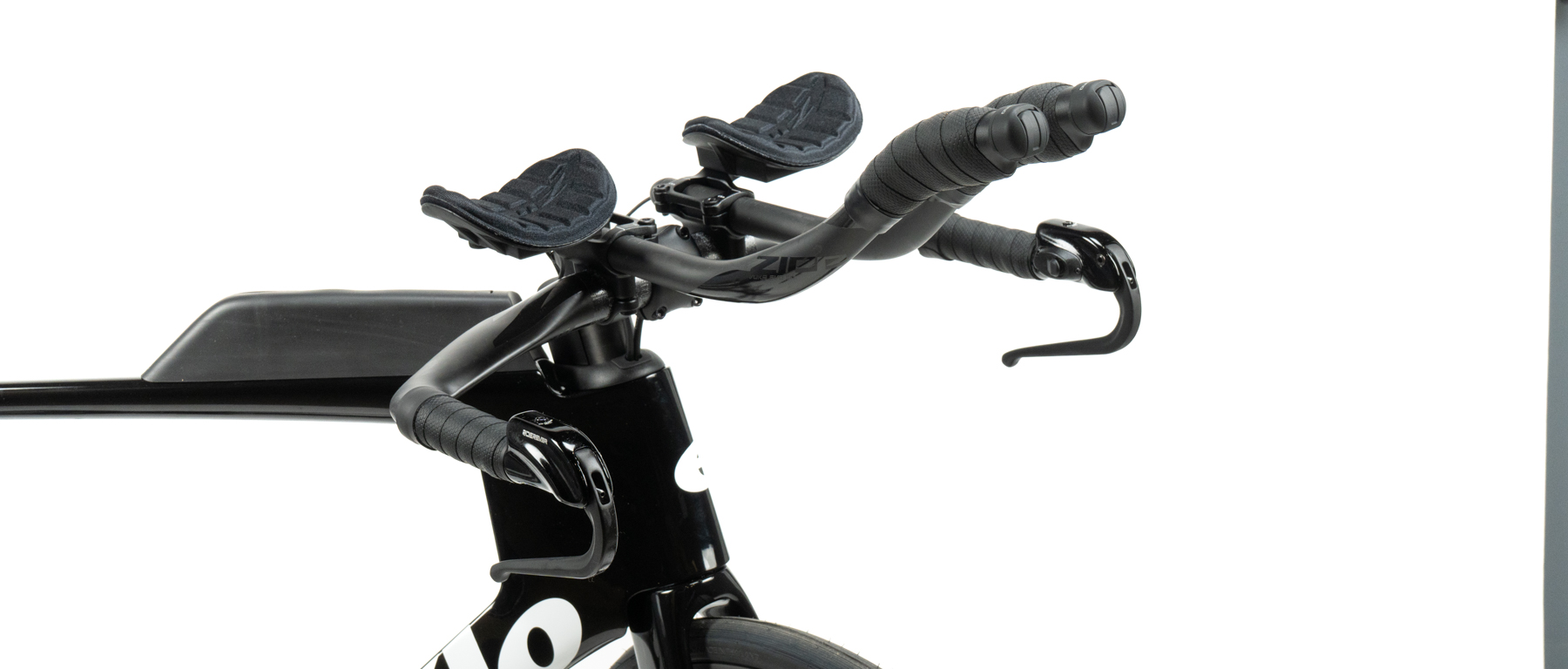

- Aero Cockpit

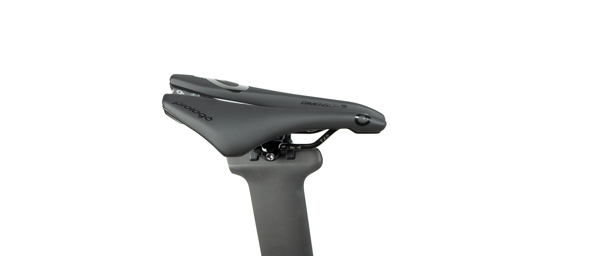

- Post/Saddle: Cervelo SP23 Aero Tri carbon seatpost with rear bottle cage mount / Prologo Dimension Tri T4.0
- Wheelset: Reserve Carbon 50, w/DT370 CL HG11 hubset 24h F/R, 21mm IRW, 28mm ERW; Tubeless Ready
- Tires: Vittoria Zaffiro Pro V Folding G2.0 25c w/ tubes

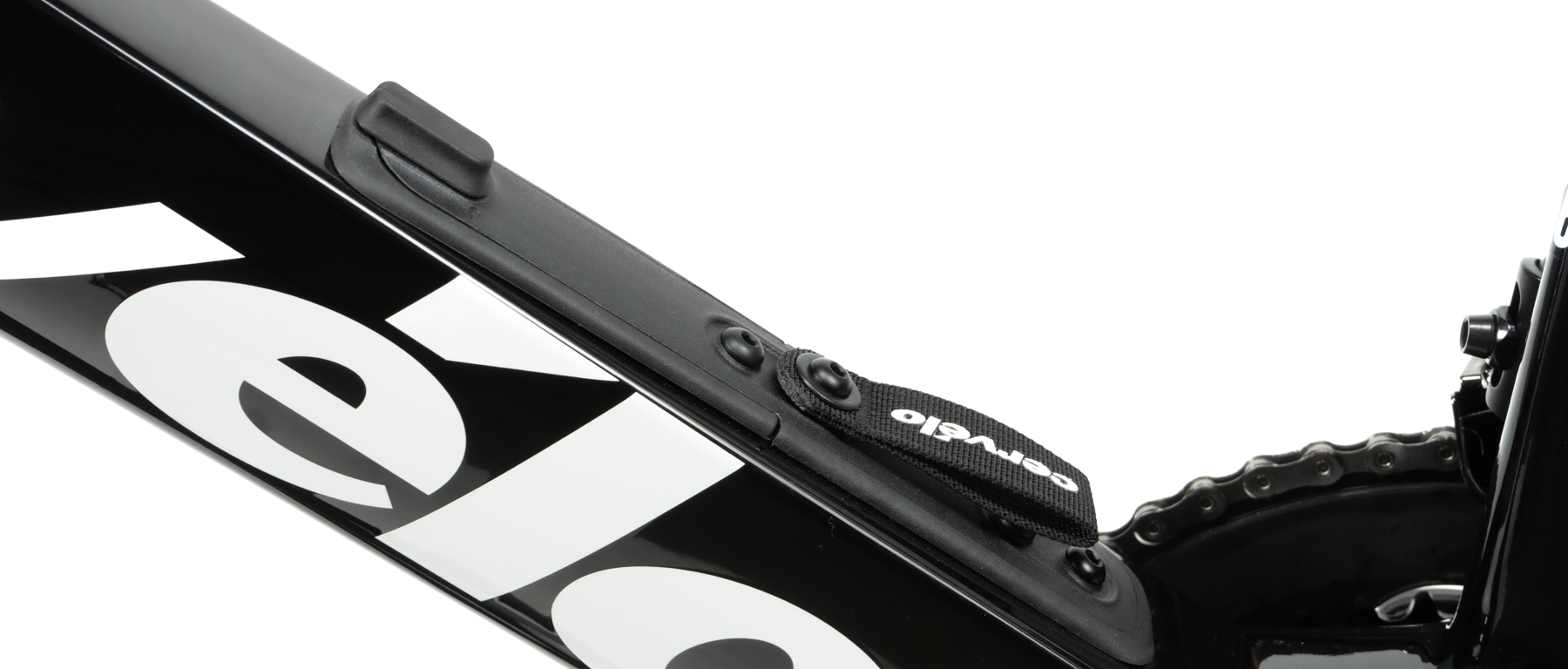

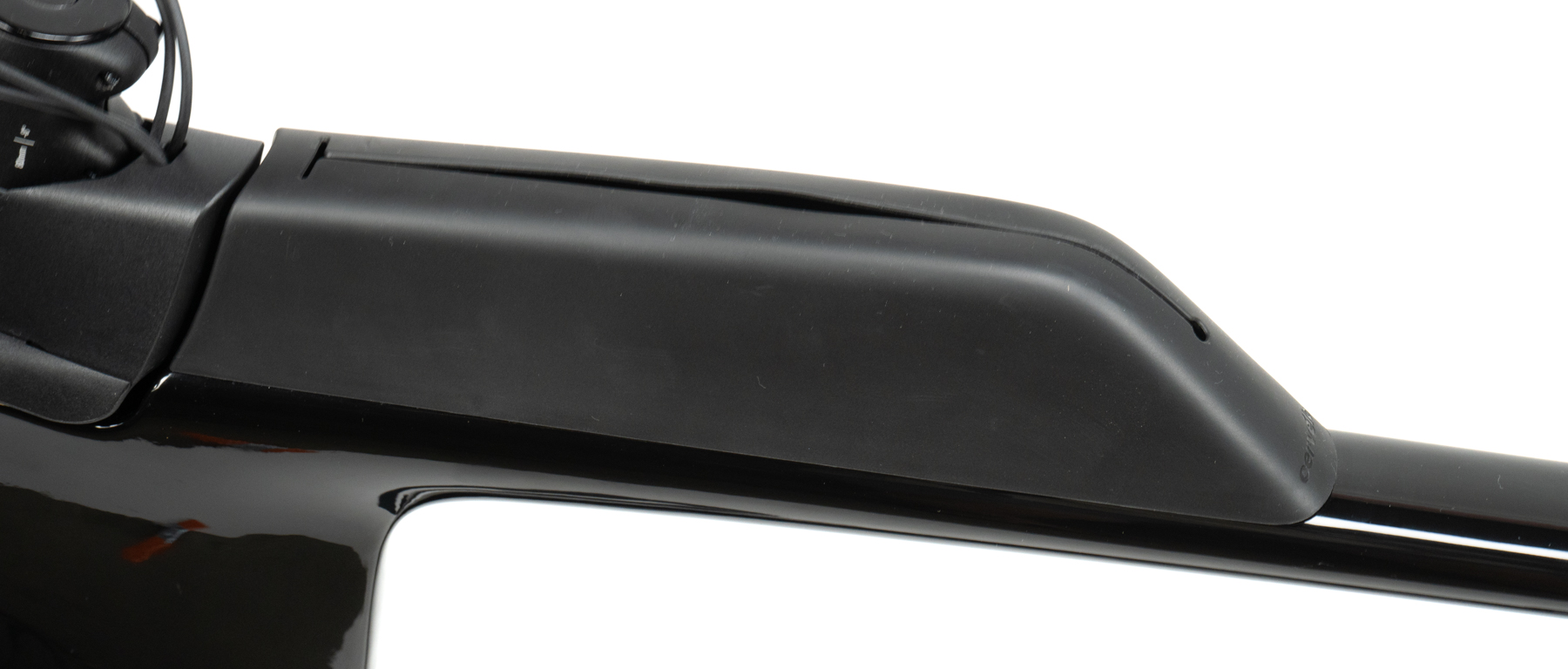

- Aerodynamic accessories: Smartpak 400, Aerobottle 500, Rear Hydration Mount (off seatpost)
- Component specifics by frame size
- 48cm/51cm | Bar width: 40c-c, Stem length: 80mm, Crank: 165mm
- 54cm/56cm | Bar width: 40c-c, Stem length: 80mm, Crank: 170mm
- 58cm/61cm | Bar width: 40c-c, Stem length: 90mm, Crank: 172.5mm
- Note: Component Specifications are subject to change due to supply chain challenges
- Sizes: 48, 51, 54, 56, 58, 61 cm
- Color: Black
- Weight: 19.78 lbs (48cm)

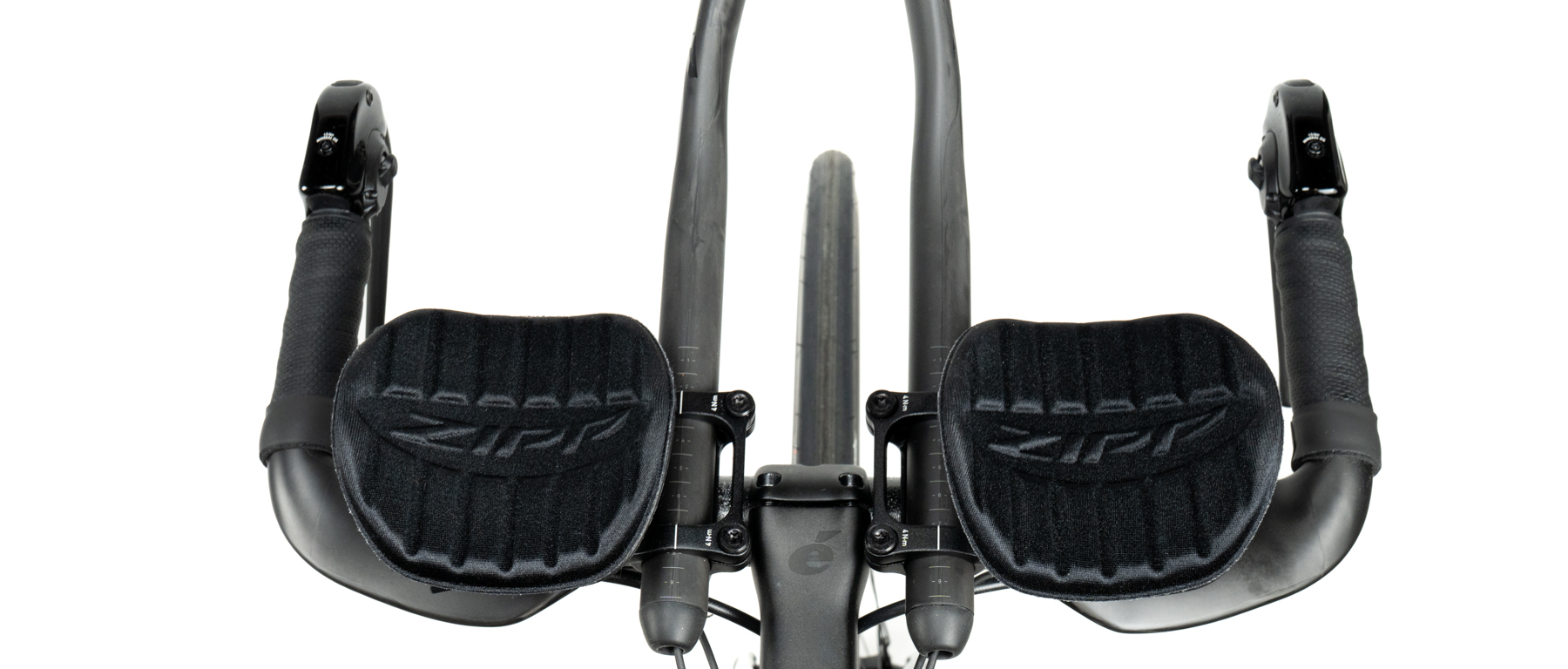

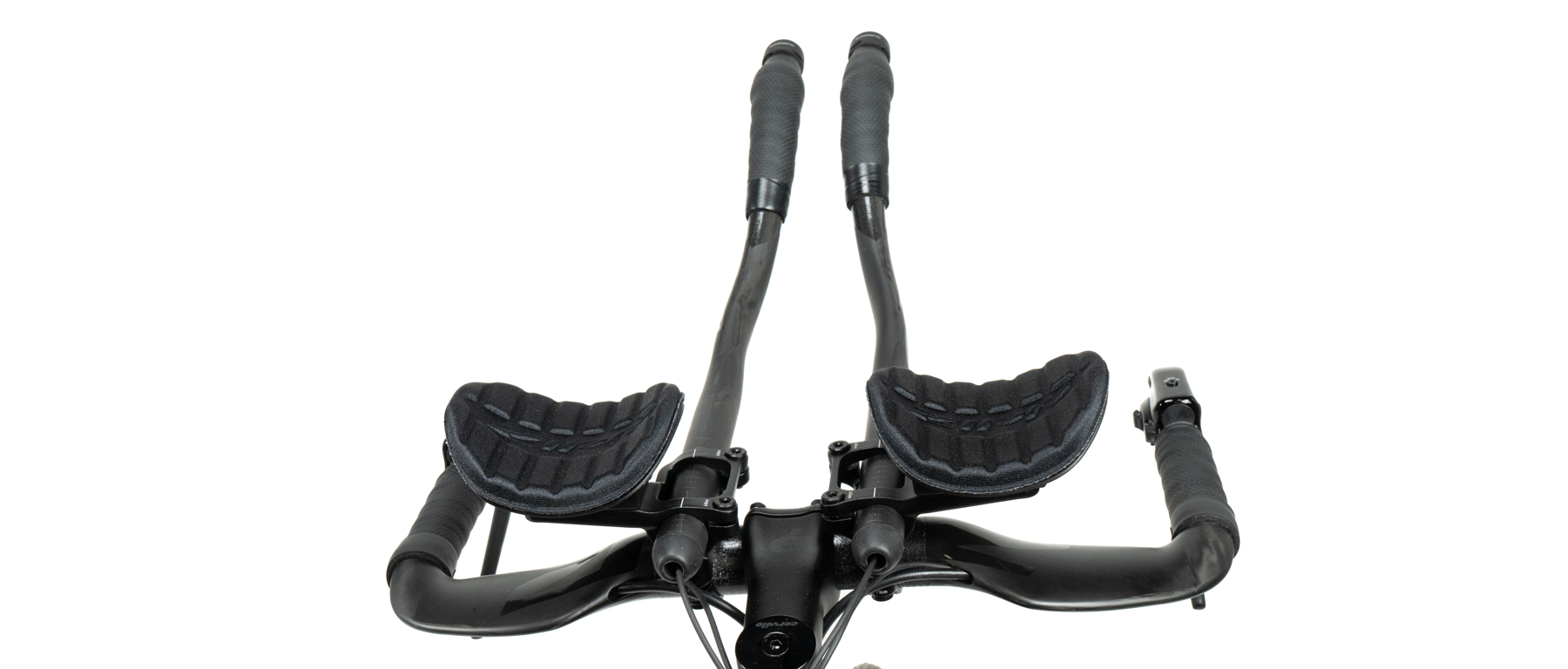

- Zipp Vuka Bull Carbon Basebar/Extensions, Cervelo Alloy Stem
Geometry
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Wheel Size | 700 | 700 | 700 | 700 | 700 | 700 |
| Stack | 485mm | 506mm | 522mm | 540mm | 559mm | 587mm |
| Reach | 381mm | 398mm | 412mm | 425mm | 437mm | 443mm |
| Head Angle | 71° | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° |
| Seat Angle | 75-79° | 75-79° | 75-79° | 75-79° | 75-79° | 75-79° |
| Top Tube Length | 511-475mm | 533-496mm | 551-513mm | 570-530mm | 587-546mm | 600-567mm |
| Head Tube Length | 87mm | 101mm | 118mm | 137mm | 157mm | 187mm |
| Standover | 732mm | 785mm | 773mm | 790mm | 808mm | 836mm |
| Fork Trail | 62.4mm | 62.4mm | 62.4mm | 62.4mm | 62.4mm | 62.4mm |
| Fork Offset | 54mm | 43mm | 43mm | 43mm | 43mm | 43mm |
| Bottom Bracket Drop | 75mmmm | 75mmmm | 75mmmm | 75mmmm | 75mmmm | 75mmmm |
| Front Center | 582mm | 583mm | 602mm | 622mm | 640mm | 654mm |
| Wheelbase | 975mm | 976mm | 995mm | 1015mm | 1033mm | 1047mm |
| Chainstay Length | 405mm | 405mm | 405mm | 405mm | 405mm | 405mm |
