Bicycles > Road > Complete

Description

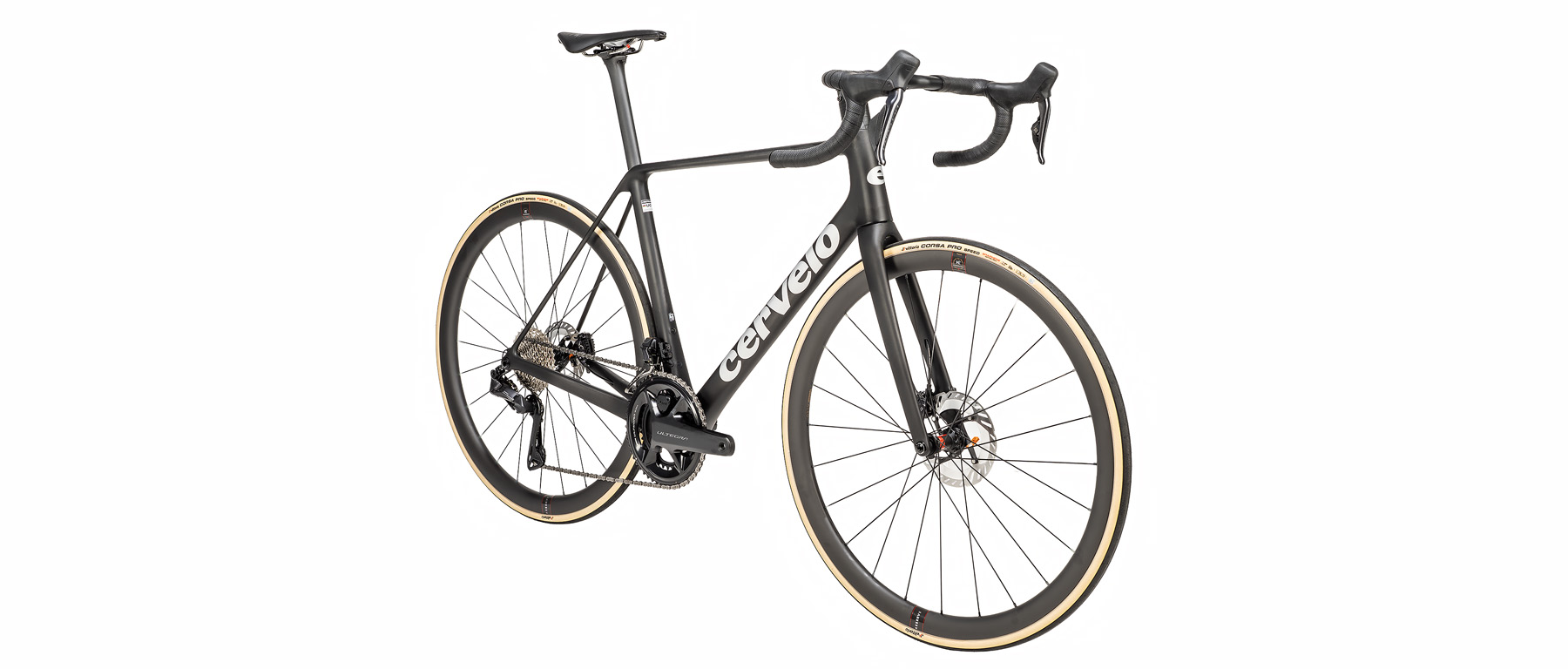

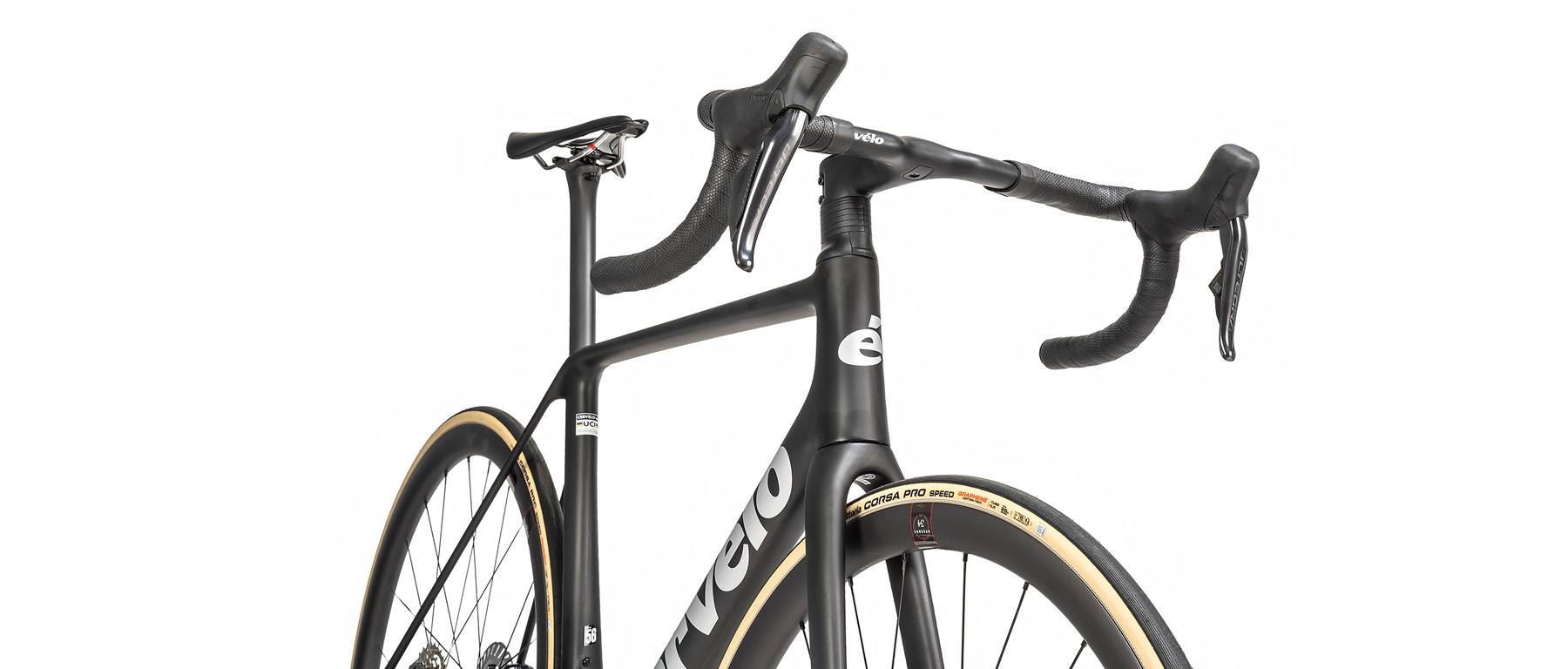

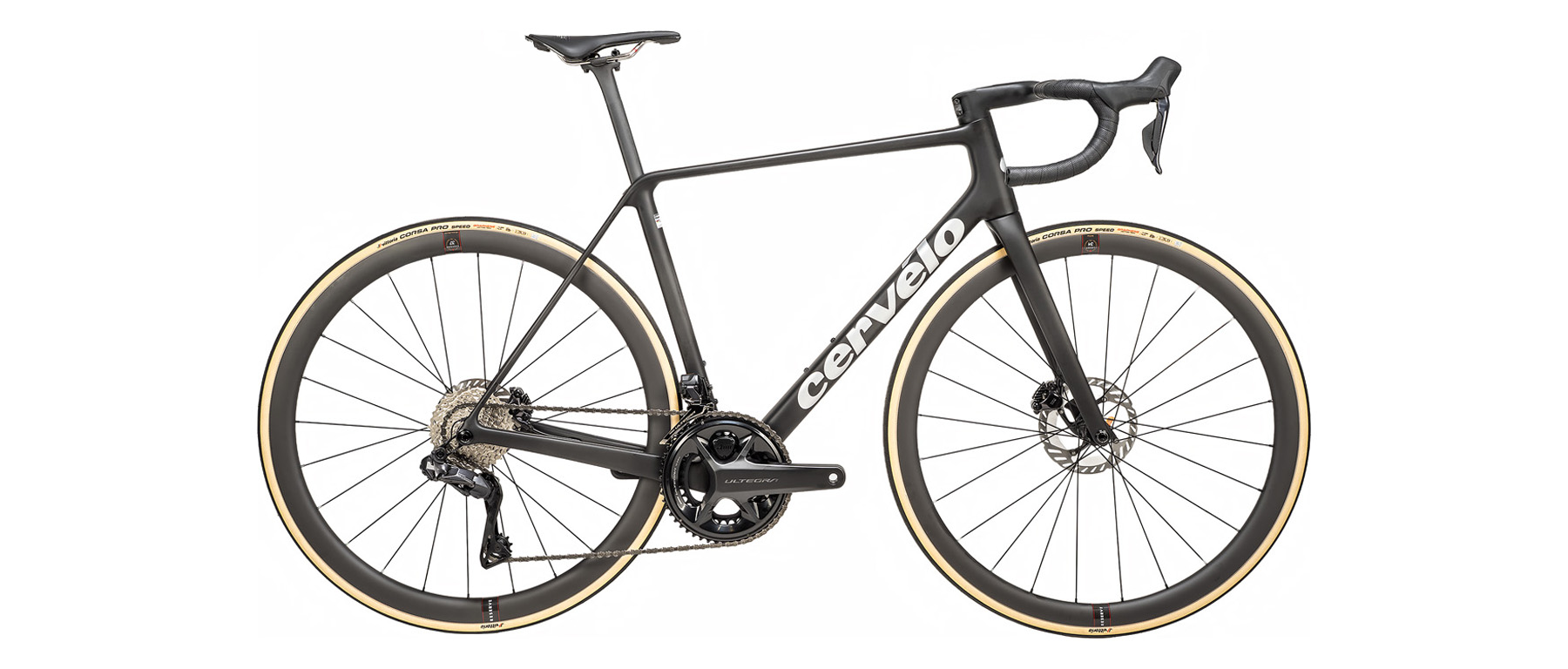

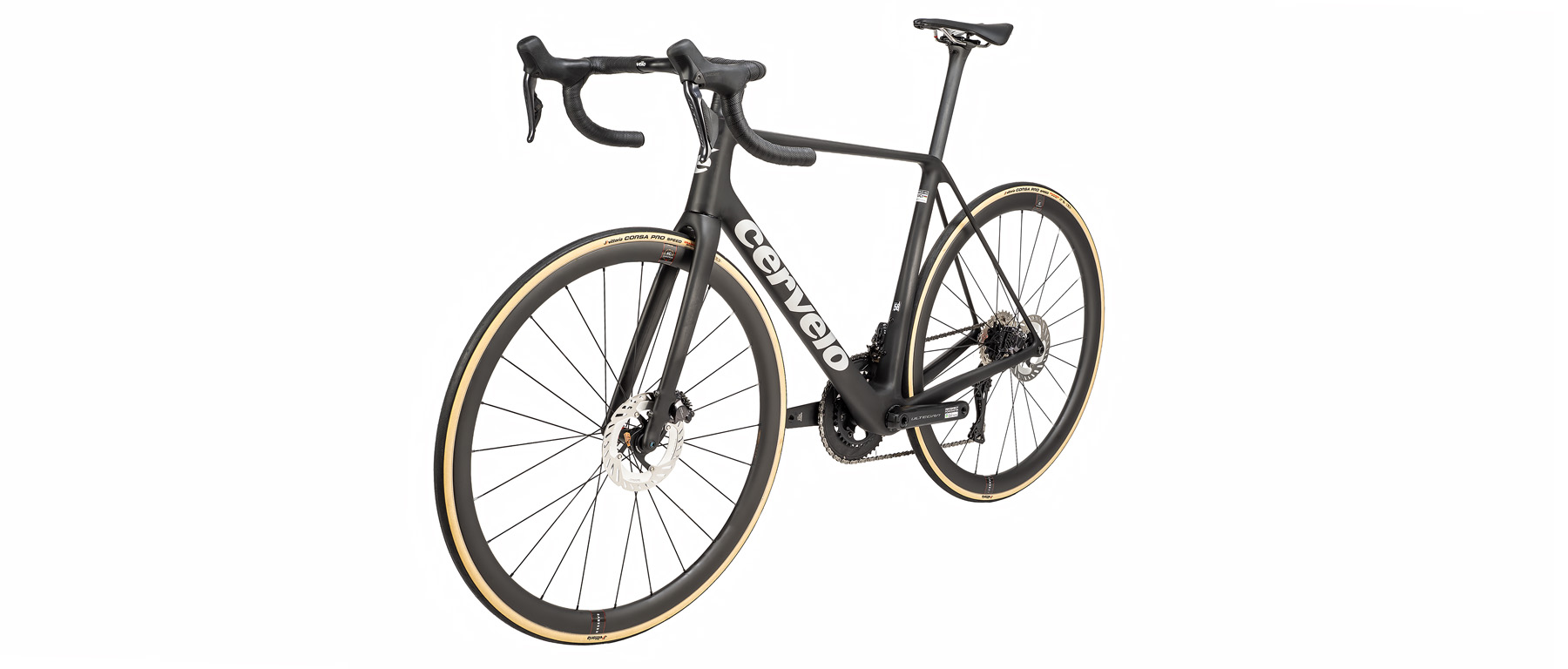

The R5 is premium race frameset and here it has been built with Shimano's 12-Speed R8170 Di2 groupset as a more accessible price point. The shifters are wireless, making life easier for full integrated cockpit routing. Shimano found that a seatpost battery was still the best option for powering the front and rear derailleurs, so the rear is still wired. With the fastest, most precise and most reliable shifting system and advanced hydraulic disc braking, this 2023 Cervelo R5 Ultegra R8170 Di2 Bicycle will deliver you to the front with unassailable efficiency.

The Cervelo R5 has long been the all-around and mountains-oriented road race bike that complemented the company's more aerodynamic S5. Few bike concepts have been as well received in World Tour racing and with serious cycling enthusiasts as the R5, and an intimate connection between the R5 and its riders means Cervelo truly listens when they offer feedback. By using incredibly sensitive, detailed topology studies of the frameset, the venerable engineers at Cervelo definitively identified how, where, and which carbon choices could be applied in the lay-up process to optimize weight and ride quality without sacrificing stiffness or overall efficiency. As such, Cervelo developed this current R5, which had first been seen in grand tours in 2021. Lighter, more compliant, with greater stability, increased aerodynamic efficiency and better fit/set-up concepts, this R5 frameset has impressive tire clearance while maintaining the same essential geometry and handing. The numbers differ from the last gen, but only to accommodate the updated design and larger tire capability. This bike features a 700 gram frameset in a 56cm (15% lighter) that is ready to race and ride everyday.

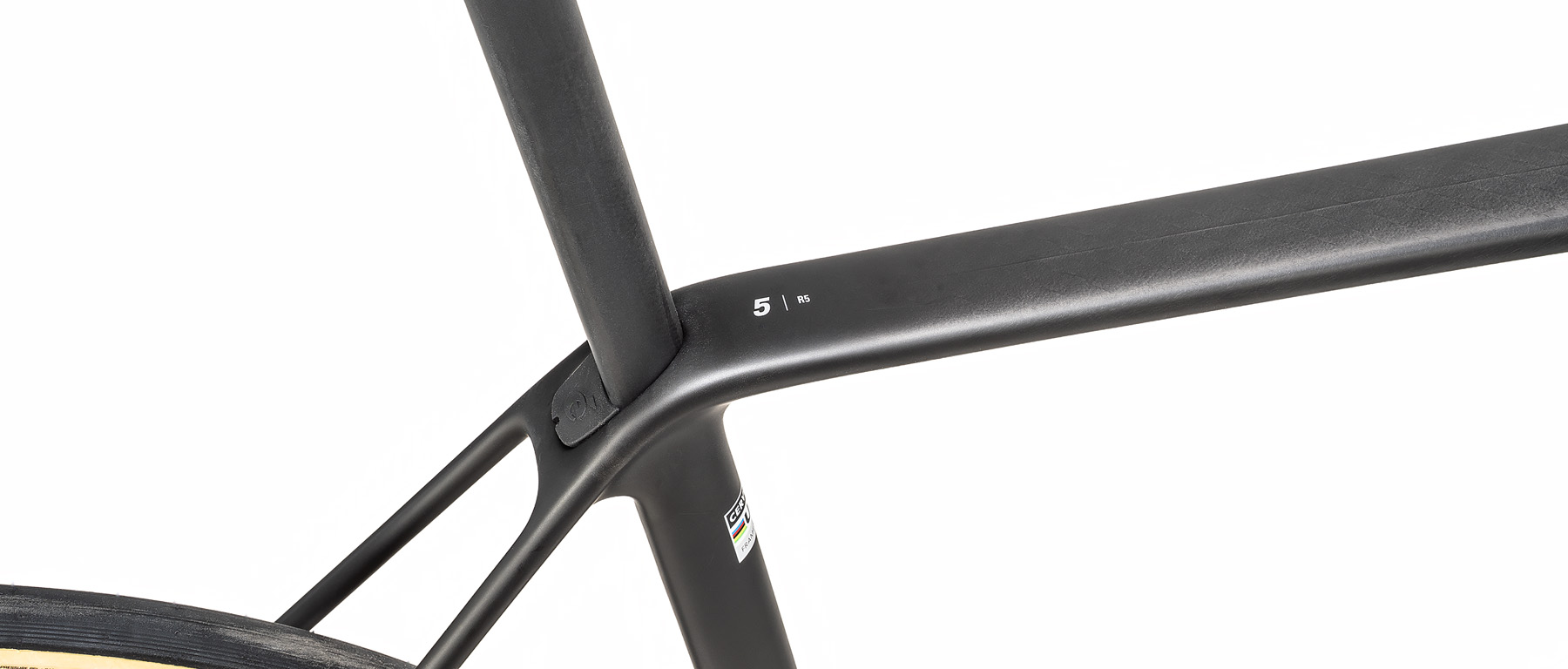

The previous R5 was built to seriously improve power transfer, deliver a pro race geometry, and be as efficient as possible in a non-aero bike. Cyclists loved the geometry, power transfer, and handling characteristics, but longed for it to be a bit lighter and more forgiving. The massive Squoval™Max downtube delivered the lateral and drivetrain stiffness required, but added some weight and impacted vertical compliance. Topology studies led to a refined carbon layup schedule, new downtube and headtube, along with fork crown and housing integration. The seatstays and upper rear triangle junction was also changed to lower the seattube/toptube junction, allowing for more exposed seatpost length- which aids in increasing vertical and ride compliance.

The super clean, fully internal housing and wiring system increases aero efficiency, as does the integrated leg taper and "chinned" crown of the new R5 fork with the downtube. With a reduced factor downtube and subtly improved Squoval™Max tubes, small gains are achieved, with a total improvement of 19 grams in reduced drag, or 2.5 watts, which may not sound like much, but the previous generation R5 was pretty efficient, and remember- the R5 is not a pure aero design- that is what the S5 delivers.

Cervelo was able to outfit this R5 with 34mm tire clearance, yes- really, without using a dropped stay, by maximizing the oversized asymmetric nature of the BBright bottom bracket shell and vertically oversized chainstay design. Remember, the R5 has been strongly informed by the previous development of the R3 Mud as well as the premium vertical compliance of R-series minimalist seatstays. A 410mm chainstay length delivers clearance but keeps the handling responsive. The designers maintained the 73mm seattube angle with a 57.5mm fork Trail on a 28mm tire in all sizes, and carry over the same size-specific Stack and Reach.

With the new, lighter R5 Carbon disc brake fork, Cervelo ships a C-shaped steerer expansion plug, which will thankfully make steerer tube height cutting a simpler task. The headset upper bearing cover now comes in a super low 7mm stack height, as well as a mid-height 22mm. By adding 30mm of the fork-specific spacers, up to a max 52mm stack height is an option. Cervelo also changed their D-shaped seatpost offerings. The new 400mm long SP24 is available in a Zero offset- shipped with 48 and 51 cm sizes, as well as a 15mm Setback version- coming with all other sizes.

With this workhorse Ultegra Di2 build Cervelo includes the reconceived Reserve 34|37 Carbon disc brake wheelset. The clincher/tubeless ready design now features 24 hole front (34mm) and 24 hole rear (37mm) specific depths as well as internal widths for a better balance of low-mid profile aerodynamics. The results show in improved stability and handling characteristics. These rims are laced to the new DT Swiss 370 CL disc hubset, coming together to be an ideal complement to this fast, fun, responsive, race-worthy build.

Return to Top
Features

  • Race-grade road disc frameset bicycle featuring 12-Speed Ultegra R8170 Di2 for all-around riding with excellent performance
  • Current R5 56cm Squoval™Max frameset (frame/fork) is 160 grams lighter than predecessor
  • Frame stiffness has been optimized for comfort and reduced weight; fork developed with improved stability
  • Aero efficiency achieved total improvement of 19 grams in reduced drag, or 2.5 watts

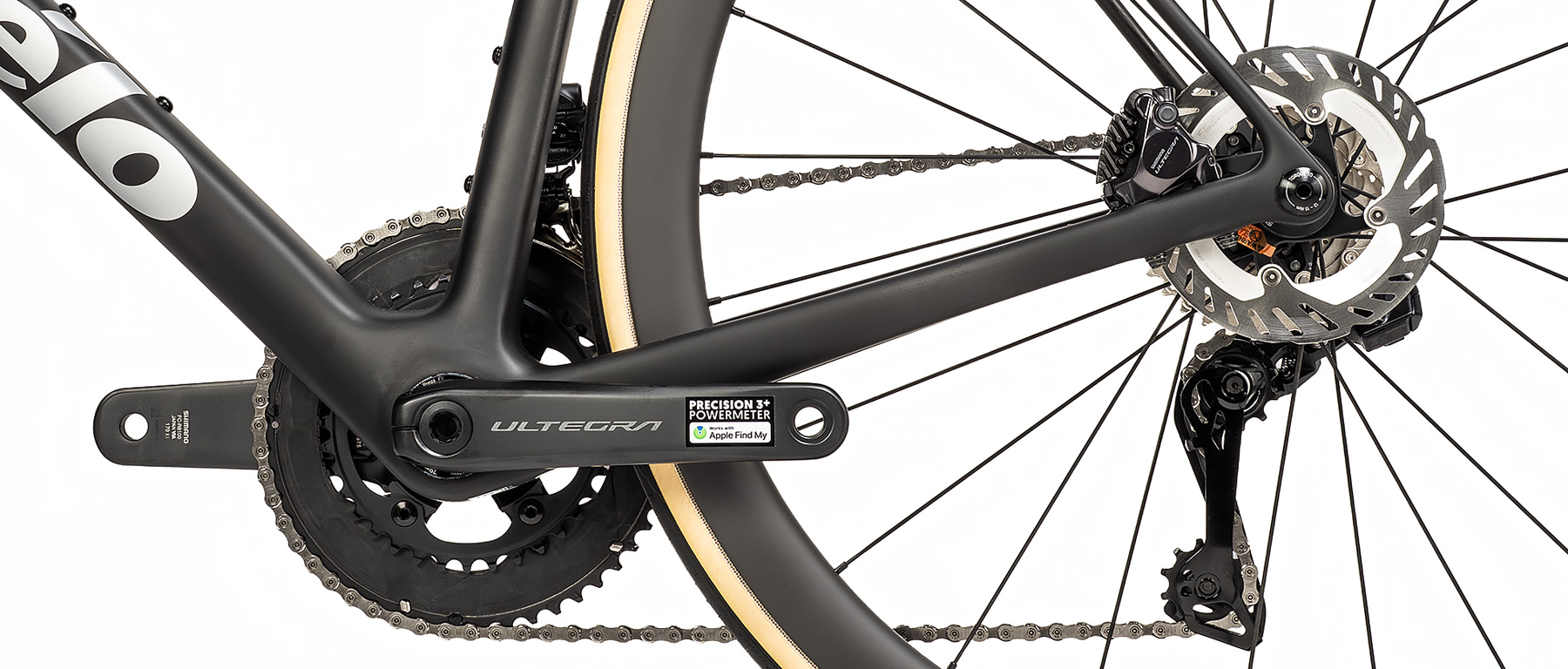

  • BBright asymmetric BB shell (79mm PF) and vertically oversized chainstays deliver impressive drivetrain power and lateral stiffness
  • Full internal hydraulic hose and wire routing from bar into frame for clean, aero effect; Electronic-only cockpit (rear wiring from seattube to RD)
  • Cervelo Aero (bolt-on) Thru-Axles, w/ Removable Handle Tool
  • Specifications
  • Frame: R5 road, carbon, FM disc brake (160mm max rotor), braze-on FD tab, 12/142mm Thru-axle dropout, Rear seatpost wedge
  • Fork: R5 full carbon integrated, tapered, FM disc brake (160mm max), 12/100mm Thru-axle dropout
  • Groupset: Shimano Ultegra Di2 12spd R8170/R8150/R8100 (Semi-wireless shifting/hydraulic disc braking)
    • Shift/Brake Levers: R8170 Di2 w/ hydraulic disc braking; wireless powered by coin cell batteries
    • Front/Rear Derailleur: R8150 Di2, Braze-on / R8150 Di2 (Shadow, Integrated D-Fly/Junction, max 34T large cog)

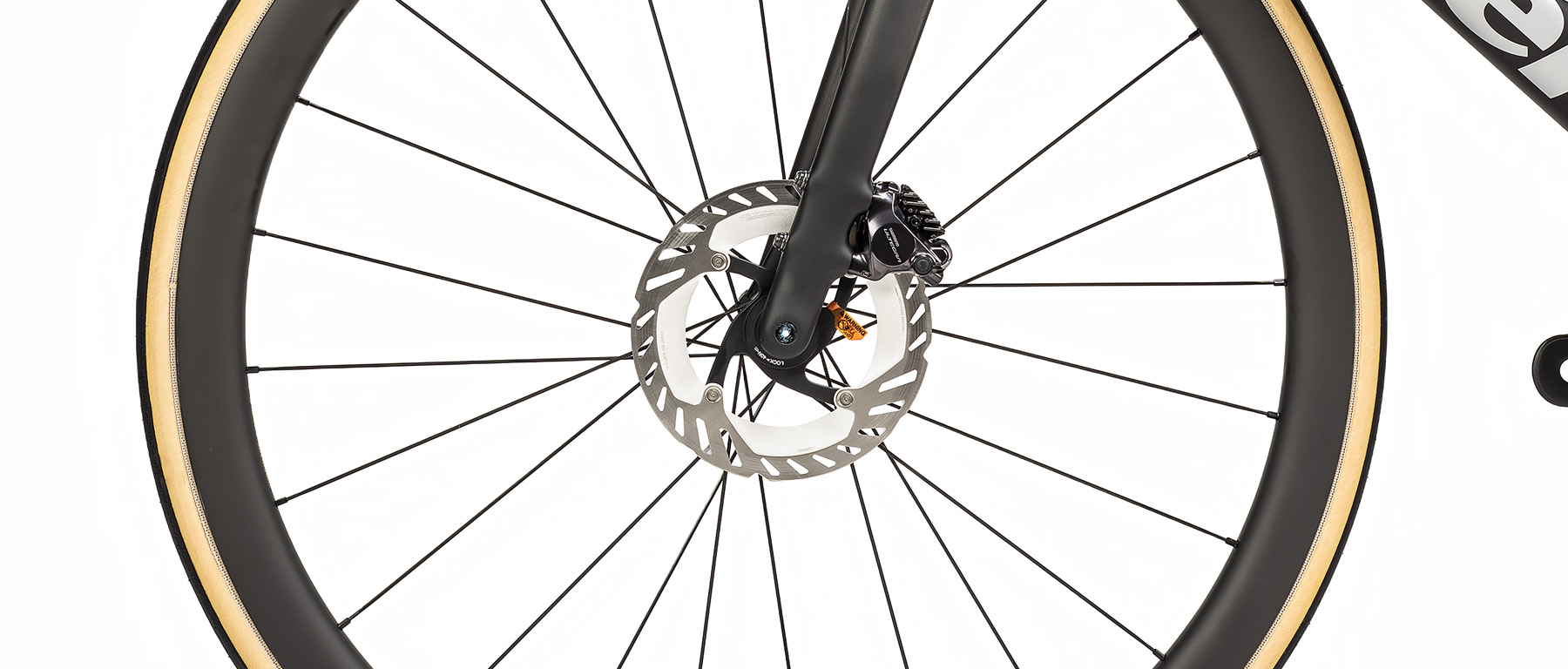

    • Brakes/Rotors: R8170 Flat Mount Calipers, RT-MT800 CL 160mm disc rotors

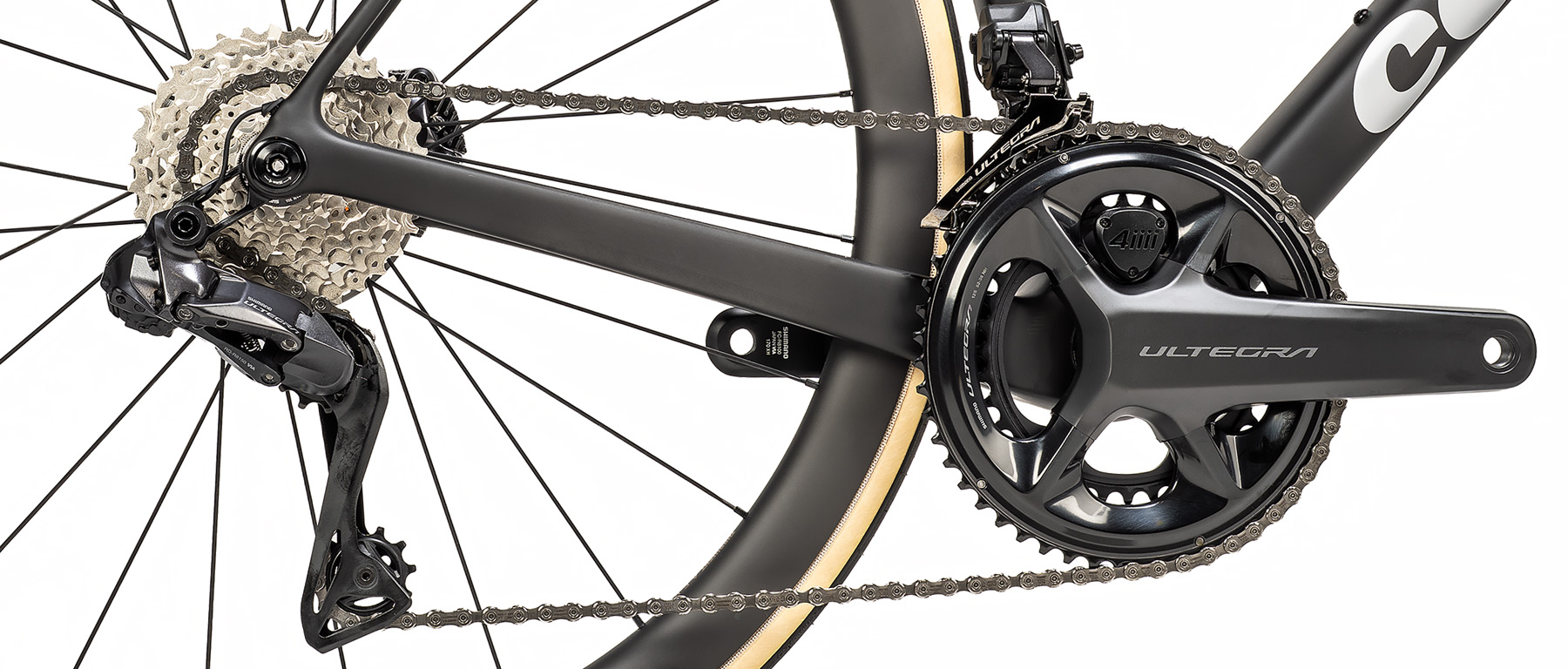

    • Crankset/BB: R8100 52/36 / JY-BB 24
    • Cassette/Chain: CS-R8100, 11-30T / CN-M8100 12spd
    • Di2: Integrated wireless cockpit, New e-Tube wiring from seatpost battery to FD, RD (RD has LED/adjust, D-Fly and charging port
  • Wheelset: Reserve 34/37mm, New DT370; 24h (F/R), 22.6mm IRW (F), 21.6mm IRW (R), CL Disc, TLR, HG11-12 freehub
  • Tires: Vittoria Corsa TLR G2.0 700x25
  • Cockpit

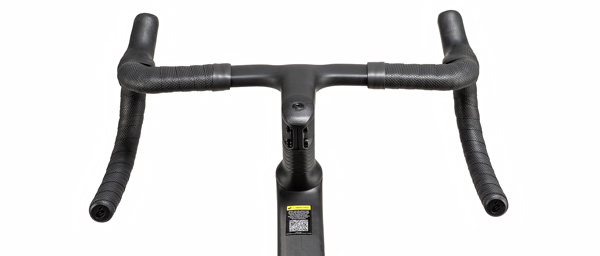

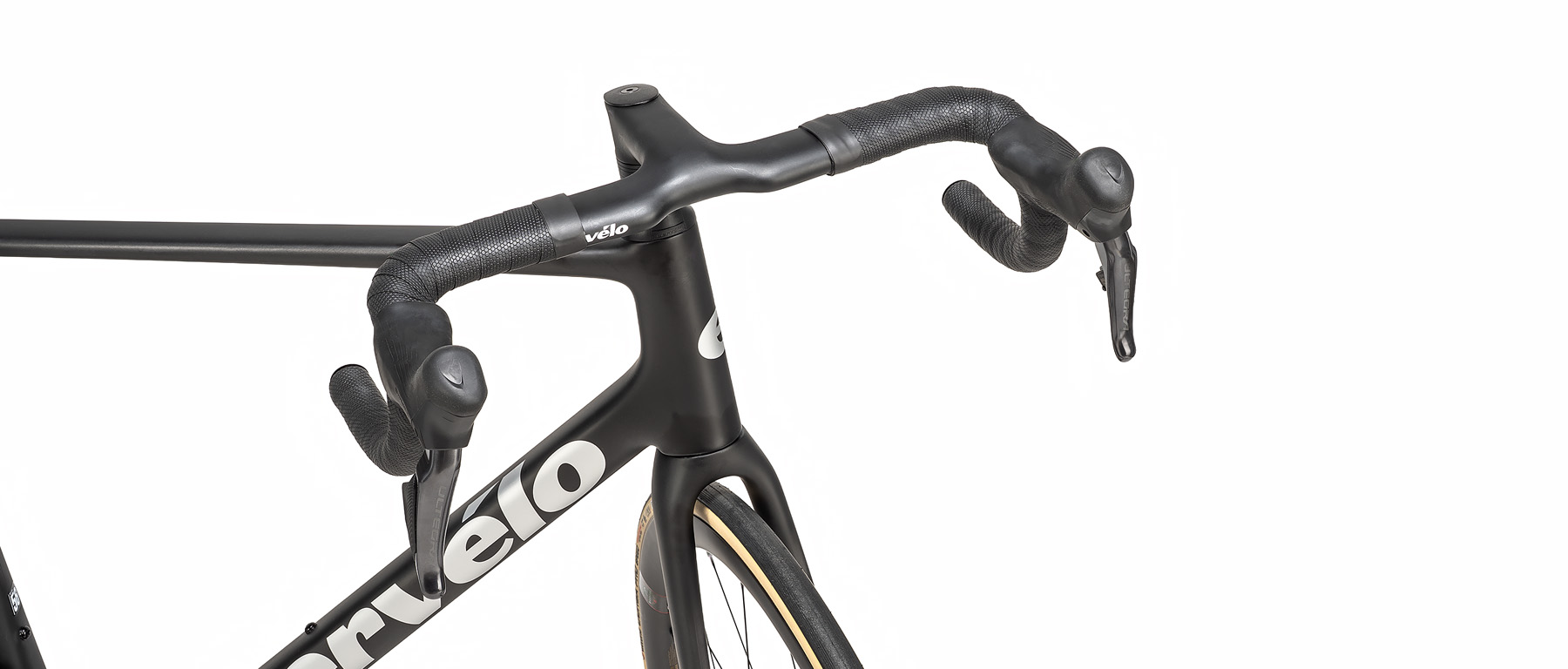

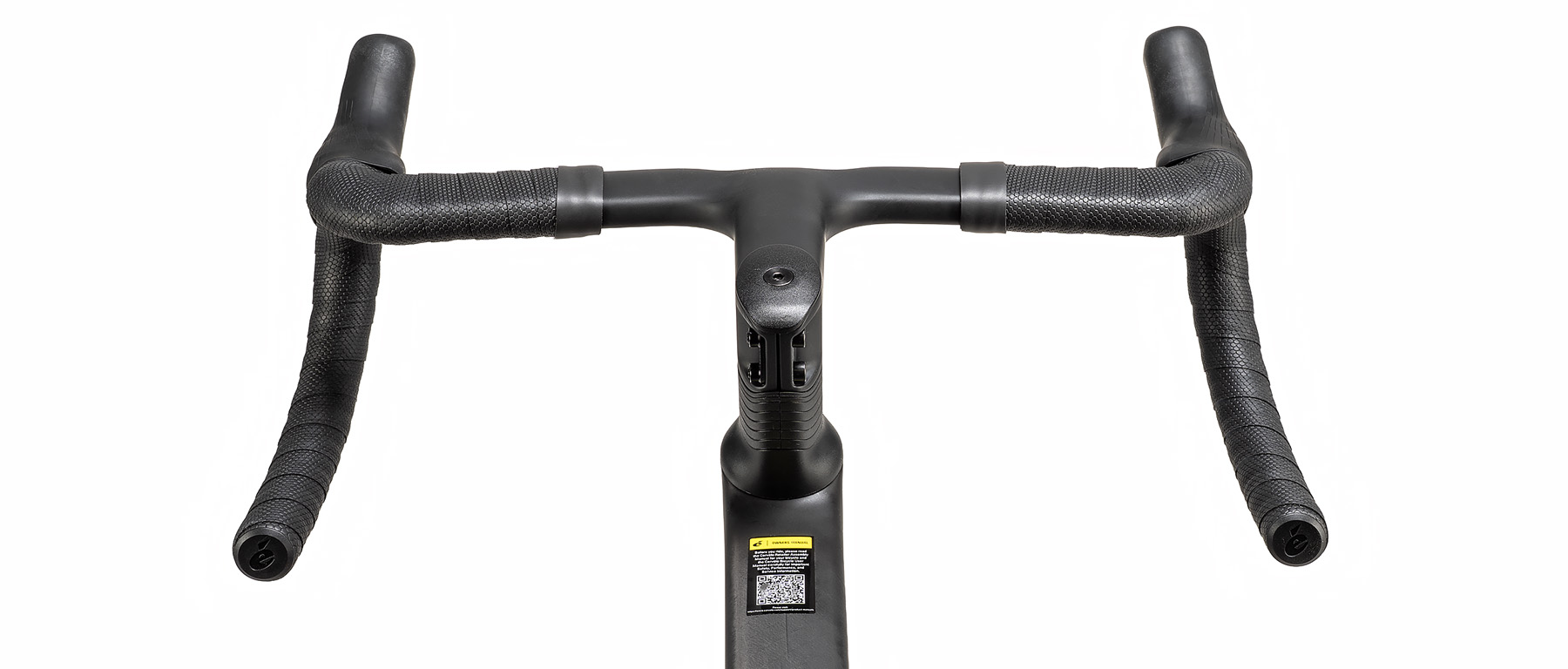

    • Handlebar/Tape: Cervelo HB13 Carbon, 31.8mm, semi aero, semi-internal routing, 80mm Reach, 123mm Drop / Cervelo Grip tape
    • Stem: Cervelo ST31L Carbon, 31.8mm, fits C-shape steerer for internal routing
    • Seatpost: Cervélo SP24 Carbon Aero (D-shape) Post

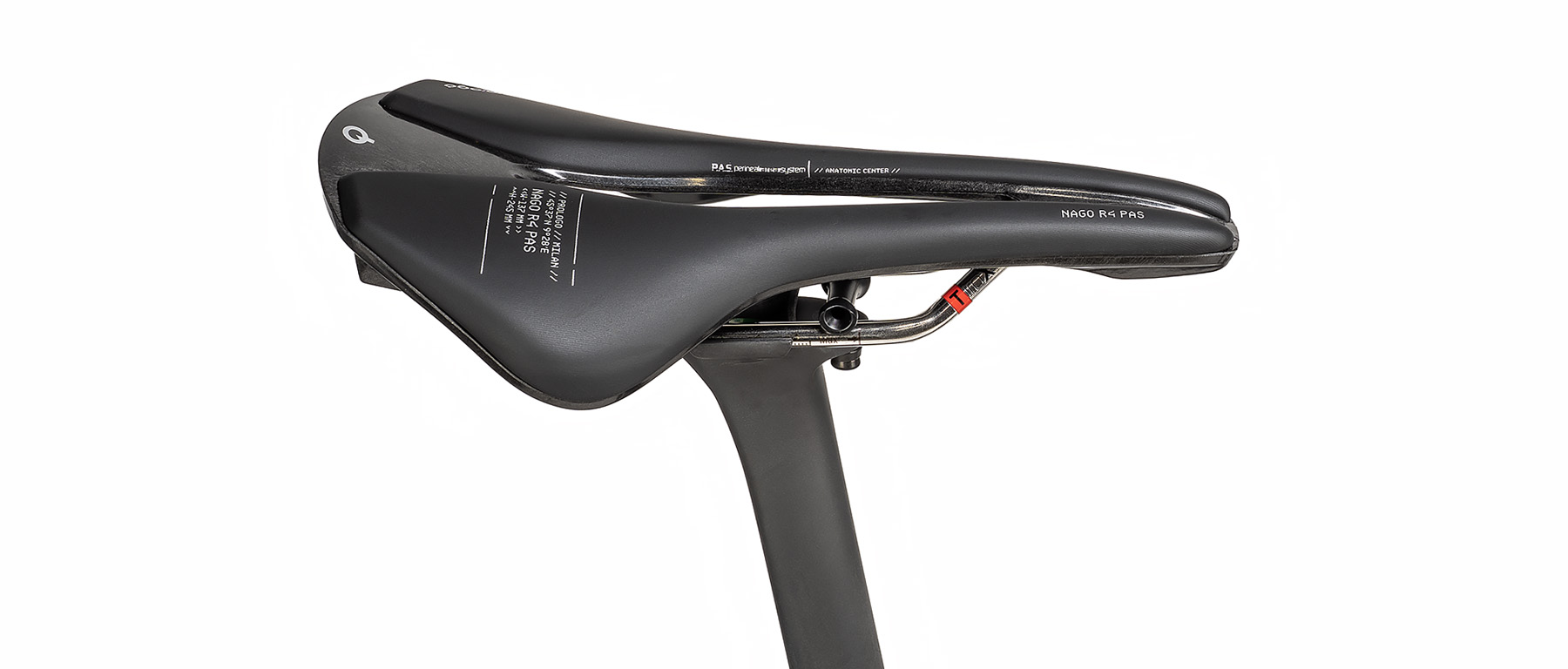

    • Saddle: Prologo Scratch M5 PAS TiRox
  • Cervelo Accessories: Stem Faceplate Front Computer/Acc Mount, Rear Acc Mount
  • Component specifics by frame size
    • 48cm | Bar width: 38c-c, Stem length: 80mm, Seatpost: Zero offset
    • 51cm | Bar width: 40c-c, Stem length: 90mm, Seatpost: Zero offset
    • 54cm/56cm | Bar width: 42c-c, Stem length: 100mm, Seatpost: 15mm Setback
    • 58cm/61cm | Bar width: 44c-c, Stem length: 110mm, Seatpost: 15mm Setback
  • Color: Five Black, Lime Black
  • Weight: Frame 703g (56cm); Complete bike: TBD
Return to Top
Geometry
Size 48cm 51cm 54cm 56cm 58cm 61cm
Wheel Size 700 700 700 700 700 700
Stack 497mm 522mm 547mm 572mm 597mm 622mm
Reach 363mm 371mm 380mm 389mm 398mm 407mm
Head Angle 71° 72° 73° 73° 73° 73°
Seat Angle 73° 73° 73° 73° 73° 73°
Top Tube Length 515mm 531mm 548mm 564mm 581mm 598mm
Head Tube Length 93mm 114mm 137mm 163mm 192mm 218mm
Standover 695mm 724mm 755mm 778mm 800mm 824mm
Fork Trail 57.5mm 57.5mm 57.5mm 57.5mm 57.5mm 57.5mm
Fork Offset 57.5mm 51.5mm 45.5mm 45.5mm 45.5mm 45.5mm
Bottom Bracket Drop 74.5mm 74.5mm 72mm 72mm 69.5mm 69.5mm
Front Center 574mm 576mm 578mm 594mm 611mm 628mm
Wheelbase 972mm 974mm 977mm 994mm 1011mm 1028mm
Chainstay Length 410mm 410mm 410mm 410mm 410mm 410mm
