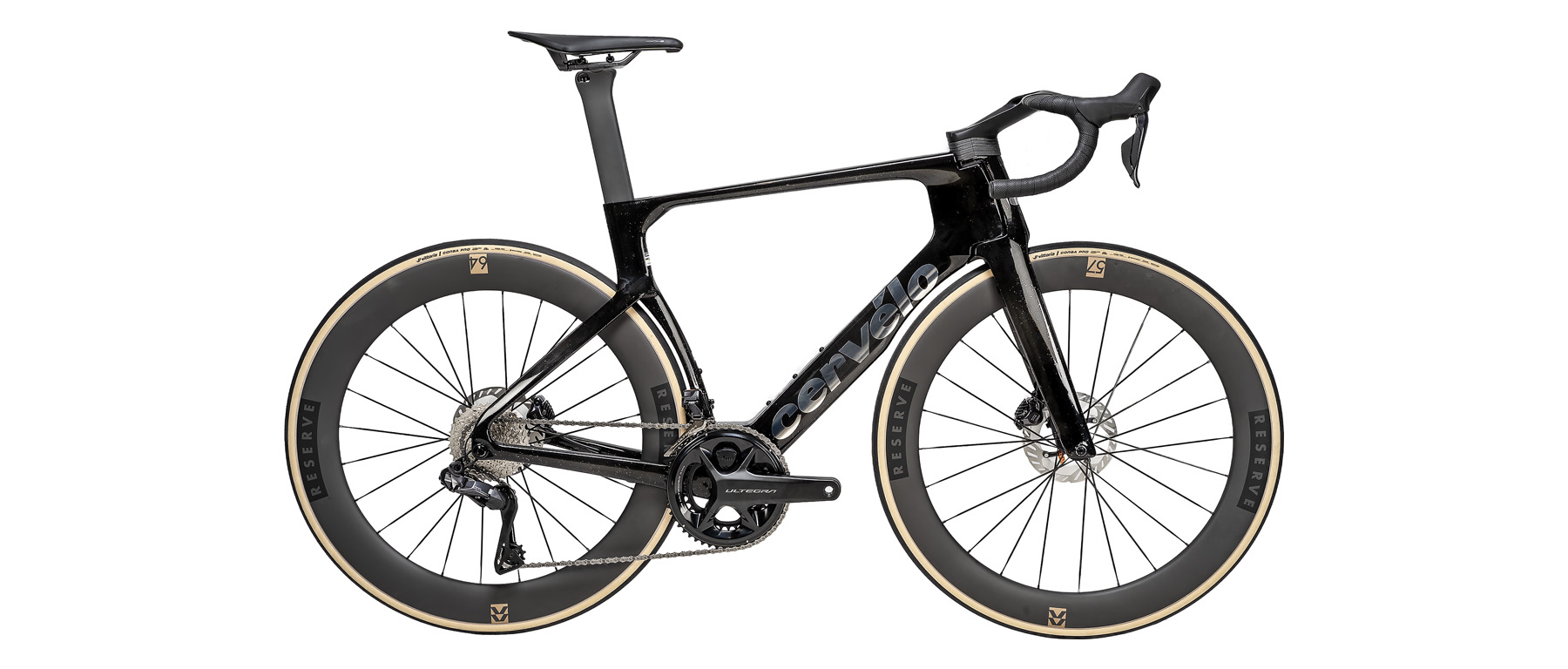

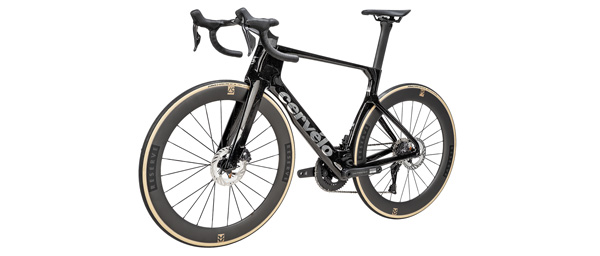

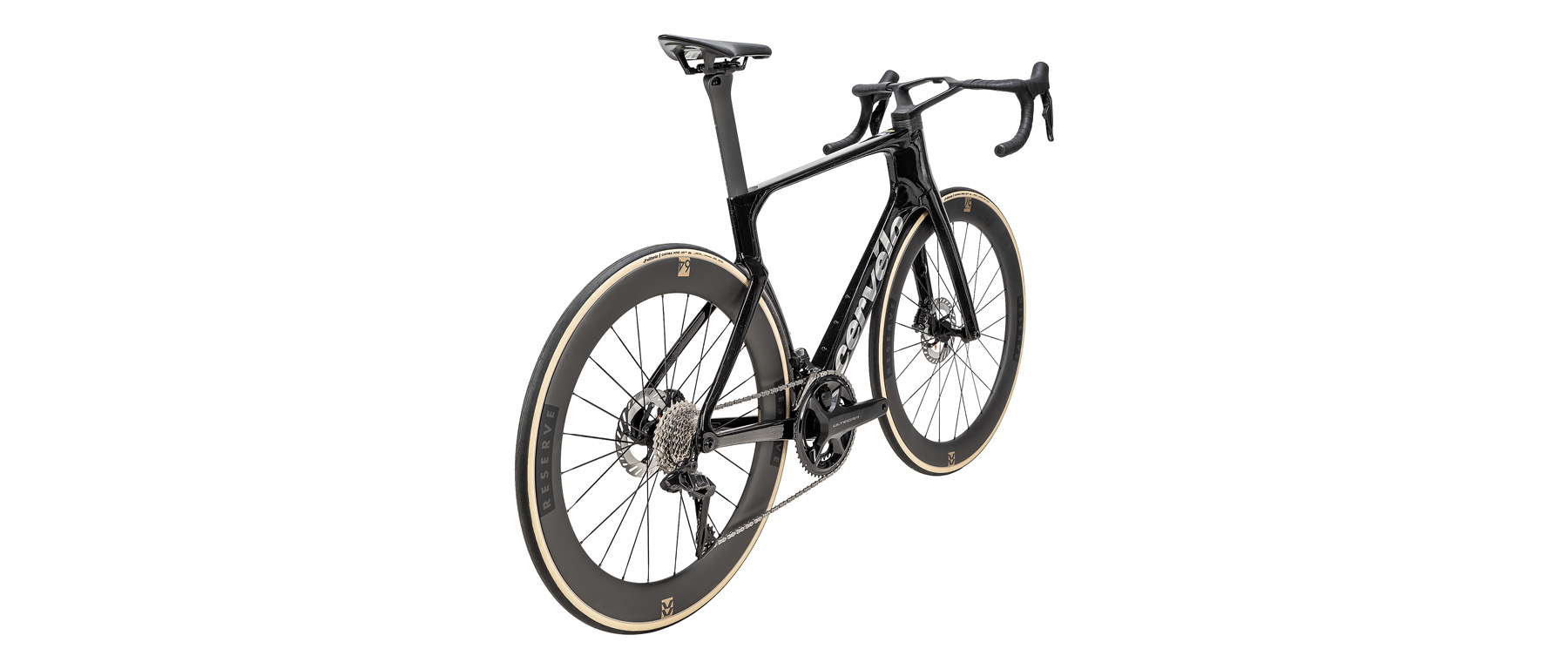

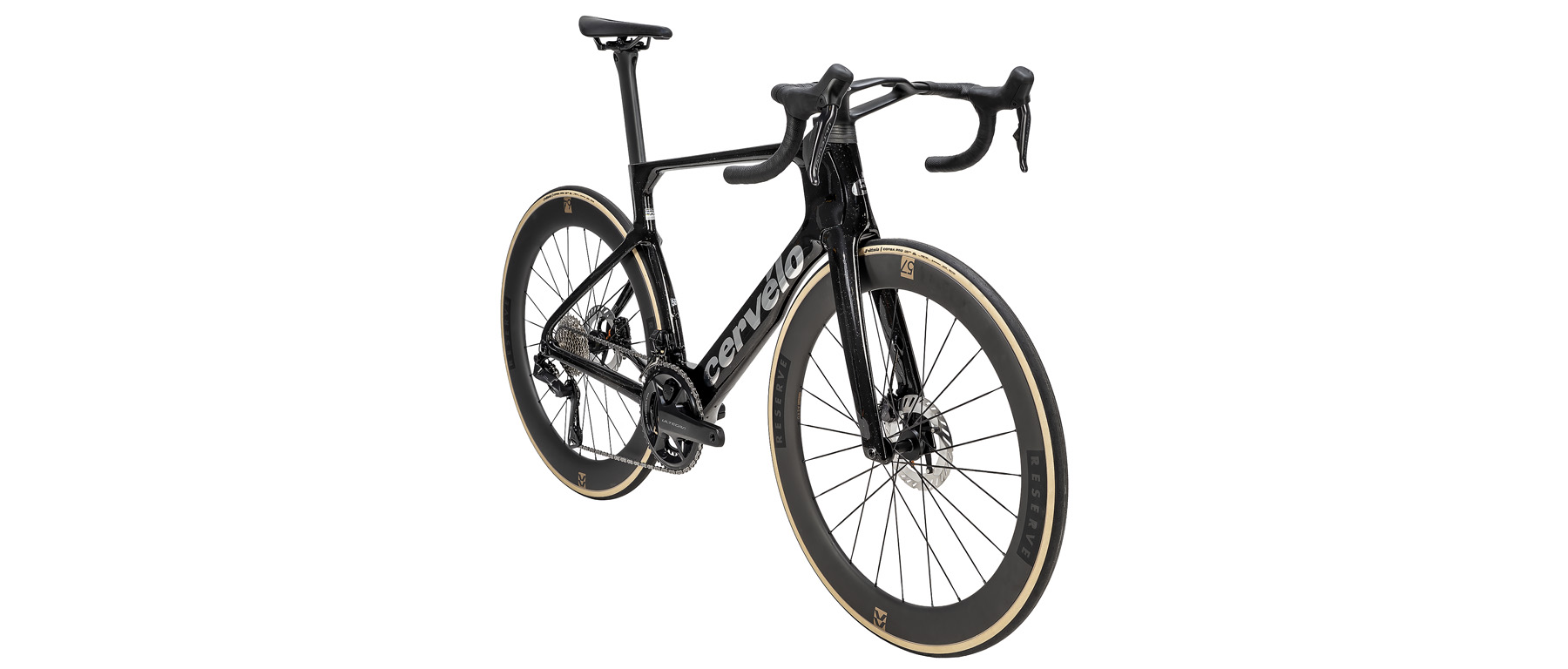

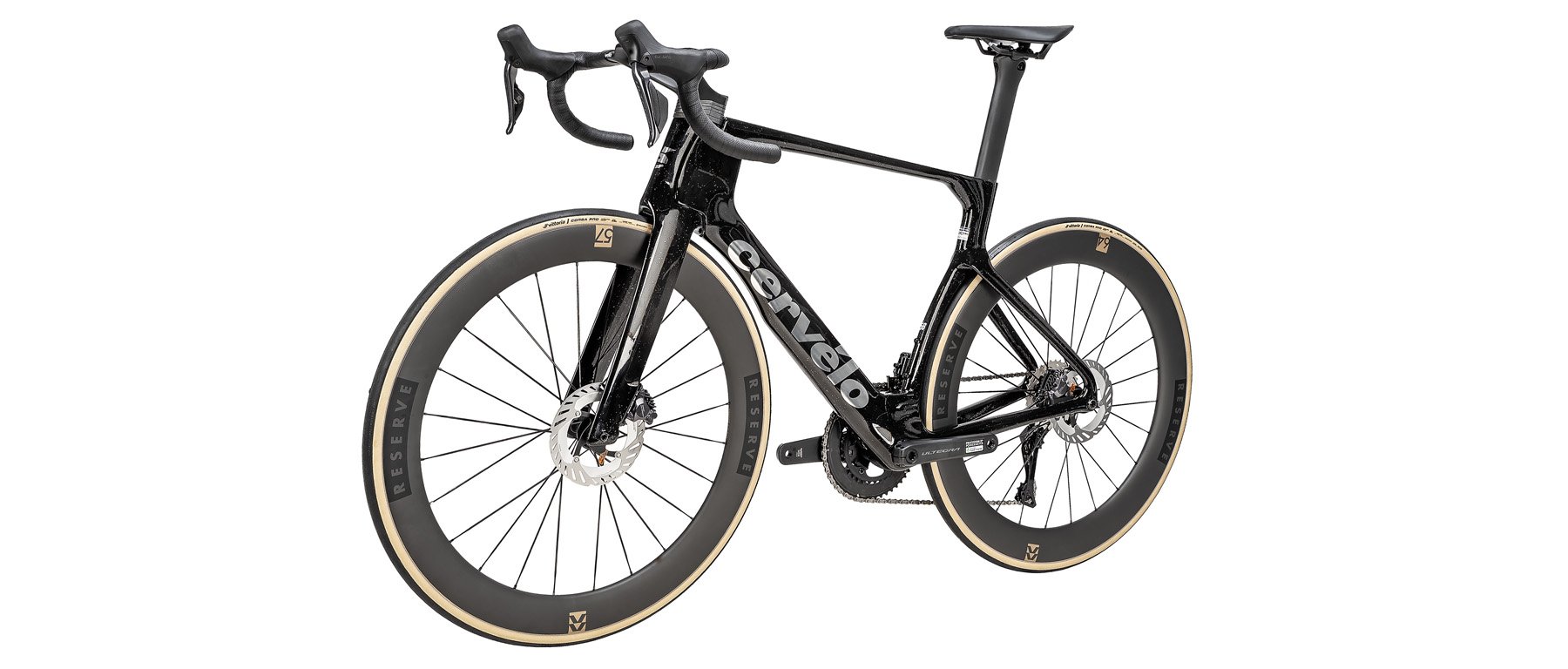

S5 Ultegra R8170 Di2 Bicycle
Description

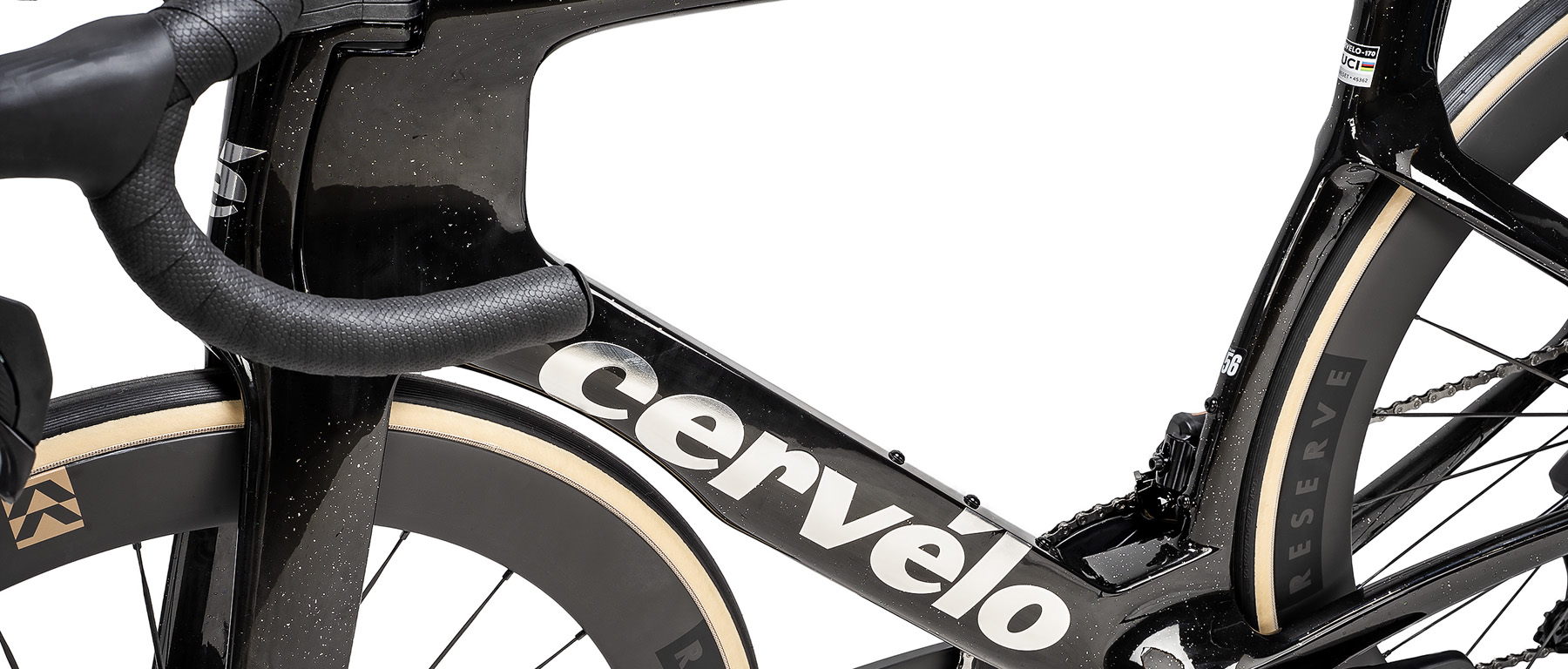

Grand tour stage wins and the leader's jerseys that come with them share a common thread: a Cervelo S5 underneath the rider crossing the line. That racing pedigree carries straight through to the S5 Ultegra Di2, which runs the identical frameset campaigned at World Tour events. The bayonet fork, deepened head tube, and signature V-stem cockpit that define the S5's silhouette in the professional peloton deliver identical aerodynamic performance whether you're pinning on a number or heading out for a weekend ride. Cervelo puts the gains at 6.3 watts saved over the previous generation and at least 5 watts ahead of competing aero platforms, savings generated primarily at the front of the bike where the reshaped fork legs and one-piece integrated handlebar cut through the air.
The HB19 carbon cockpit shapes both how the S5 looks and how it performs against the wind. Cervelo's Plus-Four geometry brings the hood position 4cm narrower than the drops, putting you in a more efficient shape while cruising without giving up the stable leverage you want for sprinting and descending. Nine bar/stem combinations cover fit across the size range, and during the initial fitting period Excel can swap you into a different configuration at no added cost. Every size meets current UCI regulations, so the equipment in your hands matches what the pros line up on come race day.
Shimano's Ultegra Di2 R8170 groupset runs shifting through 12-speed wireless electronic communication. The hoods transmit wirelessly while the derailleurs connect by wired eTube cables to the seatpost-mounted battery, which tops up through a port in the rear derailleur. A 52/36 crankset pairs with an 11-34 cassette, giving you the low-end climbing range that the Force build's tighter 10-33 cassette gives up. Shifts land instantly under load, and the Ultegra front derailleur earns its reputation for smooth, quiet moves between chainrings.... Read More
Features

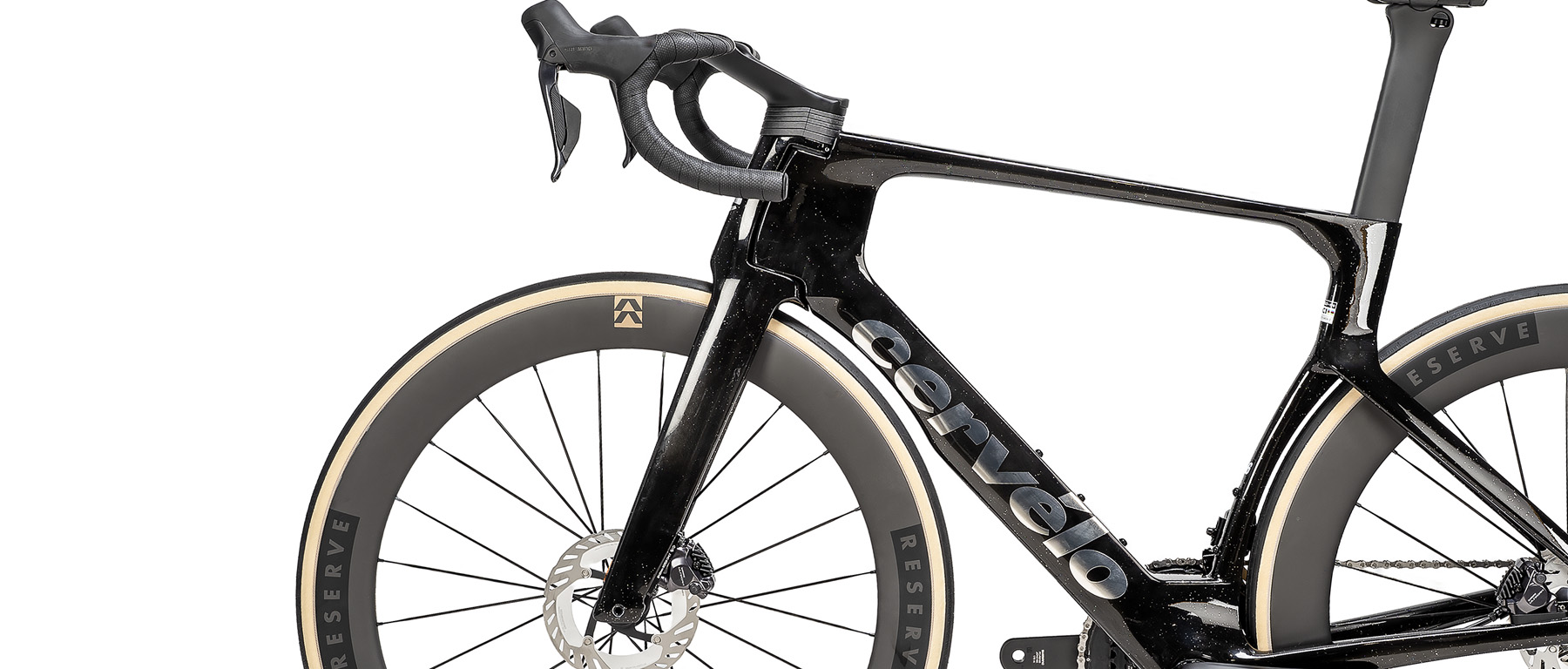

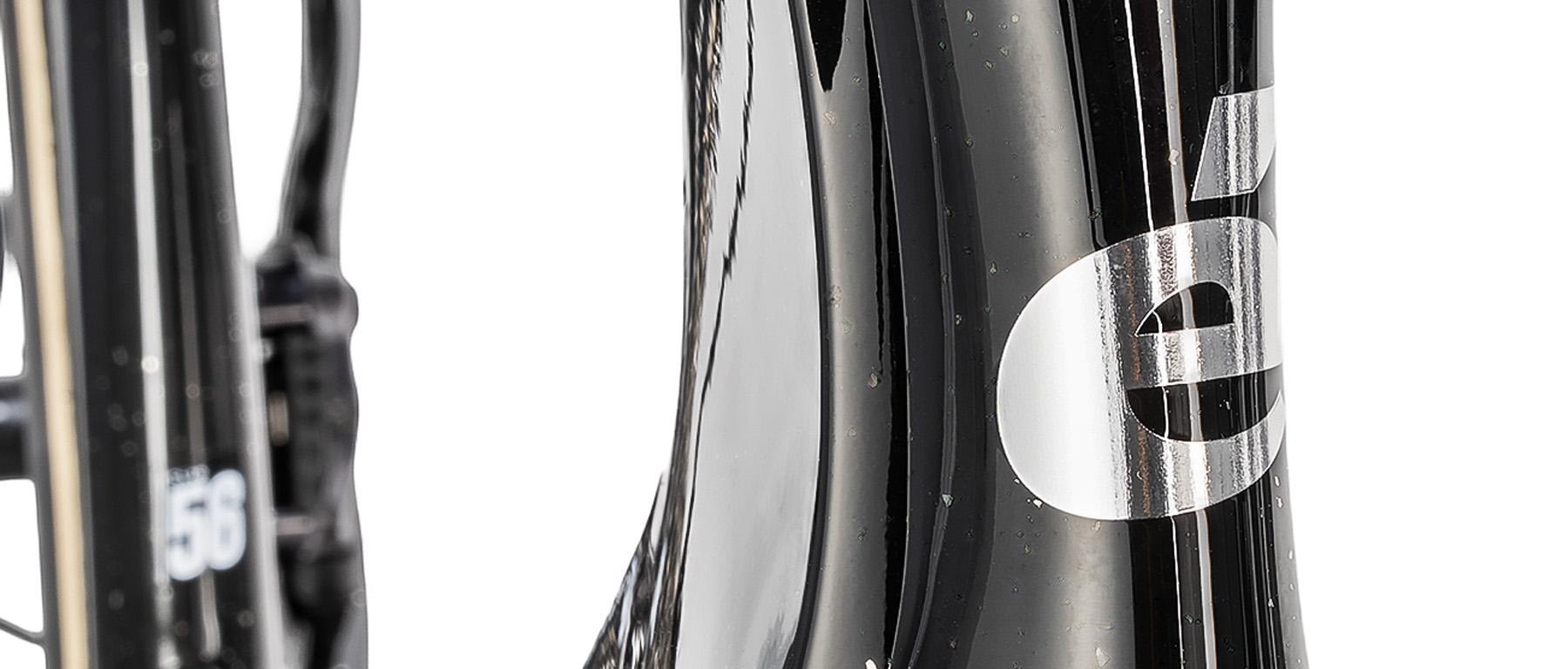

- Carbon frame with deepened head tube and bayonet fork
- 124 grams lighter than previous S5 generation
- Shimano Ultegra Di2 R8170 12-speed wireless electronic shifting

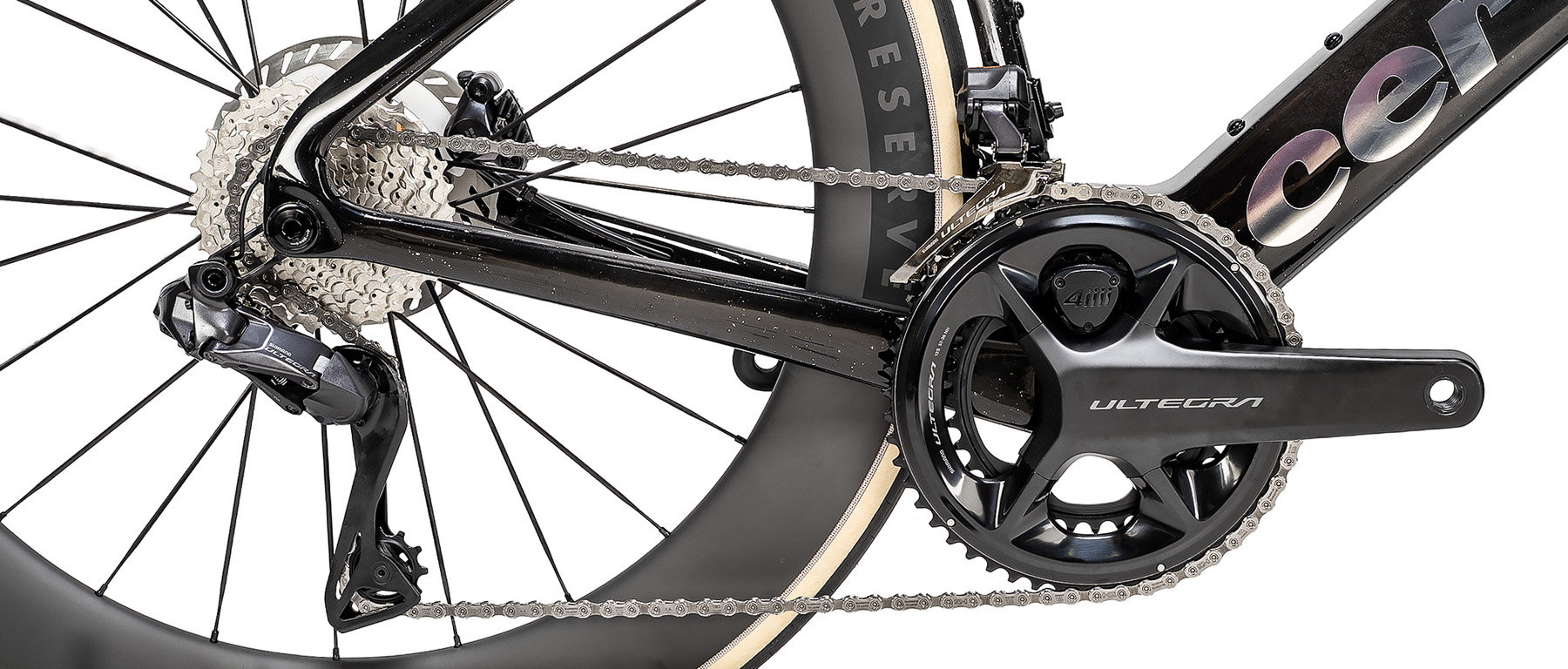

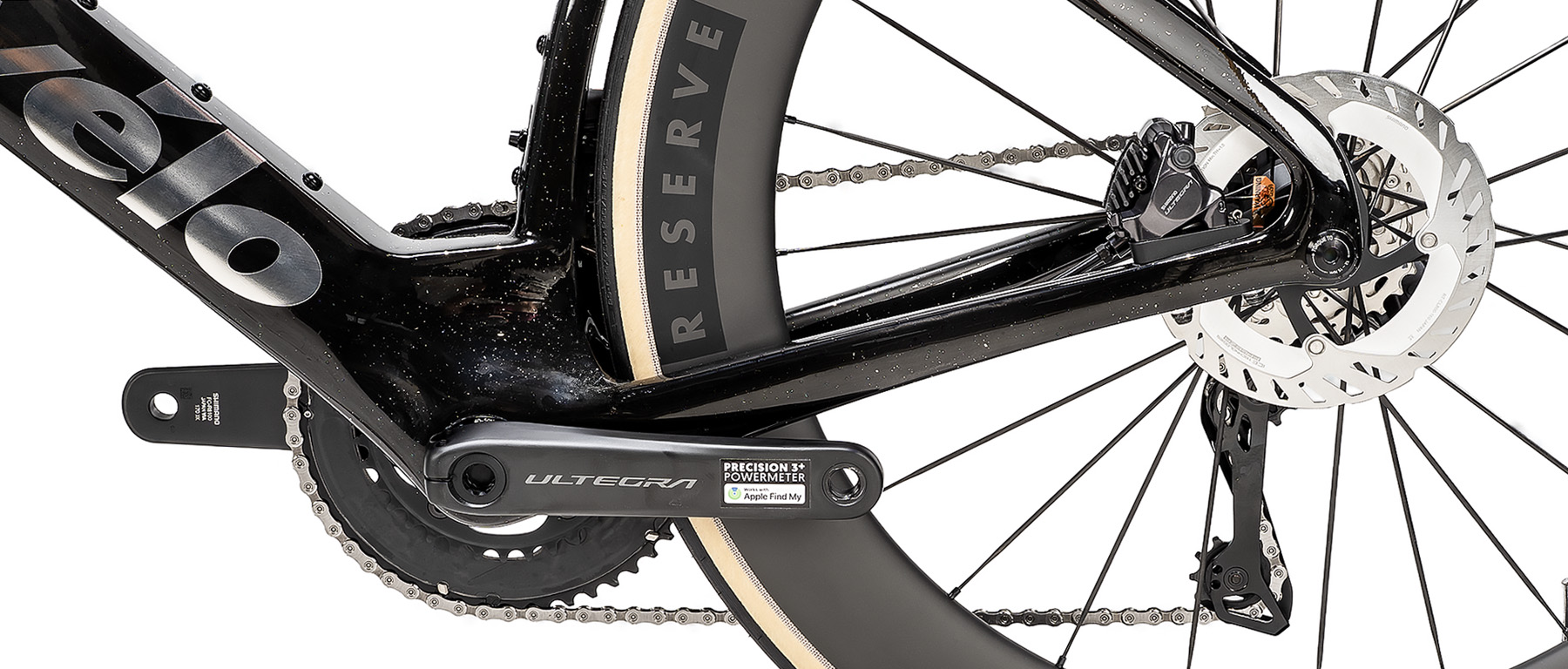

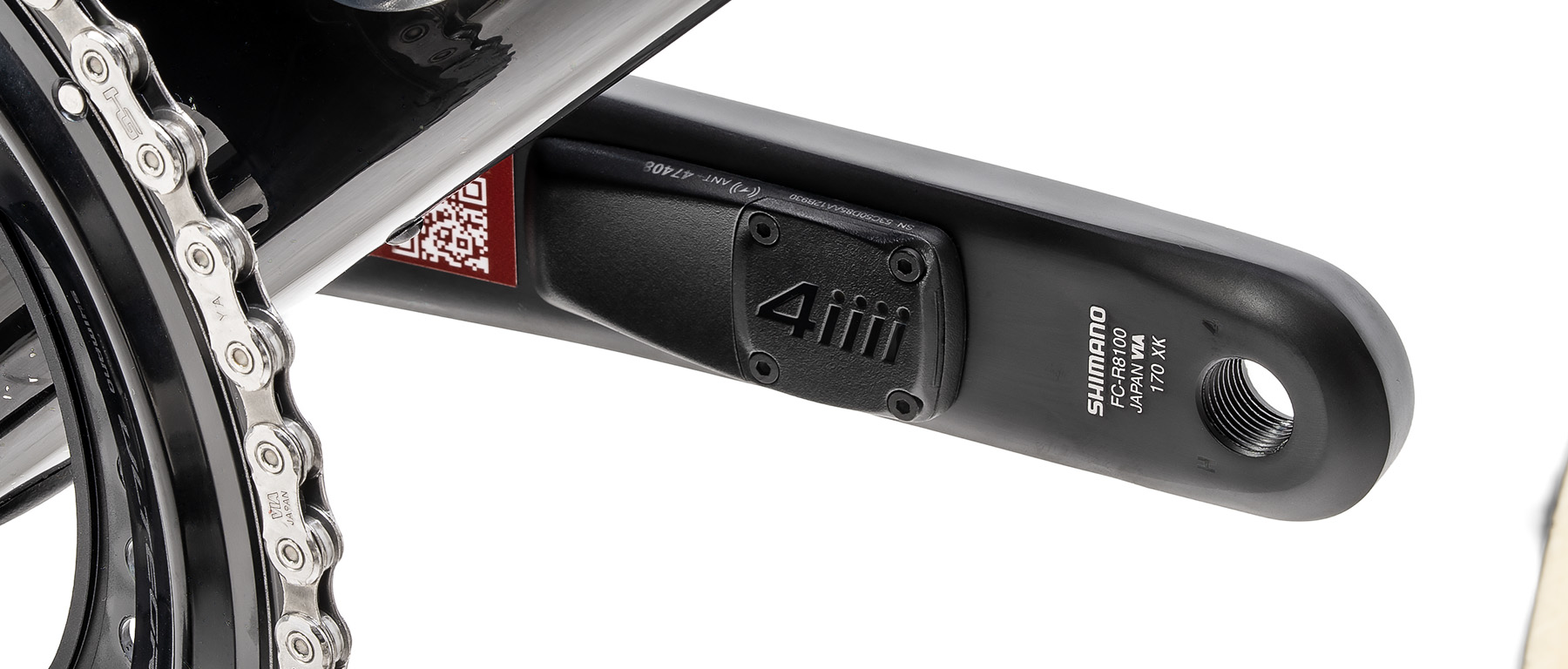

- 52/36T crankset with 4iiii Precision Pro GEN3+ dual-sided powermeter
- 11-34T cassette for extended climbing range

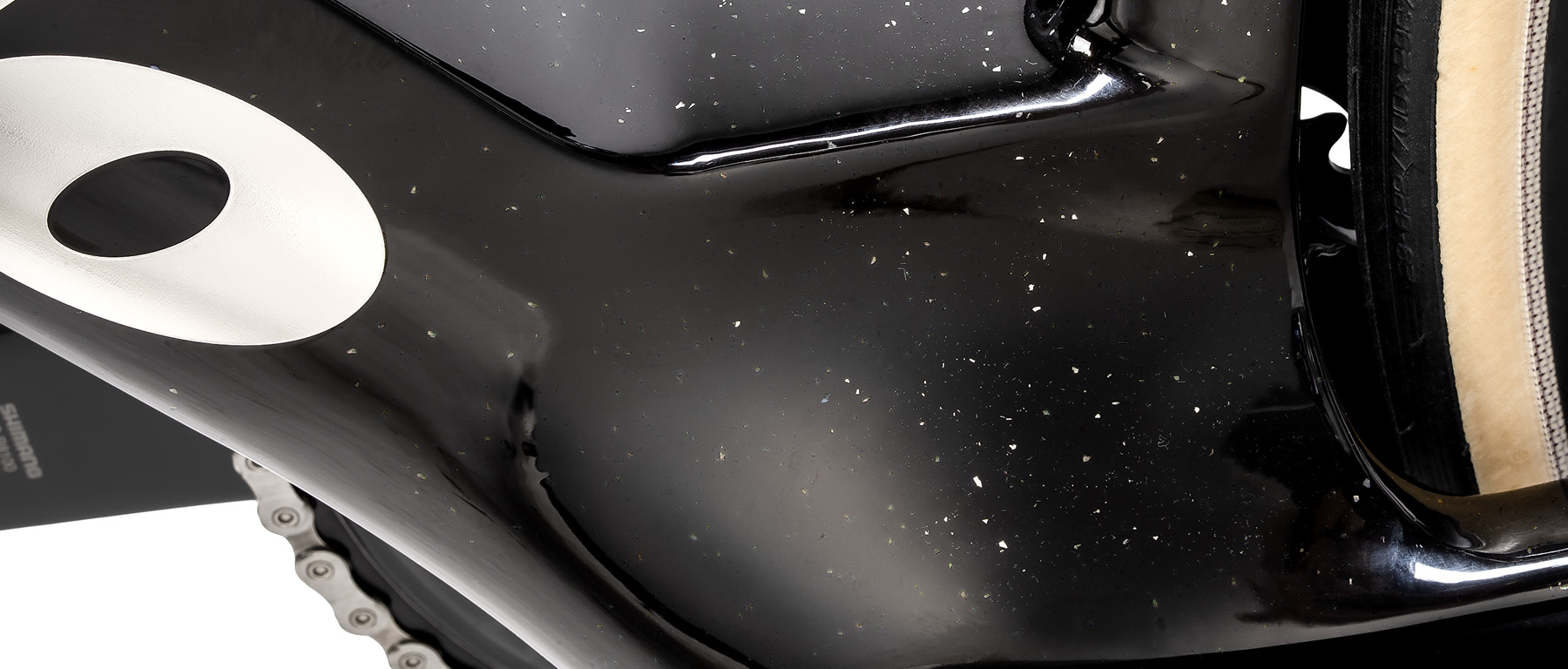

- FSA T47 BBright threaded bottom bracket
- Reserve 57TA front and 64TA rear carbon wheels co-developed for the S5

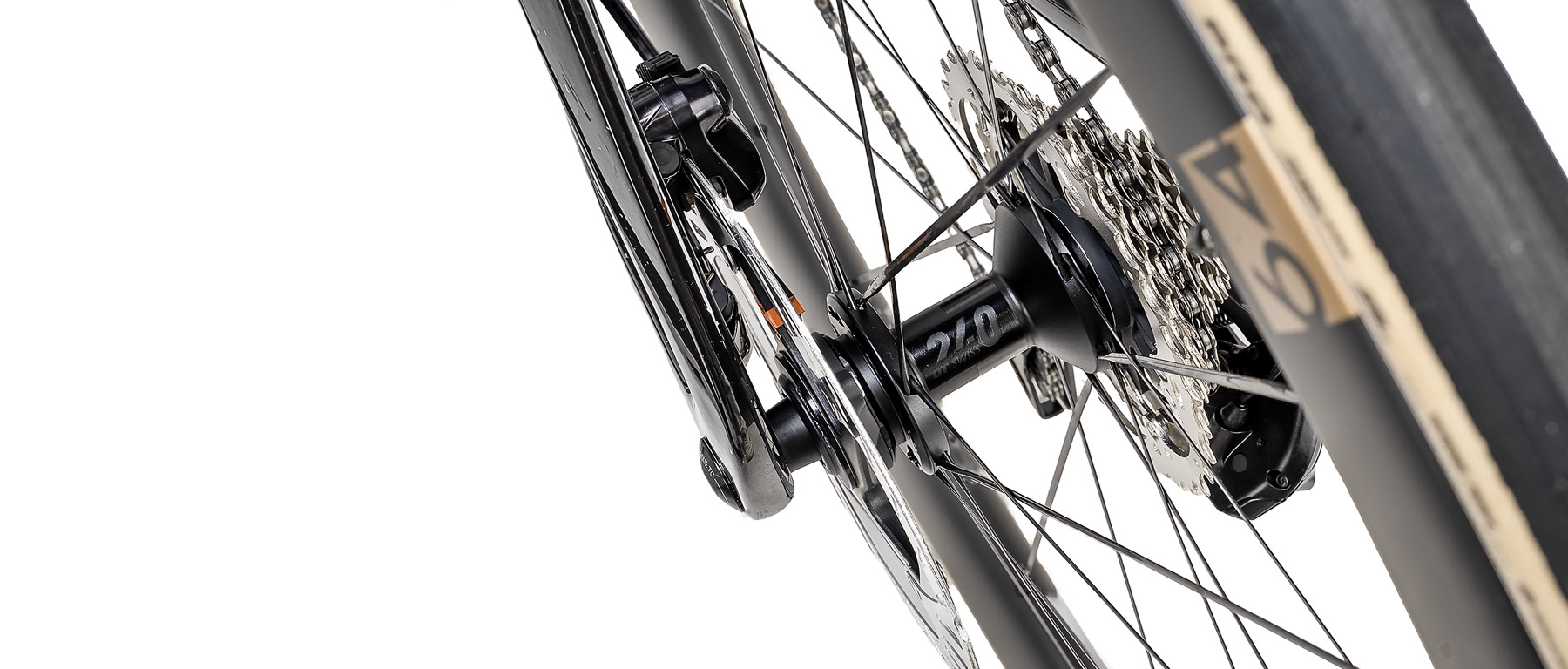

- DT Swiss 240 hubs with Center Lock rotor interface

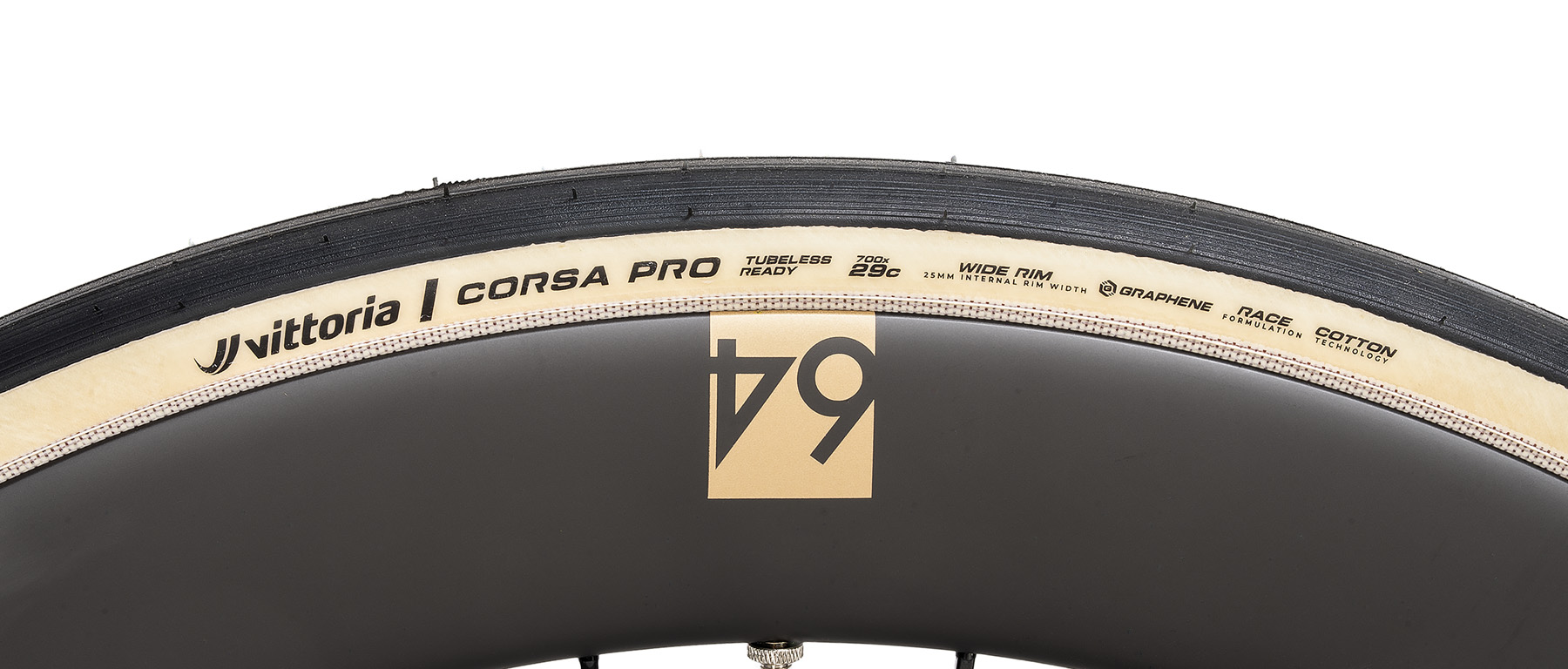

- Vittoria Corsa Pro TLR 700x29c tubeless-ready tires

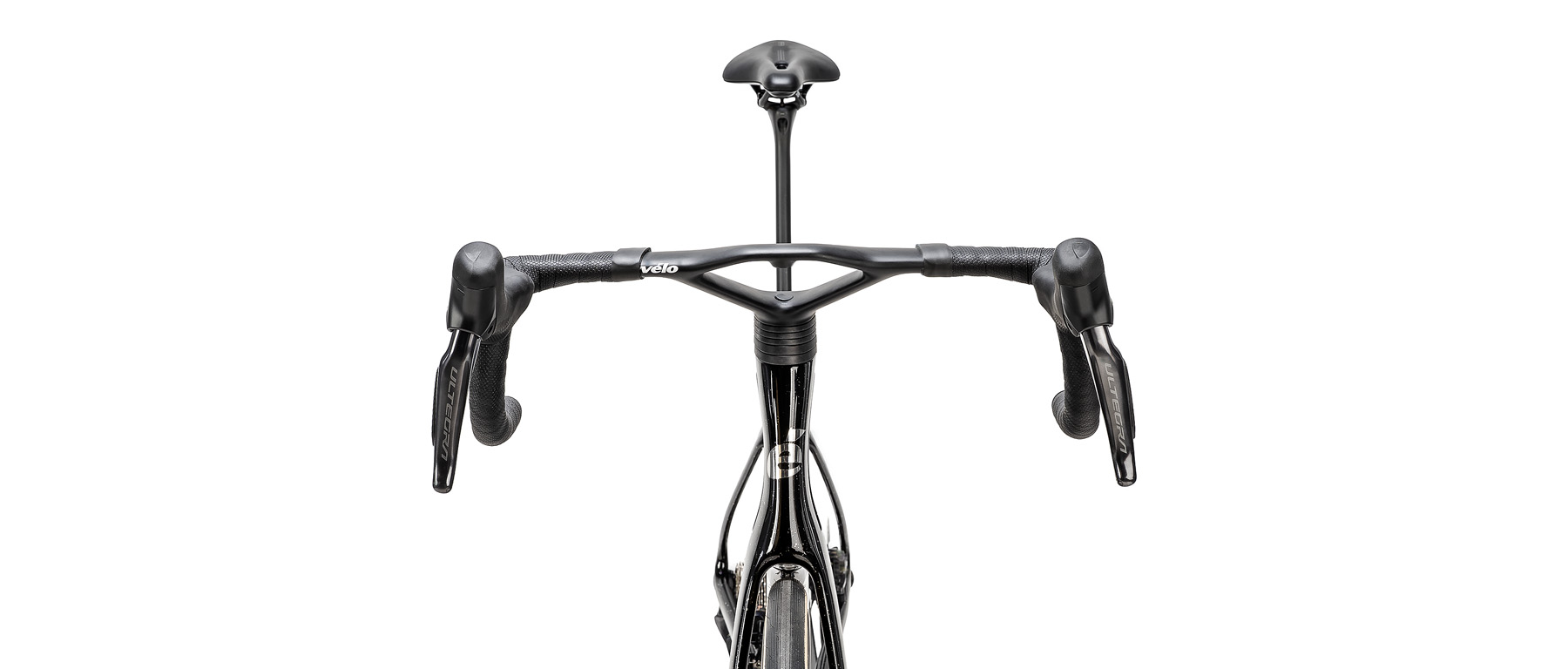

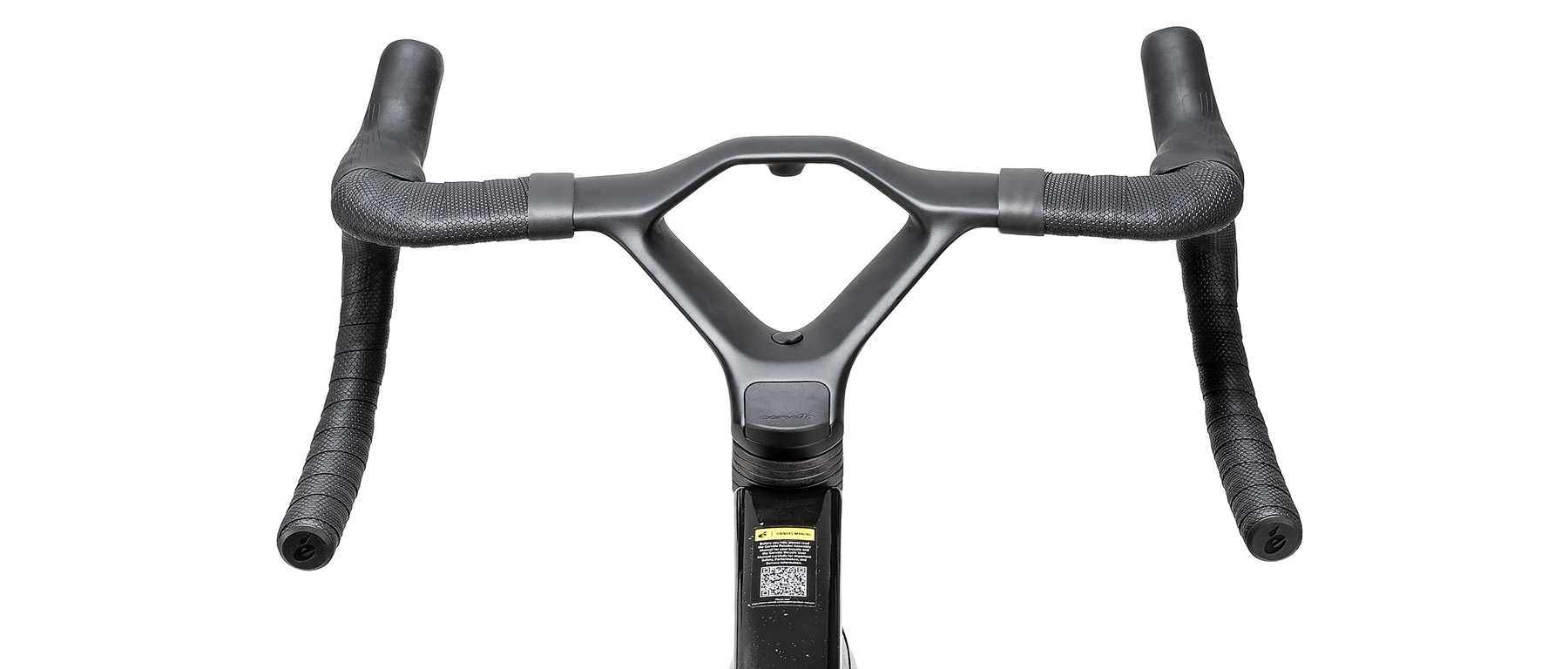

- HB19 one-piece carbon handlebar/stem with Plus-Four geometry
- Nine bar/stem size combinations available for fit

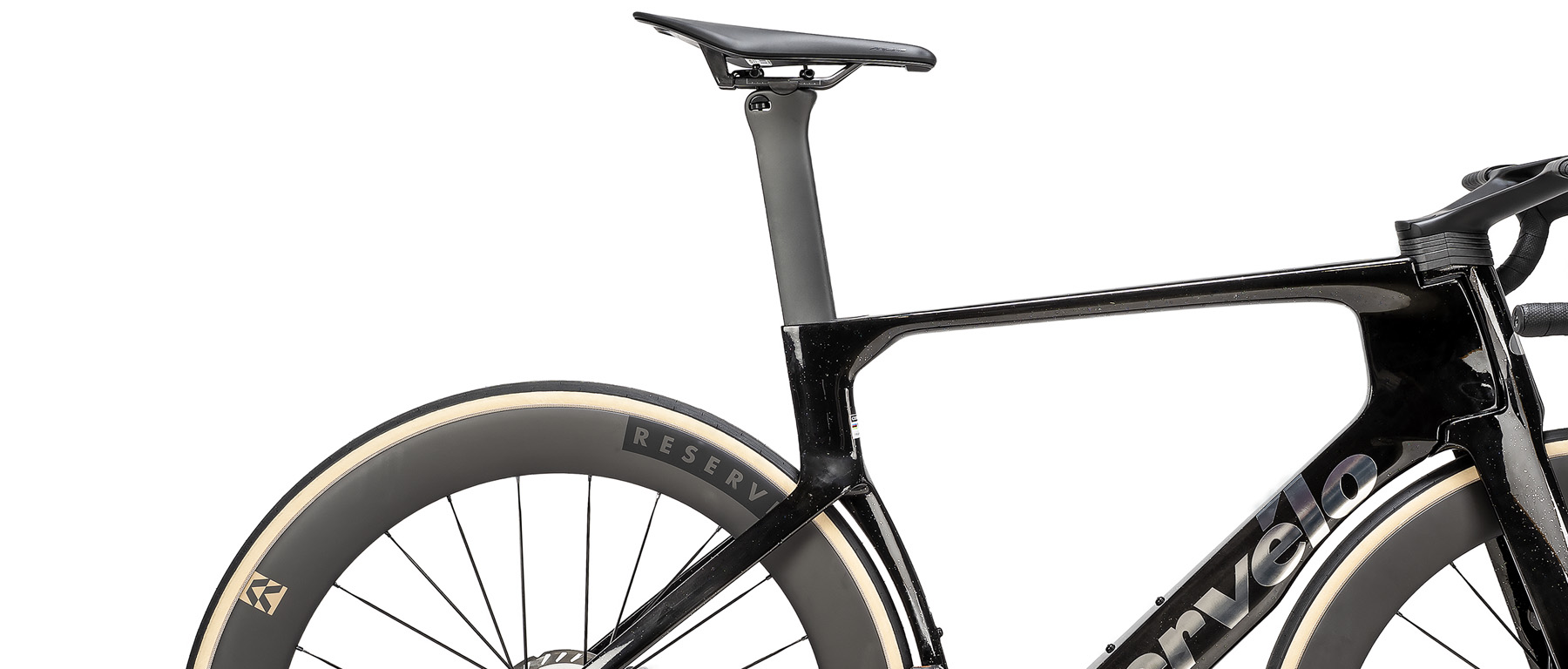

- SP34 carbon aero seatpost

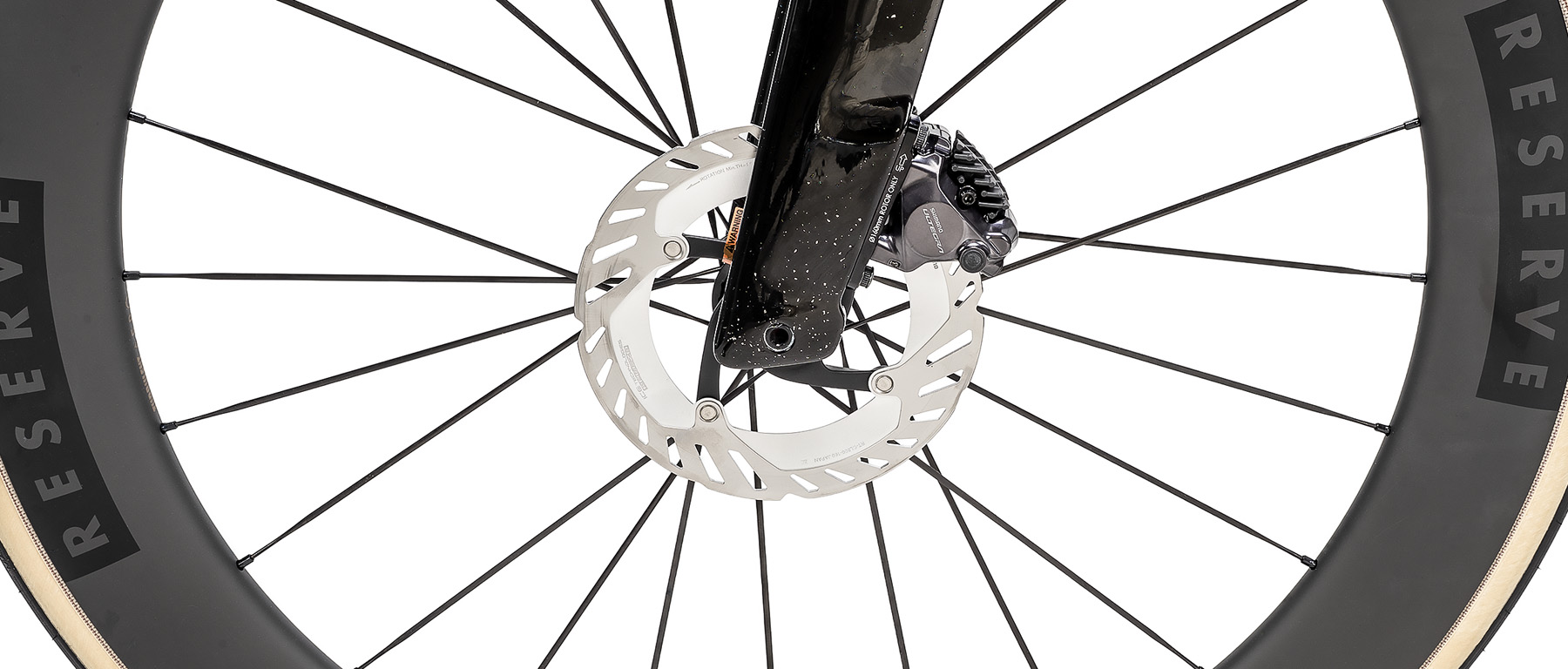

- Shimano Ultegra hydraulic disc brakes with CL800 rotors
- Tire clearance up to 34mm measured width
- Includes front computer mount and rear accessory mount
Geometry
| Size | Stack | Reach | Head Tube | Top Tube | Seat Angle | Head Angle | Chainstay | Wheelbase |
|---|---|---|---|---|---|---|---|---|
| 48 | 496mm | 367mm | 64mm | 520mm | 73° | 71° | 405mm | 973mm |
| 51 | 519mm | 376mm | 82mm | 535mm | 73° | 72° | 405mm | 974mm |
| 54 | 542mm | 384mm | 104mm | 550mm | 73° | 73° | 405mm | 975mm |
| 56 | 565mm | 392mm | 125mm | 565mm | 73° | 73.5° | 405mm | 982mm |
| 58 | 588mm | 401mm | 152mm | 581mm | 73° | 73.5° | 405mm | 999mm |
| 61 | 608mm | 409mm | 173mm | 595mm | 73° | 73.5° | 405mm | 1013mm |
