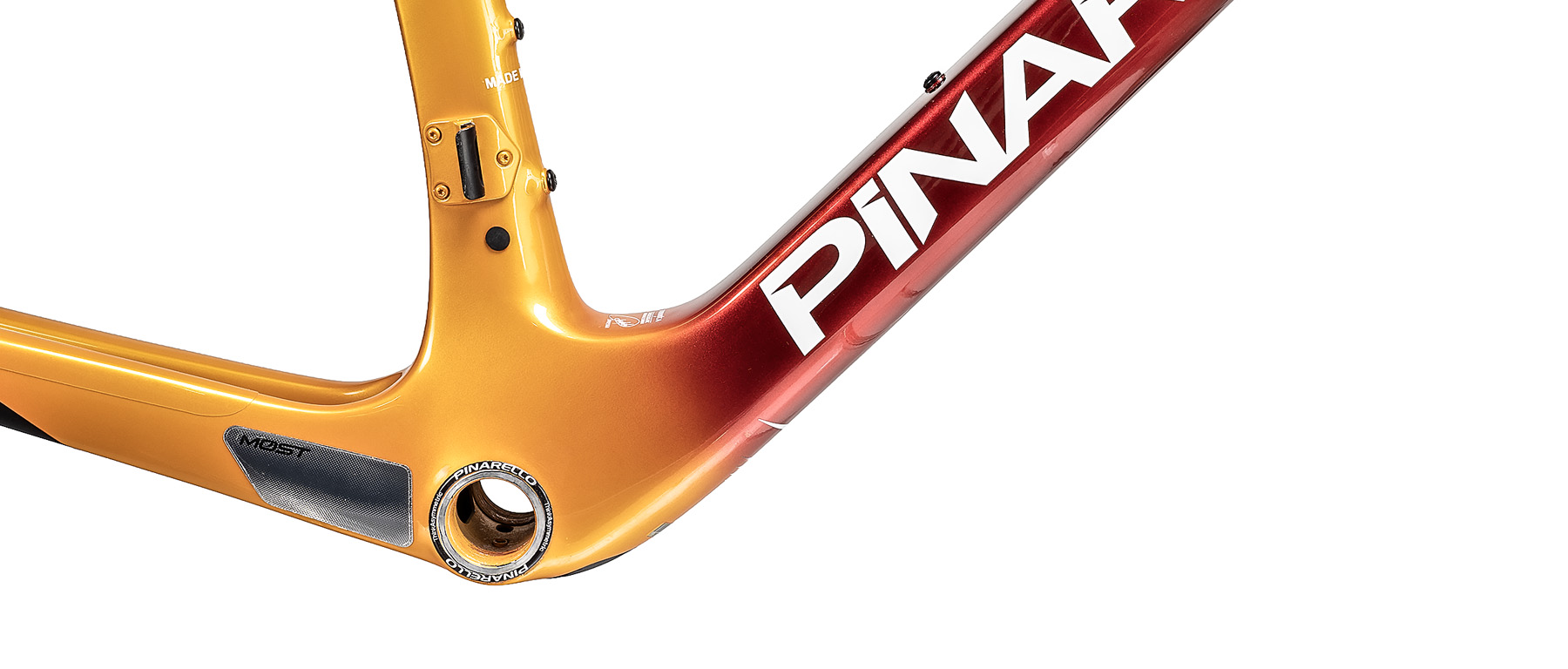

Internal cable routing through Pinarello's TiCR system accepts electronic drivetrains only — Shimano Di2, SRAM AXS, and Campagnolo EPS all route cleanly, but mechanical shifting is not supported. That is a distinction worth confirming before planning a build. The Italian-threaded bottom bracket shell stays consistent with Pinarello tradition, and Flat Mount disc brakes pair with 12x100mm and 12x142mm tool-free Ultra Light Custom axles.

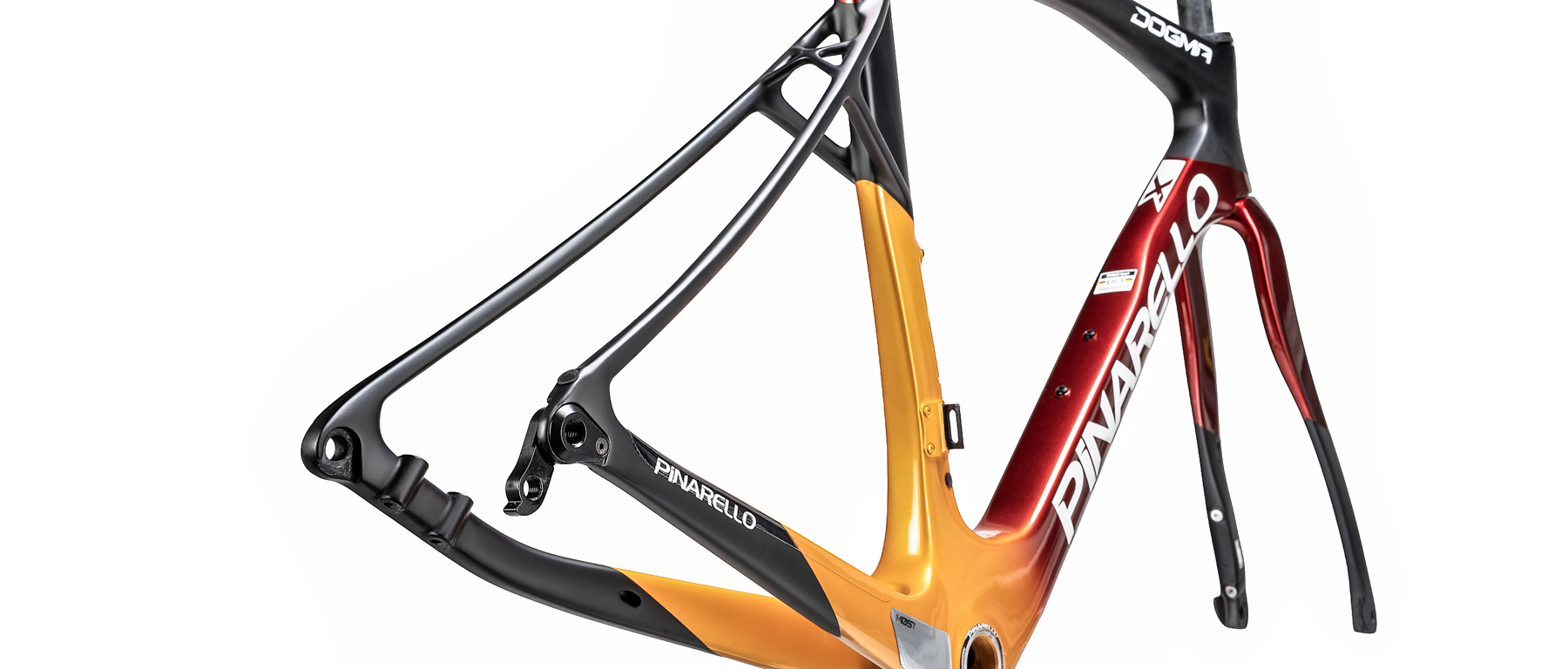

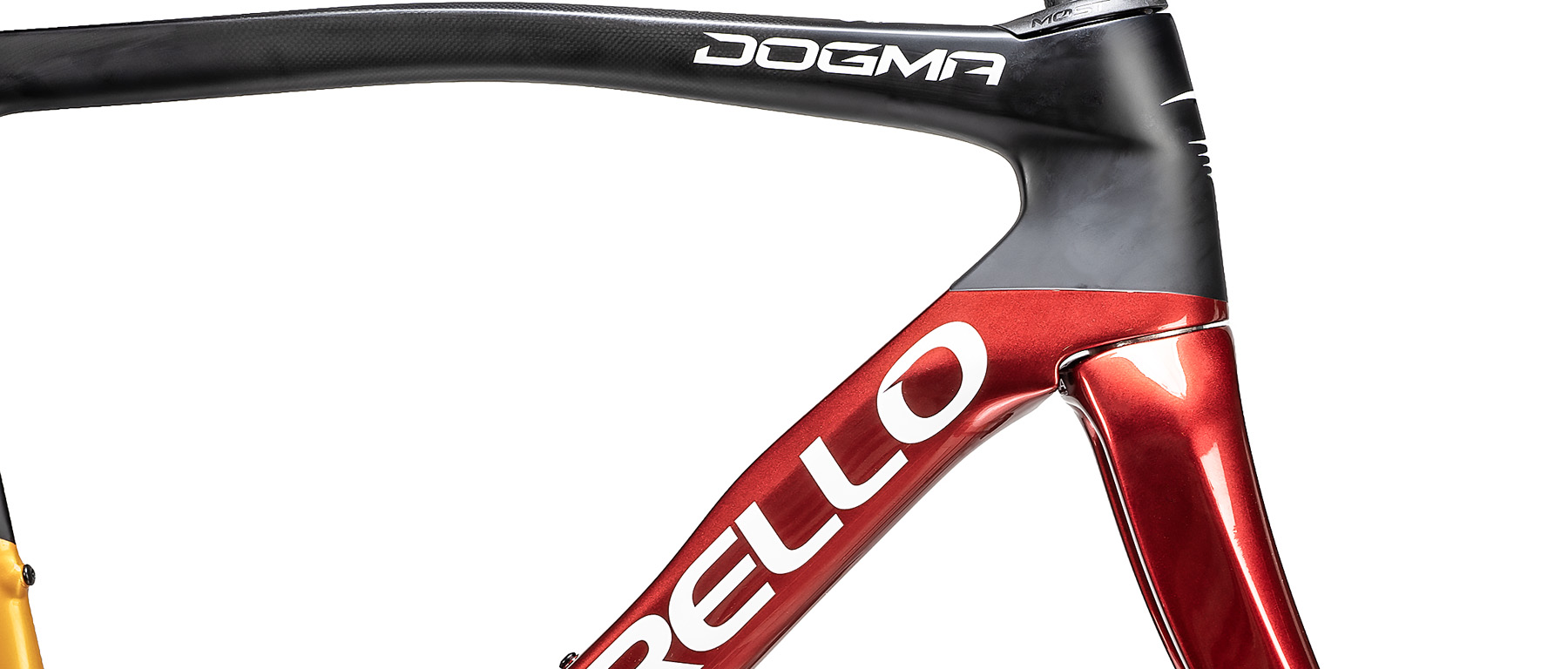

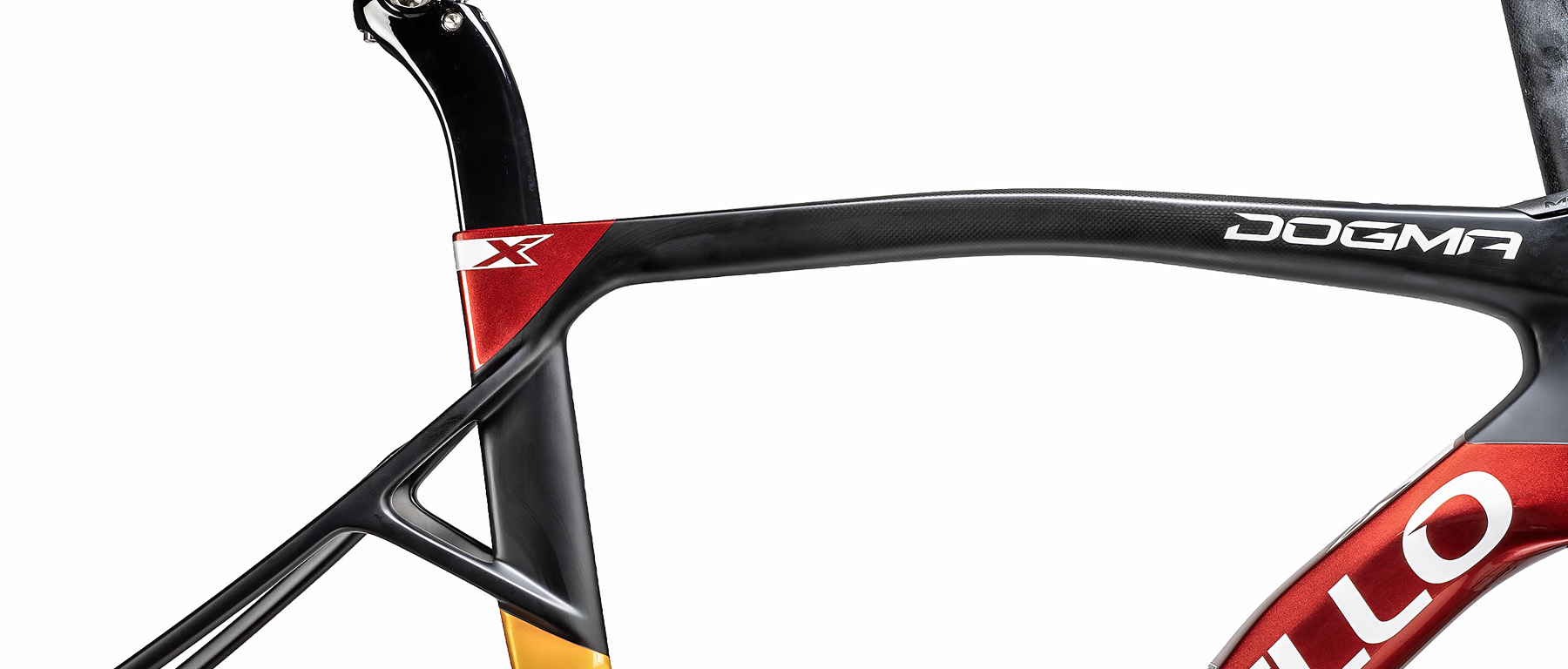

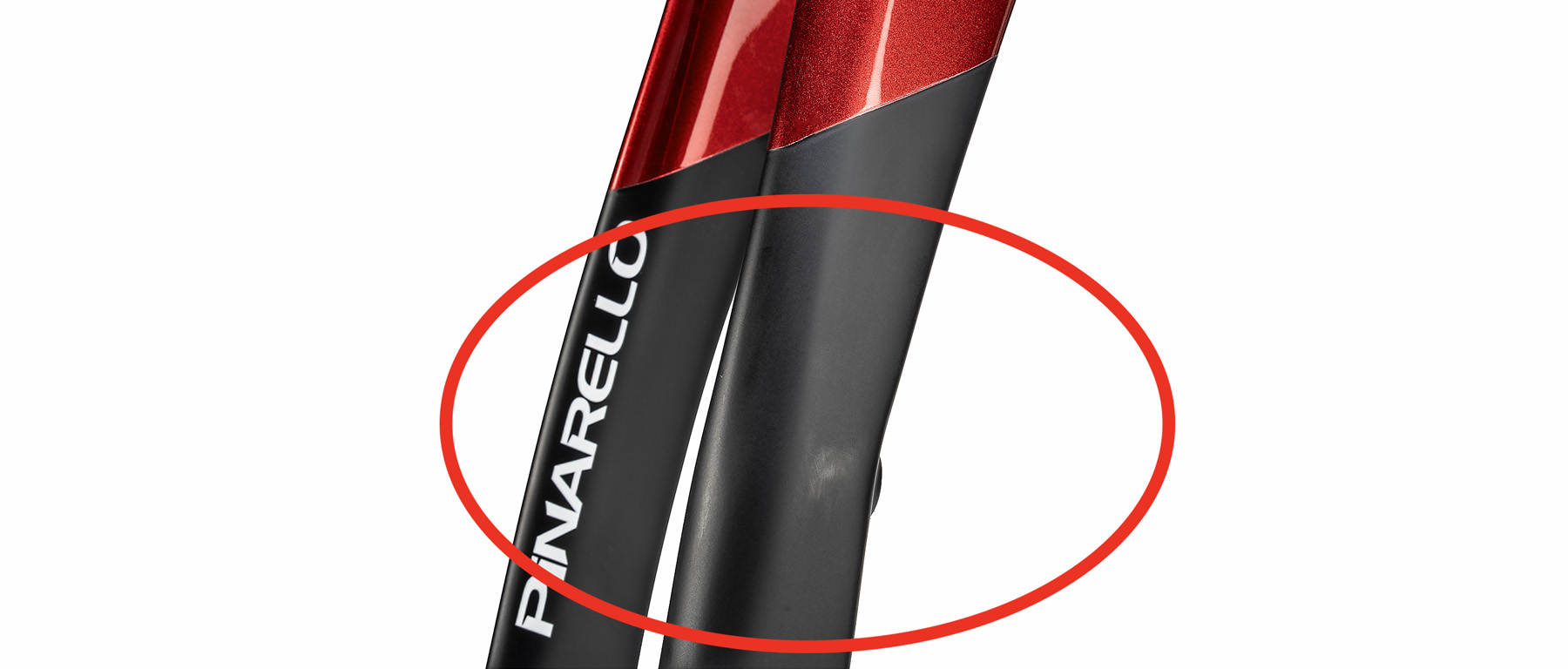

Pinarello calls the geometry Endurance+, and the numbers bear that out in practical terms. On a size 51.5, stack sits at 549mm with reach at 372mm — a riding position that keeps more riders aerodynamically effective over five or six hours without the physical demands of a full race fit. The Onda carbon disc fork uses a 47mm rake across the entire size run, and the frame's truncated tube profiles carry forward the aero shaping the Dogma platform is known for. Eleven frame sizes from 43cm to 62cm cover one of the widest ranges in its class, each produced from individual carbon molds to preserve ride character across the size spectrum.

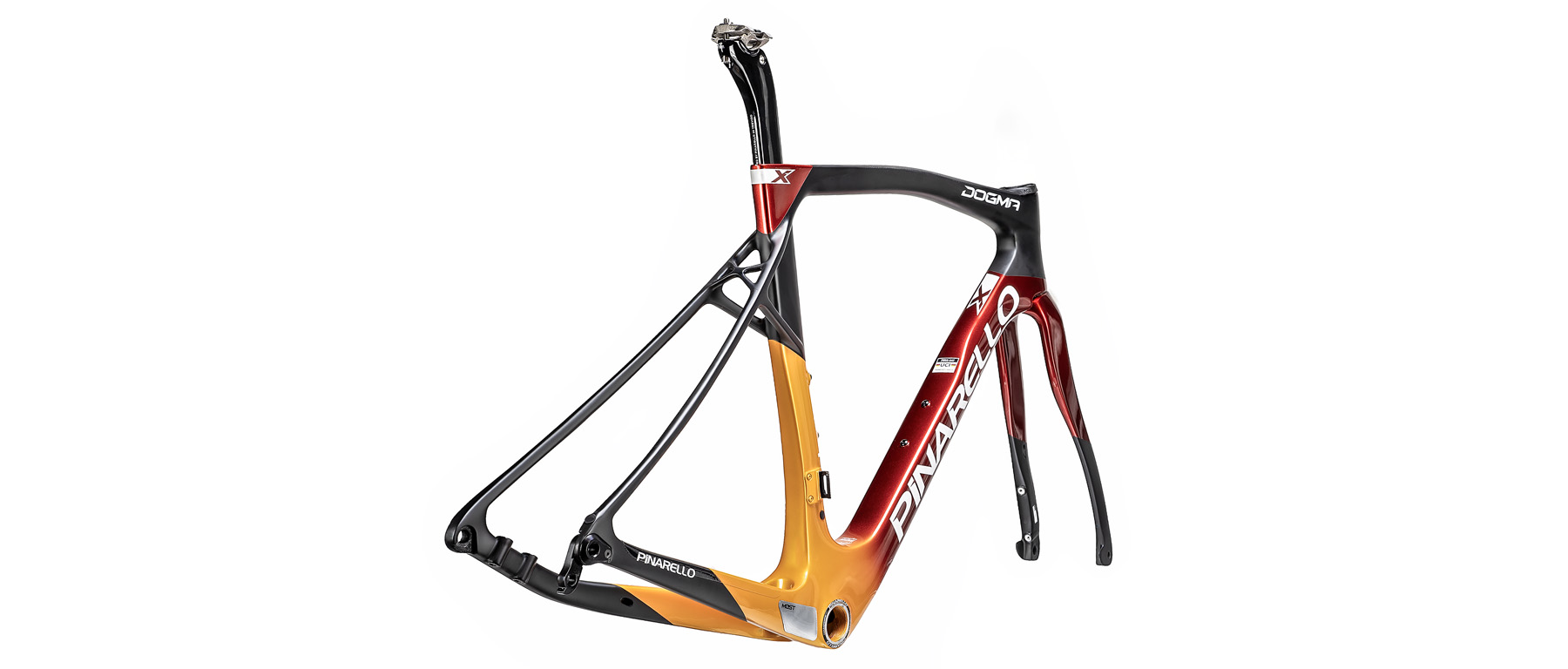

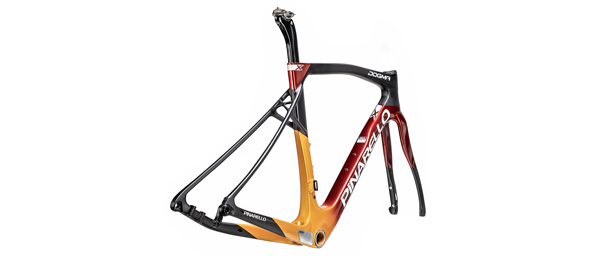

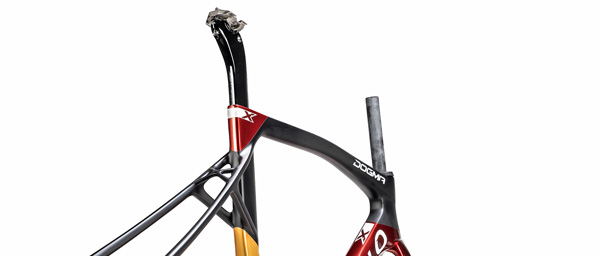

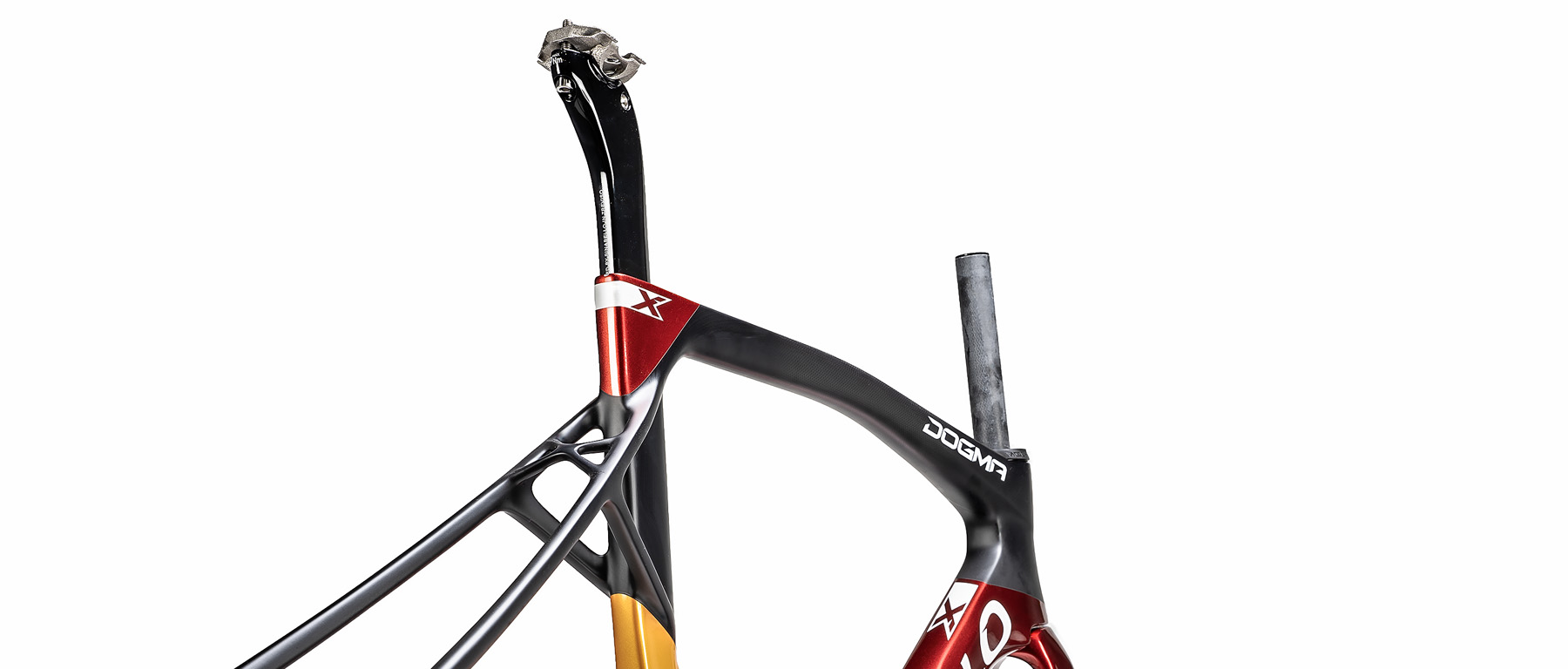

The frameset ships with Pinarello's aero seatpost featuring 3D-printed titanium seatclamp hardware and titanium bolts, along with the headset and thru-axles. The frame is compatible with the Most Talon Ultra Light integrated cockpit, though it is not included with the frameset. All seatpost and cockpit hardware uses T20 Torx fittings. The Xolar Sun E200 finish belongs to a paint family that rewards in-person inspection — the depth and shift of the color does not translate well to product photography.
