Ultegra FC-08 Crankset
Description

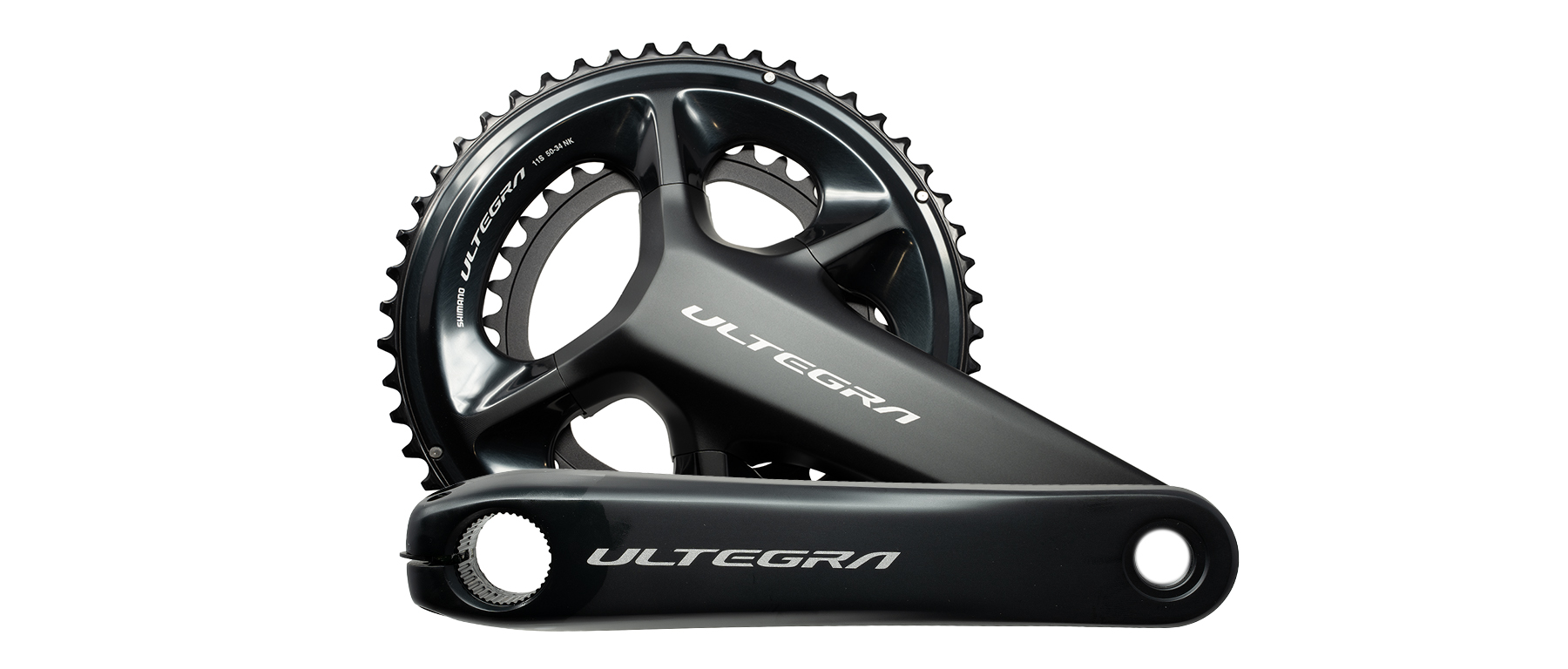

Shimano's Ultegra lineup has long been the sweet spot for riders who want Dura-Ace engineering without the flagship price tag, and the FC-08 crankset carries that formula forward for 11-speed drivetrains. The hollow-forged crank arms use Hollowtech II construction with an integrated 24mm spindle, positioning the bottom bracket bearings outboard of the frame shell for a stiffer platform without piling on material. If you're running an 11-speed Ultegra, 105, or Dura-Ace group and need a replacement crankset — or you're building up a bike around 11-speed for cost reasons — this is the mid-tier option that shares its structural DNA with the top of the range.
Chainring options cover the two setups that make sense for most road riders. The 50-34T compact suits climbers, gravel-adjacent road builds, and anyone who wants a bailout gear for steep pitches. The 52-36T mid-compact leans toward faster group rides and racing without going full standard-double. Both use Shimano's asymmetric 110mm BCD four-arm spider, and the outer ring is built with Hollowglide construction — a hollow chamber inside the outer ring drops weight without softening the shift ramps that make Shimano front shifts feel decisive under load.
Crank arm lengths run 165, 170, 172.5, and 175mm, which covers the range most road fitters work within. The chainline sits at 43.5mm with a 146mm Q-factor, matching the geometry of Shimano's other 11-speed road cranks and playing nicely with frames designed around 130mm rear spacing or 135/142mm road disc hubs with chainstays around 410-415mm. The FC-08 is optimized for Shimano's HG-EV and HG-X11 chains, so pair it with an 11-speed HG chain and cassette to get the shifting behavior Shimano tuned it for.
Features
- 11-speed road crankset compatible with Shimano 11-speed drivetrains

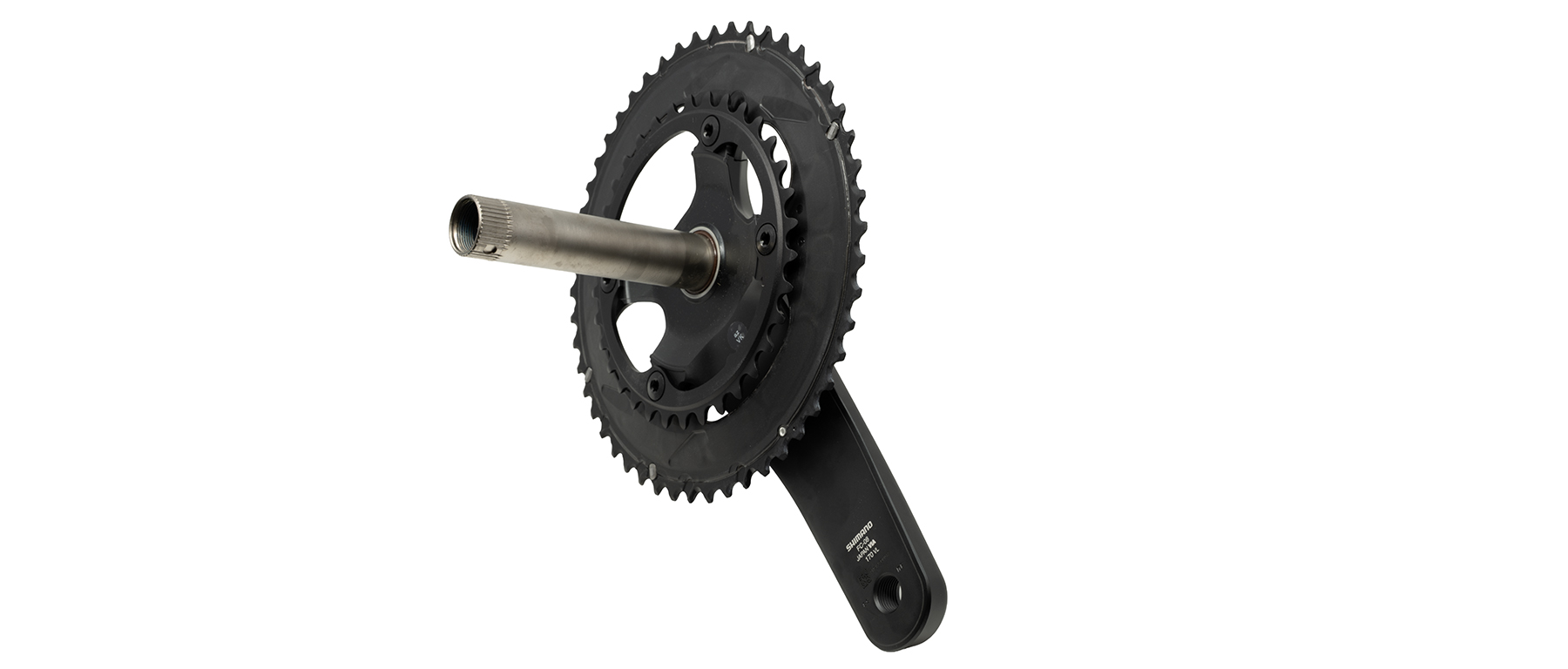

- Hollowtech II construction with integrated 24mm steel spindle

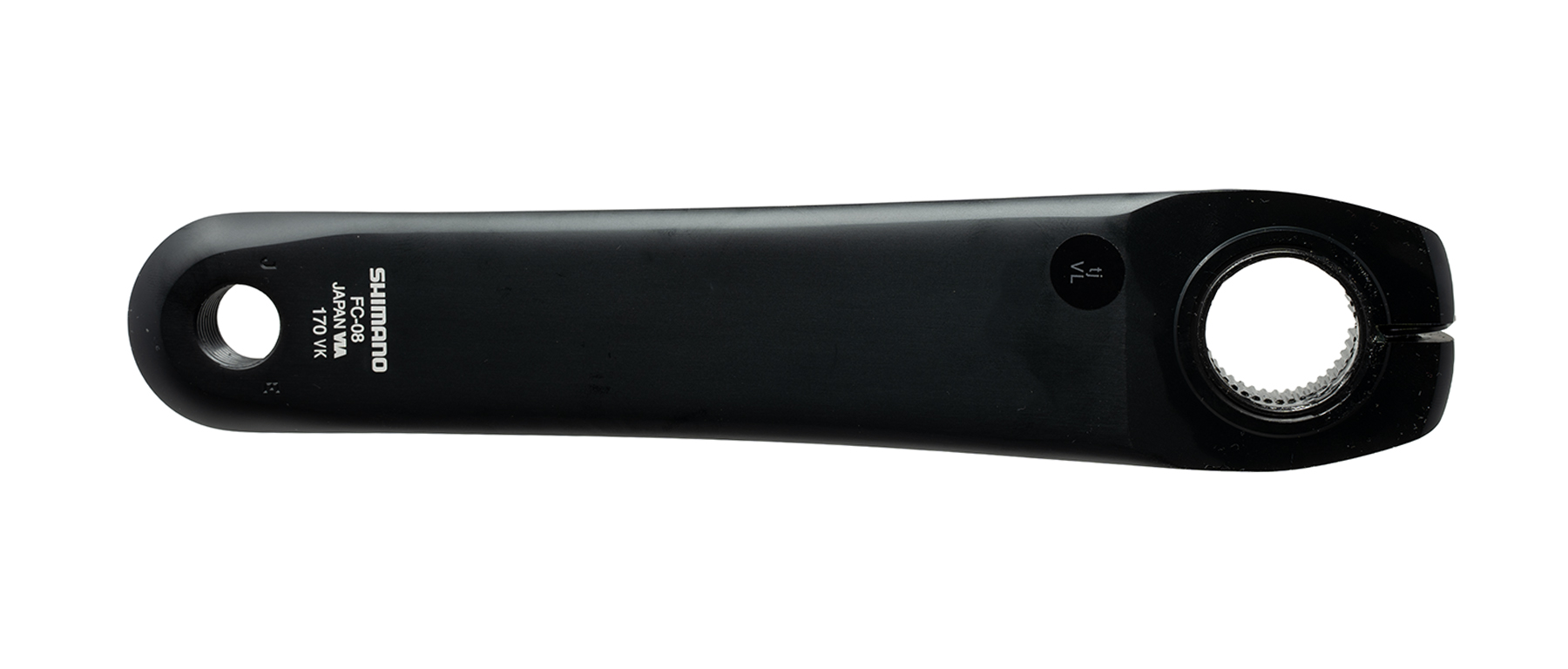

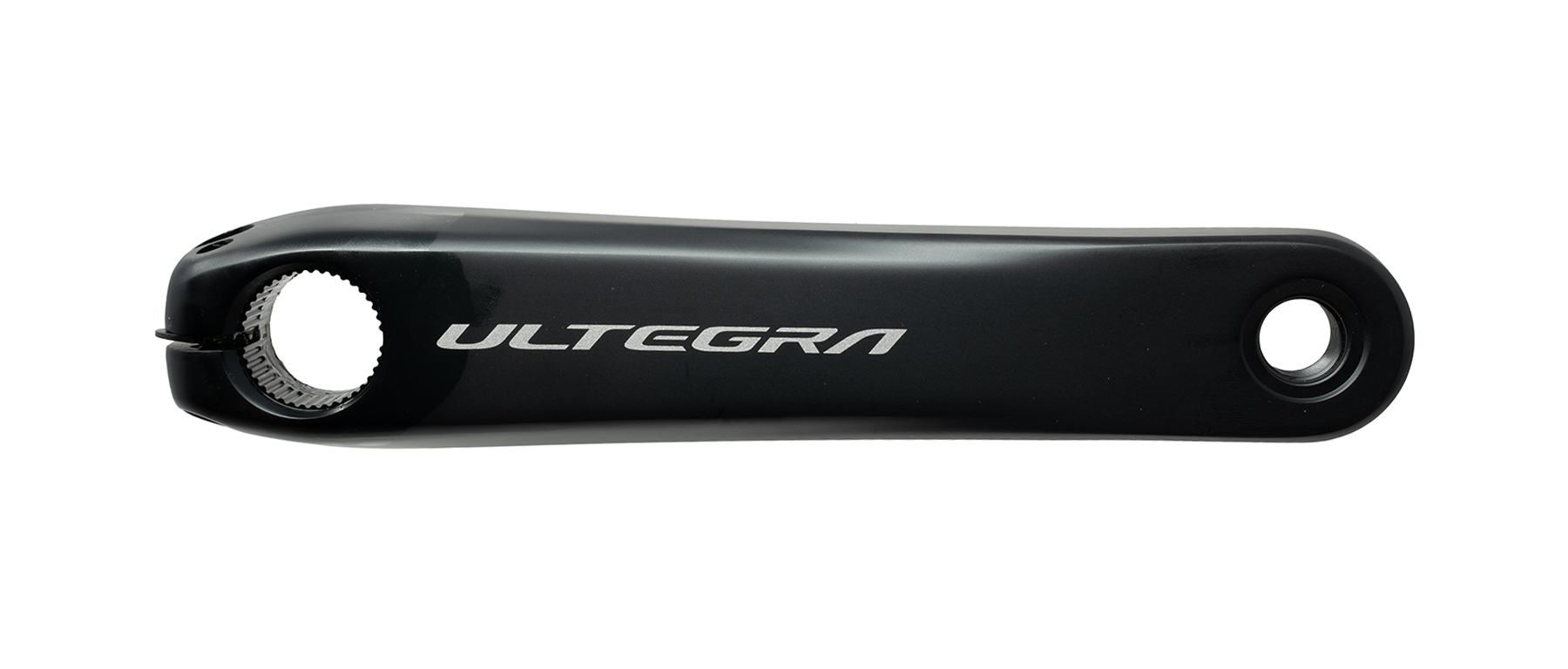

- Hollow-forged aluminum crank arms for reduced rotating mass
- Hollowglide outer chainring construction

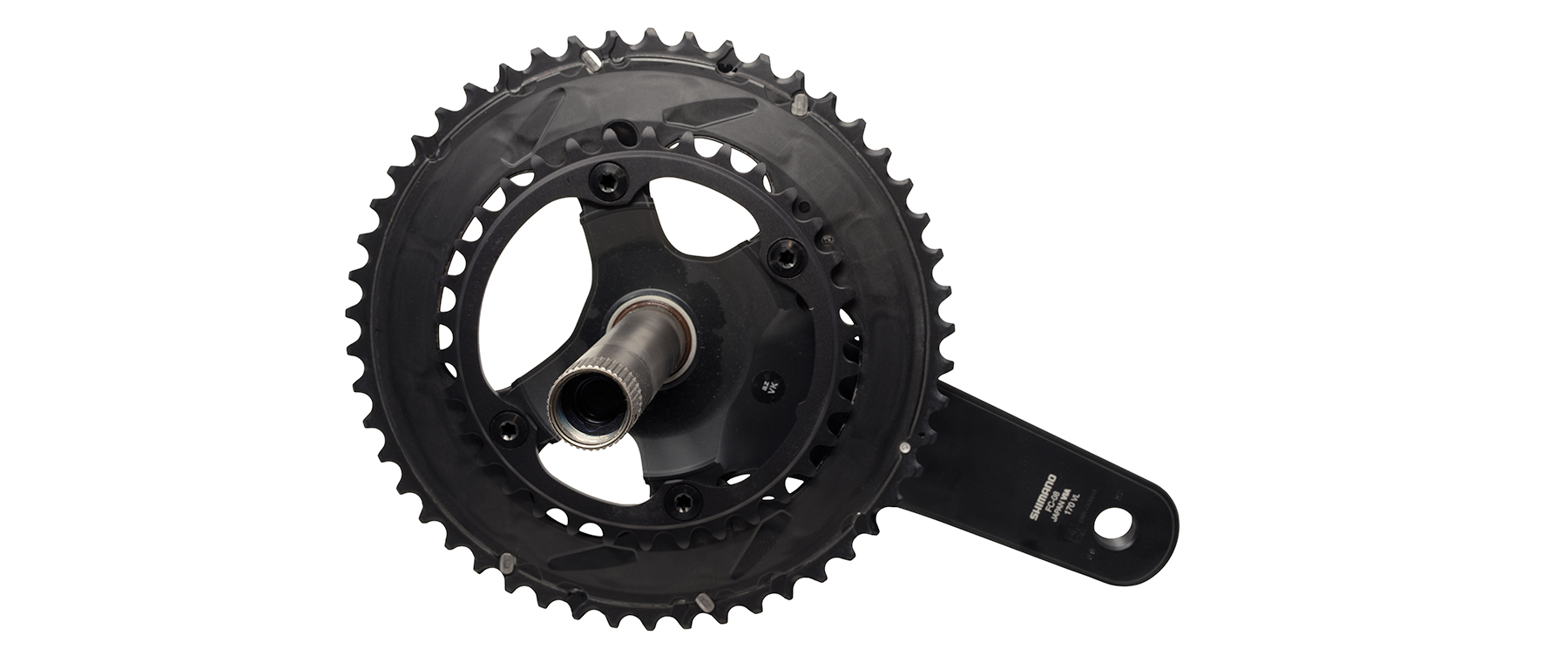

- Asymmetric 110mm BCD four-arm spider
- Chainring options: 50-34T compact or 52-36T mid-compact
- Crank arm lengths: 165, 170, 172.5, 175mm
- 43.5mm chainline, 146mm Q-factor
- Compatible with Shimano HG-EV and HG-X11 11-speed chains
- Requires Shimano Hollowtech II outboard bottom bracket (sold separately)
- Frame compatibility: 130mm rear spacing or 135/142mm road disc, 410mm+ chainstay
