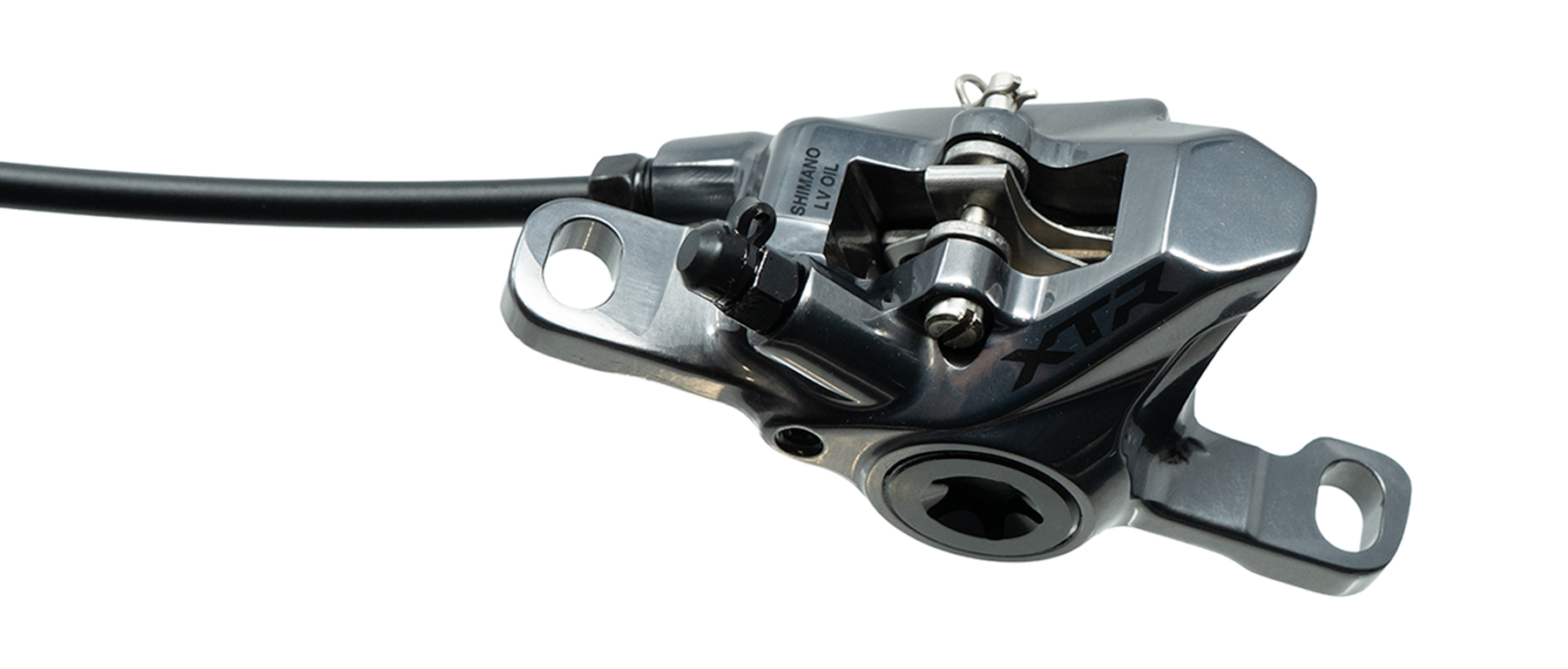

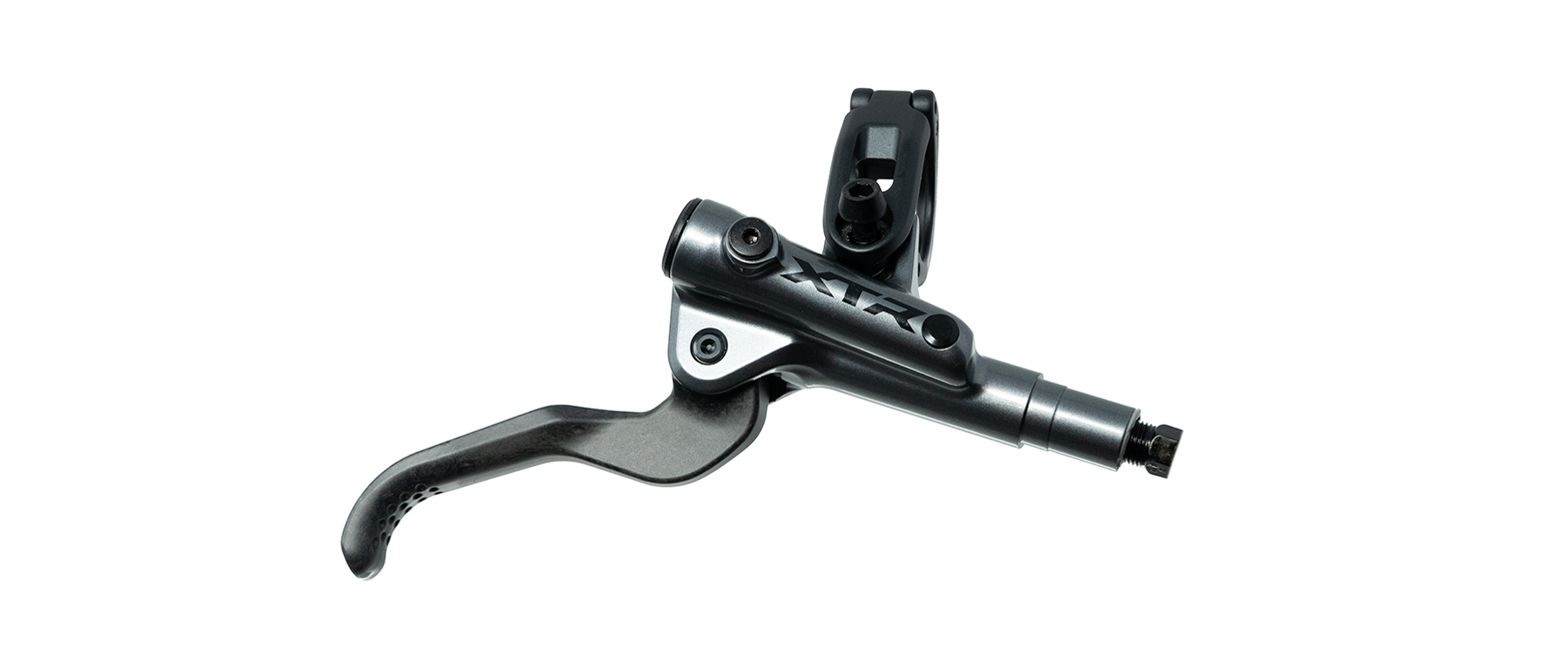

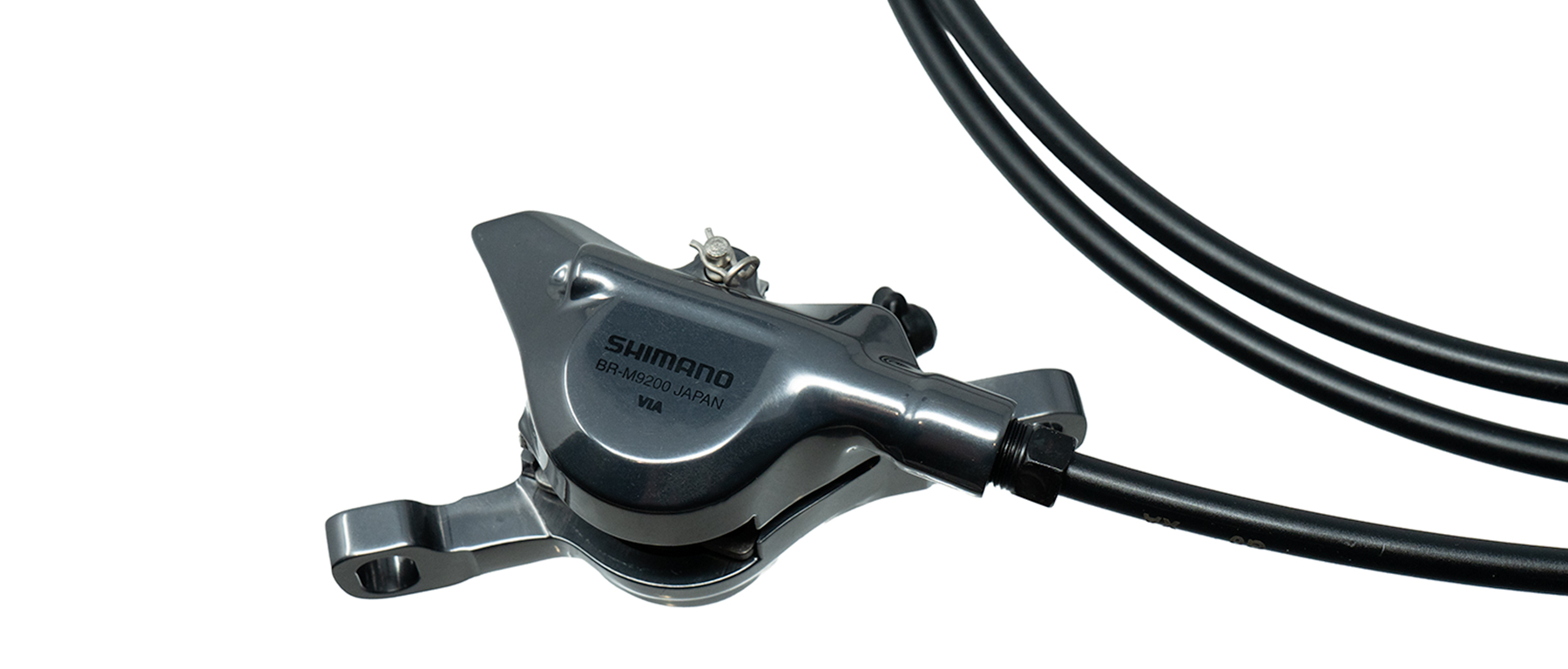

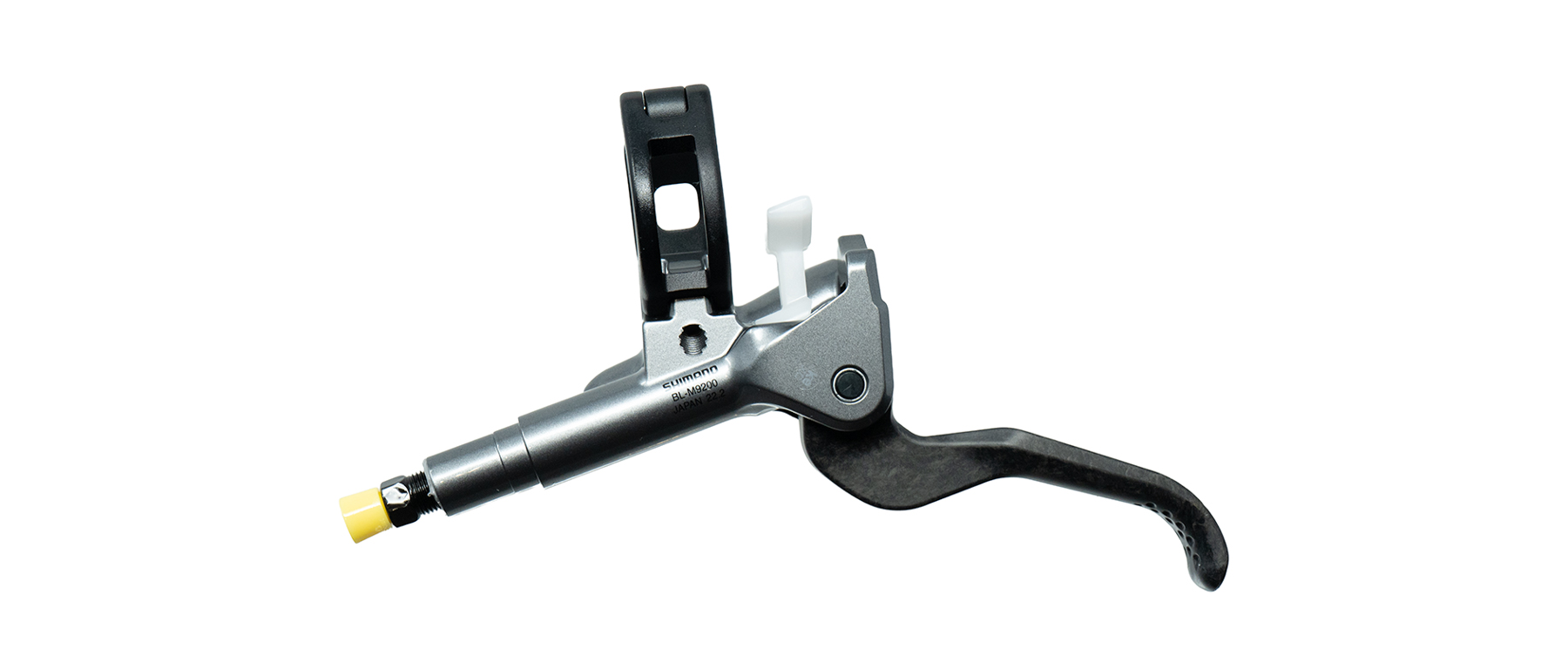

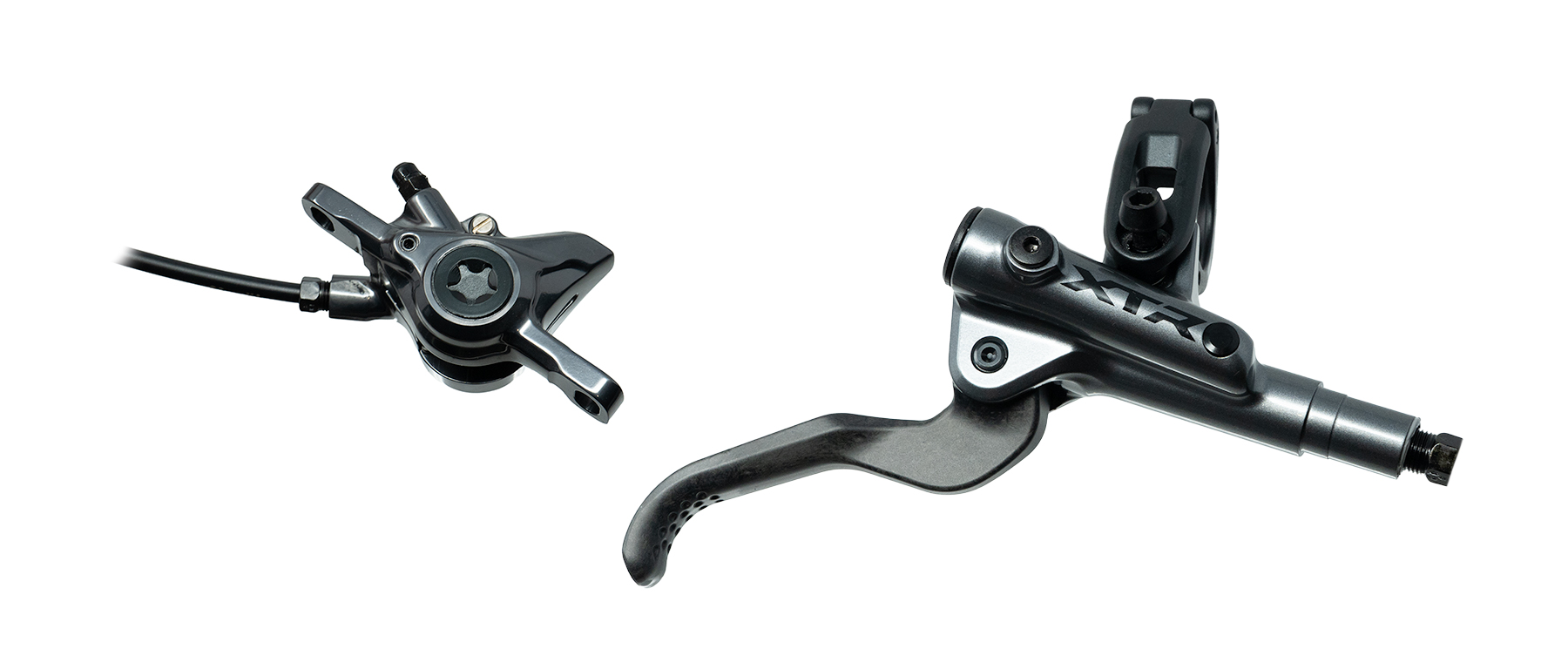

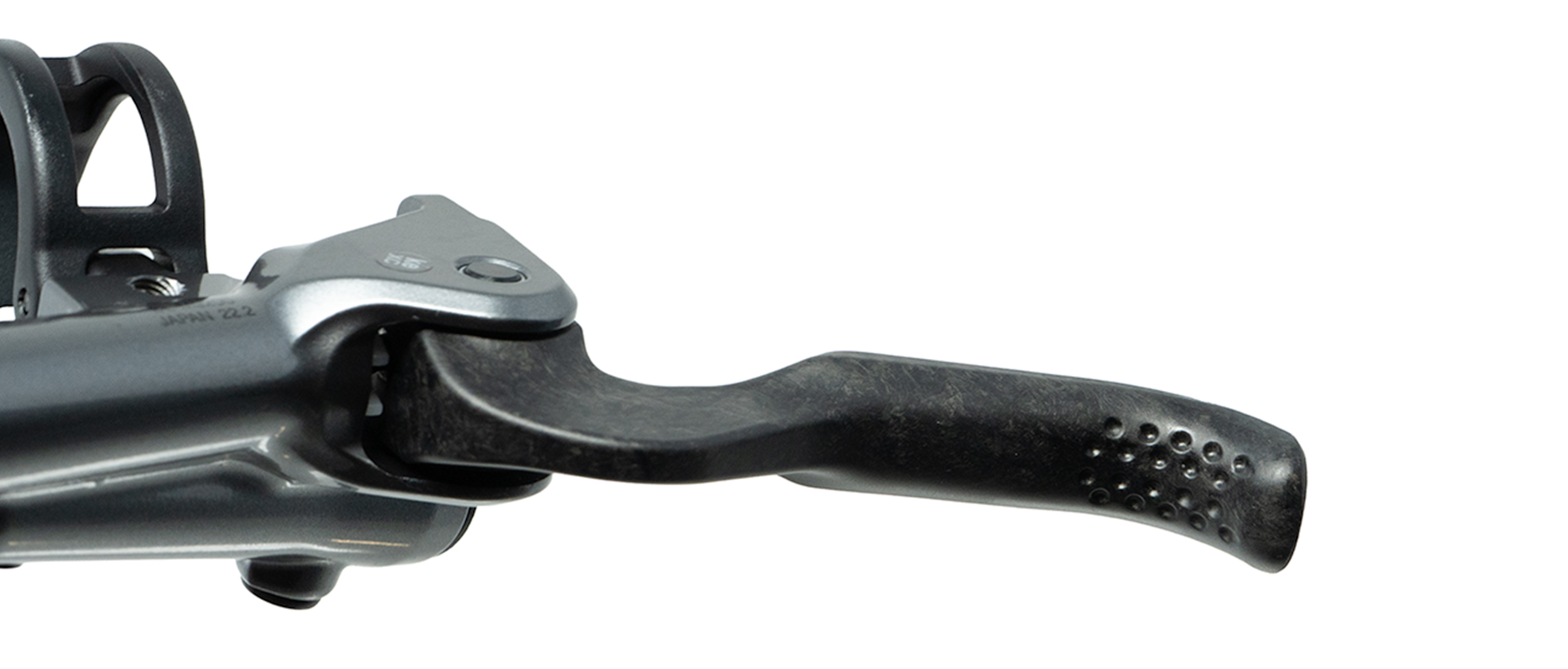

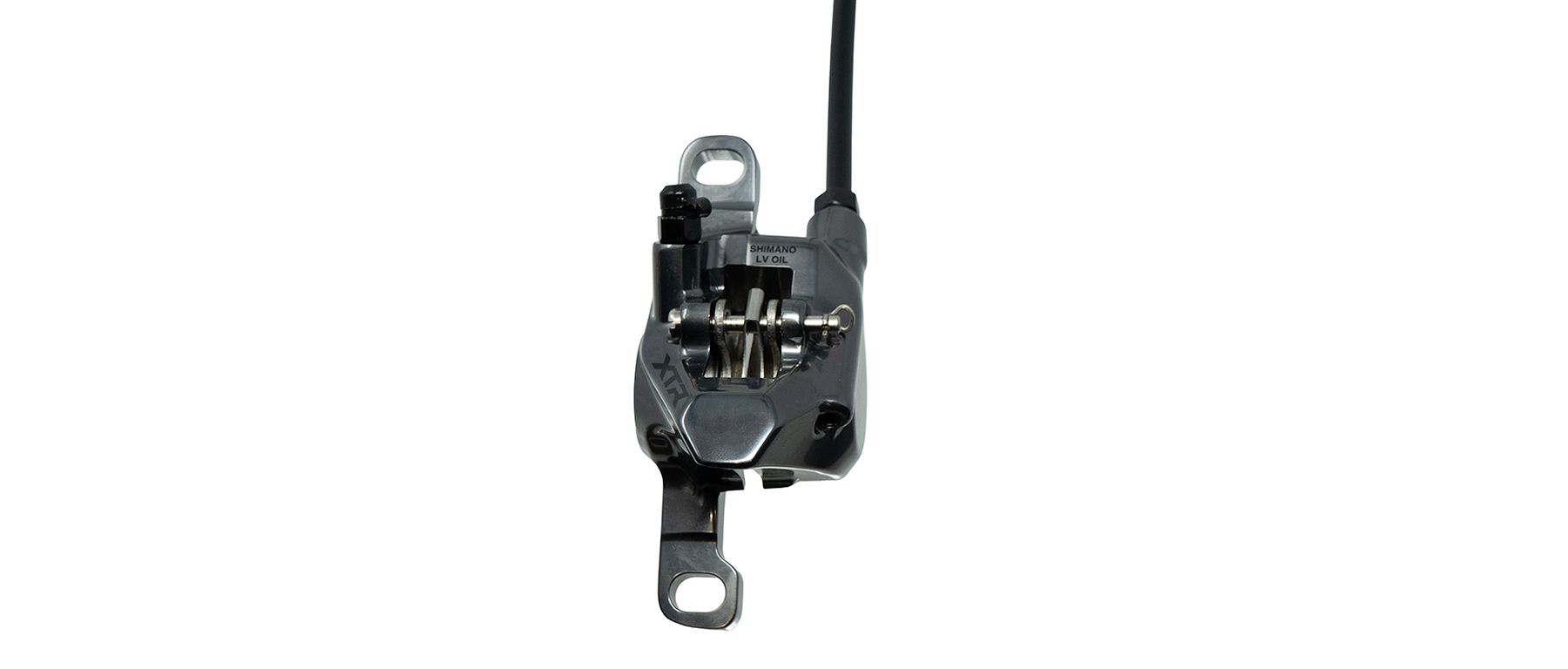

Magnesium and carbon fiber construction defines the XTR Race M9200 brake system, placing it squarely at the weight-obsessed end of cross-country racing. The BL-M9200 lever pairs a magnesium master cylinder body with a carbon fiber lever blade, while the BR-M9200 caliper uses a magnesium body machined from a single cold-forged block. Shimano calls this MONO-BODY construction, and the benefit is straightforward: forging the caliper from one piece eliminates the flex that can occur at bolted joints in two-piece designs. That rigidity translates to a more direct feel at the lever, where input force goes into moving fluid rather than deflecting caliper halves. The two-piston post-mount design keeps weight minimal while providing the modulation XC racing demands.

The M9200 uses Shimano's new low-viscosity mineral oil formula, which maintains consistent viscosity across temperature swings. Whether you're staging in August heat or descending on a cold morning, the bite point stays where you set it. This addresses a long-standing complaint about Shimano brakes wandering under varying conditions. The catch is that you cannot use this oil in older Shimano brakes or vice versa—the new seals and pistons are specifically designed for the lower viscosity, and mixing fluids will cause brake failure. If you're already familiar with Shimano's bleeding procedure, the process remains the same; just keep the new and old fluids separate in your bleed kit. Slight cross-contamination in the bleed tools is fine, but the fluids themselves should never mix in the brake system.

Heat-resistant resin pistons in the caliper handle the thermal demands of repeated braking, and you can run either resin or metal pads depending on trail conditions and preferences. The two-piston design prioritizes modulation and weight over raw stopping power—this is an XC brake, not an enduro brake. If you need more power without adding a larger rotor, Shimano officially sanctions pairing the BR-M9200 caliper with the BL-M9220 enduro lever. That combination adds about 47 grams per end but brings Servo Wave cam action for increased power at the lever. The M9200 caliper also works with the MT805 caliper for riders building mixed-component setups.... Read More
