Bicycles > Road > Framesets

Description

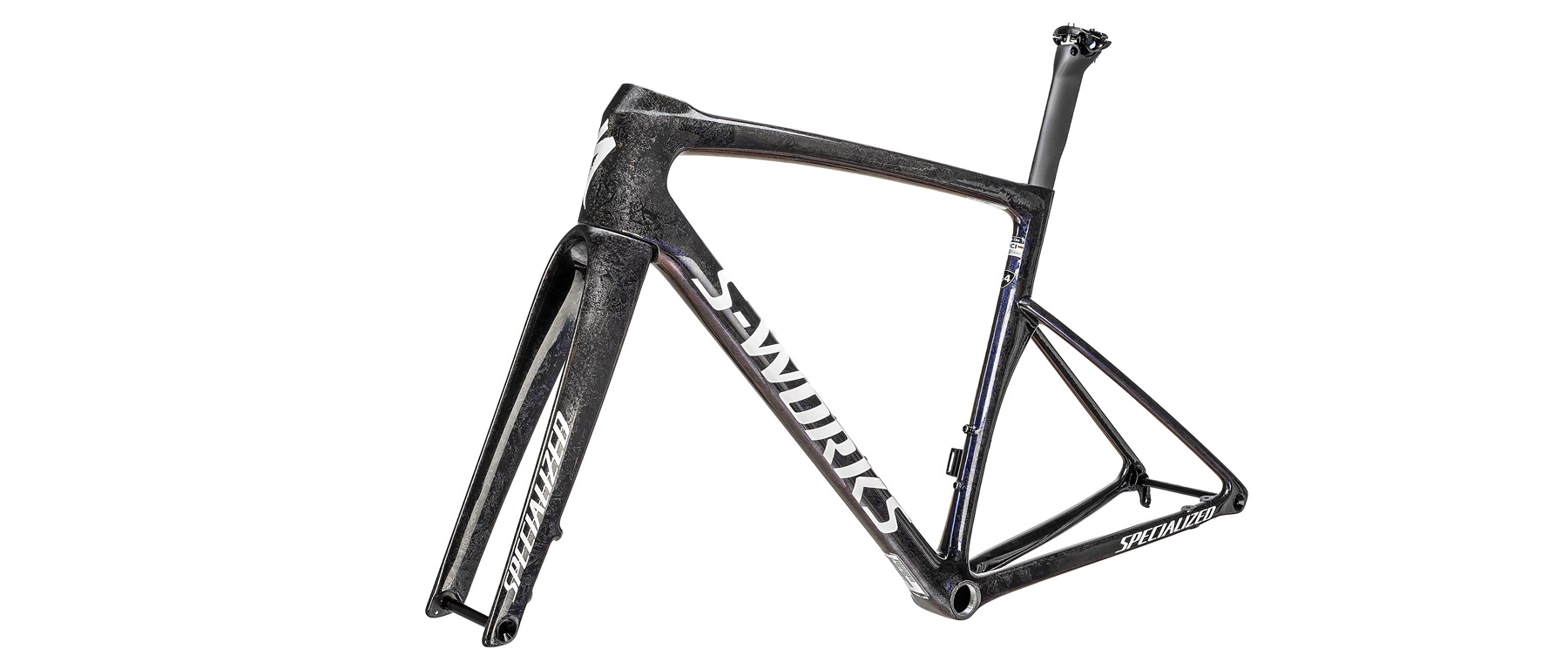

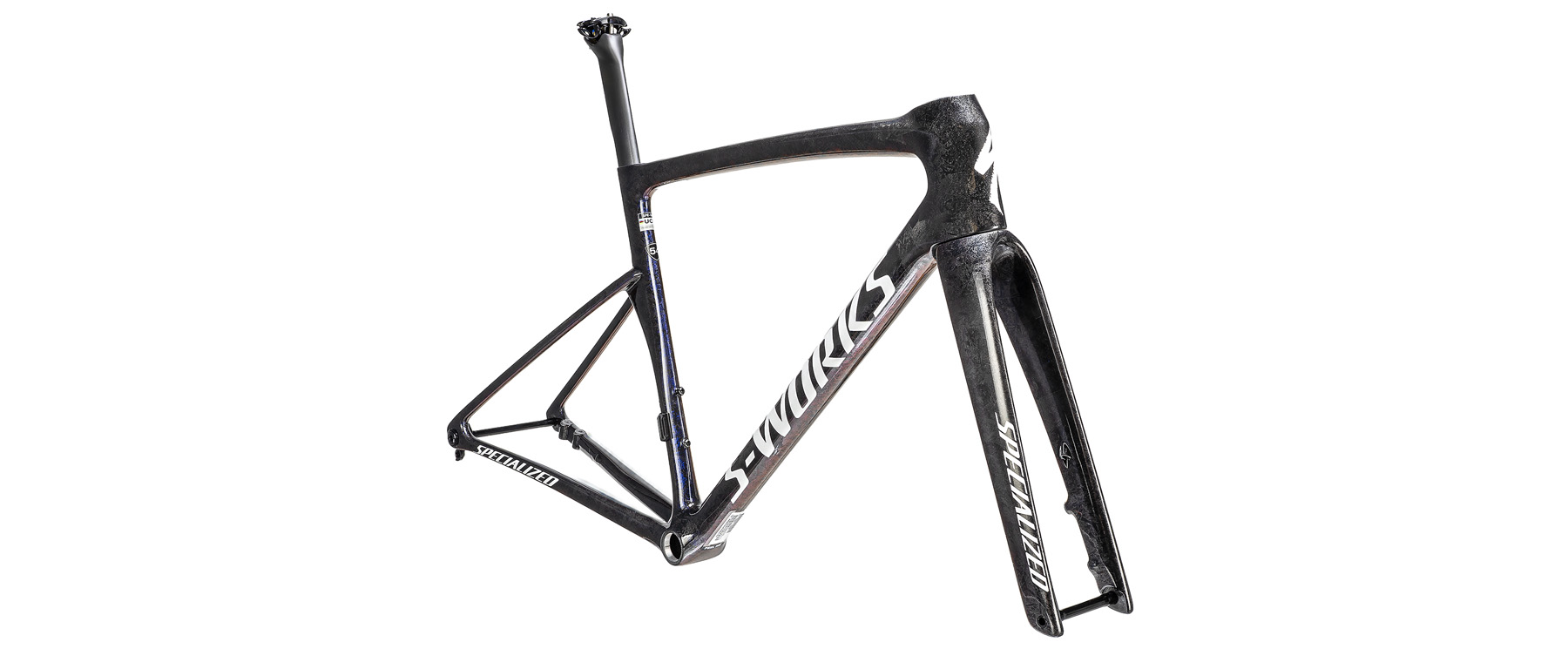

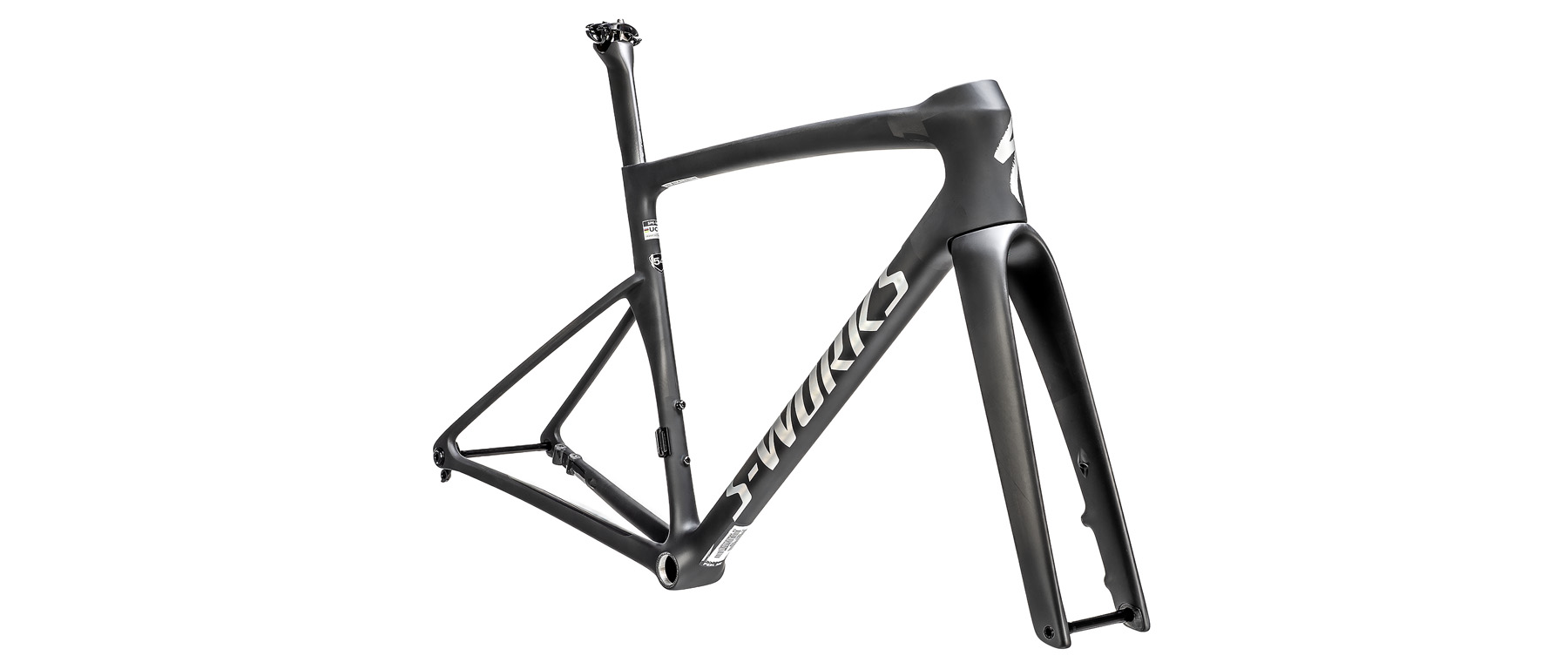

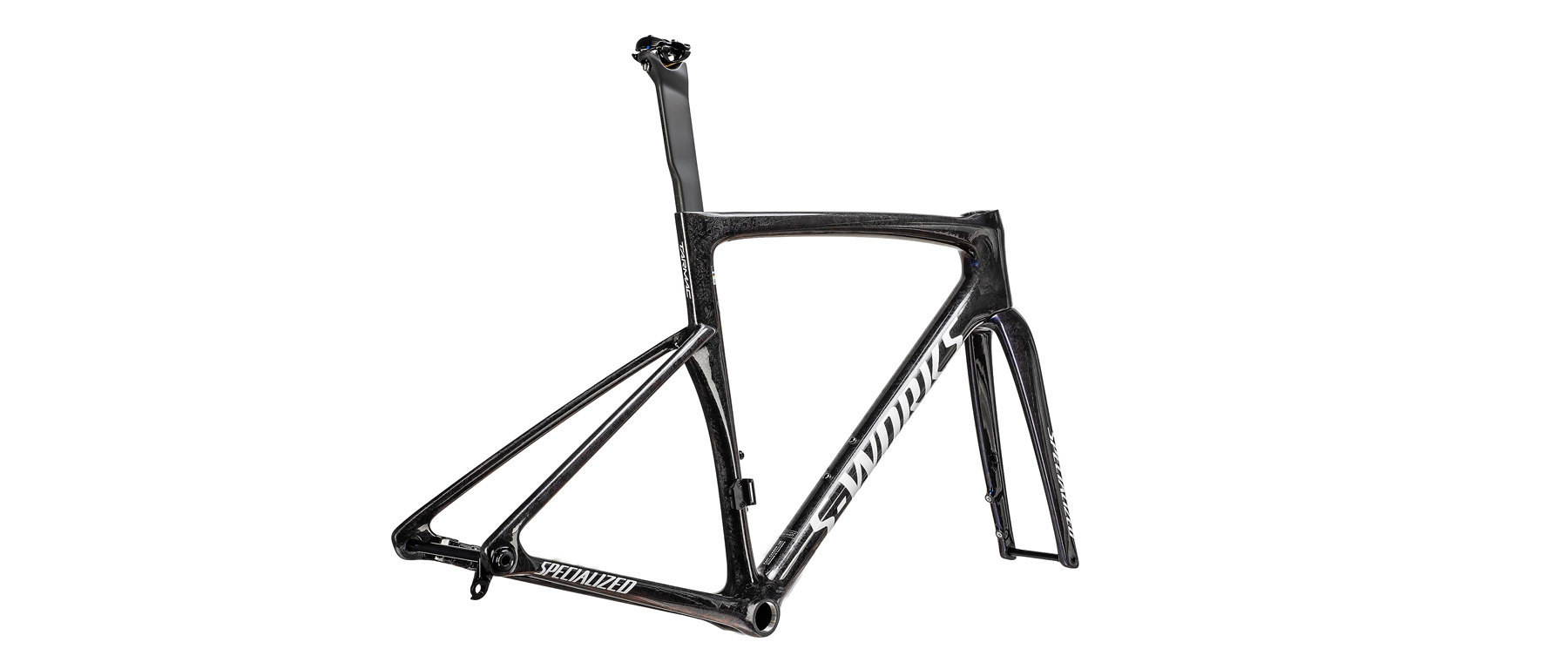

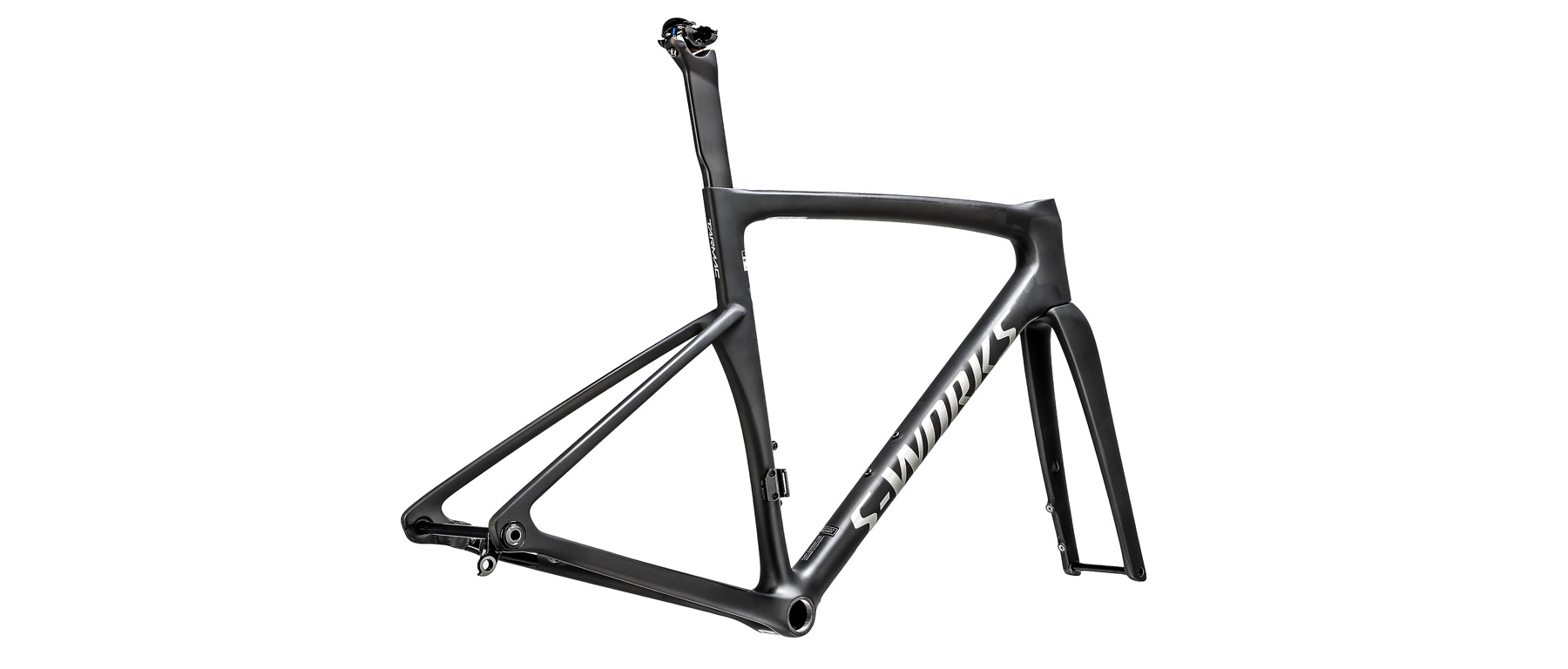

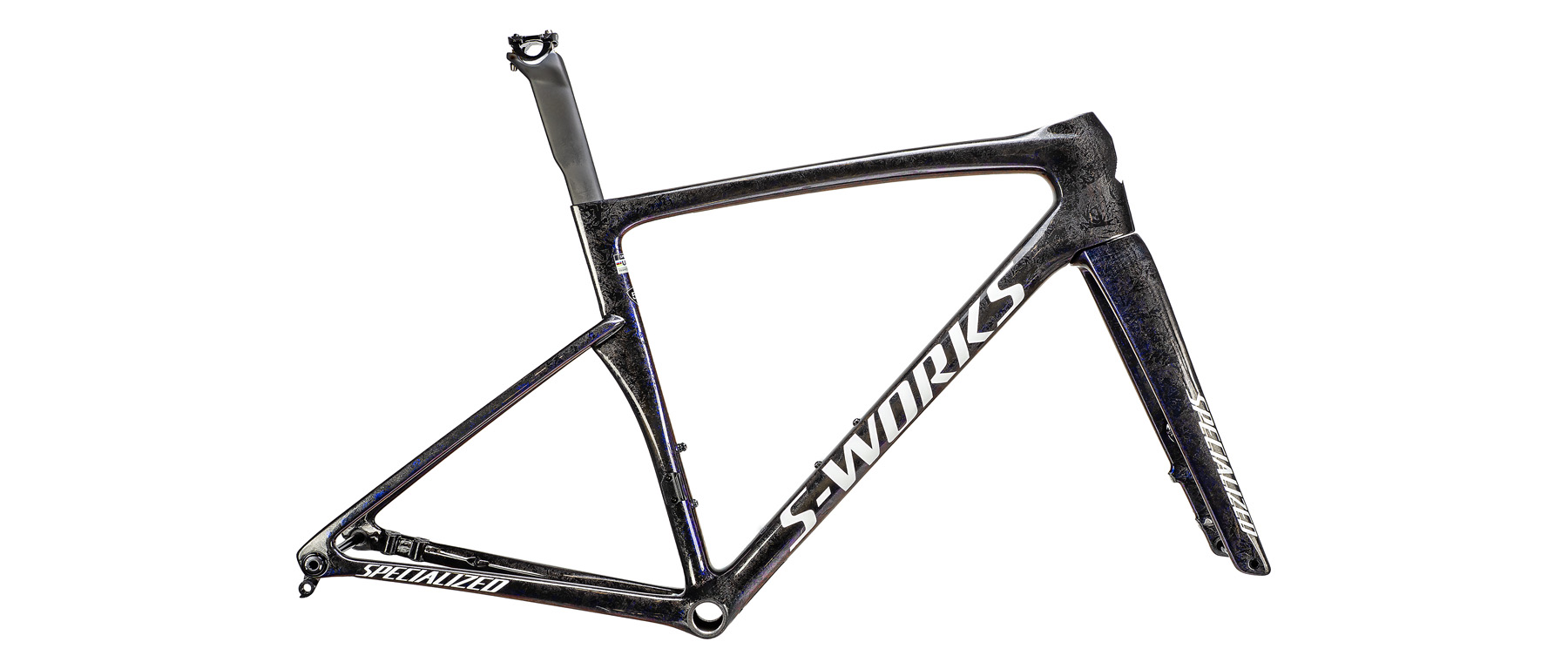

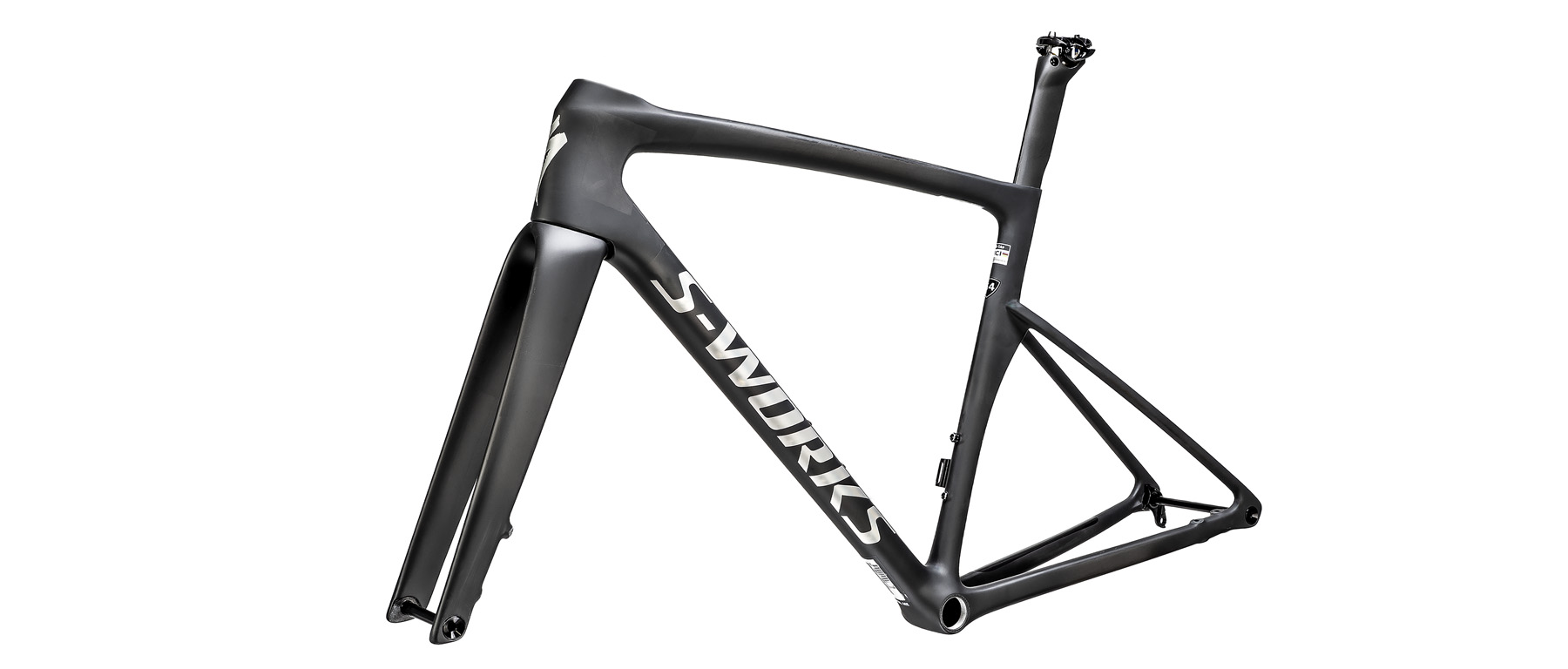

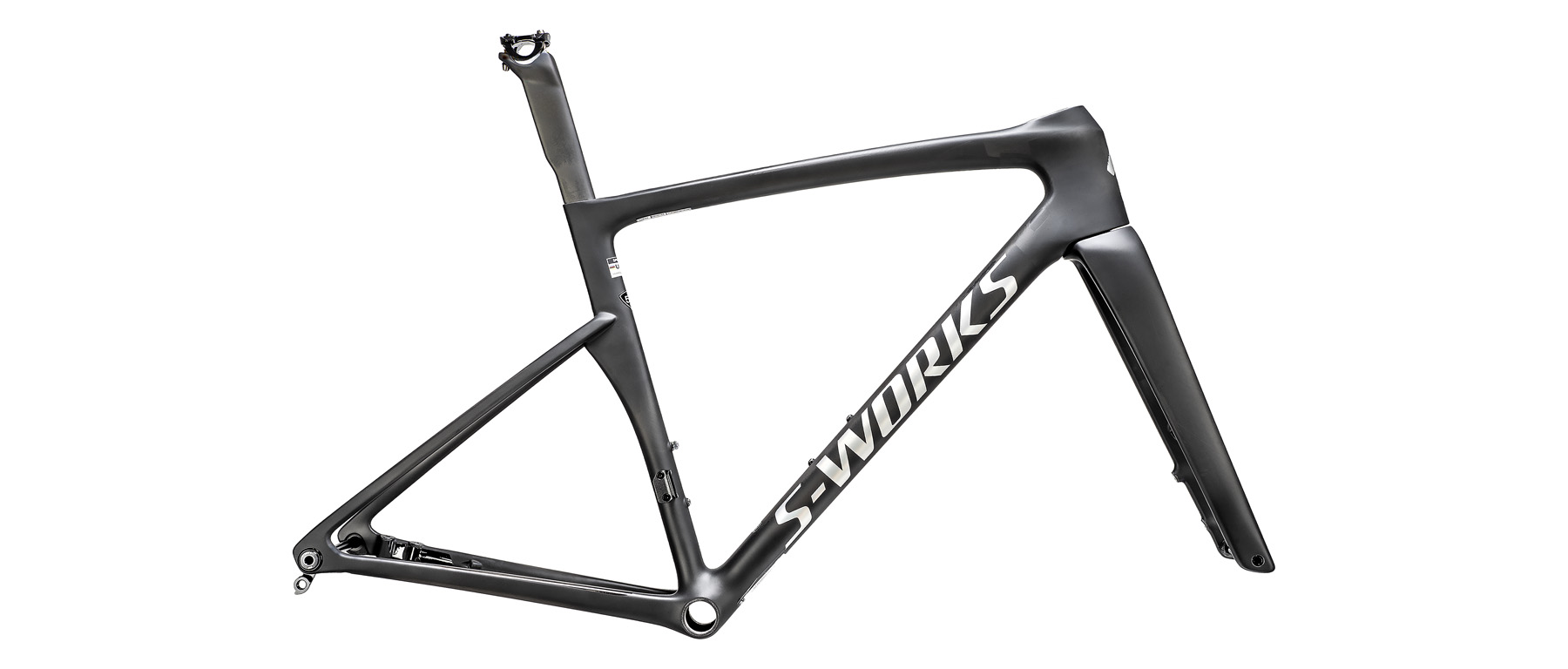

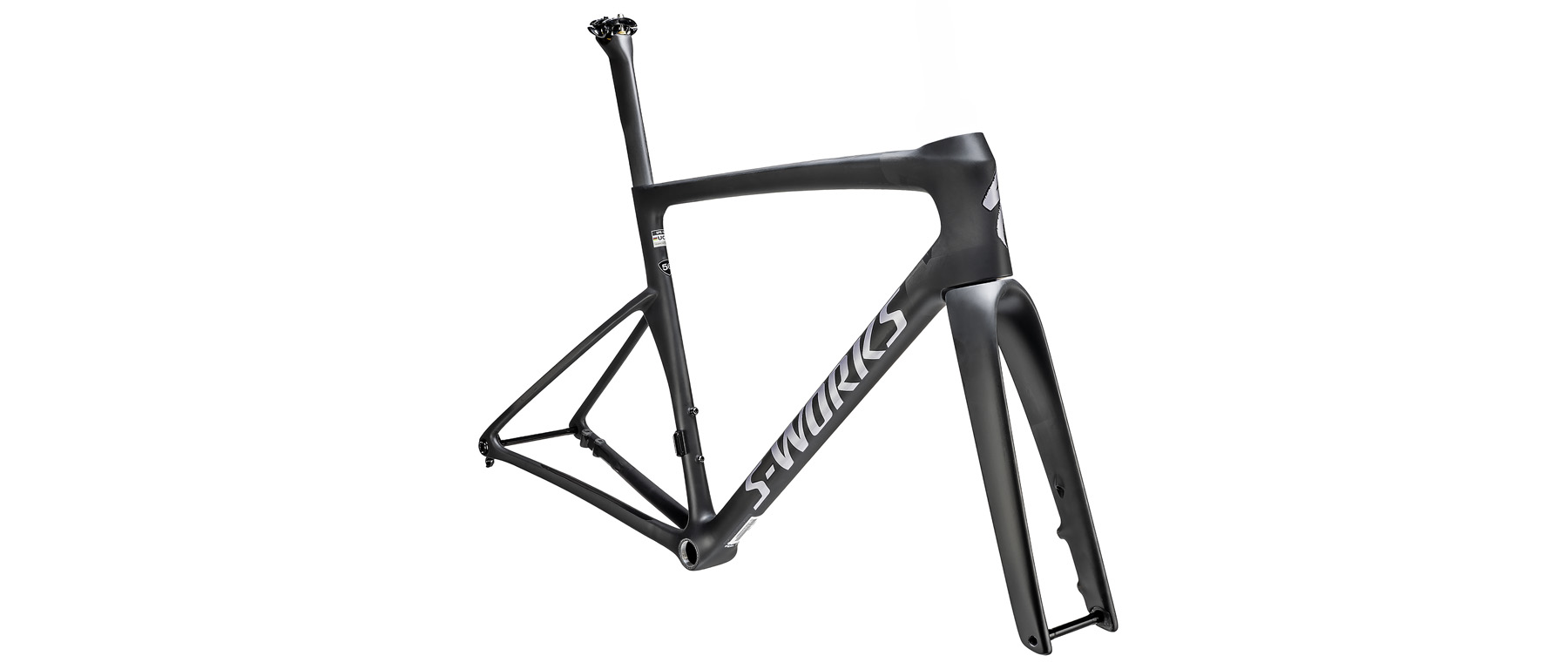

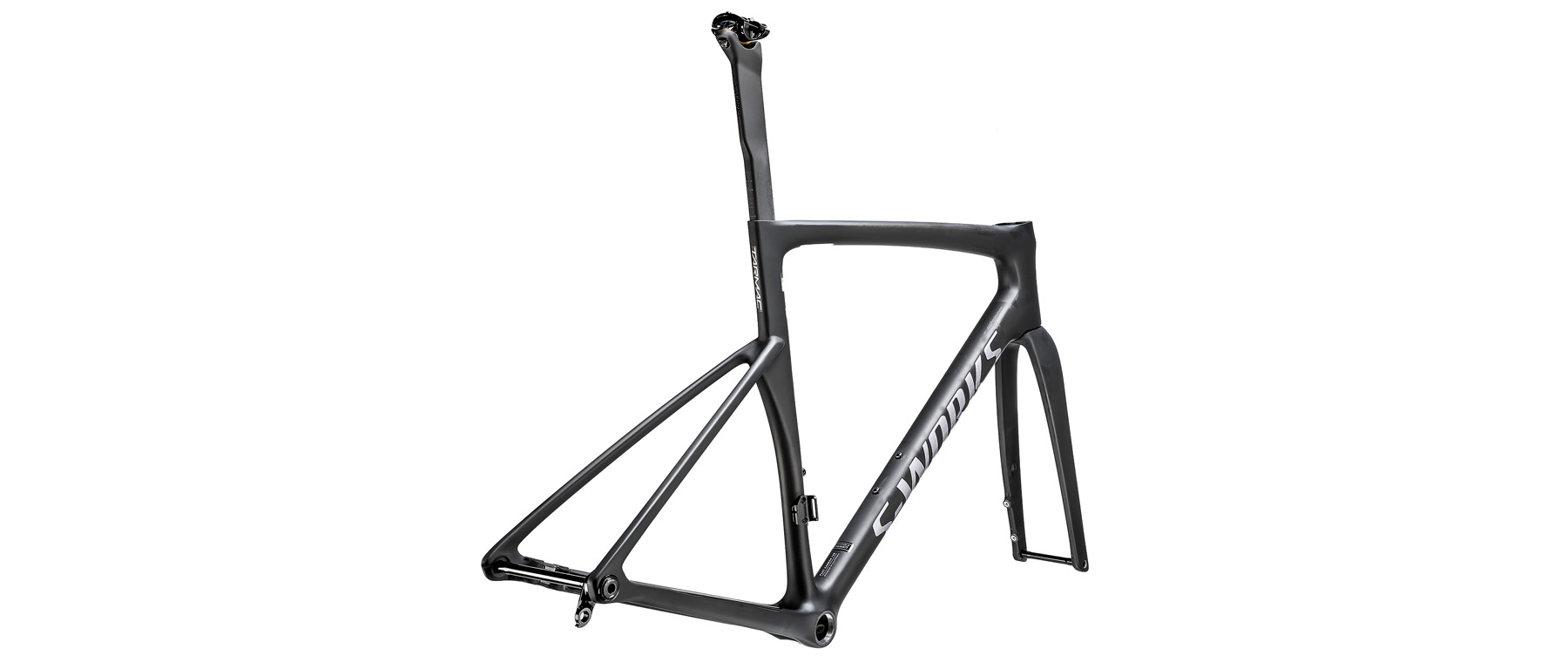

The fastest road bike Specialized has ever built doesn't lead with a single headline number — it leads with all of them at once. The S-Works Tarmac SL9 lands as a 687-gram frame that builds into complete bikes as light as 6.5kg, and it does so while being the most aerodynamic Tarmac to date. That combination is the whole point: rather than chase the lowest wind-tunnel drag figure or the lightest scale weight in isolation, Specialized engineered the SL9 around Time to Finish — a physics-based prediction of how long a rider actually takes to cover a real World Tour course. Aerodynamics, weight, rolling resistance, stiffness, and compliance were all balanced against the demands of real stages and Monuments, which is why the SL9 turns more of your effort into speed where races are genuinely decided.

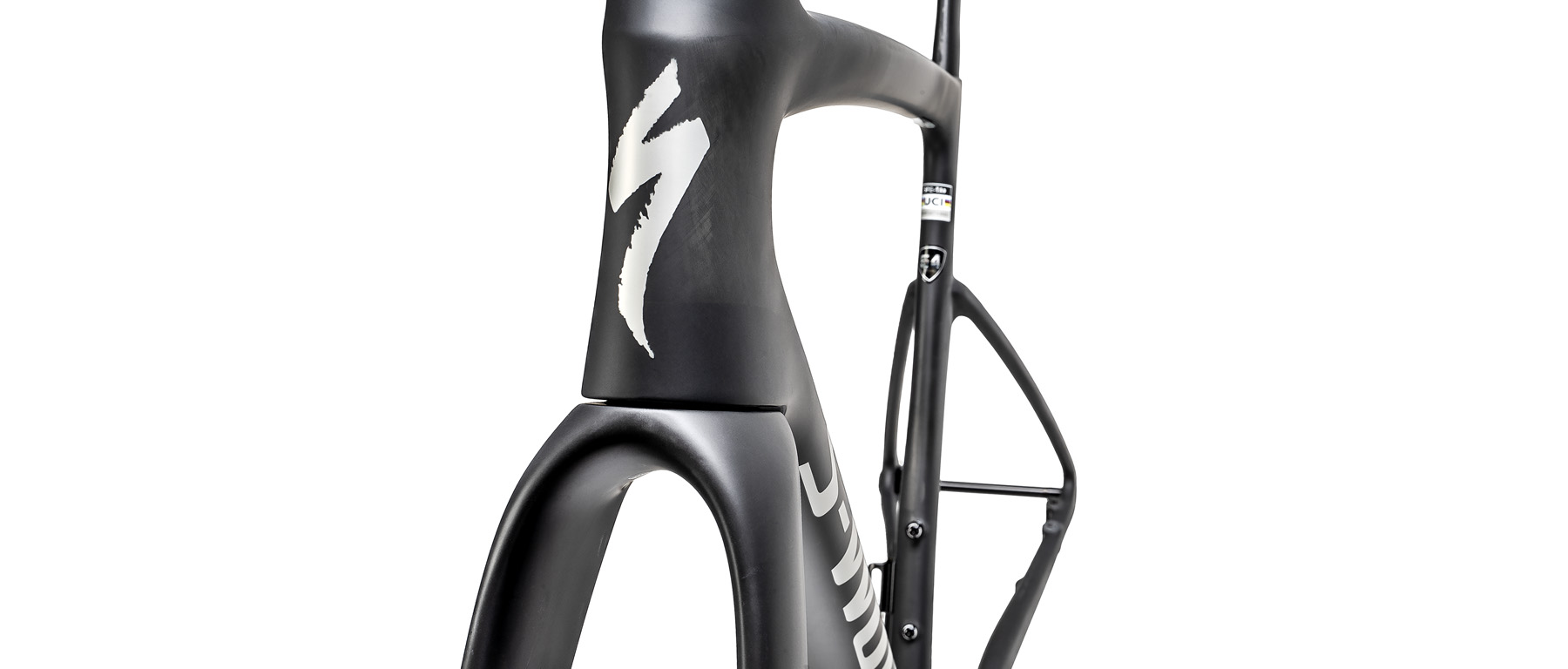

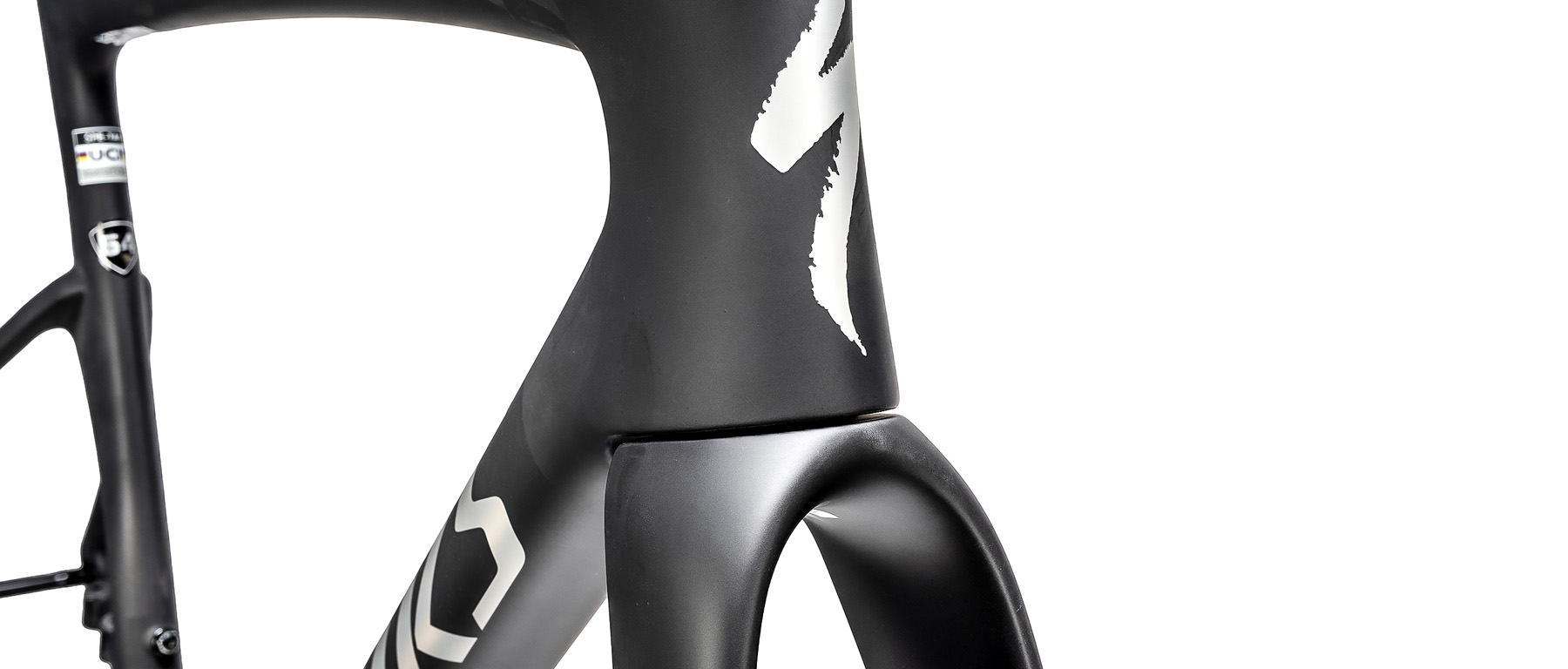

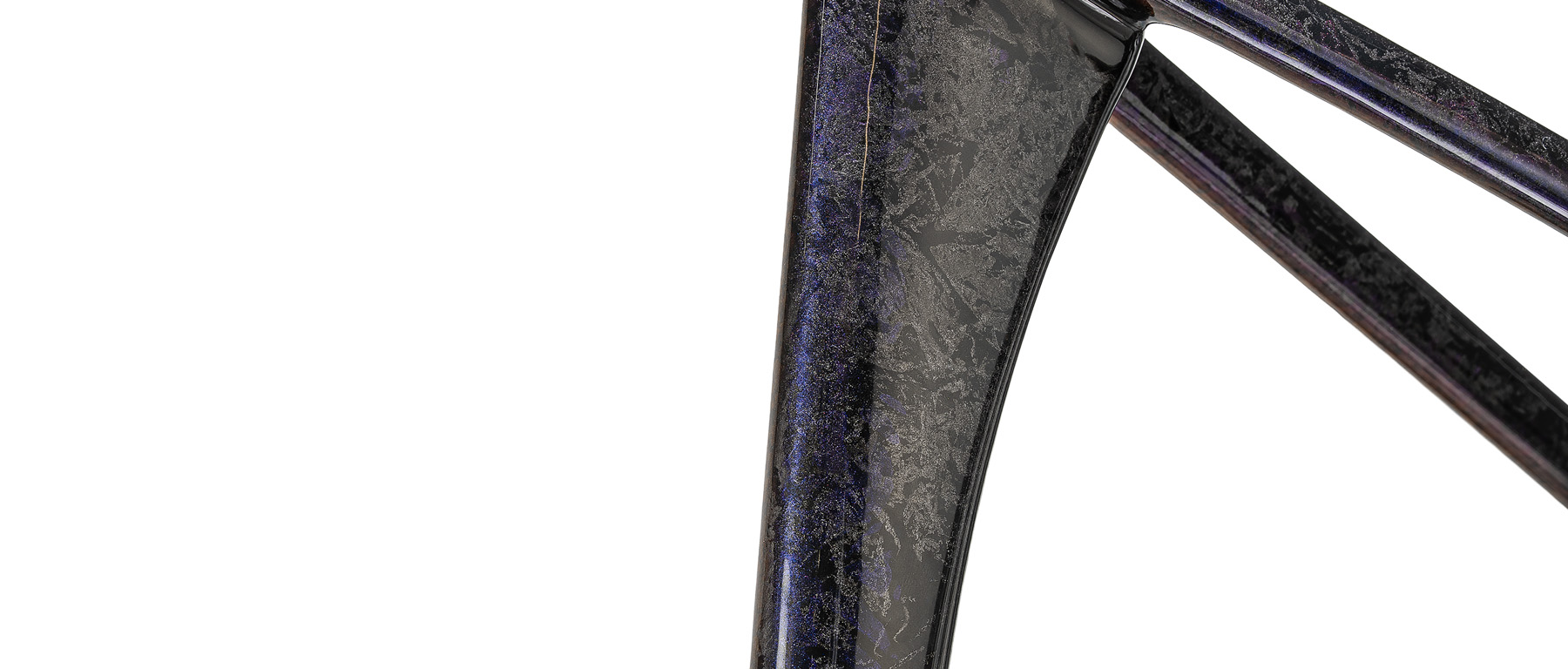

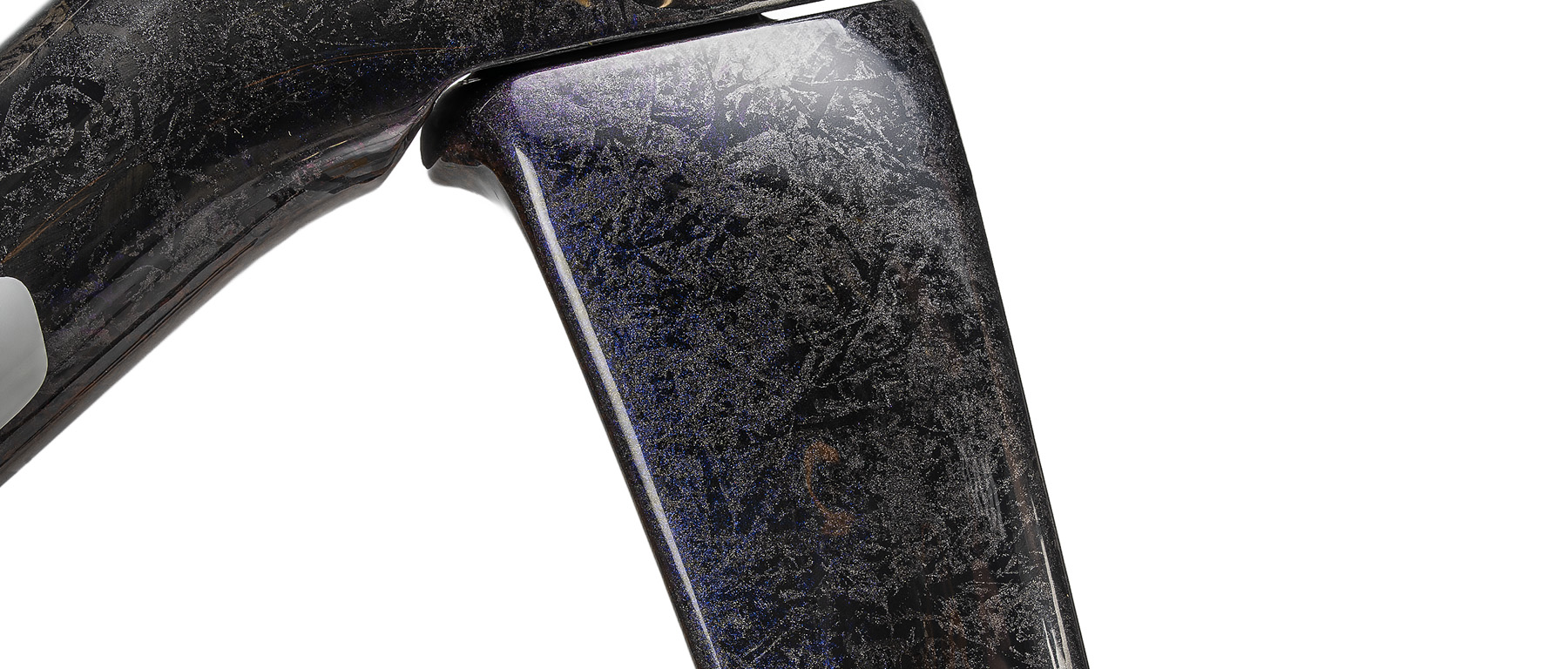

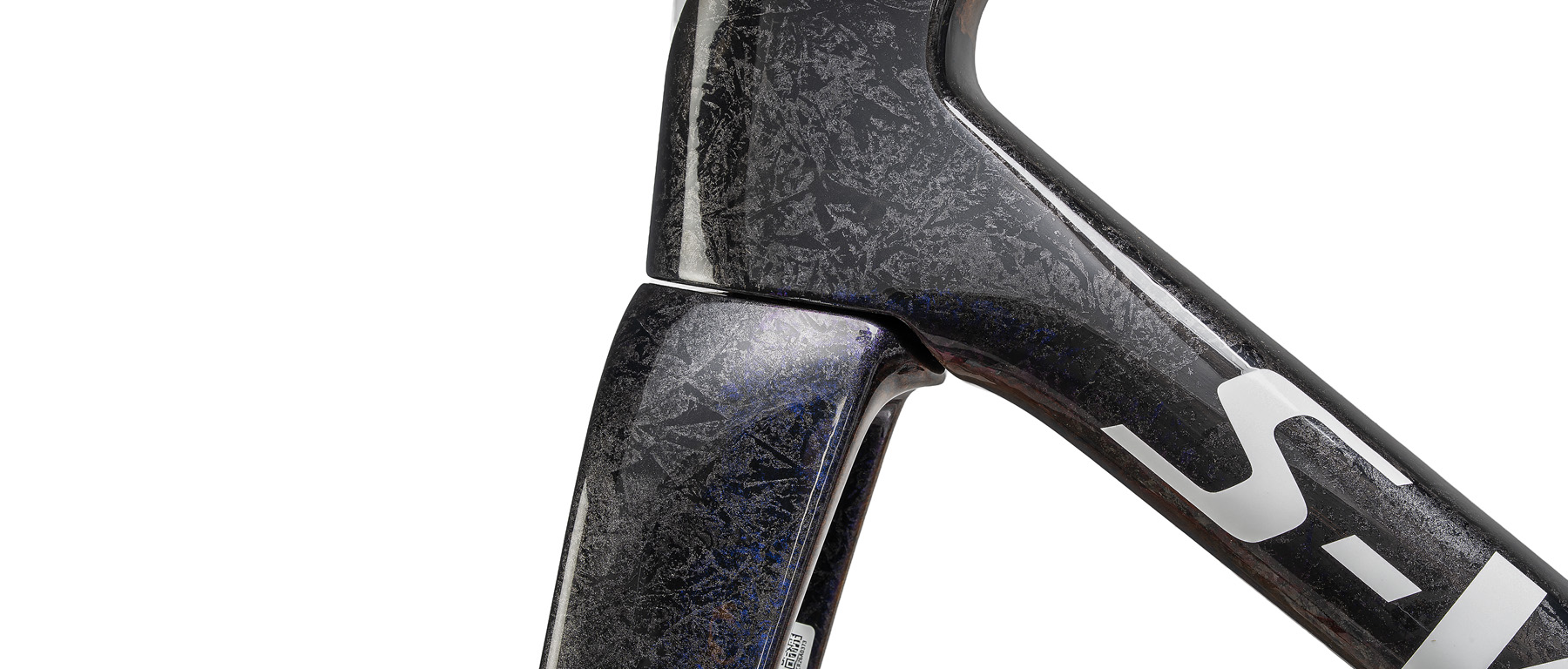

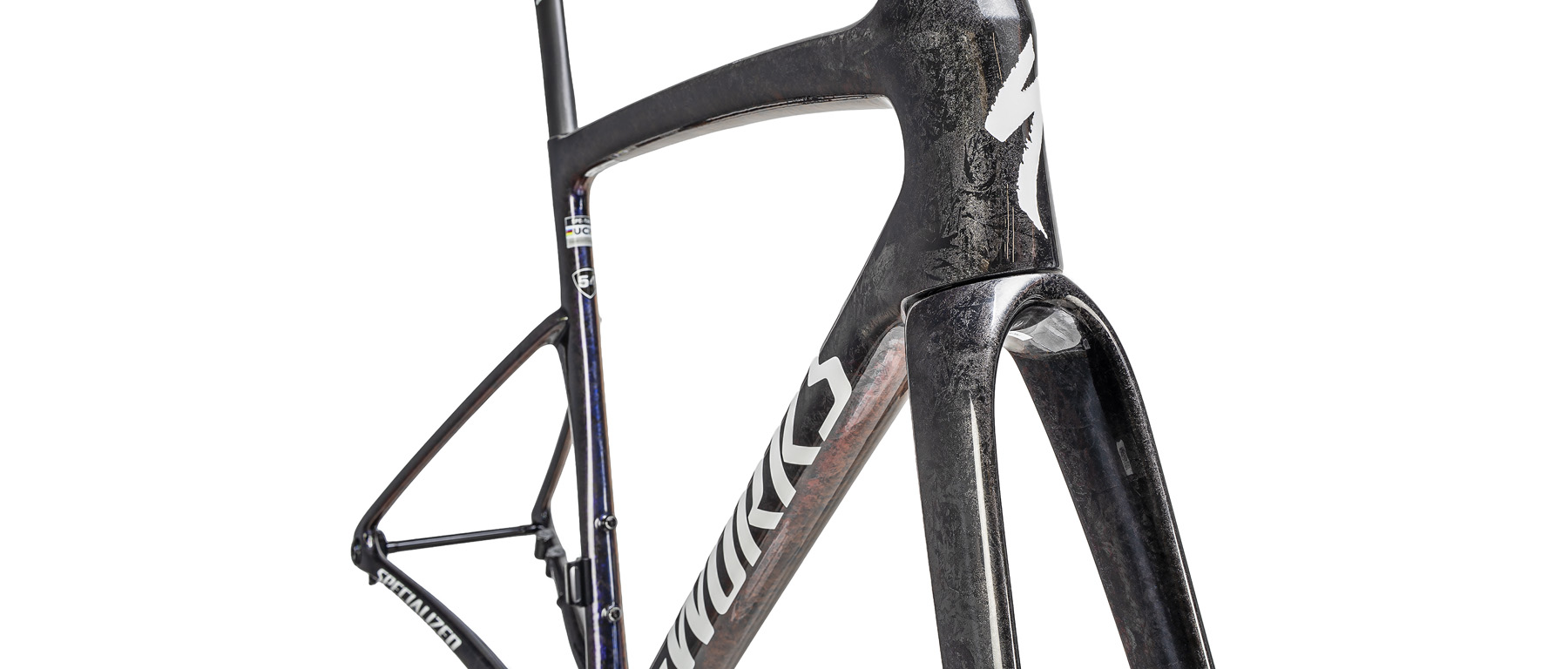

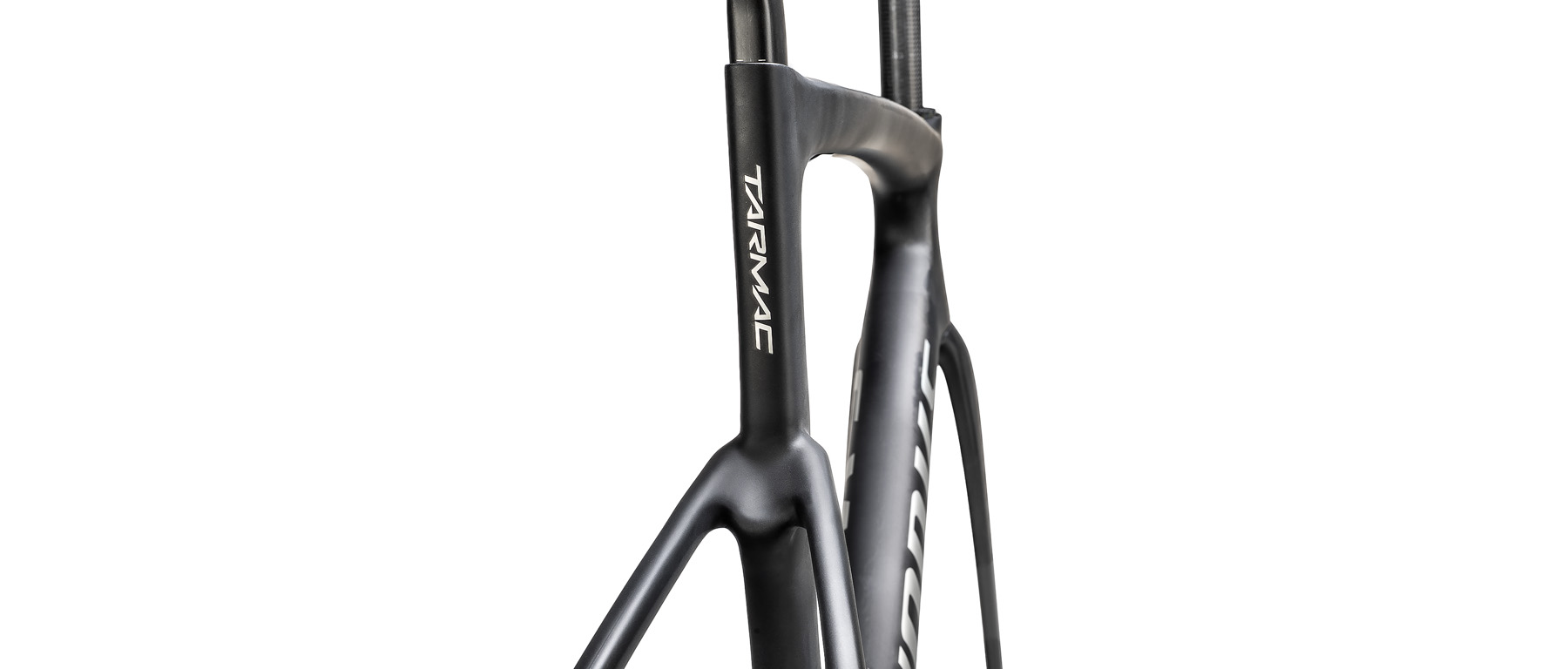

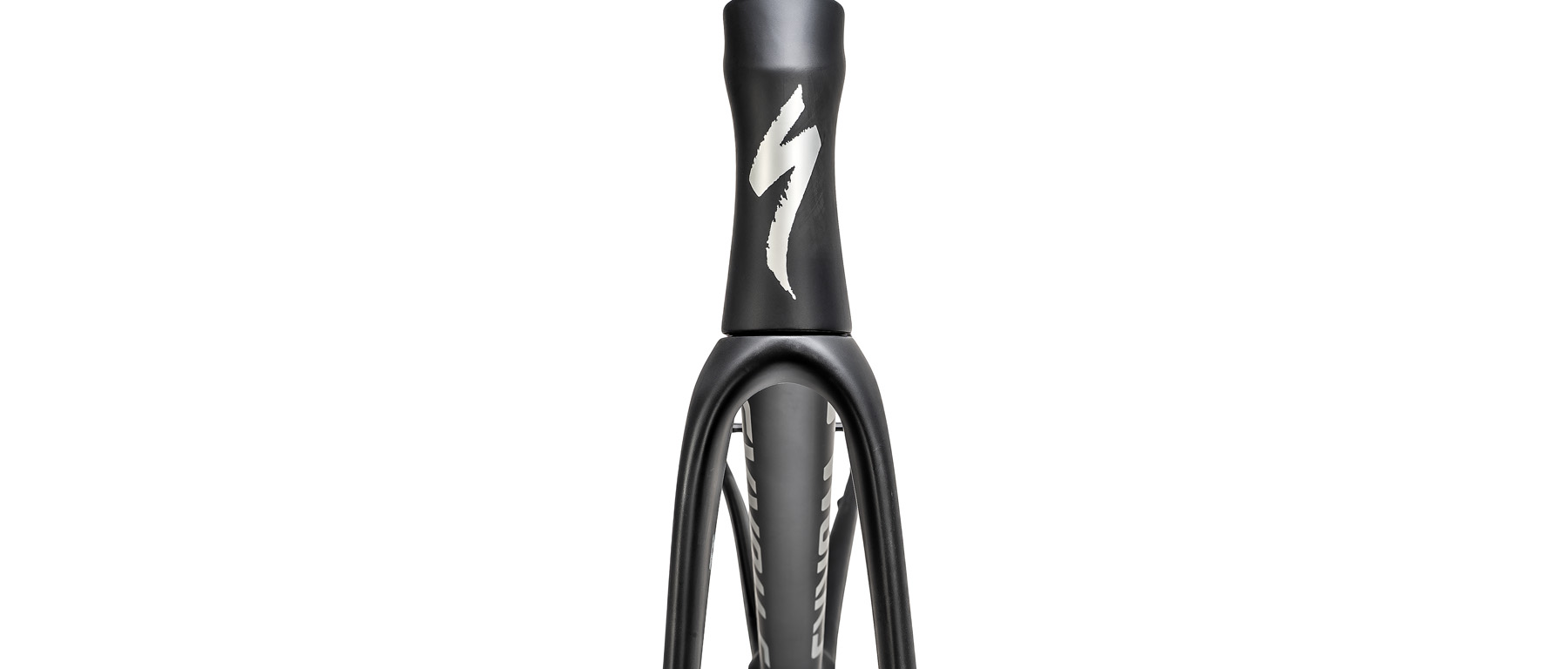

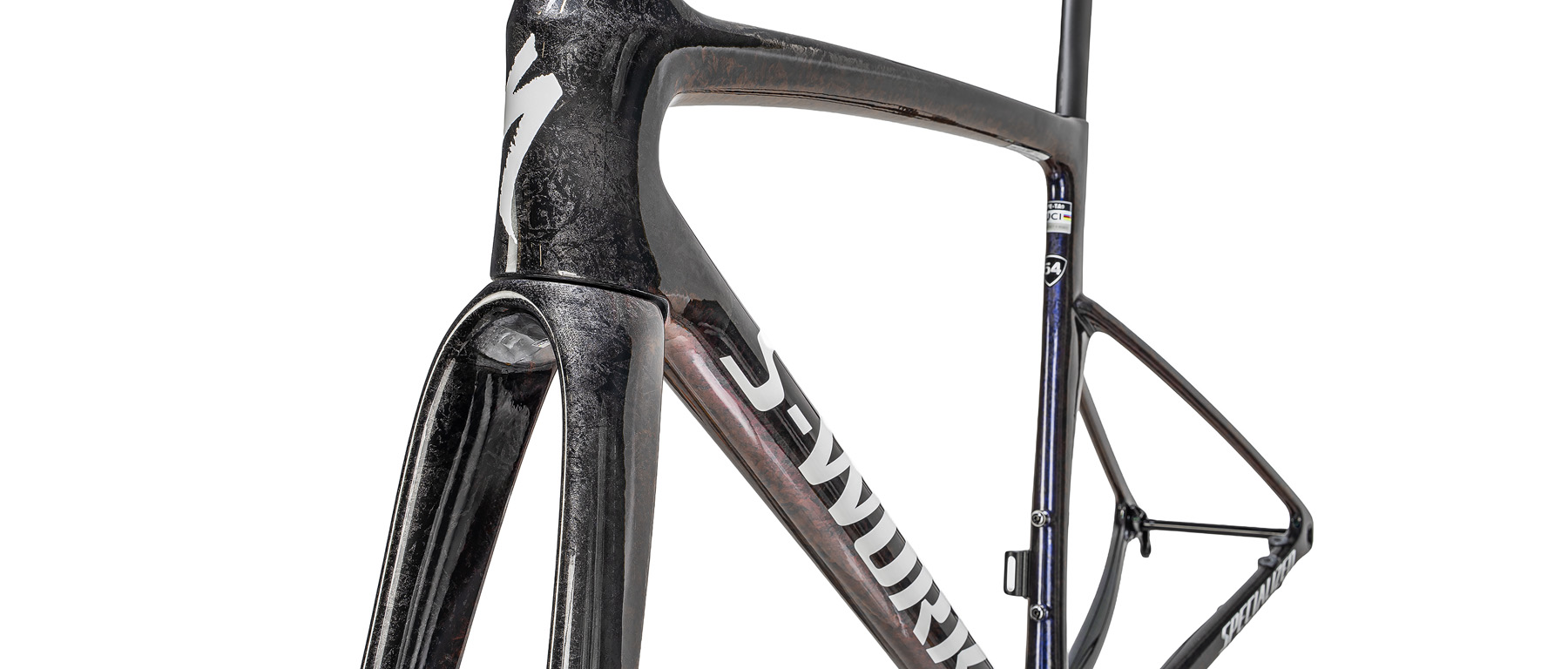

If you've ridden an SL8, the SL9 will feel like home with the volume turned up. Specialized re-sculpted every tube for speed while holding the line on weight, and the front end is where the work shows most. The Speed Sniffer head tube went 4mm thinner thanks to an Offset Steerer design that reroutes the rear brake line down the right side of the steerer, freeing the space cables used to occupy. The payoff is roughly a 10 percent reduction in frontal area up front, reinforced by a dropped down tube and the twisted-blade Flow Fork. Together they close the gap between the front wheel, head tube, and the leading edge of the down tube, keeping airflow attached through the messy, high-pressure zone that usually sheds drag into the frame.

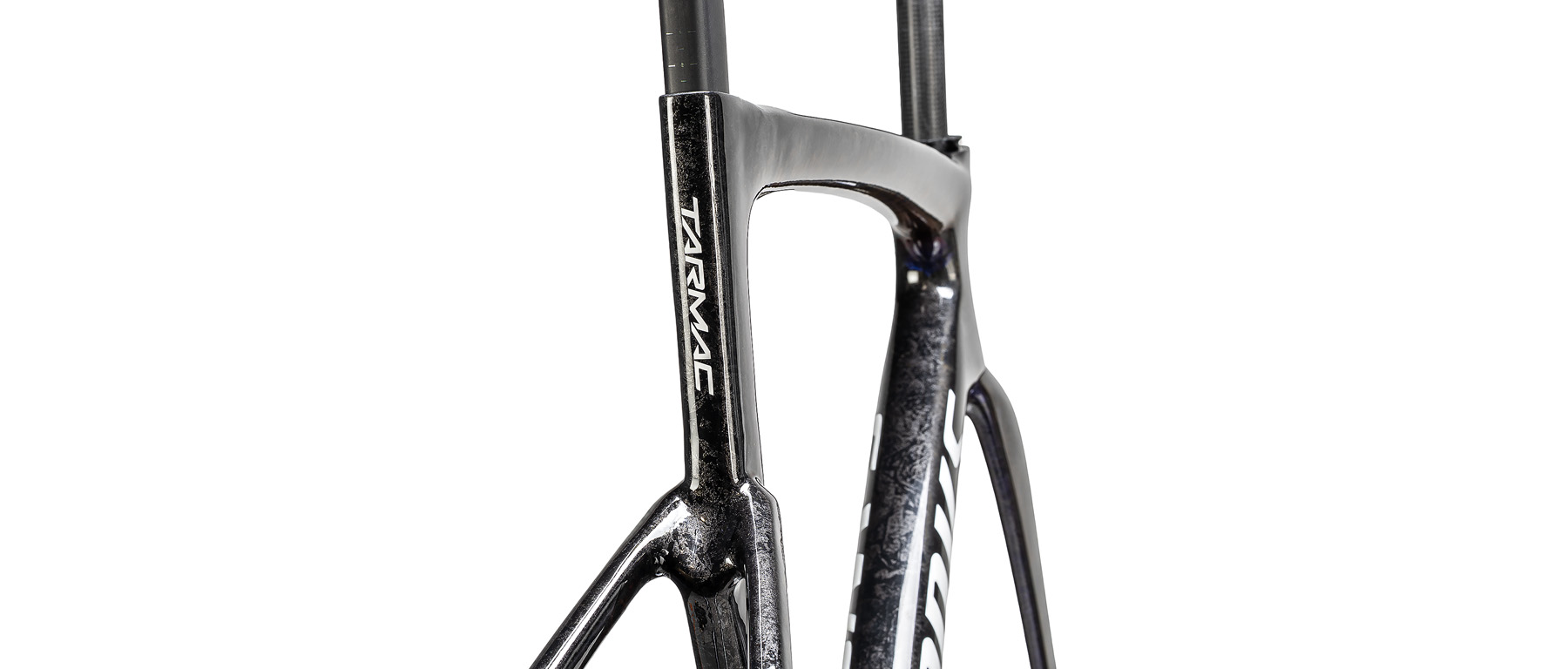

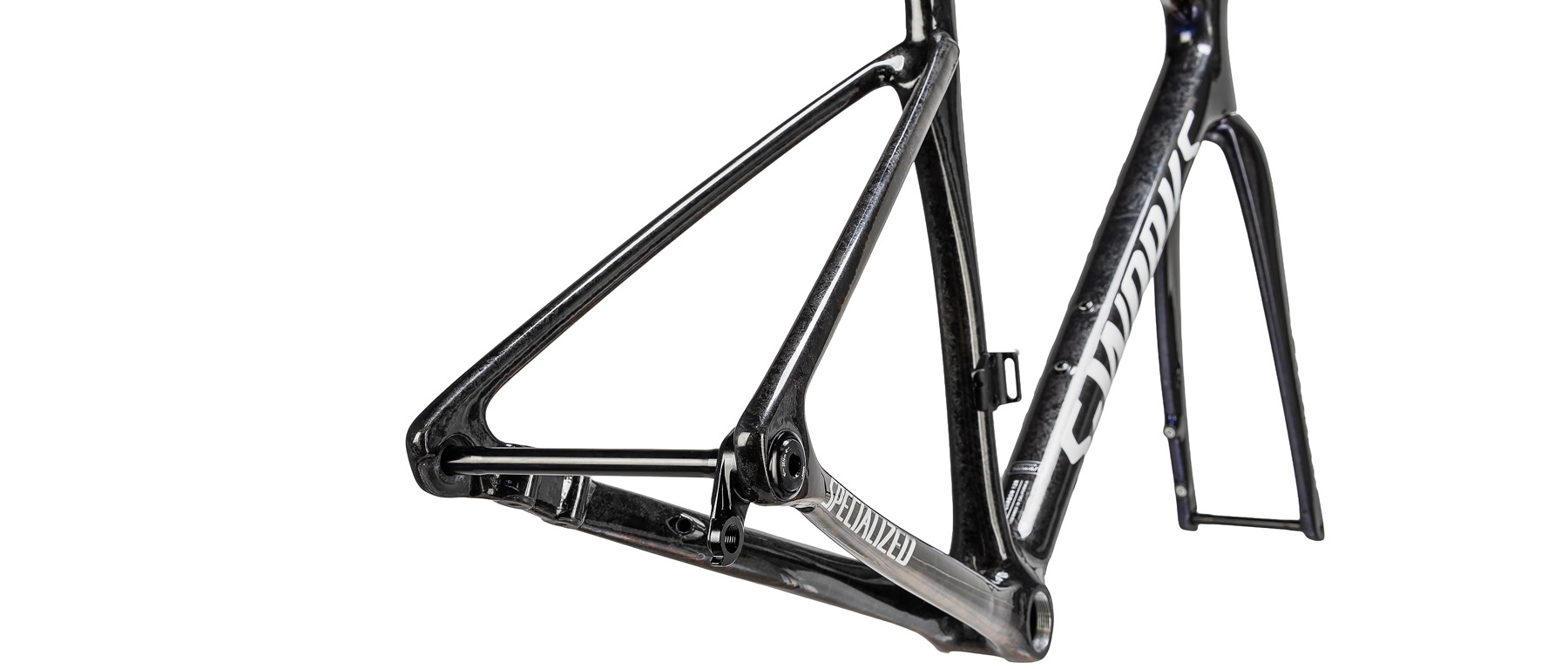

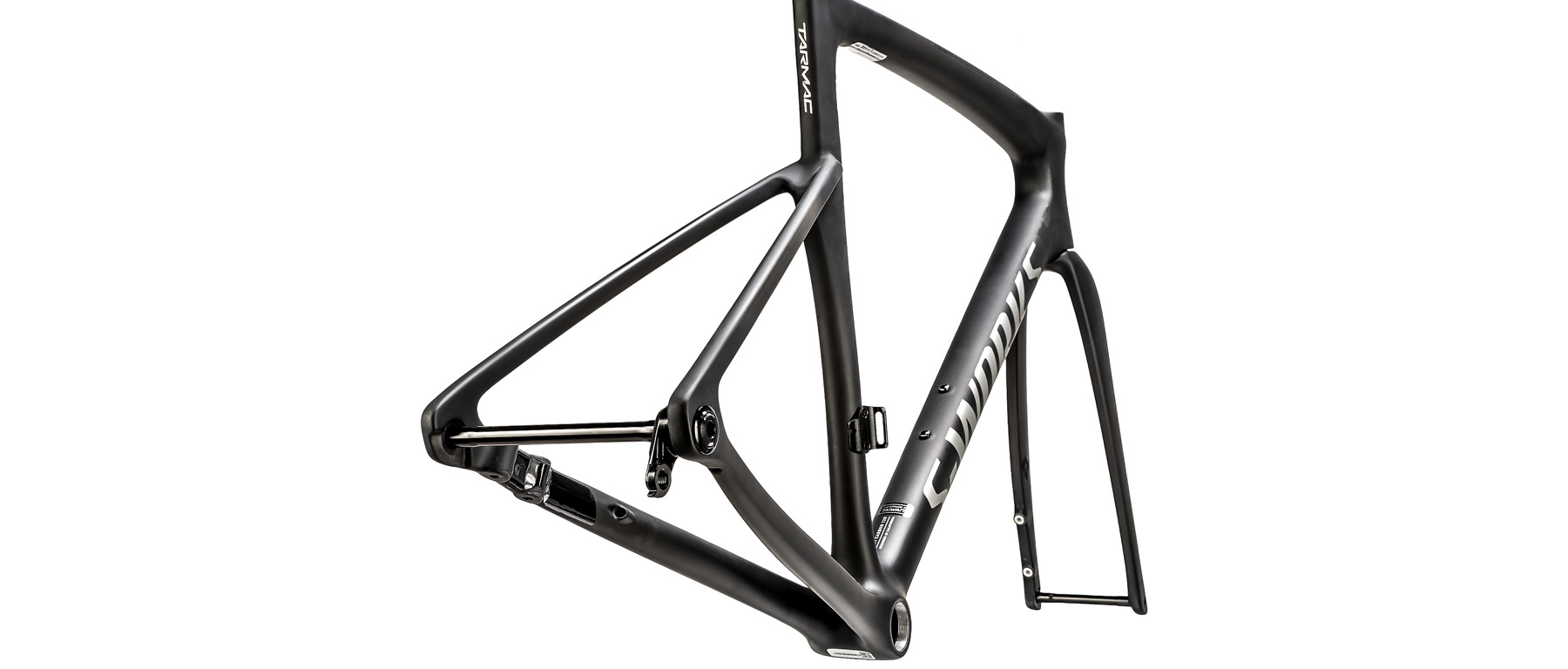

The rear of the bike got rethought around how riders actually race. Watching breakaways, the team noticed riders carry one bottle, not two — team cars sit close enough in a move to hand up fresh bottles whenever they're needed. That single change in setup shifts airflow across the seat tube and rear triangle entirely, so Specialized re-engineered the whole back of the bike around it. The result is the Win Fin and a redesigned S-Works Rapide seatpost, the thinnest seatpost section the brand has made where it matters most, both tuned for that real-race configuration. Add it all together against the SL8 and the SL9 sheds 4 watts of aerodynamic drag — which, run through their stage simulation, came out to a 14-second gain over the final 80km of a Tour stage that was ultimately decided by seconds.... Read More

Features

  • FACT 12r carbon frame and fork, front to back
  • Time to Finish development methodology using real World Tour course data

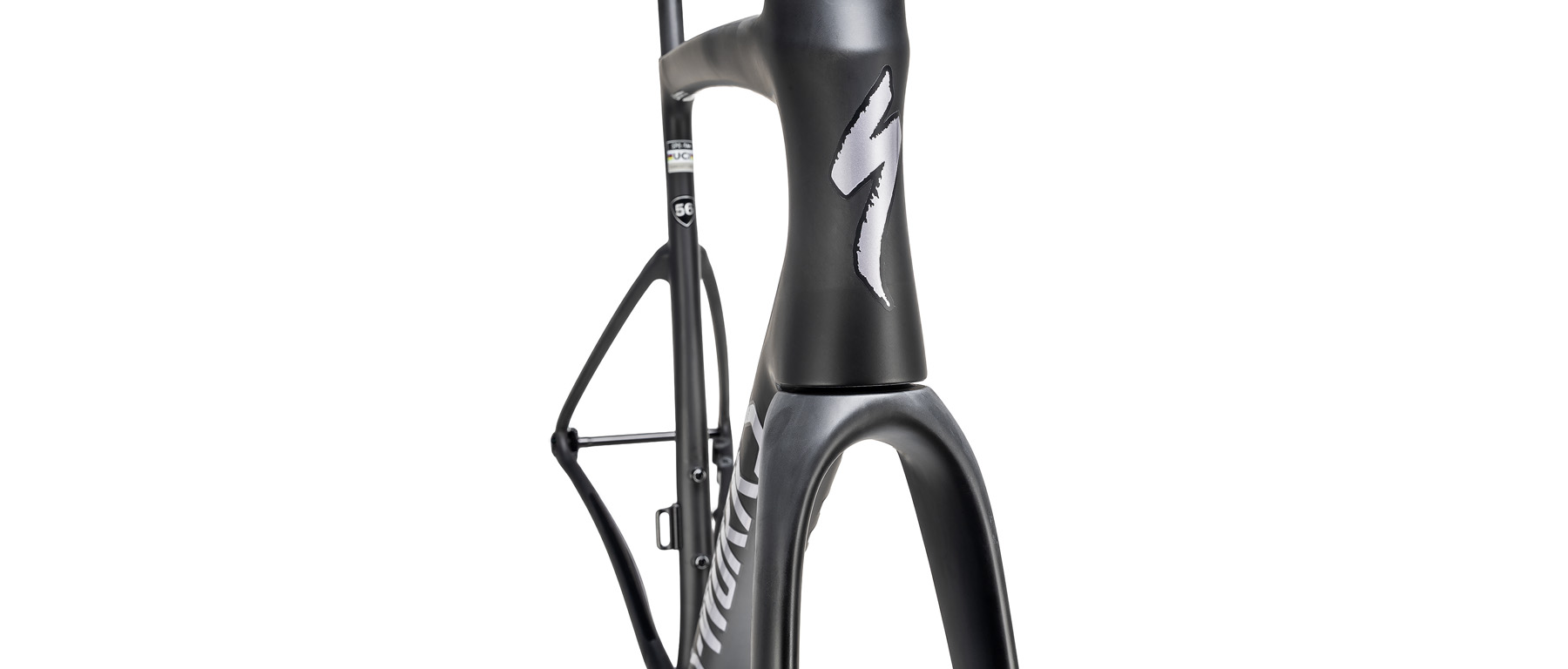

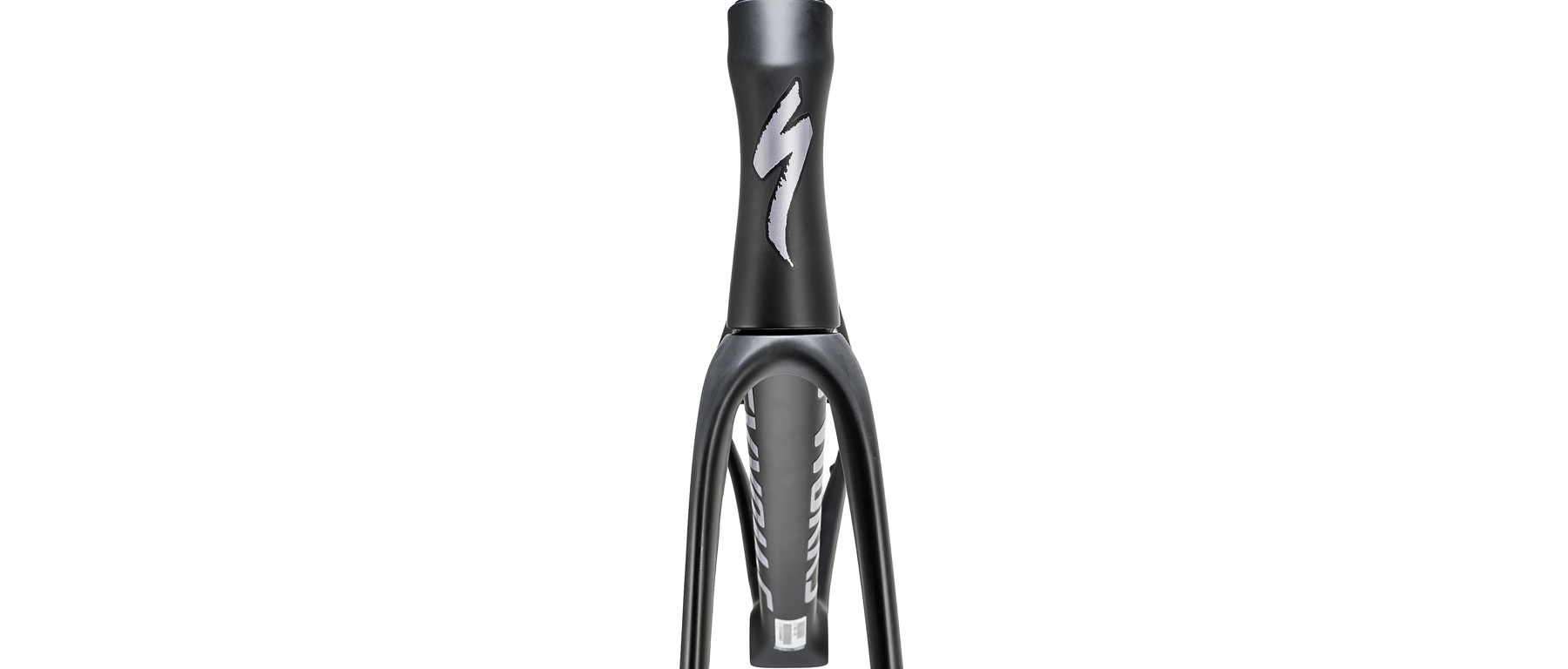

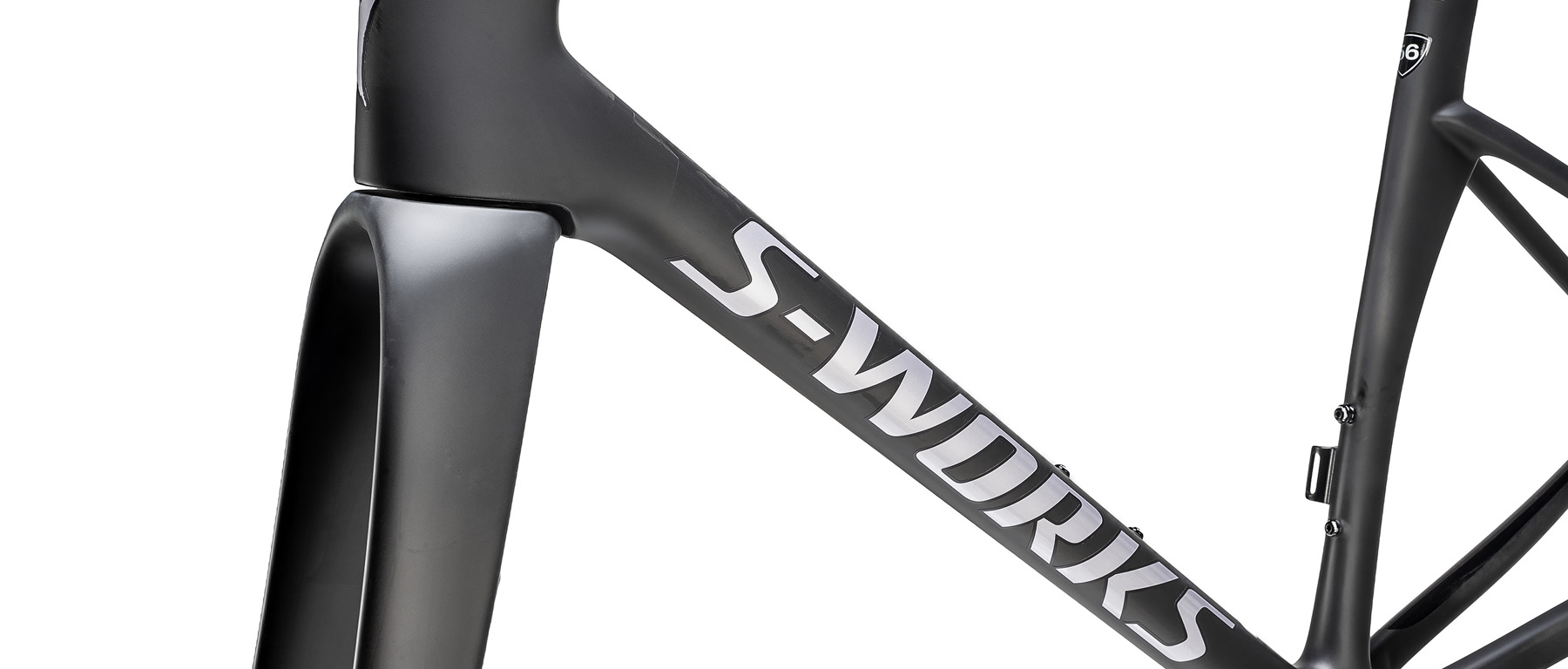

  • Speed Sniffer head tube, 4mm thinner with 10 percent reduction in frontal area
  • Offset Steerer design reroutes rear brake line for a narrower head tube

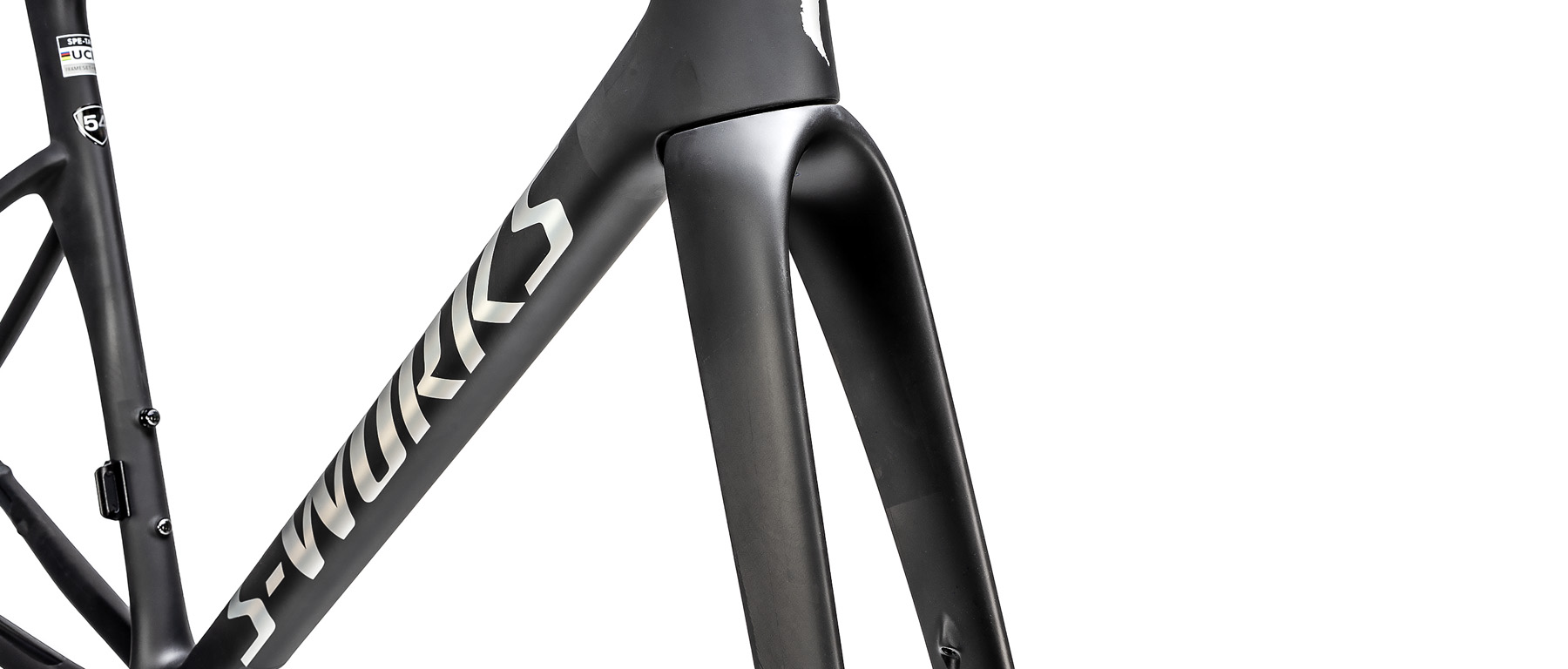

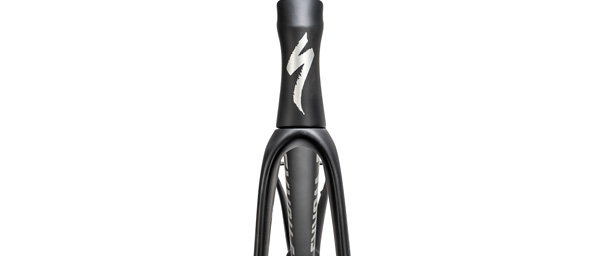

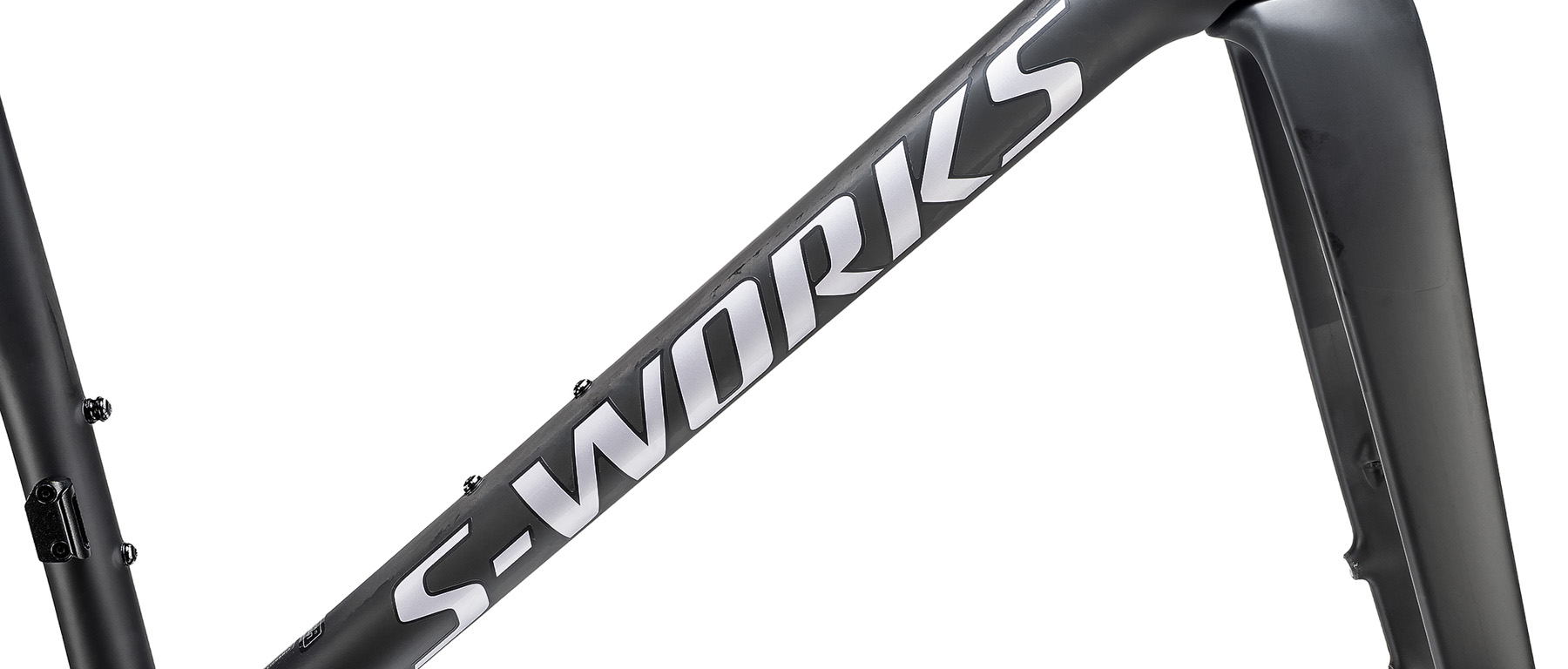

  • Flow Fork with twisted blades and dropped down tube for attached front-end airflow

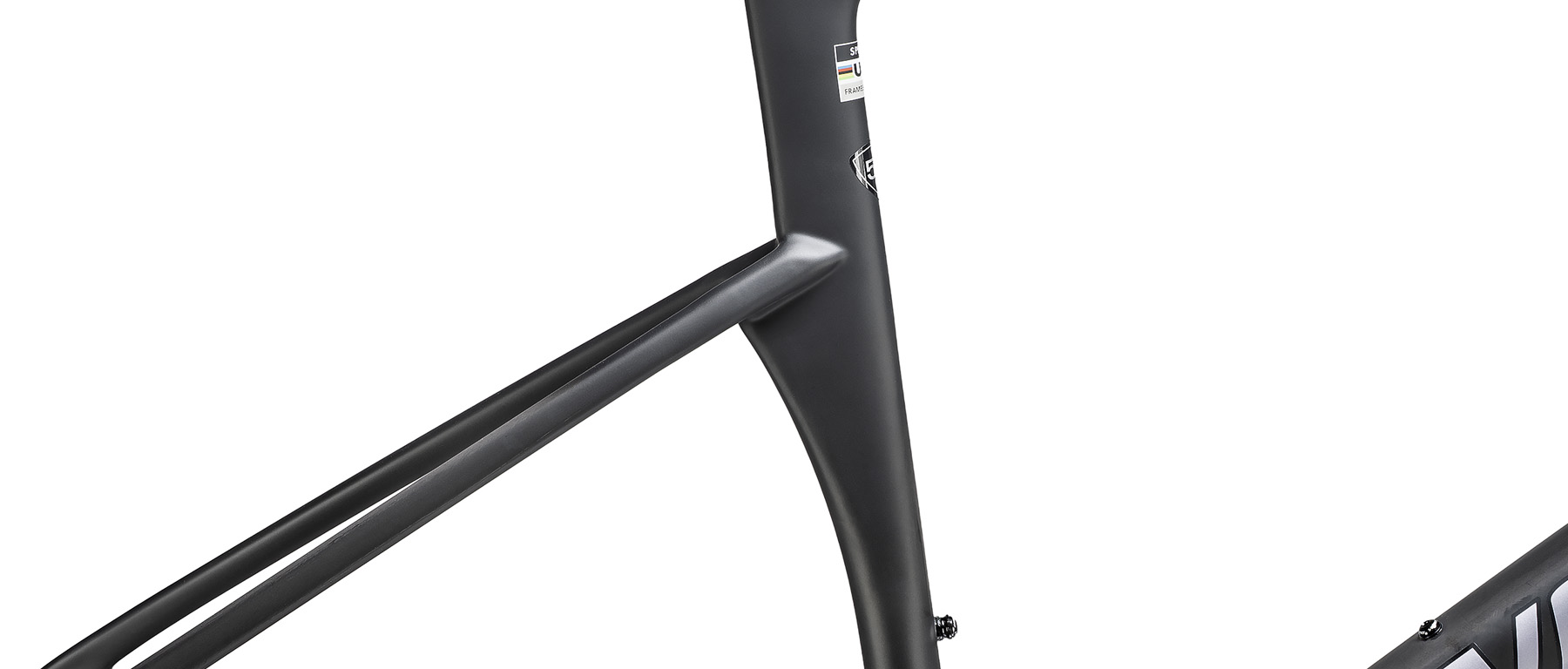

  • Win Fin and re-engineered S-Works Rapide seatpost tuned for one-bottle race setup
  • 4 watts less aerodynamic drag versus the SL8
  • Matches SL8 compliance and stiffness targets
  • Rider-First Engineering with size-specific layup across 44 to 61cm

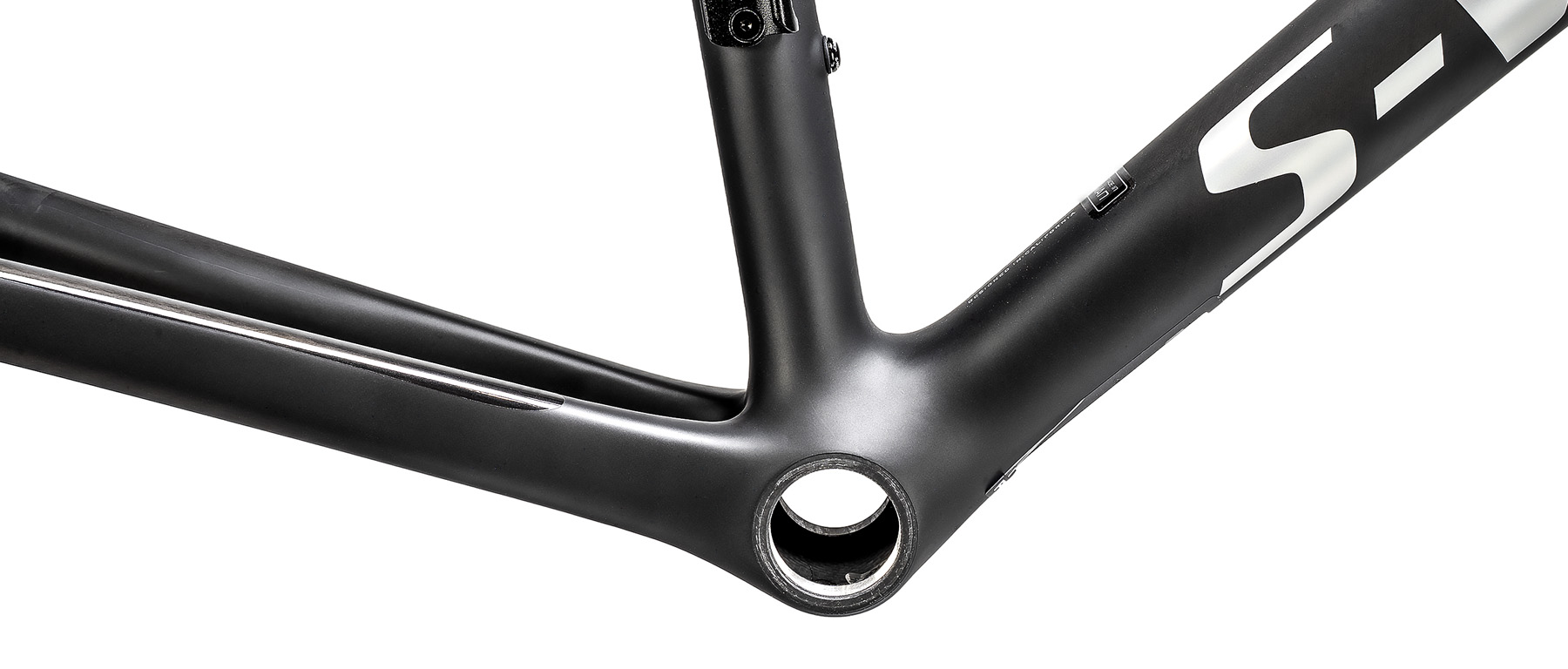

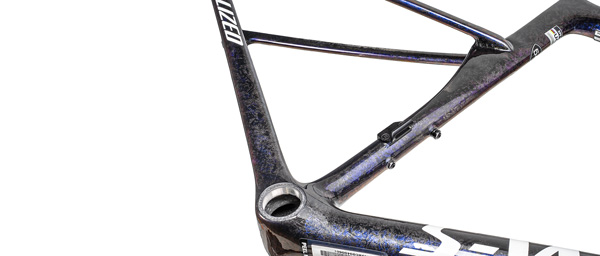

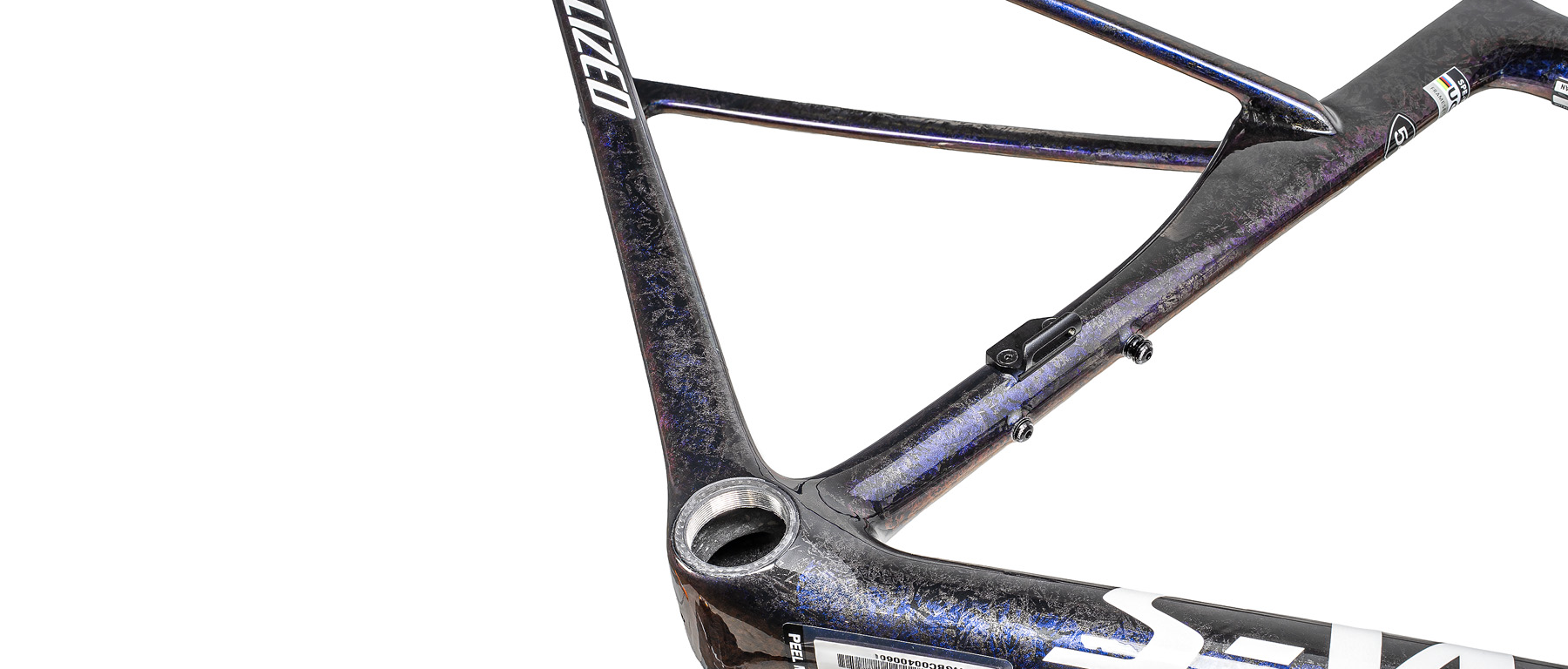

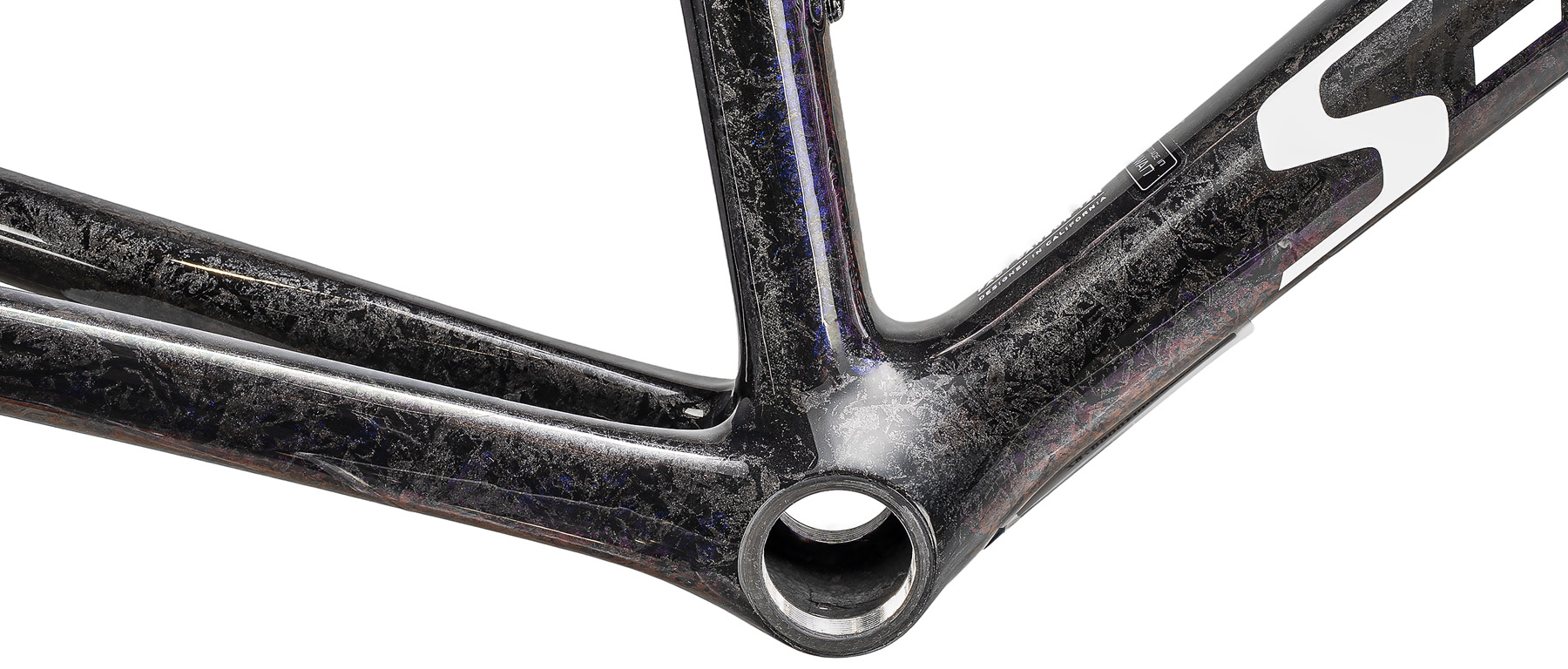

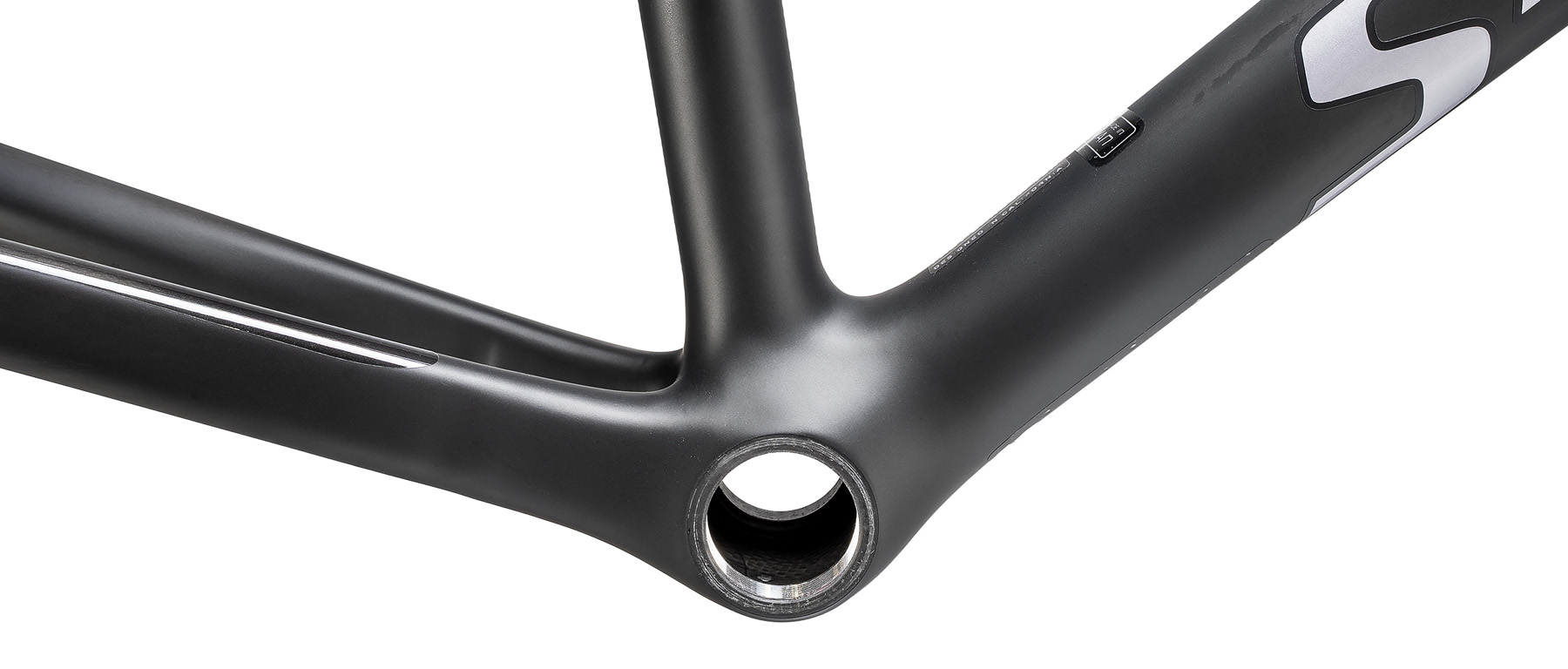

  • 68mm threaded bottom bracket
  • 34mm maximum tire clearance
  • Ceramic Speed SLT headset included
  • S-Works Rapide carbon seatpost included
  • FACT 12r carbon fork included
  • Frameset does not include seat binder or thru-axles
  • 687 grams (frame), 1.39 kg (complete frameset)
Geometry
Size Stack Reach Head Tube Length Head Tube Angle BB Drop Trail Fork Rake Chainstay Wheelbase Top Tube (Horiz.) Seat Tube Length Seat Tube Angle
44501mm366mm100mm70.5°74mm71mm47mm410mm970mm496mm433mm75.5°
49514mm375mm109mm71.8°74mm63mm47mm410mm973mm508mm445mm75.5°
52527mm380mm120mm72.5°74mm58mm47mm410mm975mm531mm456mm74°
54544mm384mm140mm72.5°72mm58mm47mm410mm986mm540mm473mm74°
56565mm395mm157mm73.5°72mm55mm44mm410mm991mm562mm494mm73.5°
58591mm402mm184mm73.5°72mm55mm44mm410mm1005mm577mm515mm73.5°
61612mm408mm204mm74°72mm52mm44mm410mm1012mm595mm545mm73°
