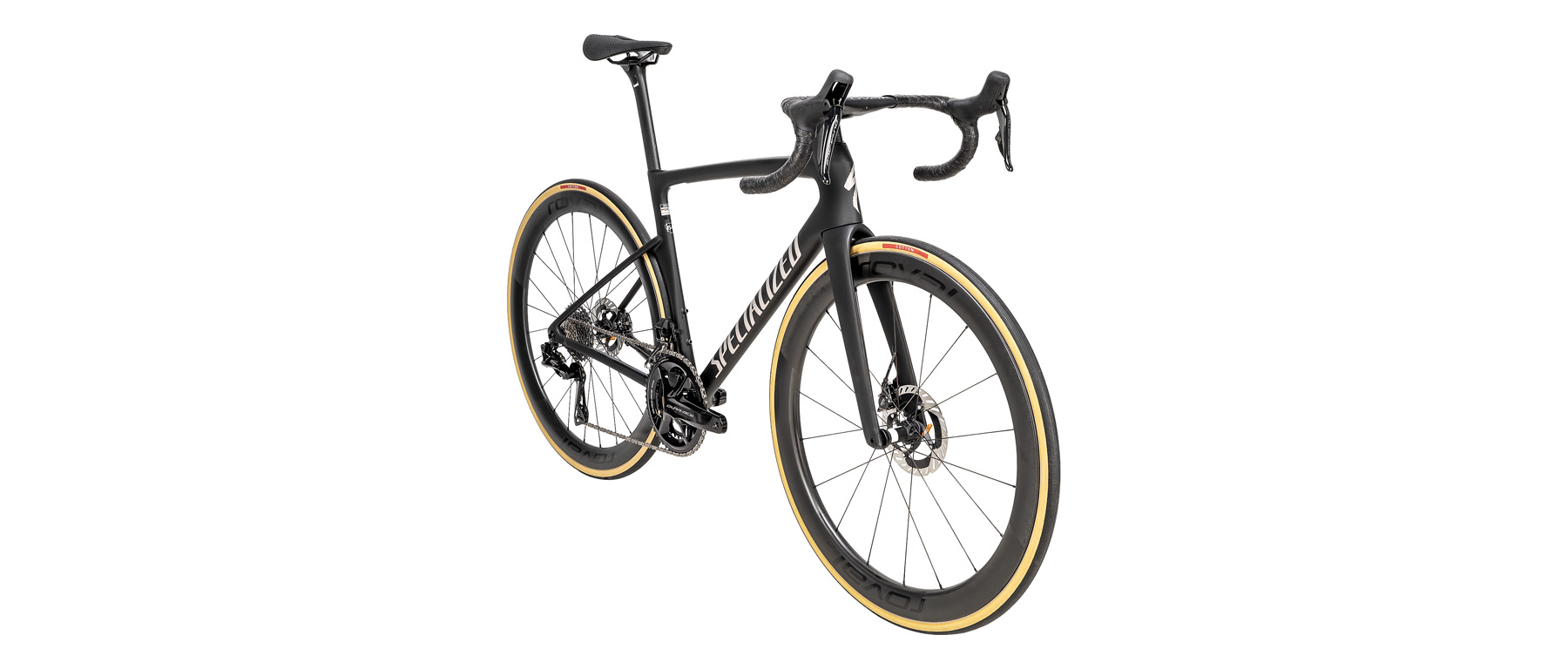

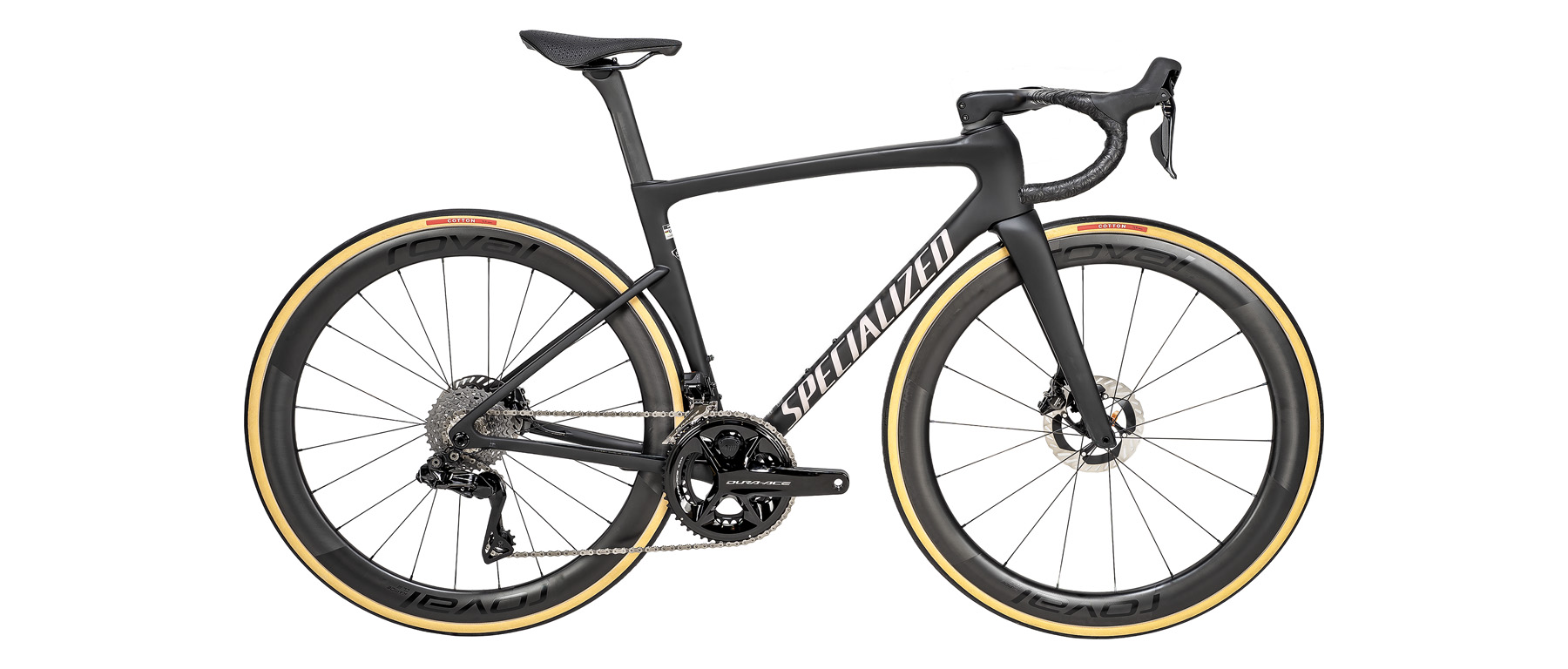

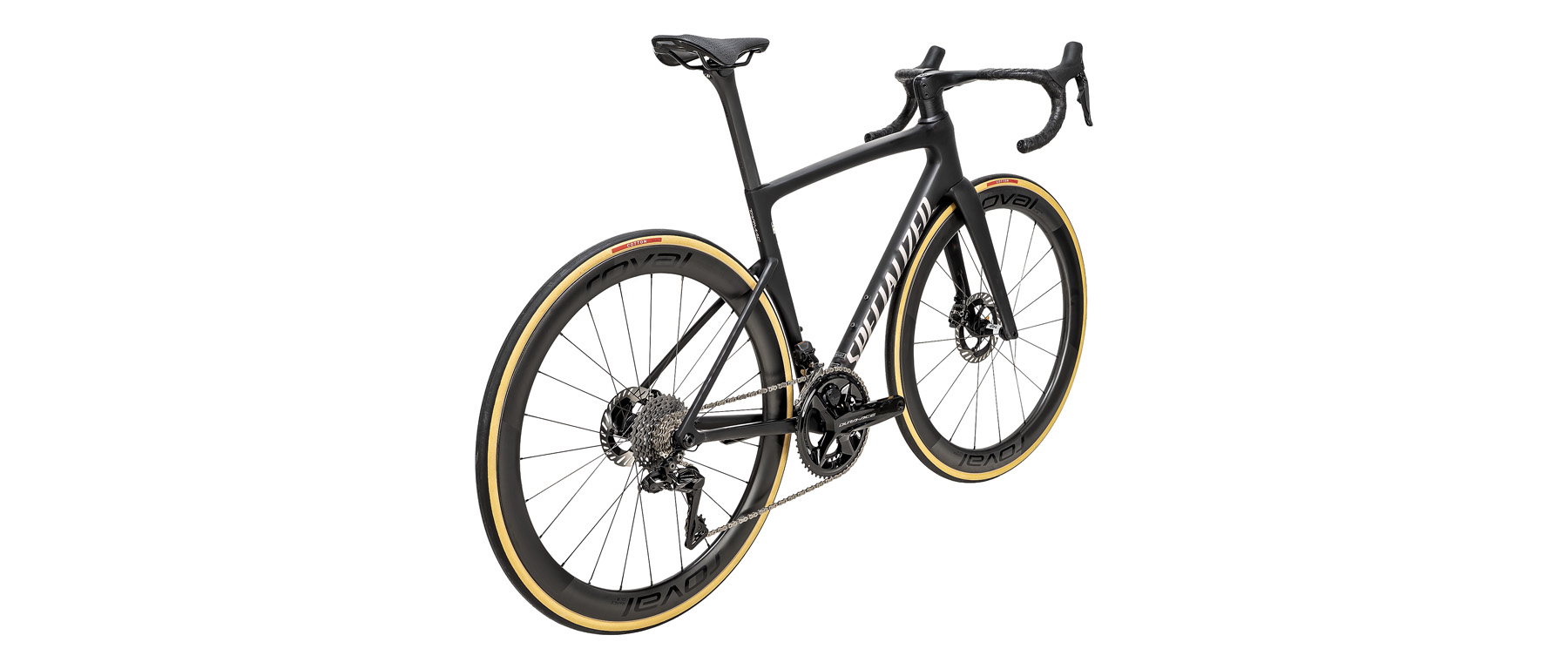

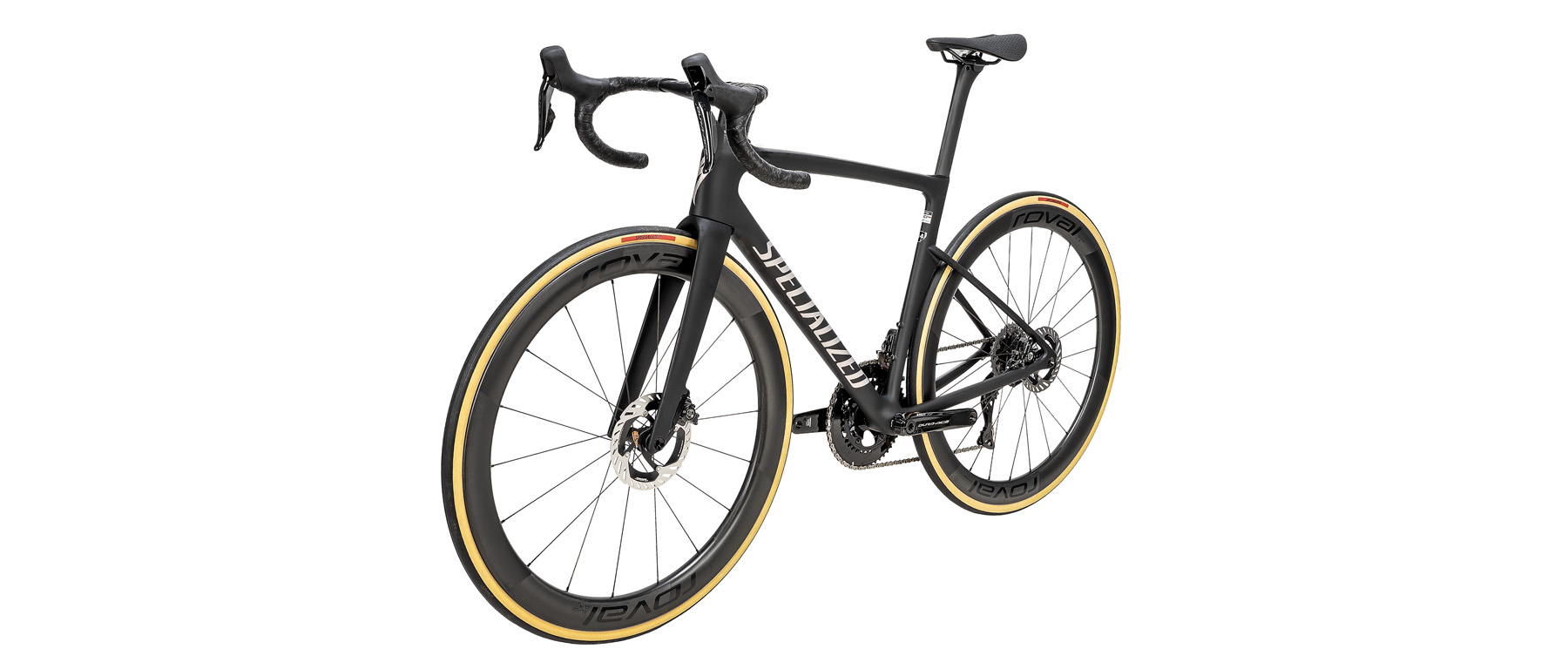

Tarmac SL9 S-Level Dura-Ace Di2 Bicycle
Description
Most riders never buy the halo bike, and the Tarmac SL9 S-Level exists for exactly that reason. Specialized took the SL9 chassis that launched as an S-Works-only proposition and rebuilt it in FACT 10r carbon, a recipe that holds the same tube profiles, stiffness, and compliance targets as the 12r frame while carrying a small amount of additional weight. The frame comes in at 822 grams, and the fork stays FACT 12r , so the front end here uses the same material as the halo model. What you give up is measured in grams and finishing kit, not in aerodynamics or handling. For a rider who wants Dura-Ace Di2 and a race chassis without the S-Works line item, this is the build that makes sense.
That chassis was developed against a metric Specialized calls Time to Finish. Instead of optimizing for a single wind tunnel number or a scale reading, the engineering team built a physics-based simulation that predicts elapsed time over real race courses, folding in aerodynamic drag, system weight, rolling resistance, road surface, environmental conditions, and rider power output. Every tube on the SL9 was re-sculpted against that model rather than against drag alone. The headline result from Specialized's own simulation work: the SL9 would have made Demi Vollering 14 seconds faster on the final stage of the 2024 Tour de France Femmes .
Fit and handling carry over from the Tarmac line without reinvention, which is the right call for a frame World Tour riders have been racing for years. Stack and reach climb through the seven sizes from 501mm and 366mm at the small end up to 612mm and 408mm at the large end , so the position stays aggressive at every point in the range rather than softening at the extremes. Rider First Engineered construction means each size gets its own layup schedule tuned to that frame's specific stiffness and compliance targets, so a 49 and a 58 are meant to feel the same underneath you.... Read More
Features
- Tarmac SL9 FACT 10r Carbon frame, Rider First Engineered, Win Tunnel Engineered
- 822 gram claimed frame weight
- FACT 12r Carbon fork, 12x100mm thru-axle, flat-mount disc
- Threaded bottom bracket, 12x142mm rear thru-axle, UDH dropout

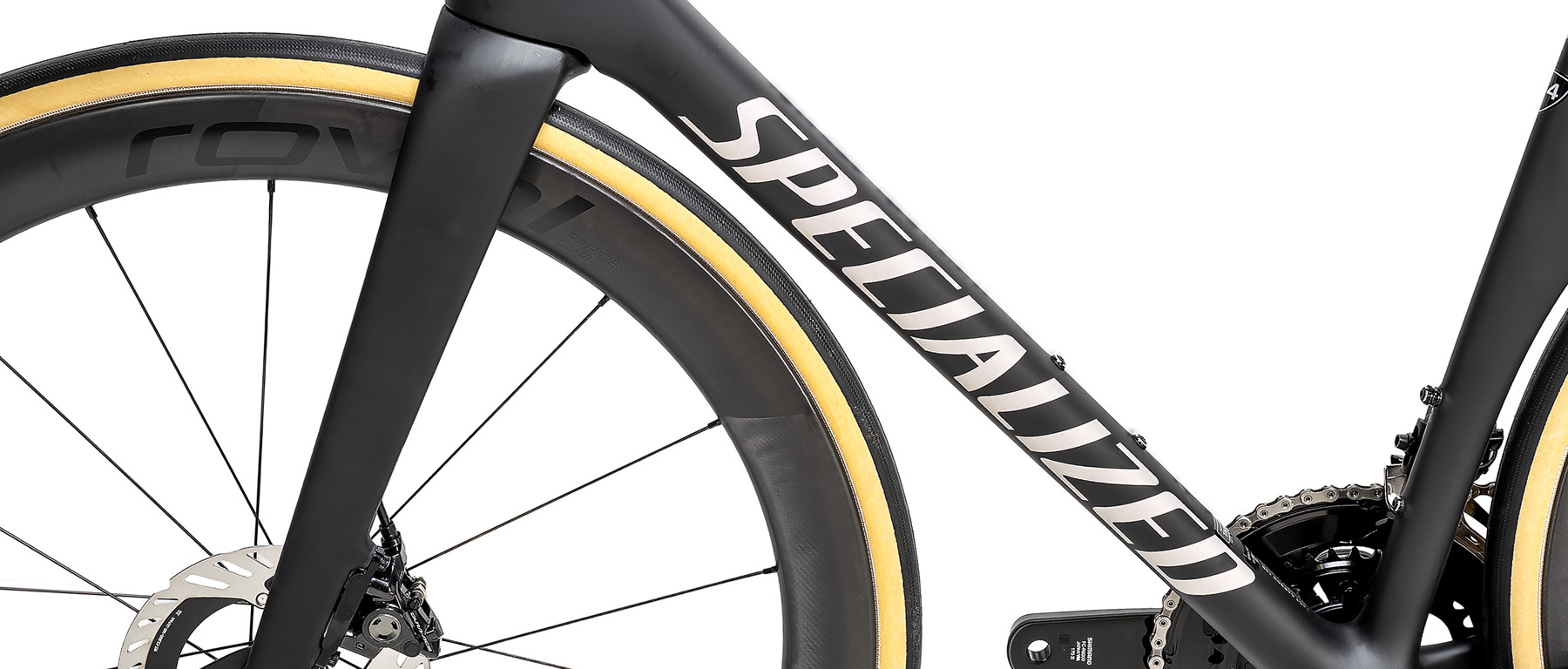

- Speed Sniffer head tube, dropped down tube, Flow Fork, and Win Fin aero shaping

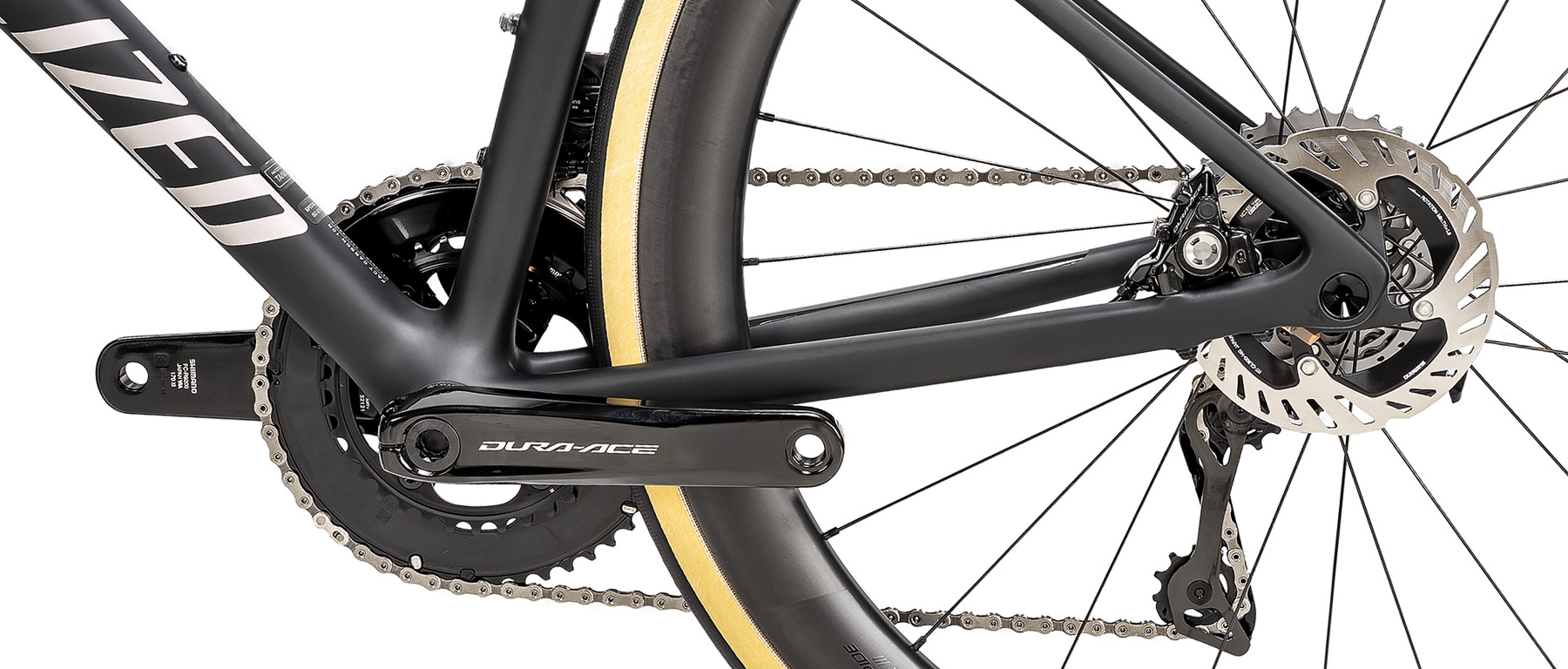

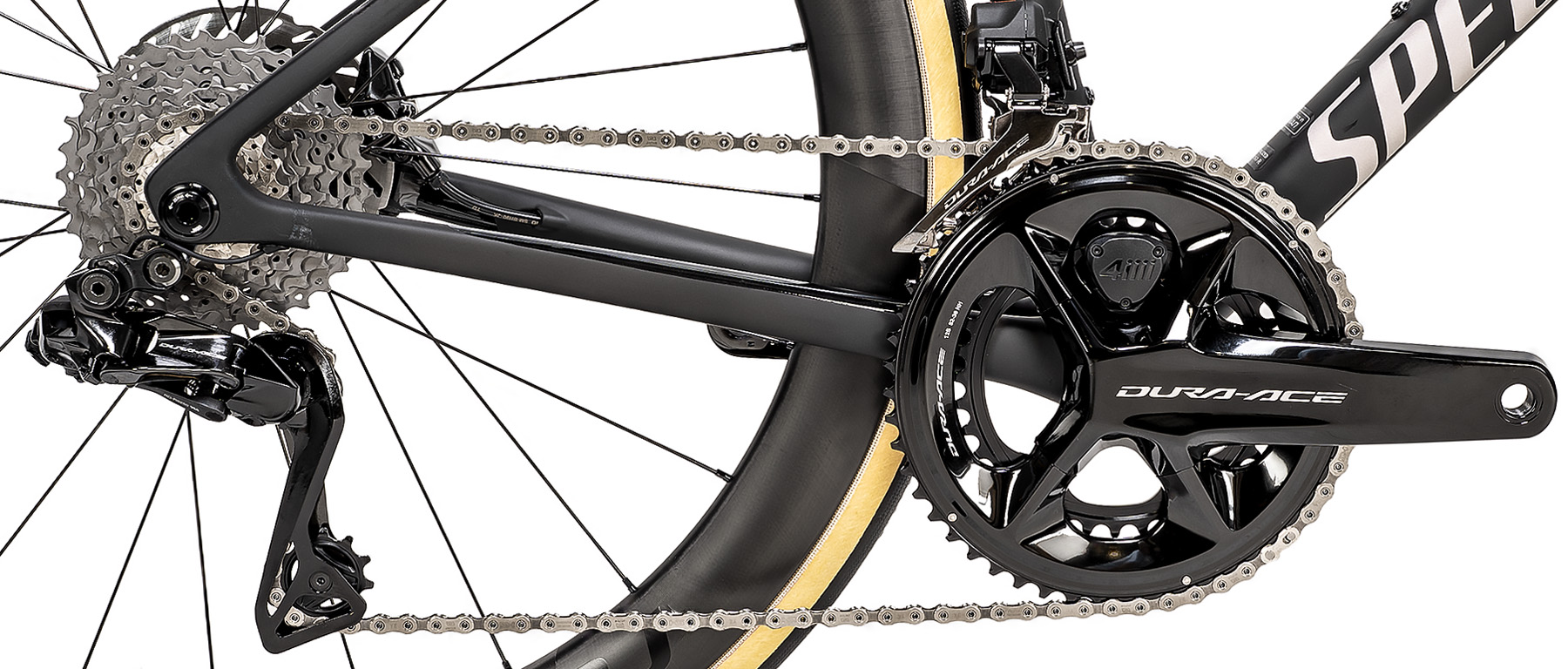

- Shimano Dura-Ace Di2 12-speed electronic drivetrain, R9250 derailleurs
- Shimano Dura-Ace ST-R9270 shift levers

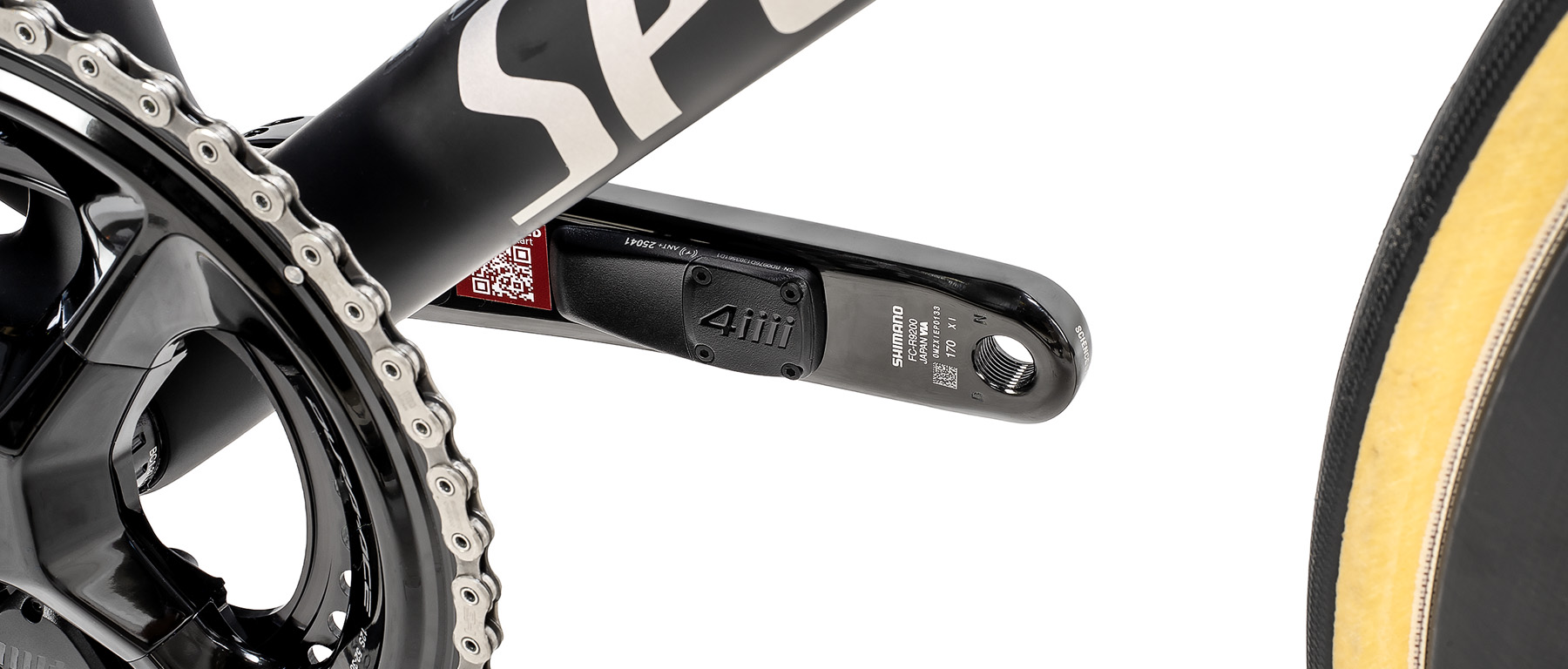

- Shimano Dura-Ace FC-R9200 crankset, 52/36T, with 4iiii Precision Pro dual-sided powermeter
- Shimano Dura-Ace CS-R9200 cassette, 11-34T

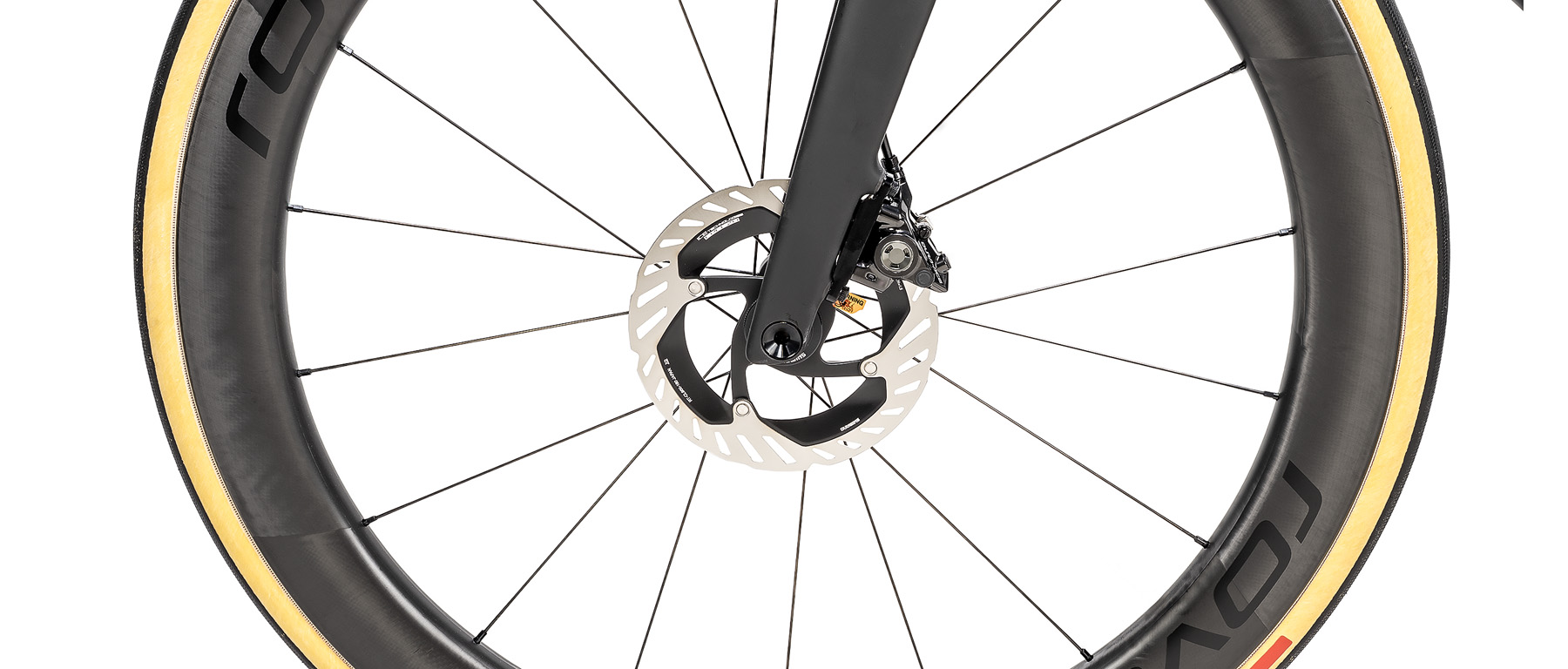

- Shimano Dura-Ace BR-R9270 hydraulic disc brakes, flat-mount

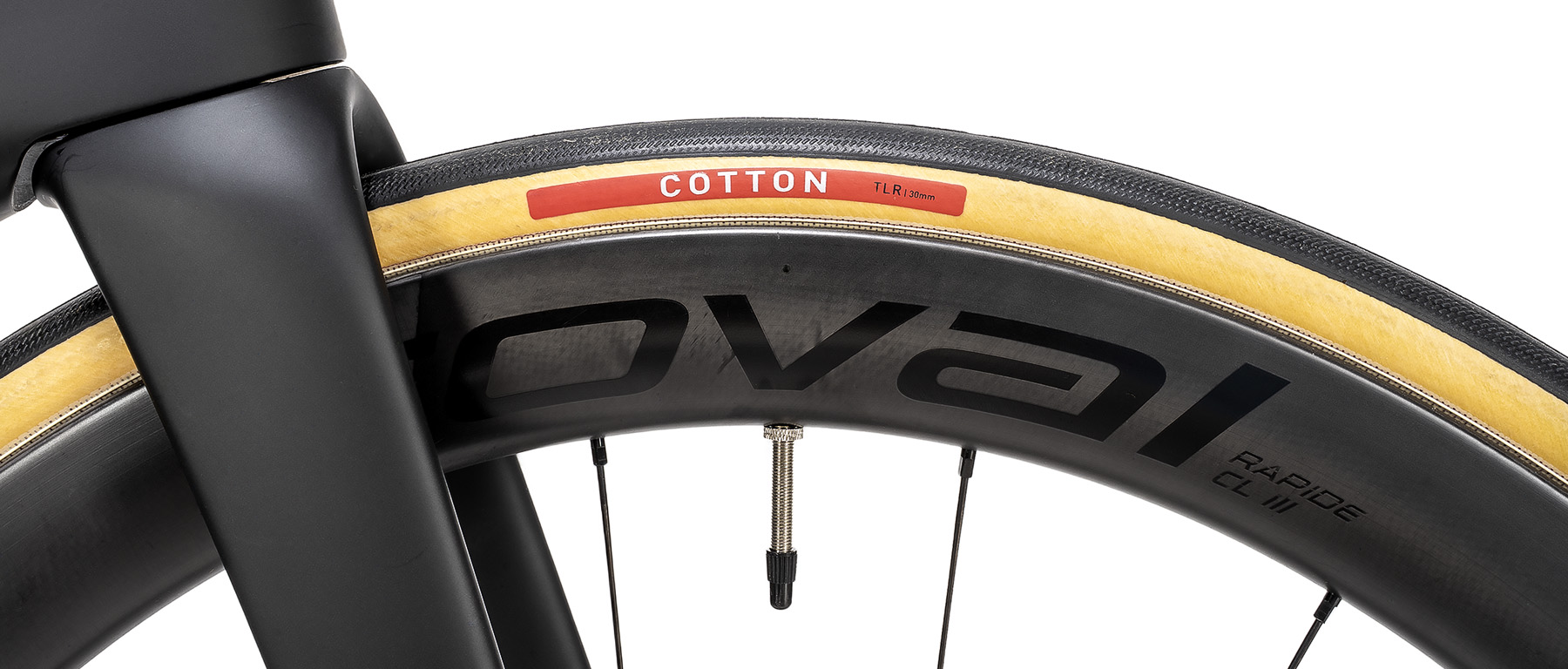

- Roval Rapide CL III carbon wheels, tubeless, 21mm internal width, 51mm front and 48.5mm rear depth

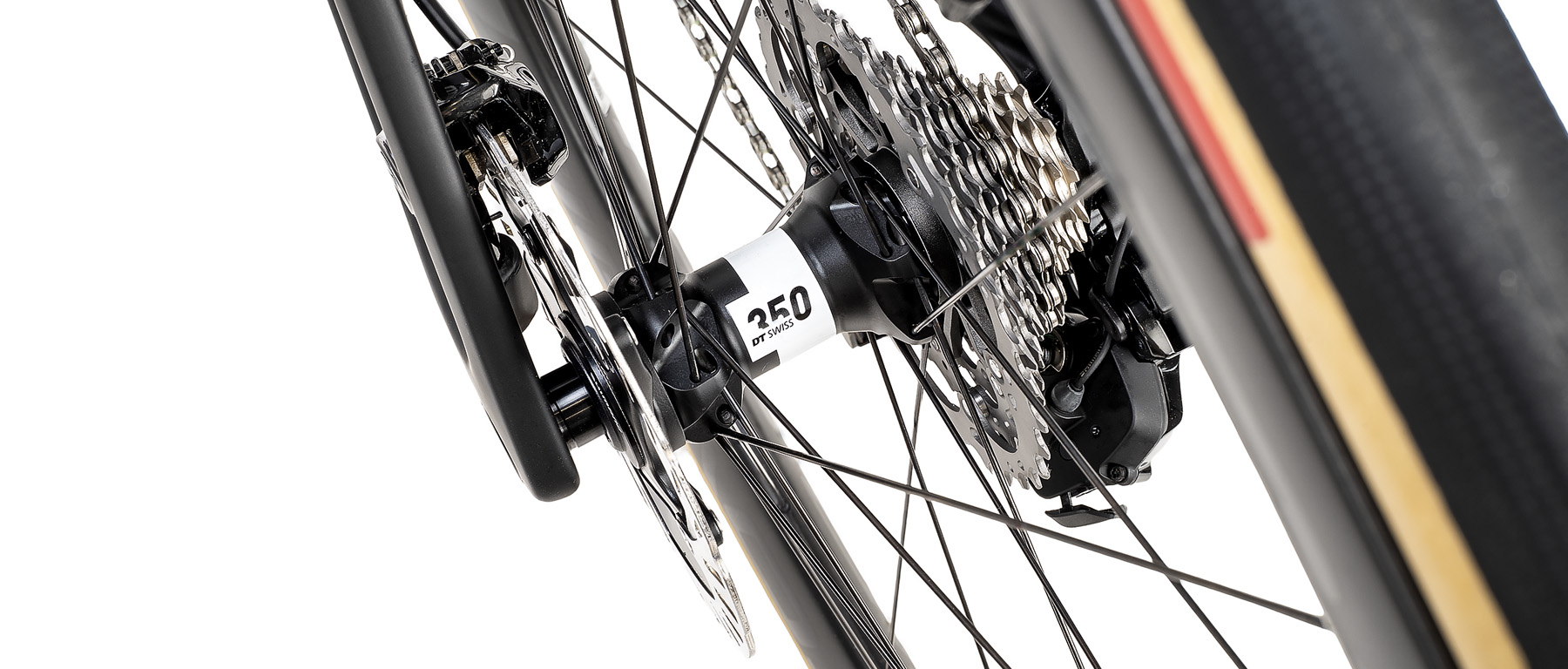

- DT350 hubs, 18h front and 24h rear, DT Swiss Competition Race straight-pull spokes
- Specialized Cotton TLR tires, 700x30c
- Tire clearance to 32mm actual width

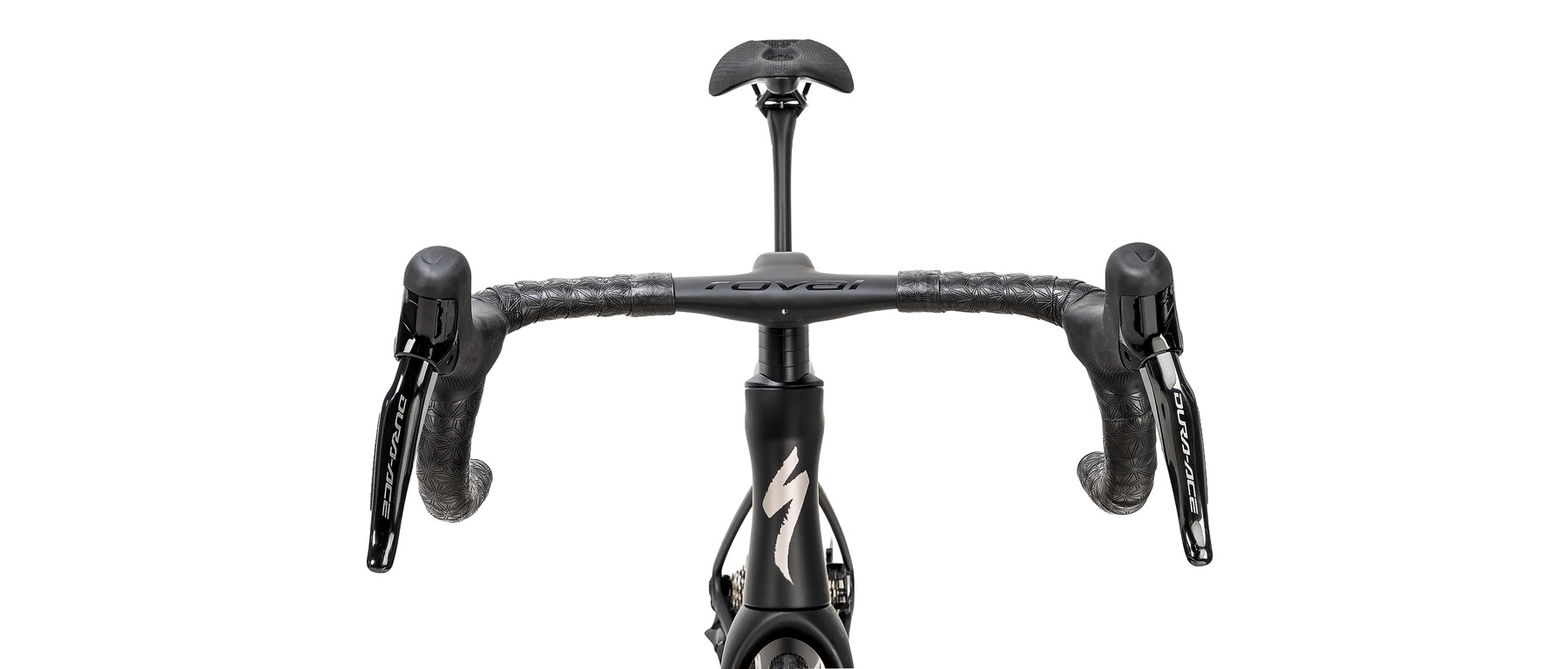

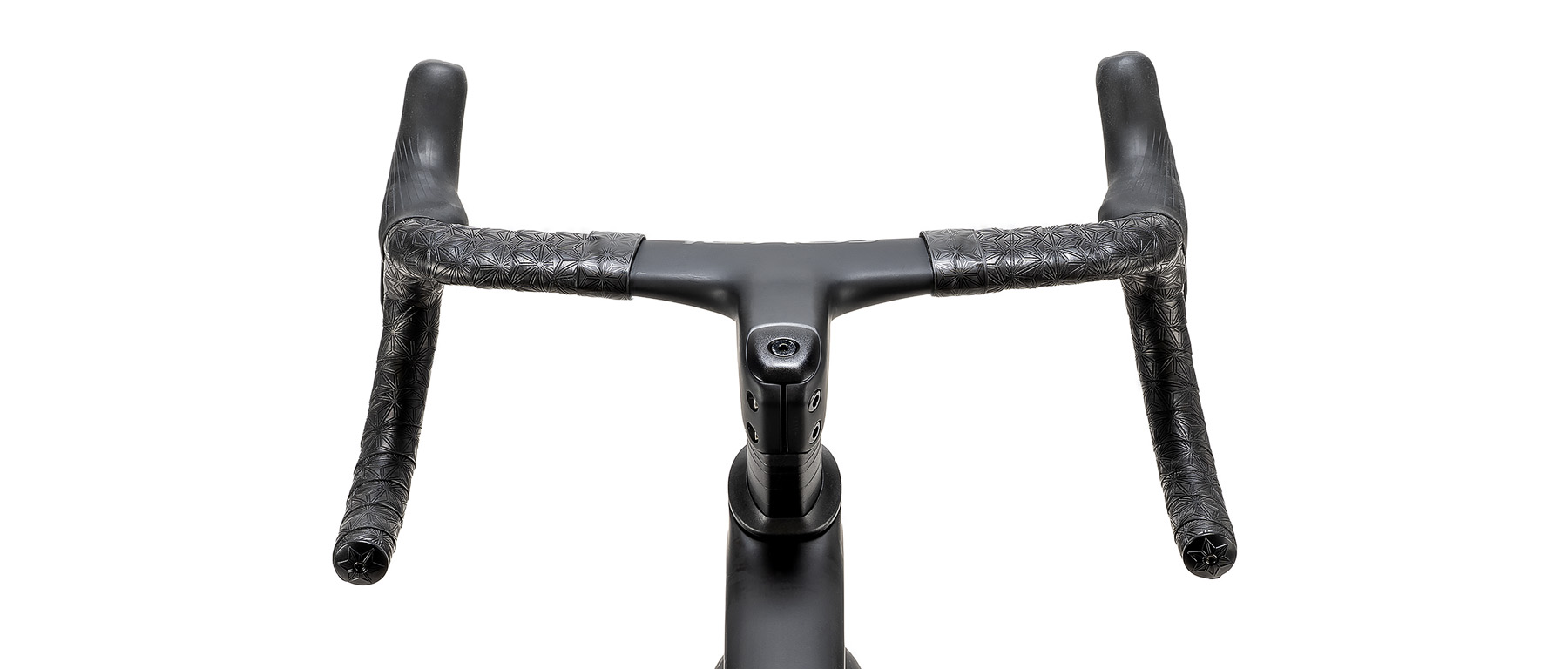

- Roval Rapide integrated cockpit

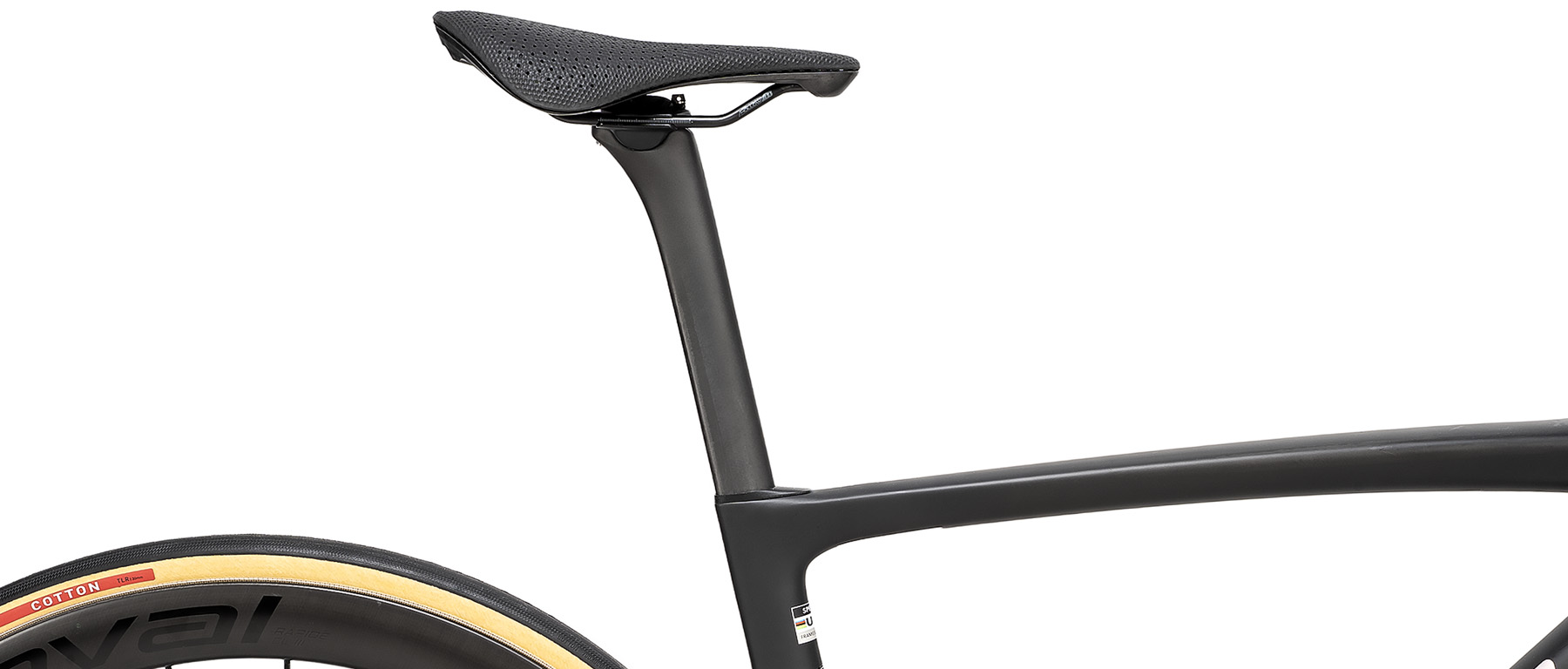

- S-Works Tarmac SL8 Carbon seatpost with Tarmac integrated wedge binder
- 15.65 lbs (size 56)
Geometry
Geometry
| Size | 44cm | 49cm | 52cm | 54cm | 56cm | 58cm | 59cm | 61cm |
|---|---|---|---|---|---|---|---|---|
| Wheel Size | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Stack | 491mm | 504mm | 517mm | 534mm | 555mm | 581mm | 568mm | 602mm |
| Reach | 369mm | 378mm | 383mm | 387mm | 398mm | 405mm | 413mm | 411mm |
| Head Angle | 70.5° | 71.75° | 72.5° | 73° | 73.5° | 73.5° | 73° | 73° |
| Seat Angle | 75.5° | 75.5° | 74° | 74° | 73.5° | 73.5° | 73.5° | 73° |
| Top Tube Length | 496mm | 509mm | 531mm | 541mm | 563mm | 577mm | 587mm | 595mm |
| Head Tube Length | 93mm | 102mm | 113mm | 131mm | 151mm | 178mm | 163mm | 198mm |
| Standover | 723mm | 735mm | 746mm | 768mm | 786mm | 808mm | 809mm | 834mm |
| Fork Trail | 71mm | 63mm | 58mm | 58mm | 55mm | 55mm | 55mm | 52mm |
| Fork Offset | 47mm | 47mm | 47mm | 44mm | 44mm | 44mm | 44mm | 44mm |
| Bottom Bracket Drop | 74mm | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm | 72mm |
| Front Center | 572mm | 574mm | 577mm | 579mm | 592mm | 606mm | 610mm | 613mm |
| Wheelbase | 970mm | 973mm | 975mm | 978mm | 991mm | 1006mm | 1009mm | 1013mm |
| Chainstay Length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
