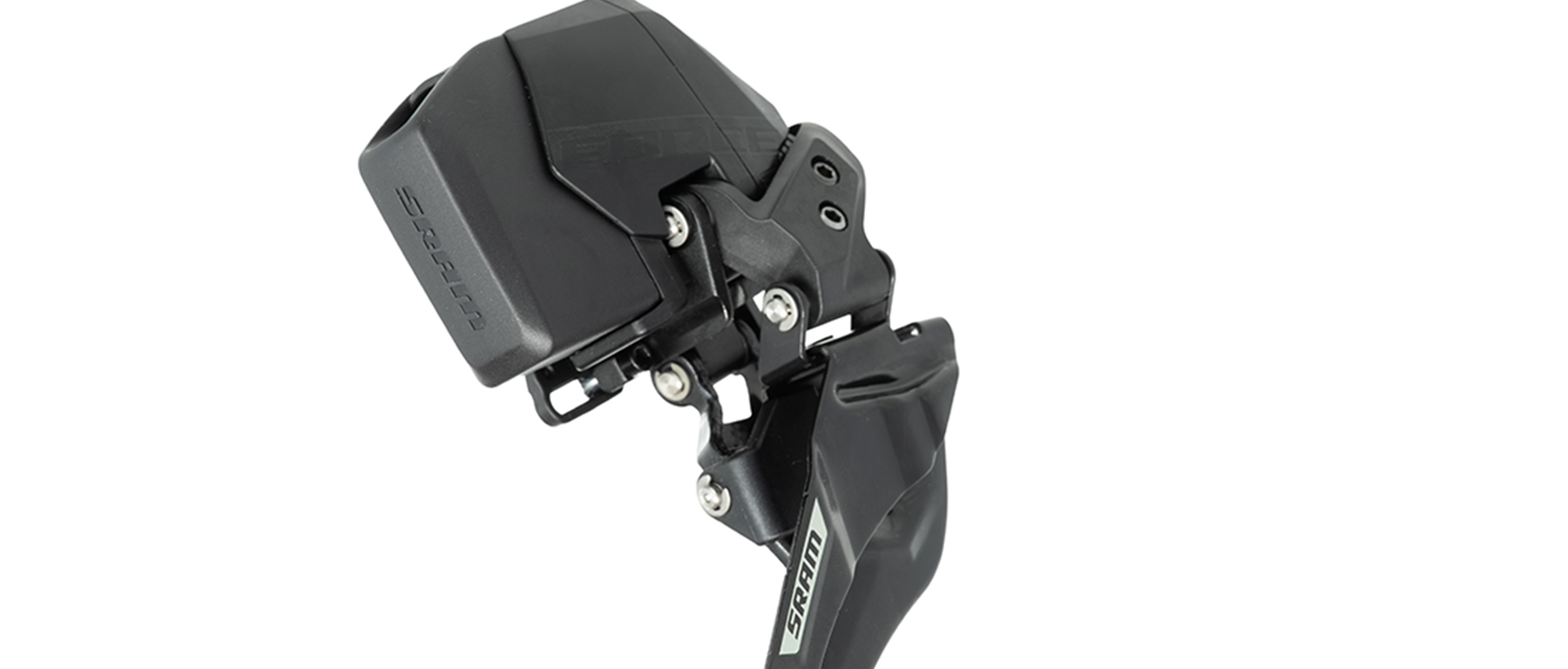

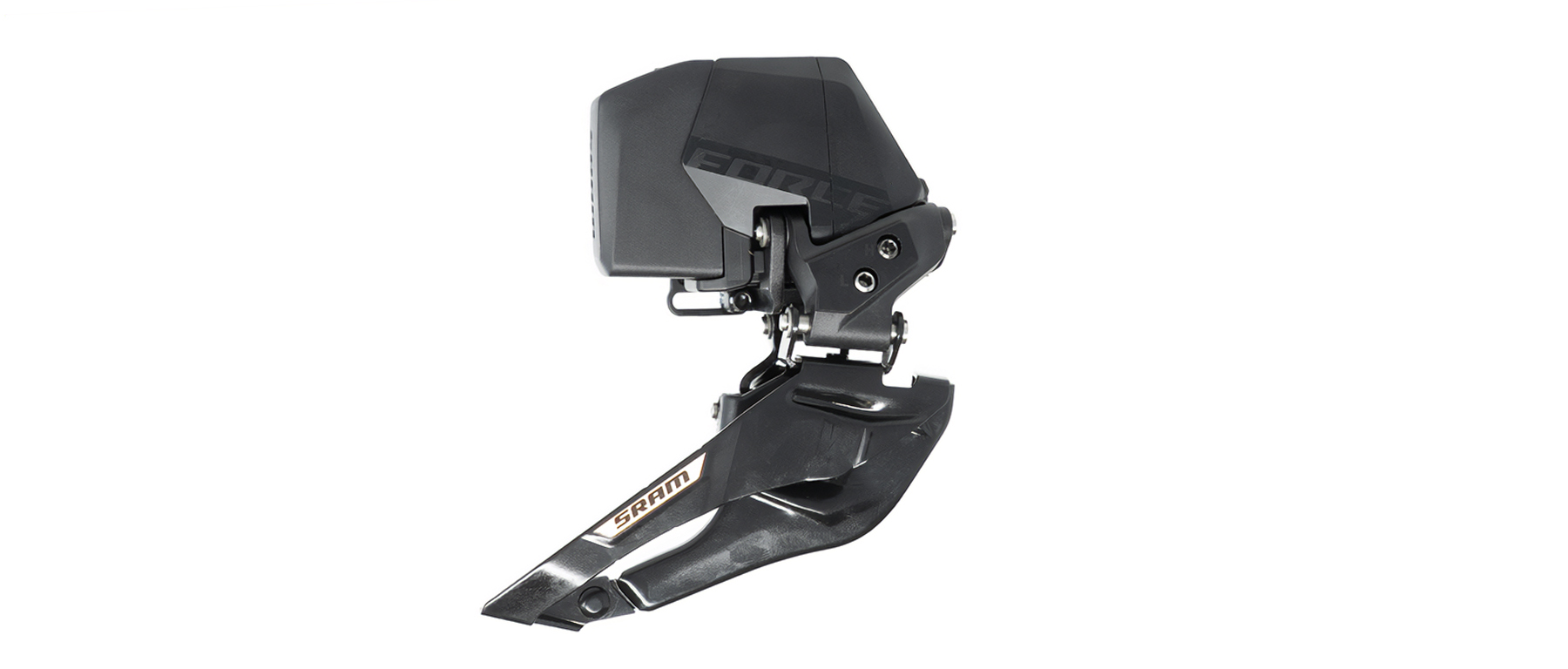

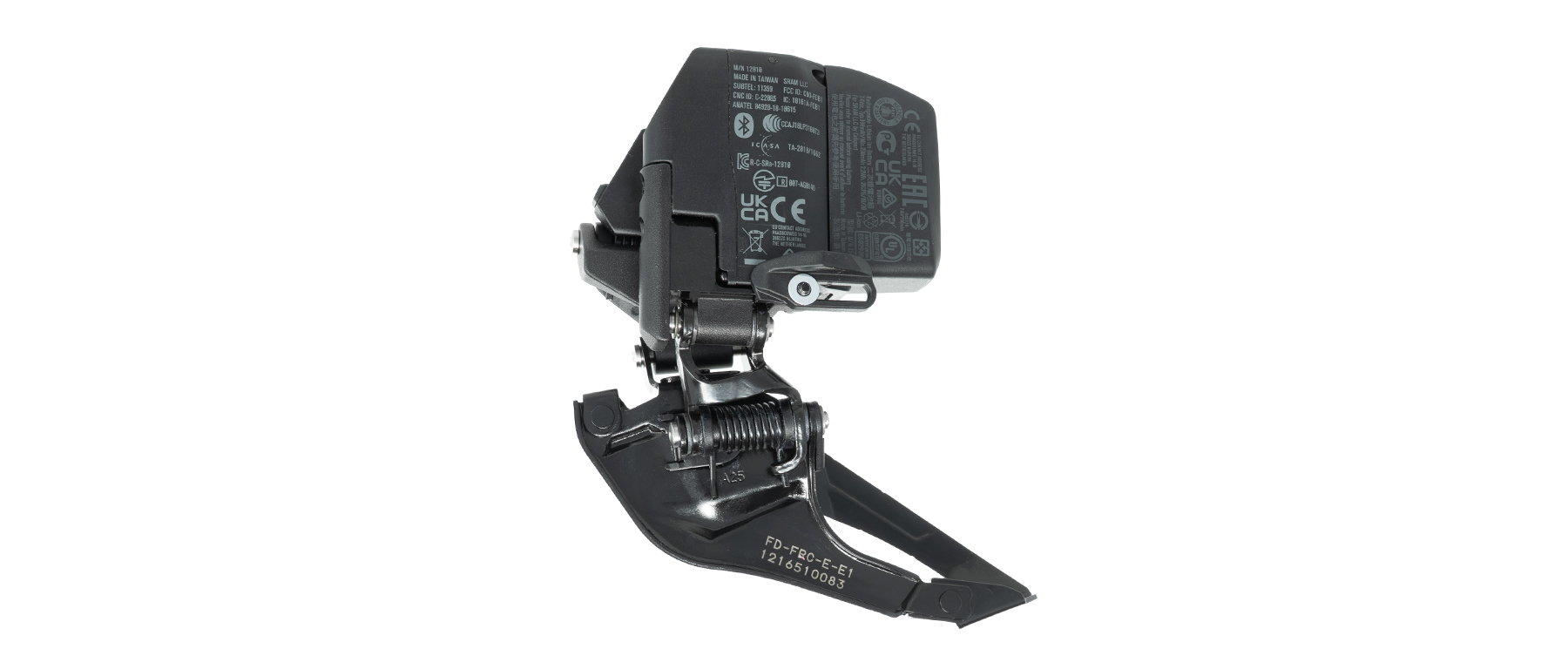

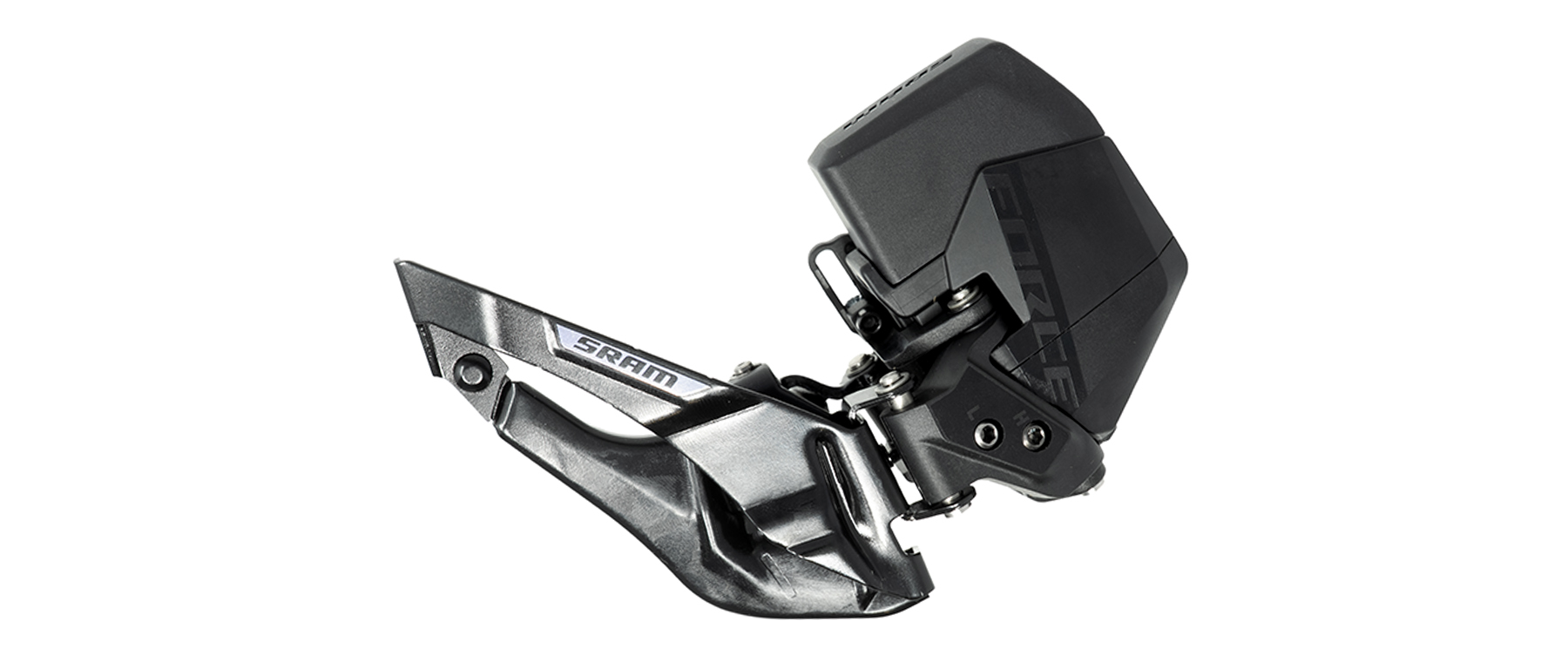

The Force AXS E1 borrows its cage geometry and shifting logic directly from the RED E1 front derailleur, which is the shift most people won't see mentioned in the marketing copy. If you're rebuilding a 2x12 Force AXS drivetrain and your current front derailleur is a D1 or D2 generation, the E1 is the current replacement — and it's a meaningful step forward, not just a cosmetic refresh.

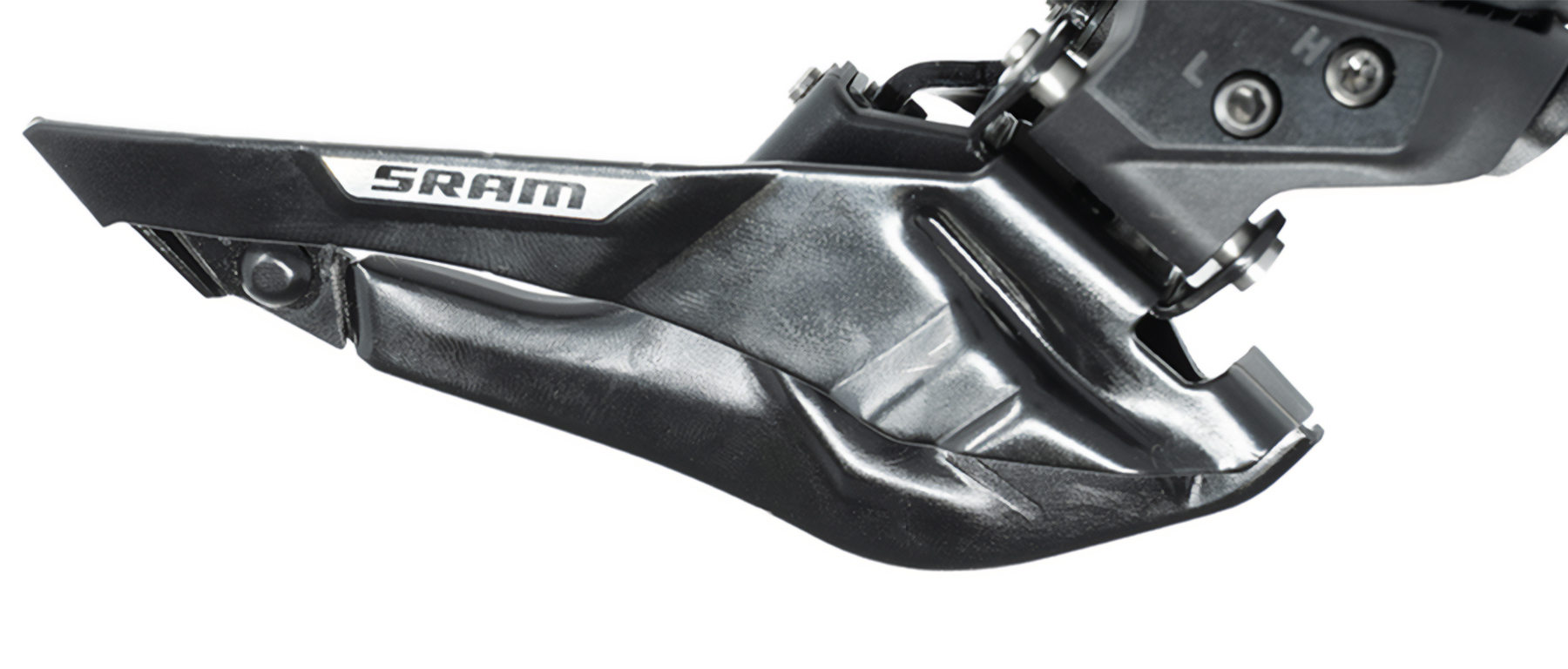

The cage is narrower than the outgoing design, which matters in two specific situations: outboard shifts under power, where the chain has less distance to travel and completes the shift faster, and clearance between the cage and the drive-side crankarm in the big ring. That crankarm clearance issue was a common complaint on the D1, and SRAM addressed it by moving the rear cage bolt from outboard to inboard on the E1. If you were fighting cage rub on the crankarm with an older Force front derailleur, this fixes it.

Yaw technology with auto-trim keeps the cage angle aligned with the chain as you move across the cassette, so you don't need to manually trim and you shouldn't hear chain rub in the cross-gears. It's designed around SRAM's X-Range chainring combinations — 46/33T, 48/35T, and 50/37T — so the geometry is matched from the factory to any of the three Force AXS crank options. The included setup tool takes most of the guesswork out of the initial install, and configuration happens through the AXS app.... Read More
