Description

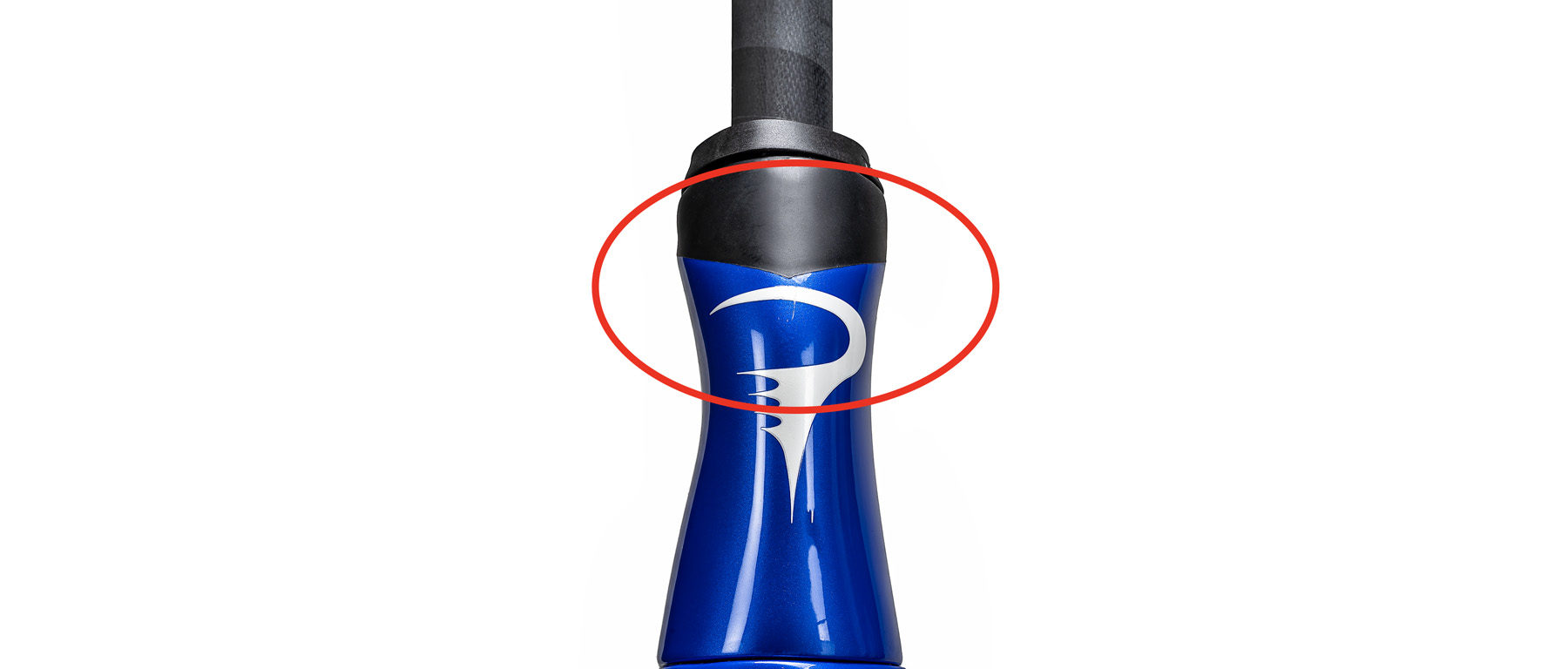

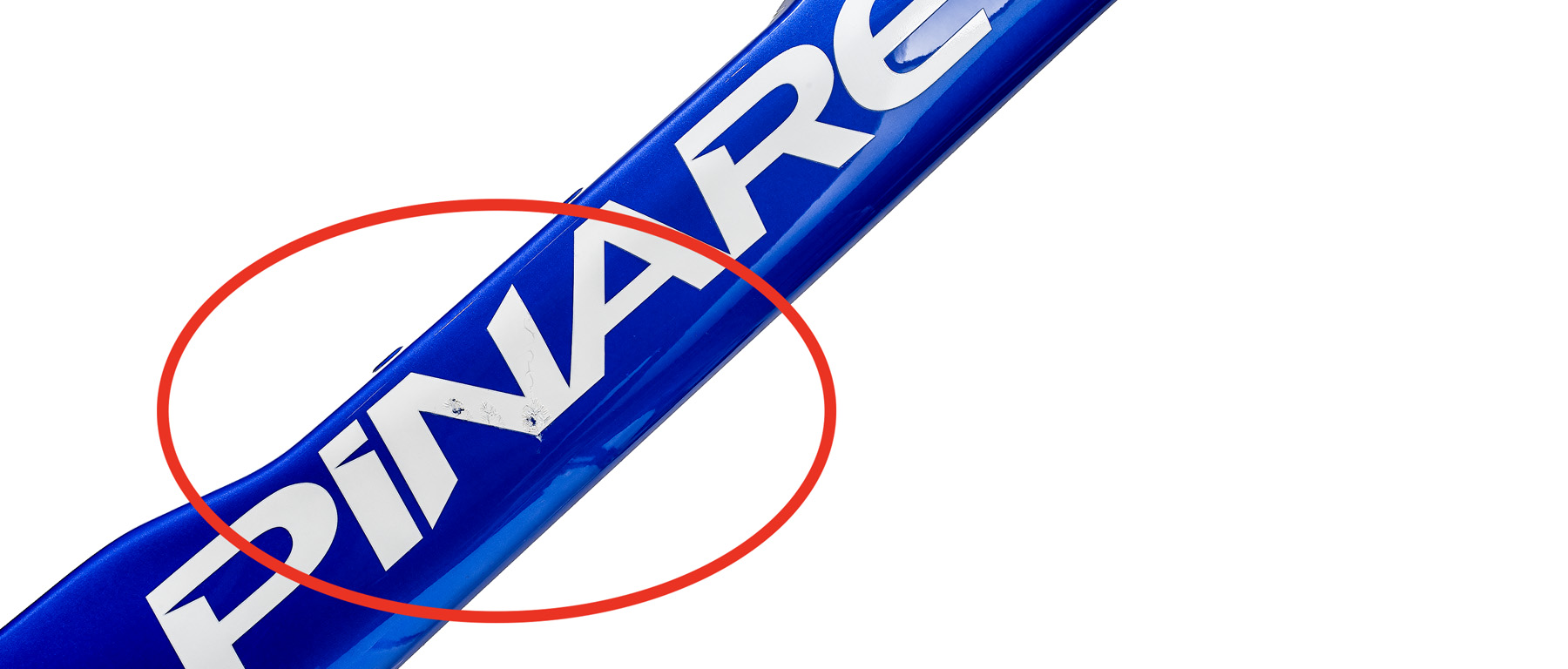

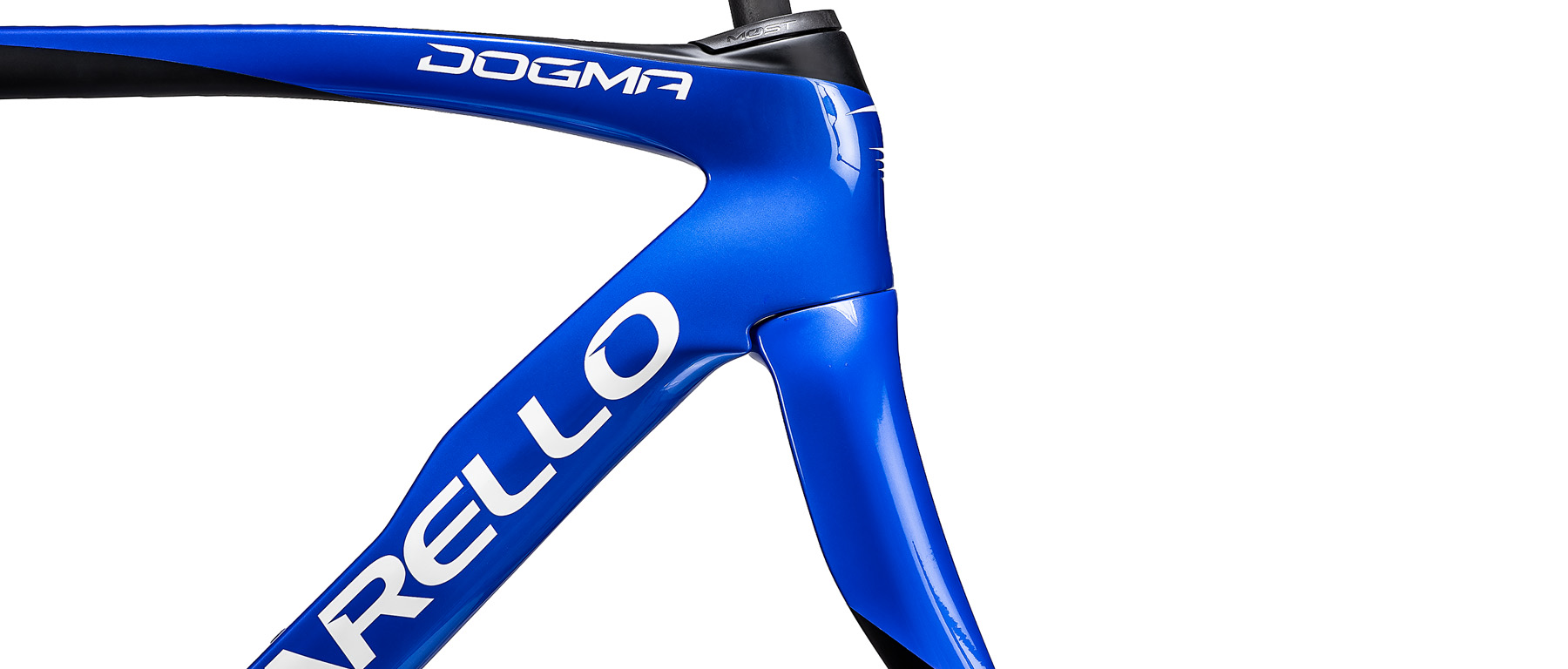

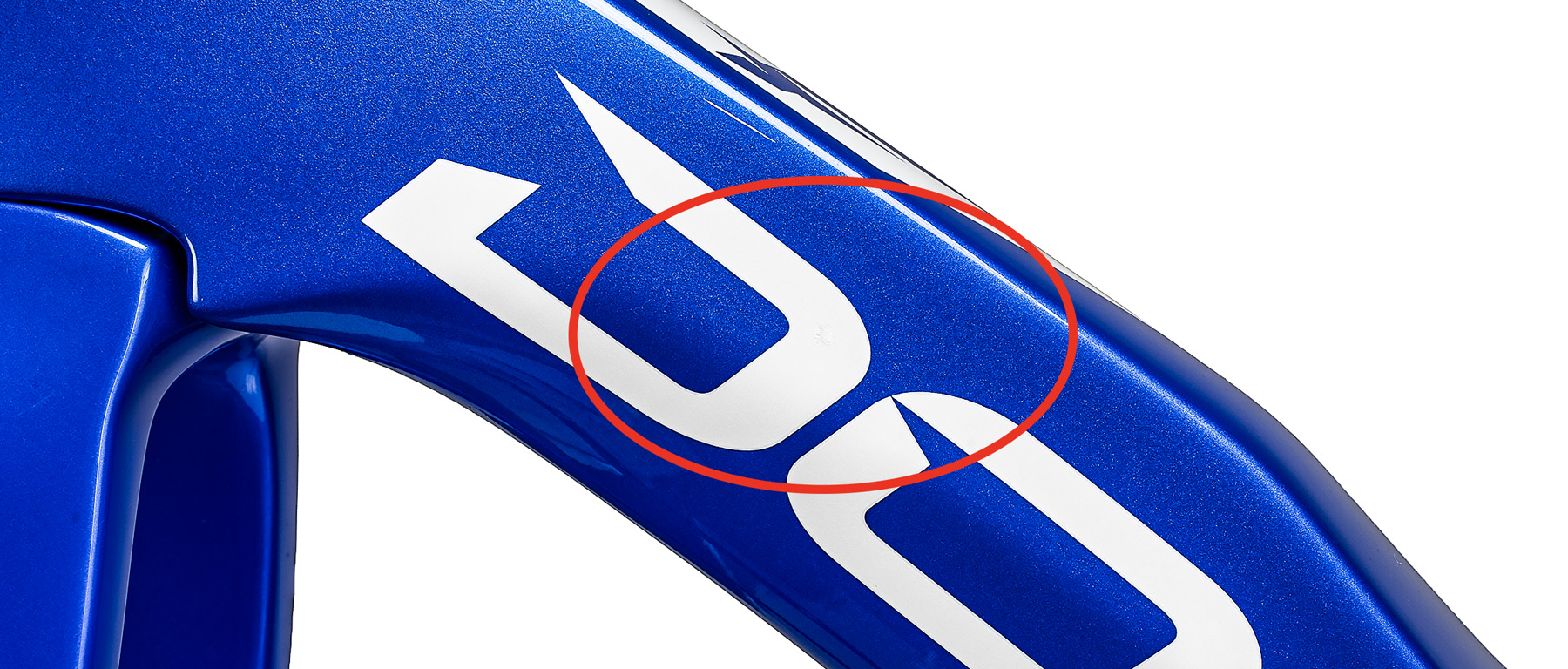

The Dogma F featured here is a sample frameset, and was never built or ridden. There are a few small cosmetic blemishes, but it is in perfect working order. On the drive side, the "N" in the Pinarello logo on the down tube has cracking paint and two chipped areas. The front "P" on the head tube has a scratch near the top of the blue section. On the non-drive side, the "D" in the logo shows a small defect where the clearcoat has been damaged. These blems are cosmetic only and do not affect structural integrity. This factory authorized sale on the Dogma F frameset comes with a full manufacturer's warranty.

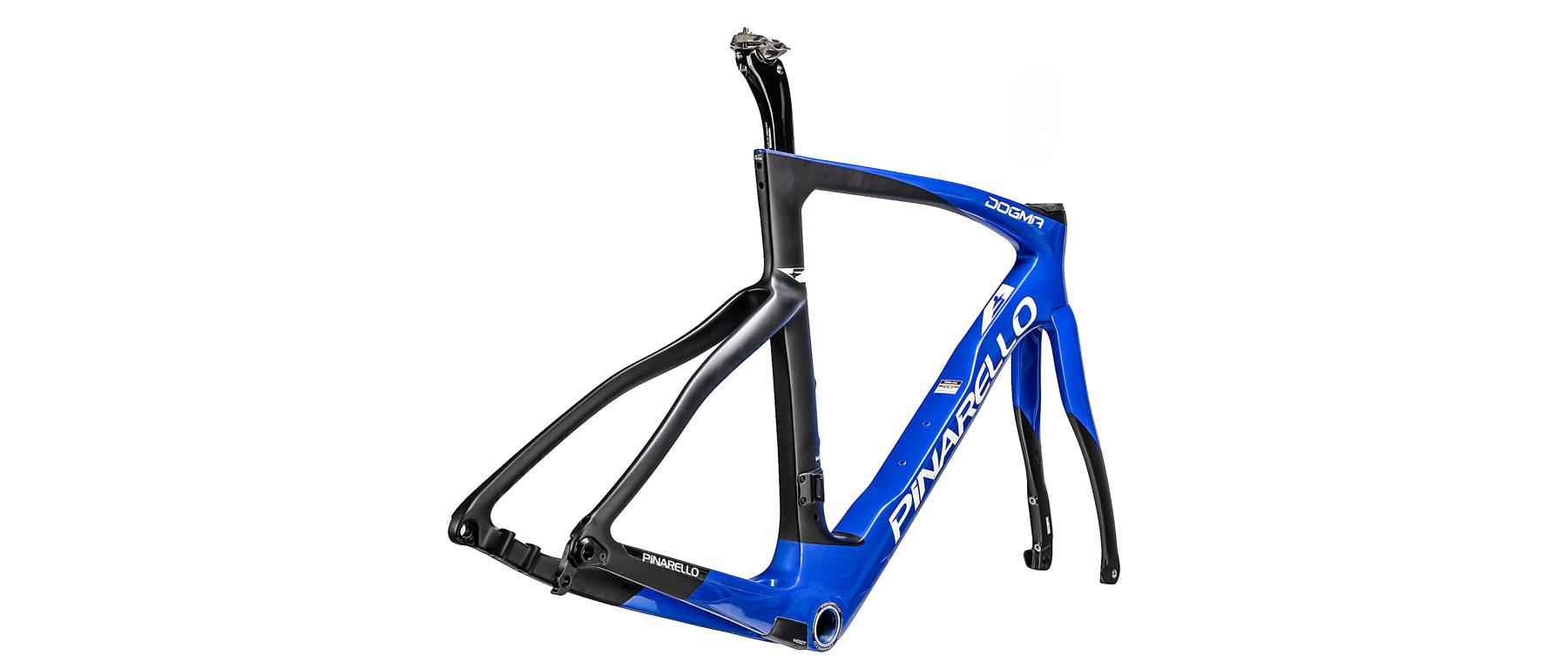

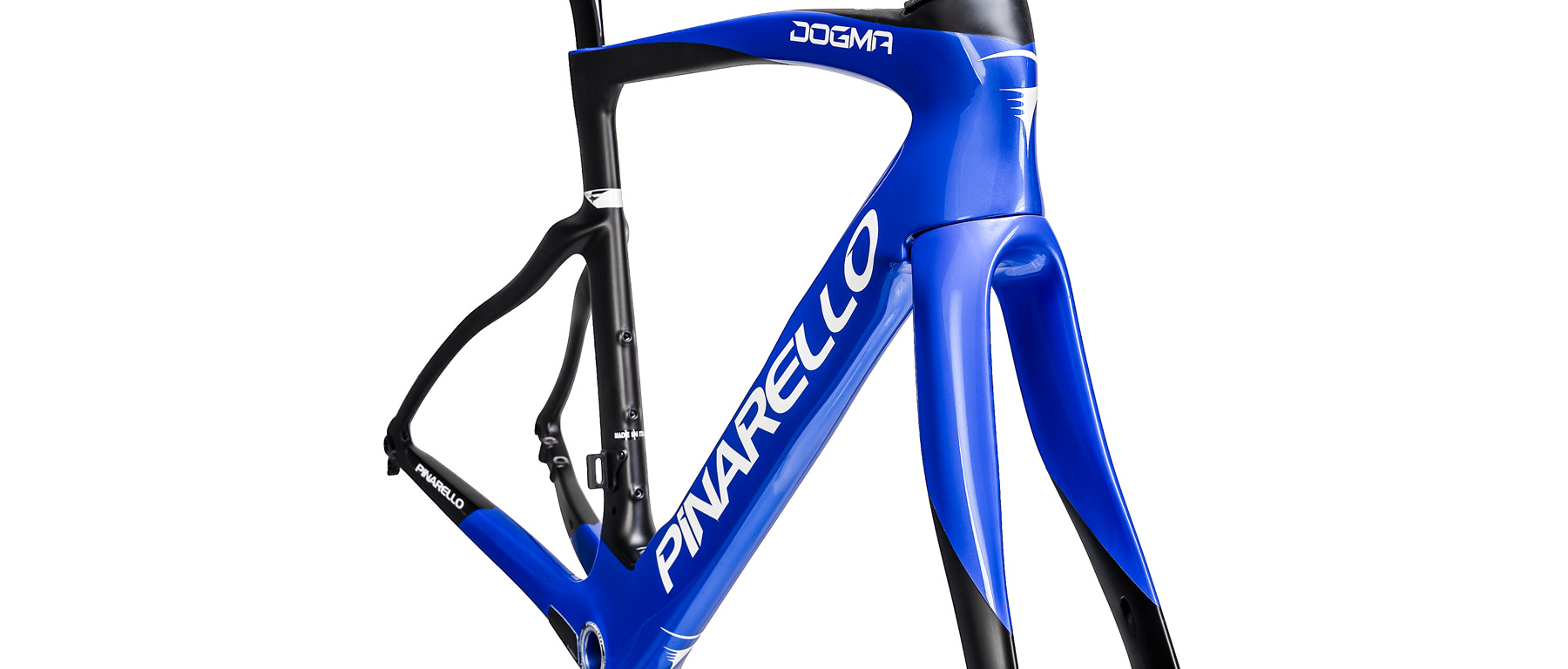

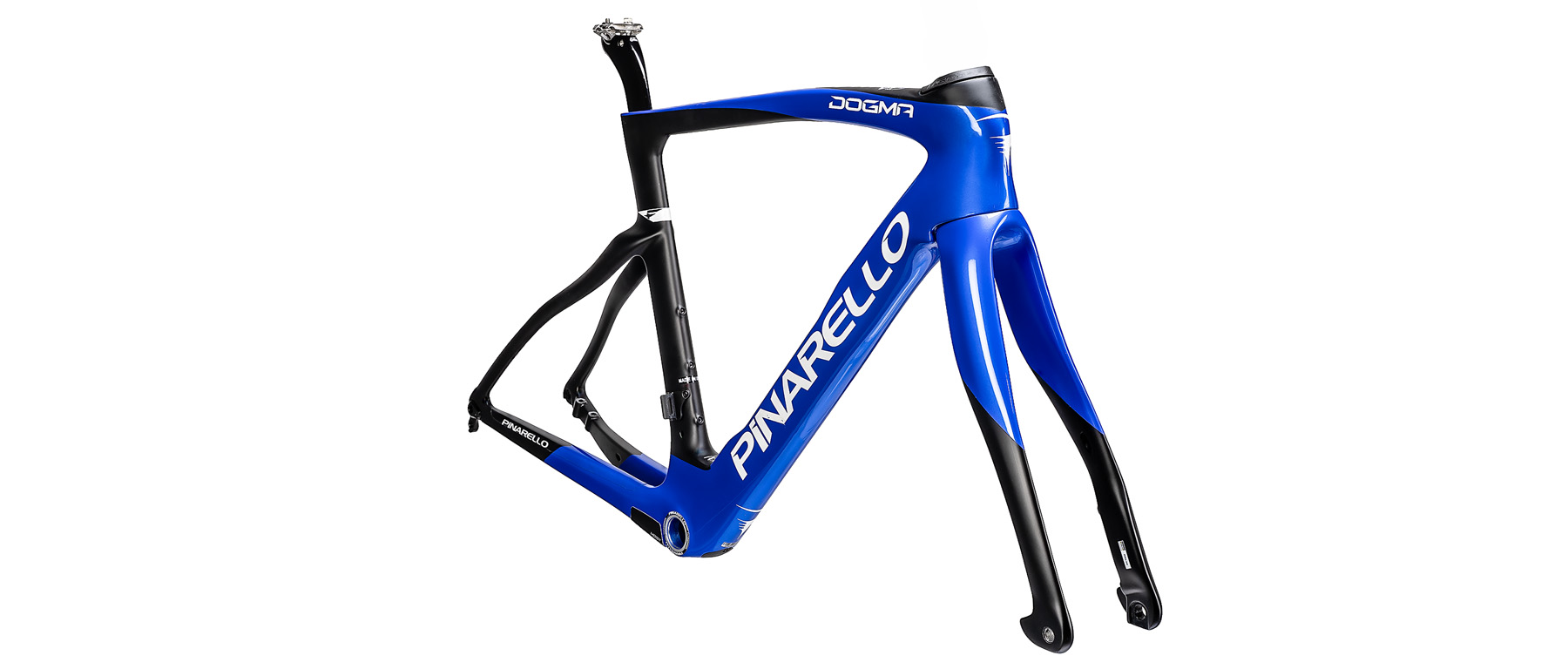

Thirteen Grand Tour general classification victories arrived on some version of a Pinarello Dogma. That lineage carries tangible engineering DNA, and the Dogma F frameset is the expression of it: Torayca T1100 1K Dream Carbon with Nanoalloy Technology, shaped by asymmetric TwinForce construction and refined through seasons of INEOS Grenadiers race data.
The frame routes cables internally through Pinarello's TiCR system, which accommodates electronic drivetrains only. Shimano Di2, SRAM AXS, and Campagnolo EPS all work here, but mechanical shifting does not. That distinction matters before you plan a build. The Italian-threaded bottom bracket shell accepts standard Italian-thread cups, and the Flat Mount disc brake interface pairs with 12x100mm front and 12x142mm rear thru-axles. Pinarello's Onda fork with its signature wave-shaped legs includes ForkFlap aero detailing near the dropouts, a design element borrowed from the Bolide time trial platform.... Read More
Features
- Torayca T1100 1K Dream Carbon frame with Nanoalloy Technology

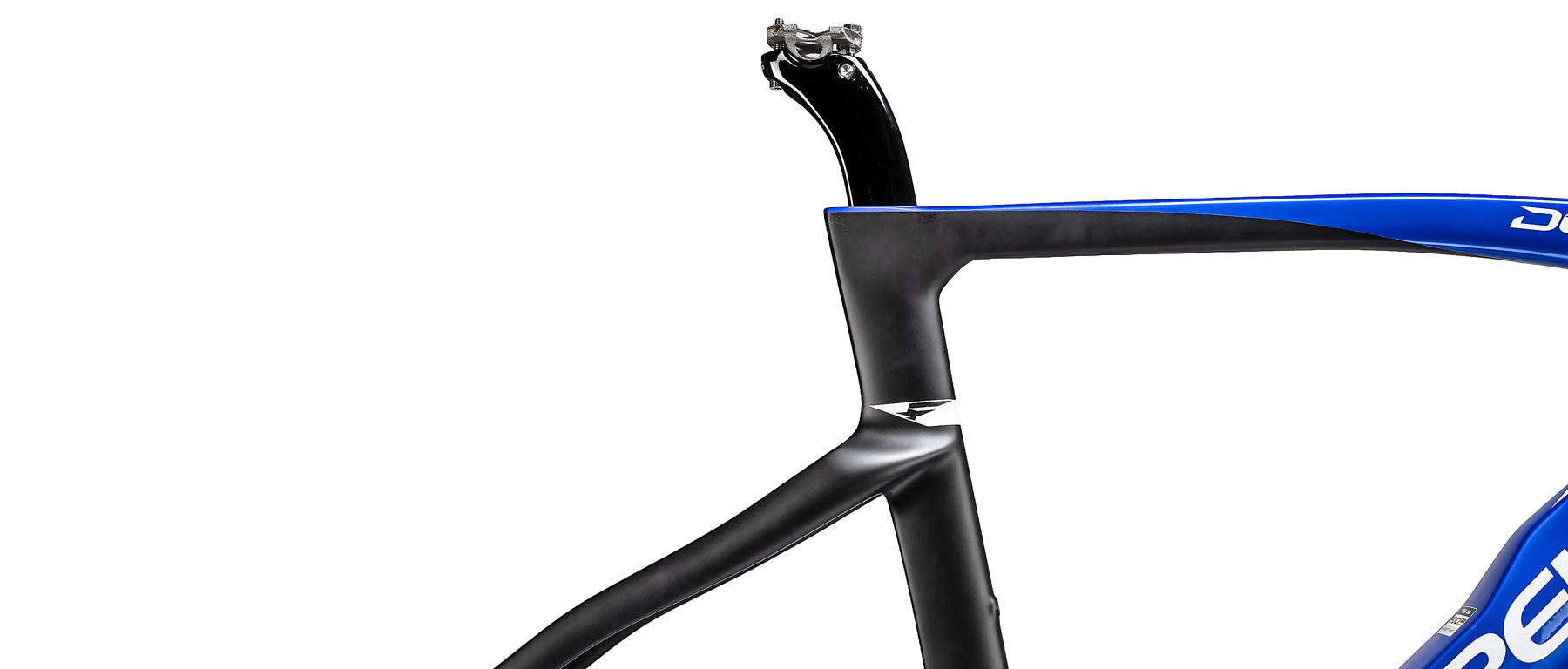

- Asymmetric TwinForce construction with dropped seatstay design
- TiCR internal cable routing for electronic drivetrains only (Di2, AXS, EPS)

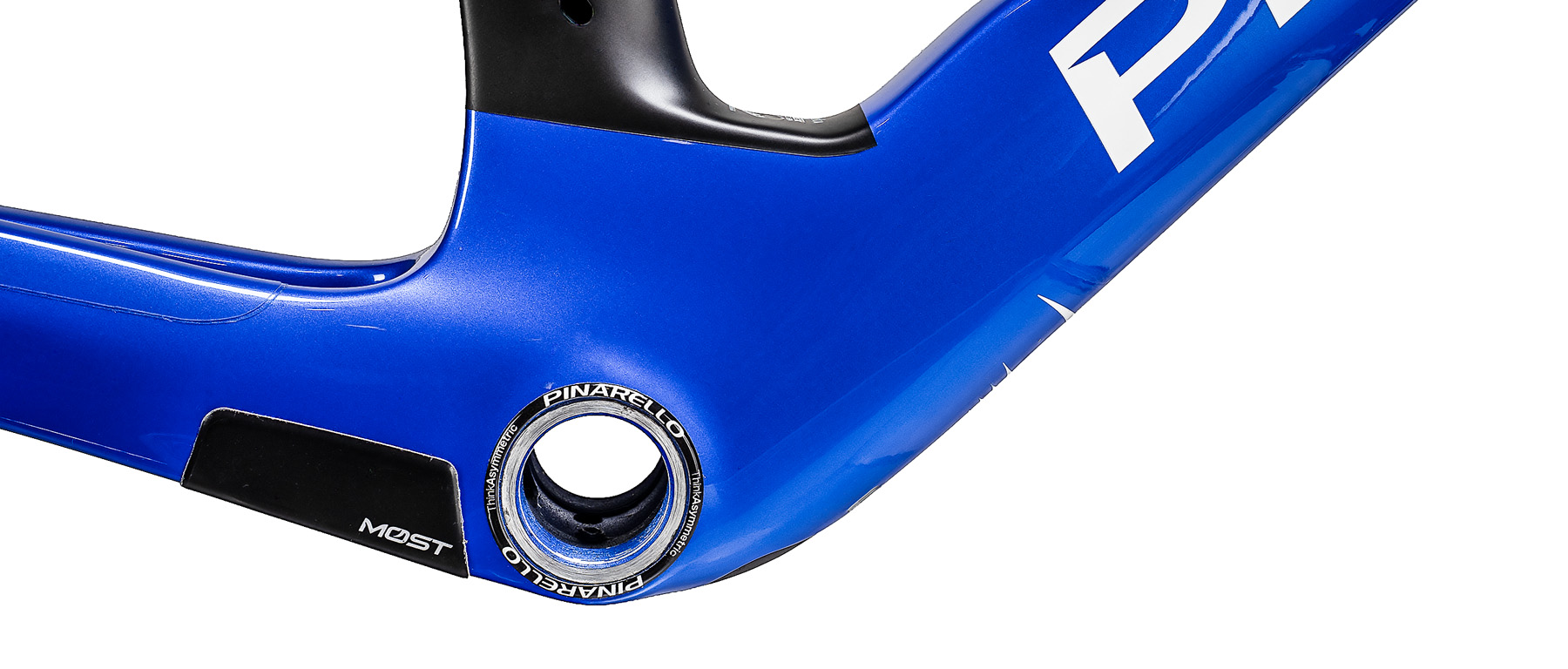

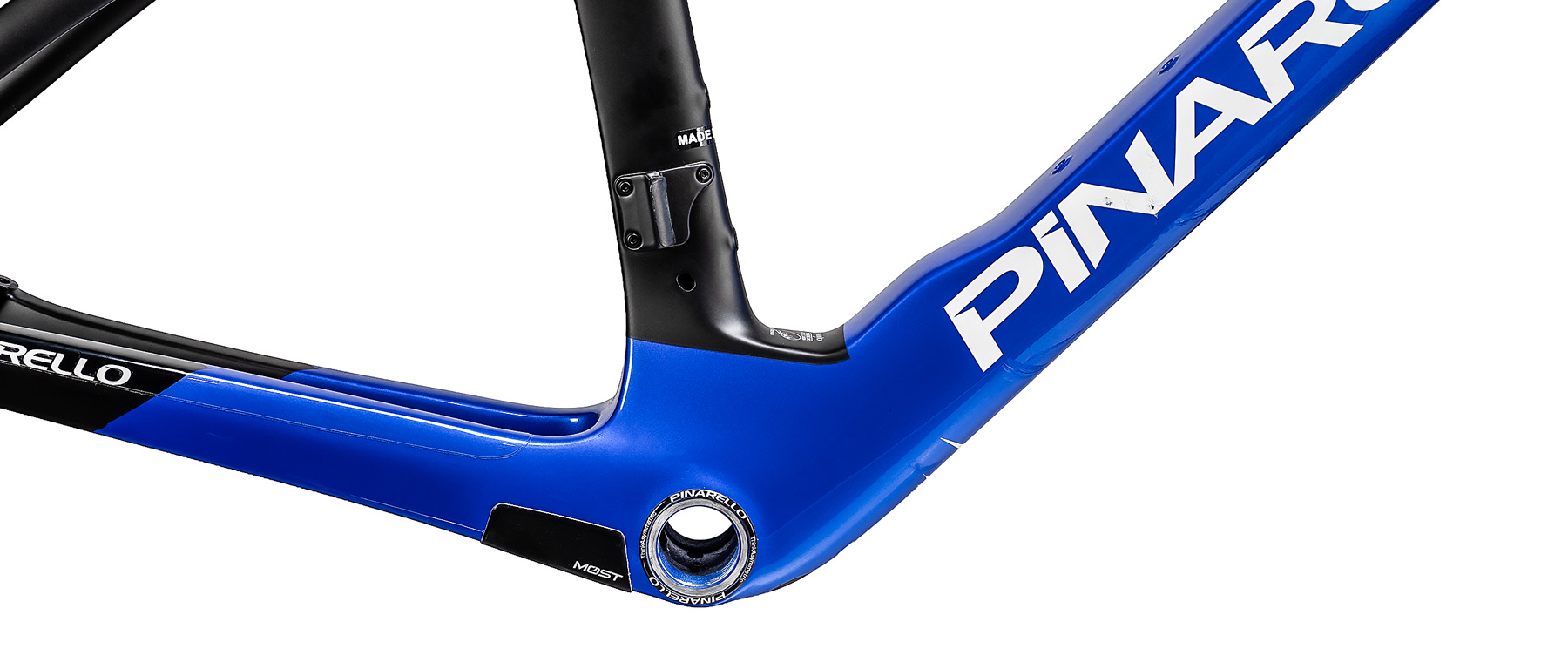

- Italian-threaded bottom bracket shell
- Onda carbon disc fork with ForkFlap aero detailing and round steerer
- Flat Mount disc brake interface
- 12x100mm front and 12x142mm rear thru-axles

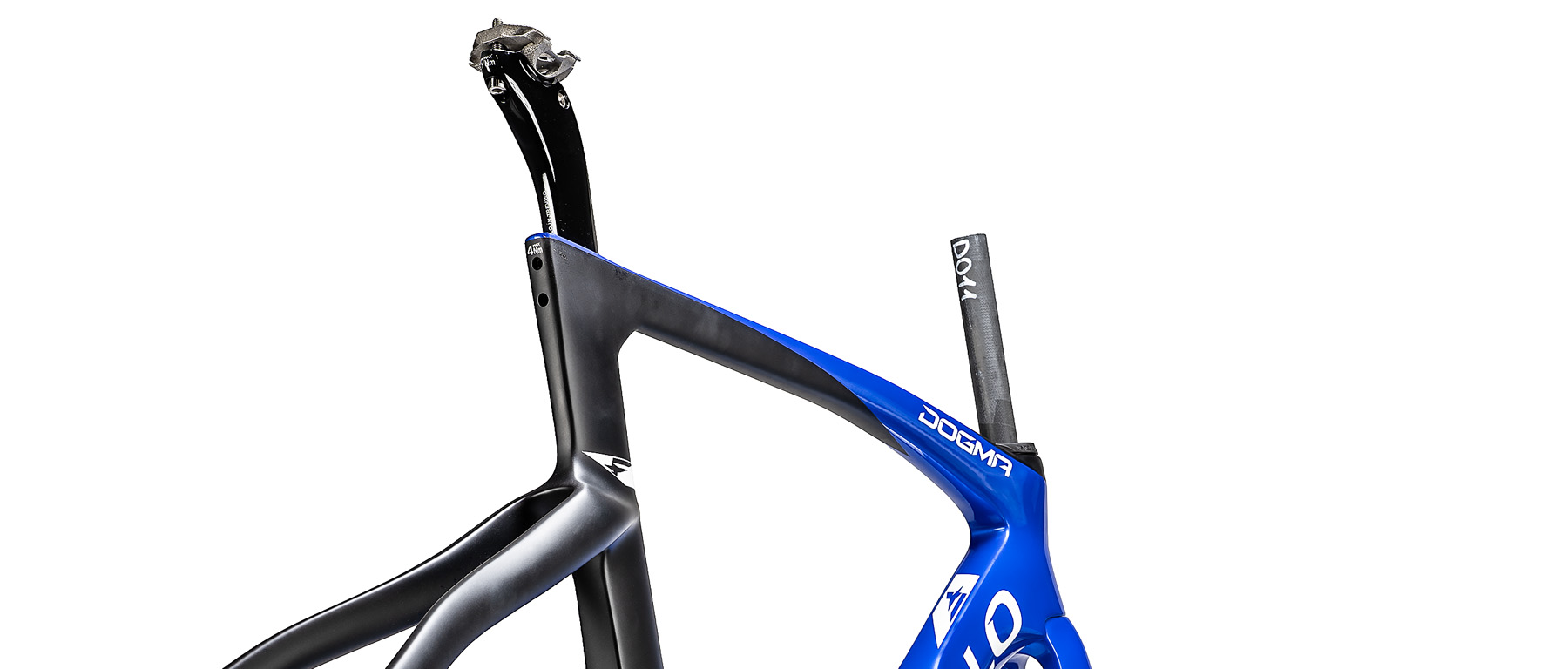

- 3D-printed titanium seat clamp via selective laser melting
- Compatible with Most Talon Ultra Light integrated cockpit (not included)
- Includes aero seatpost, headset, and thru-axles
- 28mm maximum tire clearance
- UCI approved
- 865 grams (size 53, frame only, unpainted)
Geometry
| Size | Top Tube | Seat Angle | Head Angle | Chainstay | Head Tube | BB Drop | Fork Rake | Fork Length | Reach | Stack |
|---|---|---|---|---|---|---|---|---|---|---|
| 53 | 545mm | 73.7° | 72.5° | 406mm | 123mm | 72mm | 43mm | 373mm | 383.3mm | 542.6mm |
