Bicycles > Gravel > Framesets

Description

The Cervelo Aspero gravel race bike hit the market strong, and though it is a race-driven design, the Aspero quickly became the gravel option of choice for a wide range of cyclists, including road riders looking to extend their horizons. With adept handling, great power transfer and a sleek look, the Aspero has been fun, fast, and forward thinking. Still, Cervelo fans, dealers, and pure racers wondered if there was going to be lighter, faster version, which is expressed in Cervelo's world as a 5 bike, such as in S5, R5, P5, Caledonia-5. These models offer real upgrades in terms of reduced weight, greater lateral stiffness, increased emphasis on aerodynamics, and component grades. For all who have been waiting, here it is, the Aspero-5, perhaps the true gravel race version, with higher grade carbon fiber, a new lay-up schedule and major refinements that drive performance higher.

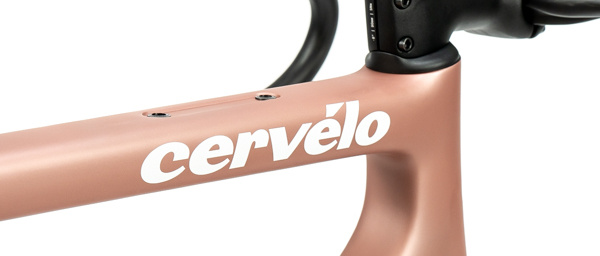

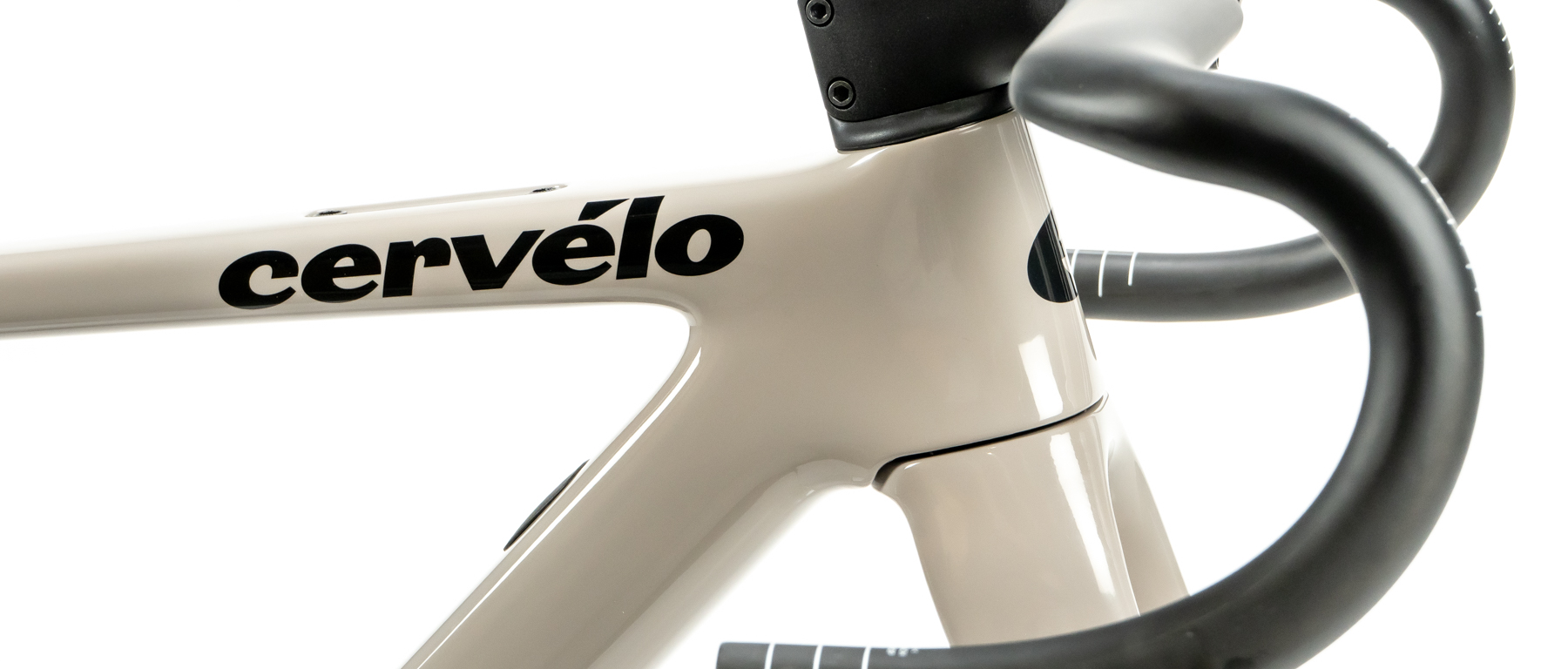

The Aspero-5 Frameset retains the popular, proven Aspero geometry and Trail Mixer fork chip system, as well as an appearance with tube shapes that are largely the same. A closer inspection indicates a fully internal wiring and housing system, and a refined headtube. The Aspero-5 has the D-shaped fork steerer tube design seen on other 5-series bikes, which in combination with the included Carbon AB09 16° Flared Carbon Handlebar and Cervélo ST32 Alloy Stem, work with the steerer and the frame to bring the routing internal from the levers on back. An All-Carbon Tapered Áspero Fork with Adjustable Trail and headtube shape offer refined aerodynamics, enhanced by the internal routing. Not only is a completed bike visually clean- but faster. Cervelo's internal testing measures aero improvement at 32G of reduced drag over the standard Aspero.

Cervelo made some intelligent choices, such as carrying over the 27.2mm round seatpost, which offers the rider more options, including the opportunity to run a dropper post. The Aspero-5 includes the compliant carbon Cervelo SP19 27.2mm seatpost. Again, given this is a race oriented bike, the frame and fork deliver clearance necessary for 650b x 51mm tires, or 700c x 43mm tires with at least 4mm on either side to spare. Cervelo is cognizant that for many of the longest, harshest events were capability and speed must be balanced with bike control, many racers will opt for 650b/27.5" wheels and may also want a dropper post. Is this all riders? No, but the option is there, without weight penalty and it doesn't pertain just to racers. The Aspero has been one of our best selling bike and frame options since it's release and plenty of road riders who just love to tear up gravel, doubletrack and connecting trails run 650b tires. The key is maintaining the proper geometry for excellent handling.... Read More

Features

  • Premium grade gravel race carbon frameset that improves on original design
  • Upgraded carbon fiber, and lay-up schedule for stiffer, faster design with aerodynamic improvements
  • Use of D-shaped, tapered carbon fork steerer design, with included bar & stem for full wire/housing integration including dropper post
  • Change allows for more aero headtube design and reduced drag from integrated routing
  • Lower, more stable road-like feel from overall geometry, chainstay length, BB drop
  • Accepts 700c x 43mm tires / 650b x 51mm tires; minimum 4mm side clearance
  • Trail Mixer fork dropouts can be switched for +/- 5mm selectable fork offset; 62mm optimal Trail
  • Forward position=decreased trail=faster handling | Rearward position=increased trail=slower handling
  • Trail Mixer design maintains BB drop, effective headtube angle in any setting
  • Squoval.Max tube designs, enlarged and enhanced for rough surfaces; fork/downtube integration
  • Large downtube BBright bottom bracket shell transitions deftly into oversized dropped stays
  • Carbon lay-up, round seatpost, larger volume tires contribute to rider comfort
  • 1x/2x compatible, with mechanical or electronic shifting systems; removable braze-on FD mount
  • Frameset includes:
  • Aspero-5 Carbon frame & Carbon, Tapered Áspero-5 Fork with Adjustable Trail
  • Handlebar: Carbon AB09 16° Flared Carbon, 31.8mm
  • Stem: Cervélo ST32 Alloy, 31.8, (for Cervelo D-shaped fork steerer tube, integrated routing)
  • Component specifics by frame size
    • 48cm Bar width: 38c-c, Stem length: 70mm
    • 51cm Bar width: 40c-c, Stem length: 80mm
    • 54cm/56cm Bar width: 42c-c, Stem length: 90mm
    • 58cm/61cm Bar width: 44-c-c, Stem length: 100mm
  • Seatpost: Cervelo SP19 Carbon 27.2mm round (48-54cm Zero offset, 56-61cm, 25mm setback)
  • FSA IS-2 1¼ x 1½" Headset, with Cervelo spacer kit
  • Cervelo DT-style threaded thru-axles: 12/100mm fork, 12/142mm rear
  • Cervelo accessories: Stem Faceplate Computer/Accessory mount, Rear Accessory Mount, and Smartpak 400A Top Tube Storage Bag, Downtube Protector
  • Multiple Colors available
  • Sizes: 48, 51, 54, 56, 58, 61 cm
  • Weight: 924 grams (actual, 54cm bare)
Geometry
Size 48 51 54 56 58 61
Wheel Size 700 700 700 700 700 700
Stack 505mm 530mm 555mm 580mm 605mm 630mm
Reach 370mm 379mm 388mm 397mm 406mm 415mm
Head Angle 71° 71.5° 72° 72° 72° 72°
Seat Angle 74.5° 74° 73.5° 73° 73° 73°
Top Tube Length 512mm 532mm 553mm 575mm 591mm 608mm
Head Tube Length 83mm 107mm 133mm 159mm 188mm 314mm
Standover 690mm 732mm 764mm 788mm 814mm 838mm
Fork Trail 58.6mm 58.6mm 58.6mm 58.6mm 58.6mm 58.6mm
Fork Offset 52mm 49mm 46mm 46mm 46mm 46mm
Bottom Bracket Drop 78.5mm 78.5mm 76mm 76mm 73.5mm 73.5mm
Front Center 583mm 592mm 602mm 619mm 637mm 654mm
Wheelbase 990mm 1000mm 1010mm 1027mm 1046mm 1063mm
Chainstay Length 420mm 420mm 420mm 420mm 420mm 420mm
